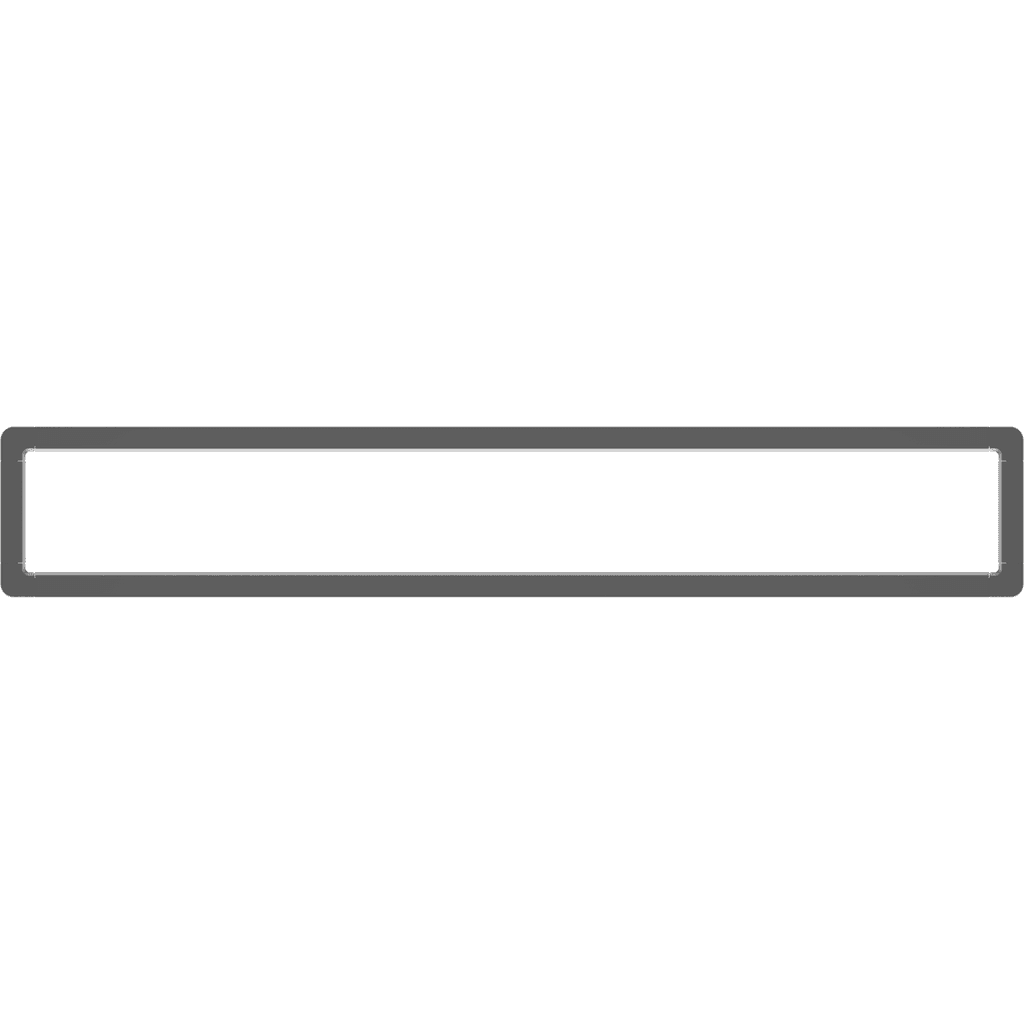

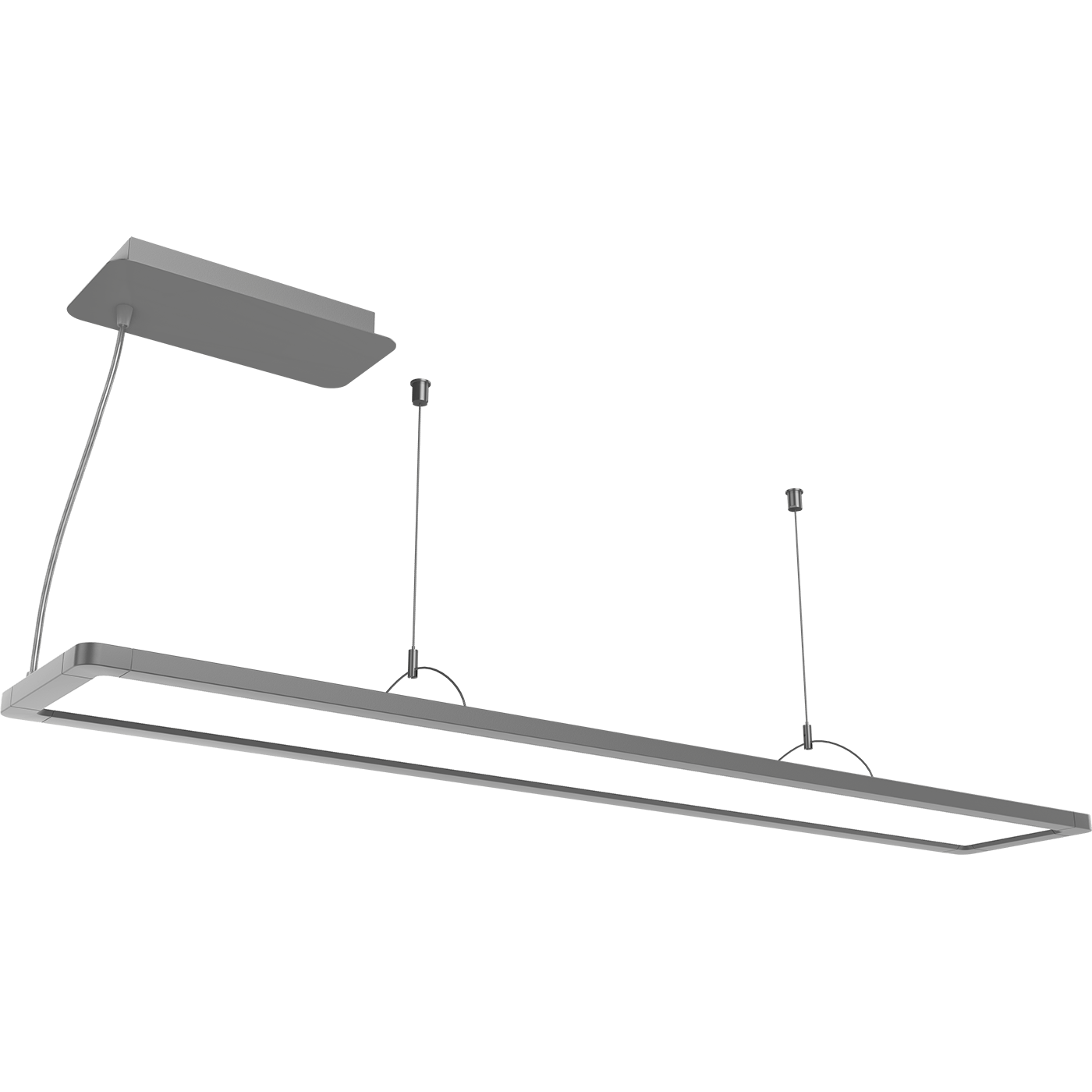

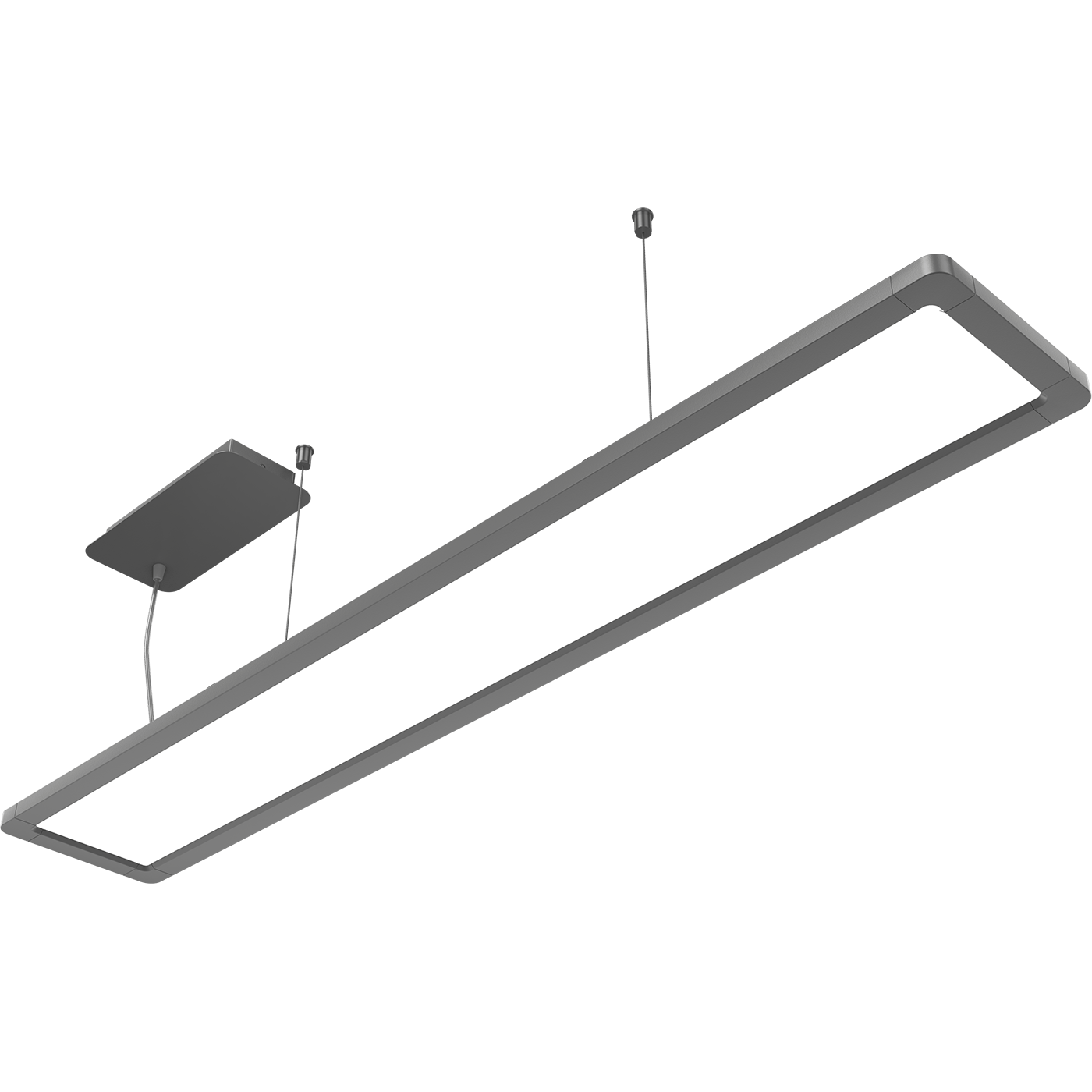

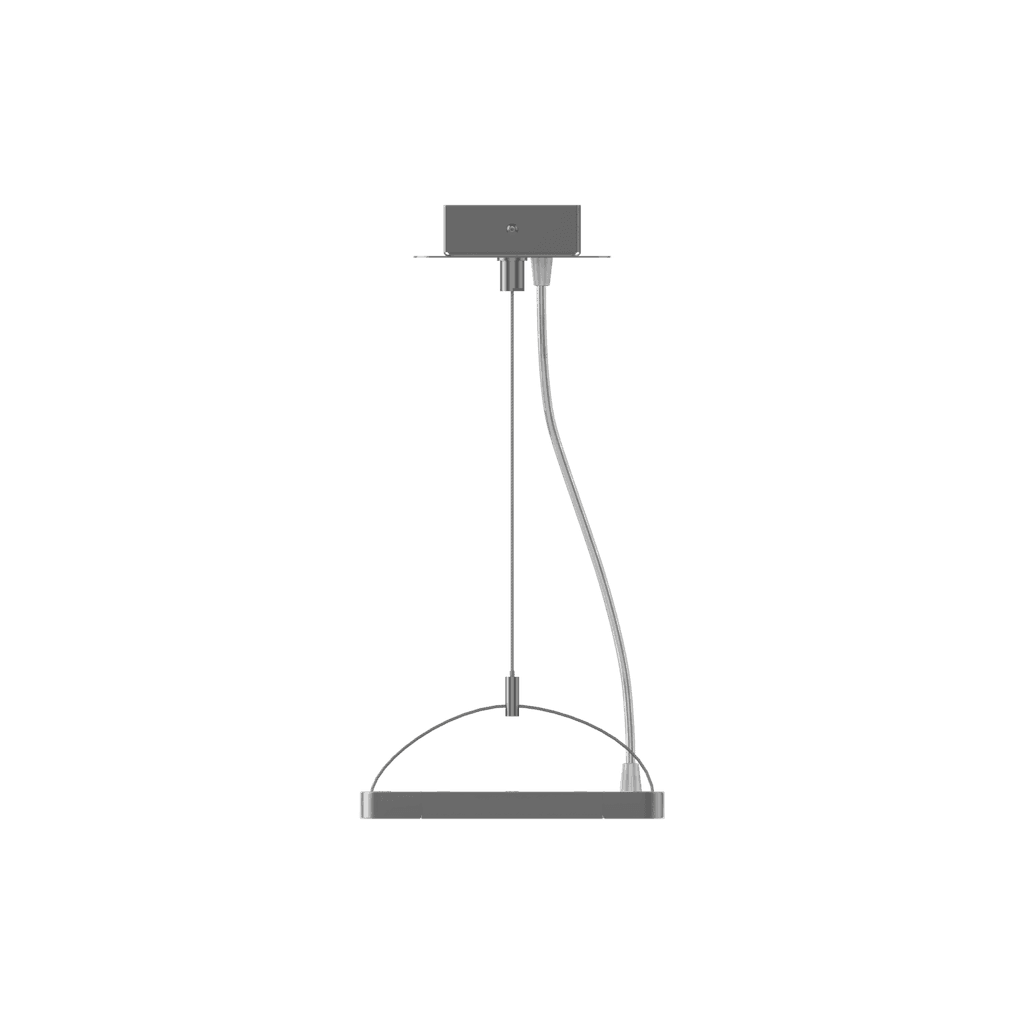

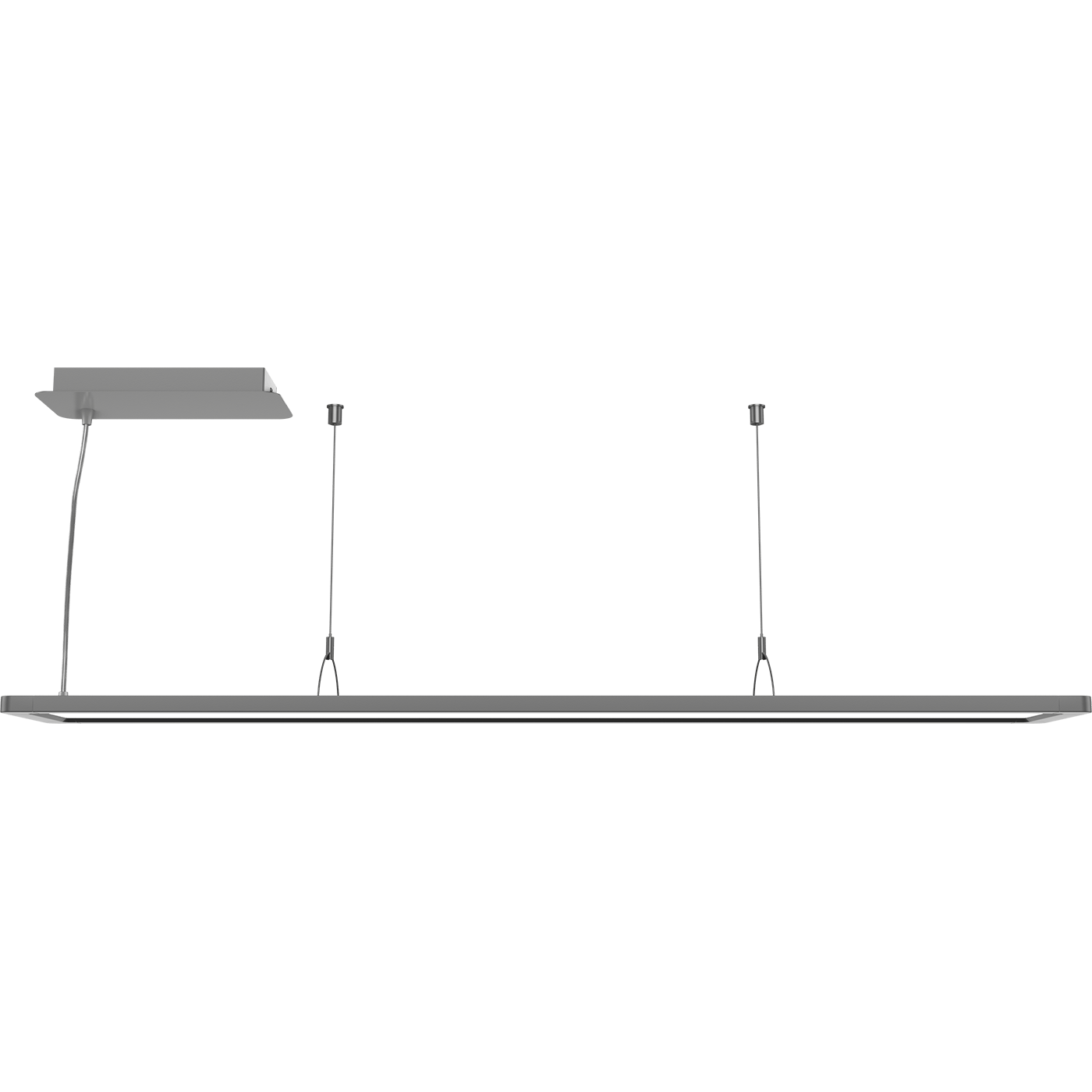

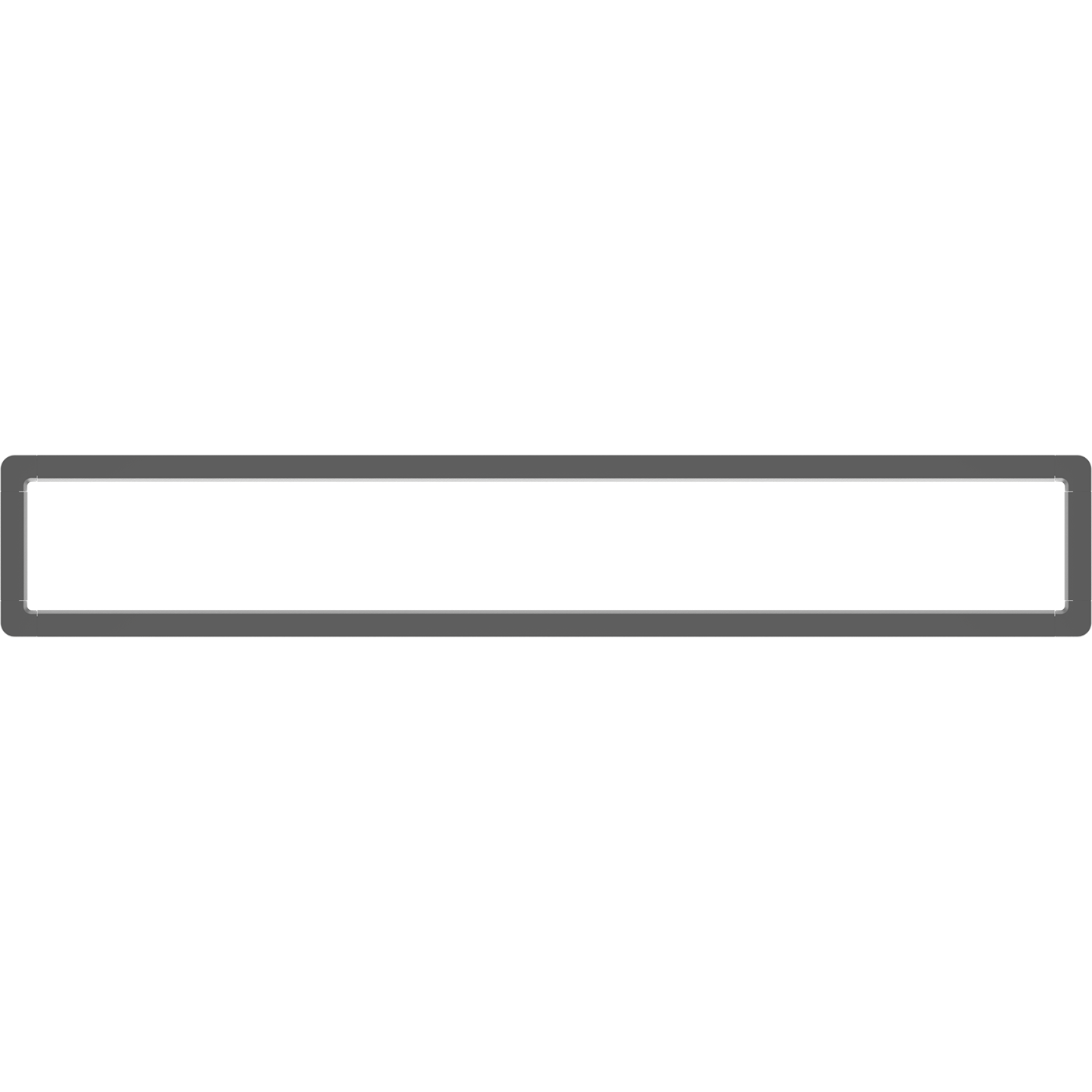

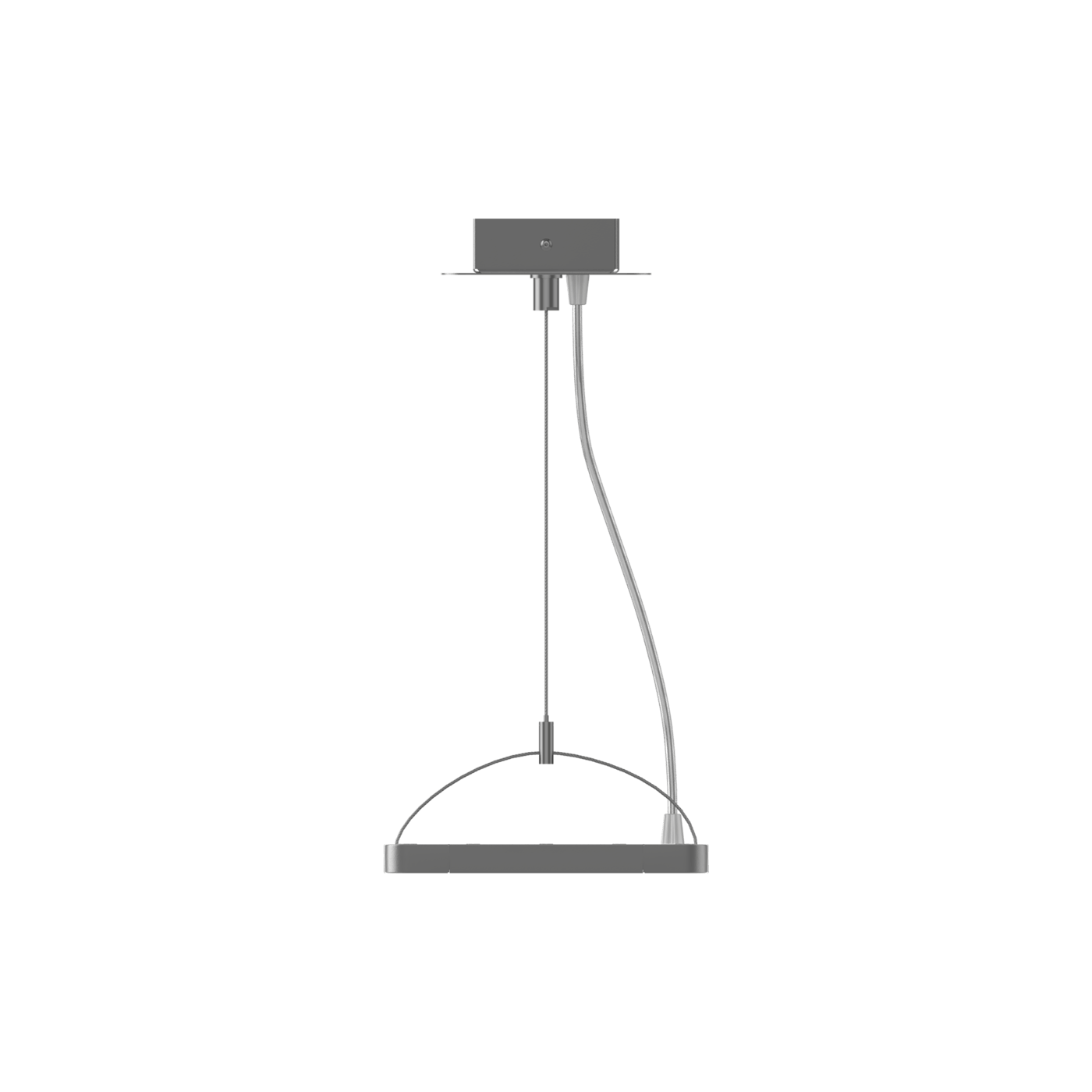

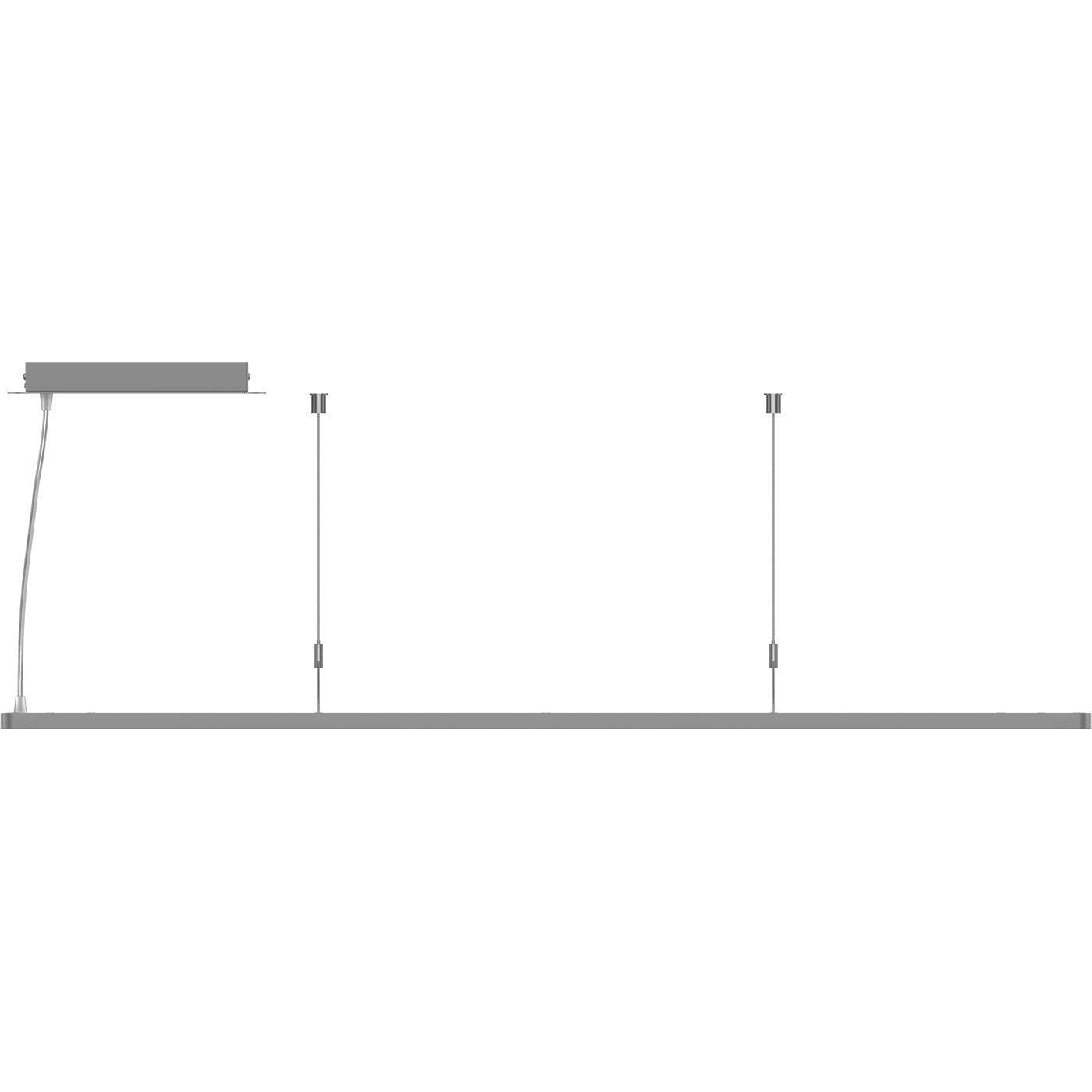

OBLAKO/P LGP (1200x200) OPL 840 SL DALI up/down
OBLAKO/P LGP (1200x200) OPL 840 SL DALI up/down
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1845000010
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
22 Astarting current pulse time, µs
300 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
230-280 Vluminaire power
32 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
22 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
230-280 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40/IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, пластик
weight
4.3 kg
length, mm
1200 mm
width, mm
200 mm
height, mm
18 mm
housing color
Металлик
installation length, mm
450 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1845000010
illuminating
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<5%
energy efficiency
100 lm/W

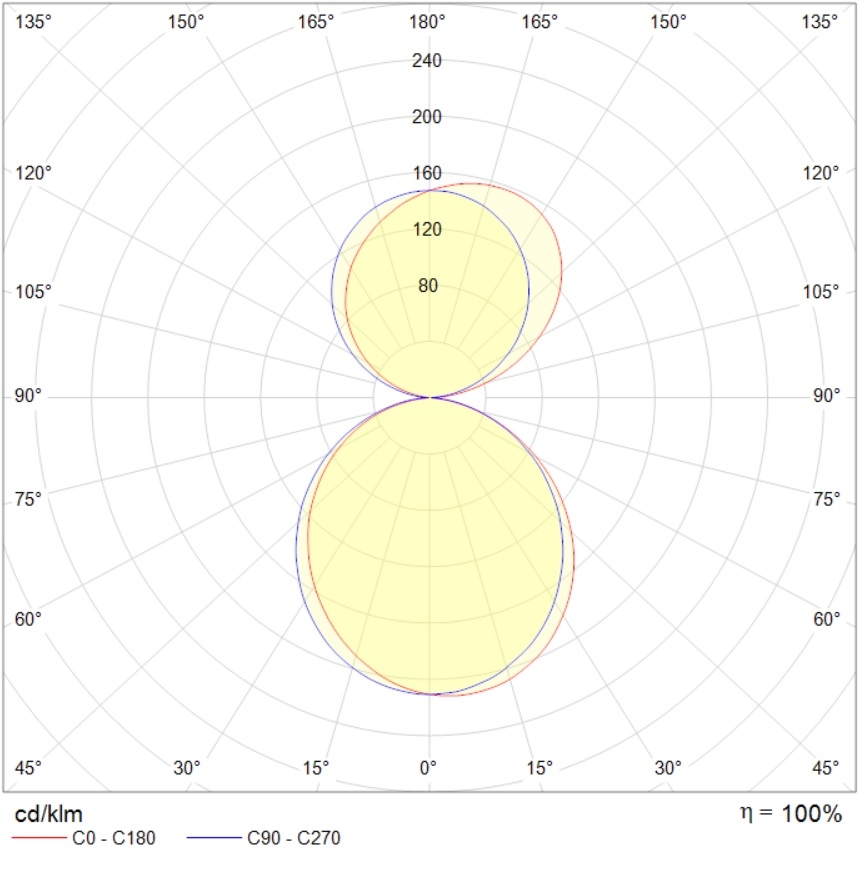

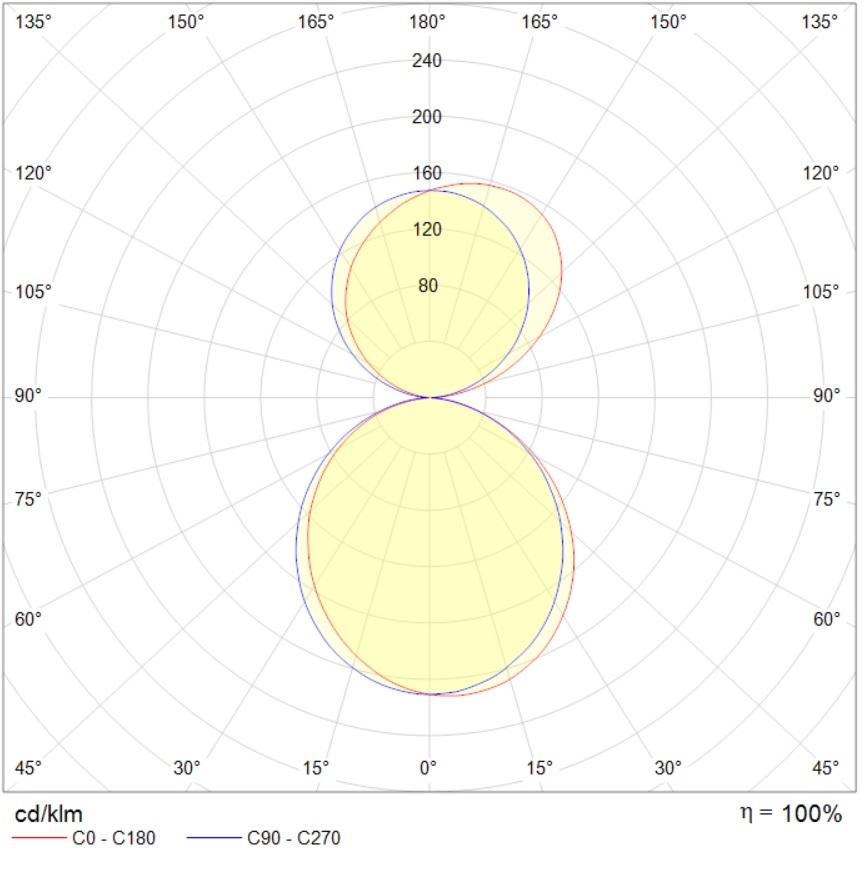

beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
documents
сертификаты
documents
passport945 kB
сертификаты
Russian origin275.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
