Office and warehouse complex, Triol Group

Russia, Moscow

Triol Group's office and warehouse complex is located in the Sokolovo village, Shchelkovo district of Moscow region. This is a new complex that the group of companies is building for its own needs amid an expansion of the supply of its products to the Russian market. Building 6 offers 15,000 sqm of storages and 5,000 sqm of offices. The ceiling height is up to 12 m. The lighting system was designed by NELIT-SK using the products from Lighting Technologies, that demonstrated the best estimated and actual results.

Office and warehouse complex, Triol Group - проектирование освещения от компании Световые Технологии

task

a:2:{s:4:"TEXT";s:633:"The task was to ensure the standard illumination on the warehouse floor of at least 200 lux and to comply with the requirement of no glare effect for the operators of stackers that remove or lift loads on the upper racks. Lighting Technologies

solution

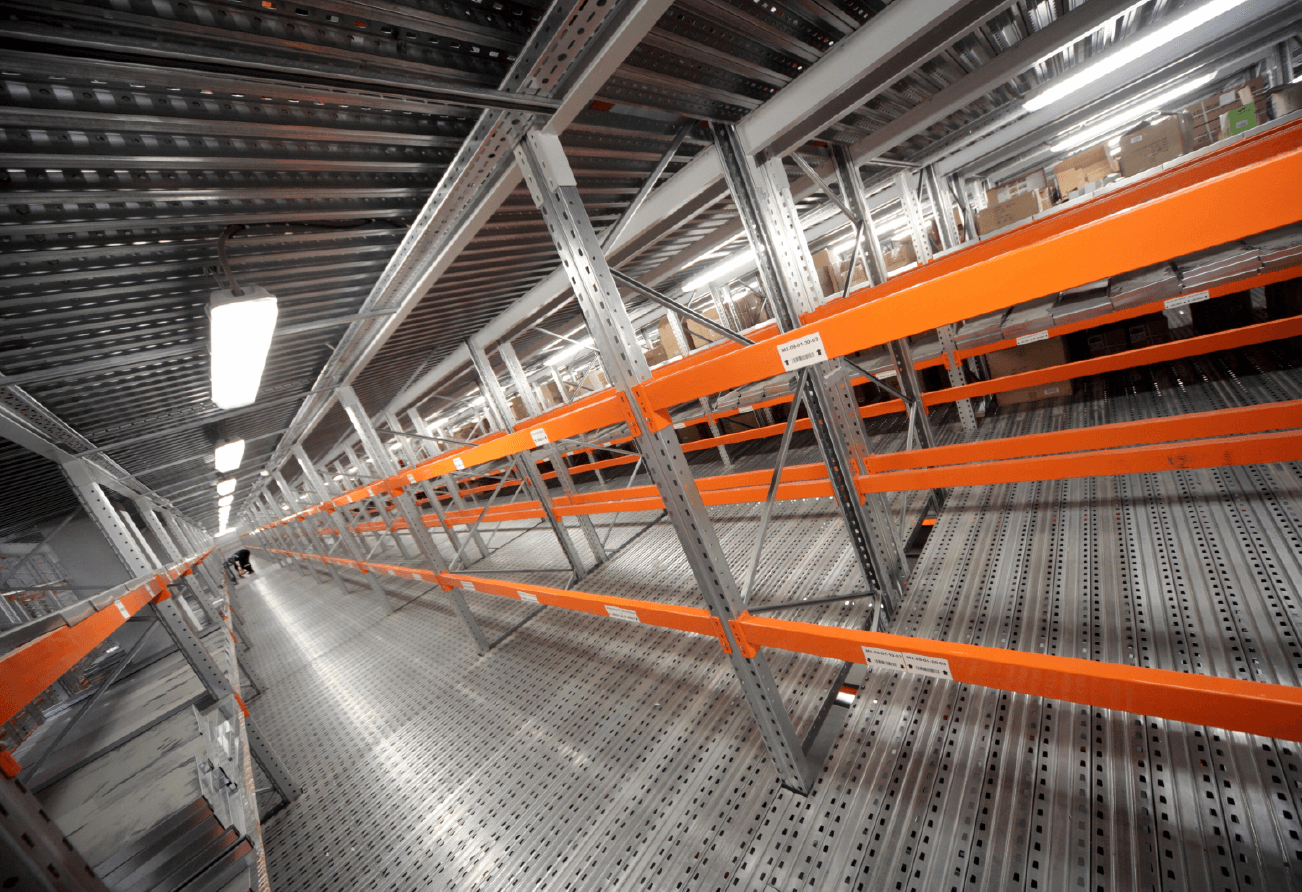

As a result of the lighting calculation, the STOCK ADVANTAGE 280 IP54 HF with tempered glass and STOCK ADVANTAGE 454 IP54 HF with tempered glass luminaires were chosen for the warehouse lighting system. Each type of luminaire is used in a certain area to achieve the characteristics of illumination and uniformity of illumination of surfaces based on specification. The lights allowed to provide standard illumination without shadow zones.The aisles between the tall shelving units were illuminated with the STOCK ADVANTAGE 280 IP54 HF with tempered glass. The free storage areas were illuminated with the ADVANTAGE 454 IP54 HF.As a result, the company achieved the required illumination at floor level of 200 lux with no glare effect.For the office area, OPL/R 418 /595/ HF luminaires were used, which allowed to achieve uniform diffused light and standard illumination on the work surfaces.
