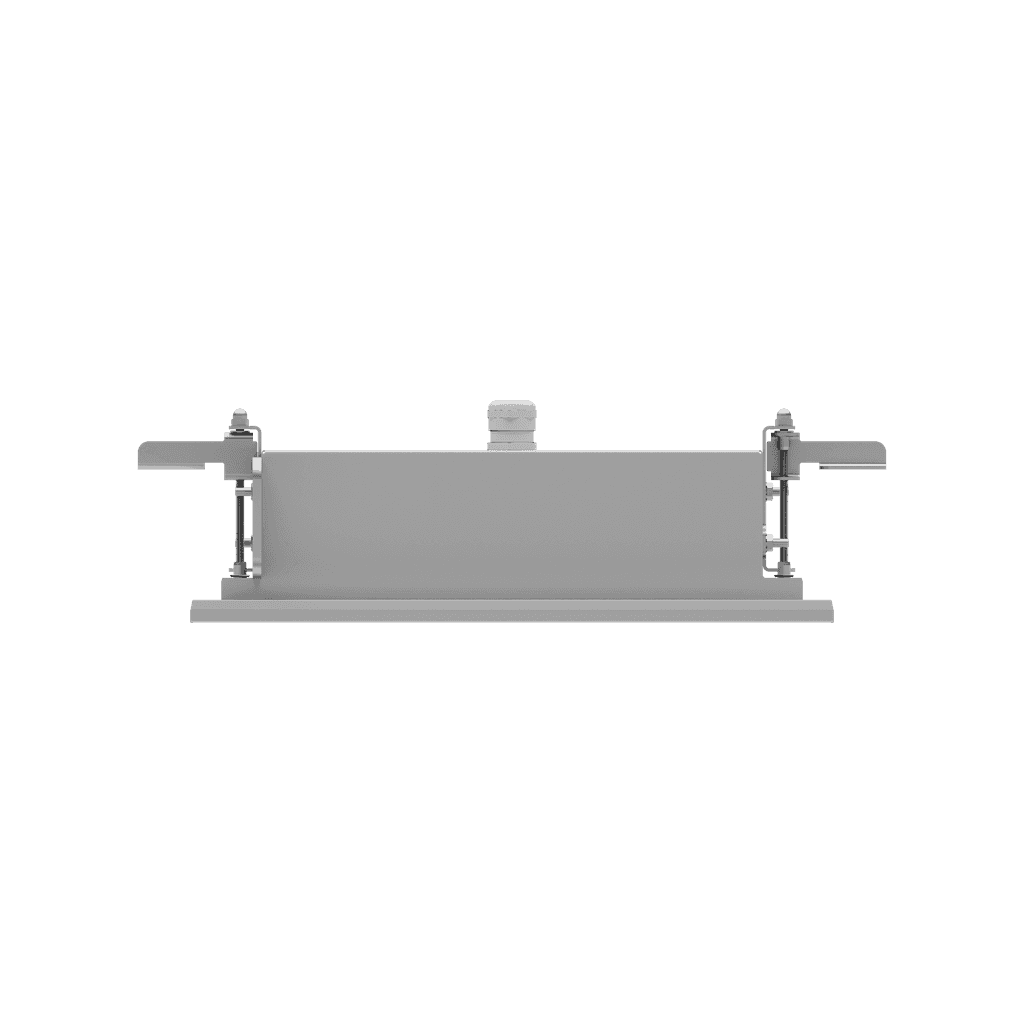

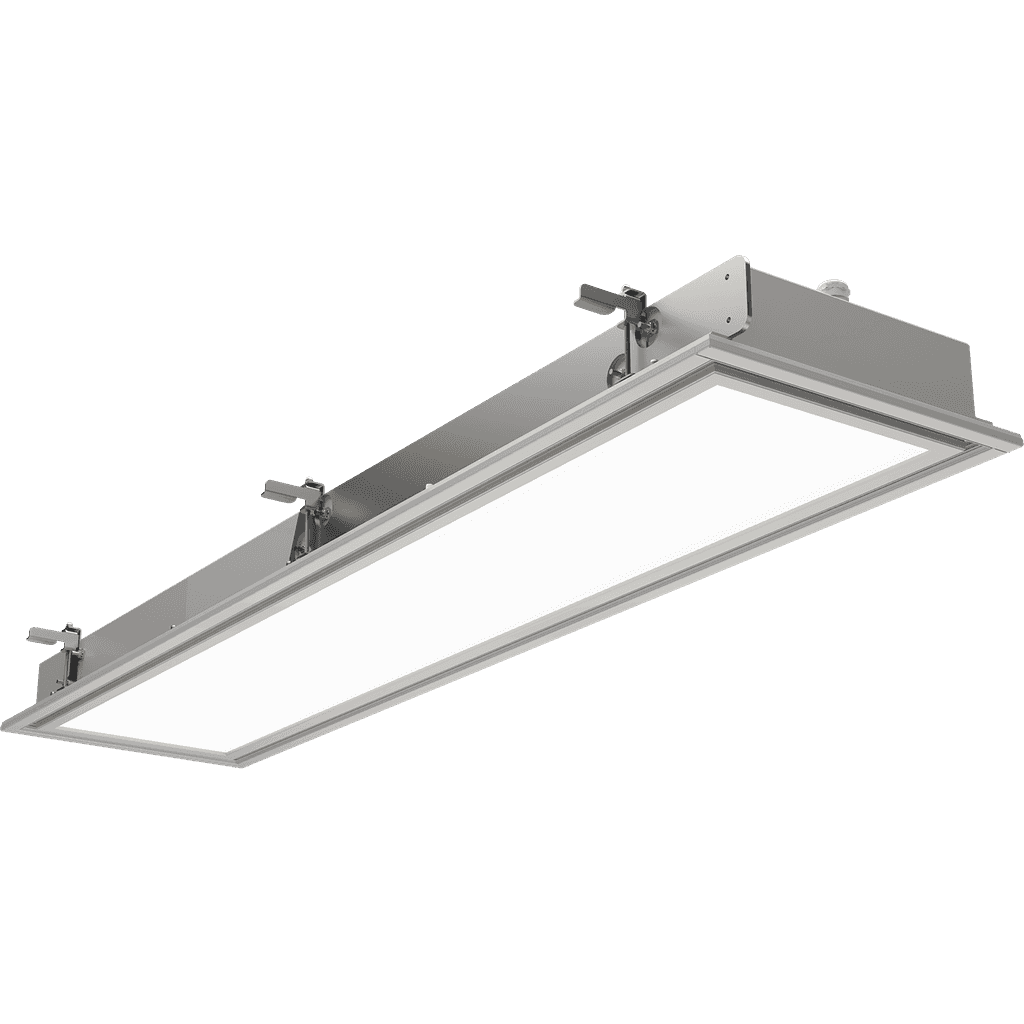

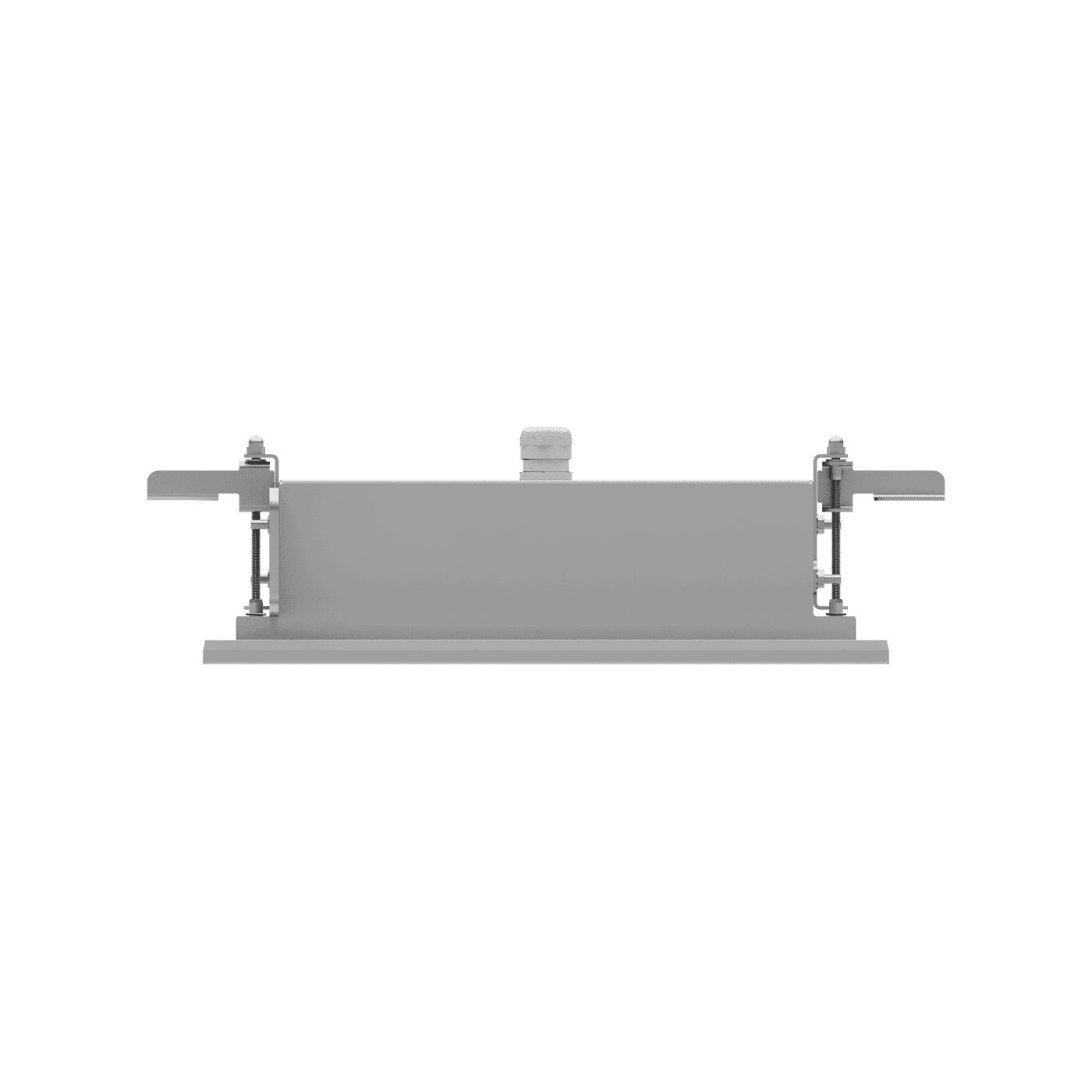

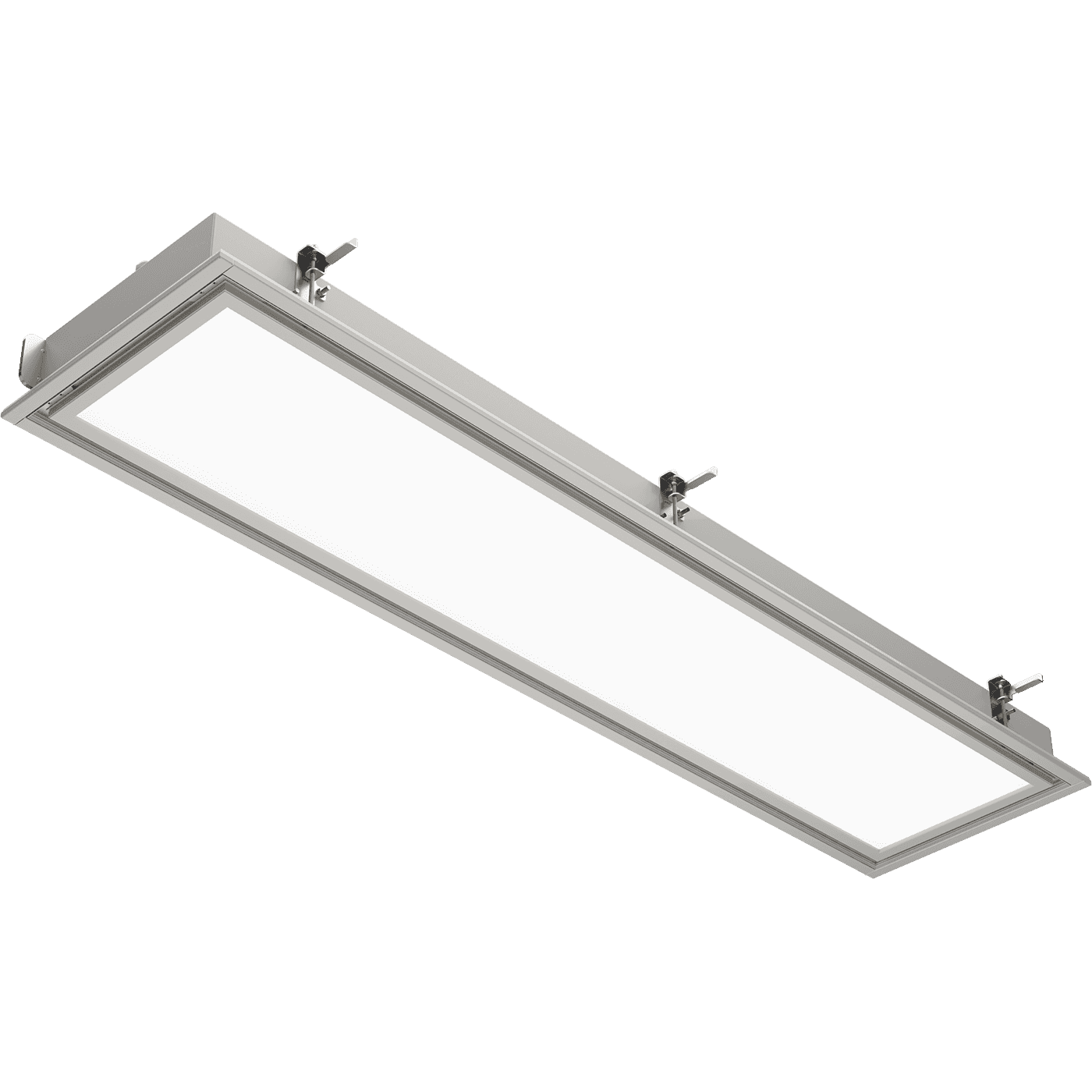

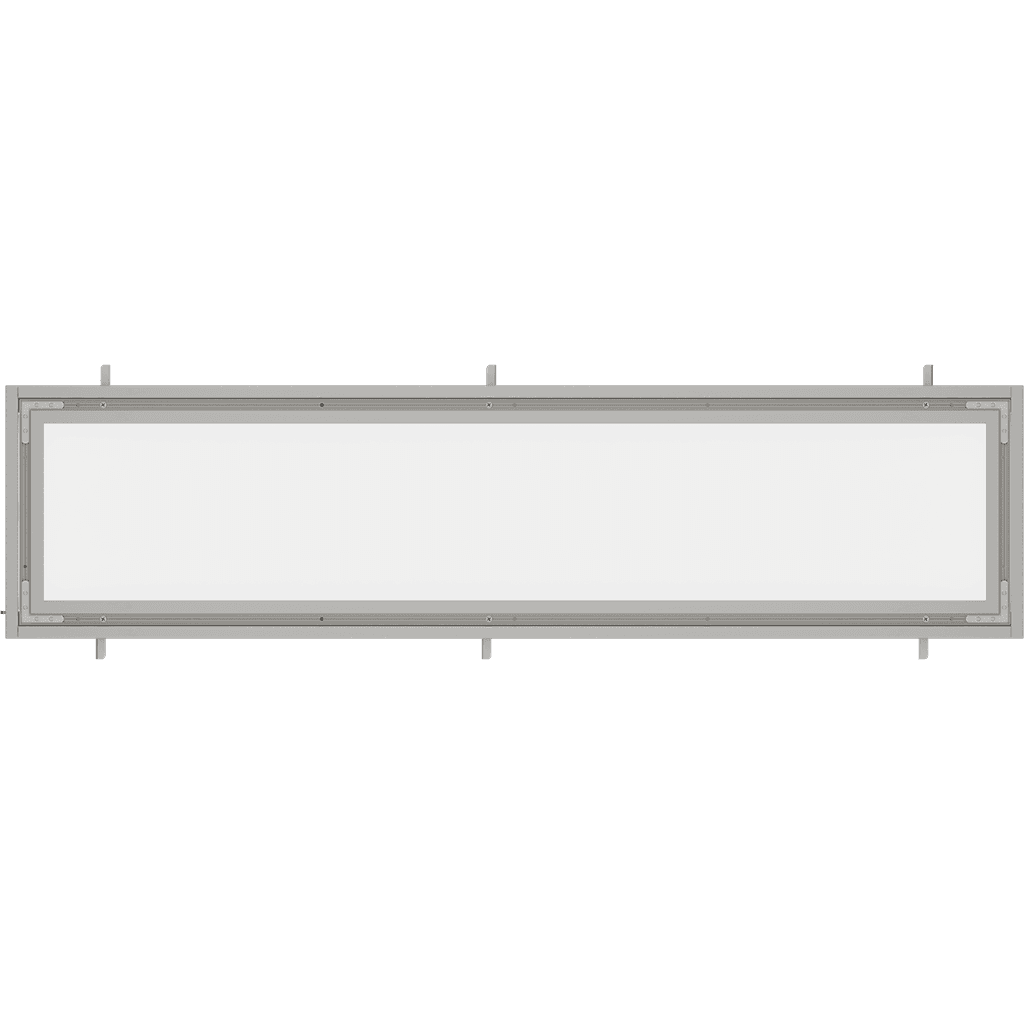

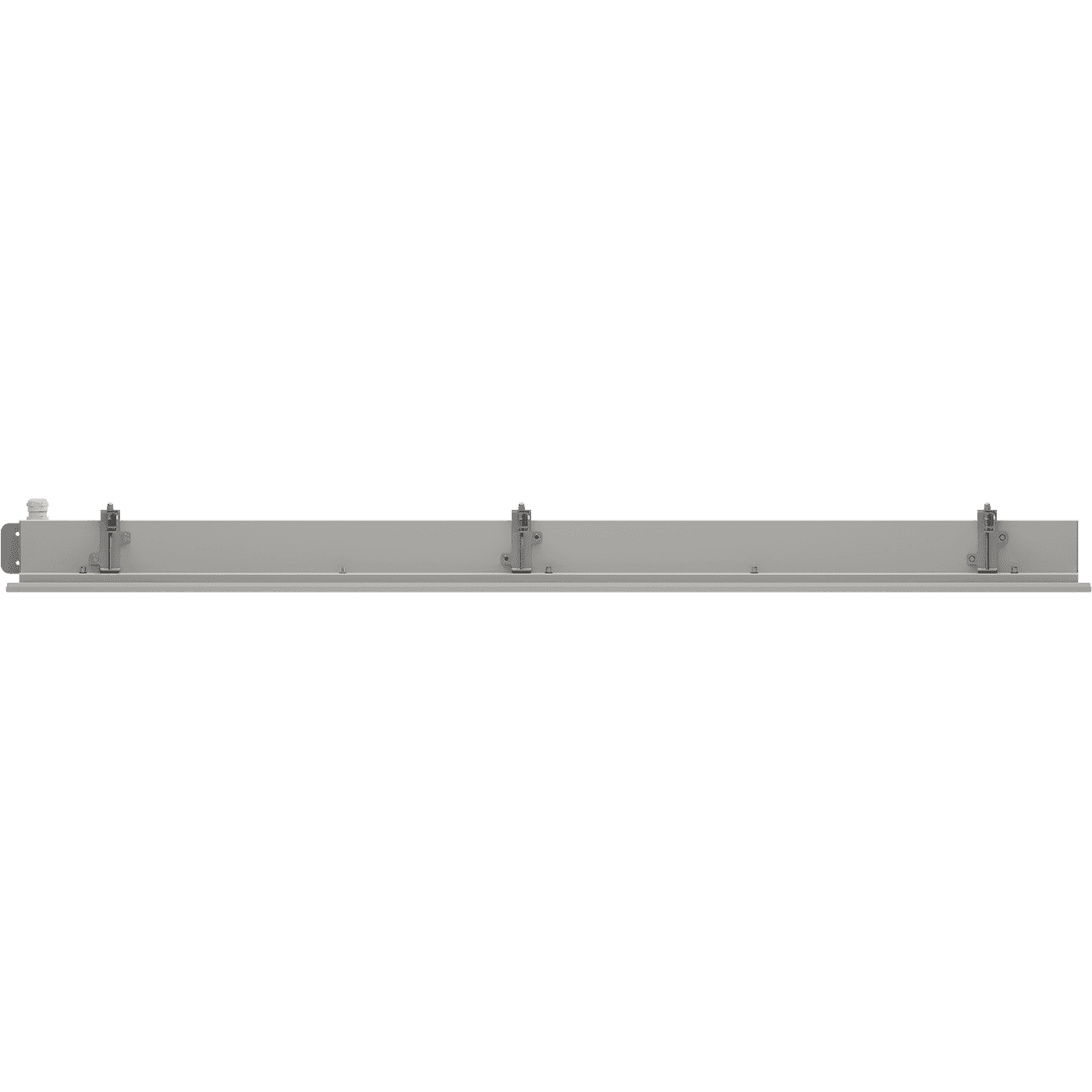

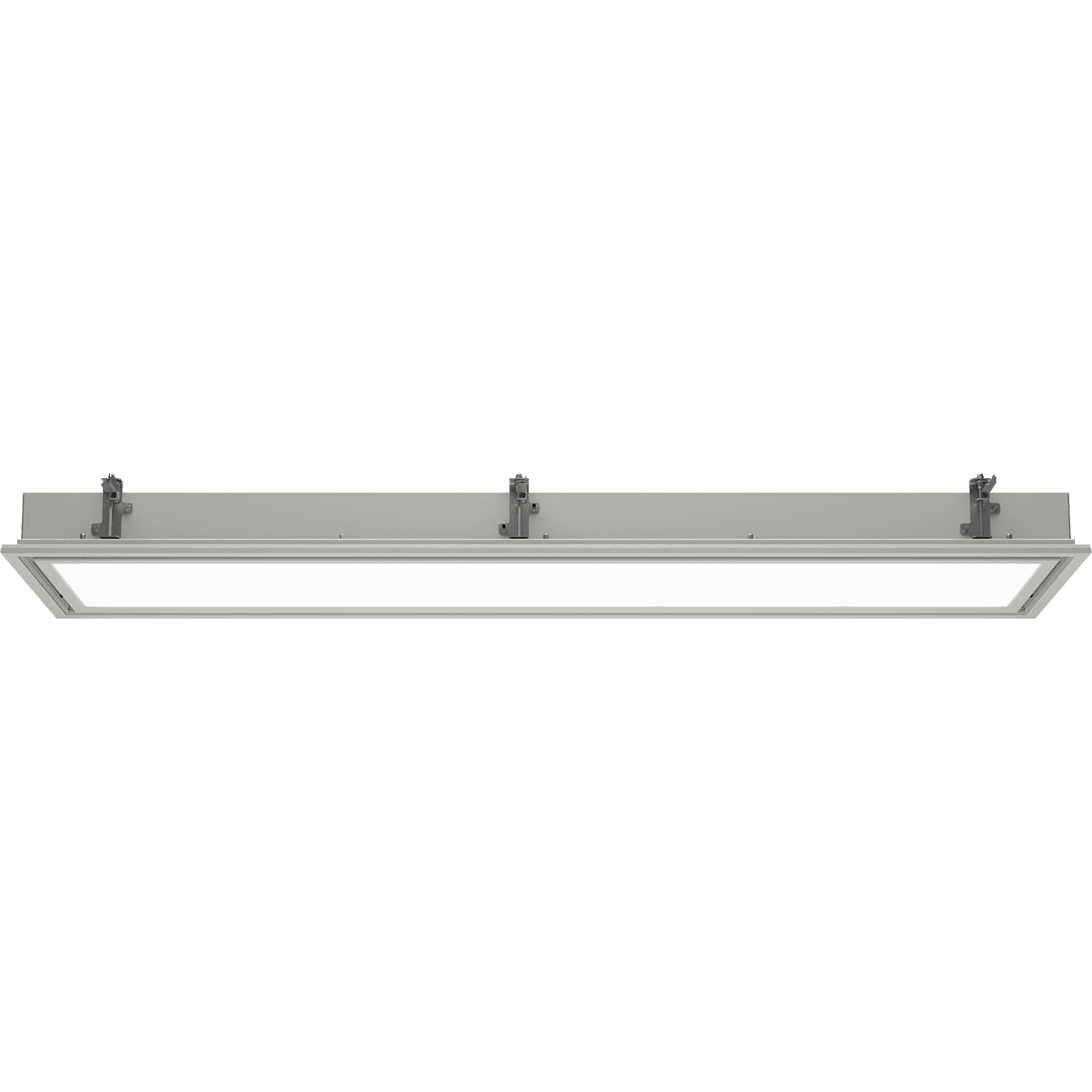

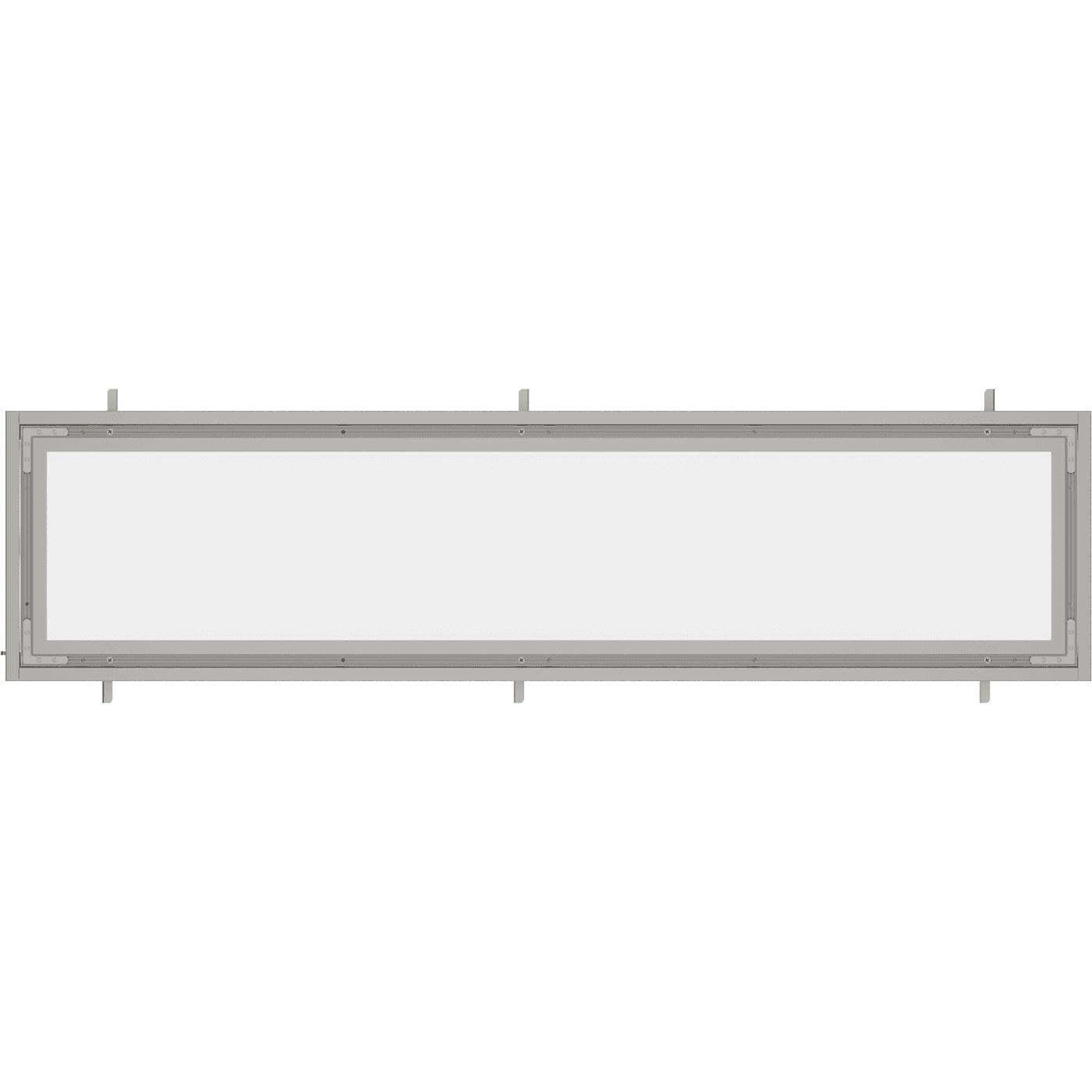

ADV/K 254 /1200x300/ IP65/IP65
_ip65_ip65.jpg&w=1920&q=50)
_ip65_ip65.jpg&w=1024&q=50)
ADV/K 254 /1200x300/ IP65/IP65
108 Wluminaire power
4450 lmlight flow
57 lm/Wenergy efficiency
code1328000190
number of lamps2
performance factor69
options
свернуть все
electricalconstructionalcommonilluminating
starting current
41 Arated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
108 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
41 A
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
108 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP65
climatic performance
УХЛ2
fire safety class
П-I,II,IIa,ІІІ
material
Сталь
weight
9.1 kg
length, mm
1198 mm
width, mm
346 mm
height, mm
105 mm
housing color
Белый
installation length, mm
1170 mm
installation width, mm
270 mm
shock resistance (IK)
IK05/0,7 Дж
lamp socket
G5
number of lamps
2
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
A…A+
service life, hour
30 000 h
code
1328000190
illuminating
light flow
4450 lm
flickering factor
<5%
energy efficiency
57 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS3.6 kB
model 3dMax436 kB

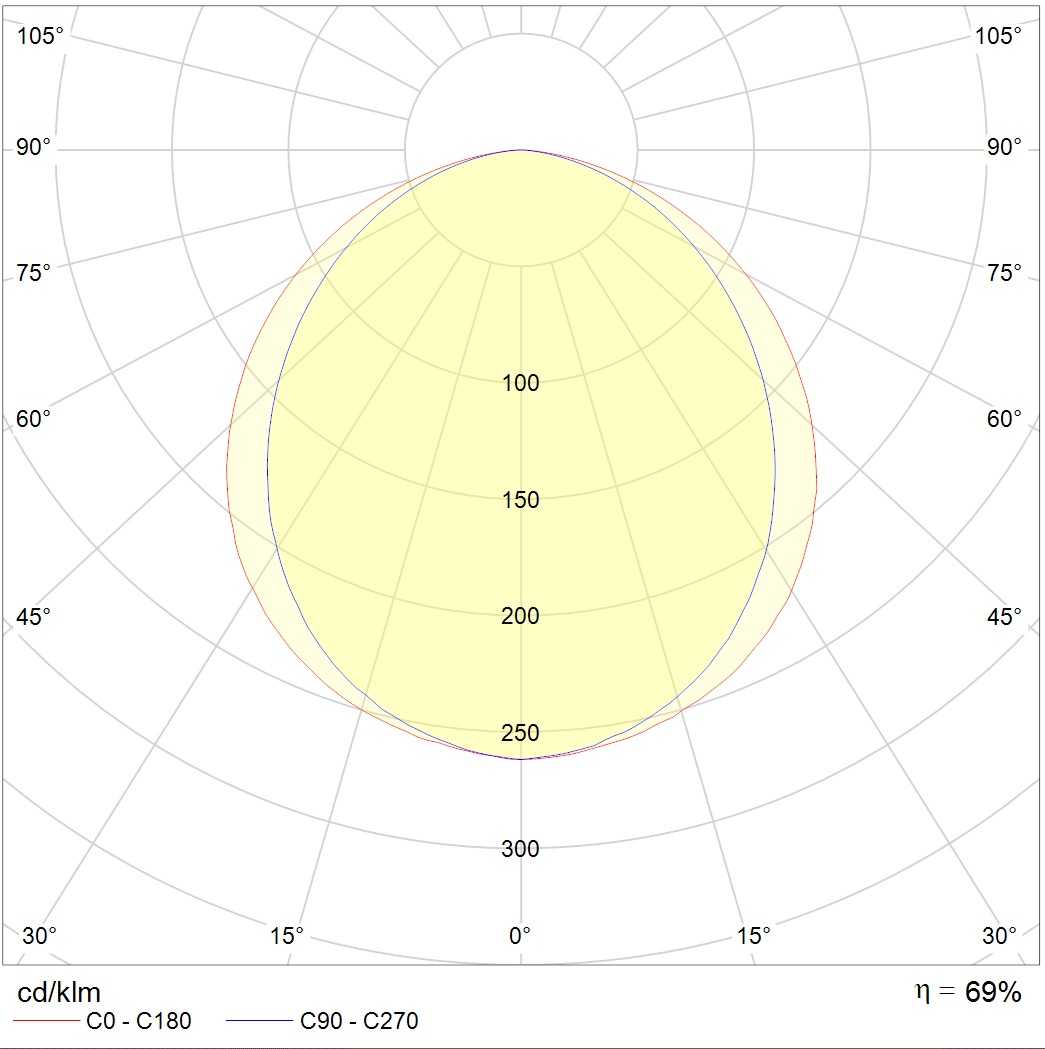

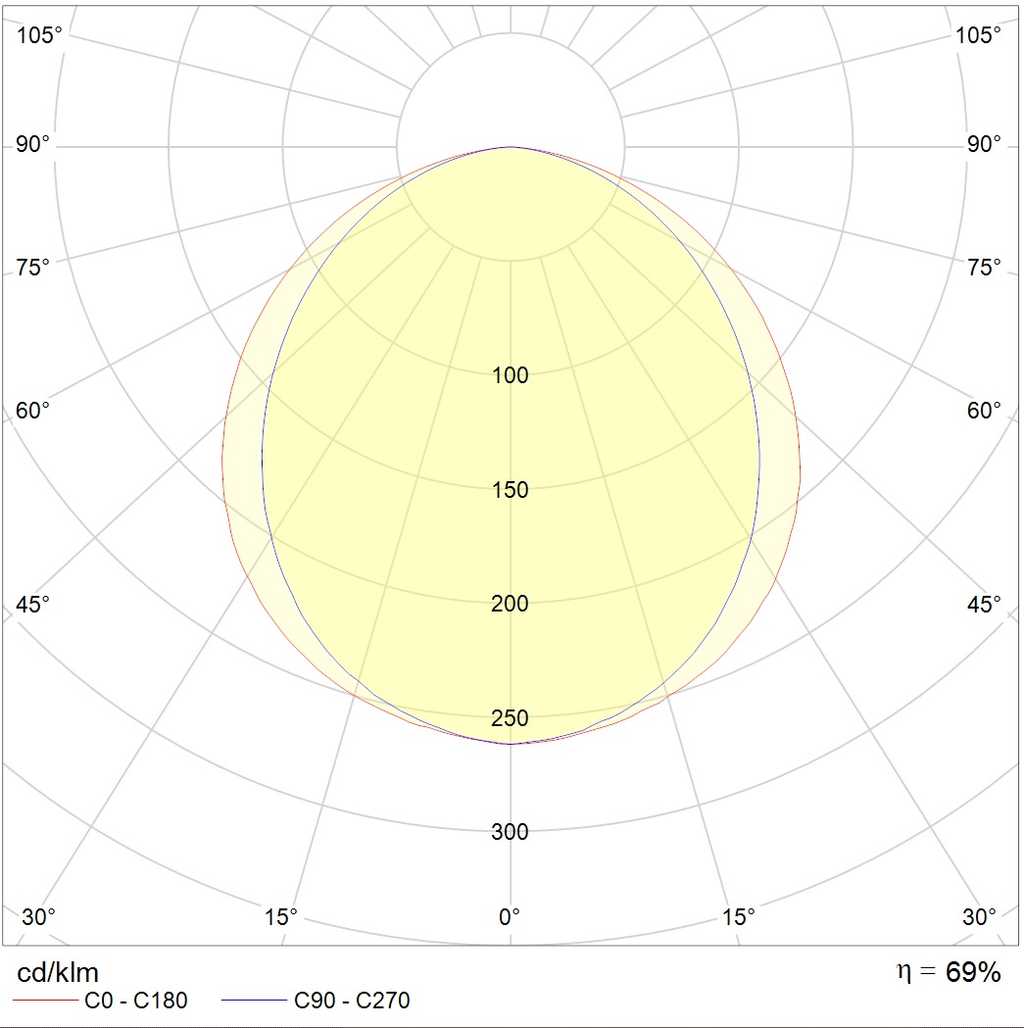

photometric files
jpg136.5 kB
documents
passport1.1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016682.2 kB
Fire Safety Certificate1.7 mB
