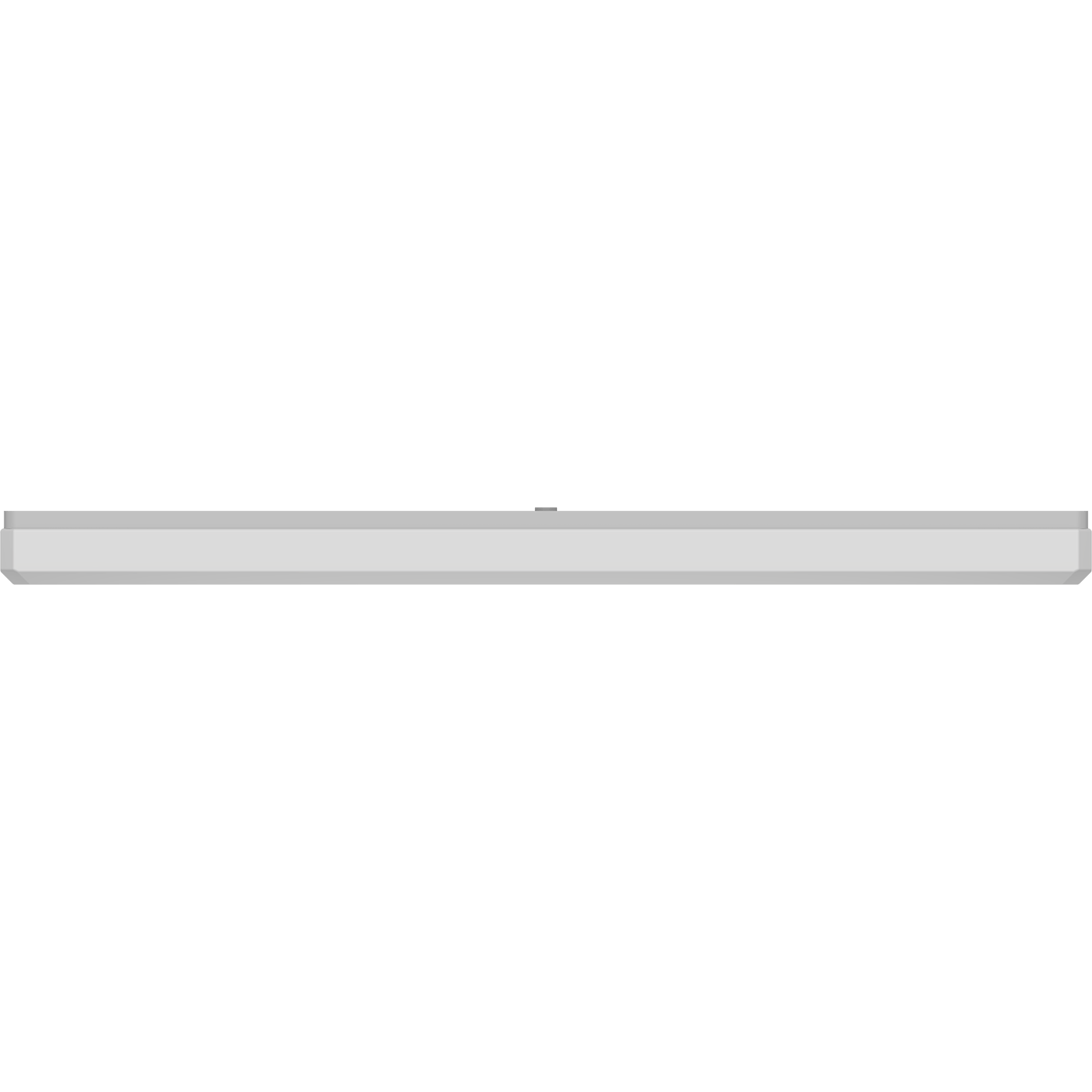

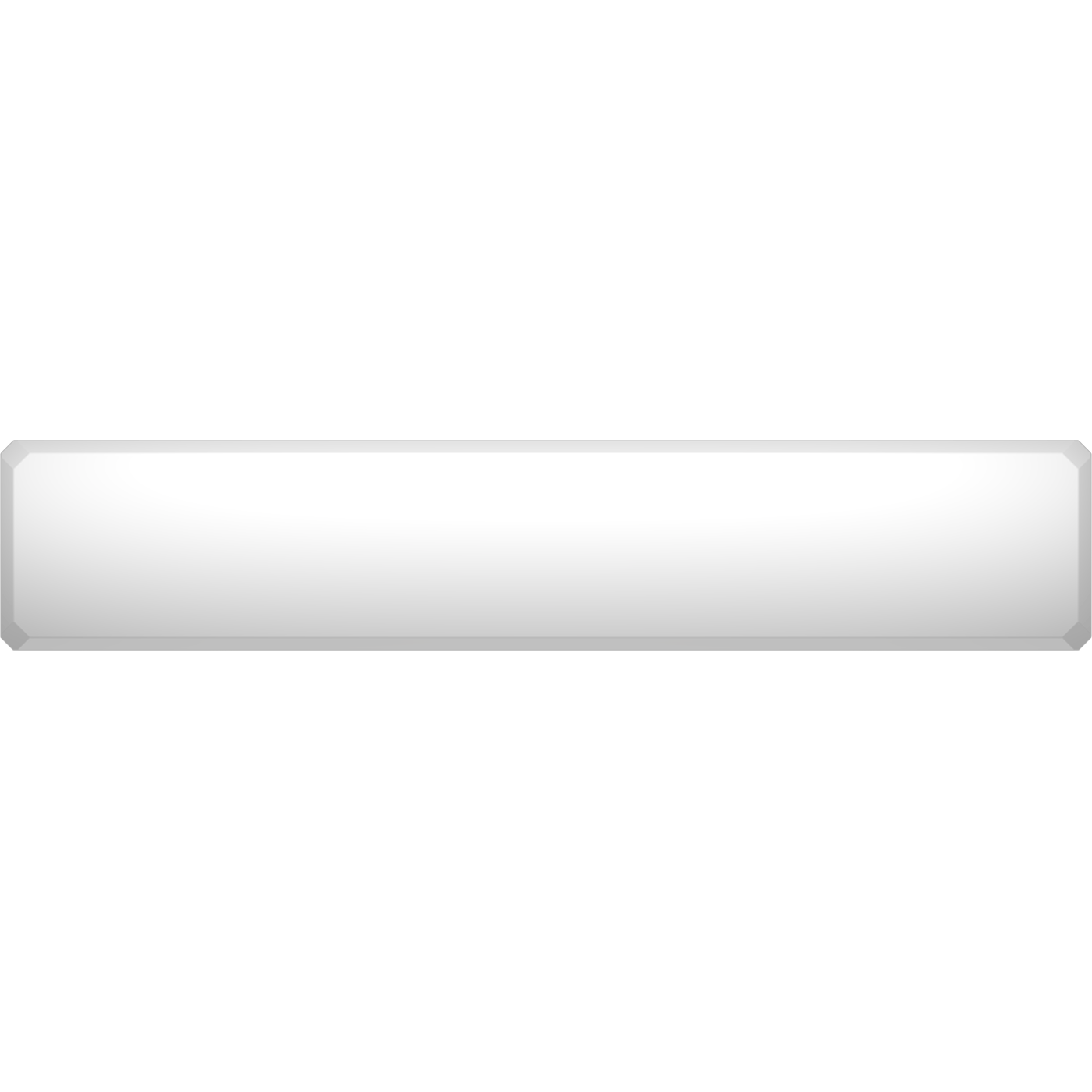

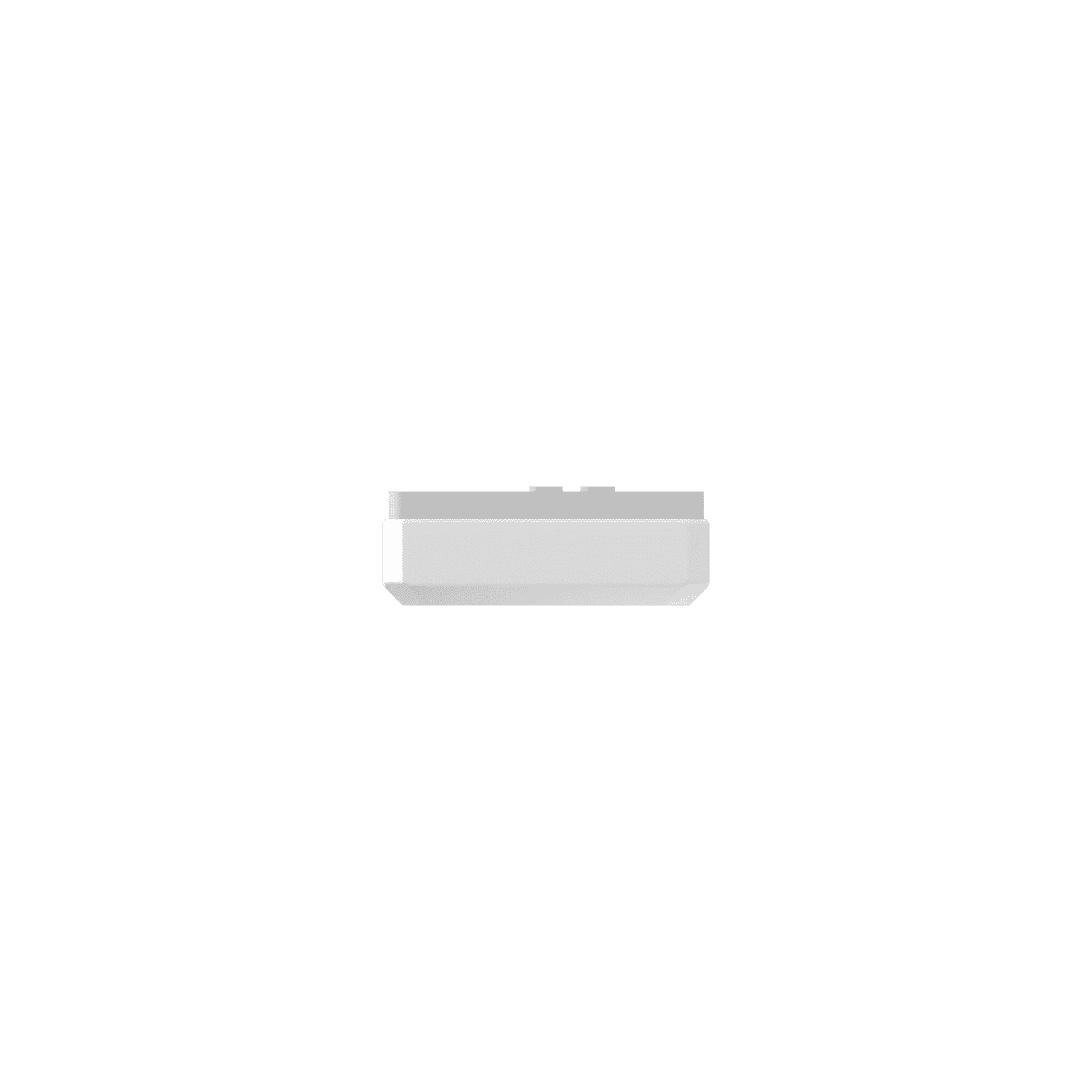

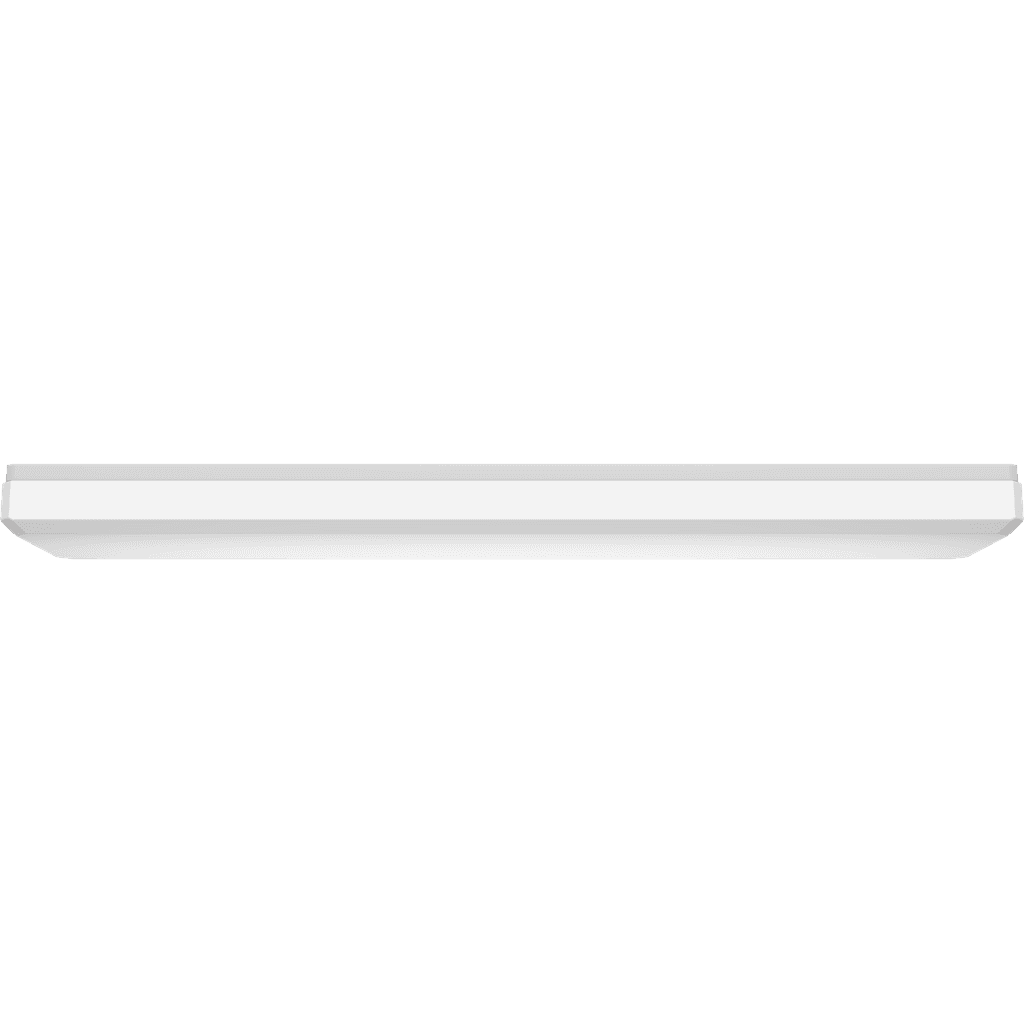

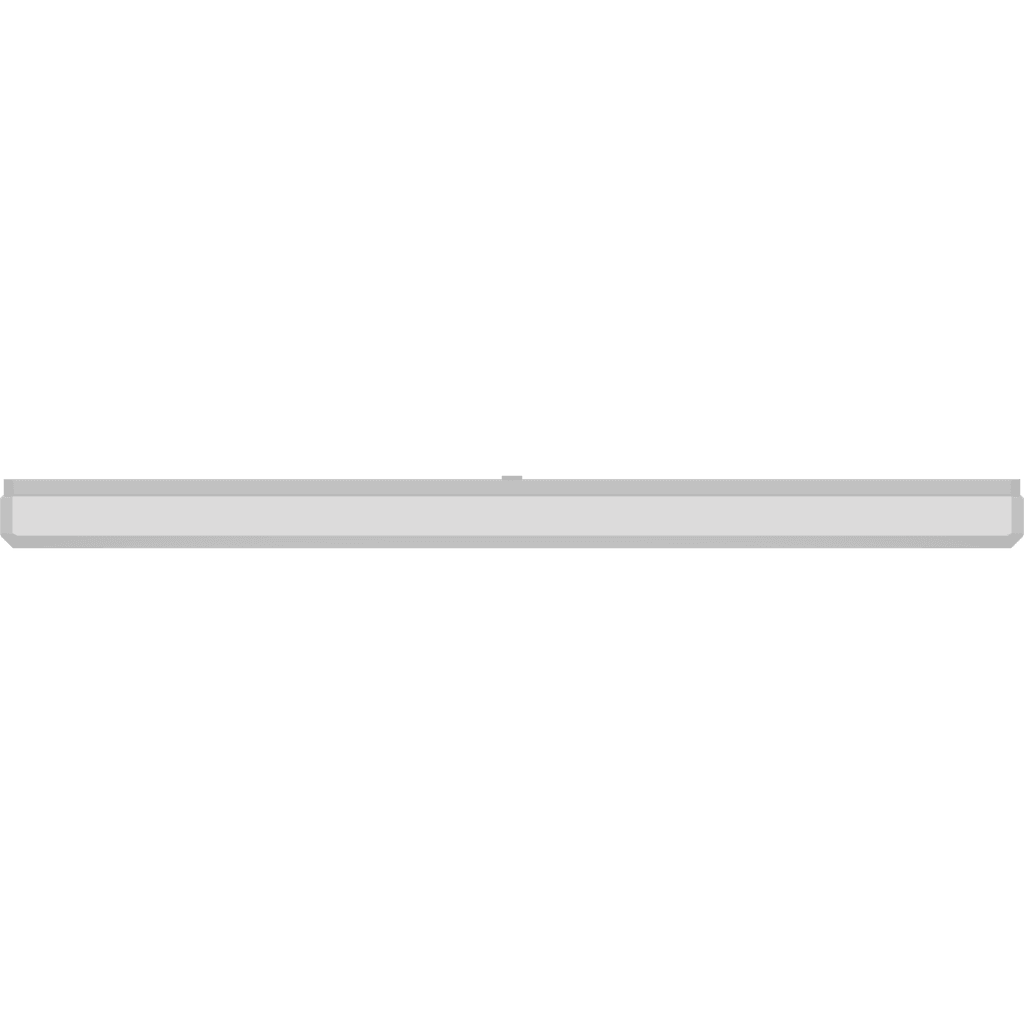

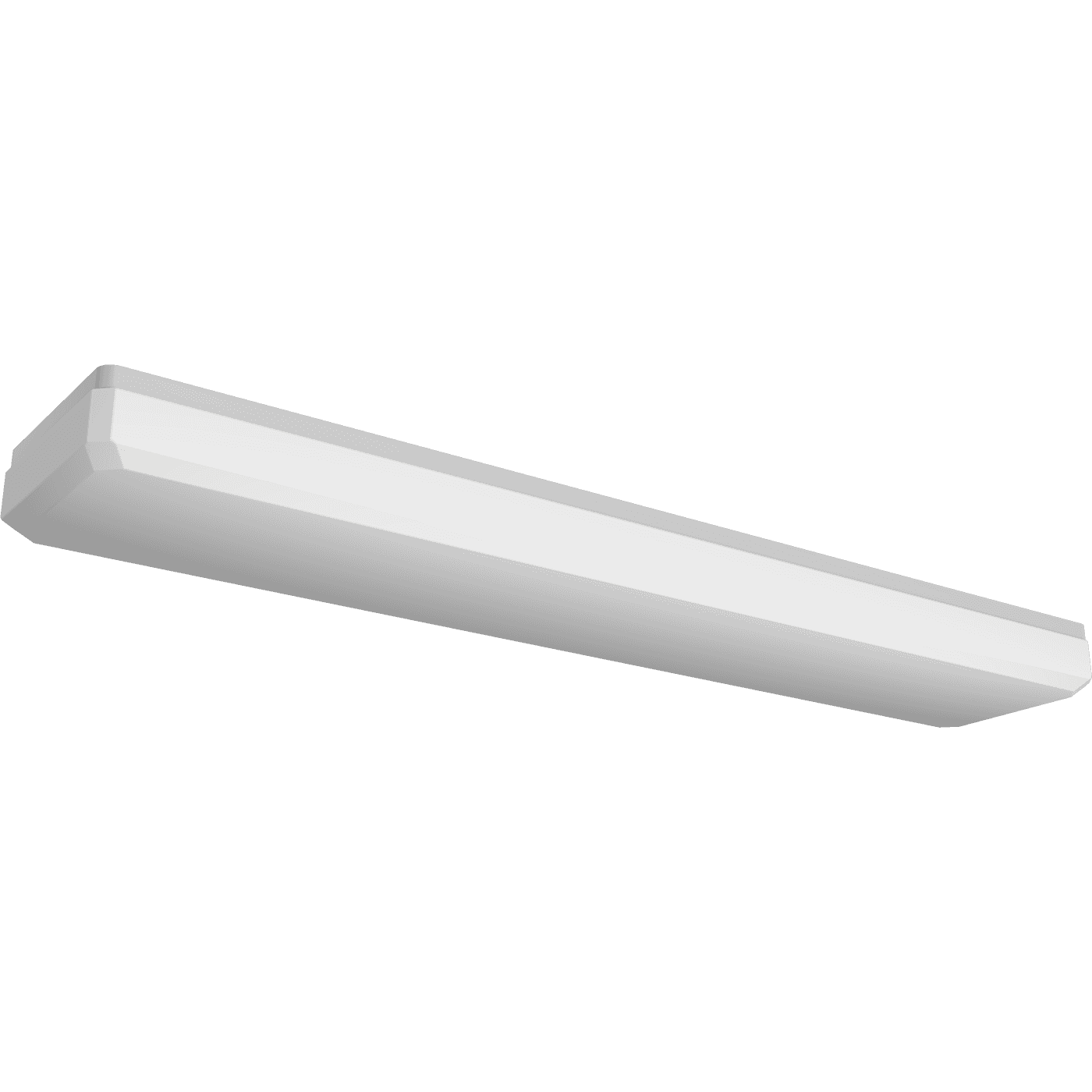

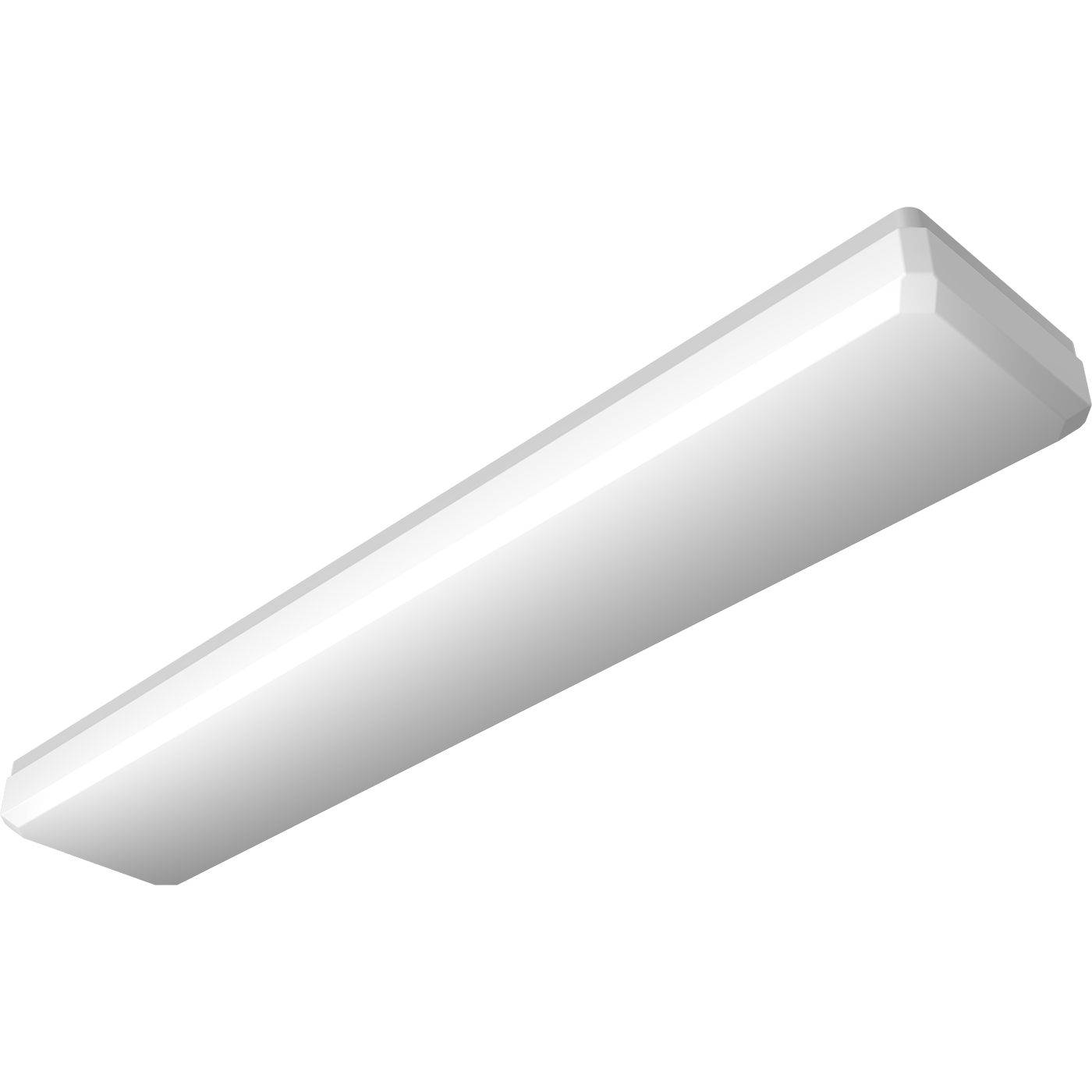

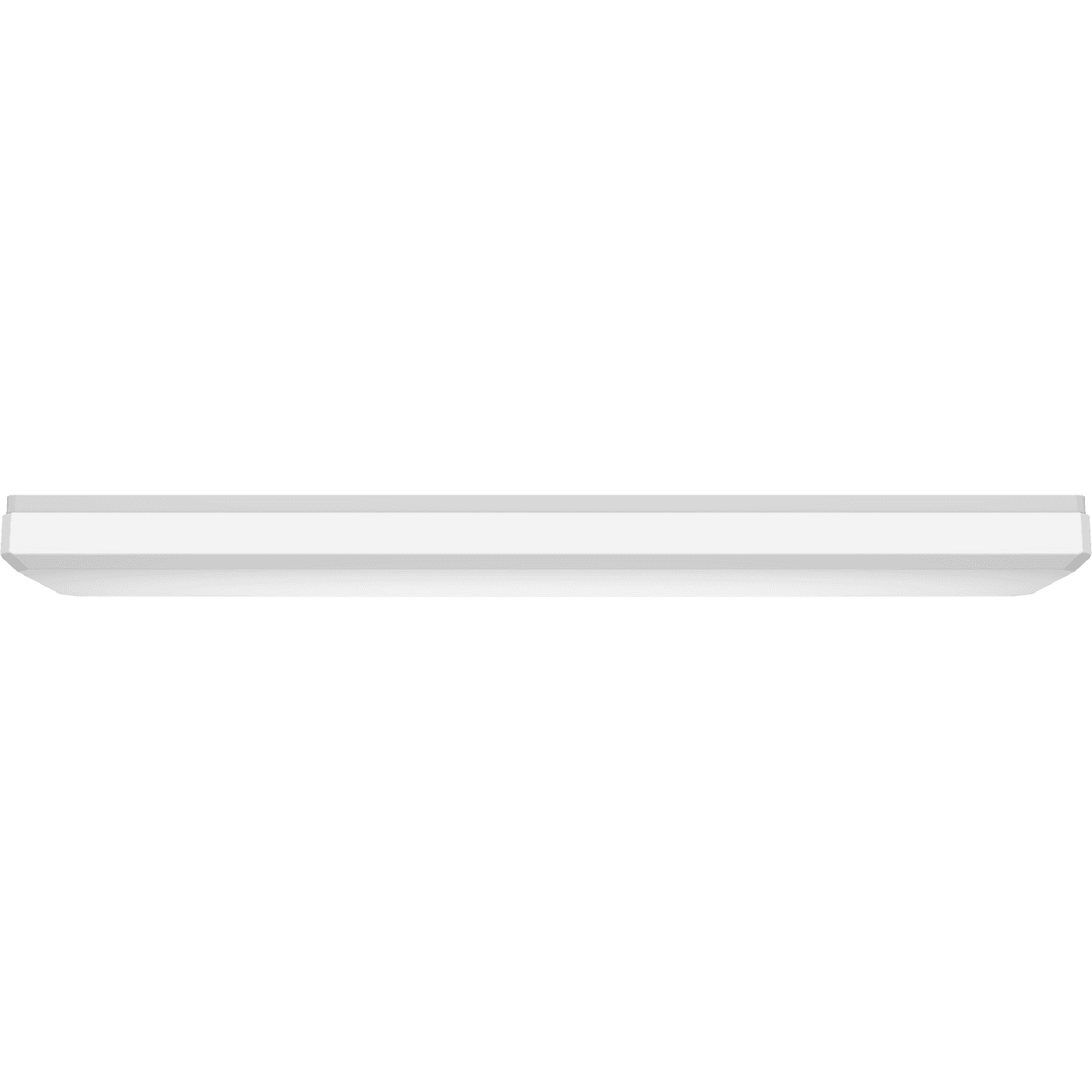

ALS.OPL 235 HF

ALS.OPL 235 HF
add to favorites
70 Wluminaire power
code1065000140
performance factor63
number of lamps2
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. ALS.OPL
  7. ALS.OPL 235 HF
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
illuminating
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
electrical
supply voltage
230 V
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,96
electric shock protection
I
luminaire power
70 W
constructional
height
95 mm
installation length
900 mm
width
190 mm
length
1570 mm
common
energy efficiency class
A…A+
service life
24 000 h
warranty
36 month
code
1065000140
temperature range
от -20 до +40 C
ETIM class
Настенно-потолочный светильник
model files
model files
CAD/BIM files
model 3dMax1.2 mB

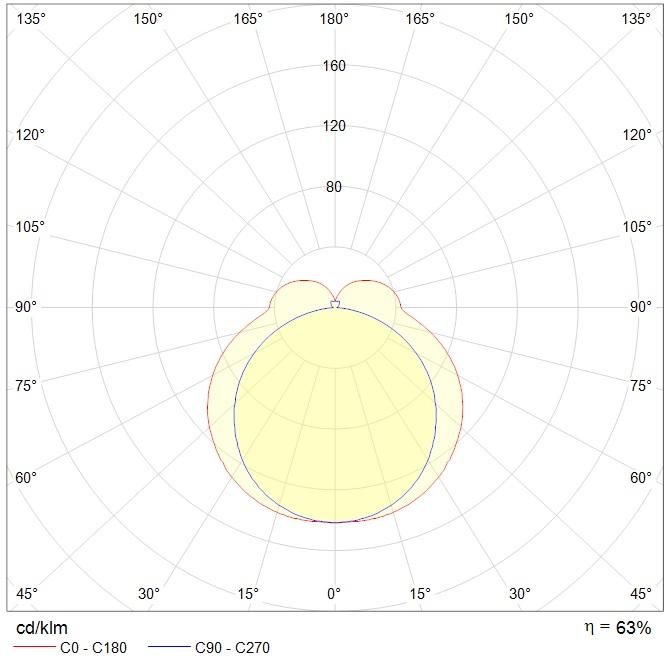

photometric files
ies134.1 kB
jpg78 kB
ldt93.7 kB
documents
passport966.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax1.2 mB
photometric files
ies134.1 kB
jpg78 kB
ldt93.7 kB
documents
passport966.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
Mounting kit X40.013kgarticle: 2995000040
