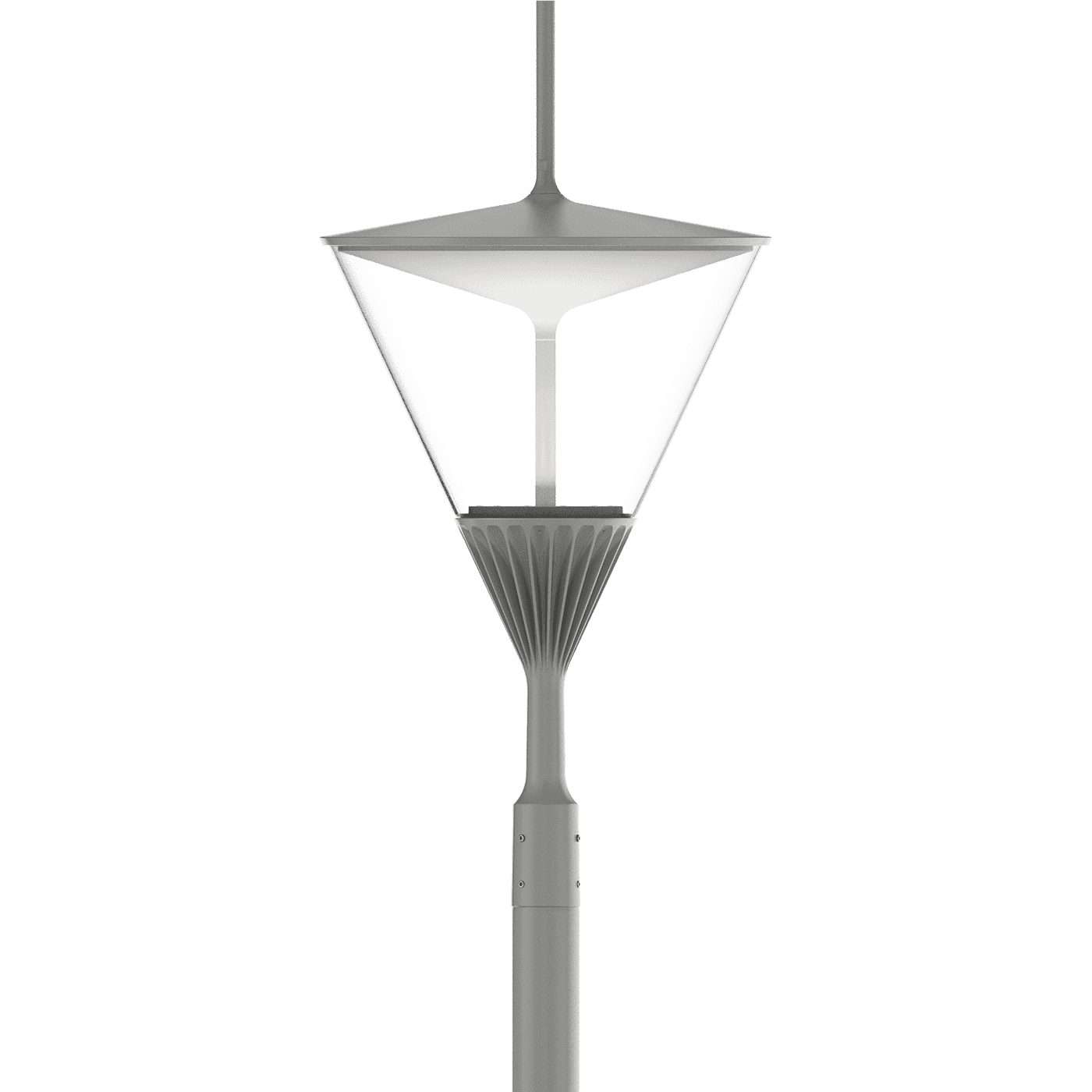

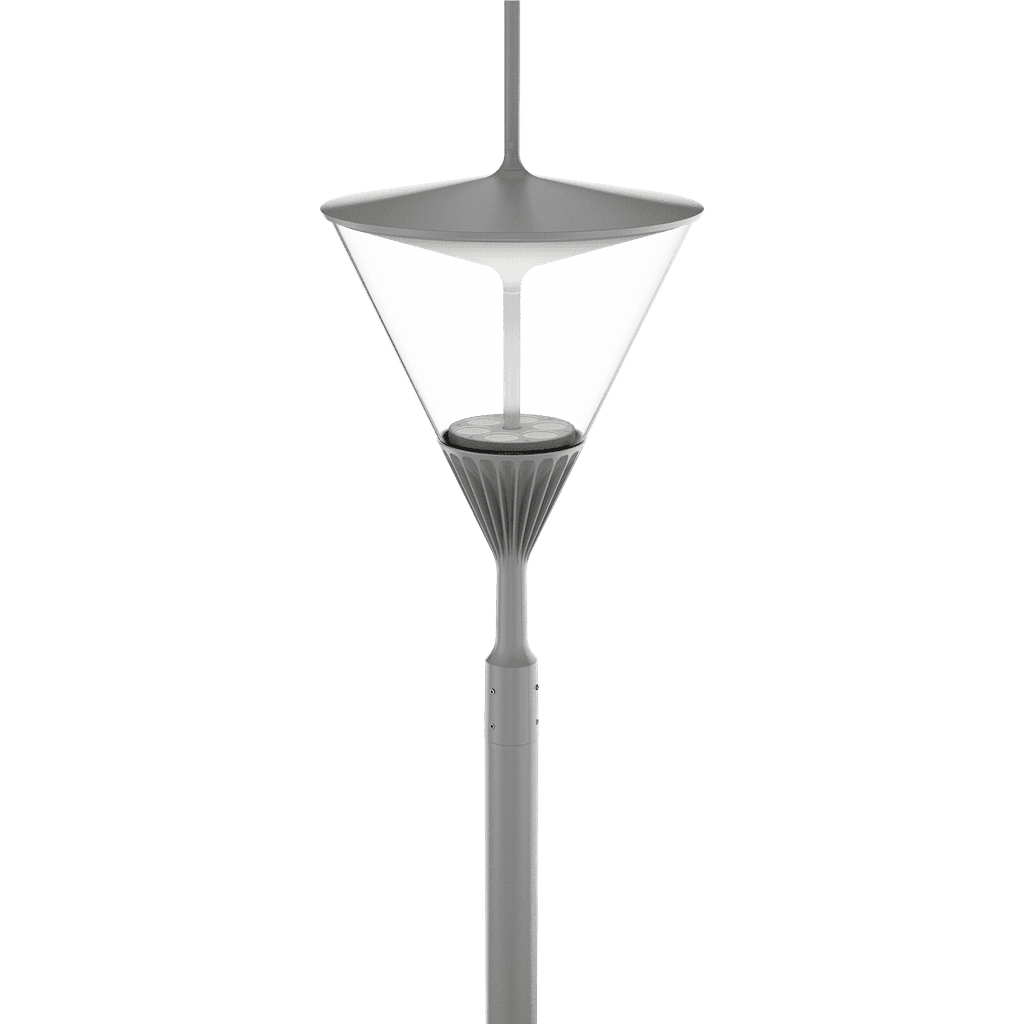

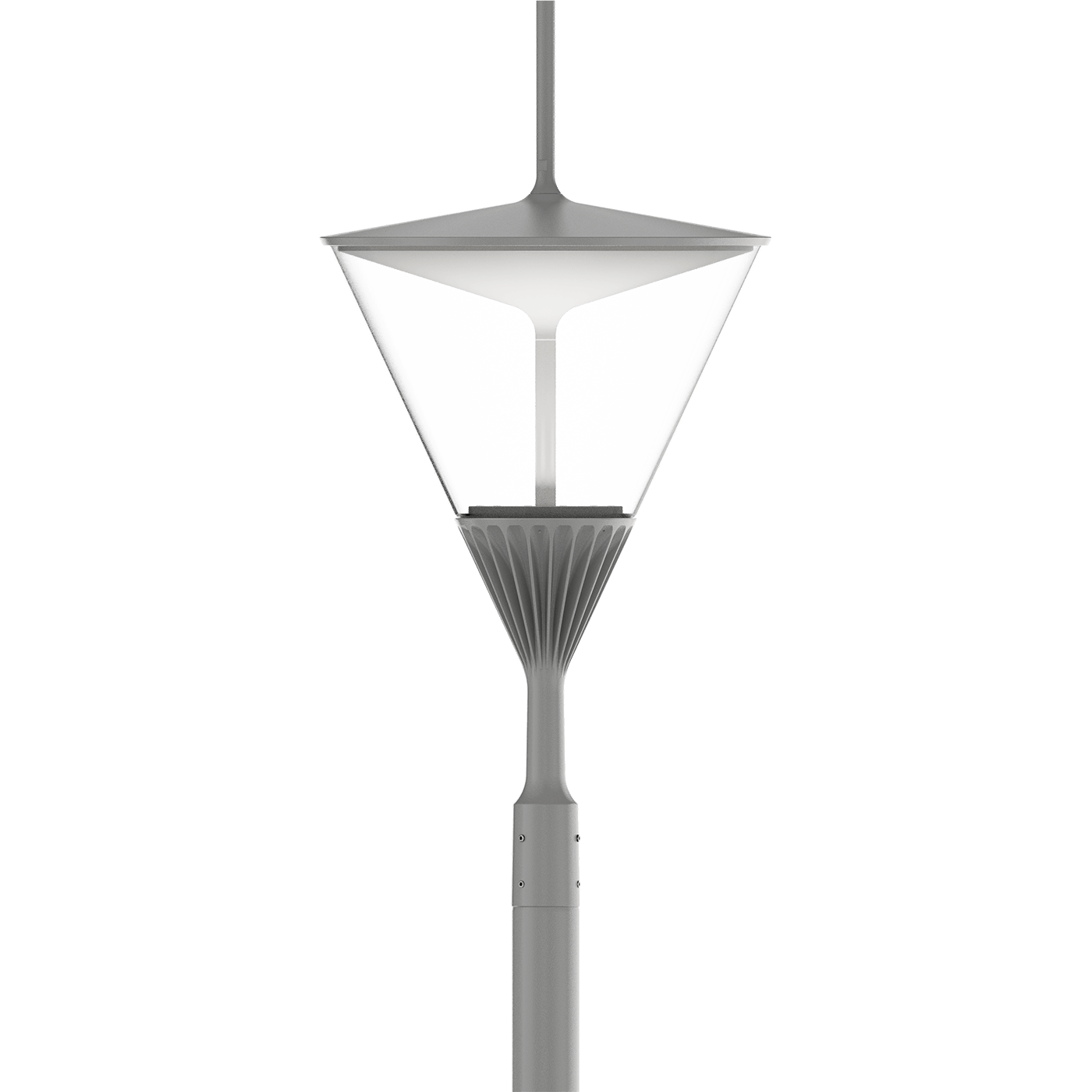

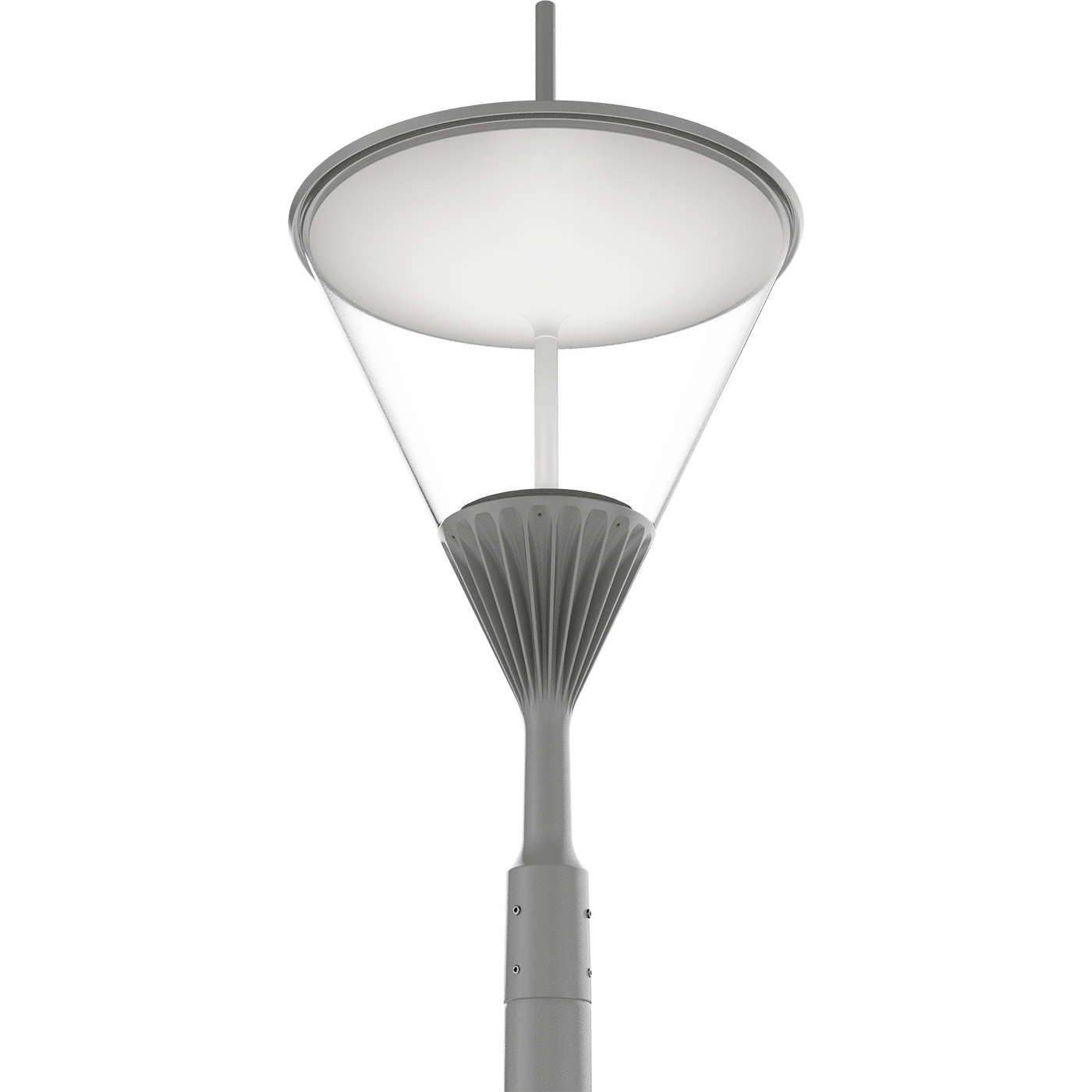

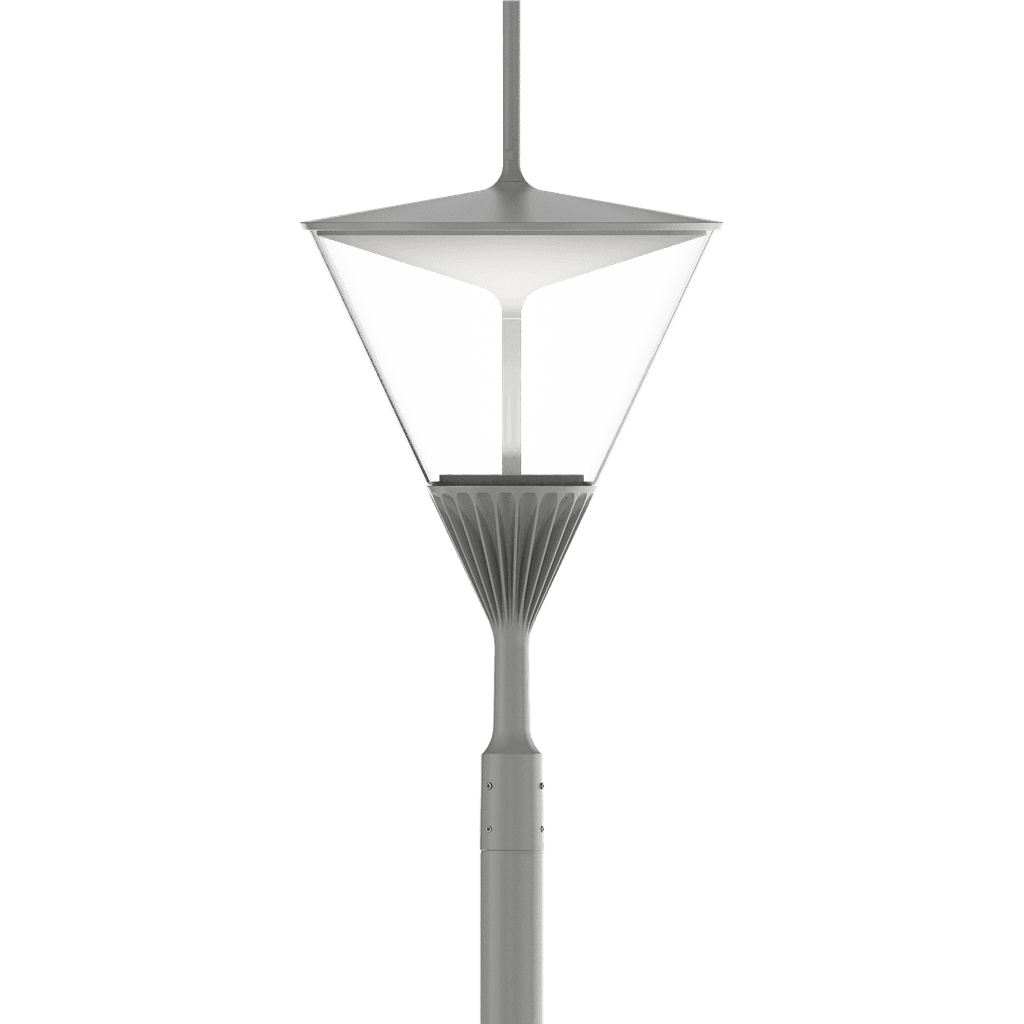

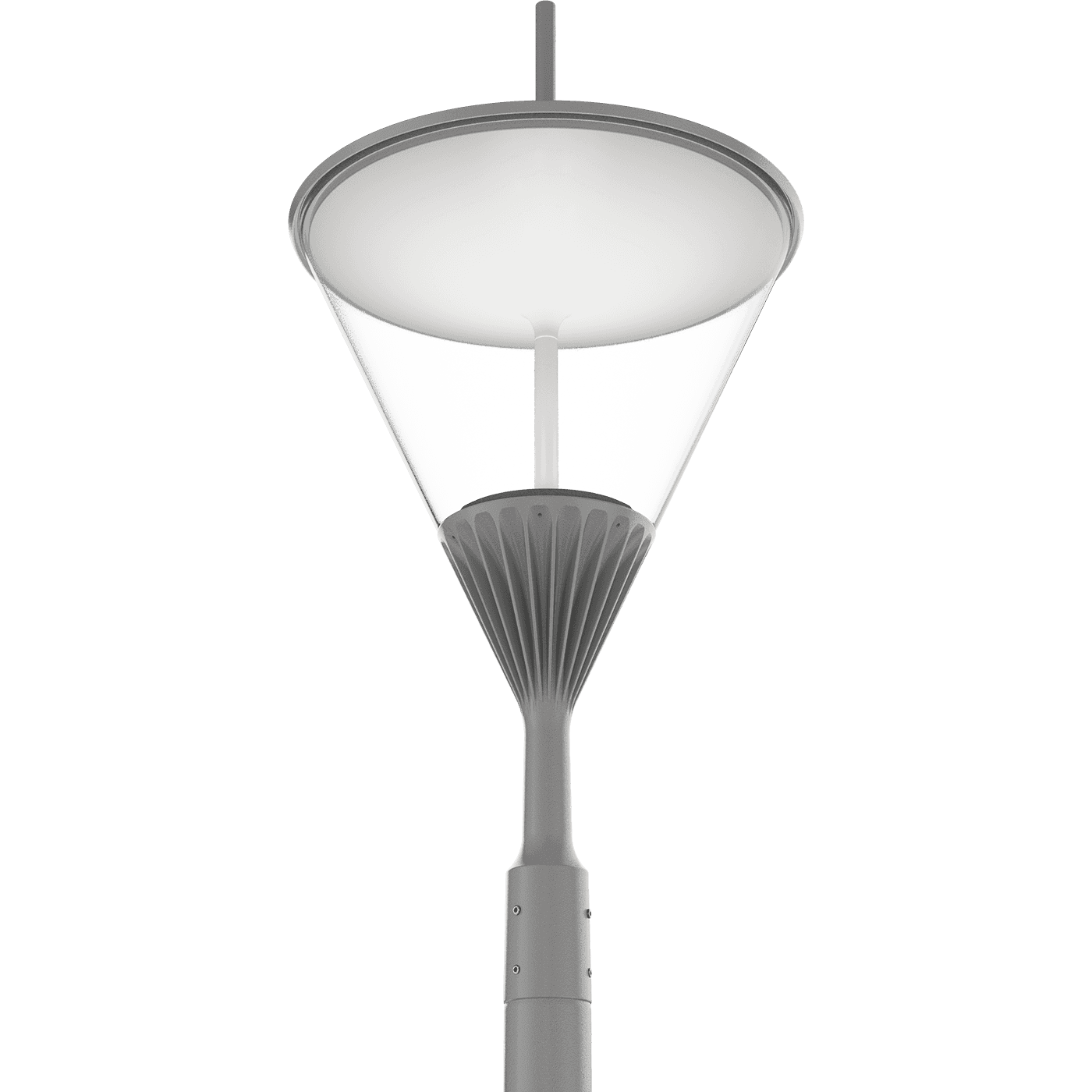

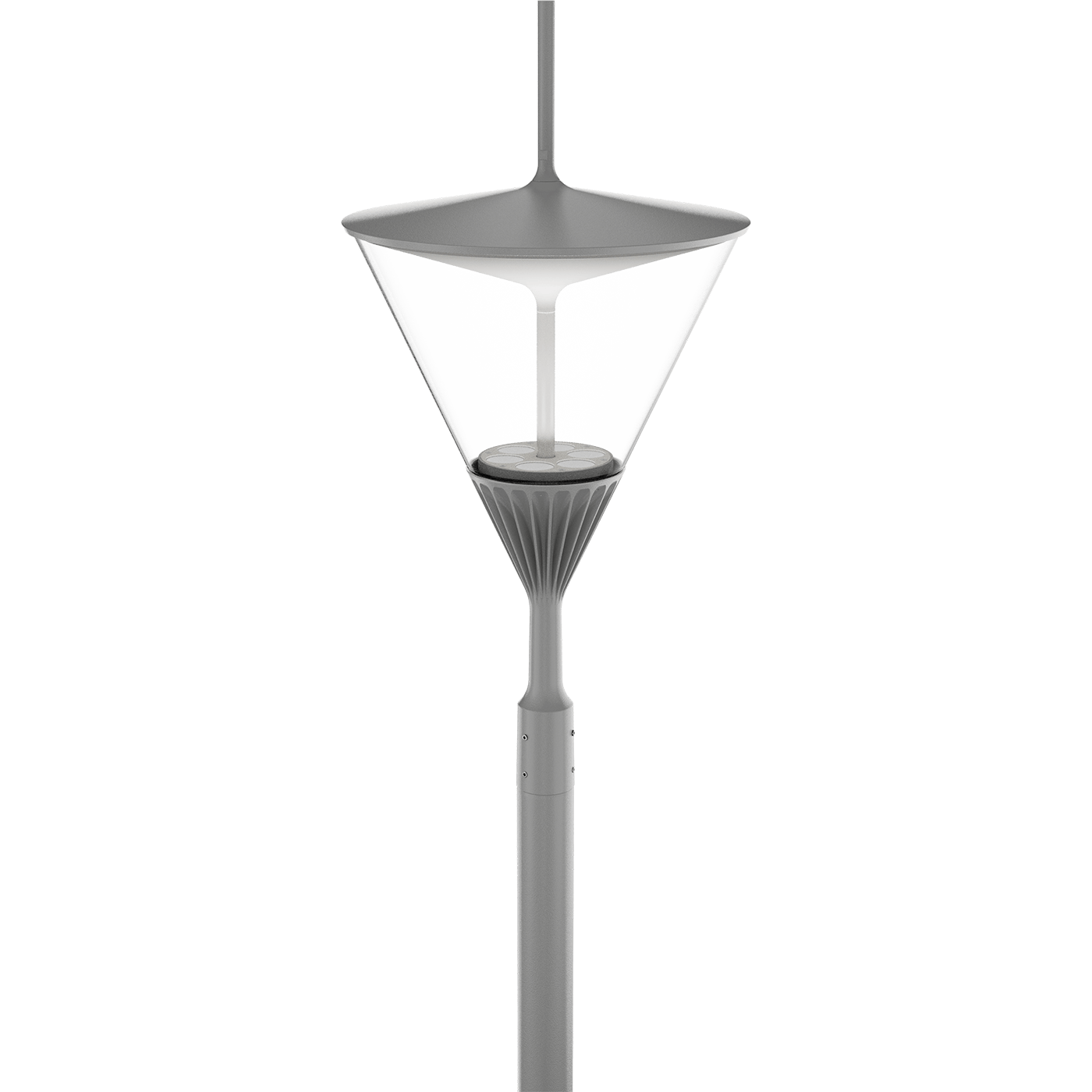

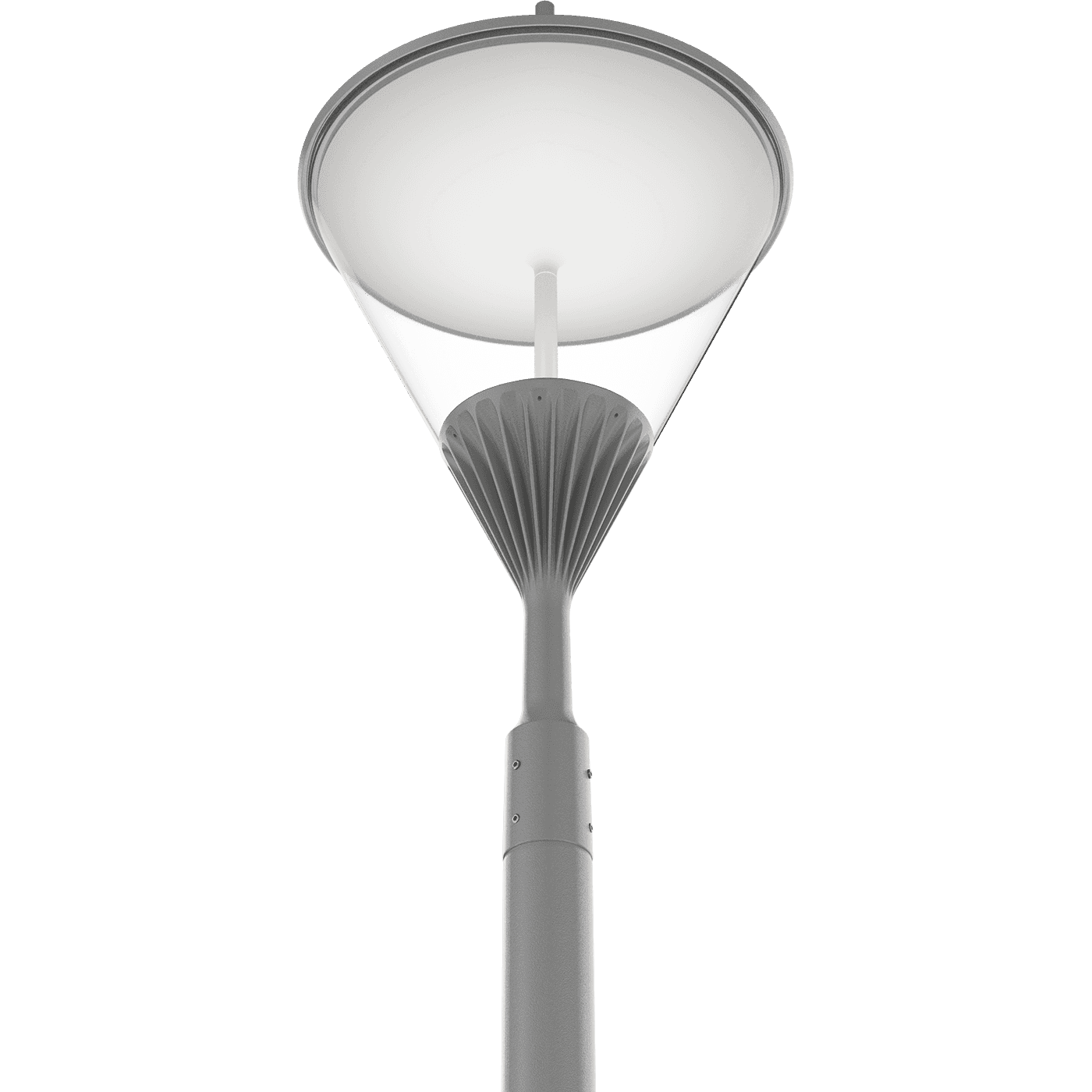

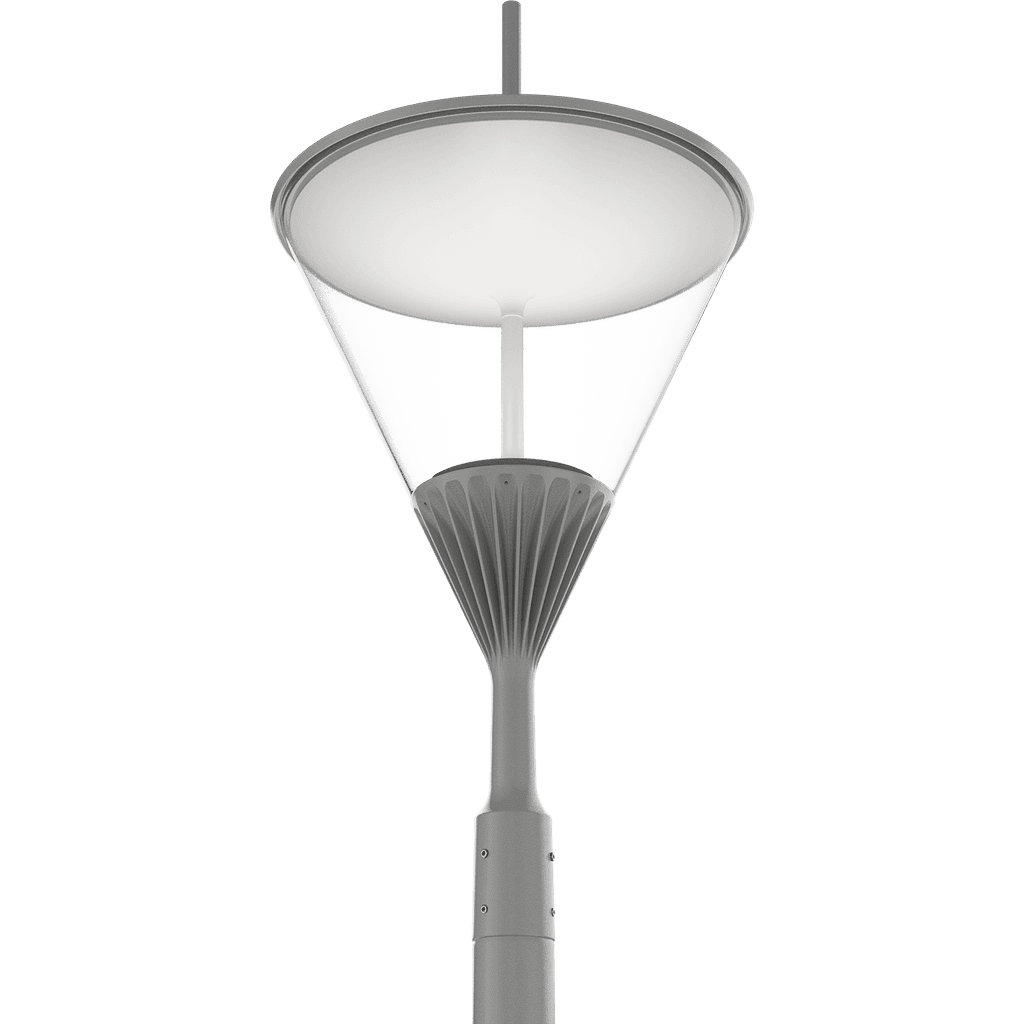

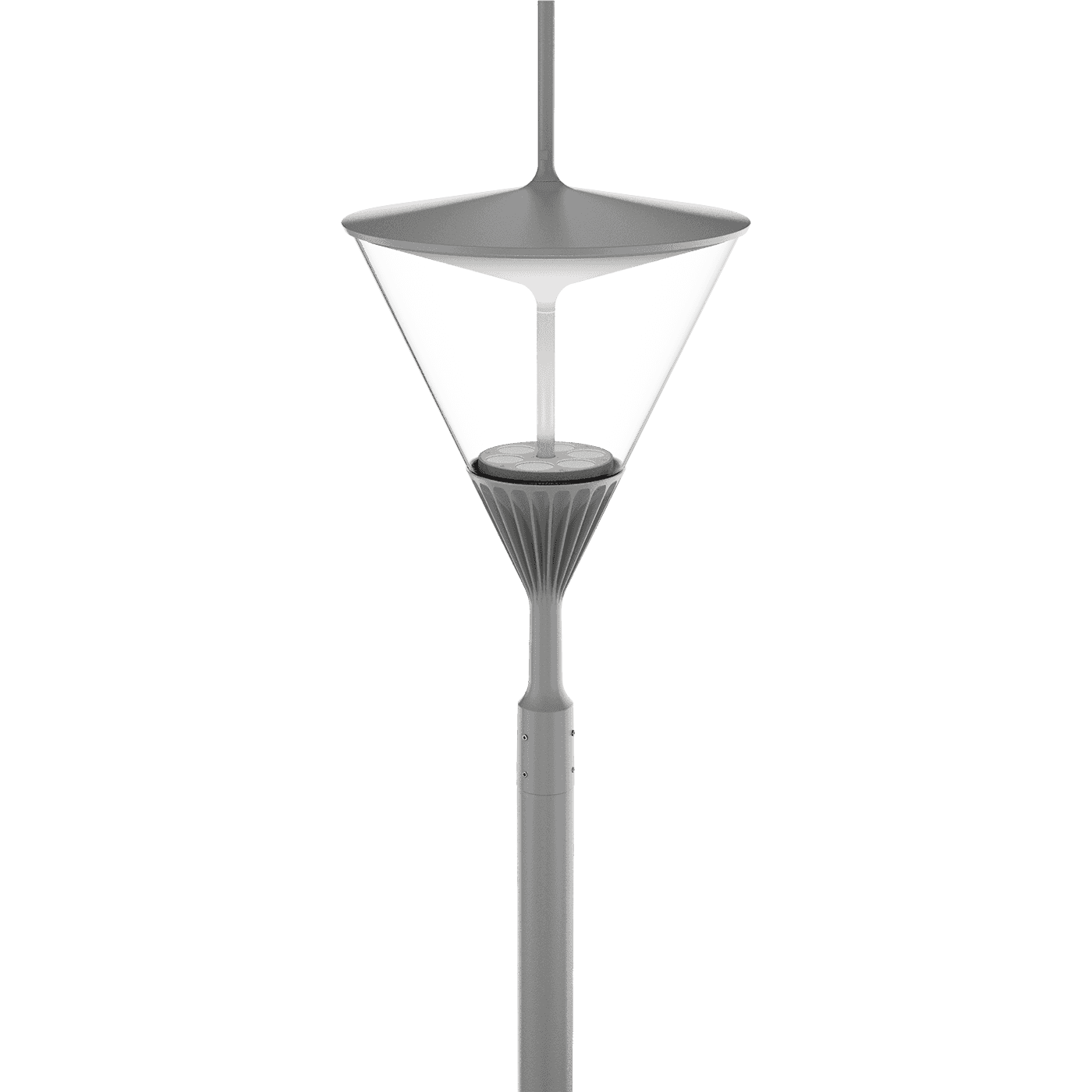

APEX LED 80W RW 840 RAL9006
APEX LED 80W RW 840 RAL9006
76 Wluminaire power
6800 lmlight flow
89 lm/Wenergy efficiency
code1732000250
beam angleD150
color temperature4000
weight9.03 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
65 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
140-305 Vsupply voltage, direct current
220-420 Vluminaire power
76 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
65 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
140-305 V
supply voltage, direct current
220-420 V
luminaire power
76 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
9.03 kg
diameter, mm
492 mm
height, mm
986 mm
housing color
Металлик
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1732000250
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
89 lm/W
color rendition index (CRI)
>80
light flow
6800 lm
flickering factor
<5%
beam angle
D150
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg162.6 kB
ldt216.7 kB
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016616.5 kB
