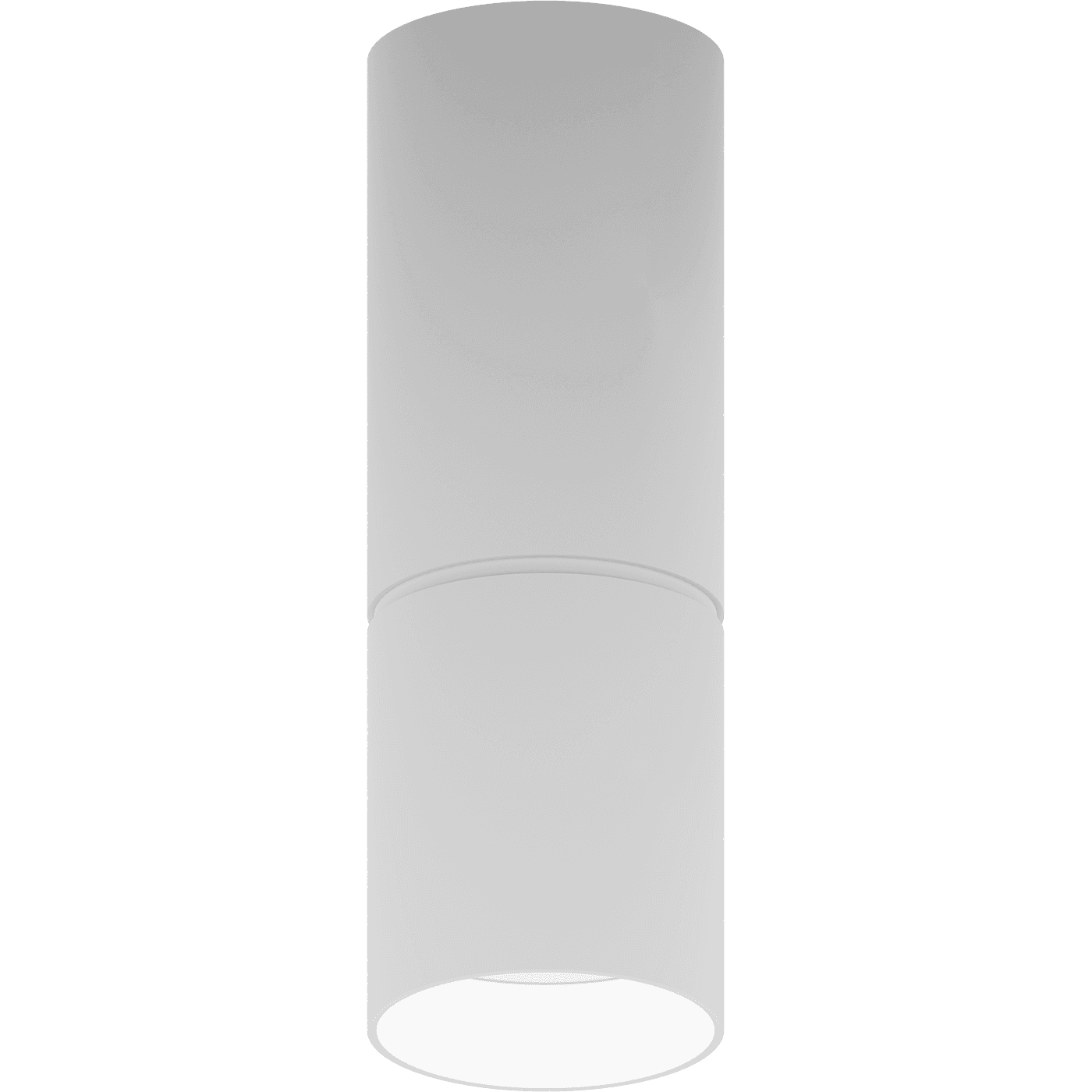

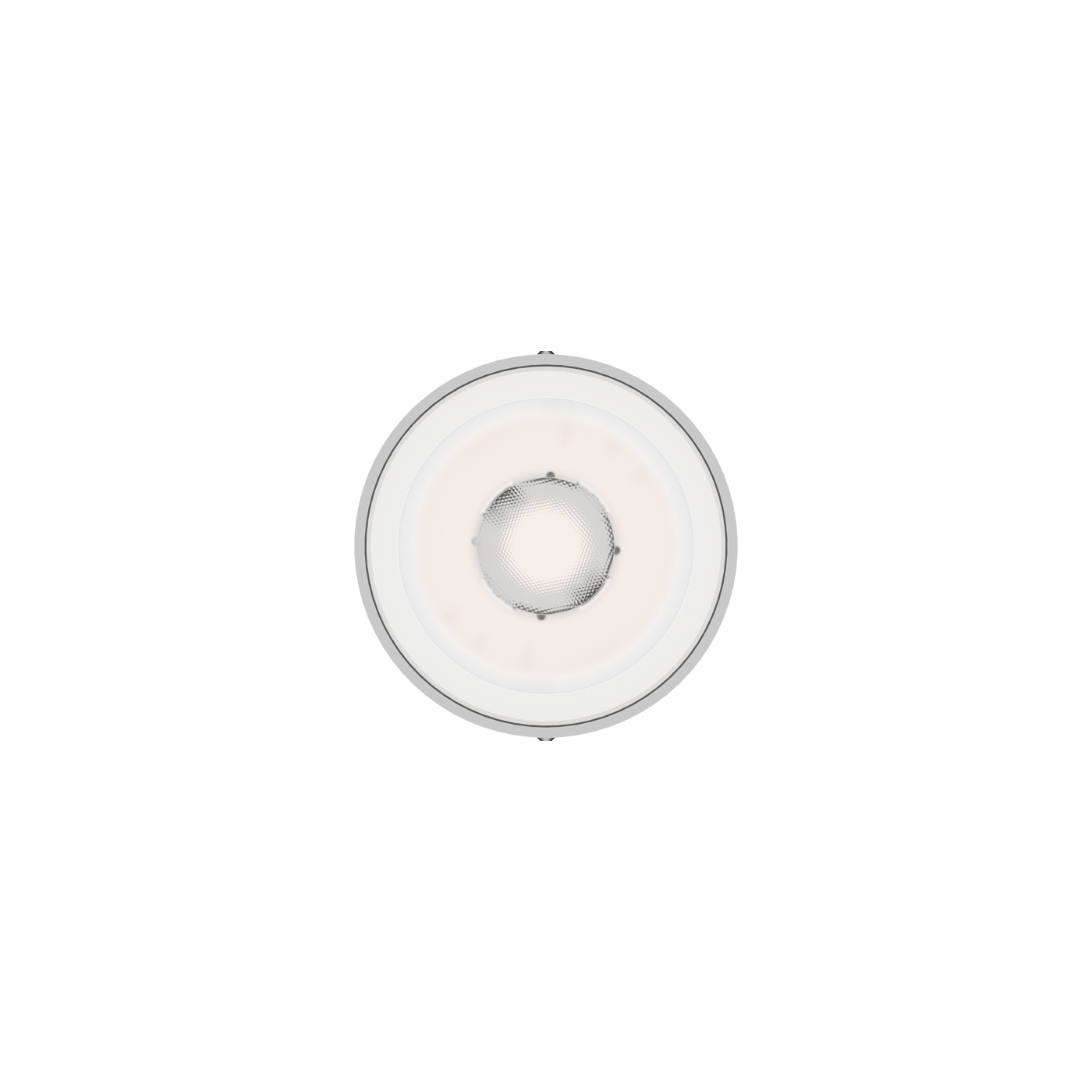

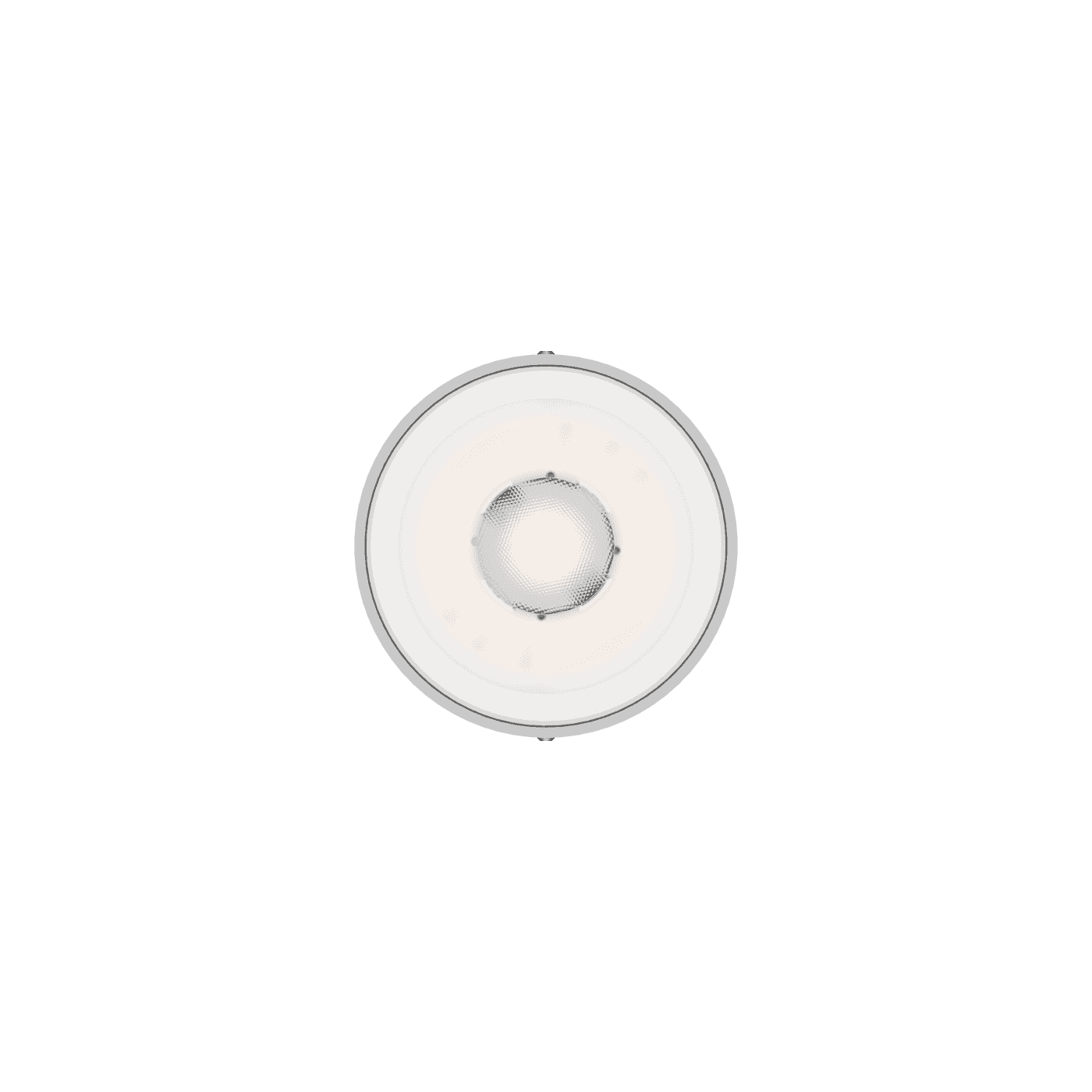

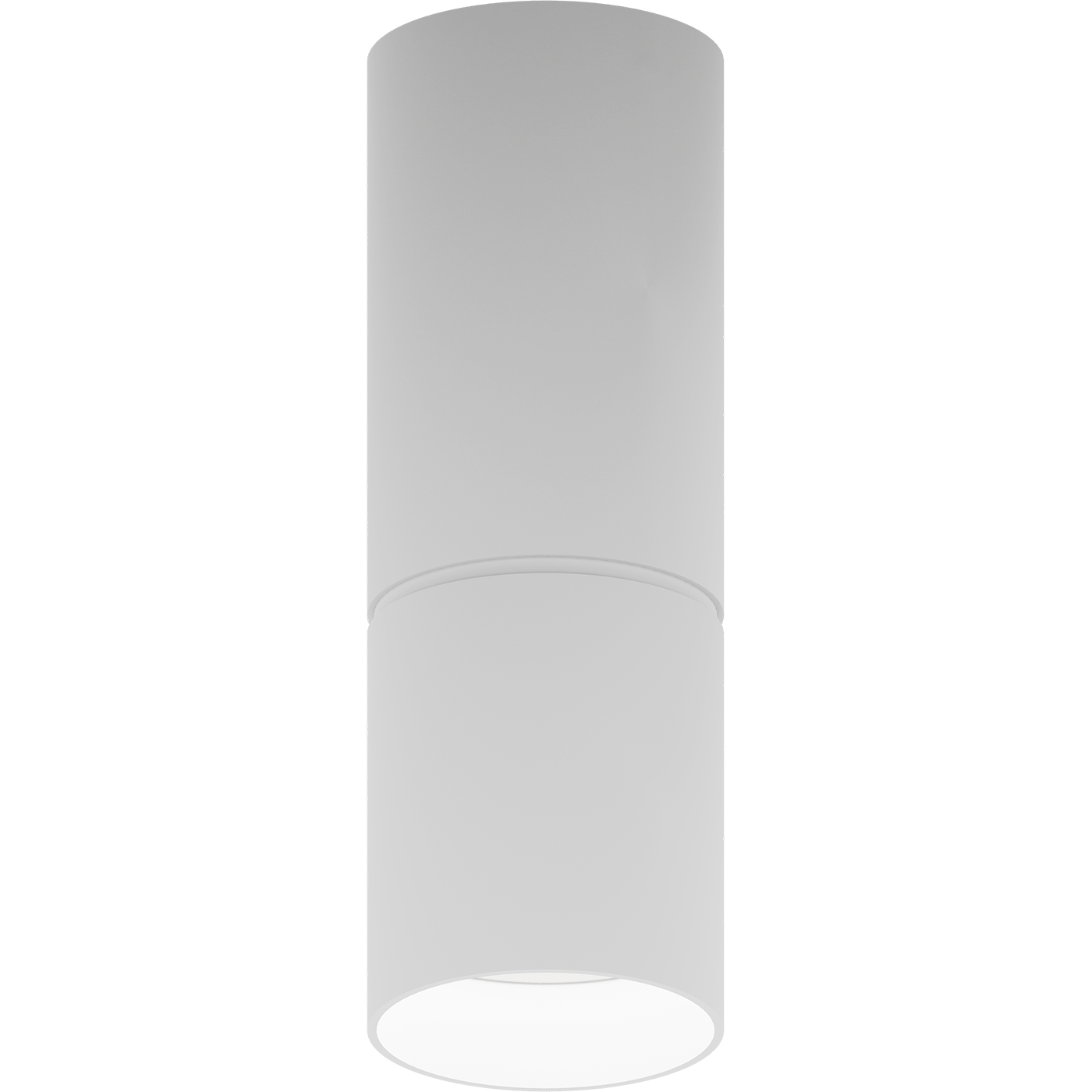

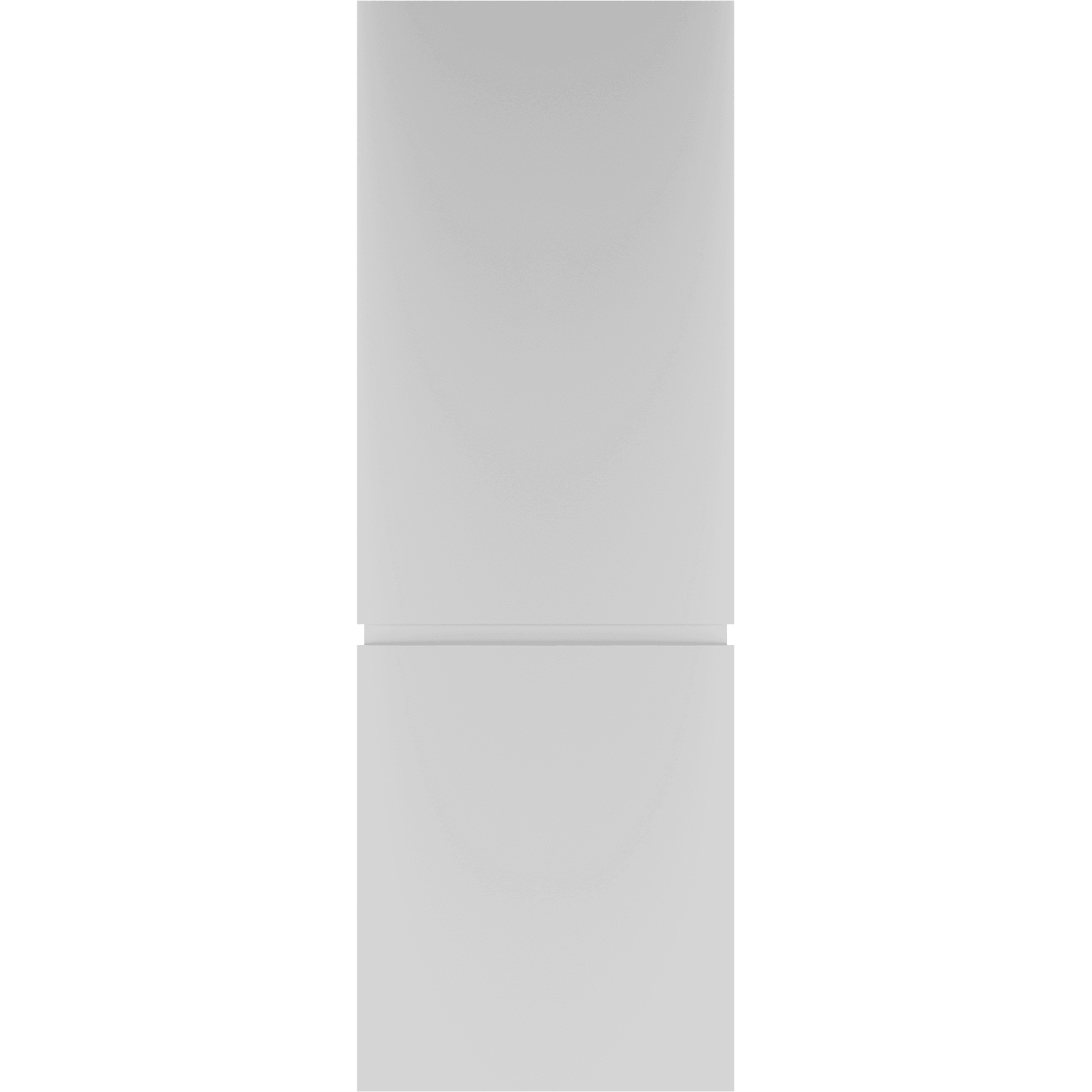

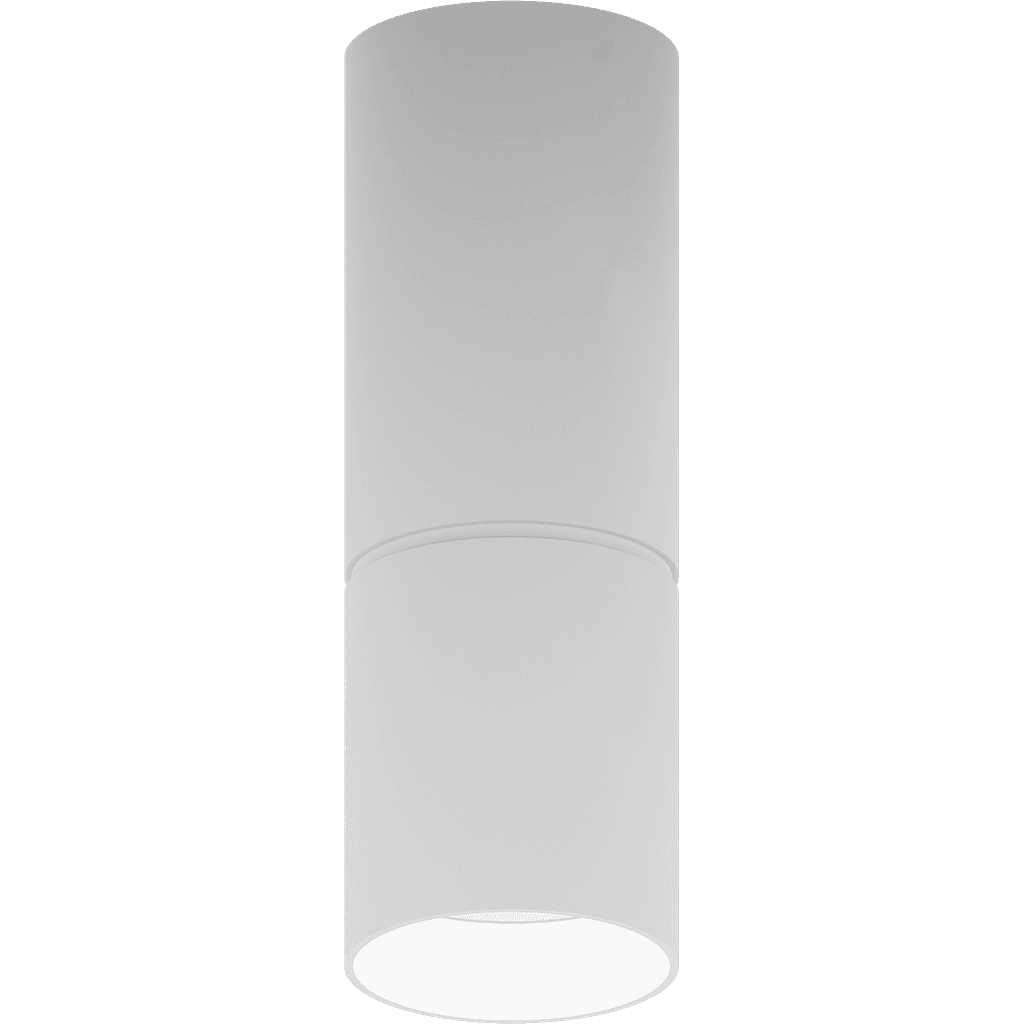

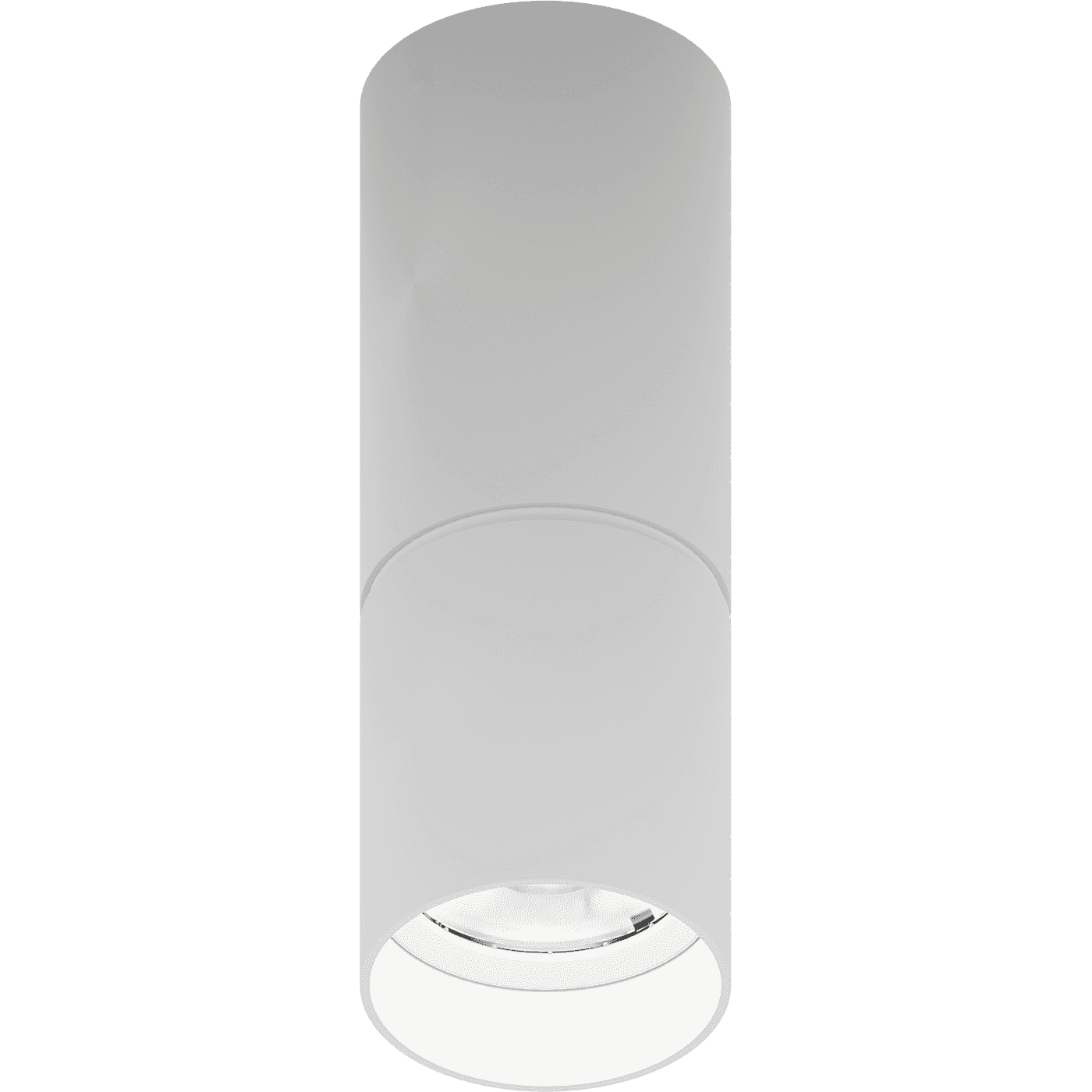

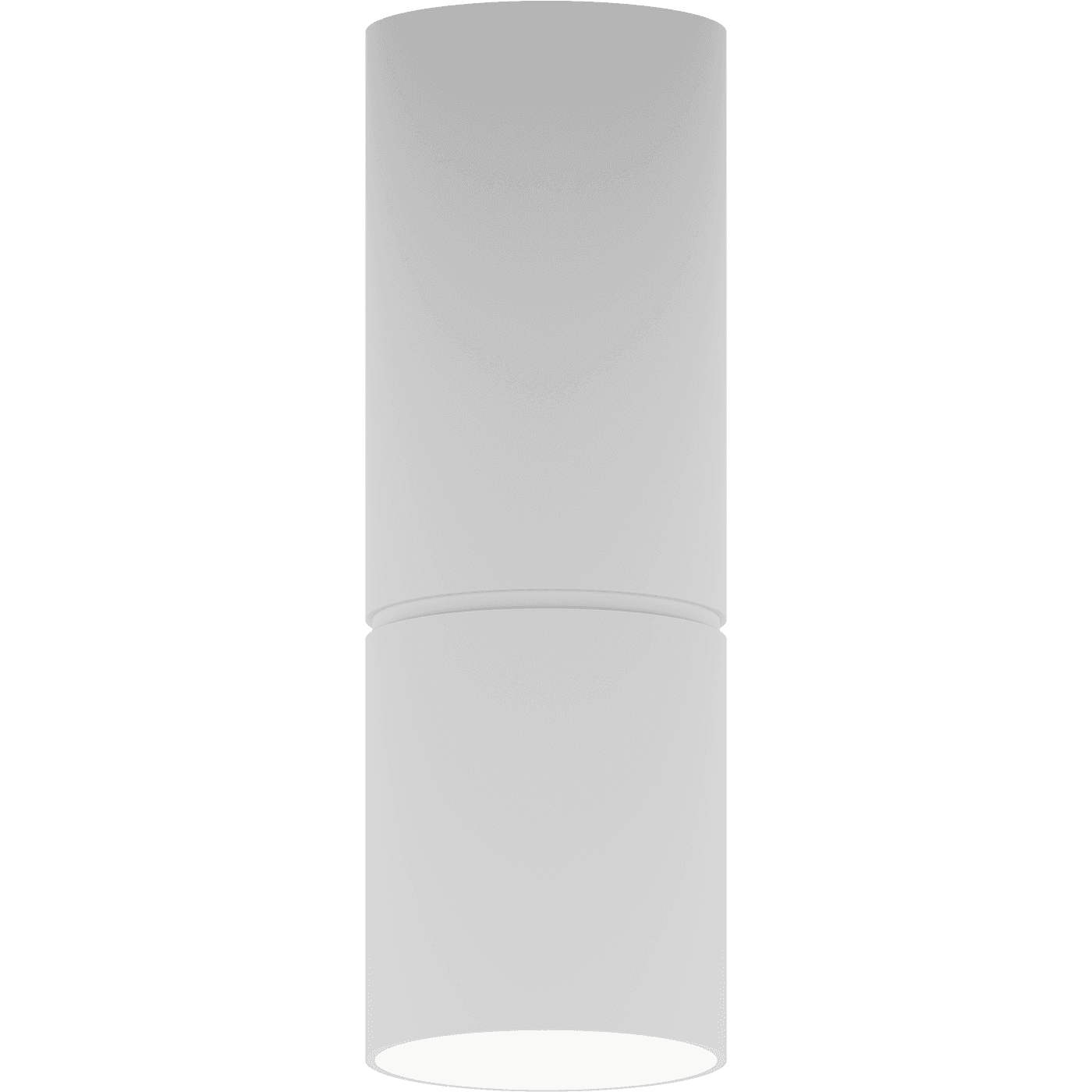

ARMA/S (260) 25W D30 840 WH
_25w_d30_840_wh.jpg&w=1920&q=50)
_25w_d30_840_wh.jpg&w=1024&q=50)
ARMA/S (260) 25W D30 840 WH
24 Wluminaire power
3000 lmlight flow
125 lm/Wenergy efficiency
code1102302260
color temperature4000

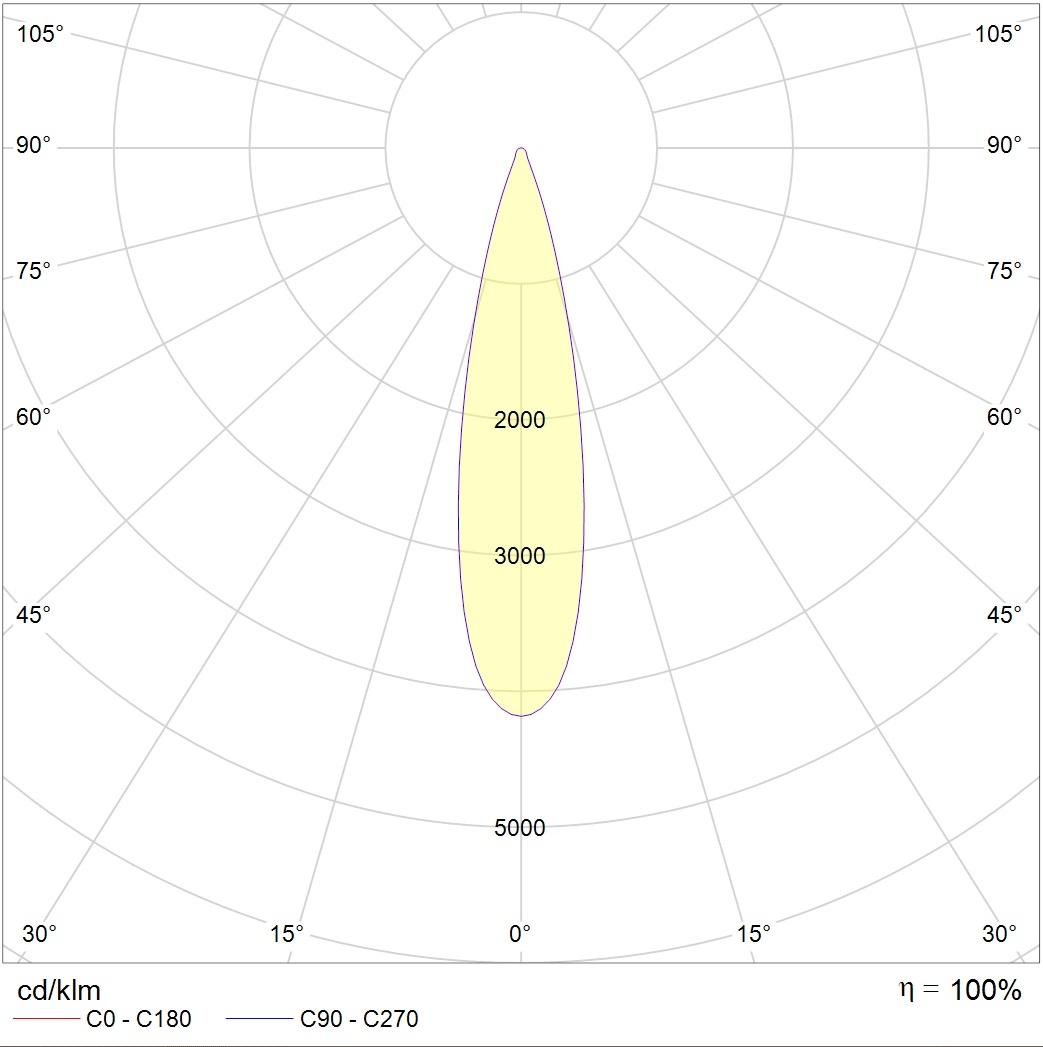

beam angleD30
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
125 lm/Wcolor rendition index (CRI)
>80light flow
3000 lmflickering factor
<5%beam angle
D30color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
125 lm/W
color rendition index (CRI)
>80
light flow
3000 lm
flickering factor
<5%
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
2.28 mks
electric shock protection
II
luminaire power
24 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
starting current
43 A
constructional
length, mm
90 mm
width, mm
90 mm
height, mm
260 mm
installation length, mm
32 mm
weight
1.07 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Металл, пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1102302260
model files
model files

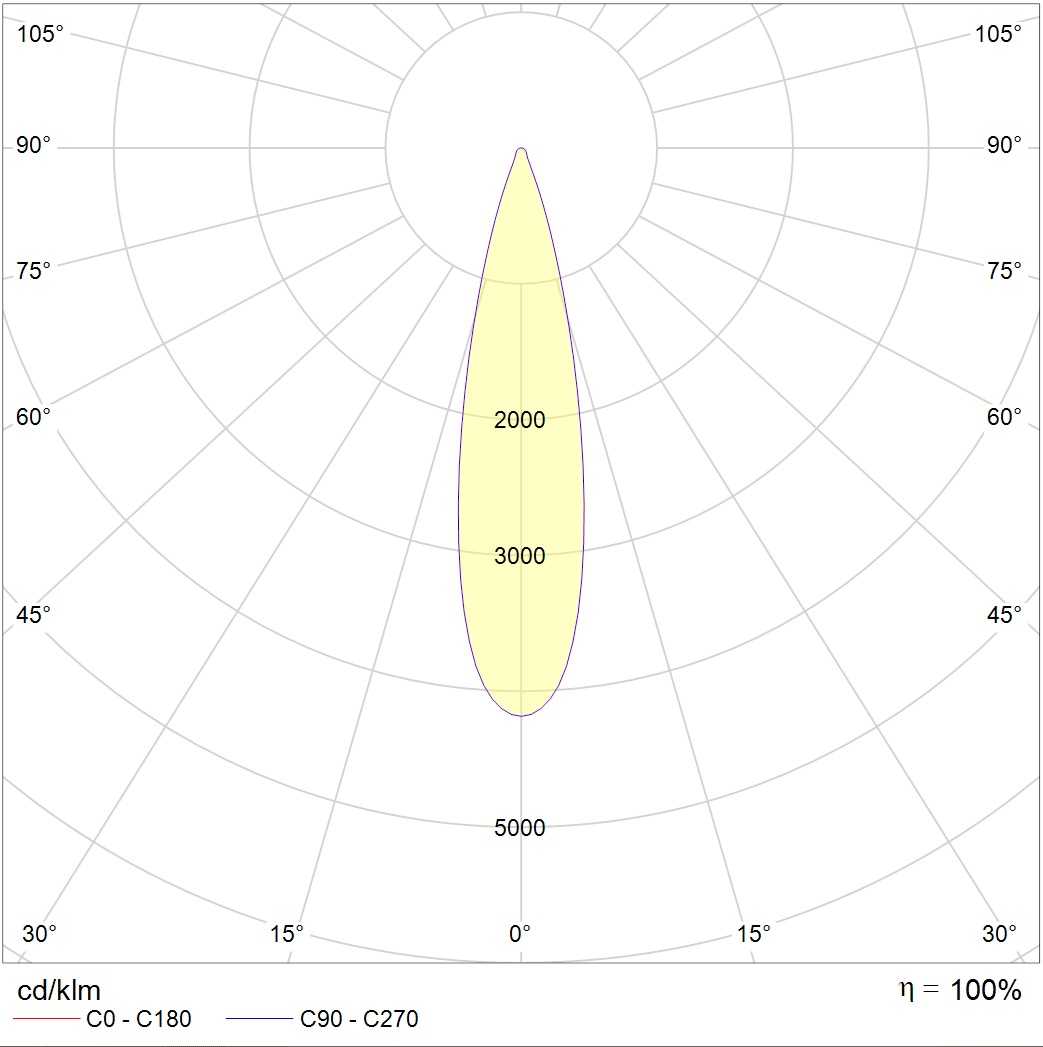

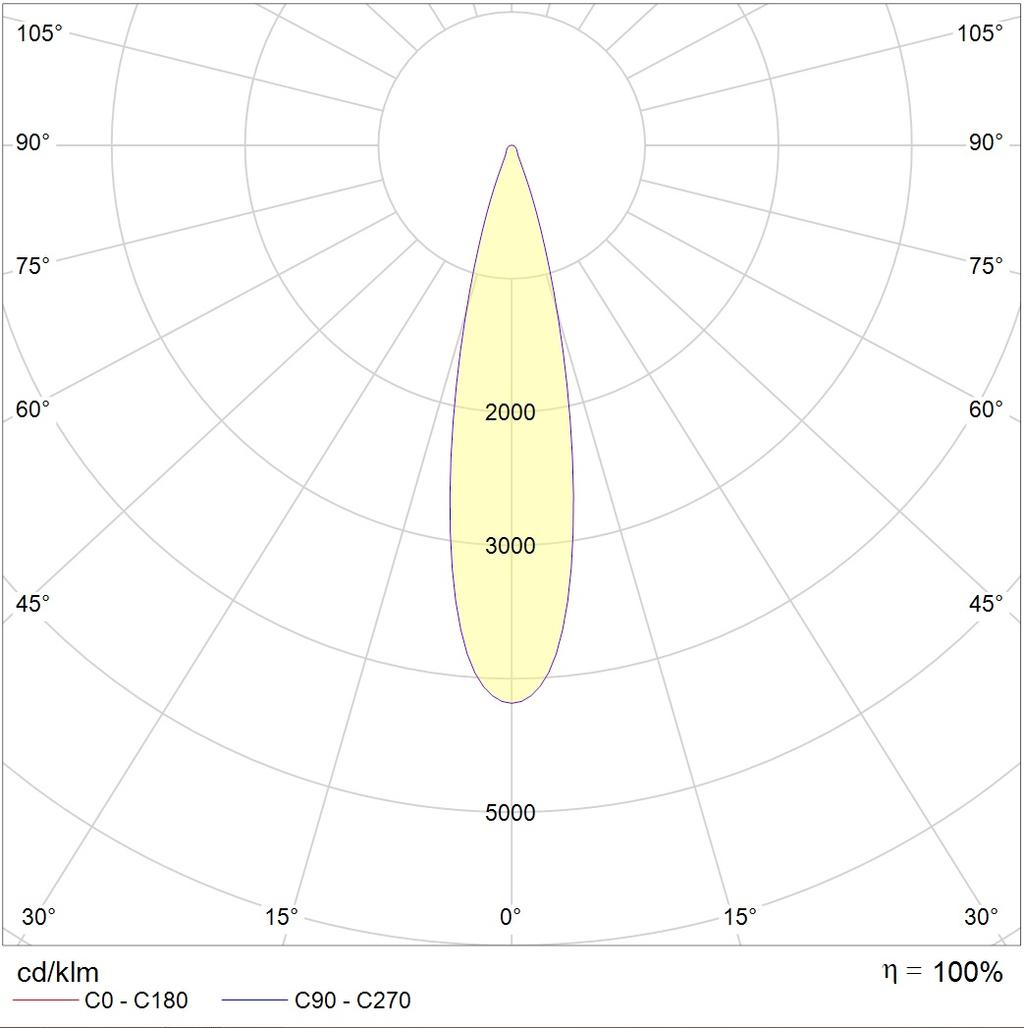

photometric files
сертификаты
photometric files
jpg121.5 kB
ldt2.4 kB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
