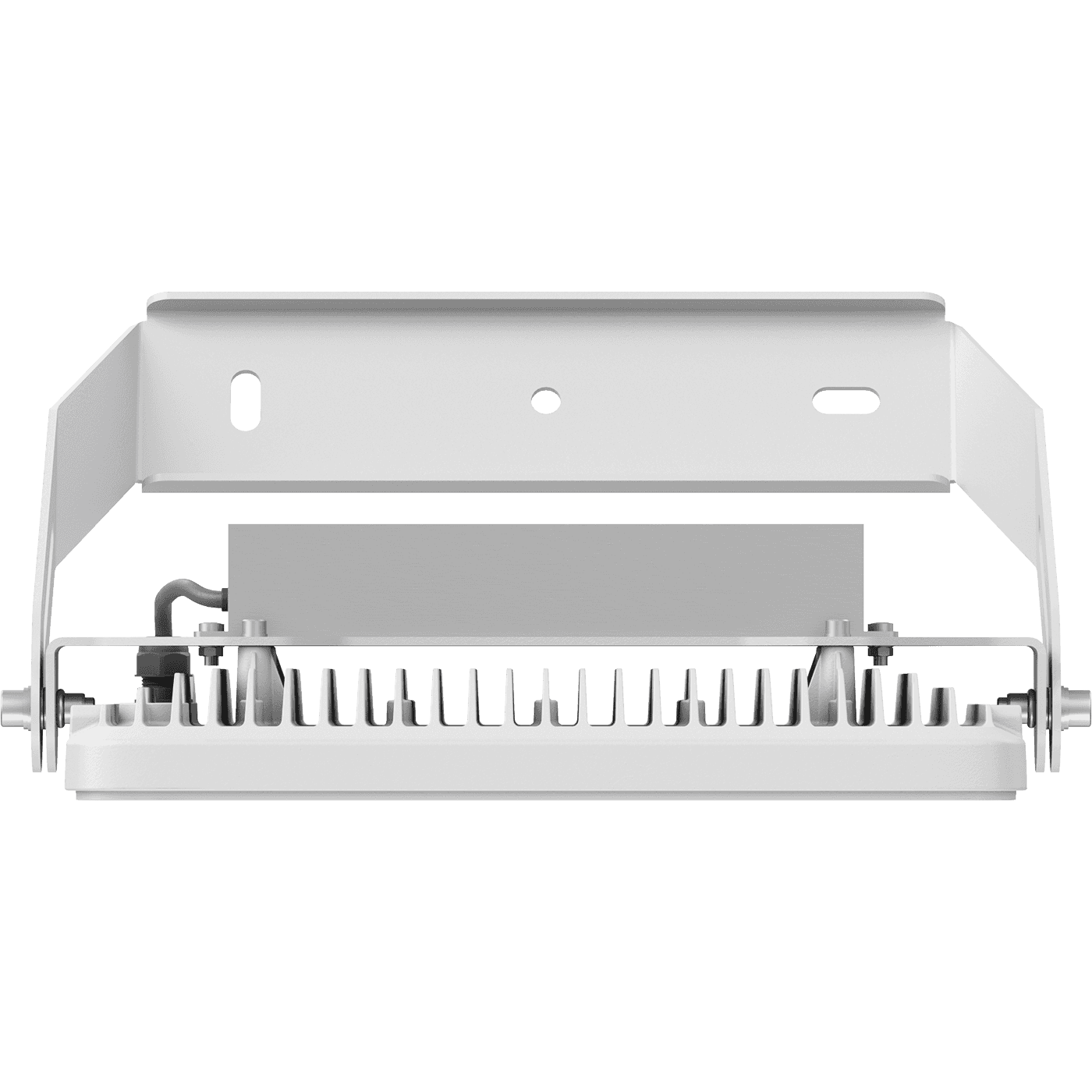

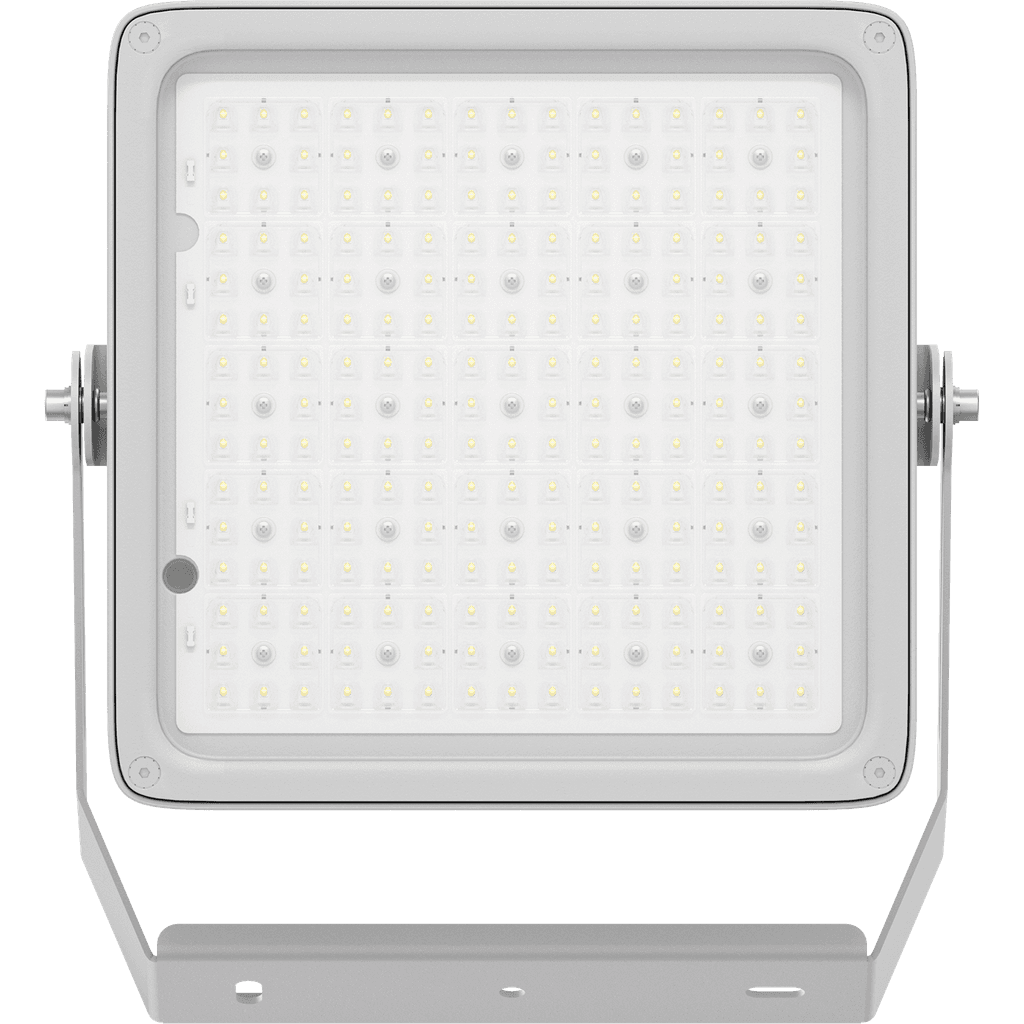

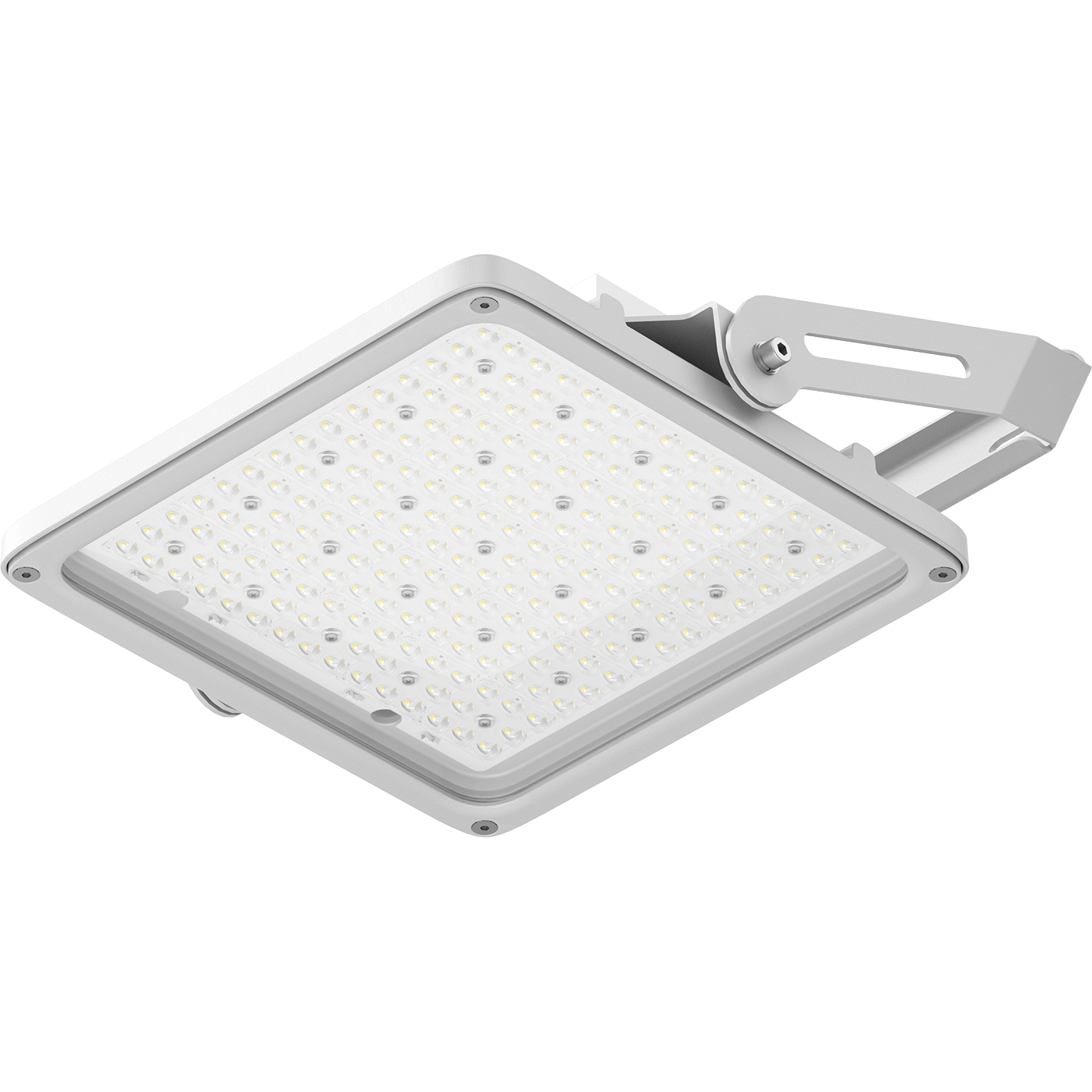

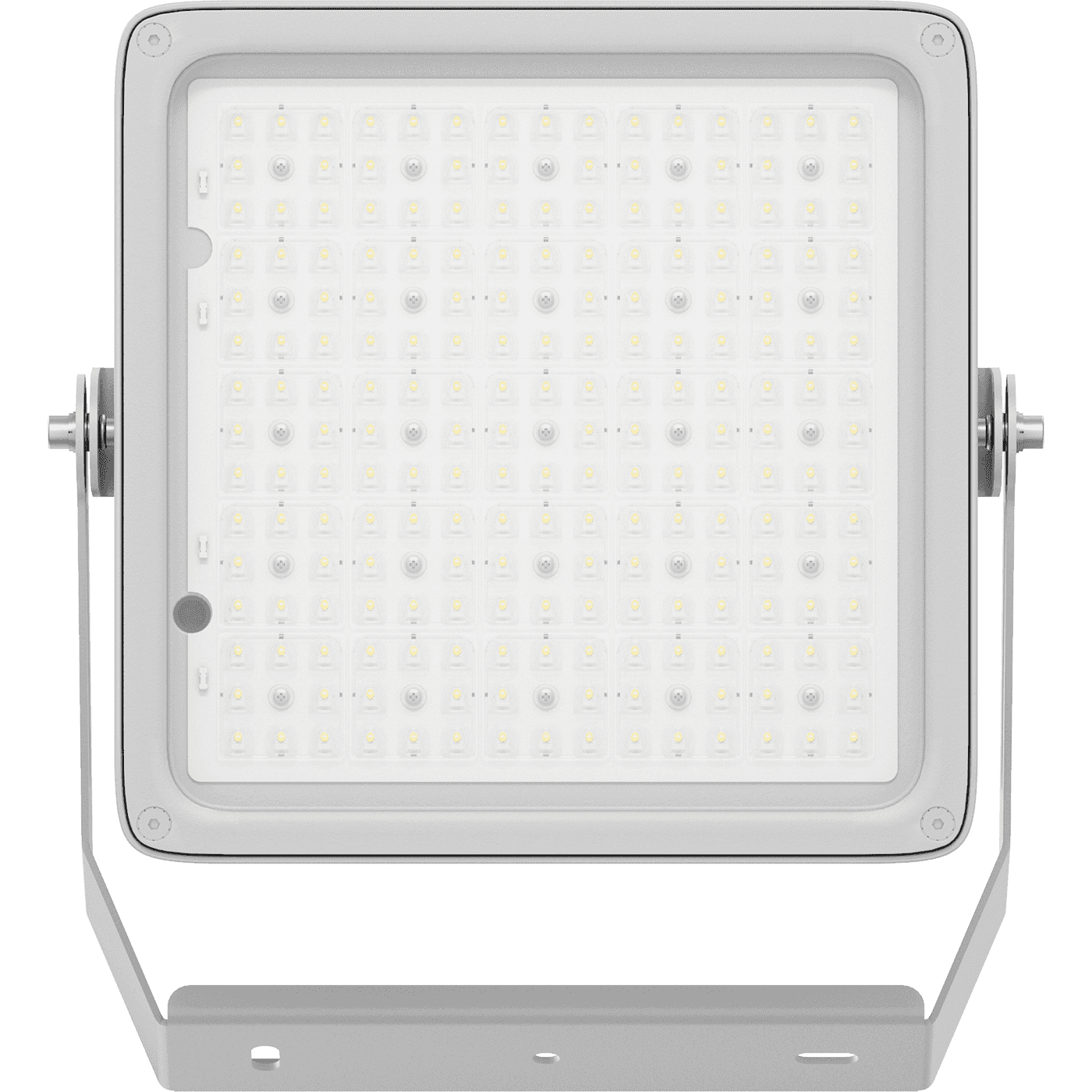

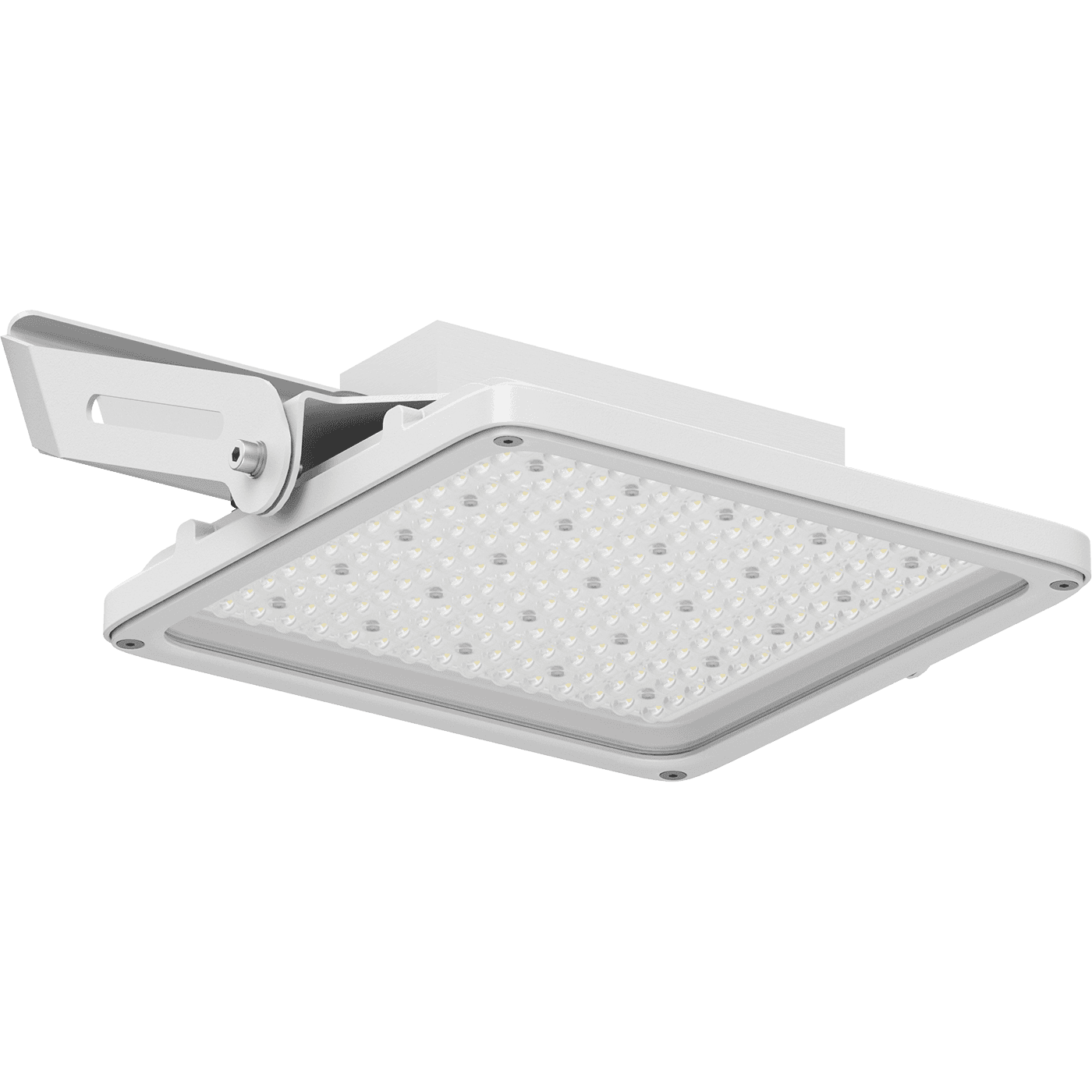

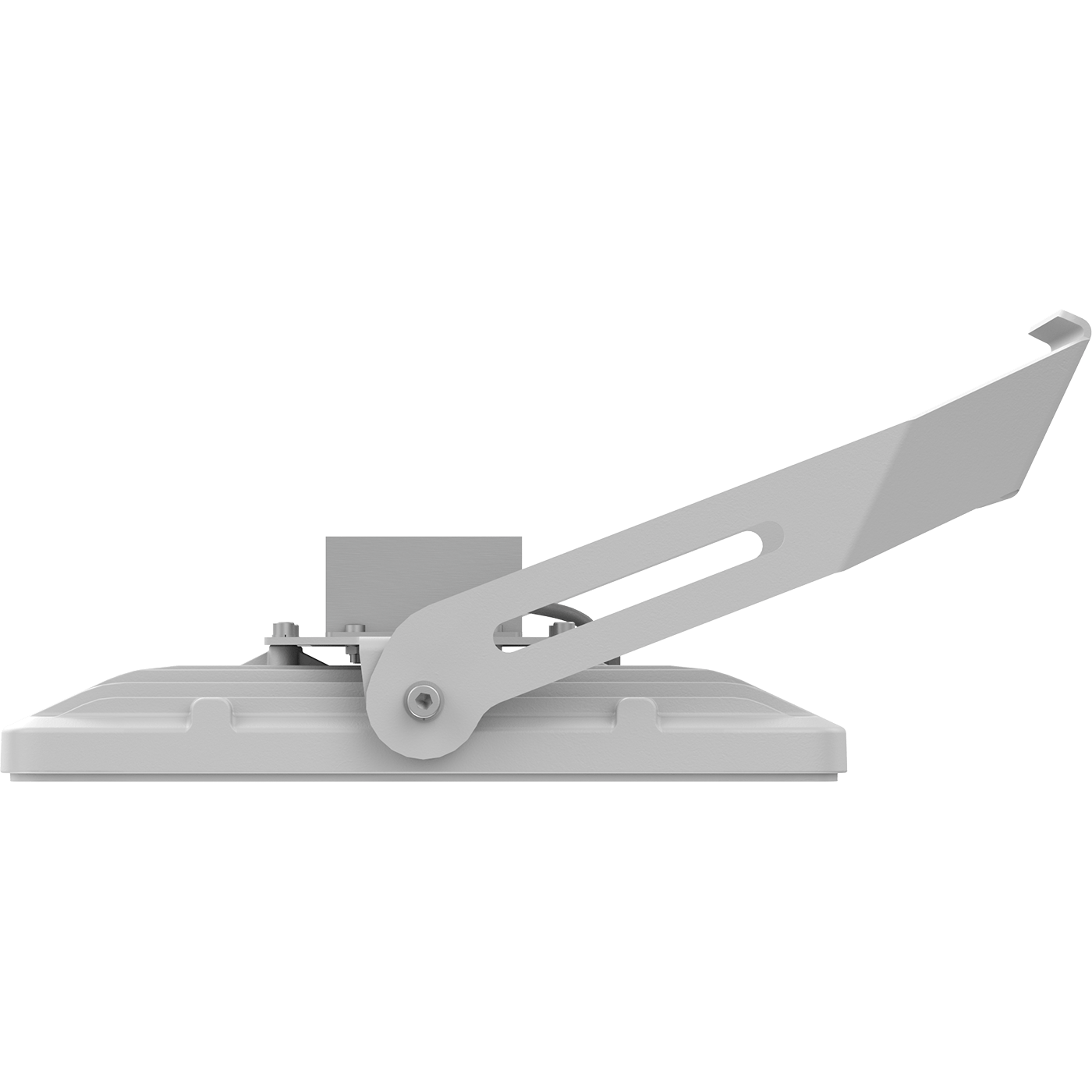

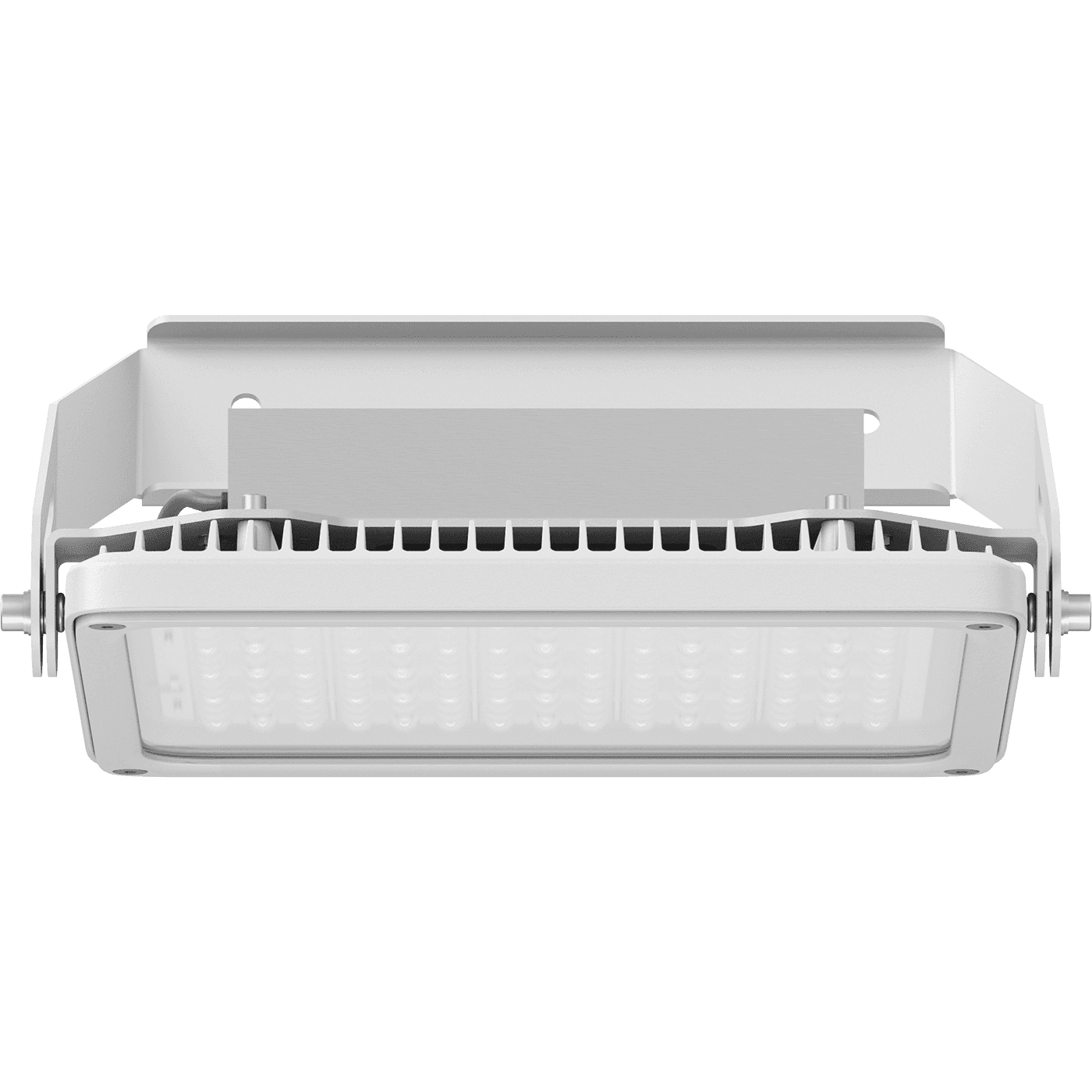

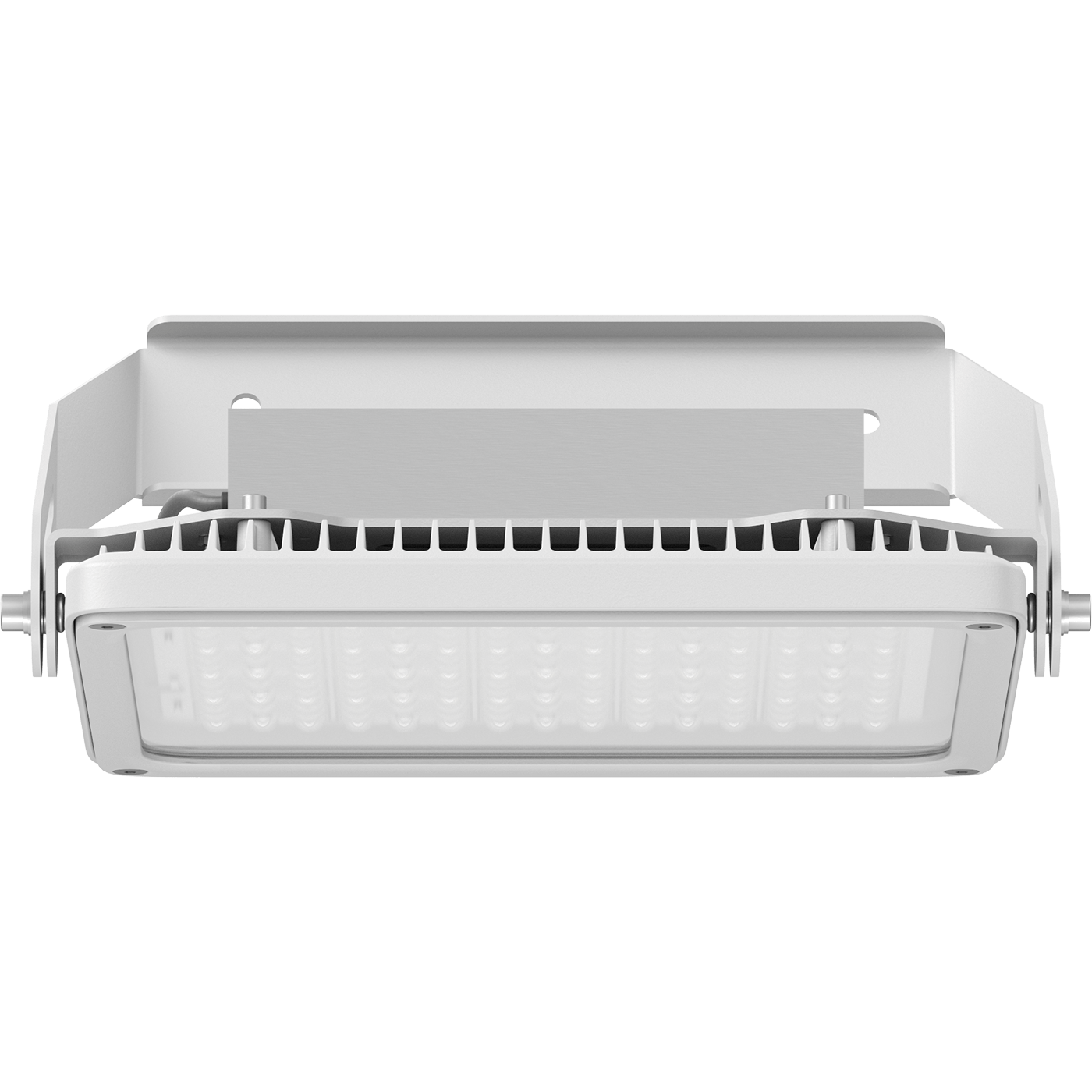

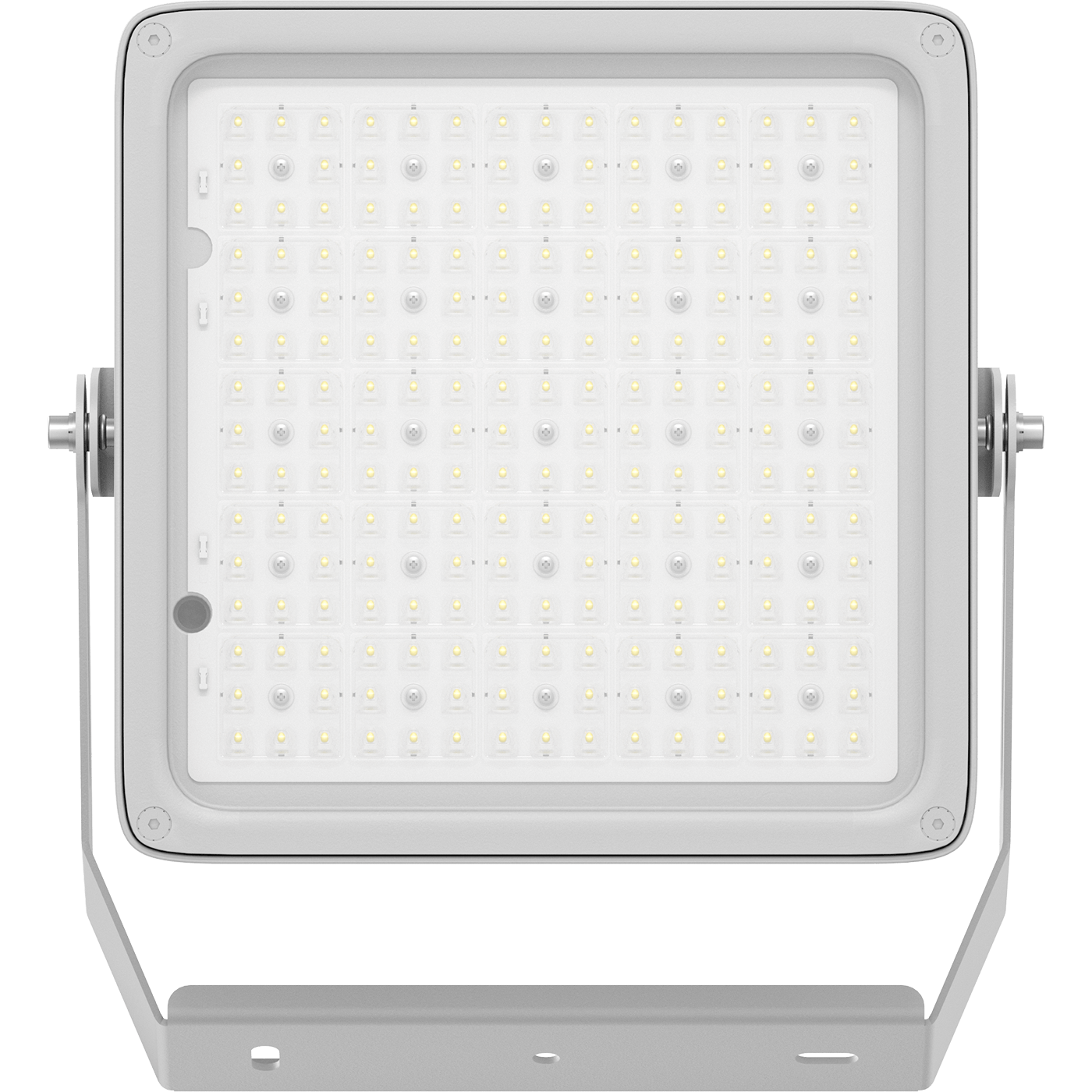

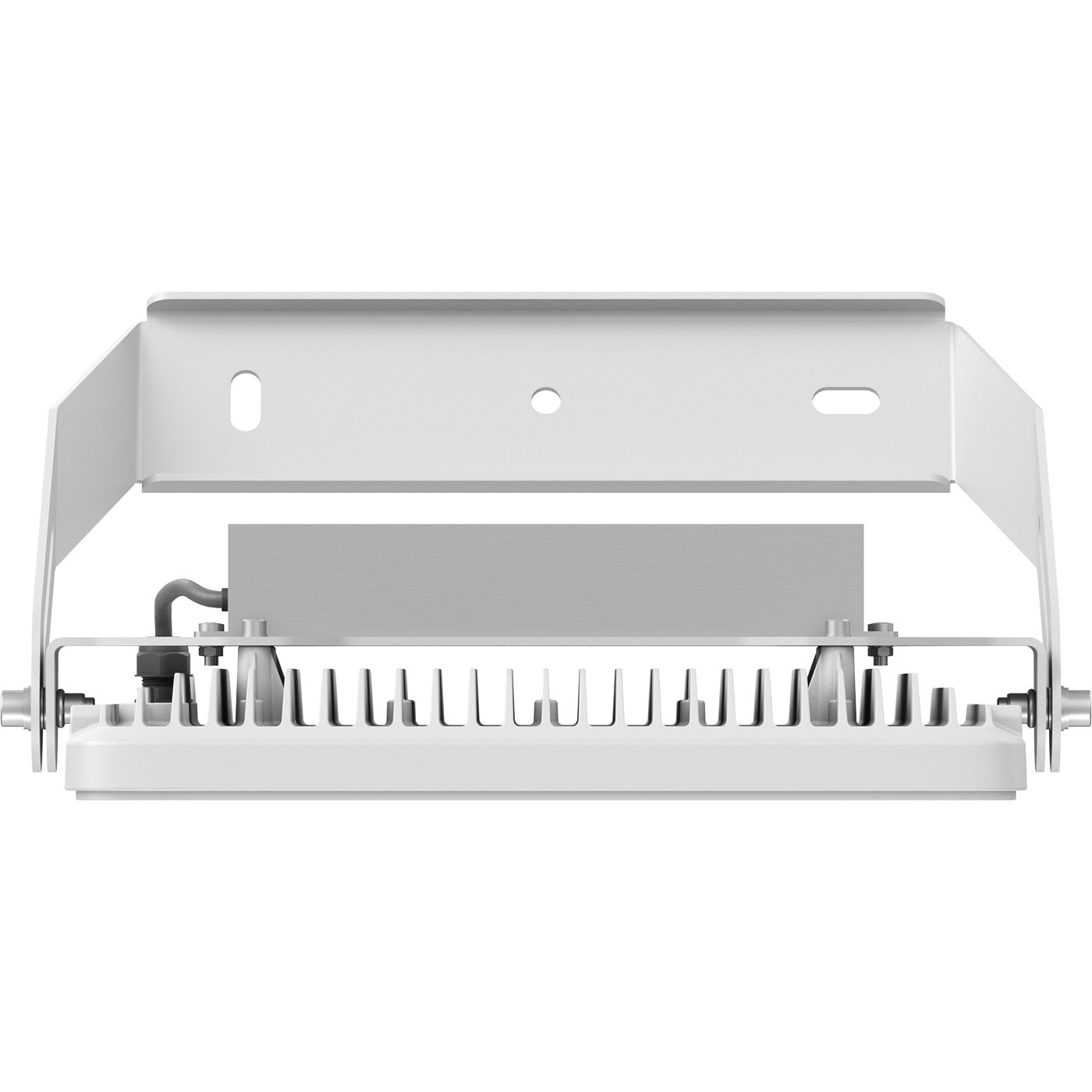

ATHLET 200W D120 750 WH SBL
ATHLET 200W D120 750 WH SBL
200 Wluminaire power
34800 lmlight flow
174 lm/Wenergy efficiency
code1875000900
beam angleD120
color temperature5000
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
174 lm/Wemission color
Белыйcolor rendition index (CRI)
>70light flow
34800 lmflickering factor
<5%beam angle
D120color temperature
5000light source type
LEDilluminating
energy efficiency
174 lm/W
emission color
Белый
color rendition index (CRI)
>70
light flow
34800 lm
flickering factor
<5%
beam angle
D120
color temperature
5000
light source type
LED
electrical
luminaire power
200 W
power factor
> 0,96
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
electric shock protection
I
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
installation length, mm
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875000900
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

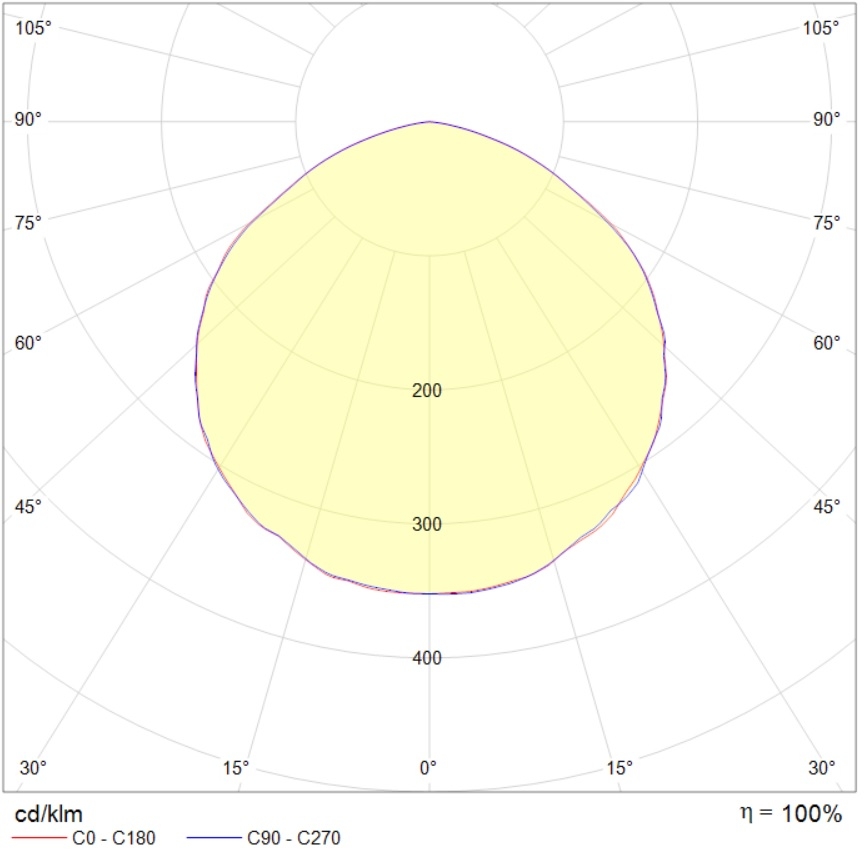

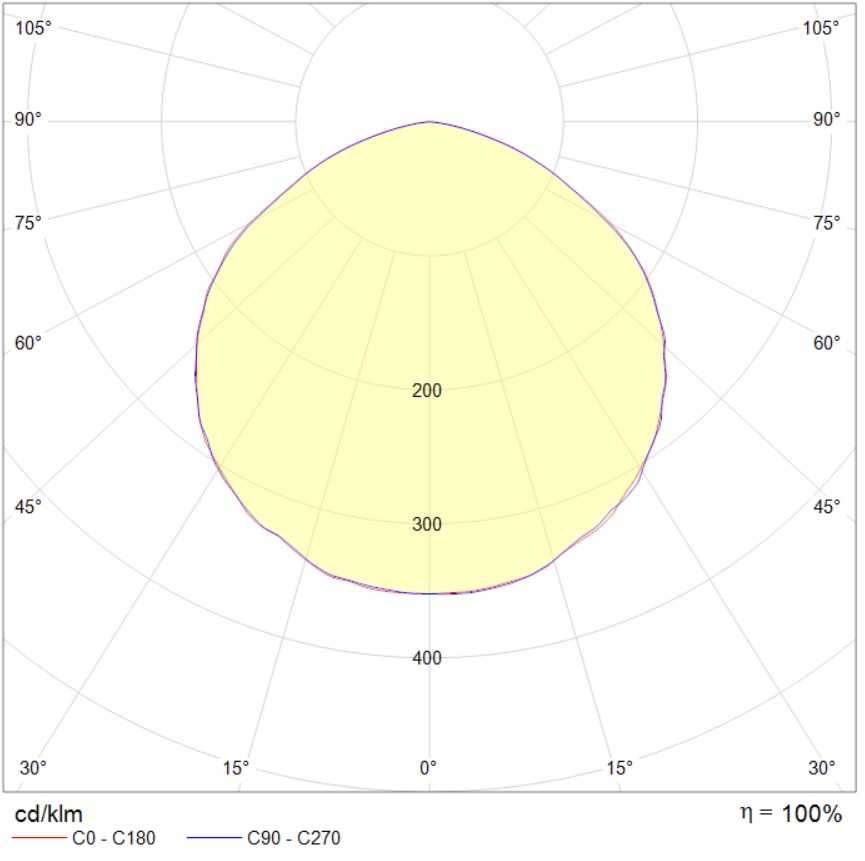

photometric files
сертификаты
media
photometric files
ies107 kB
jpg76.5 kB
ldt72 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
media
brochure4.9 mB
