ATHLET 200W D130 957 WH SBL

ATHLET 200W D130 957 WH SBL
200 Wluminaire power
27400 lmlight flow
137 lm/Wenergy efficiency
code1875000780
beam angleD130
color temperature5700
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
137 lm/W
color rendition index (CRI)
>90
light flow
27400 lm
flickering factor
<5%
beam angle
D130
color temperature
5700
light source type
LED
emission color
Белый
illuminating
energy efficiency
137 lm/W
color rendition index (CRI)
>90
light flow
27400 lm
flickering factor
<5%
beam angle
D130
color temperature
5700
light source type
LED
emission color
Белый
electrical
luminaire power
200 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width, mm
410 mm
height, mm
215 mm
installation length, mm
220 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
385 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
8 kg
common
code
1875000780
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

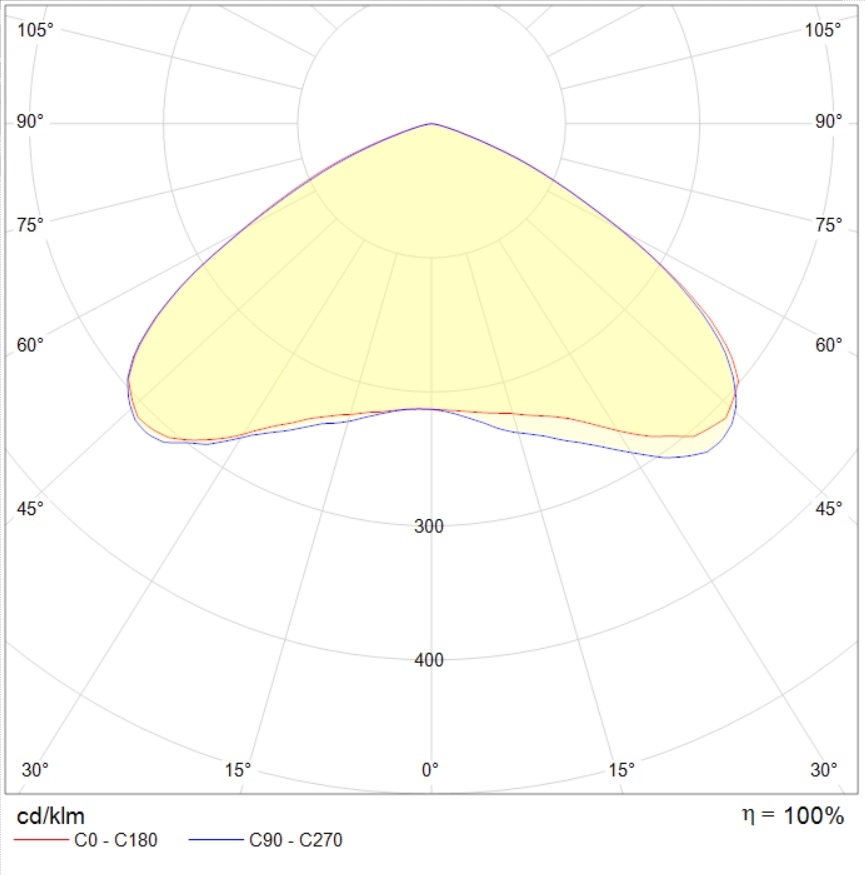

photometric files
