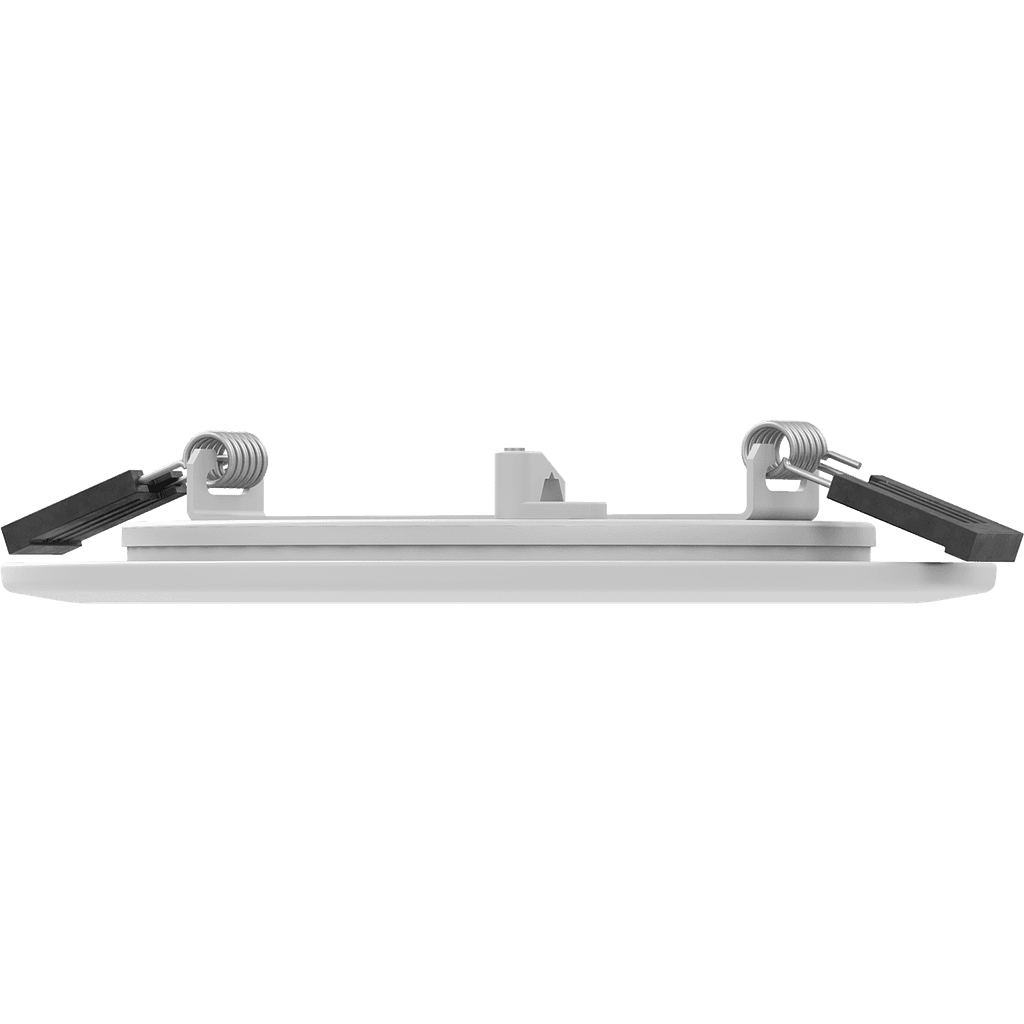

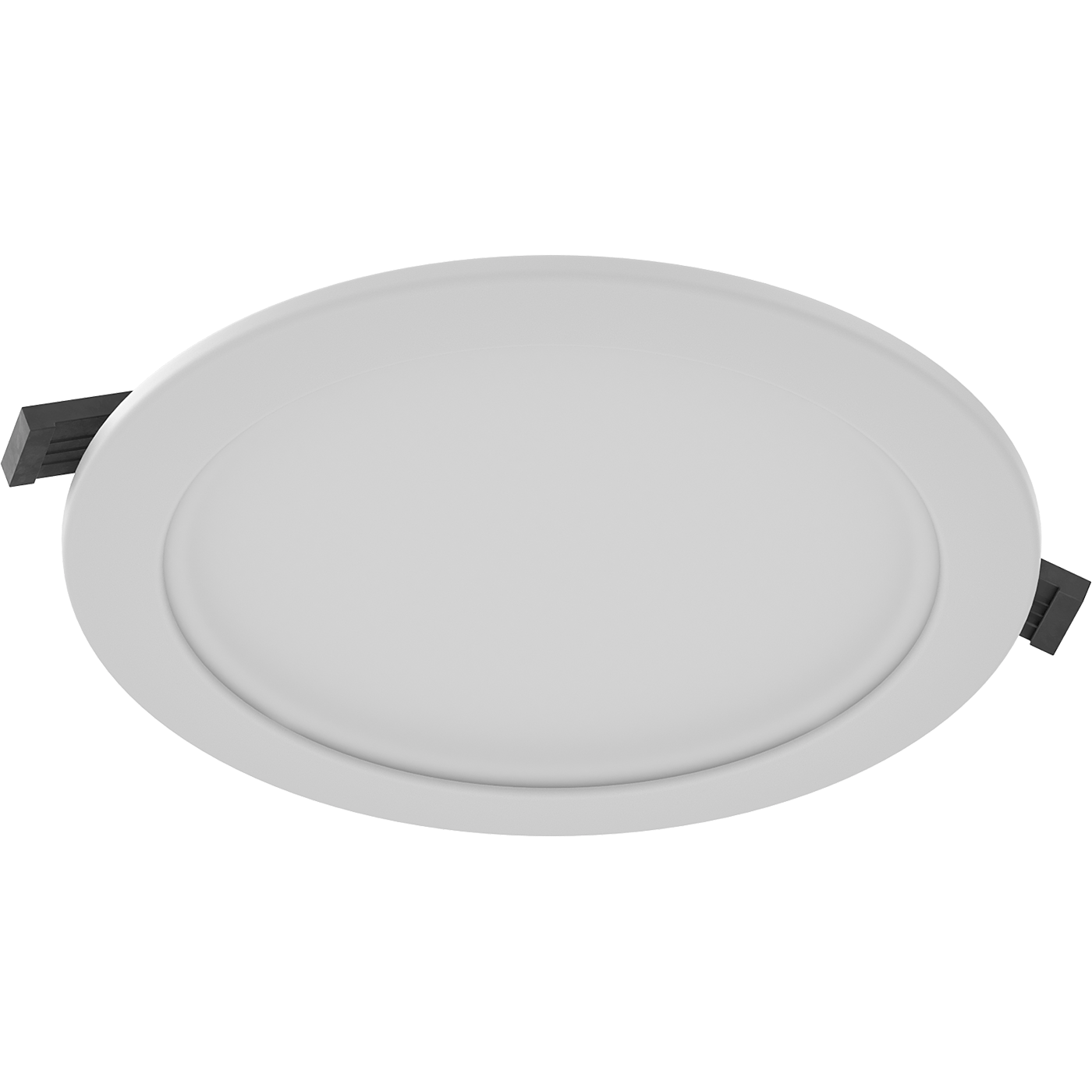

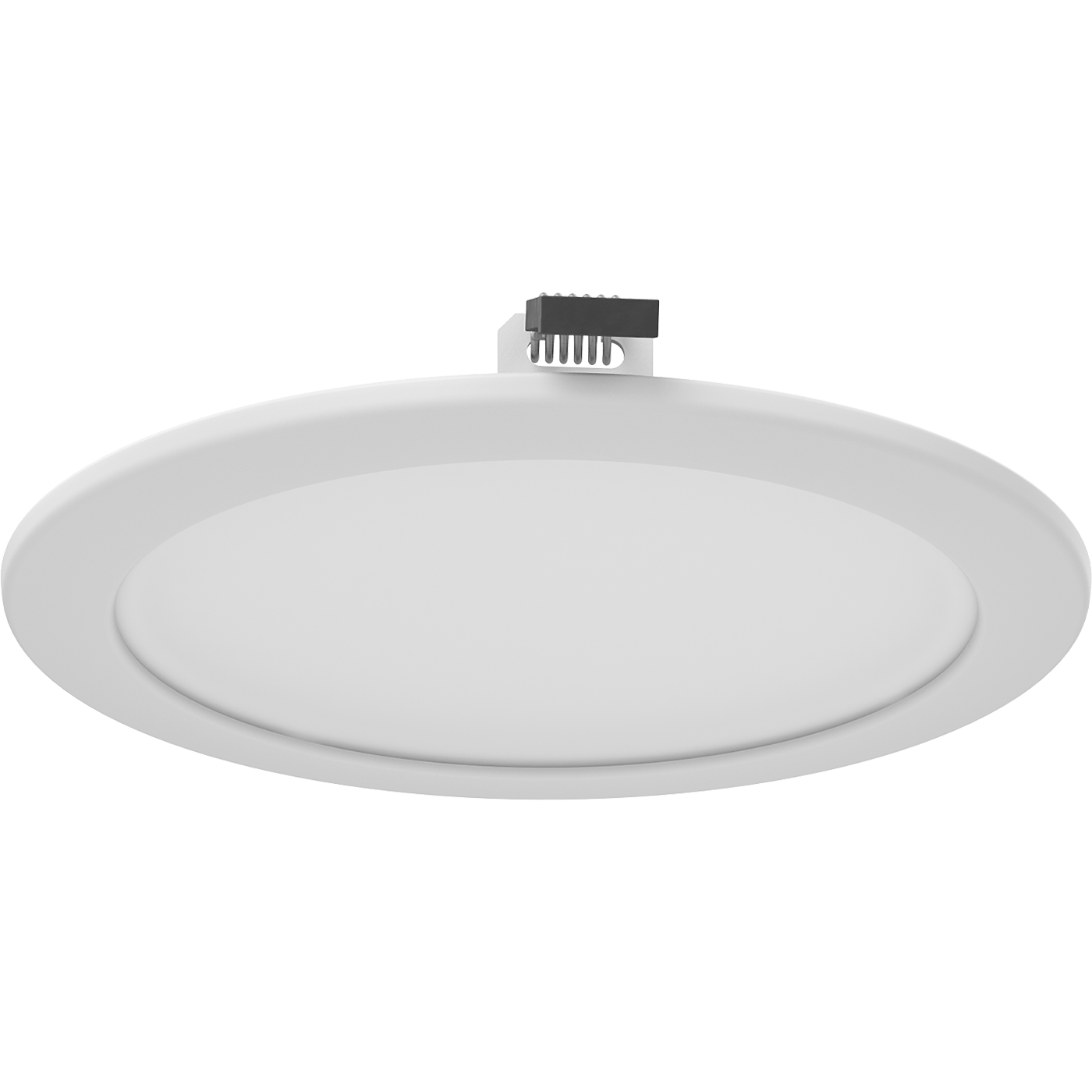

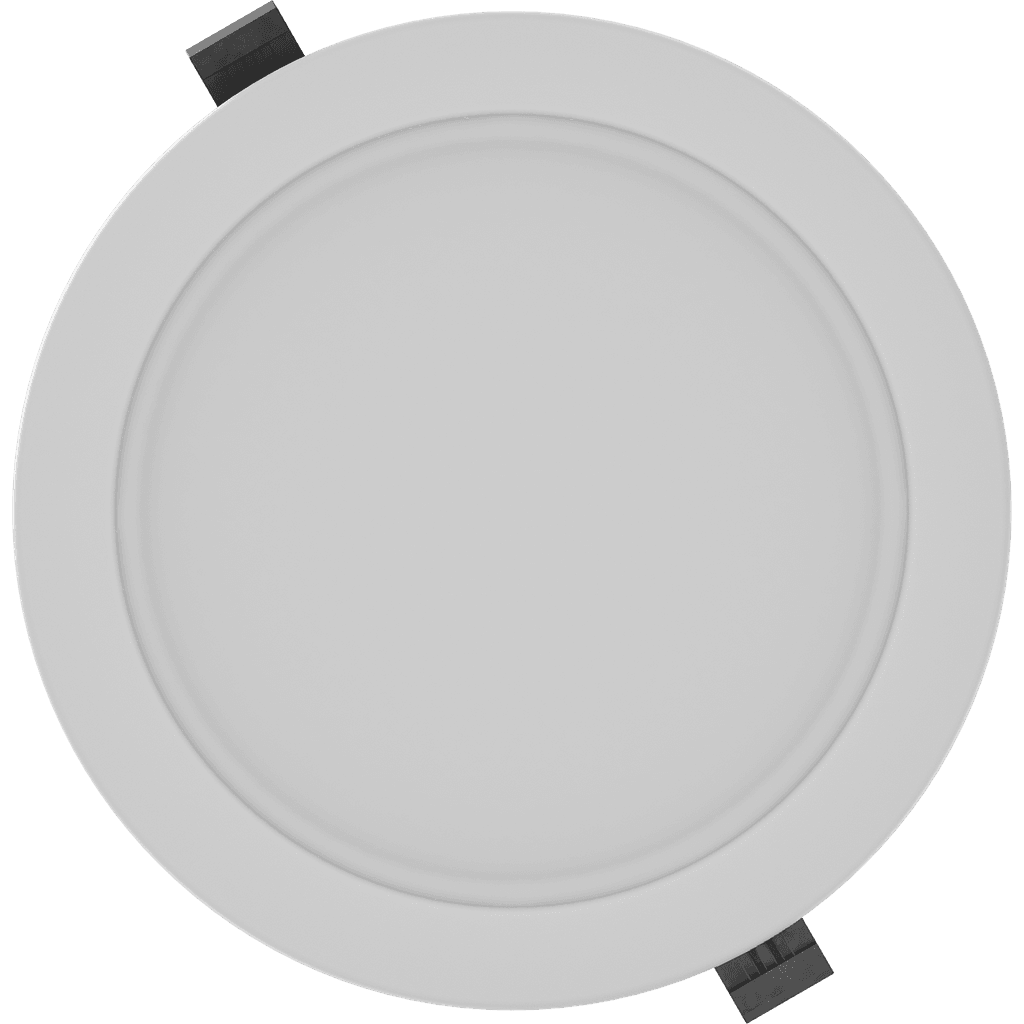

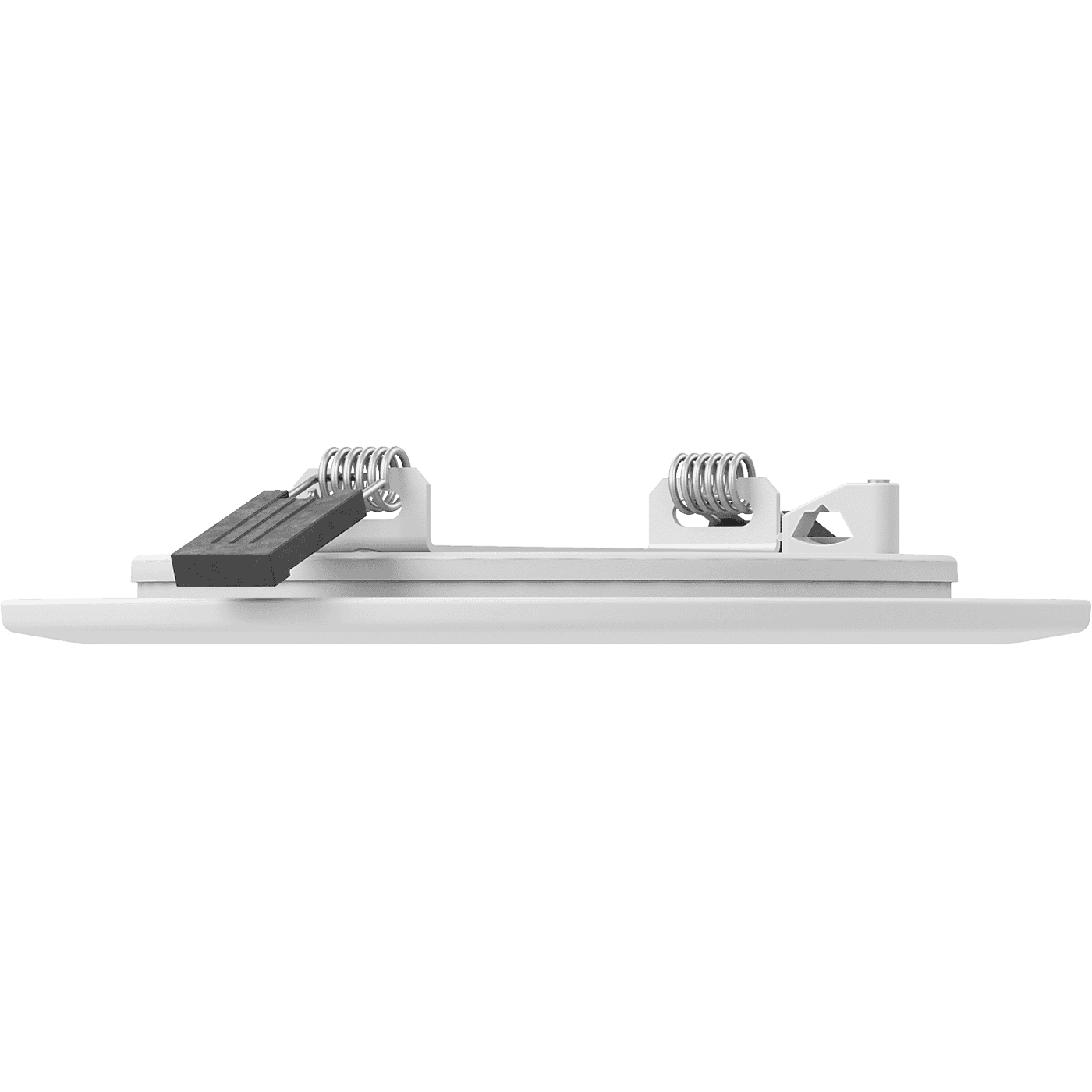

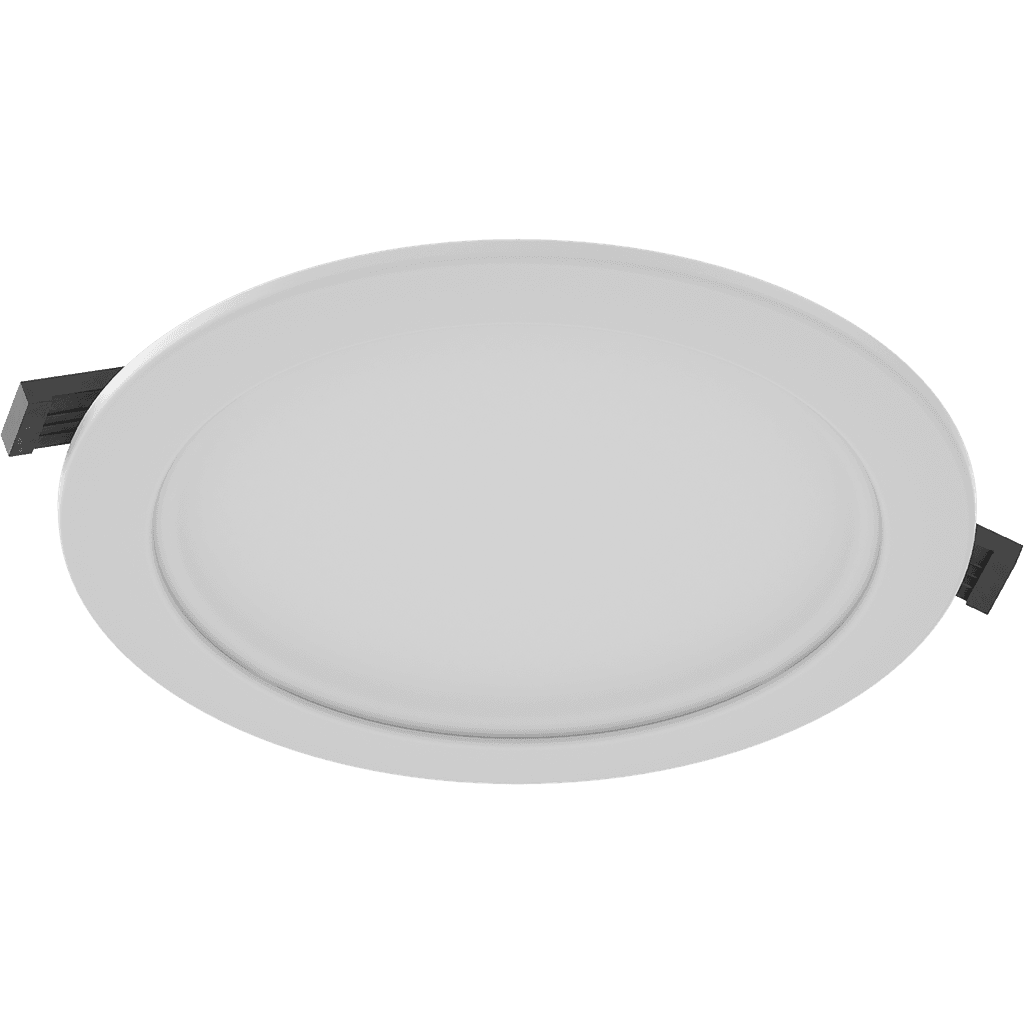

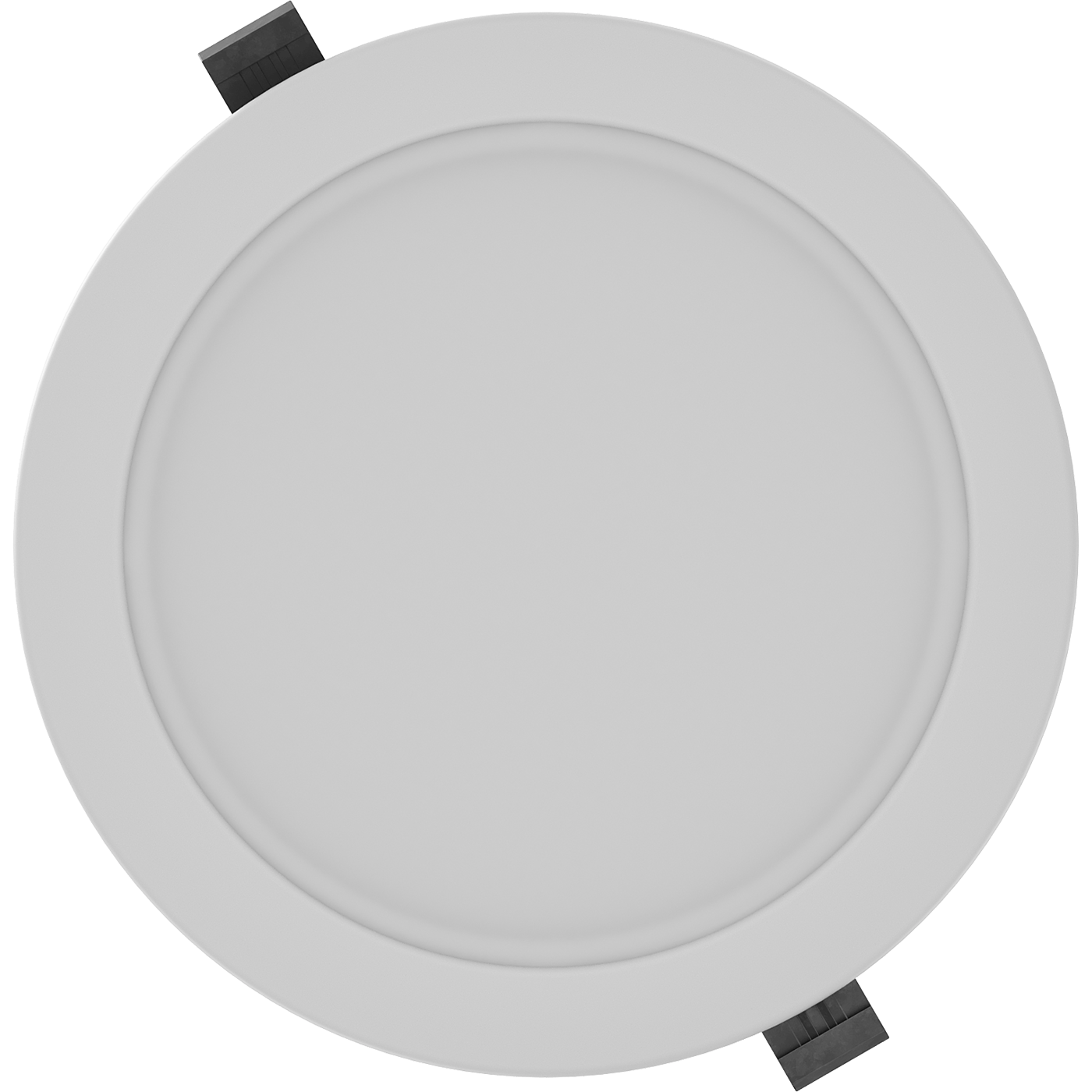

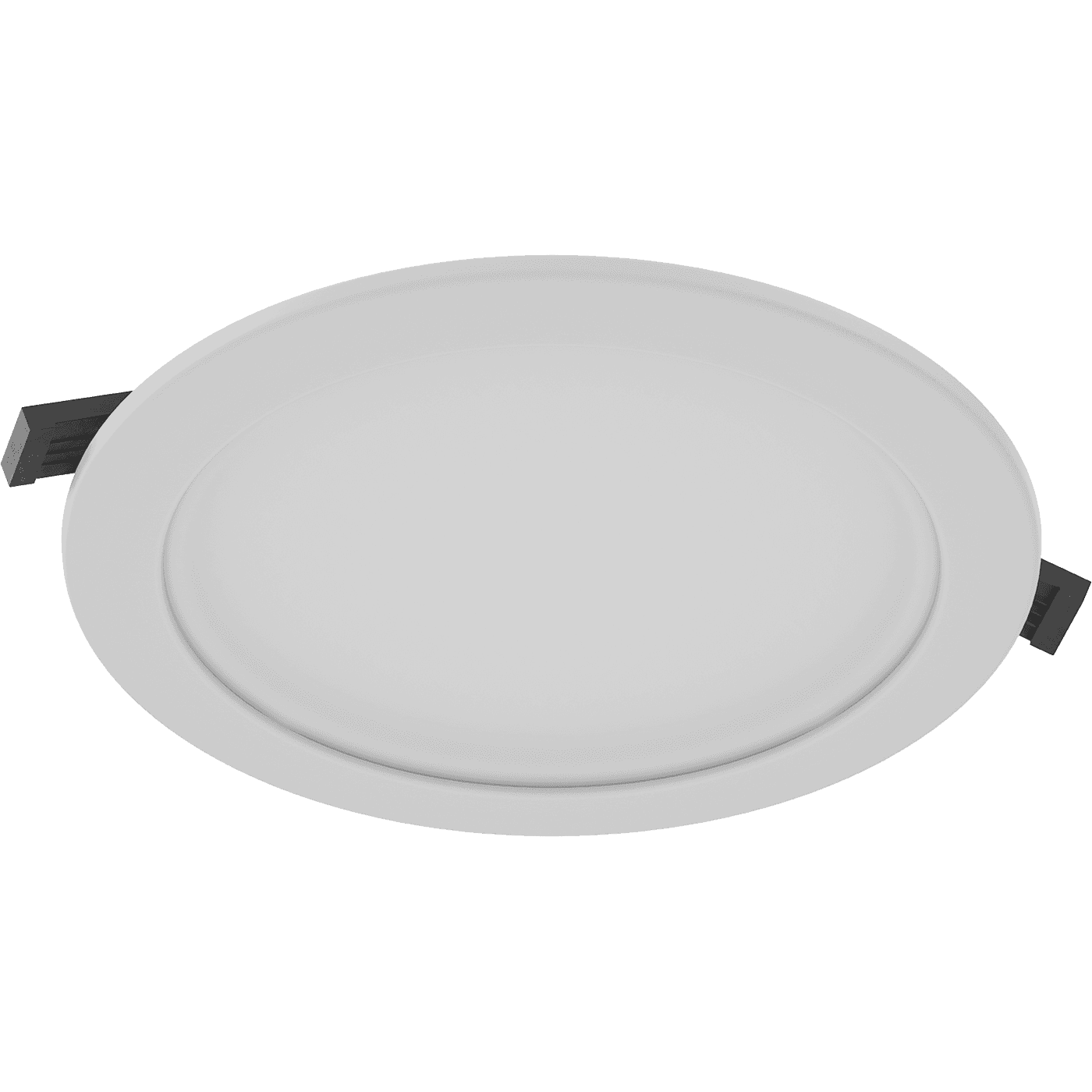

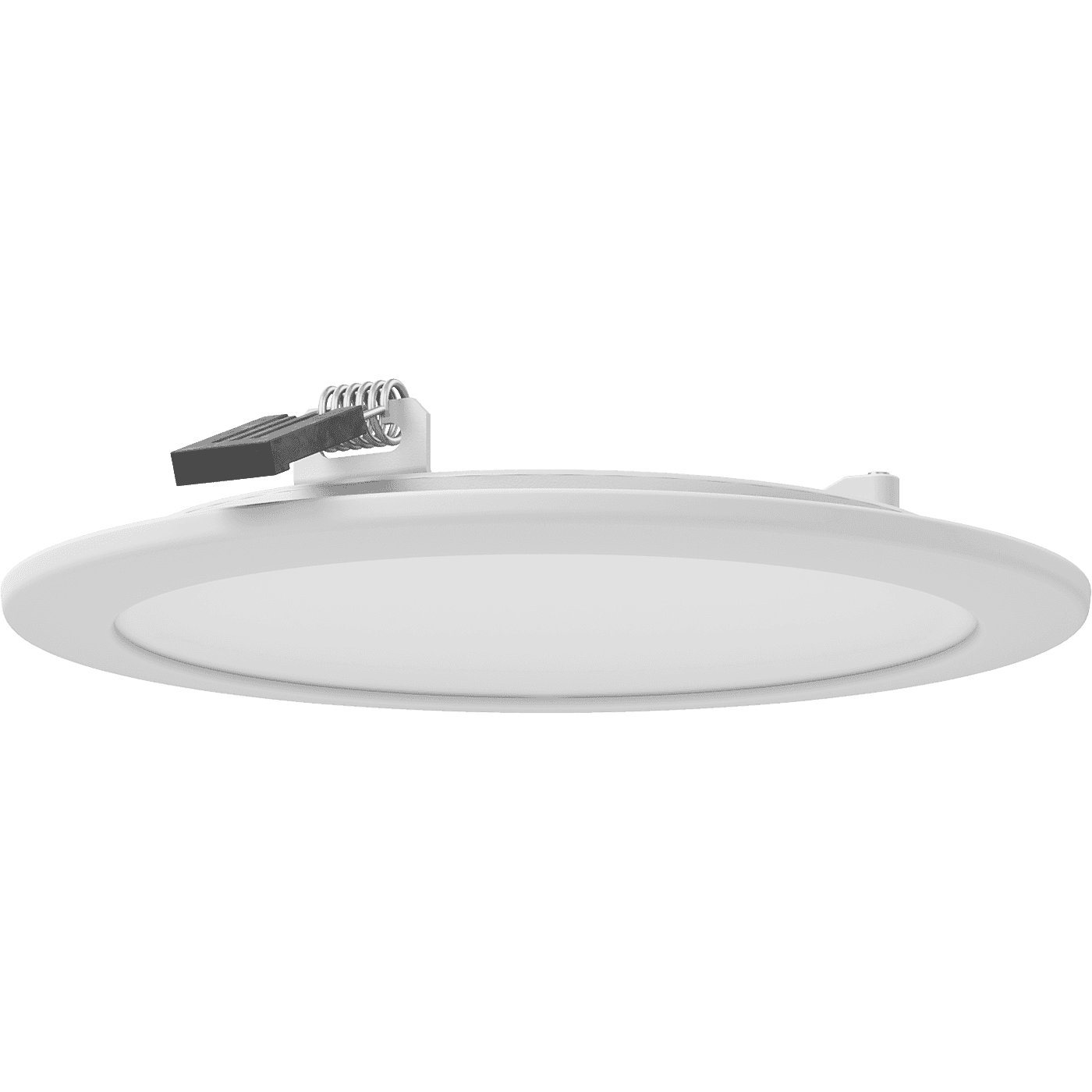

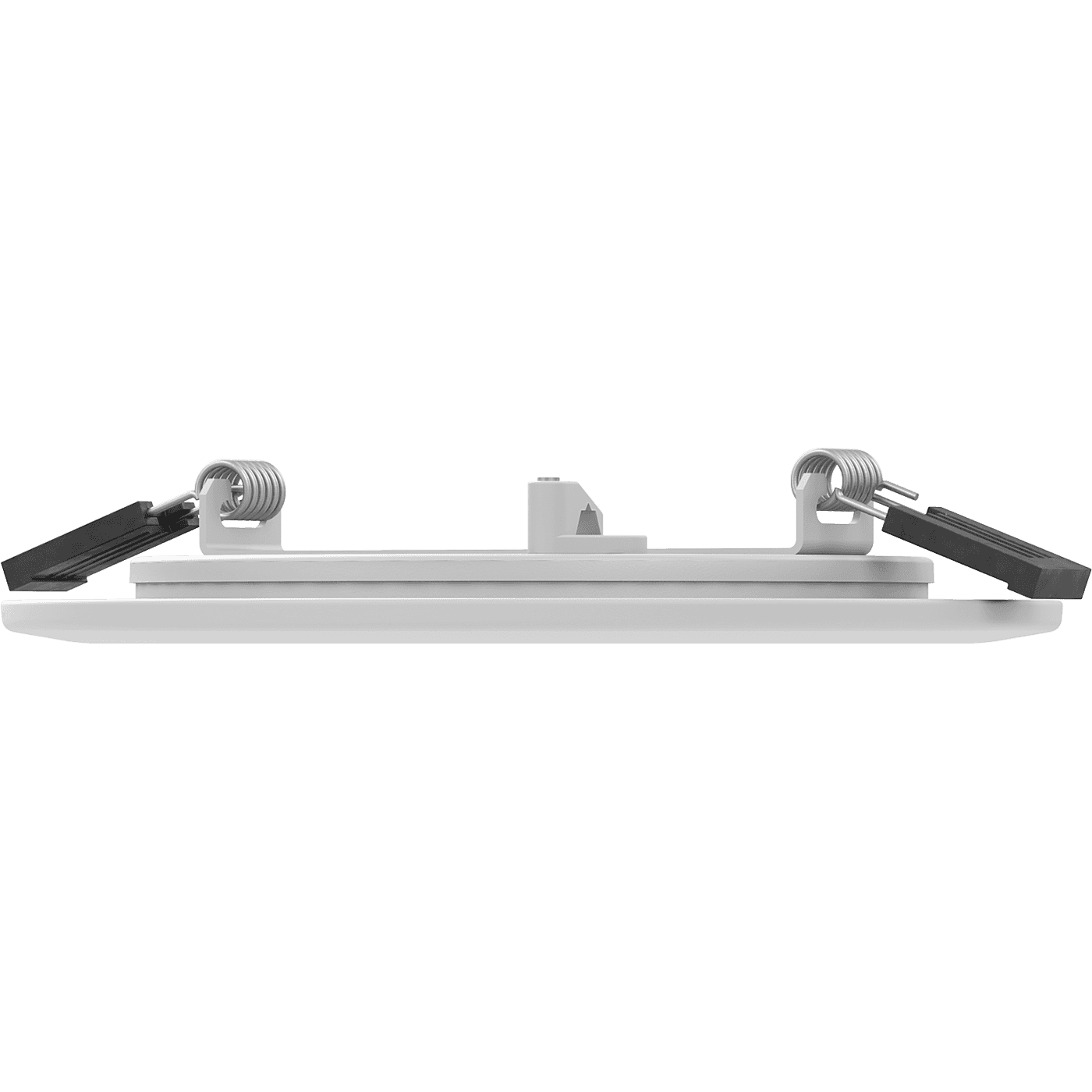

AVIS DL LED 22 3000K
AVIS DL LED 22 3000K
20 Wluminaire power
2200 lmlight flow
110 lm/Wenergy efficiency
code1101600100
color temperature3000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
110 lm/Wcolor rendition index (CRI)
>80light flow
2200 lmflickering factor
<5%beam angle
D120color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
110 lm/W
color rendition index (CRI)
>80
light flow
2200 lm
flickering factor
<5%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
2.28 mks
electric shock protection
II
luminaire power
20 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, alternating current
230 V
starting current
43 A
constructional
diameter
196 mm
height, mm
40 mm
installation diameter
156 mm
weight
0.5 kg
ingress protection (IP)
IP40/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1101600100
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg115.6 kB
ldt163.4 kB
documents
passport748.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
