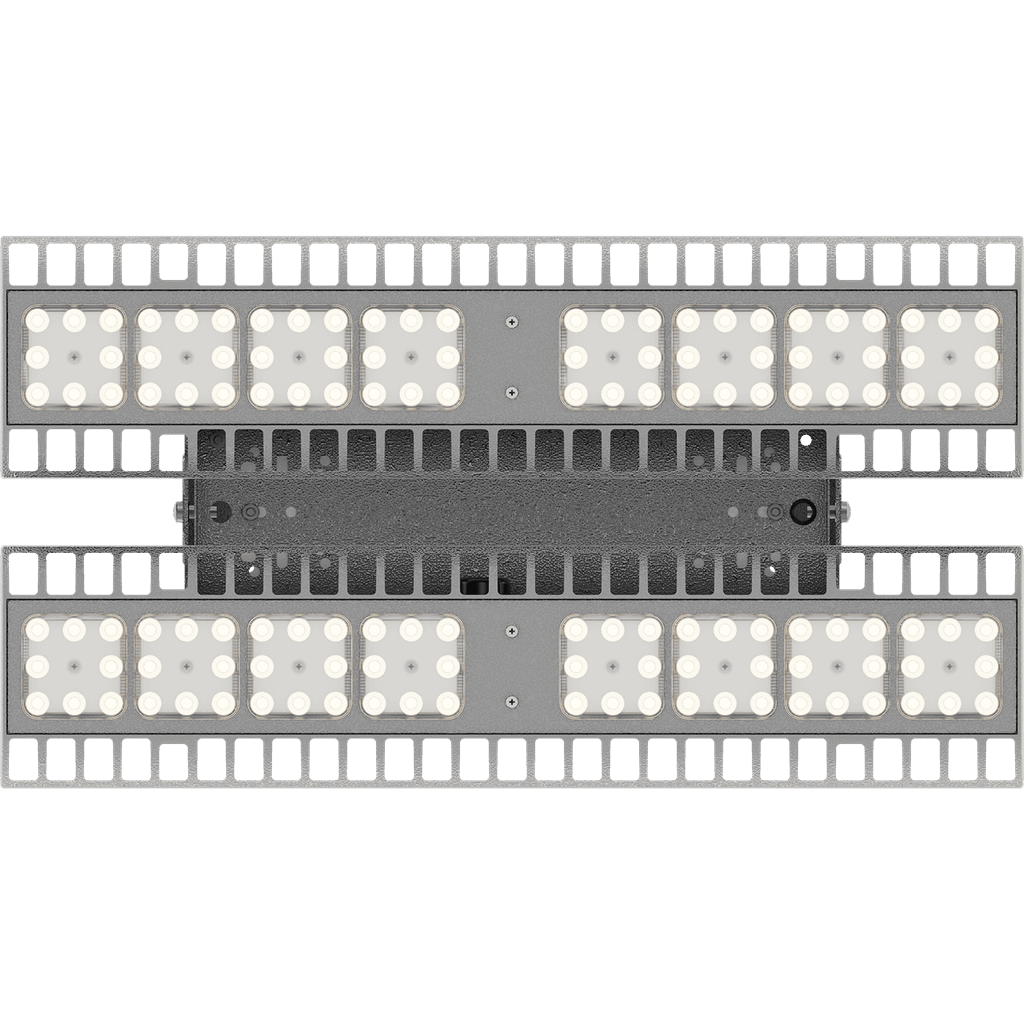

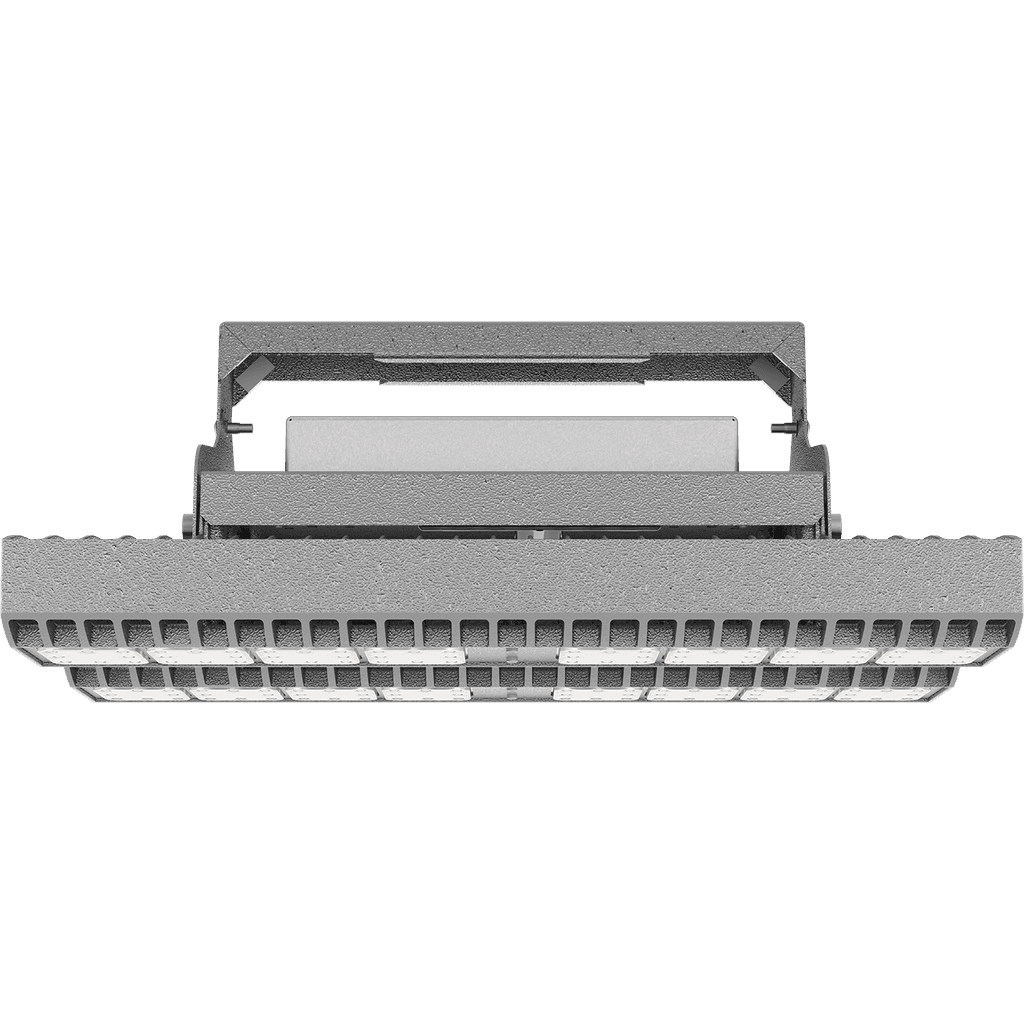

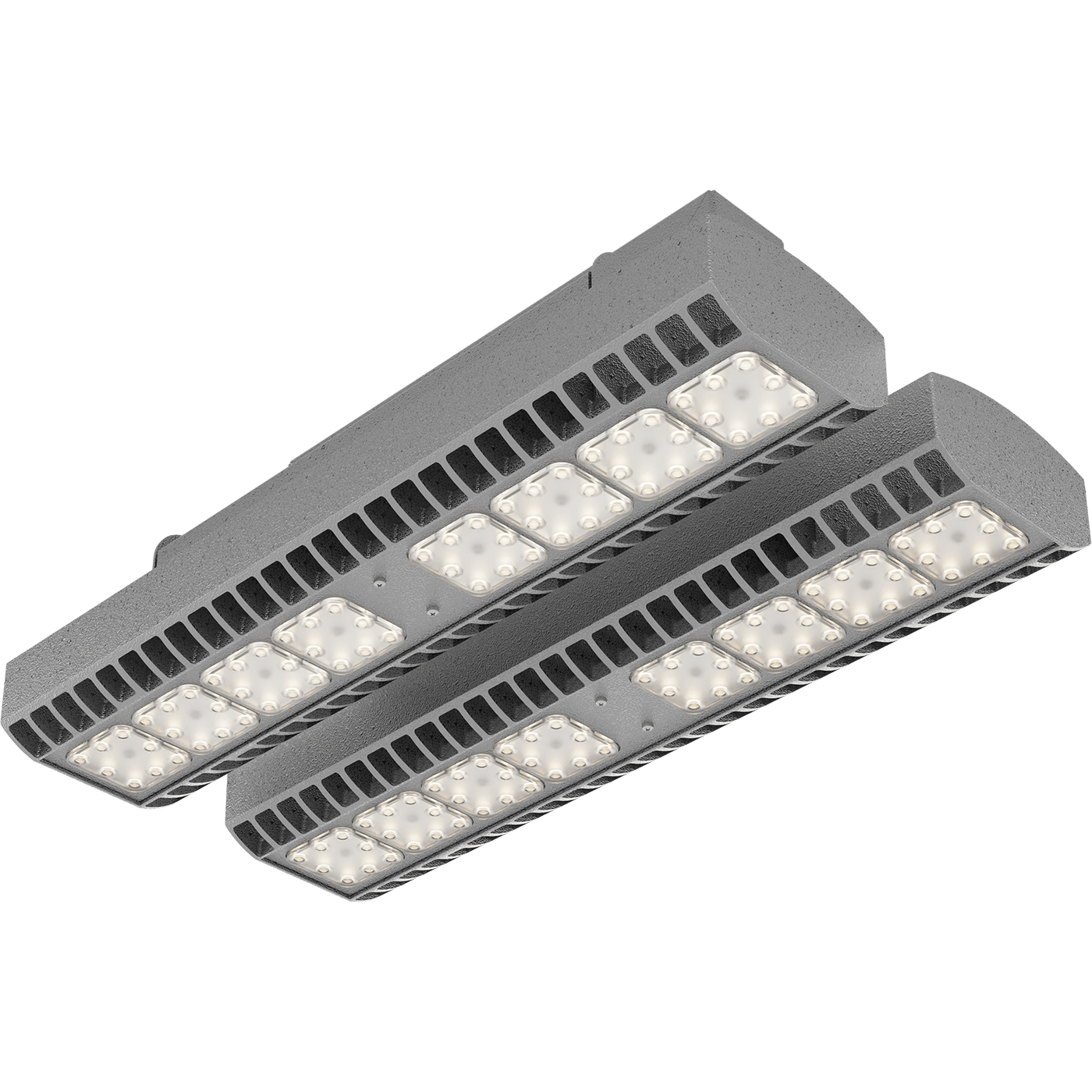

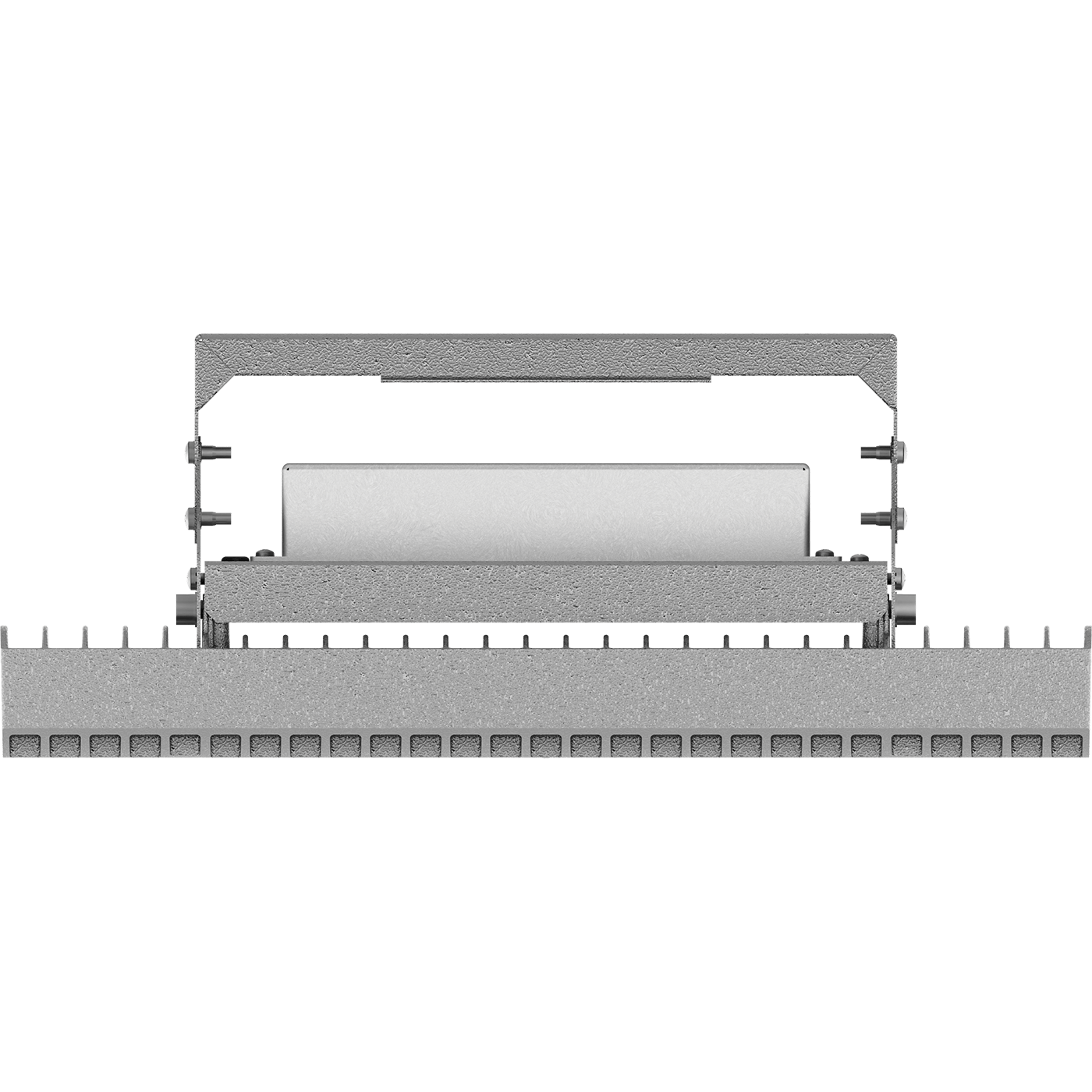

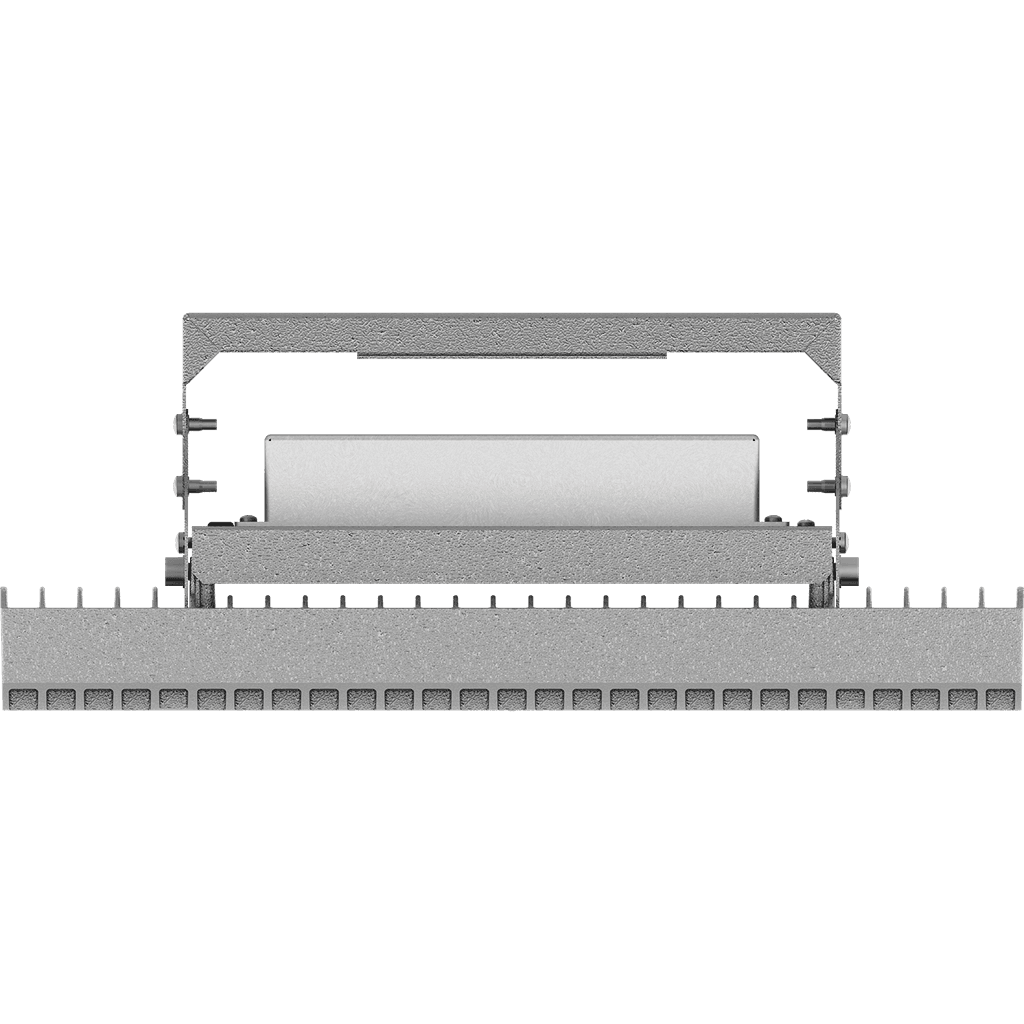

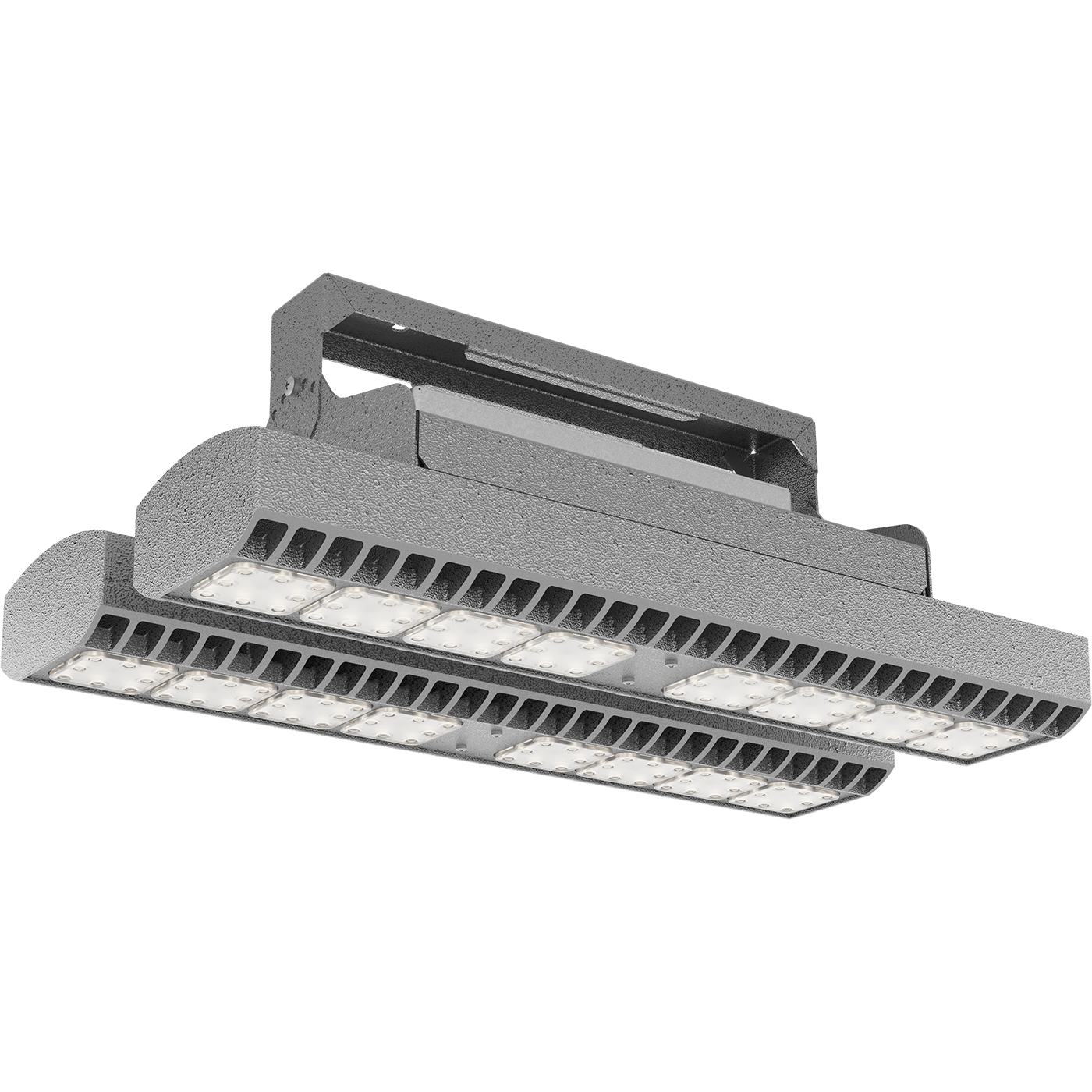

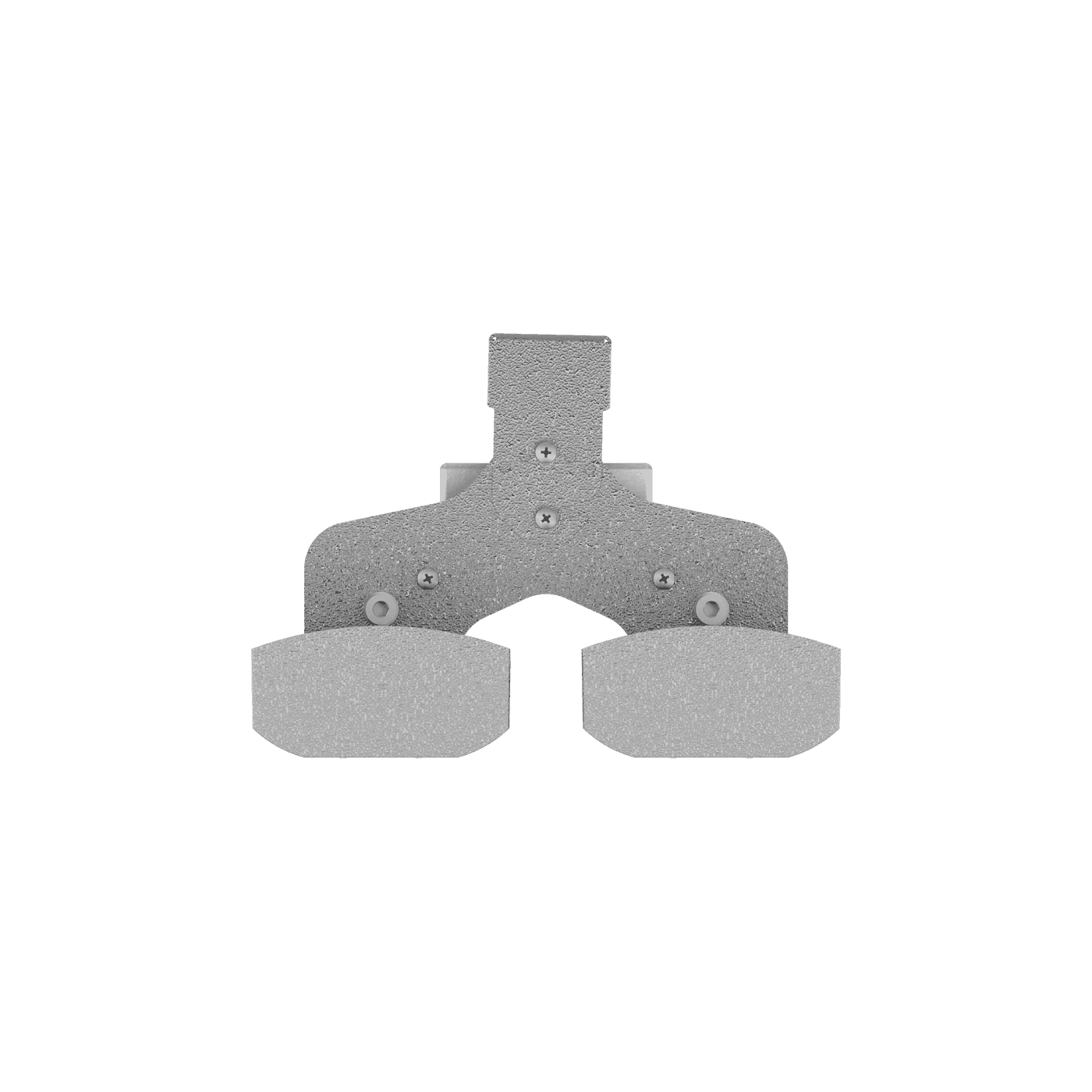

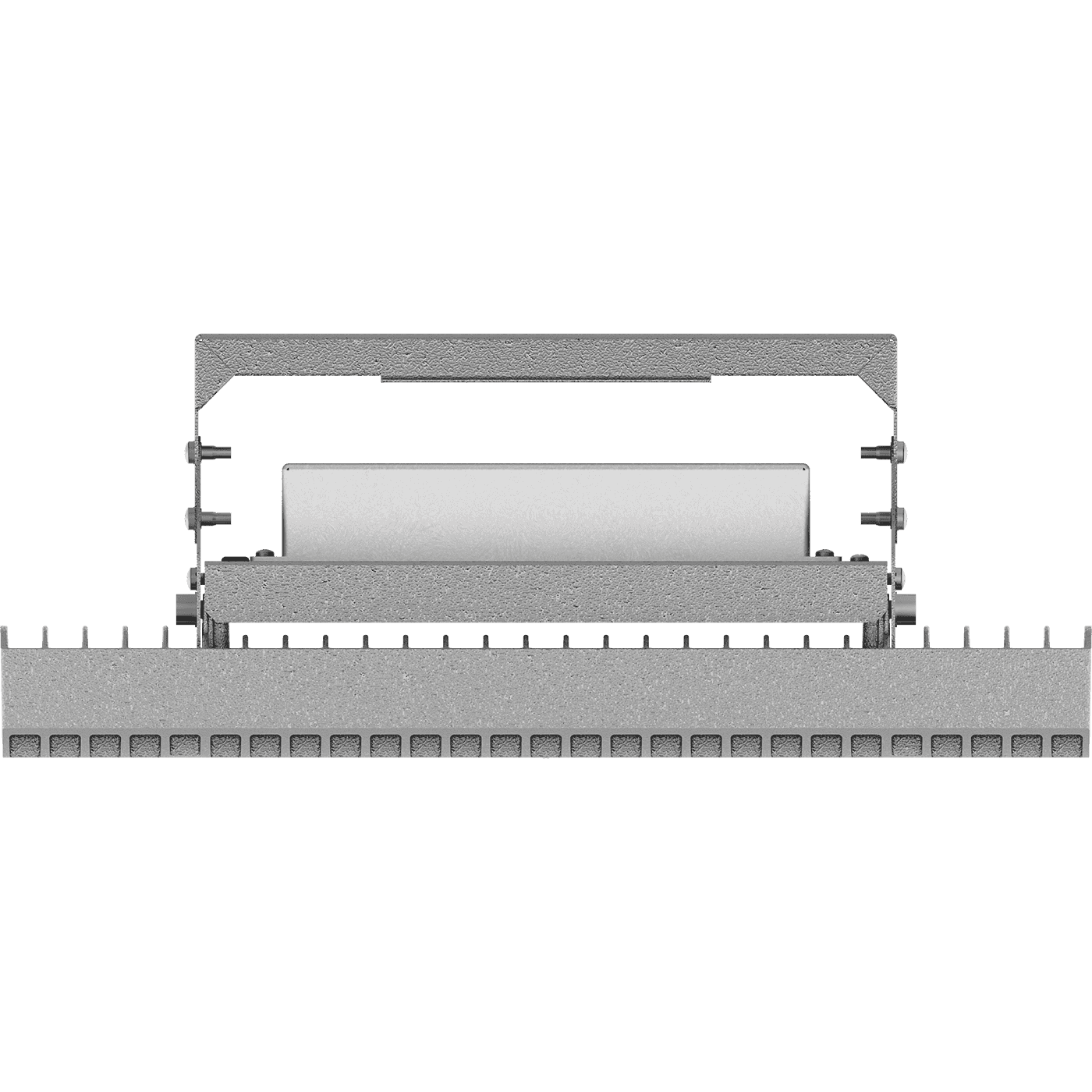

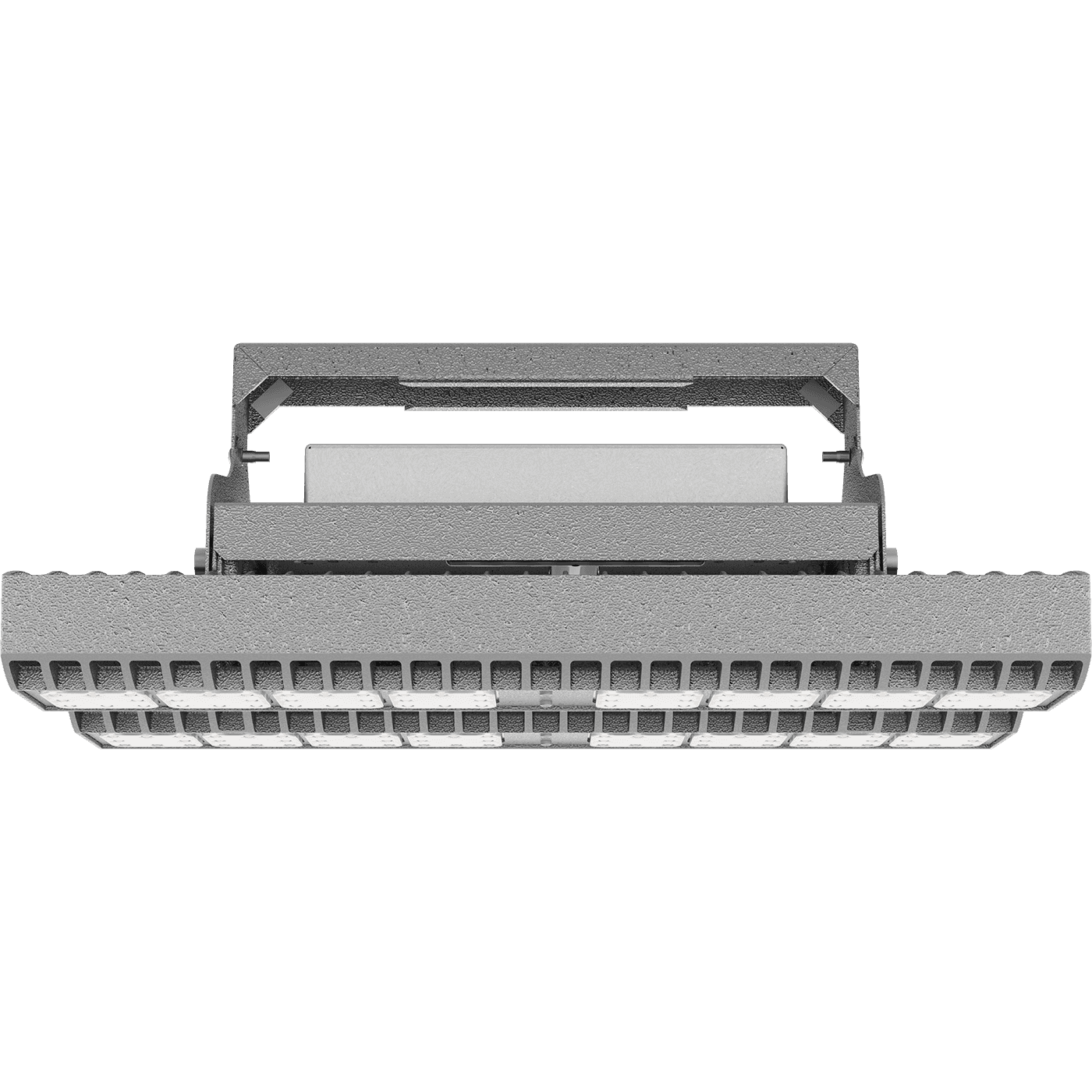

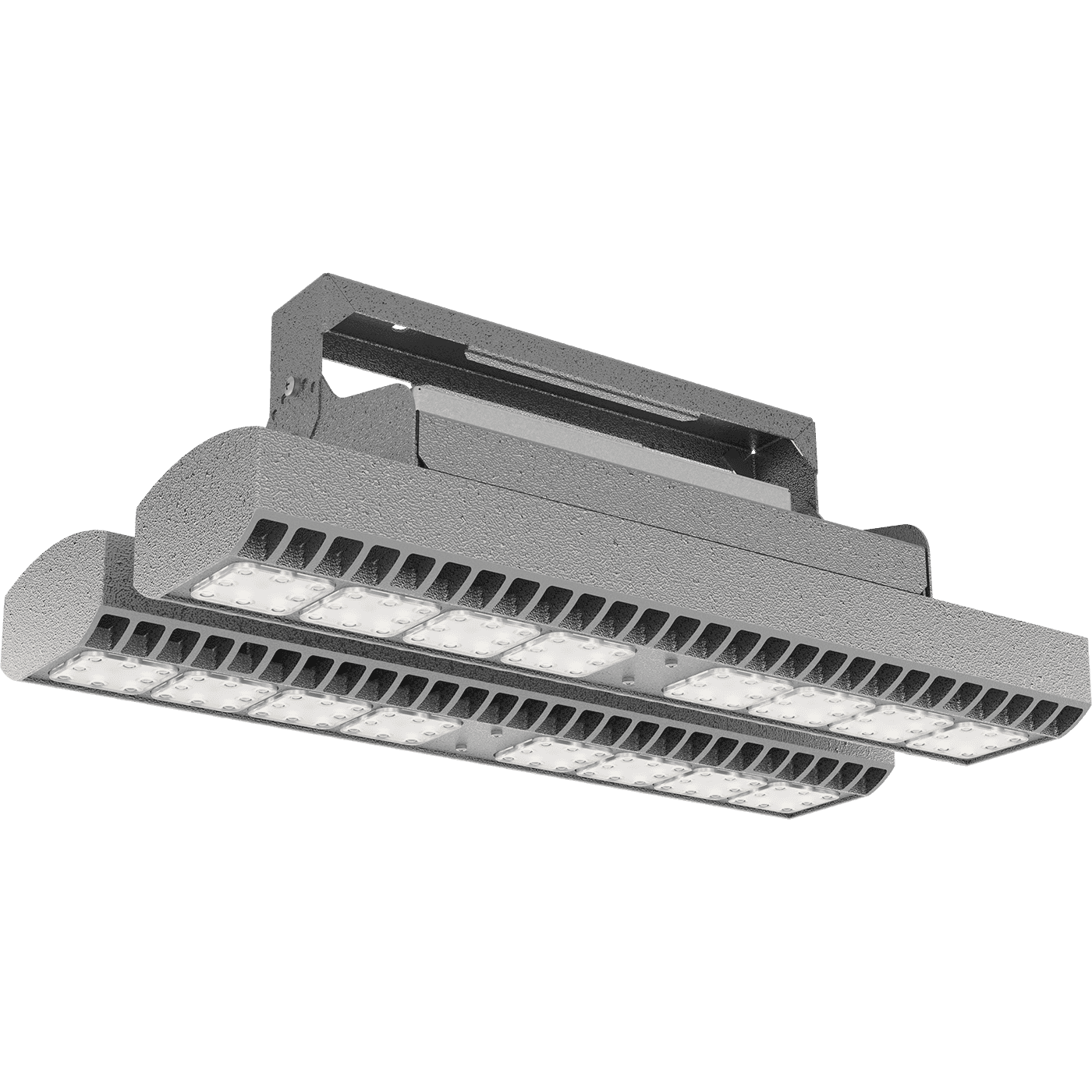

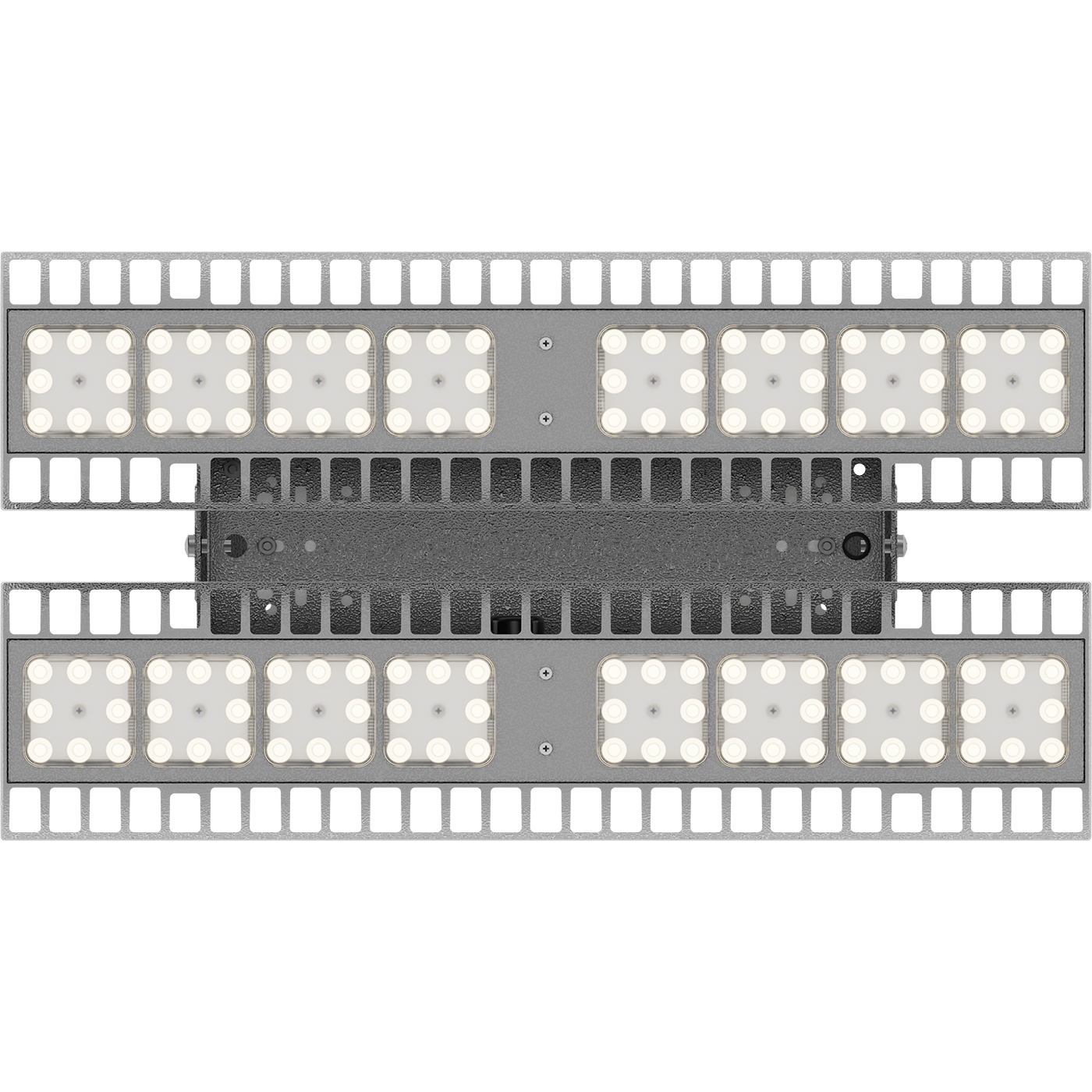

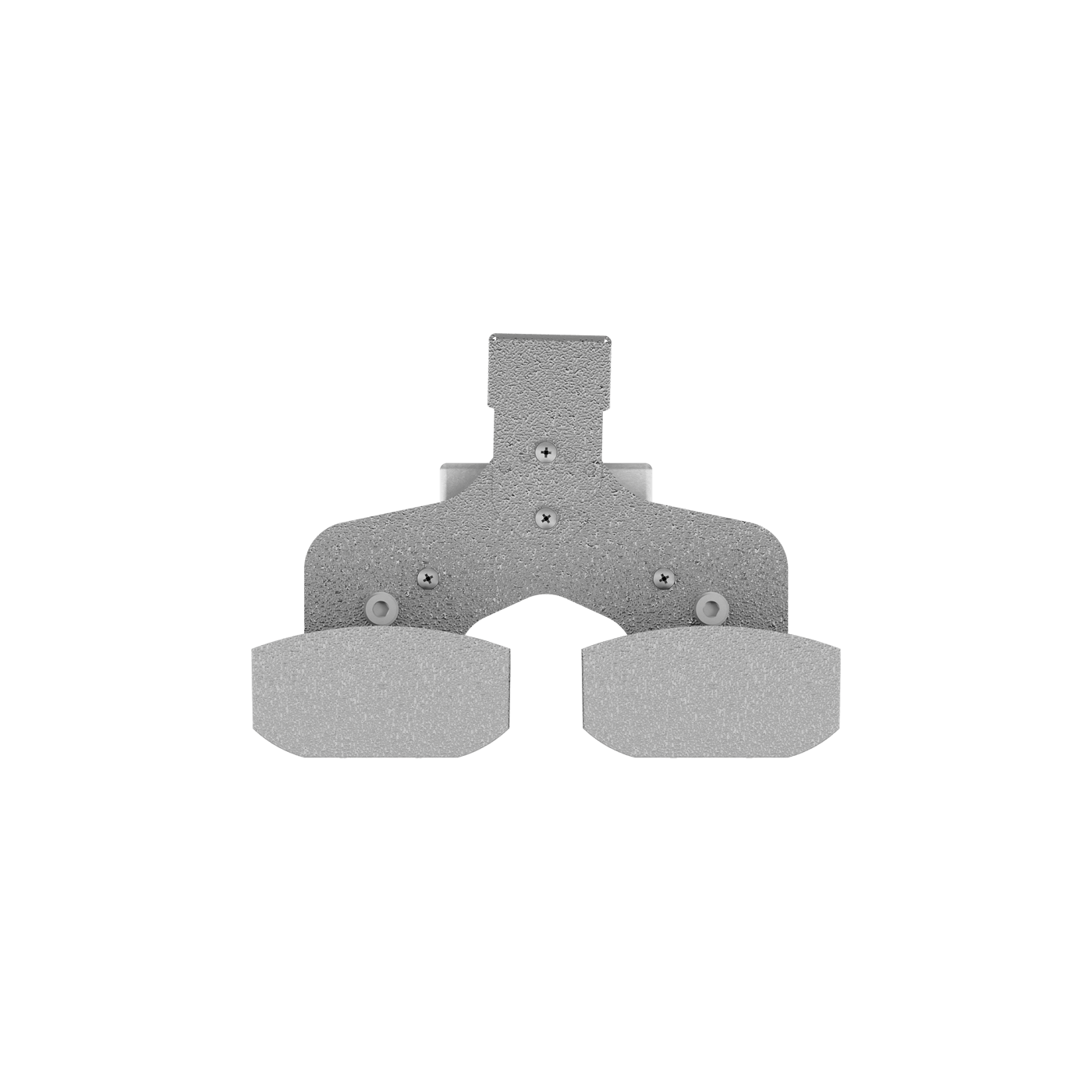

BORT 20 LED D60 5700K (CRI90) GI
BORT 20 LED D60 5700K (CRI90) GI
265 Wluminaire power
25500 lmlight flow
96 lm/Wenergy efficiency
code1396000220
color temperature5700
beam angleD60
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
70 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-431 Vluminaire power
265 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
265 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІІ
material
Алюминий
weight
7 kg
length, mm
463 mm
width, mm
249 mm
height, mm
180 mm
housing color
Металлик
installation length, mm
180 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
code
1396000220
illuminating
color rendition index (CRI)
>90
light flow
25500 lm
flickering factor
<1%
energy efficiency
96 lm/W
beam angle
D60
color temperature
5700
light source type
LED
emission color
Белый
model files
model files
documents
сертификаты
documents
passport735.2 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
