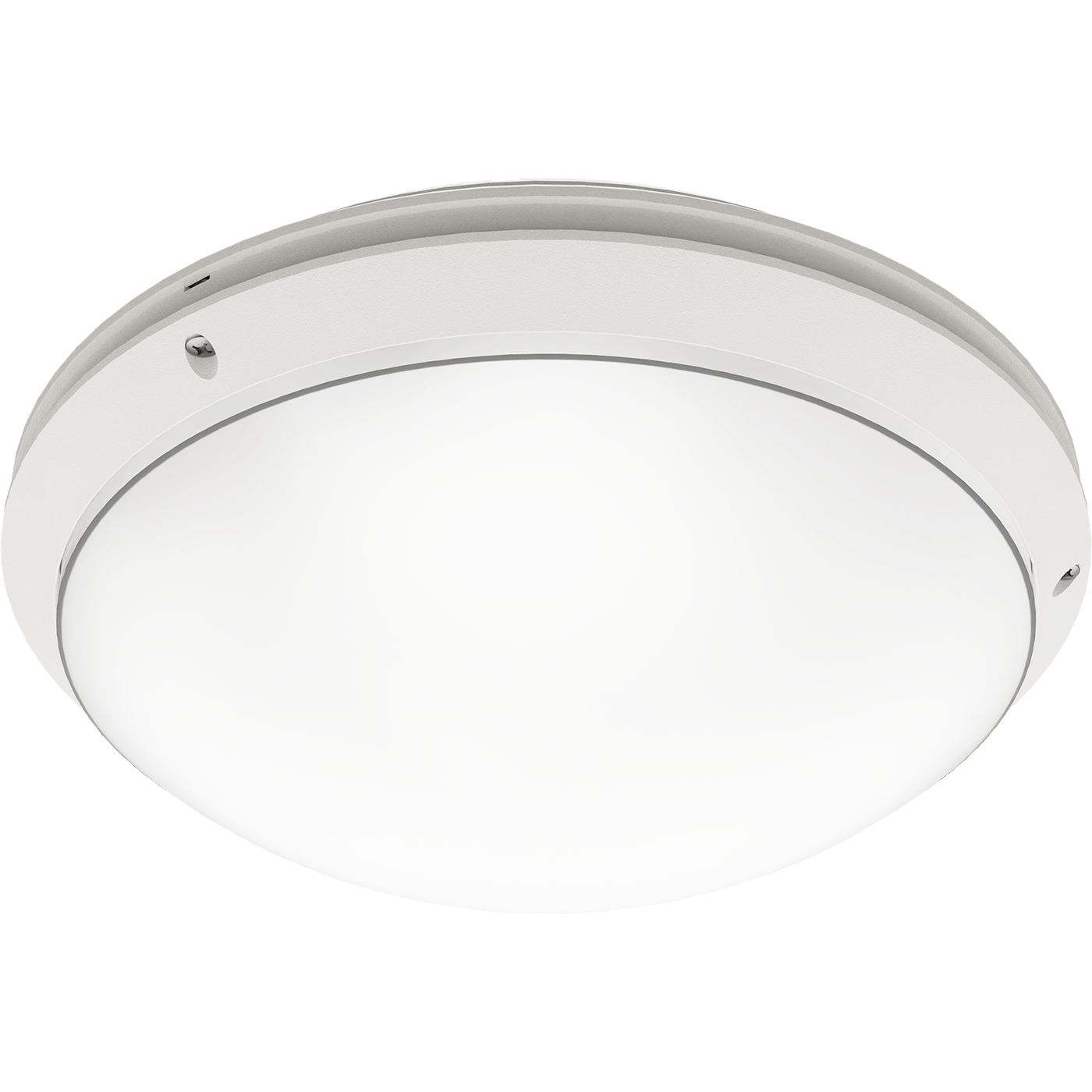

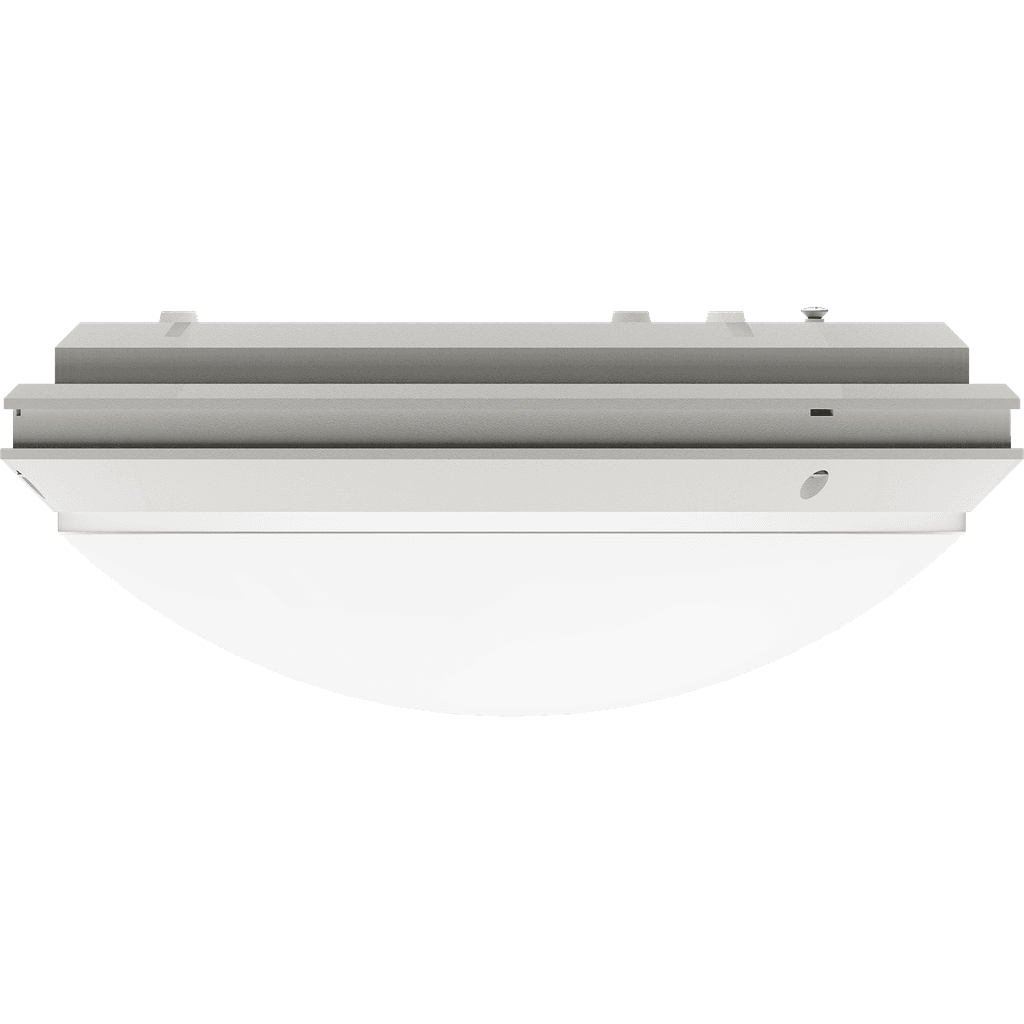

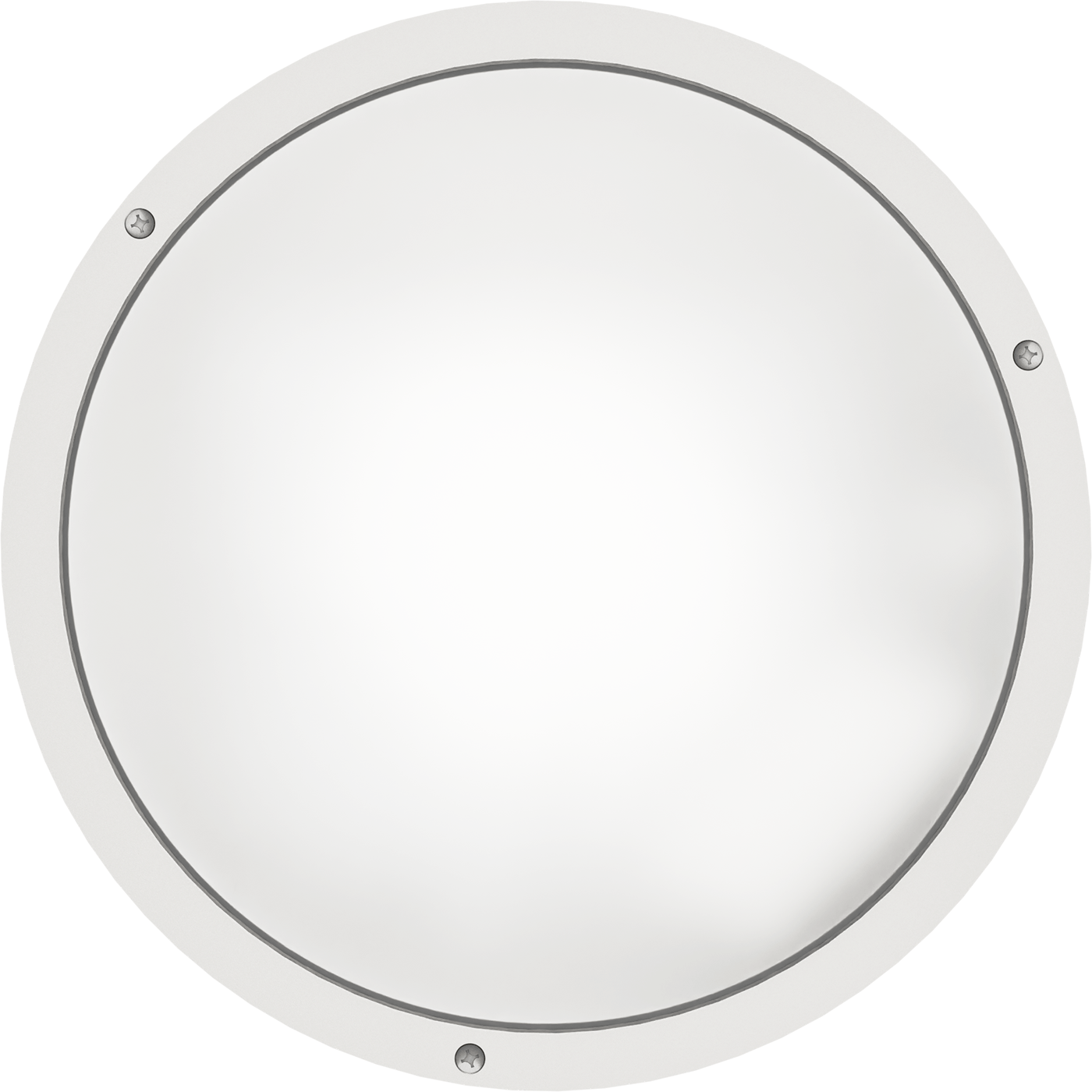

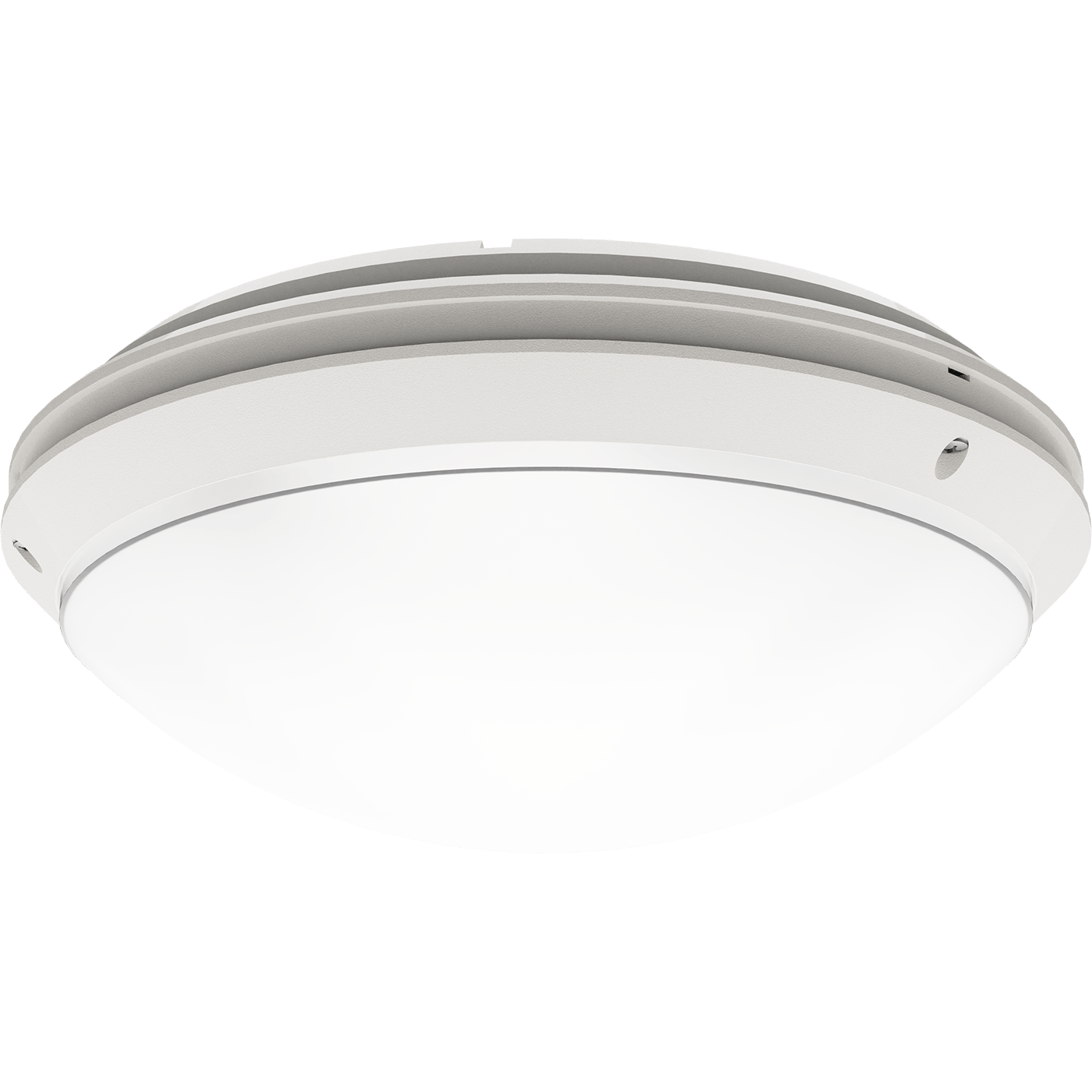

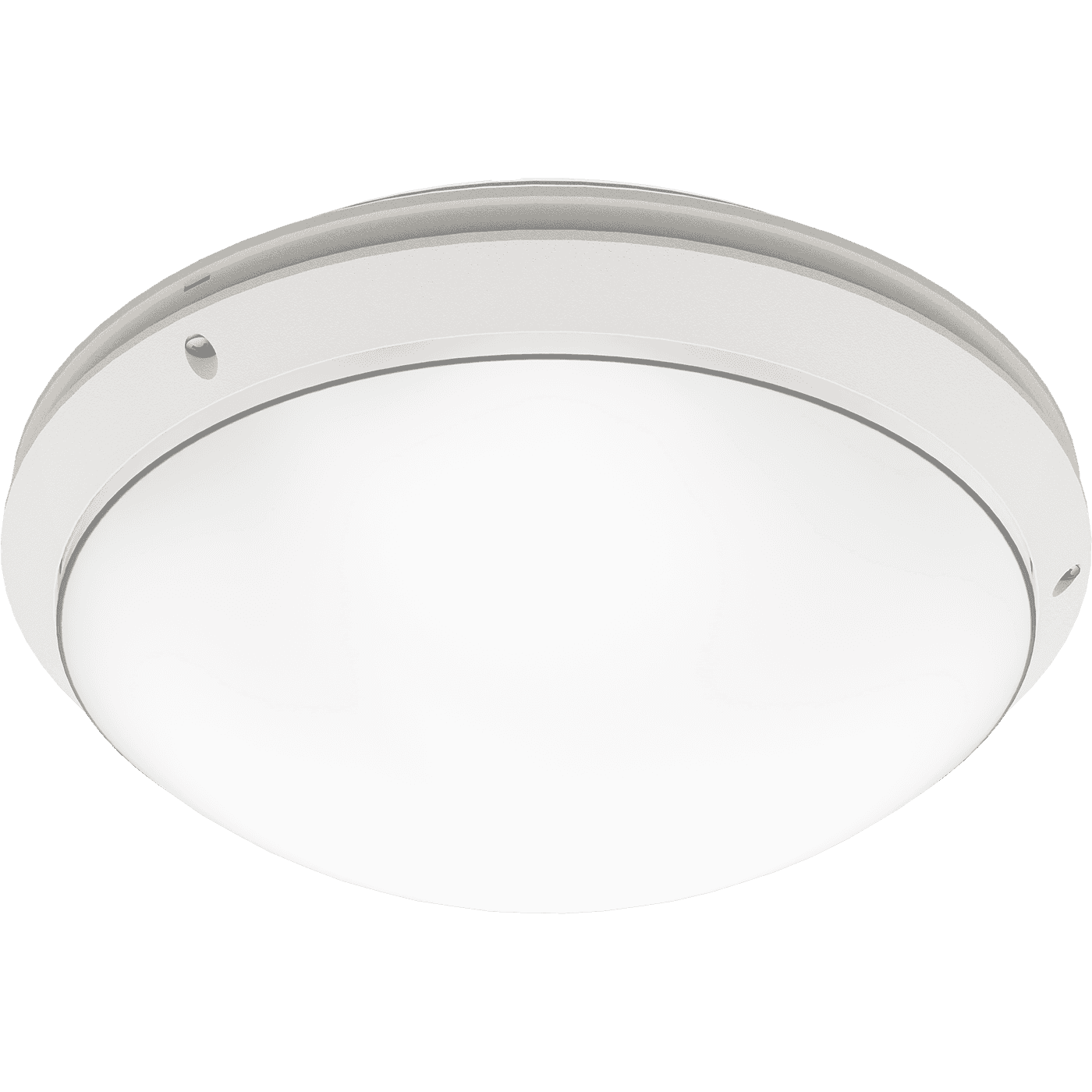

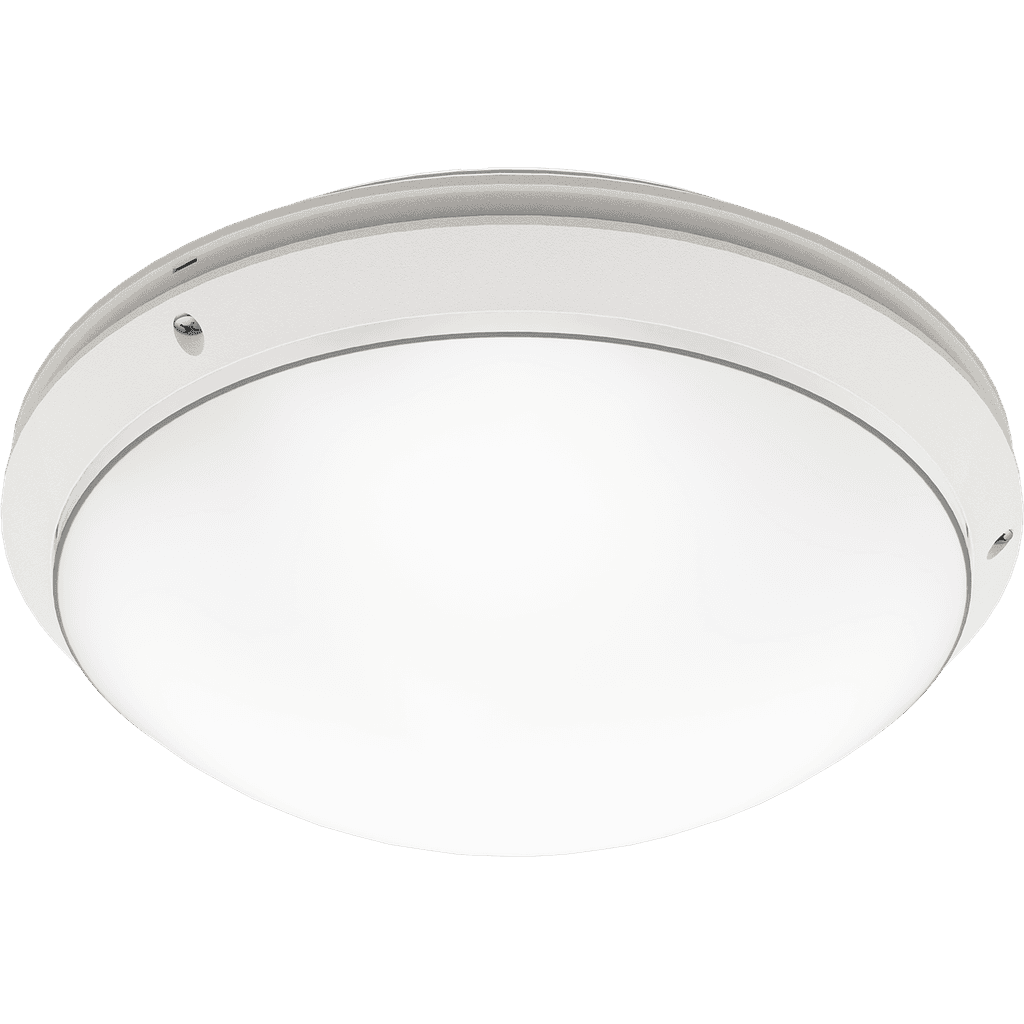

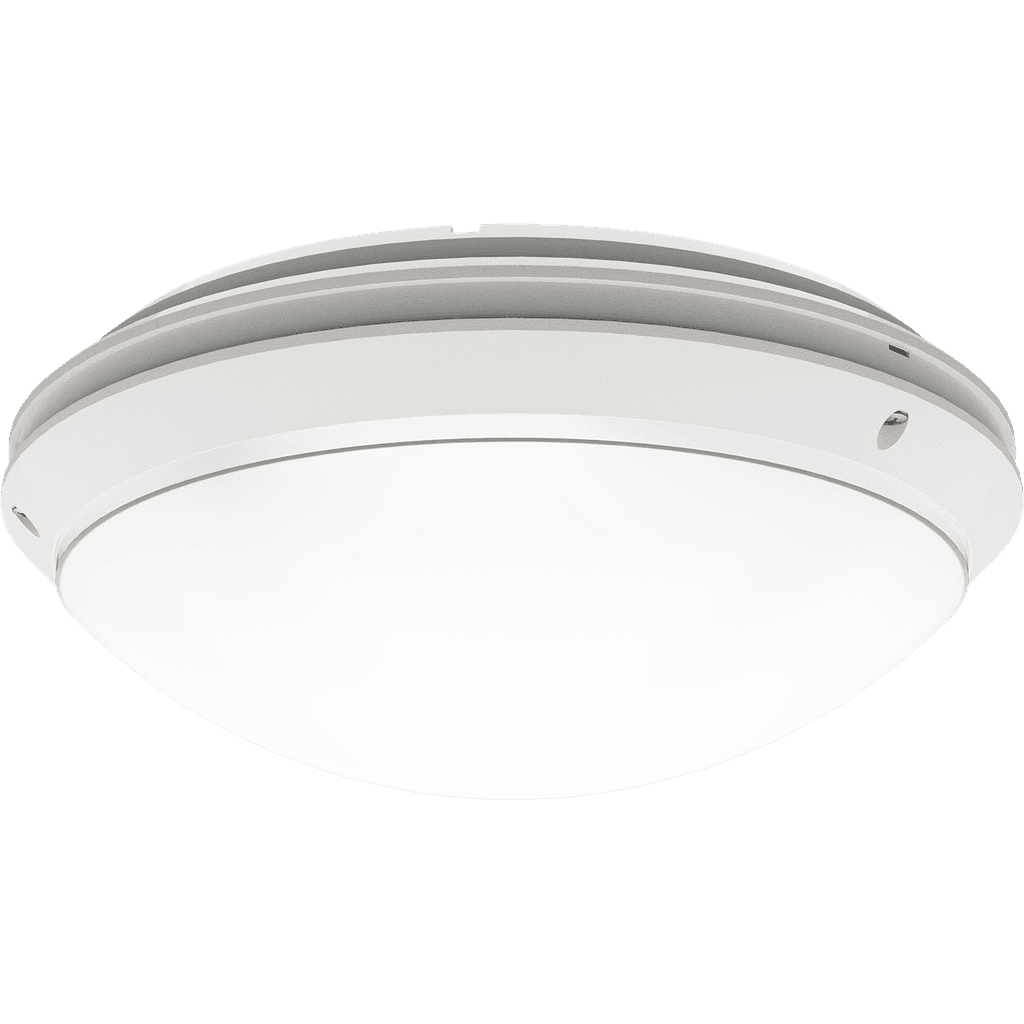

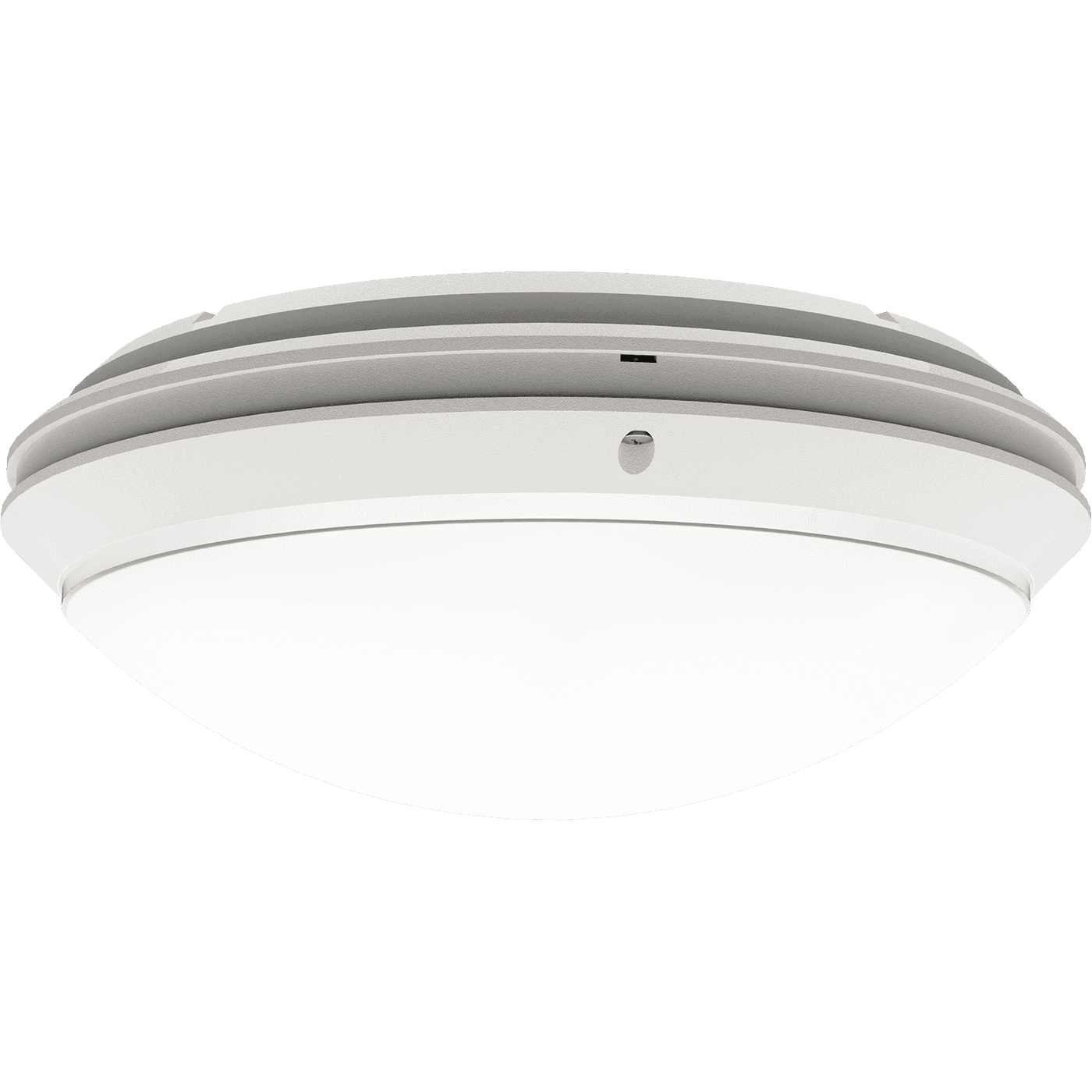

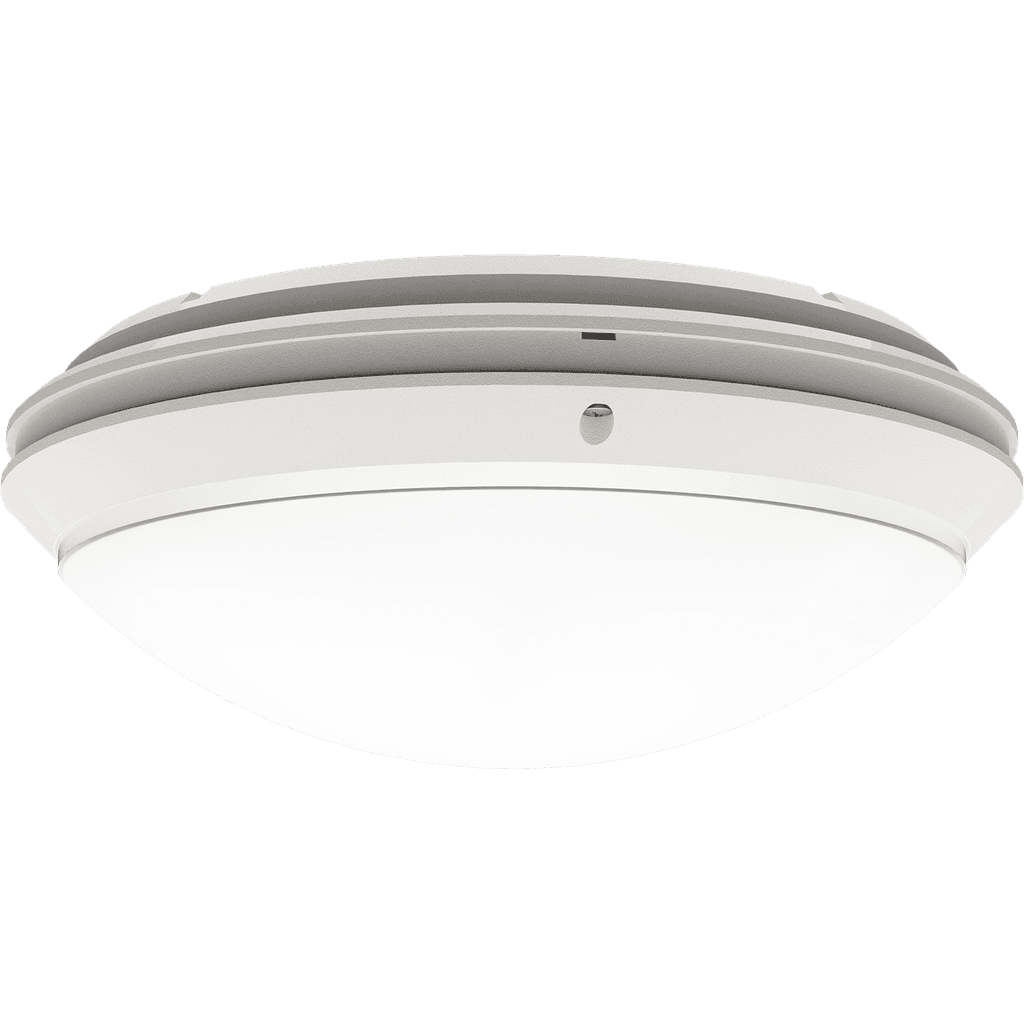

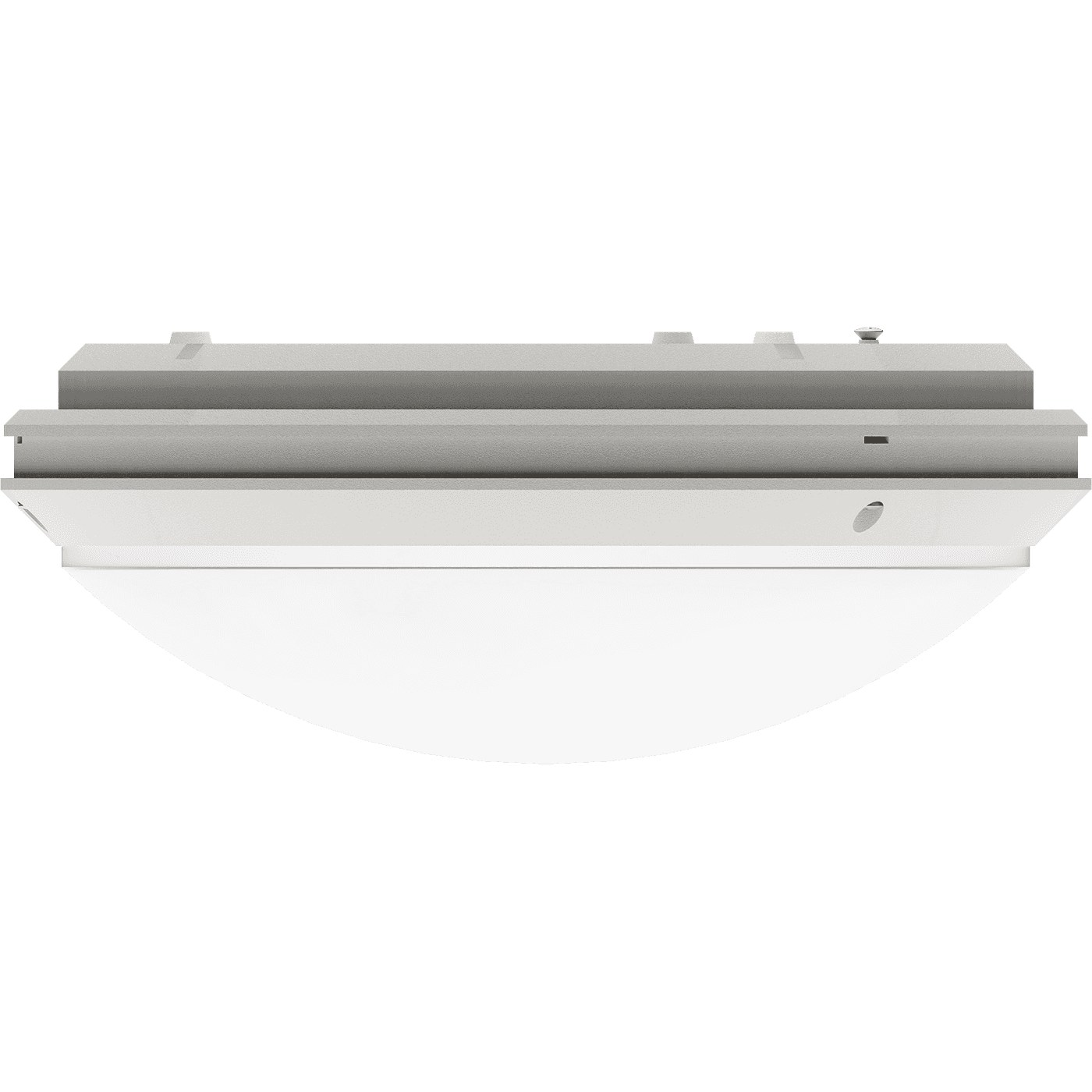

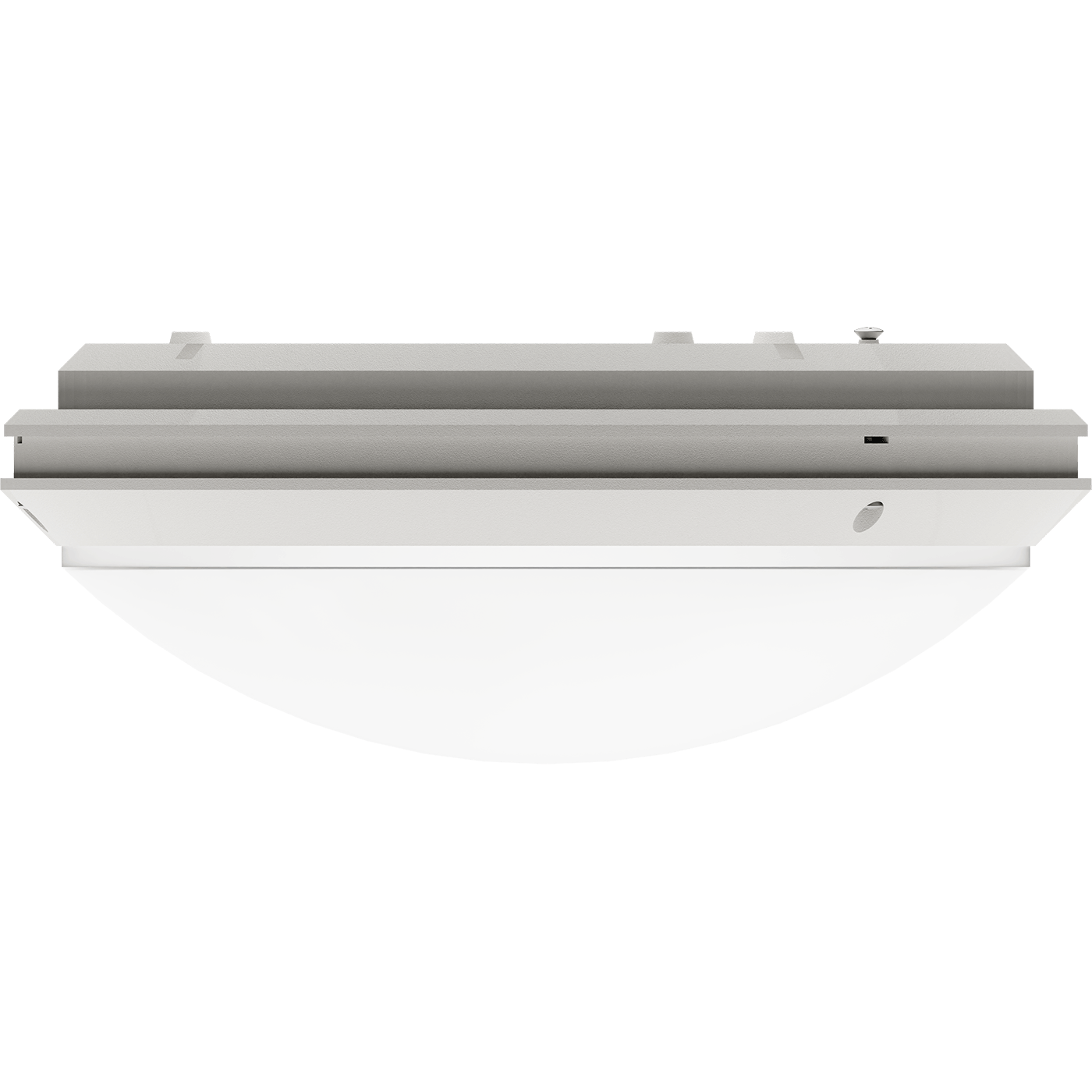

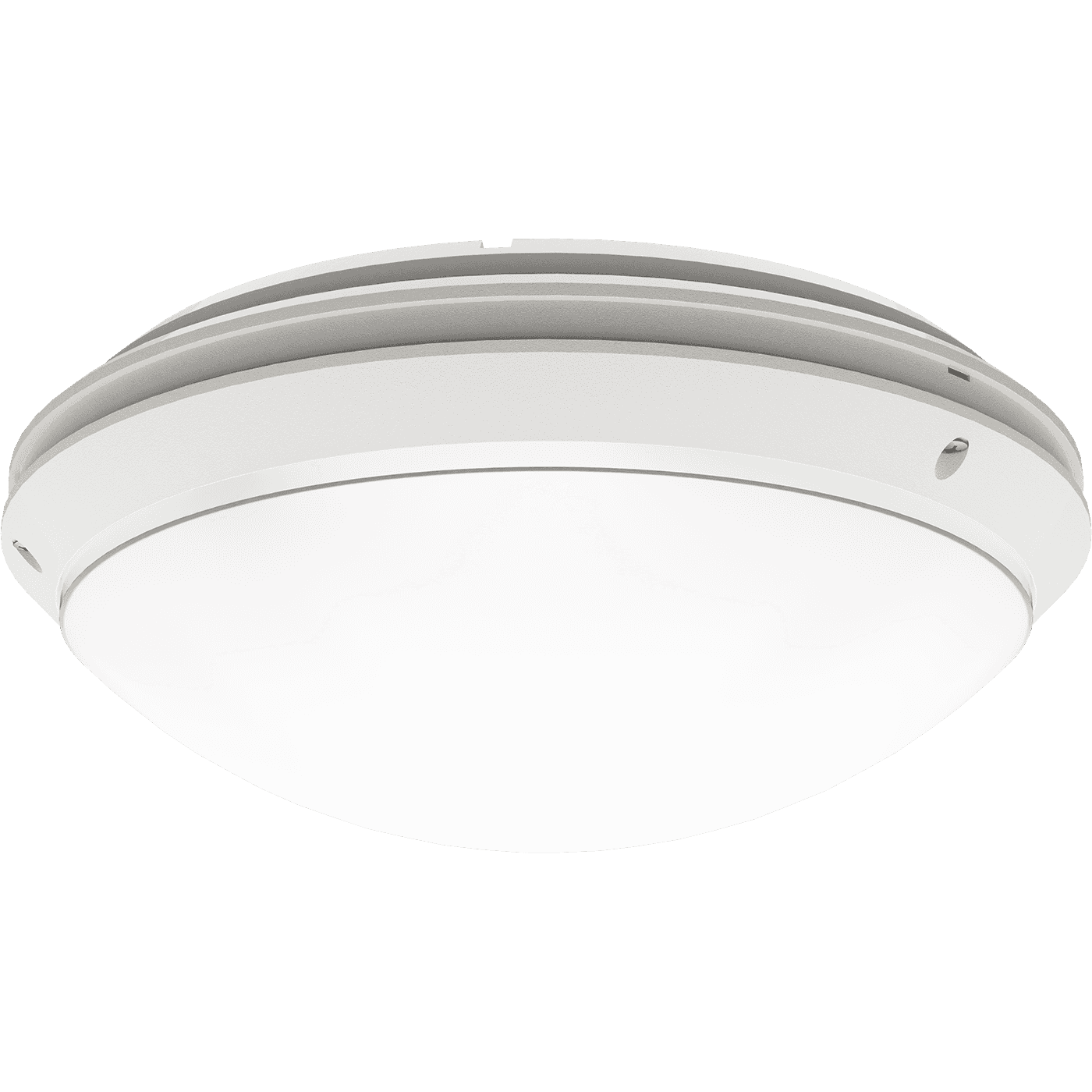

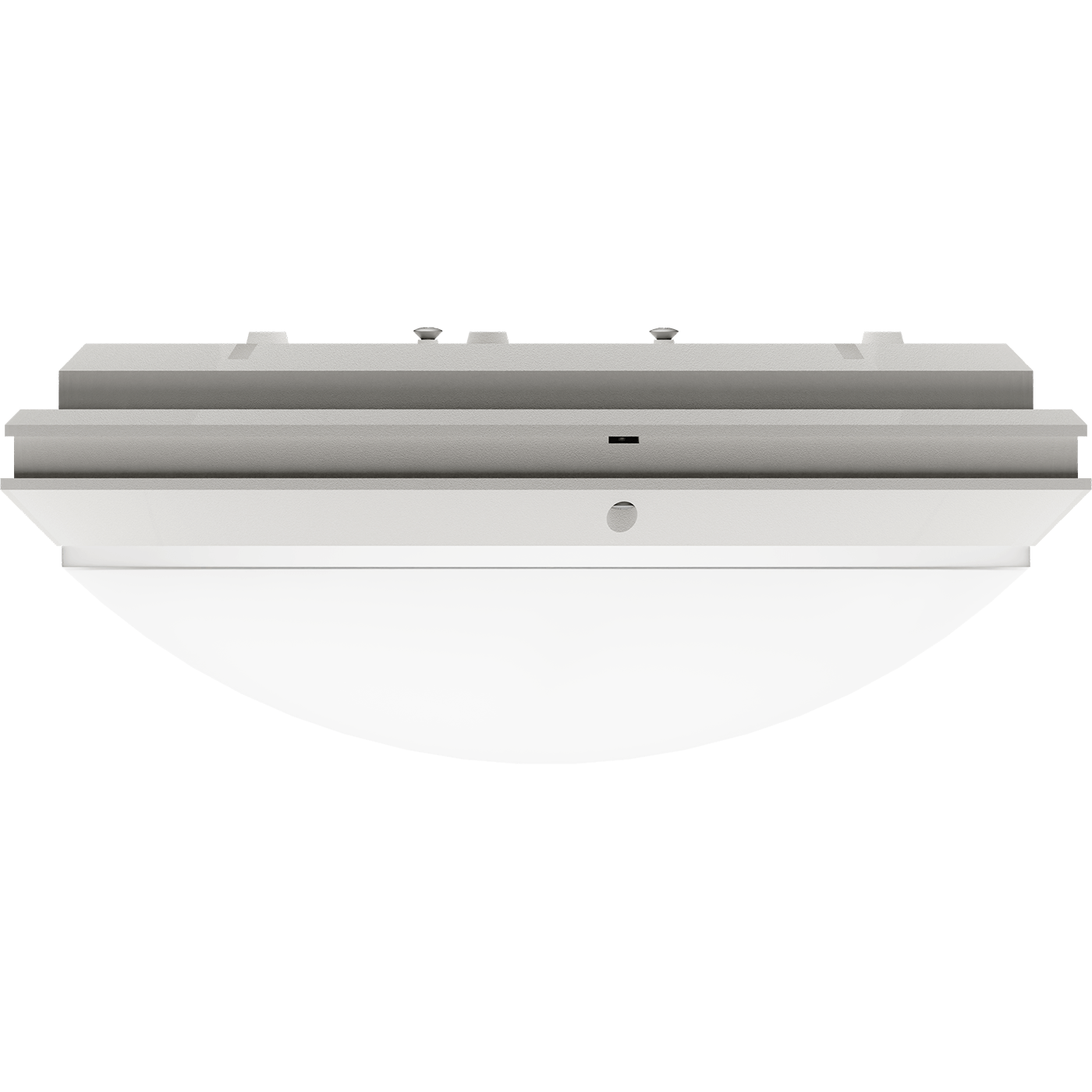

CD 218 HF new

CD 218 HF new
add to favorites
36 Wluminaire power
code1133000250

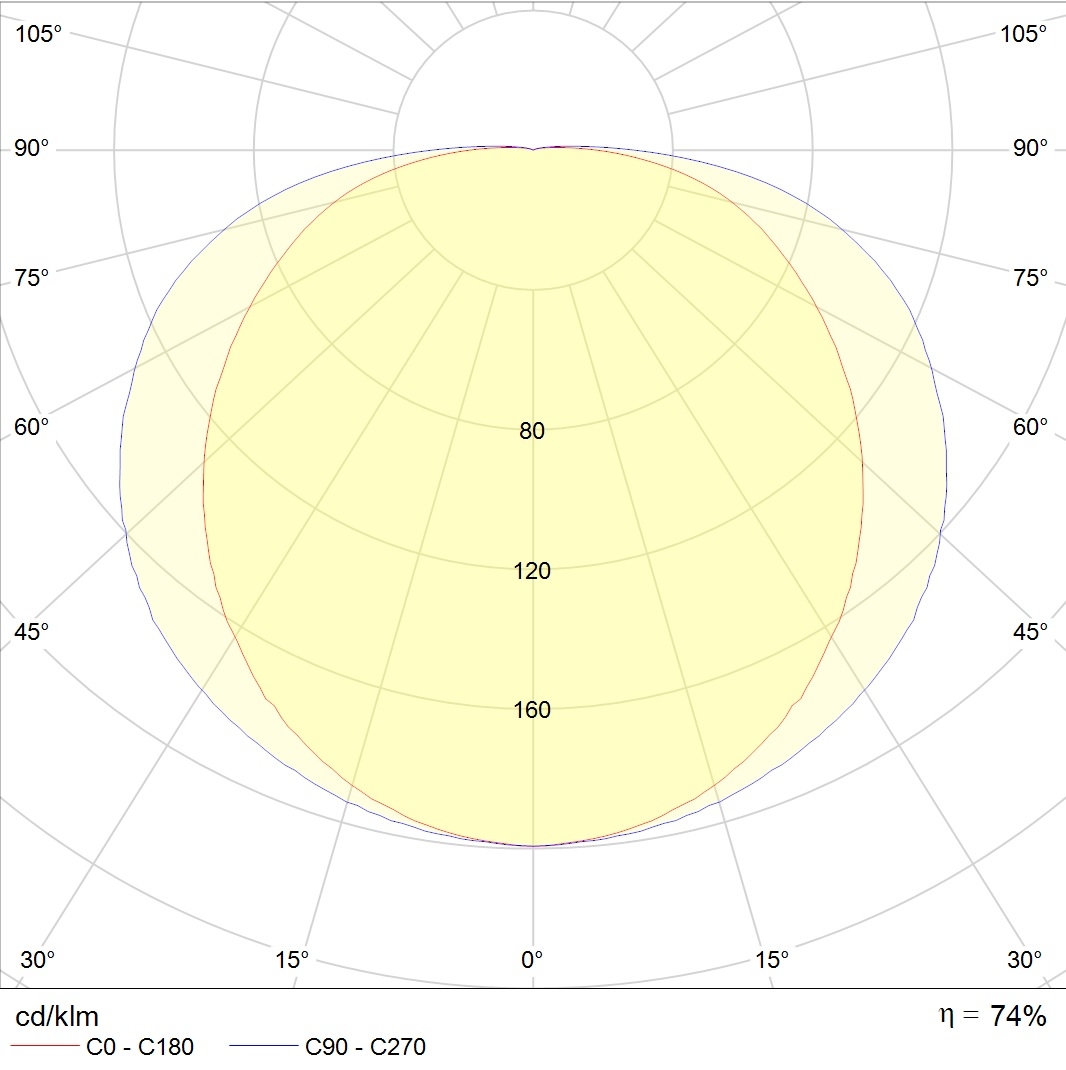

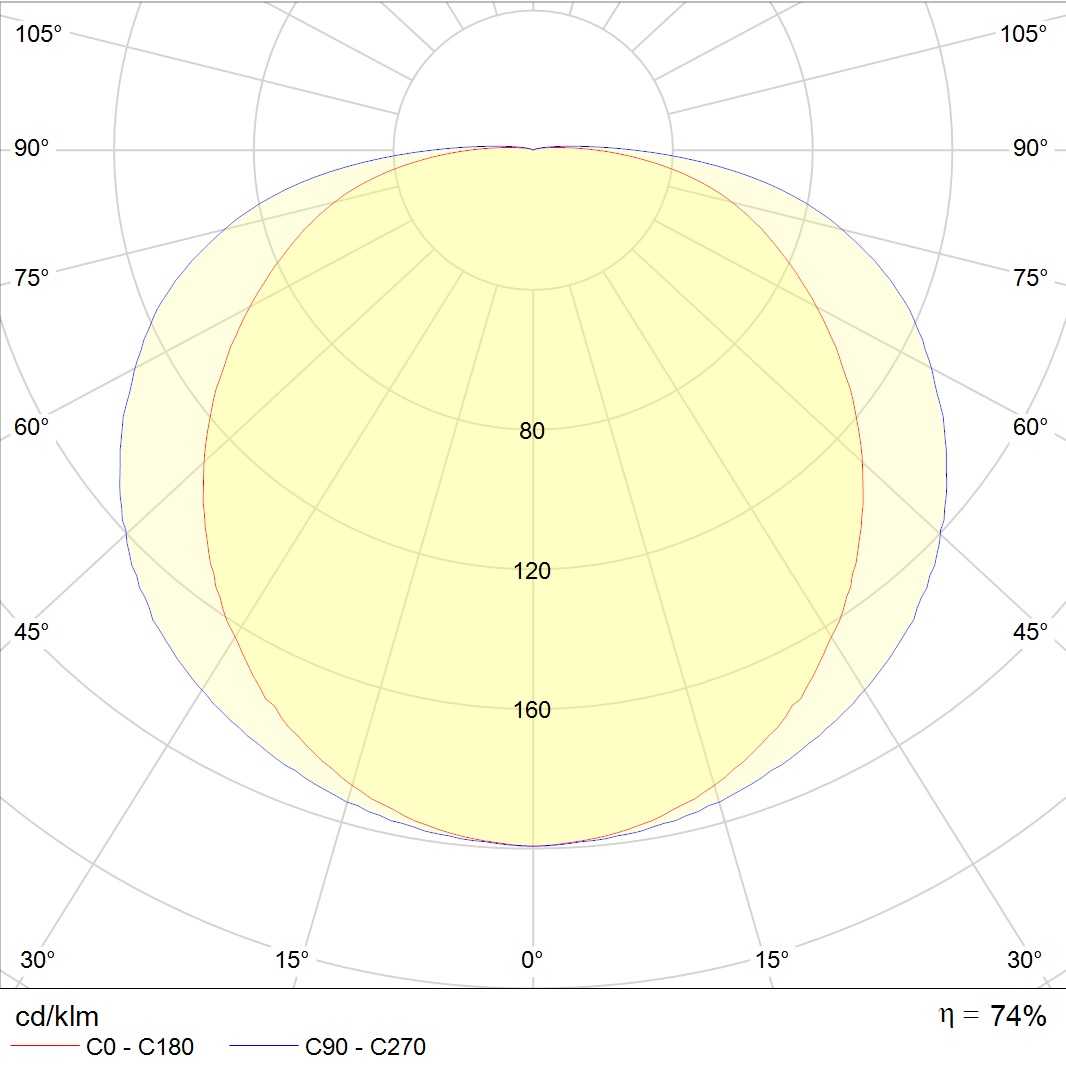

performance factor74
number of lamps2
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. CD
  7. CD 218 HF new
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<5%
light source type
КЛЛ
emission color
Белый
illuminating
flickering factor
<5%
light source type
КЛЛ
emission color
Белый
electrical
supply voltage
230 V
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,96
electric shock protection
I
luminaire power
36 W

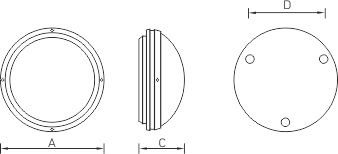

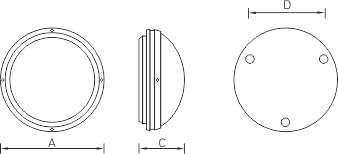

constructional
height
150 mm
installation diameter
255 mm
diameter
390 mm
common
energy efficiency class
B…A+
service life
24 000 h
warranty
36 month
code
1133000250
temperature range
от -20 до +40 C
ETIM class
Настенно-потолочный светильник
model files
model files
CAD/BIM files
model 3dMax1.4 mB
photometric files
ies134.1 kB
jpg130.4 kB
ldt91.6 kB
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax1.4 mB
photometric files
ies134.1 kB
jpg130.4 kB
ldt91.6 kB
documents
passport2.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
