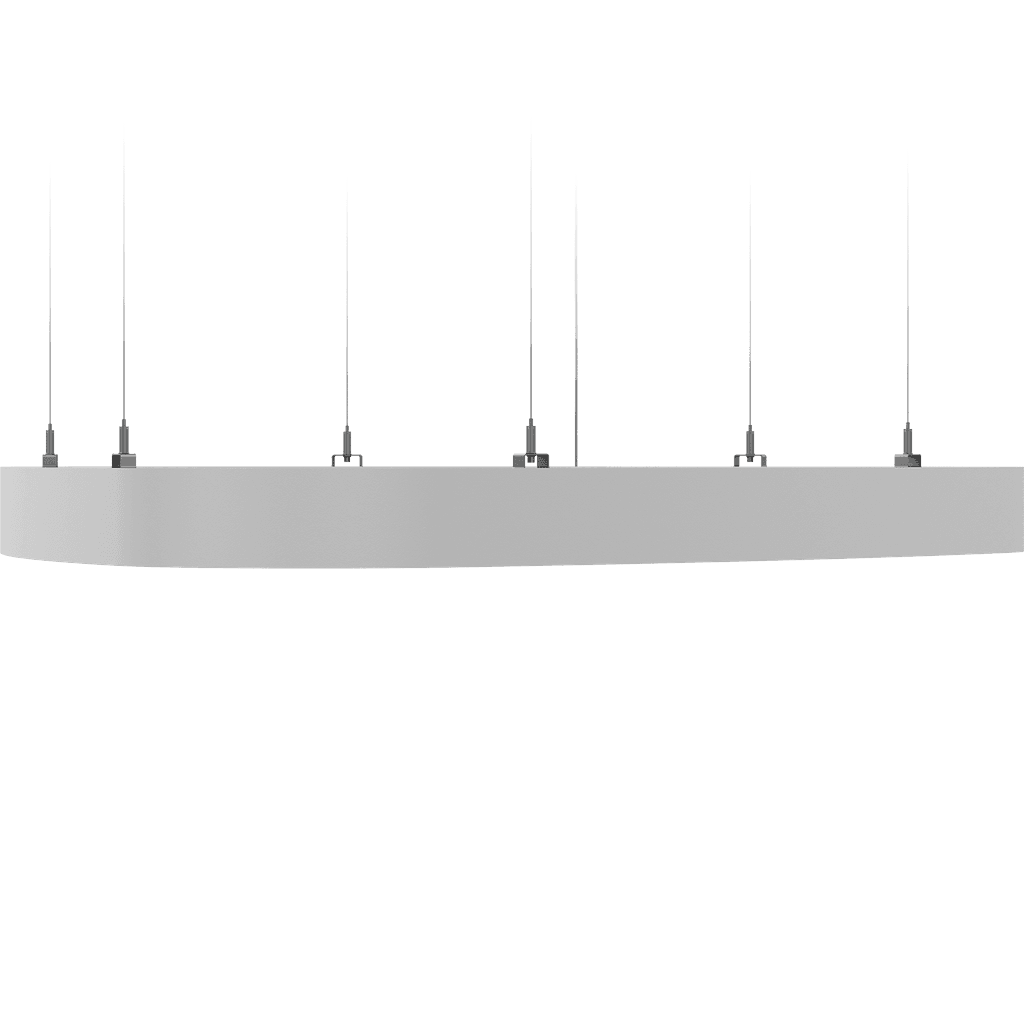

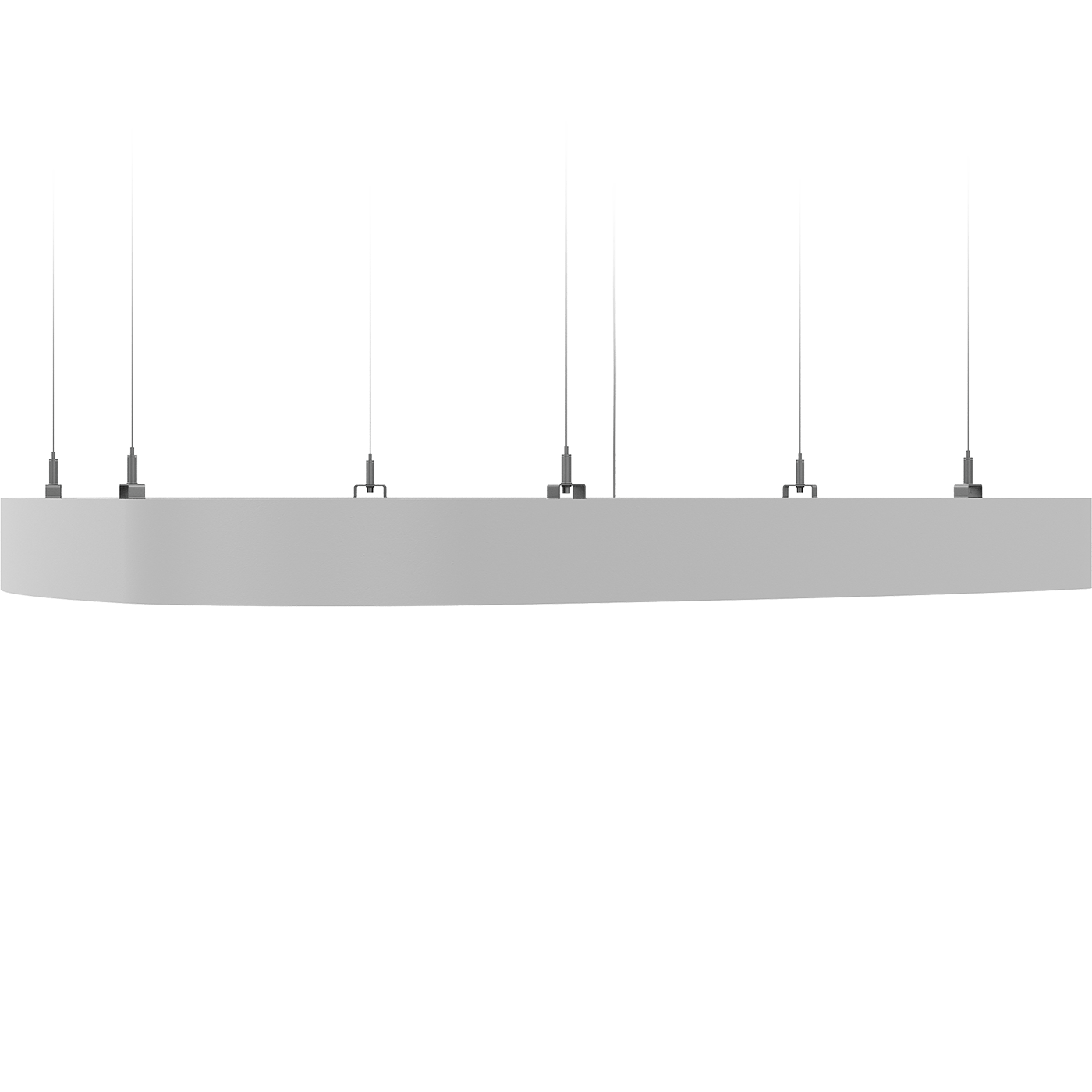

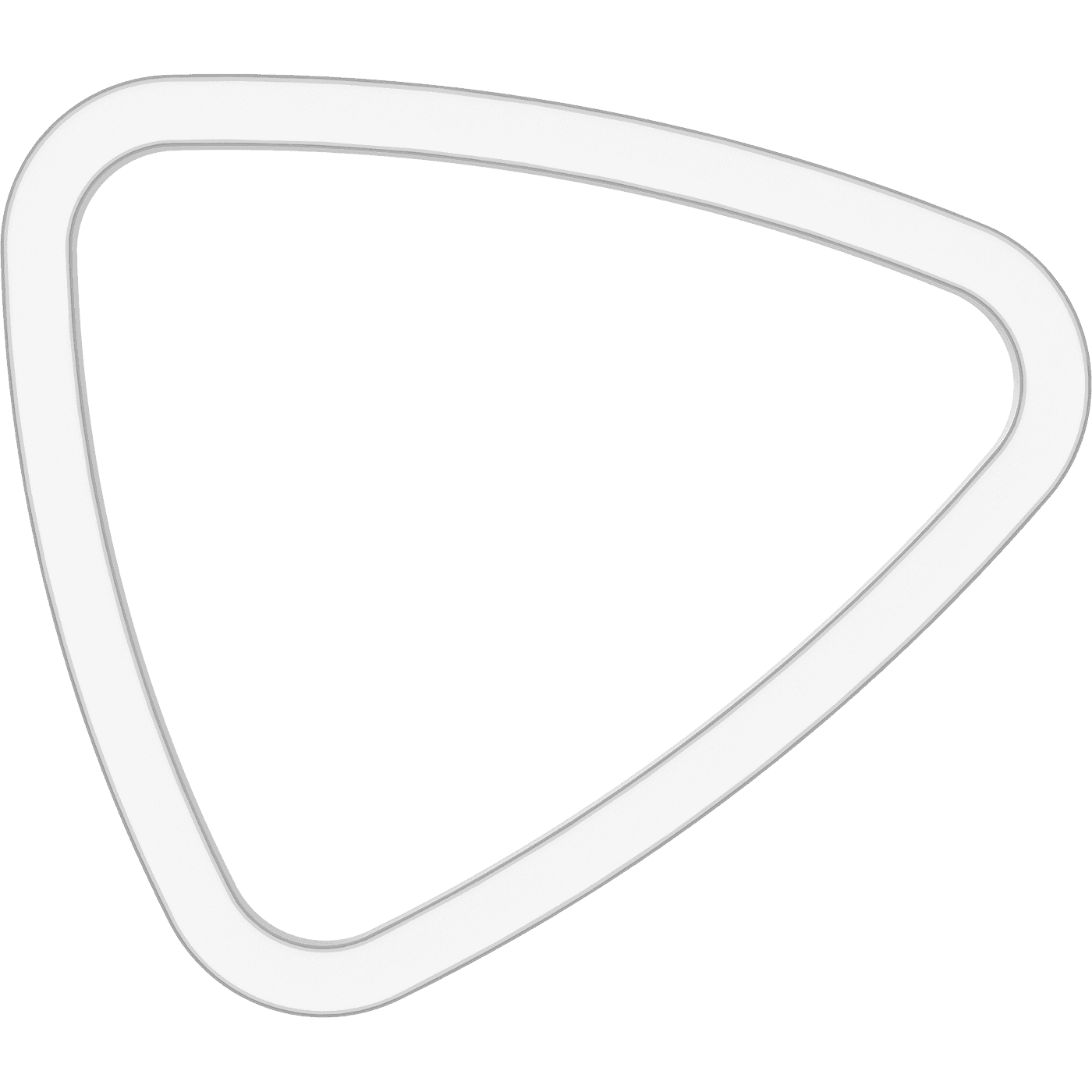

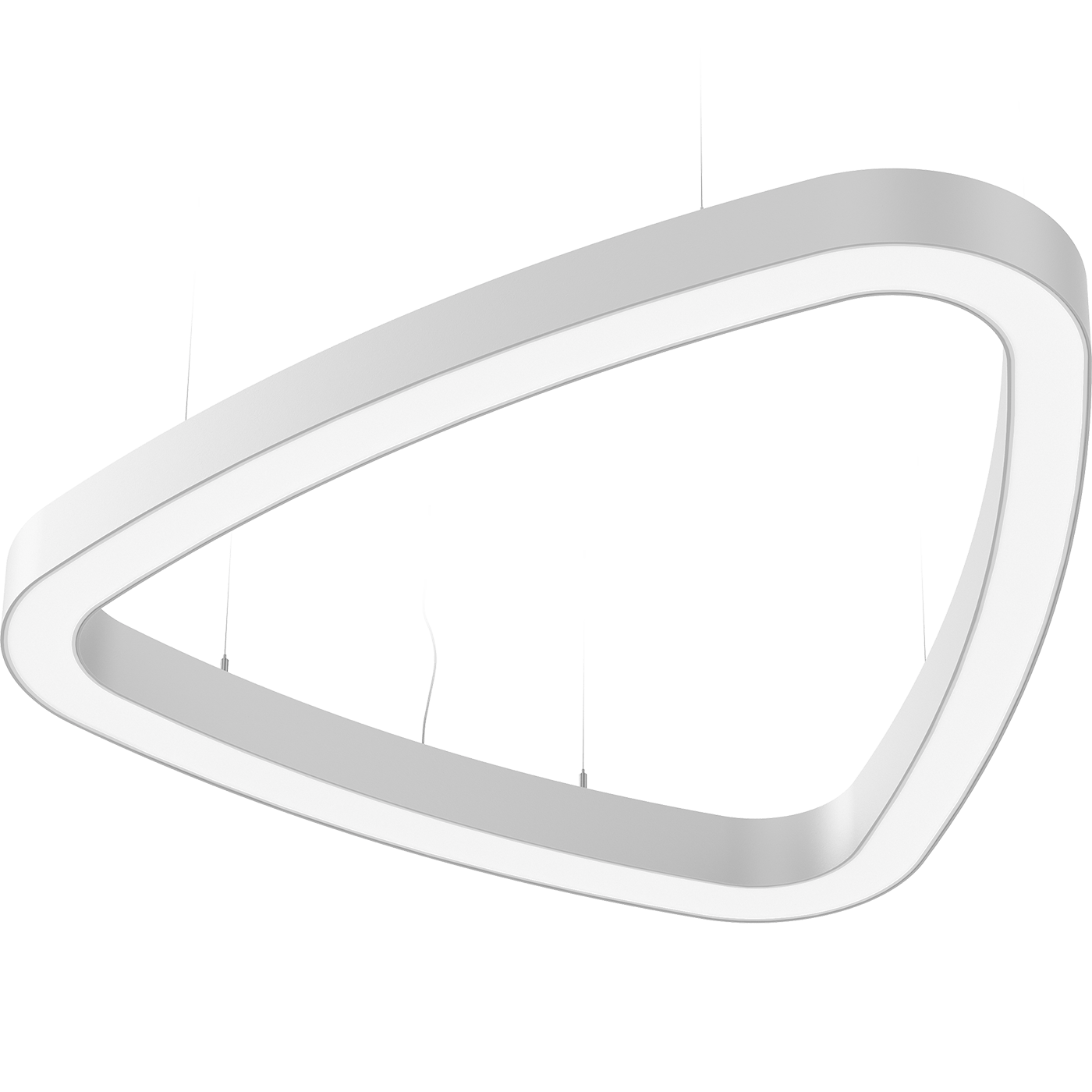

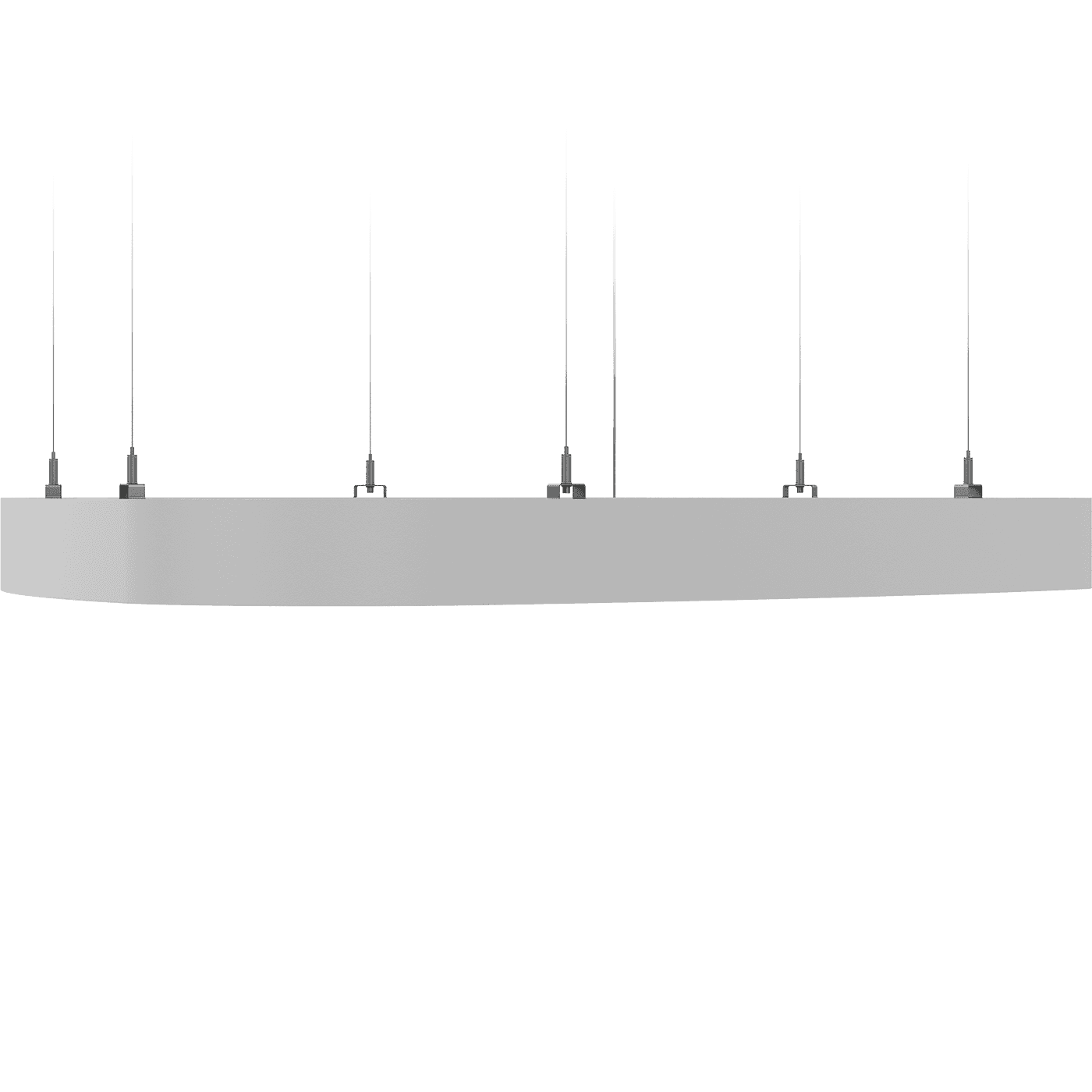

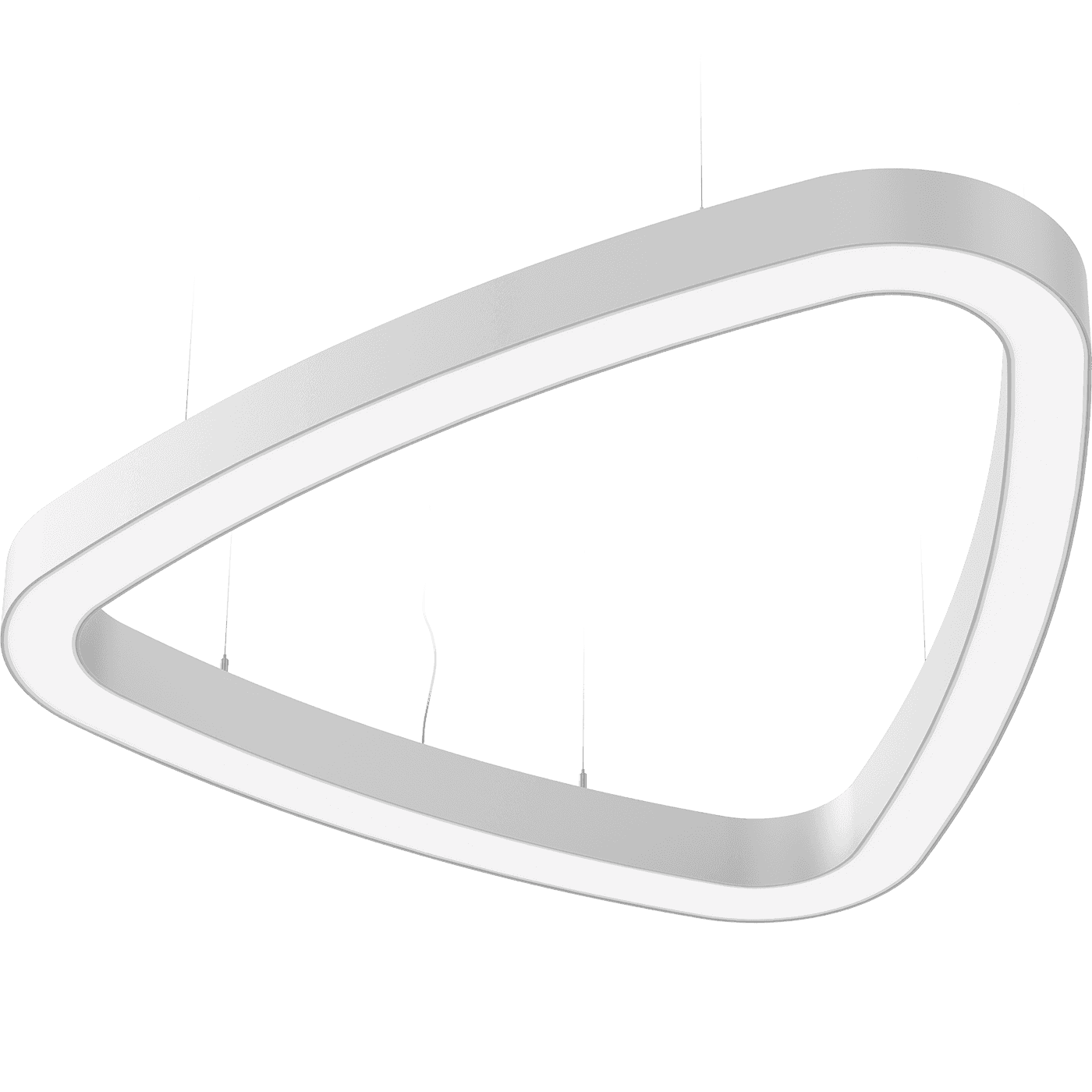

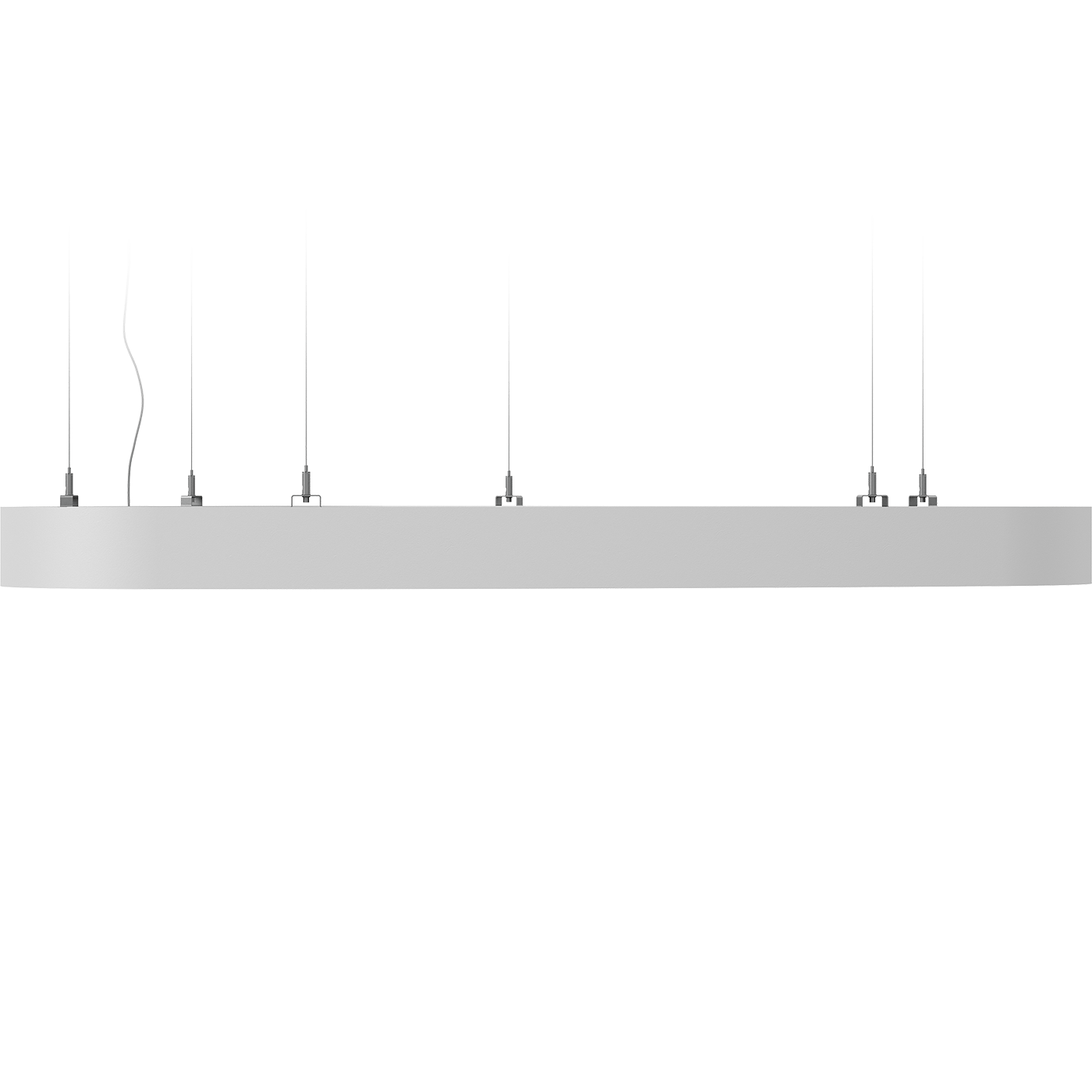

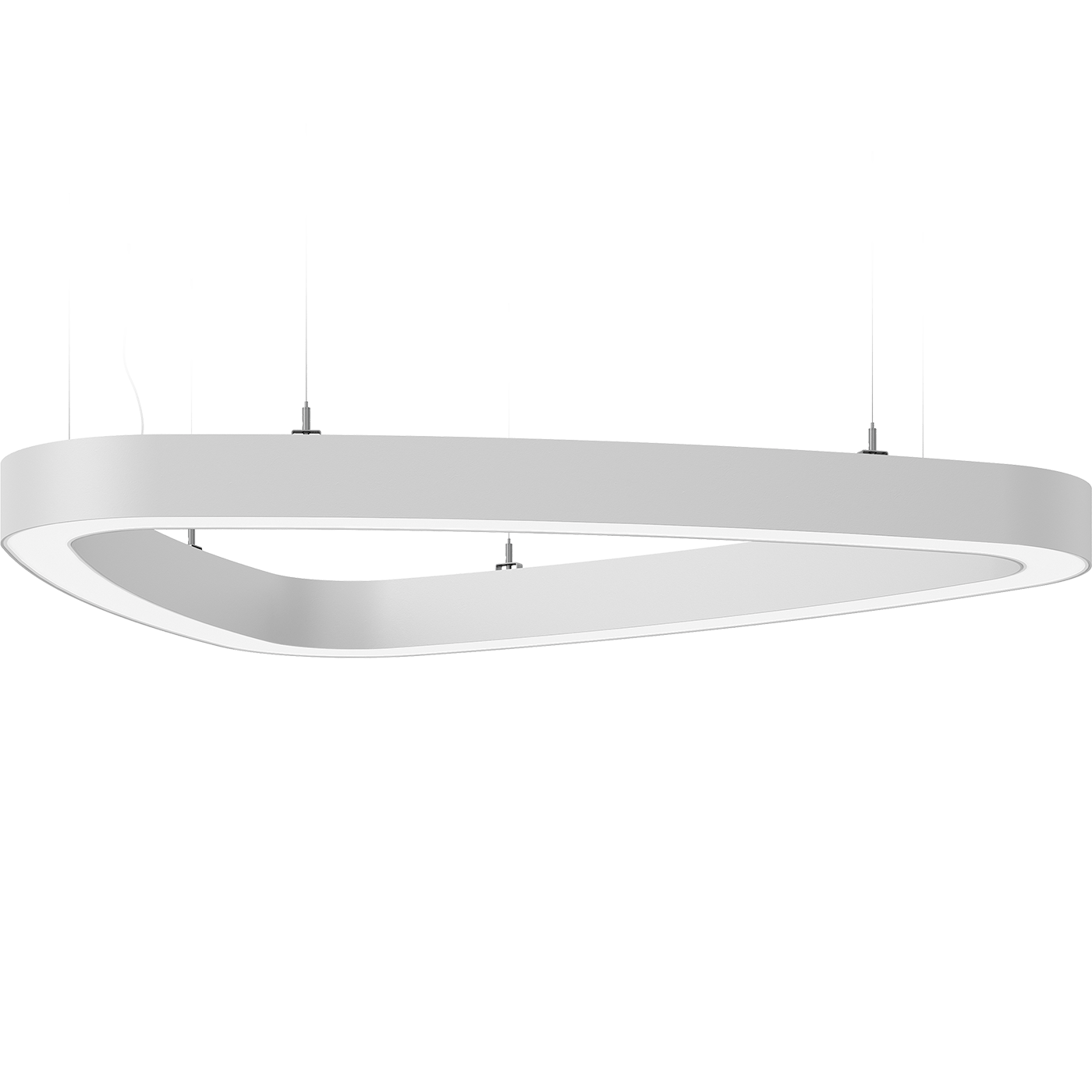

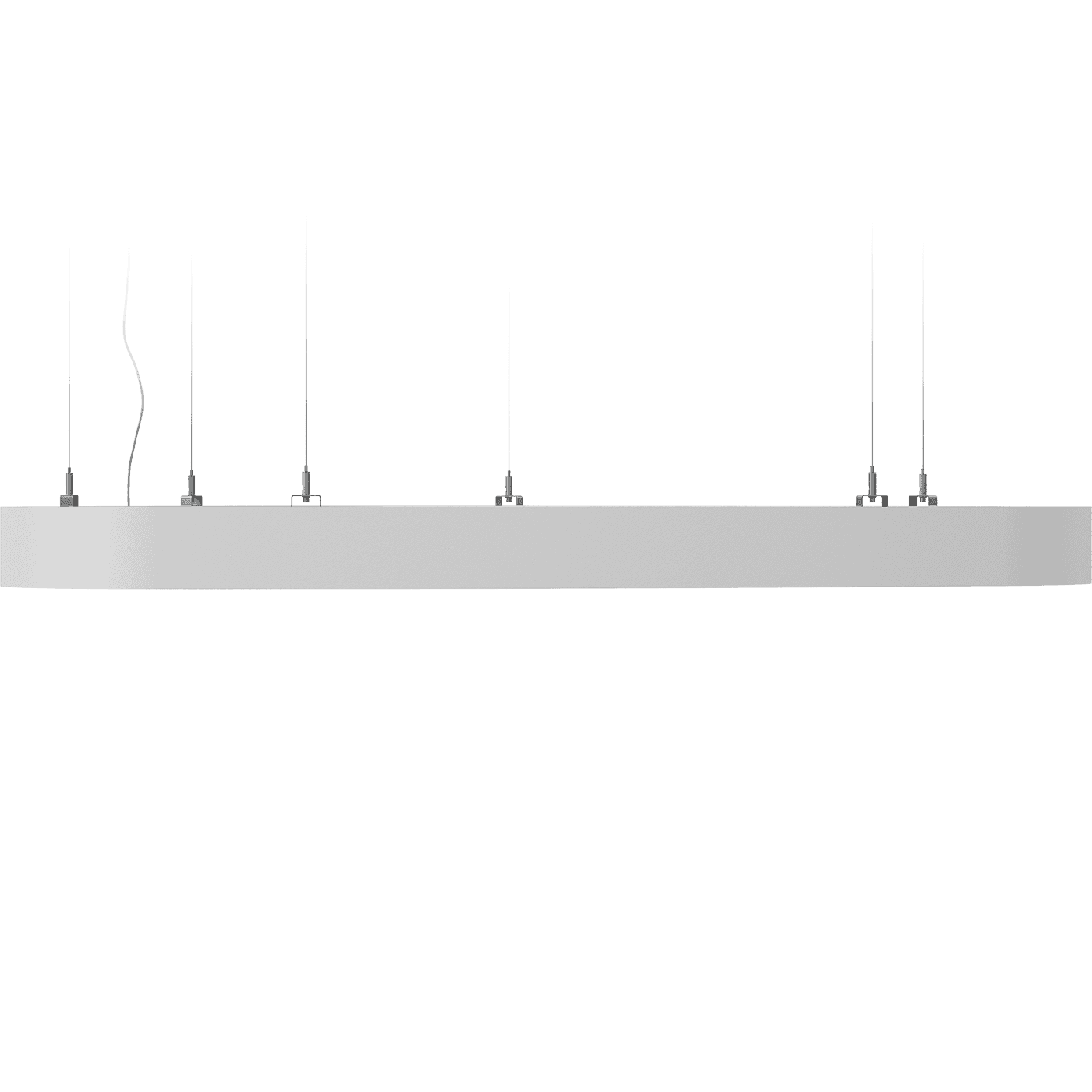

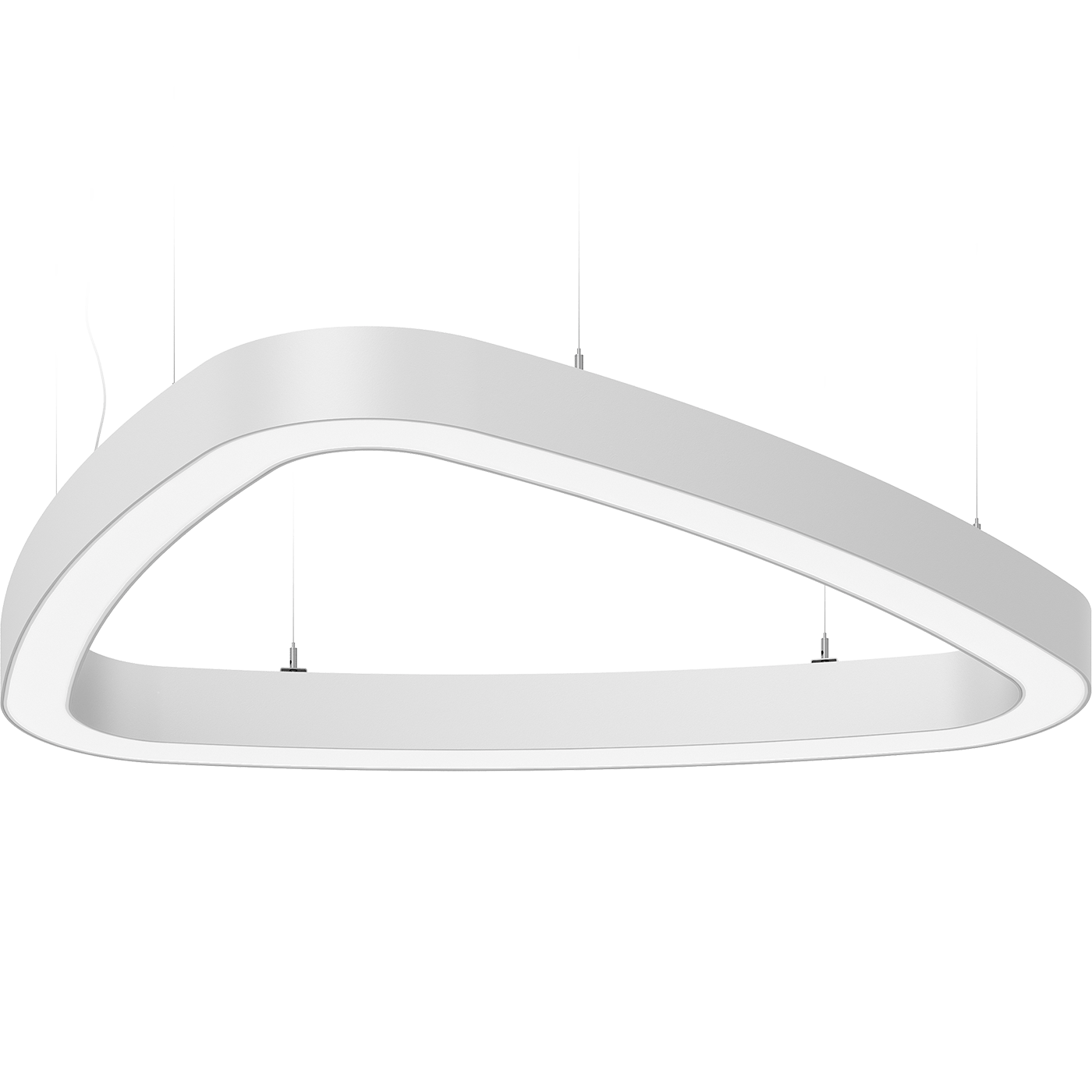

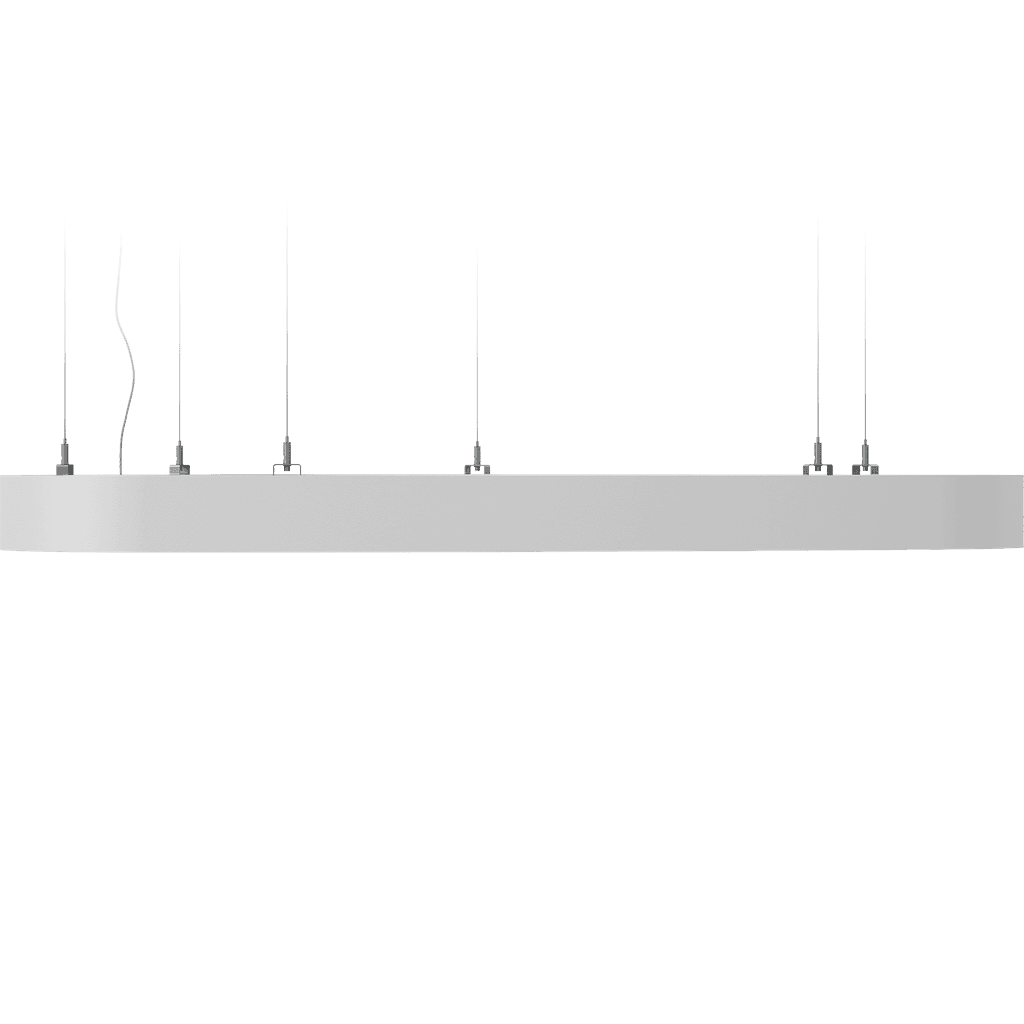

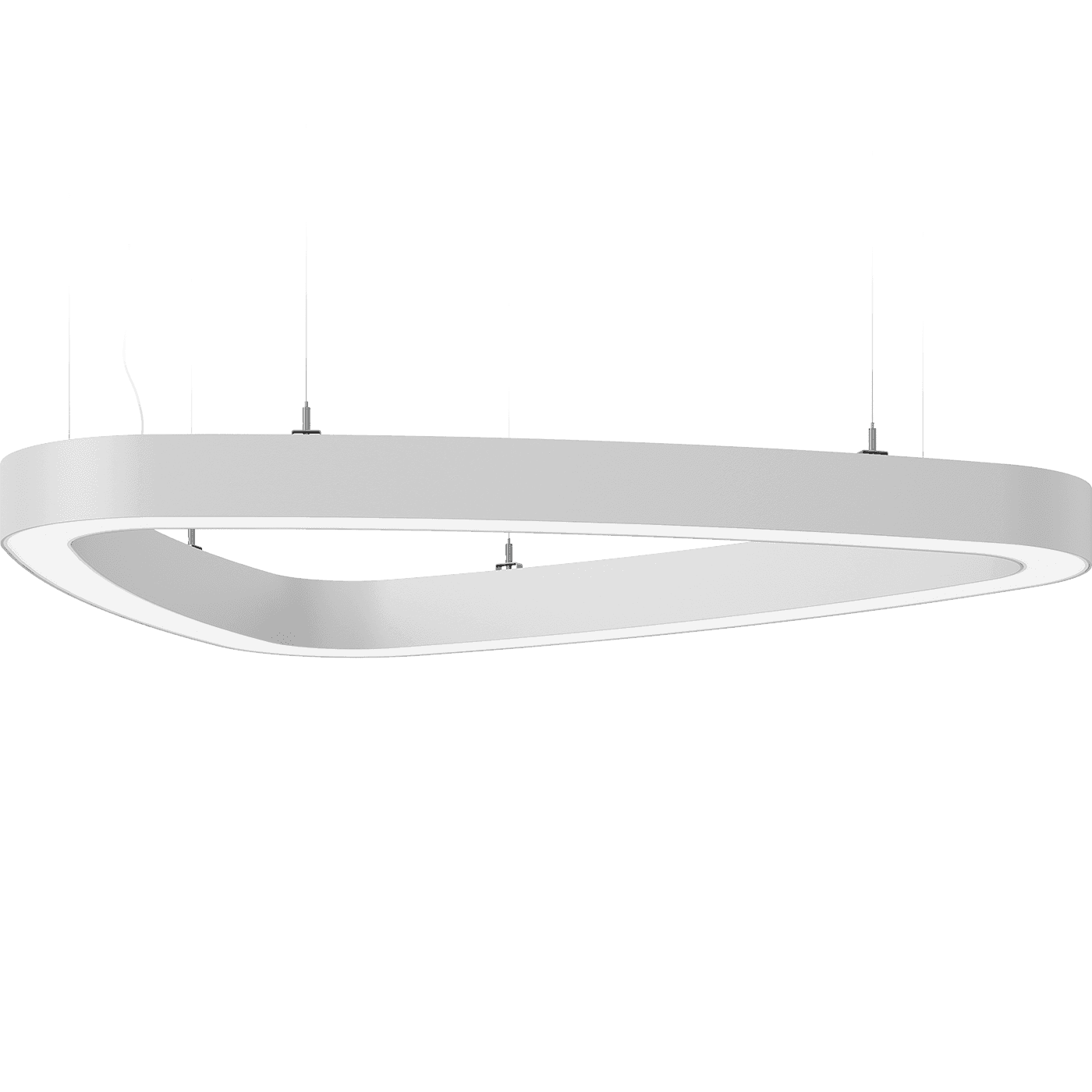

CYCLE TRIO P LED 1500/1200 4000K km
CYCLE TRIO P LED 1500/1200 4000K km
84 Wluminaire power
4300 lmlight flow
51 lm/Wenergy efficiency
code1101500230
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
51 lm/Wcolor rendition index (CRI)
>80light flow
4300 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
51 lm/W
color rendition index (CRI)
>80
light flow
4300 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
300 mks
electric shock protection
I
luminaire power
84 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
starting current
60 A
constructional
length, mm
1550 mm
width, mm
1240 mm
height, mm
90 mm
weight
15 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK01/0,15 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
B
ETIM class
Светильник подвесной
code
1101500230
model files
model files

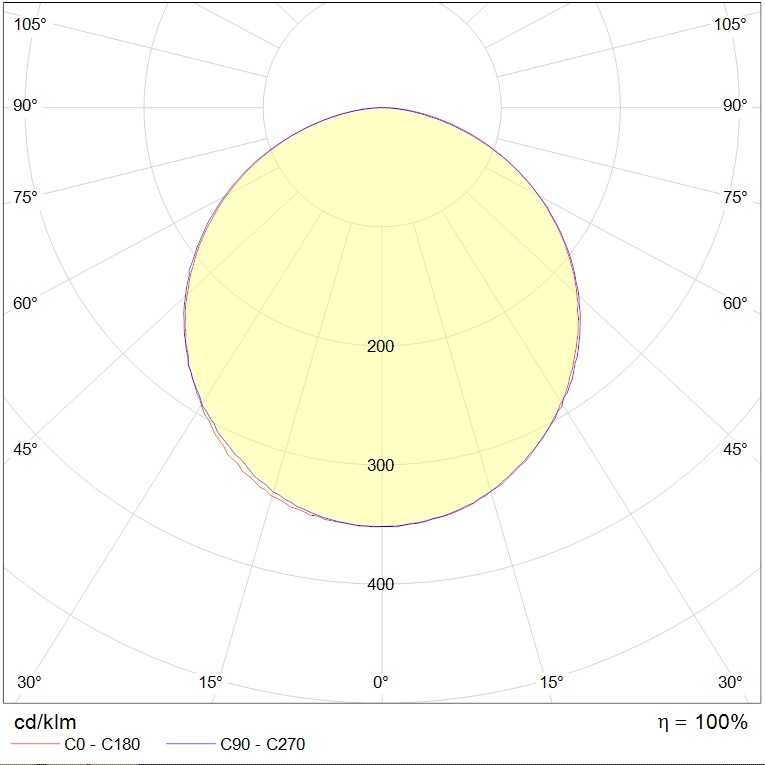

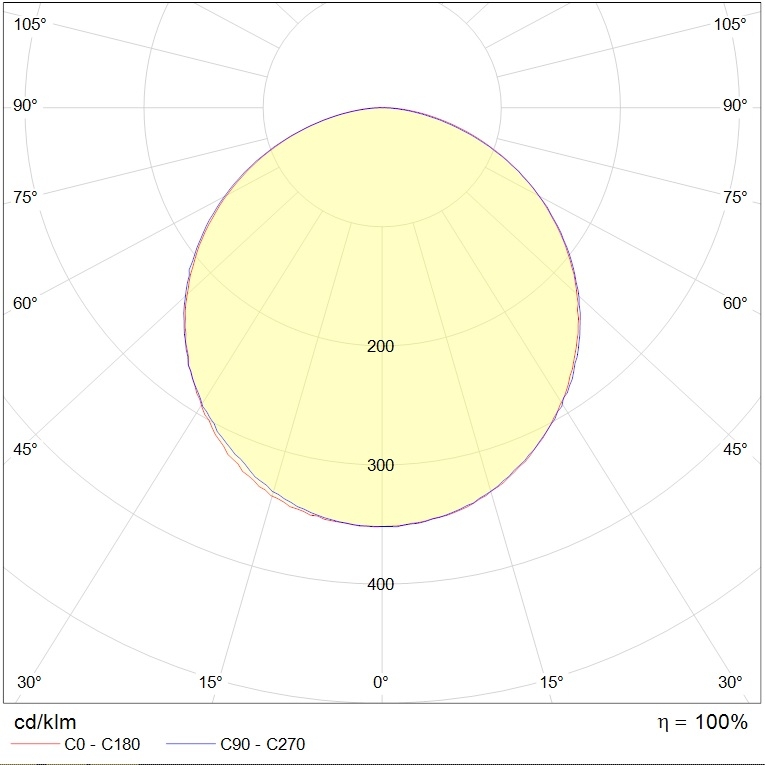

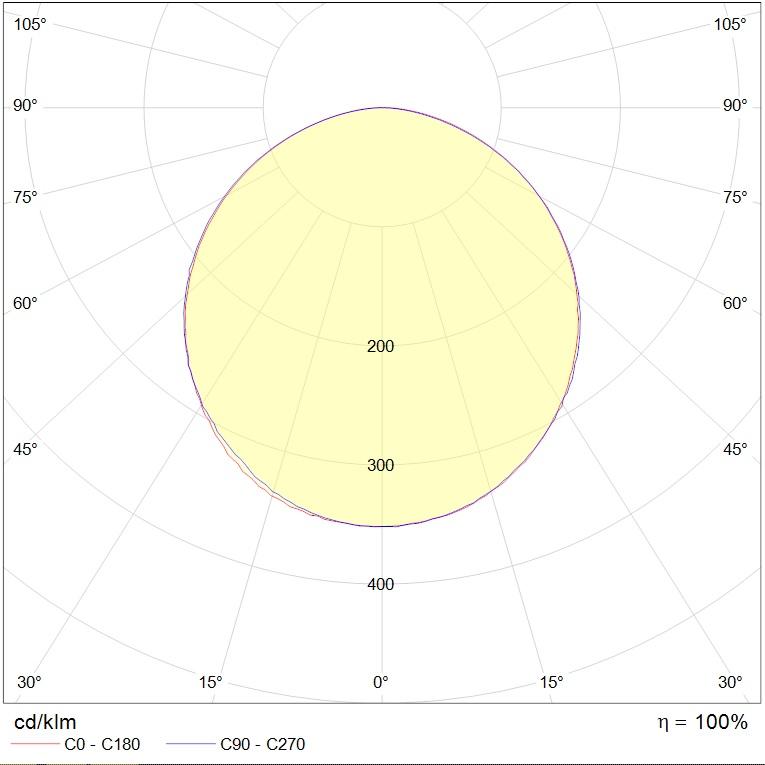

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg75.4 kB
ldt165.9 kB
documents
passport660.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
