DL POWER LED 40 D80 IP66 HFD 4000K

DL POWER LED 40 D80 IP66 HFD 4000K
add to favorites
36 Wluminaire power
3900 lmlight flow
108 lm/Wenergy efficiency
code1170002420
color temperature4000
beam angleD80
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. downlights
  6. DL POWER LED IP
  7. DL POWER LED 40 D80 IP66 HFD 4000K
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
20 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
99-264 V
supply voltage, direct current
170-280 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
electrical
starting current
20 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
99-264 V
supply voltage, direct current
170-280 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP66
climatic performance
УХЛ1
fire safety class
П-II,IIа
material
Алюминий
weight
5.2 kg

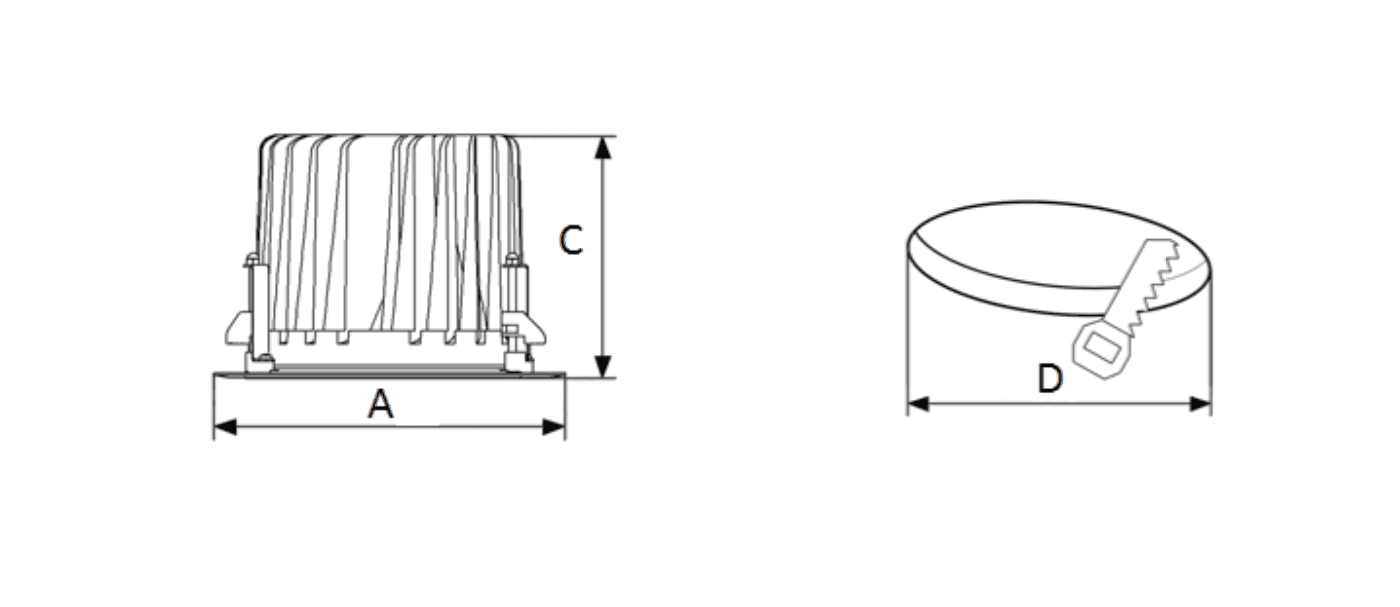

diameter, mm
232 mm
height, mm
161 mm
housing color
Белый
installation diameter, mm
215 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от -25 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1170002420
illuminating
color rendition index (CRI)
>80
light flow
3900 lm
flickering factor
<1%
energy efficiency
108 lm/W

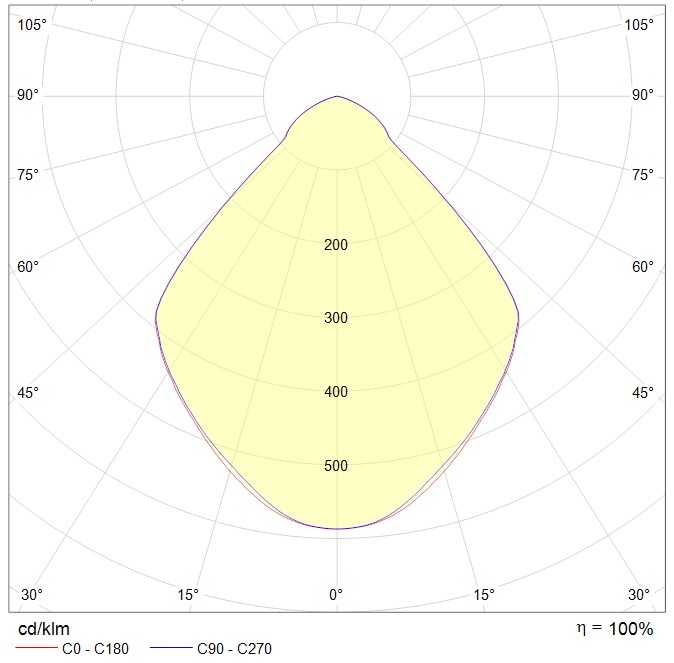

beam angle
D80
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
CAD/BIM files
CAD model 3DS126.1 kB
model 3dMax592 kB

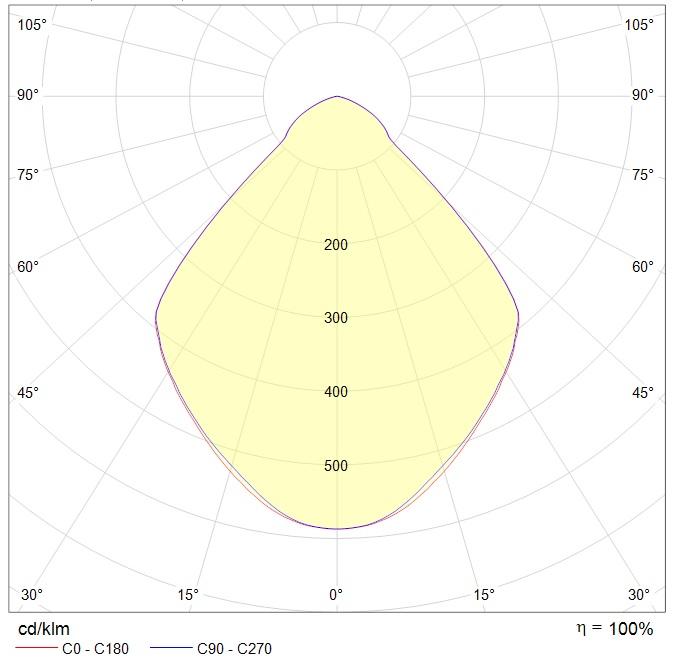

photometric files
ies134.1 kB
jpg68.3 kB
ldt82.1 kB
documents
passport624.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS126.1 kB
model 3dMax592 kB
photometric files
ies134.1 kB
jpg68.3 kB
ldt82.1 kB
documents
passport624.7 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
