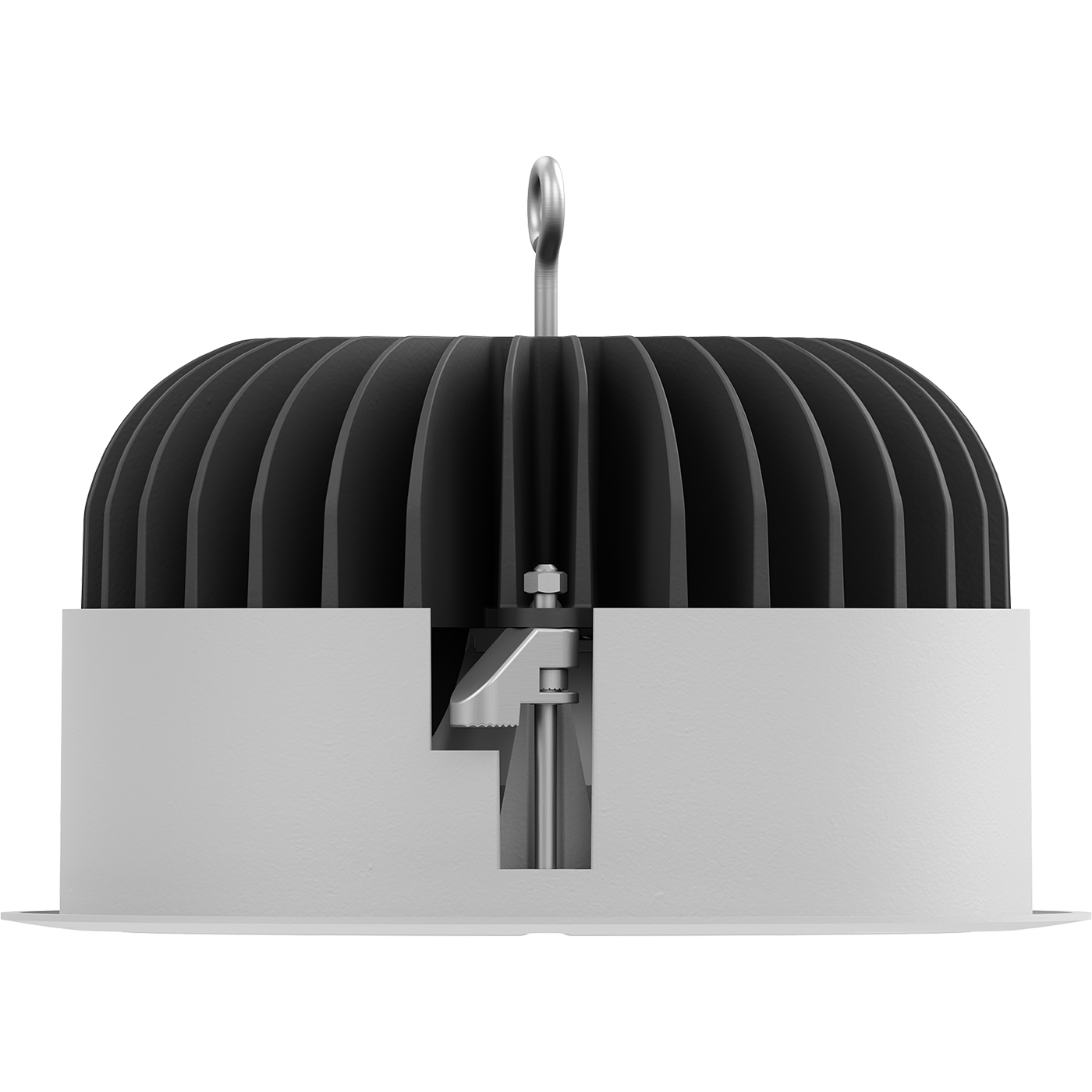

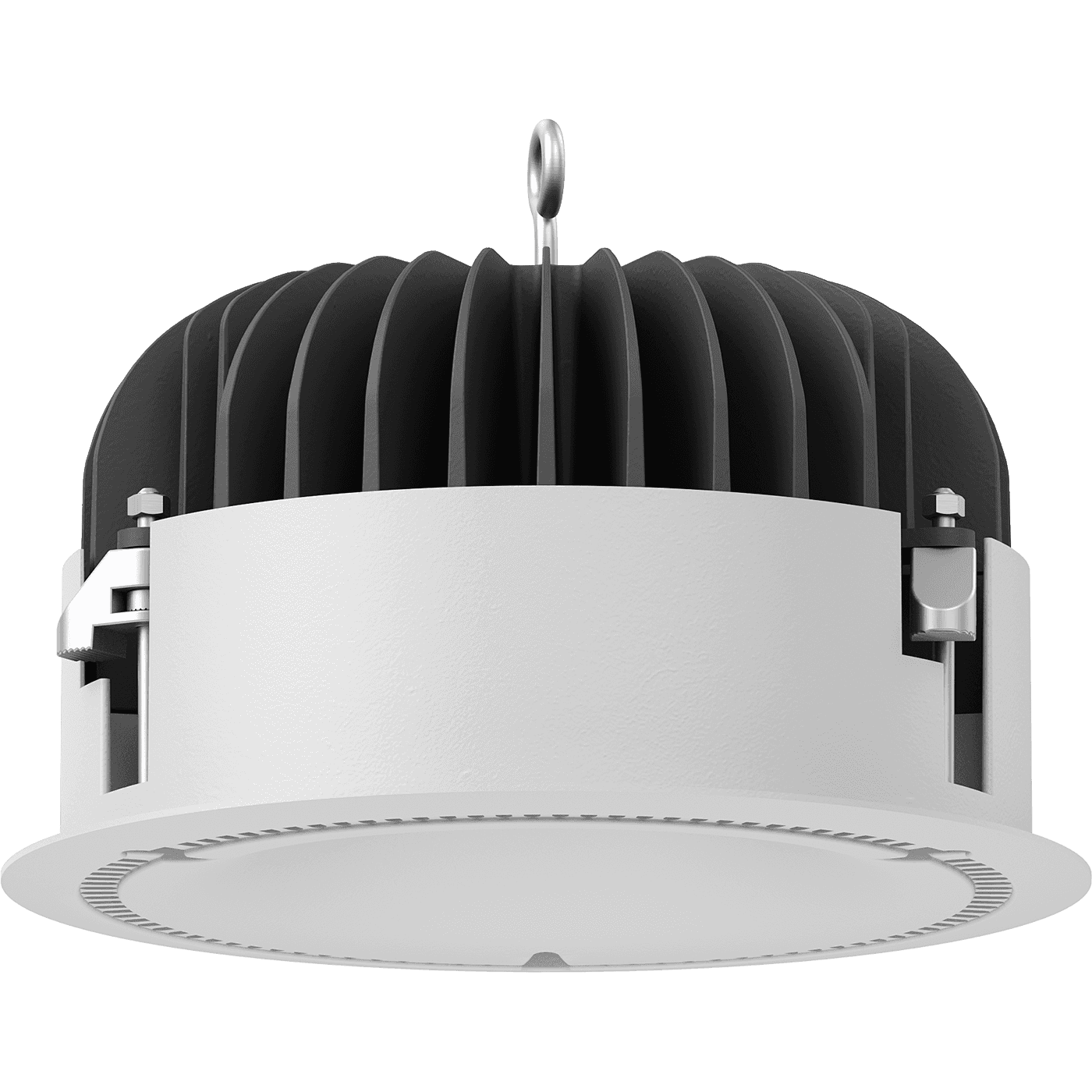

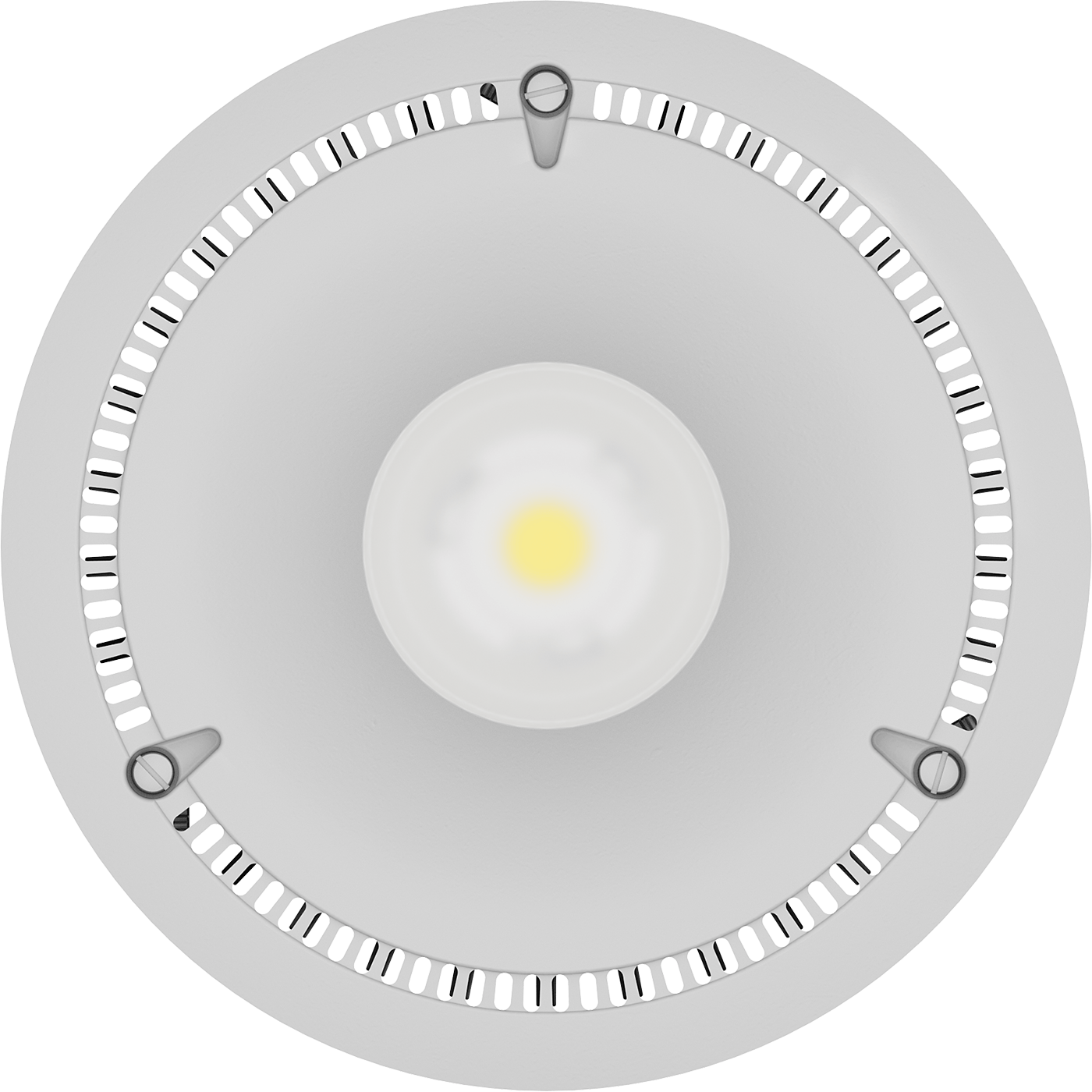

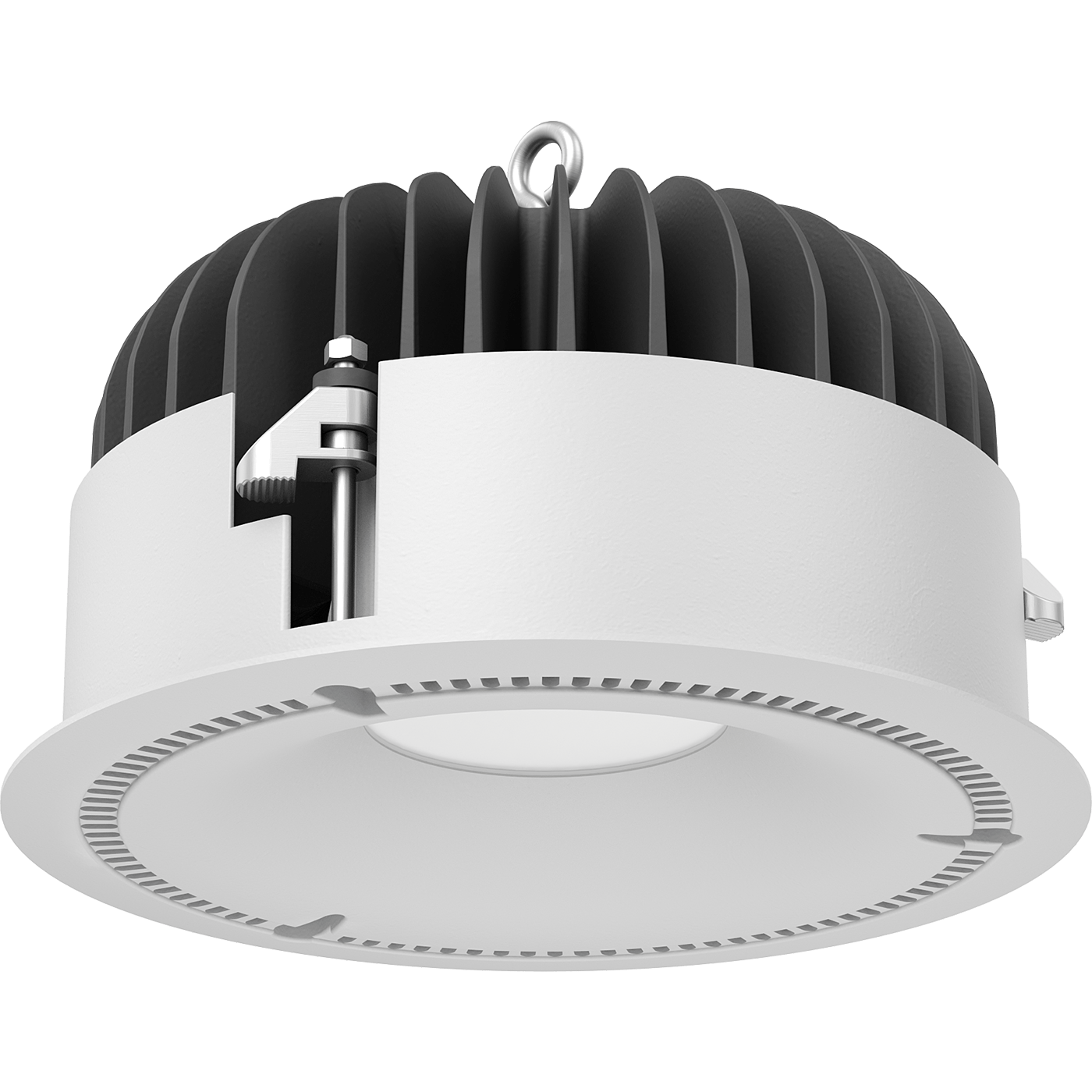

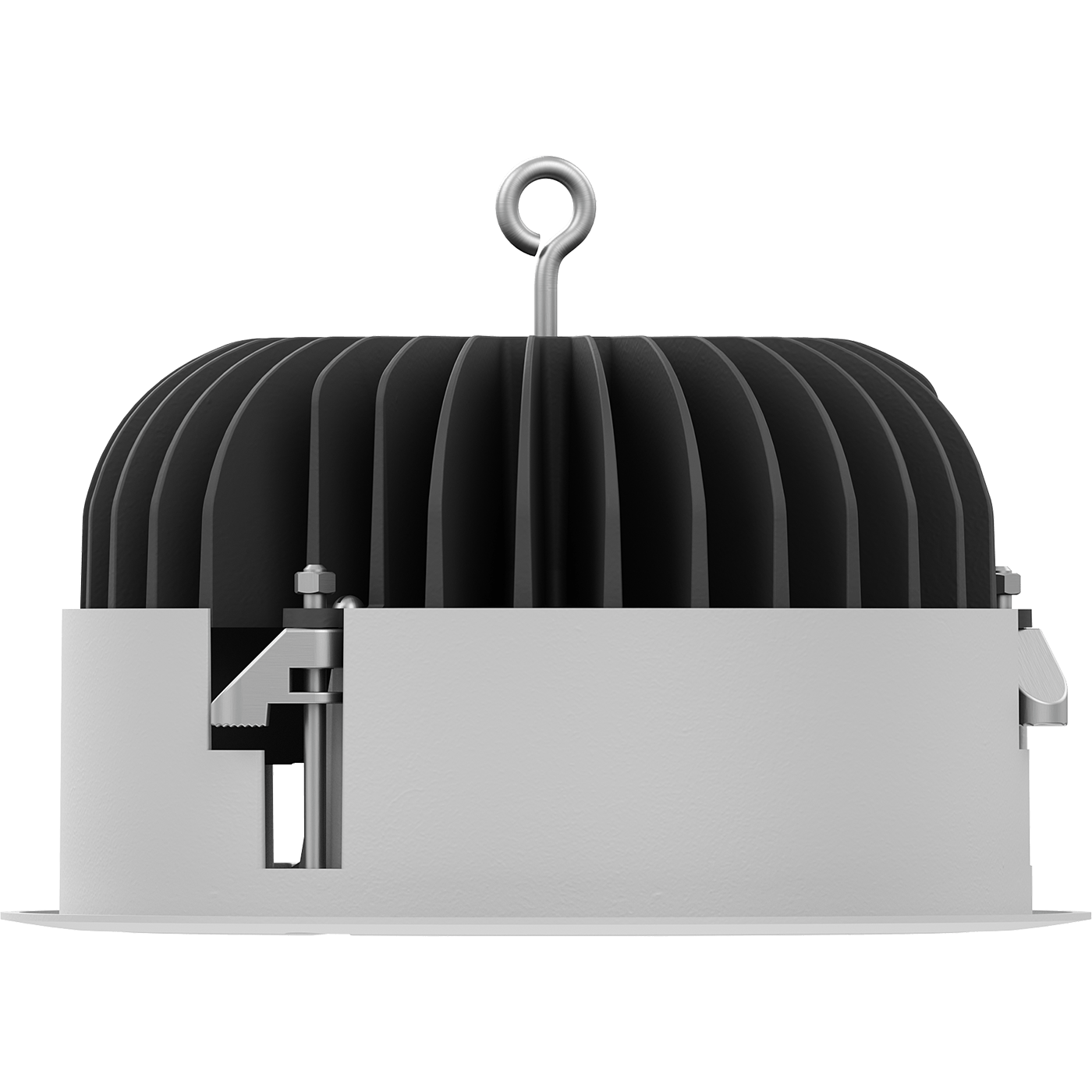

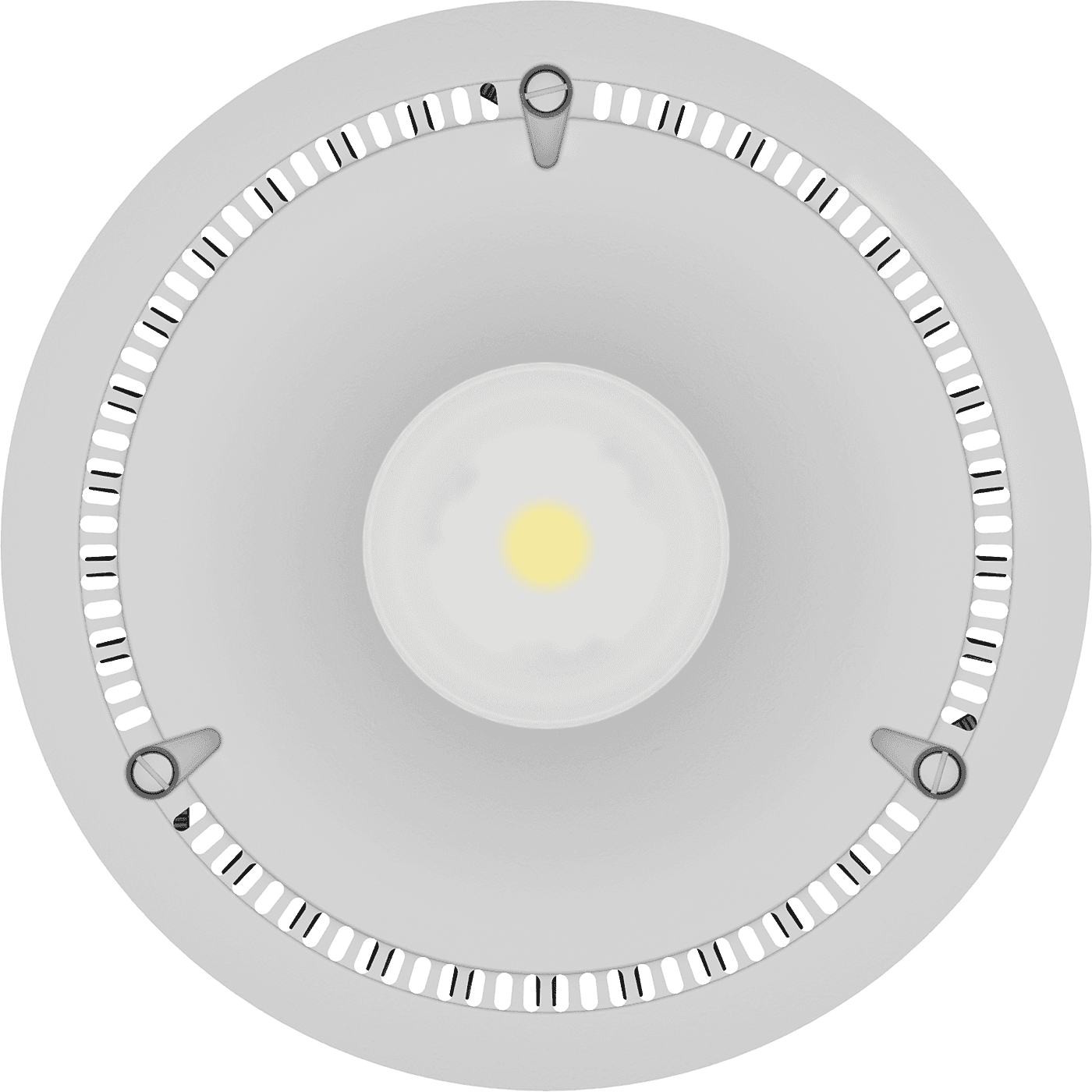

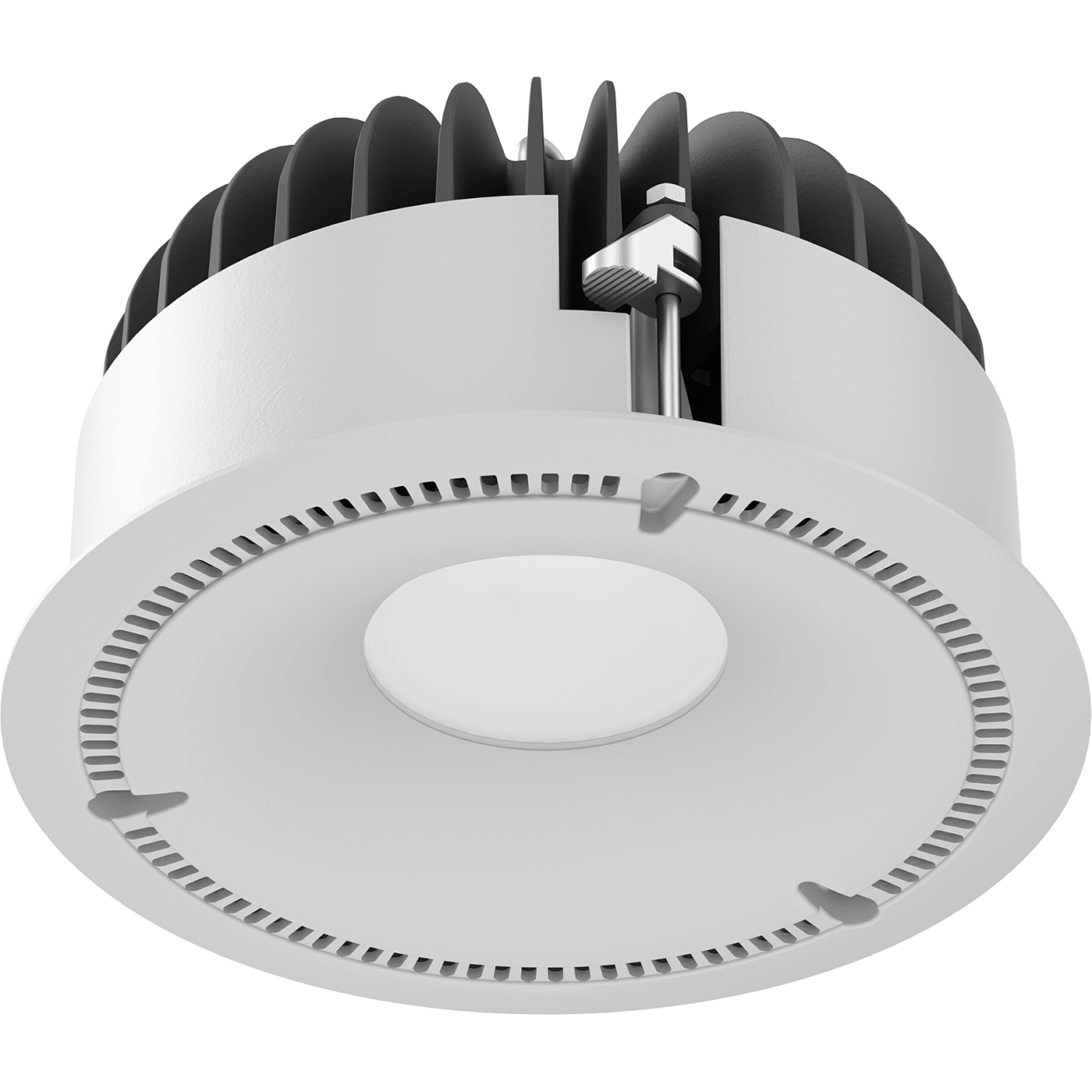

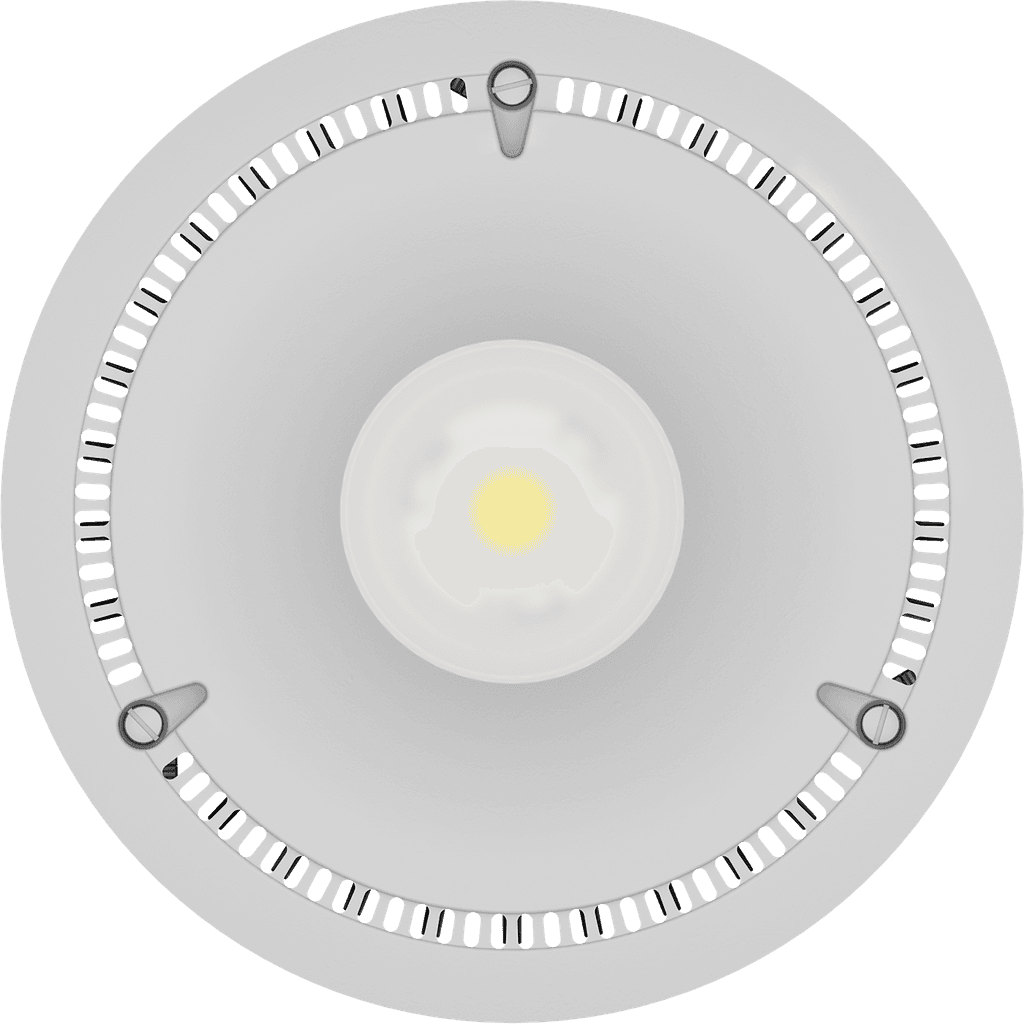

DL POWER LED 40 D60 HFD 4000K
DL POWER LED 40 D60 HFD 4000K
36 Wluminaire power
3500 lmlight flow
97 lm/Wenergy efficiency
code1170003230
color temperature4000
beam angleD60
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
10 Astarting current pulse time, µs
200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
99-264 Vsupply voltage, direct current
170-276 Vluminaire power
36 Welectric shock protection
IIpower factor
> 0,90supply voltage
230 Velectrical
starting current
10 A
starting current pulse time, µs
200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
99-264 V
supply voltage, direct current
170-276 V
luminaire power
36 W
electric shock protection
II
power factor
> 0,90
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
weight
2.9 kg
diameter, mm
234 mm
height, mm
127 mm
housing color
Белый
installation diameter, mm
210 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1170003230
illuminating
color rendition index (CRI)
>80
light flow
3500 lm
flickering factor
<1%
energy efficiency
97 lm/W

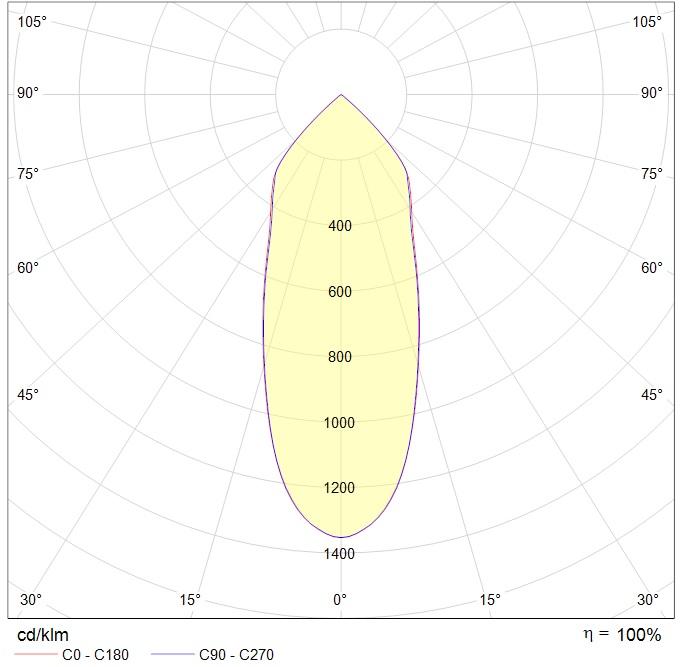

beam angle
D60
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg72.2 kB
ldt78.2 kB
documents
passport1.8 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
