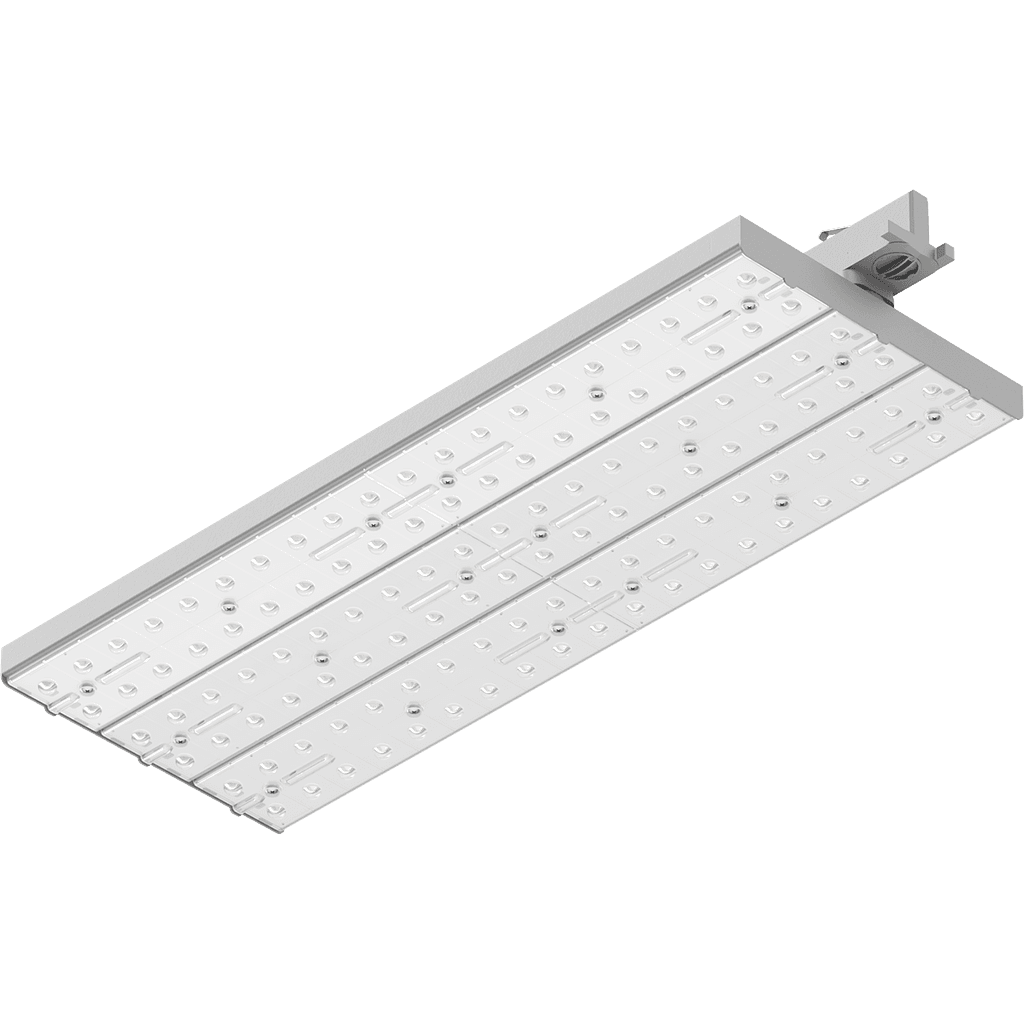

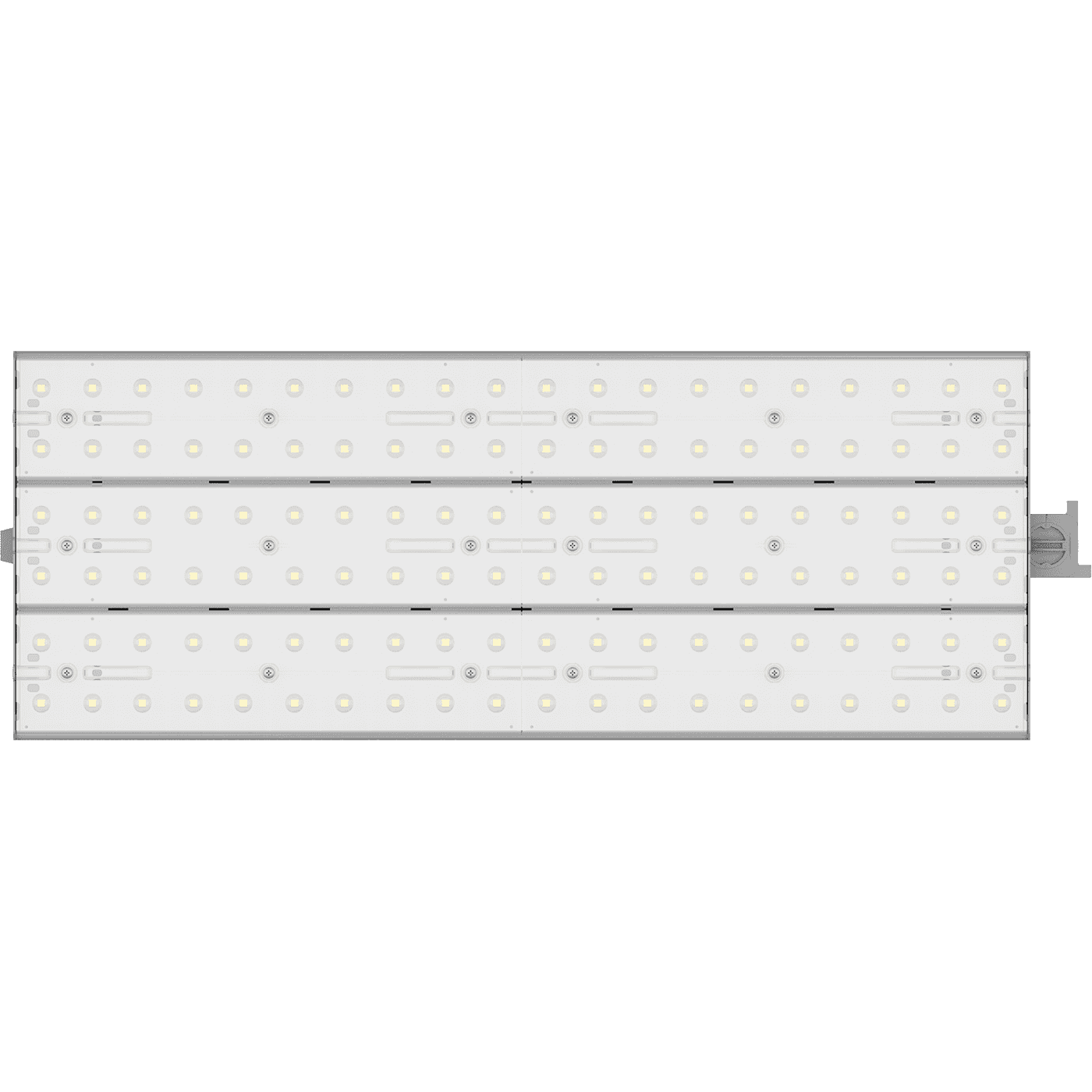

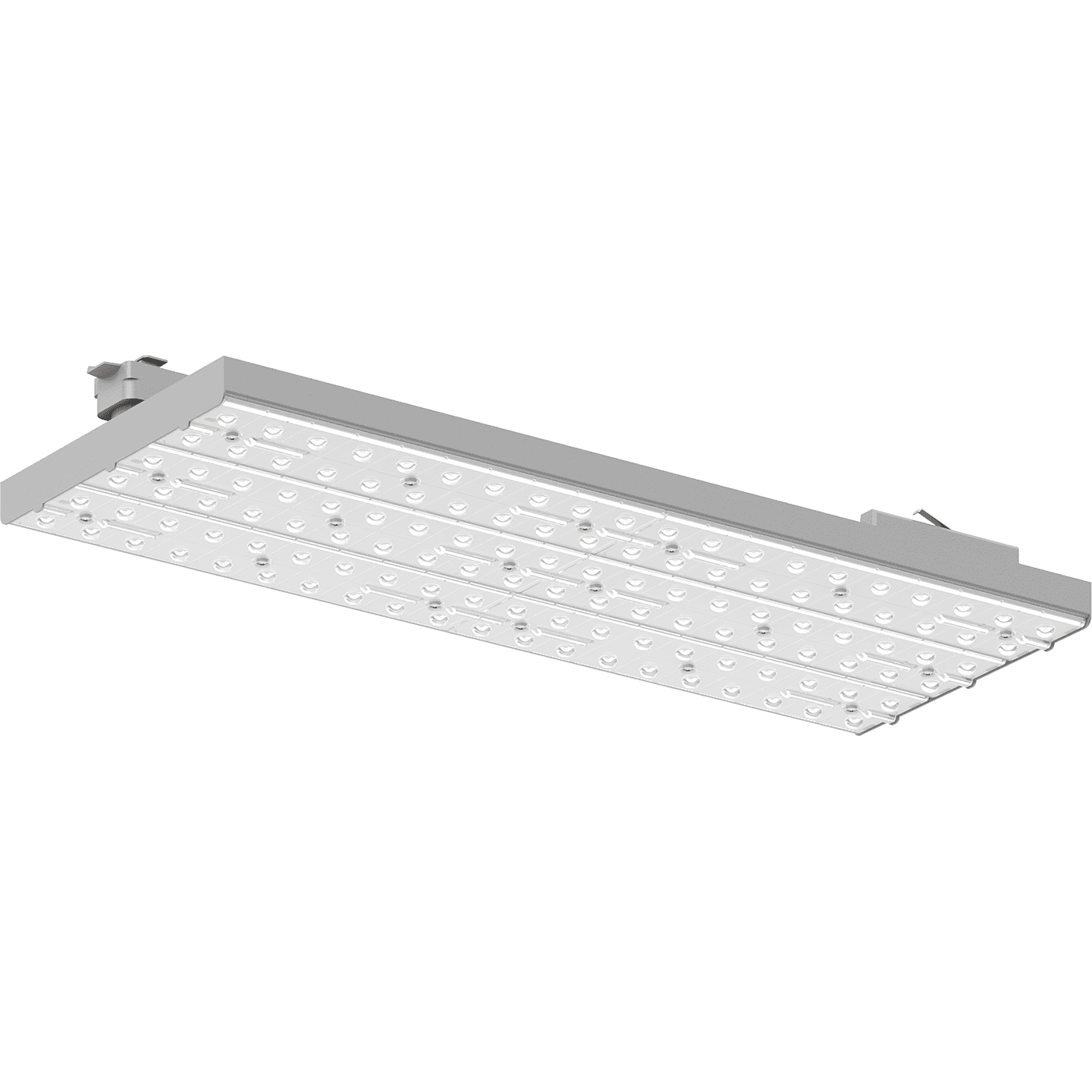

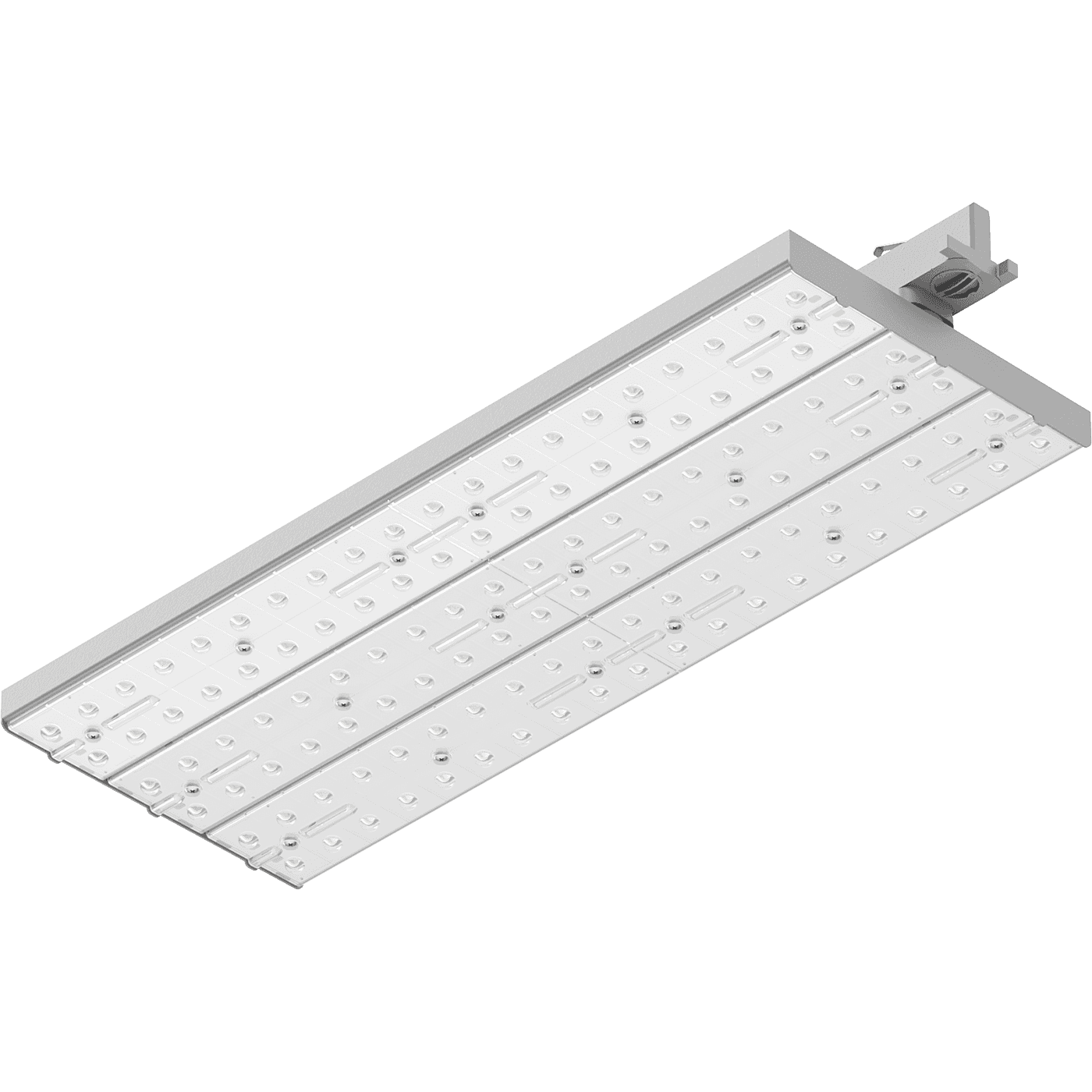

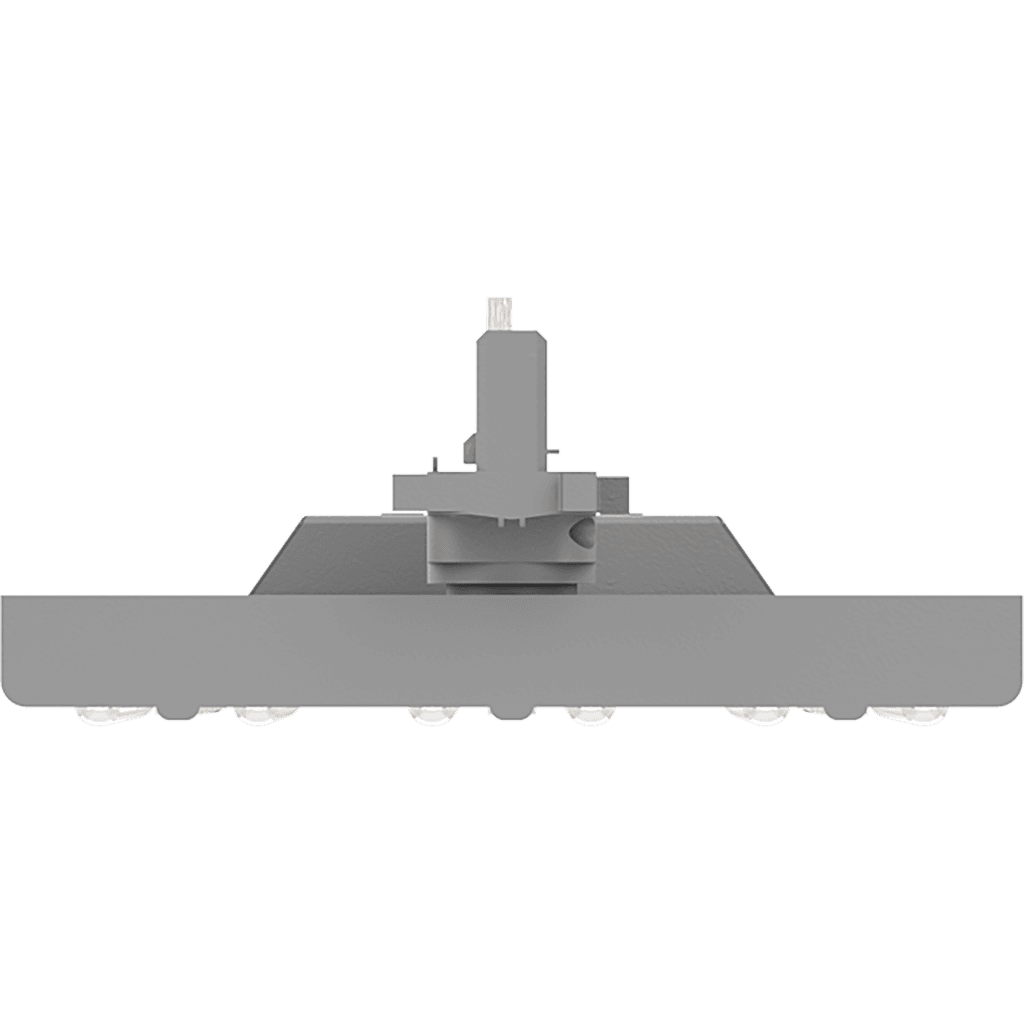

DOMINO LED PANEL/T (500) 80 SL D90 4000K rotary
model is discontinued
_80_sl_d90_4000k_rotary.jpg&w=1920&q=100)
_80_sl_d90_4000k_rotary.jpg&w=1024&q=75)
model is discontinued
DOMINO LED PANEL/T (500) 80 SL D90 4000K rotary
74 Wluminaire power
8800 lmlight flow
119 lm/Wenergy efficiency
code1232000680
color temperature4000 K
beam angleD90
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
119 lm/Wcolor rendition index (CRI)
>80light flow
8800 lmflickering factor
<1%beam angle
D90color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
119 lm/W
color rendition index (CRI)
>80
light flow
8800 lm
flickering factor
<1%
beam angle
D90
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
74 W
supply voltage
230 V
power factor
> 0,95
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A

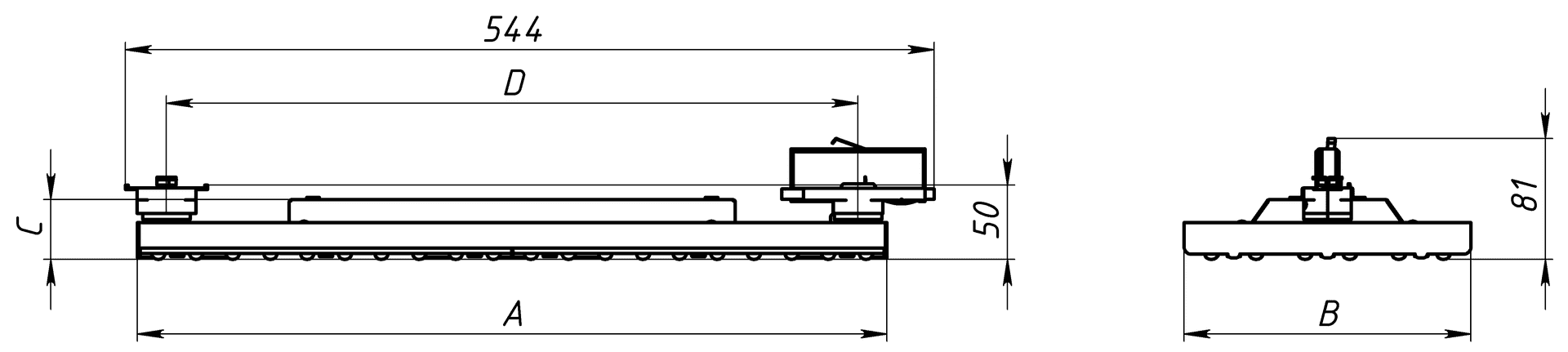

constructional
length
504 mm
width
193 mm
height
53 mm
weight
3.7 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1232000680
model files
model files

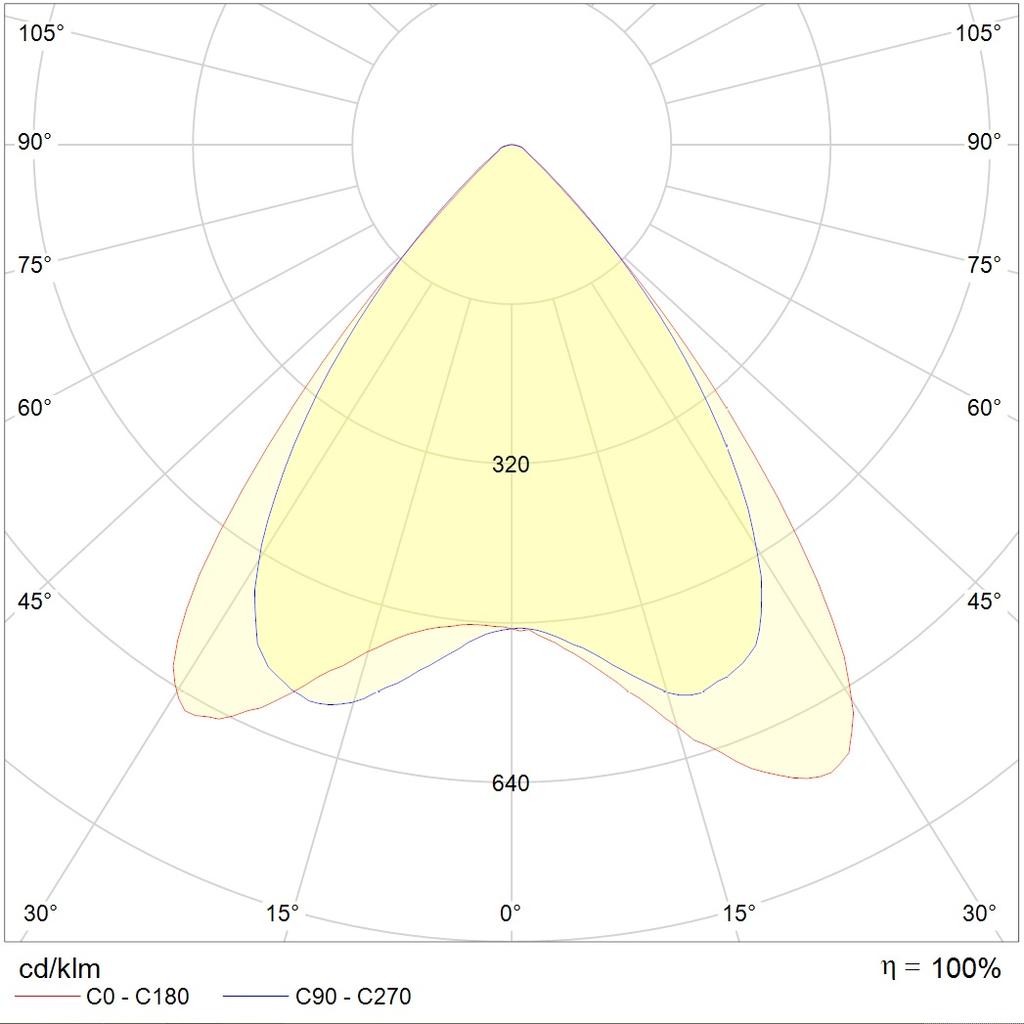

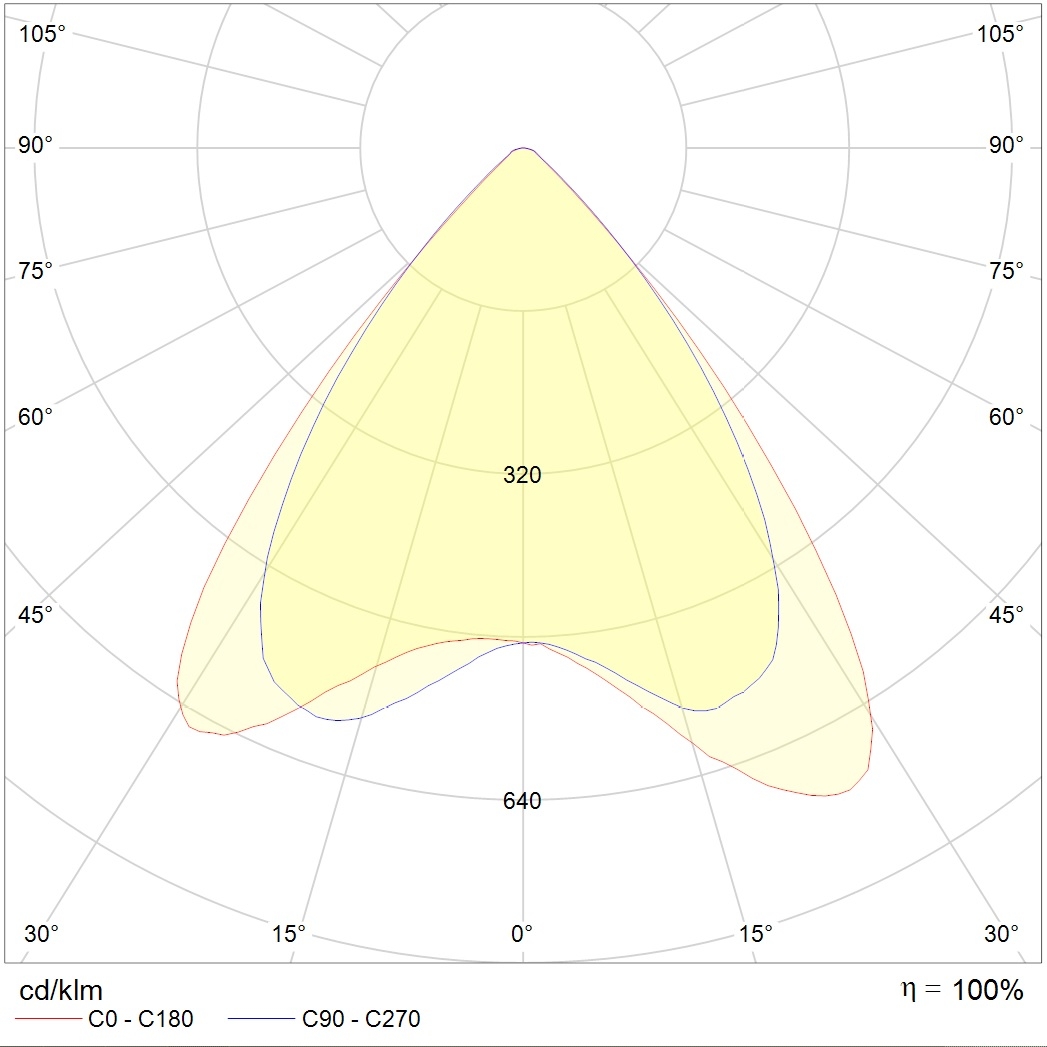

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg125.6 kB
ldt163.2 kB
documents
passport2.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
