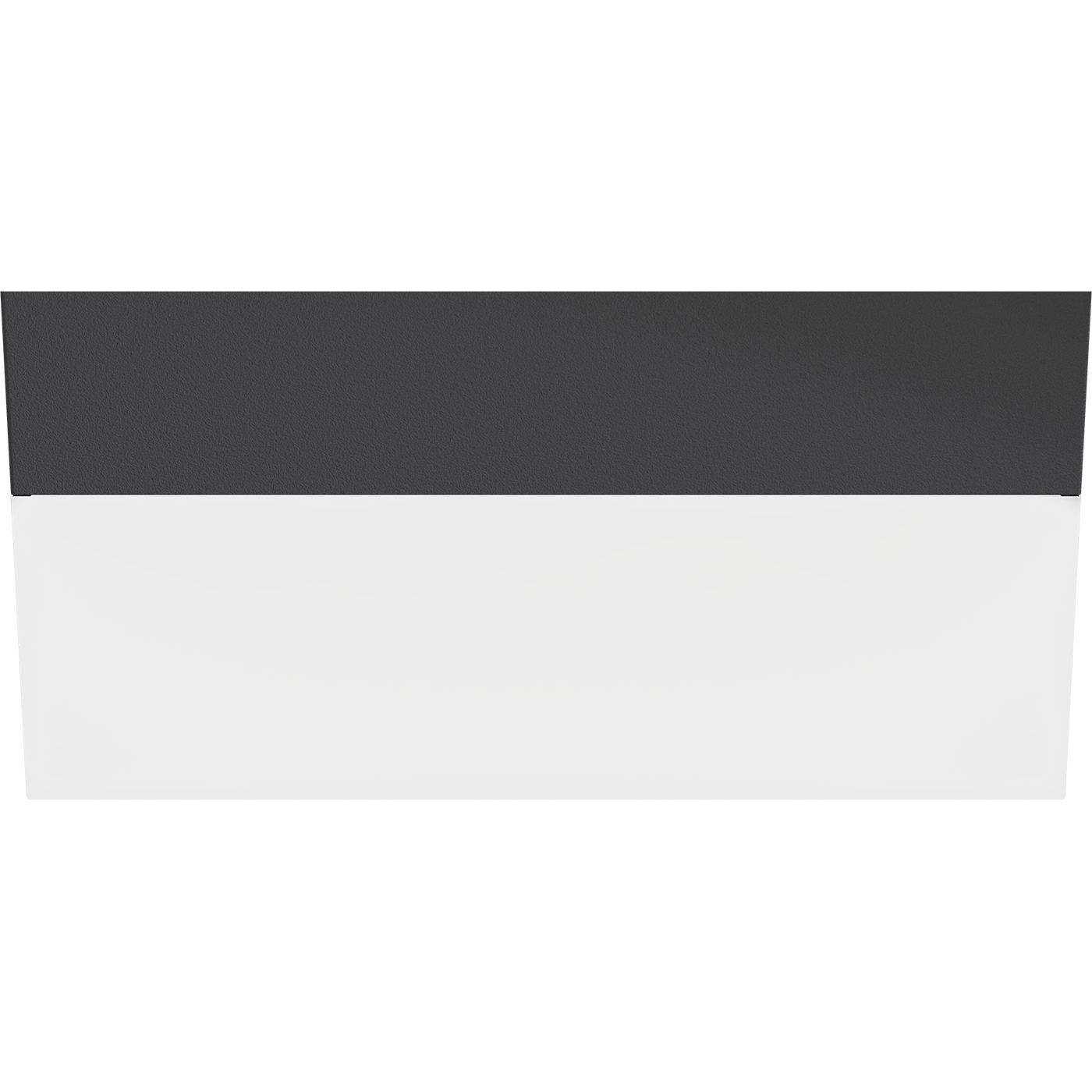

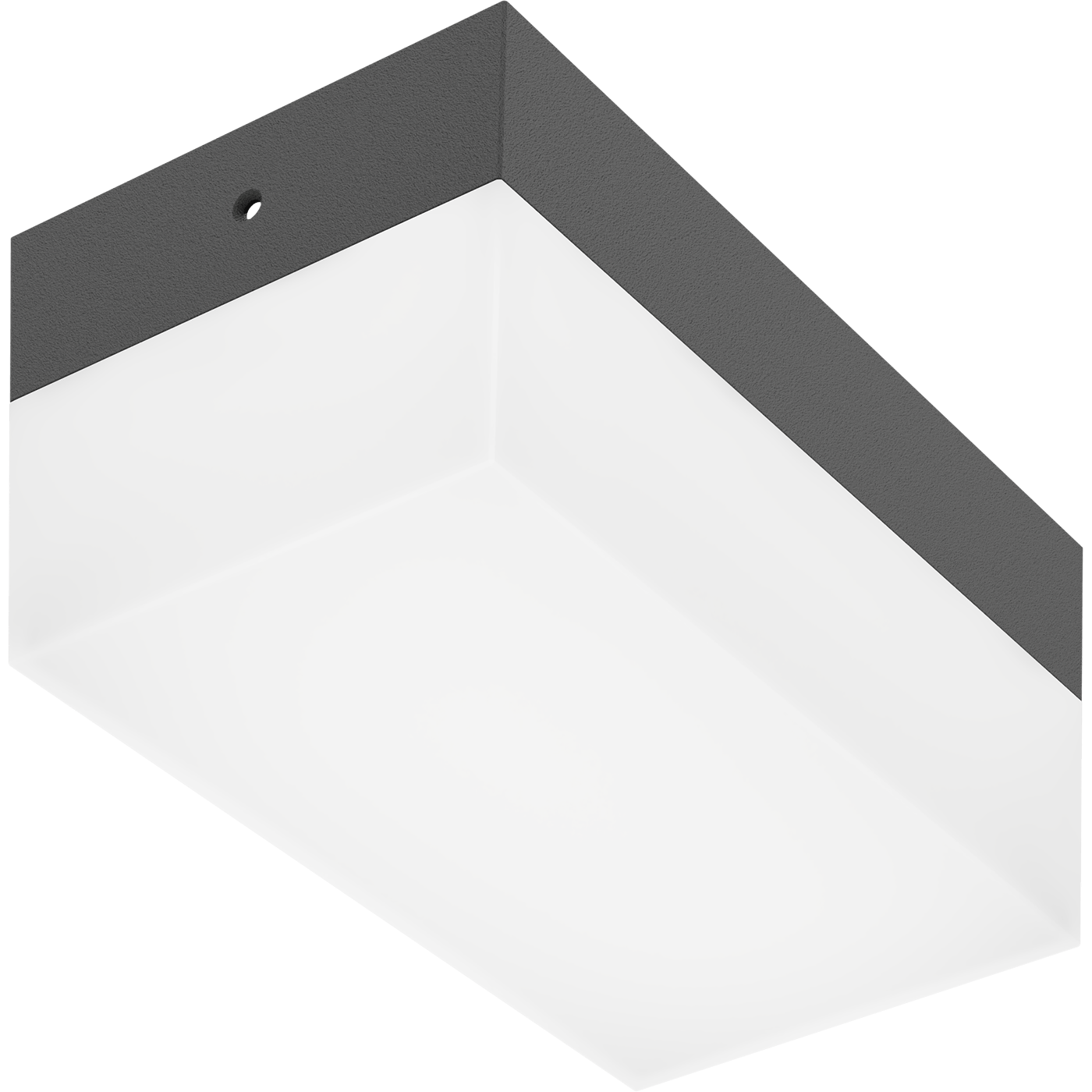

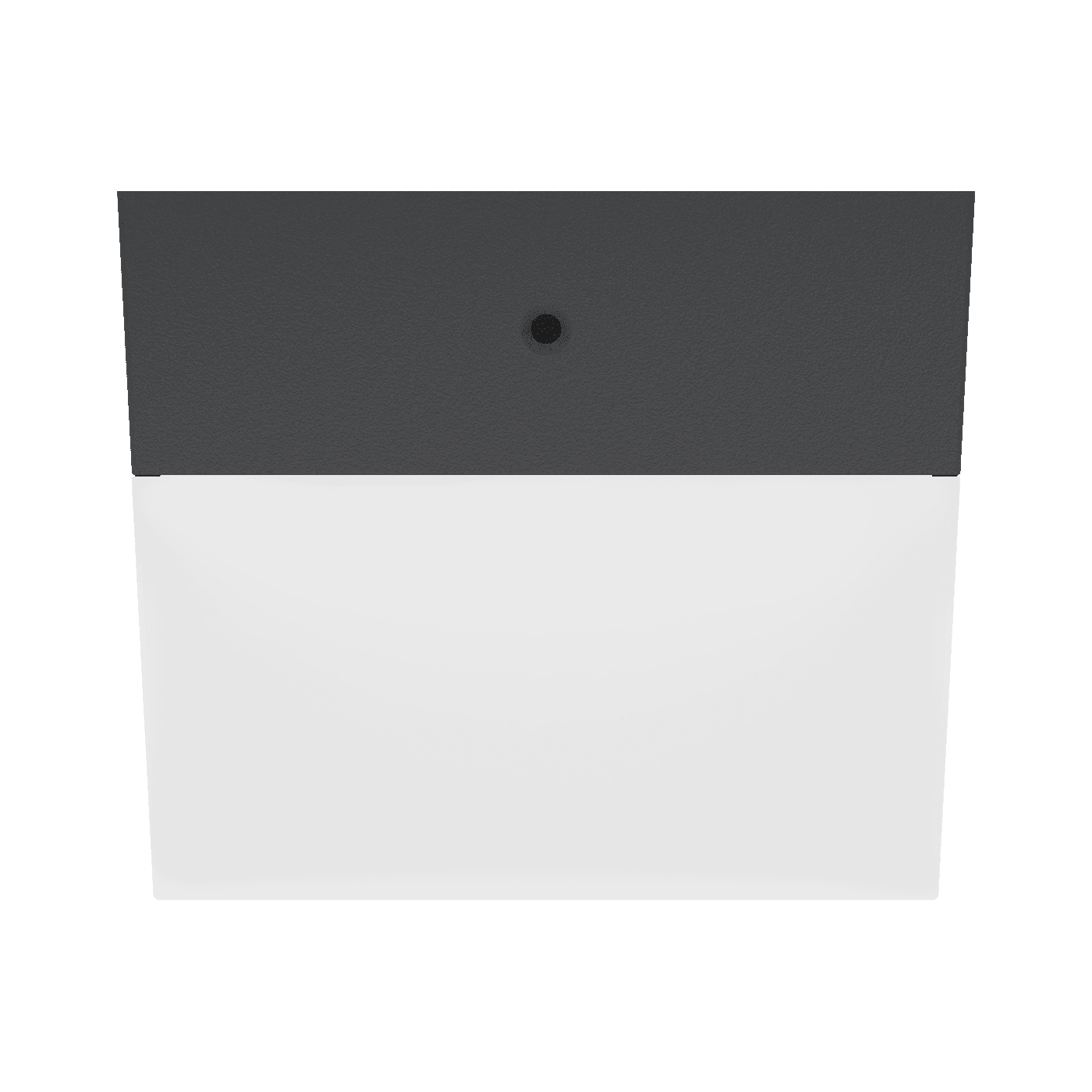

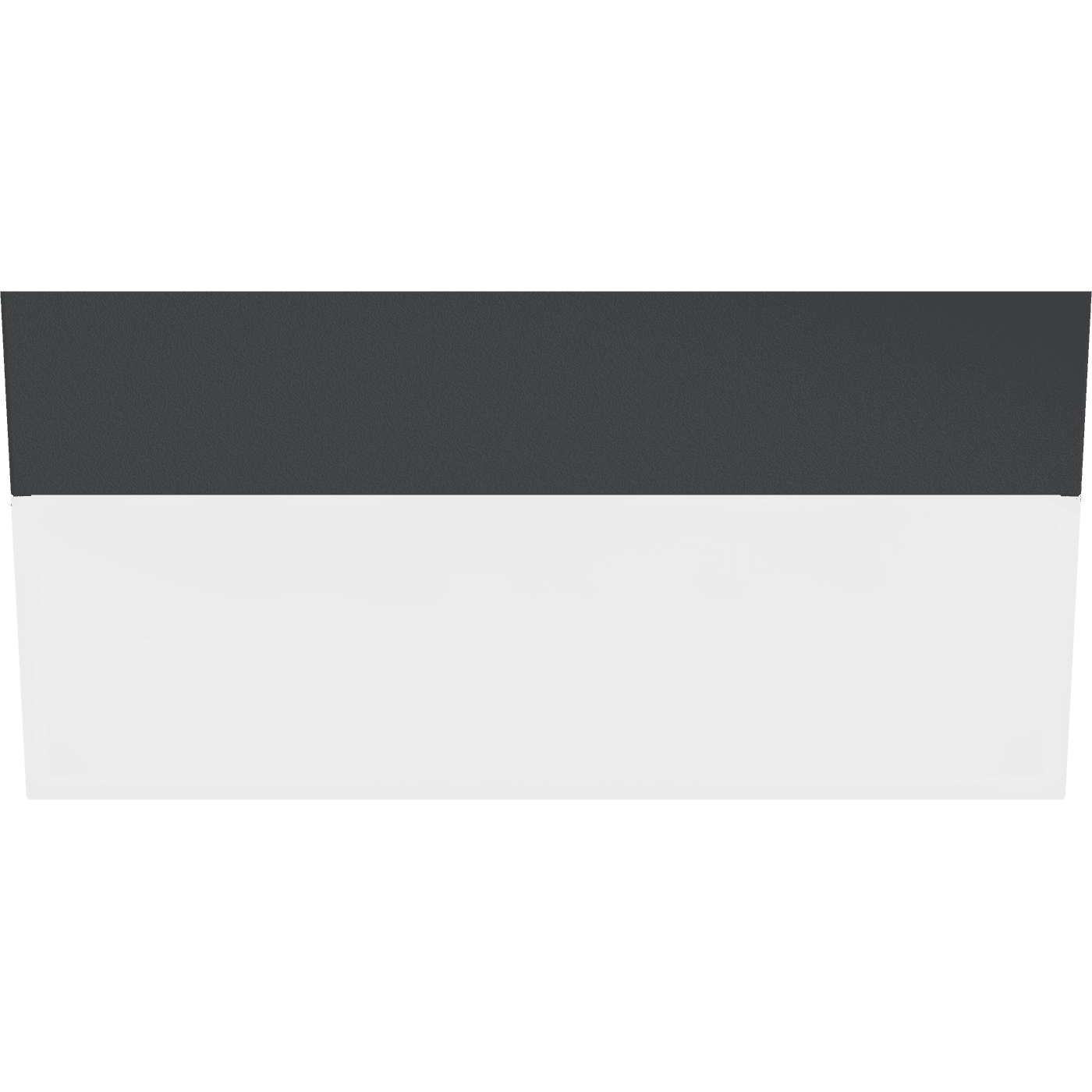

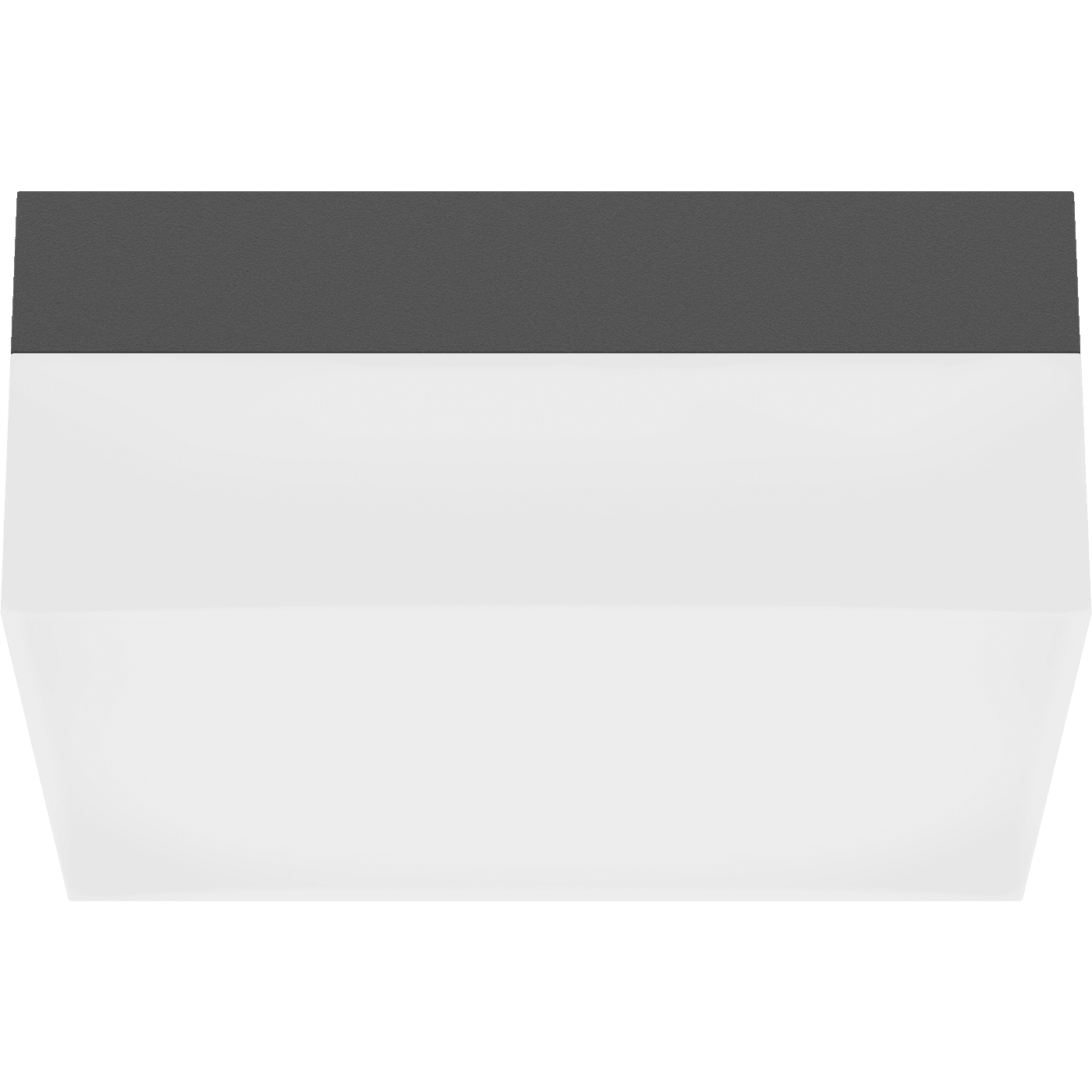

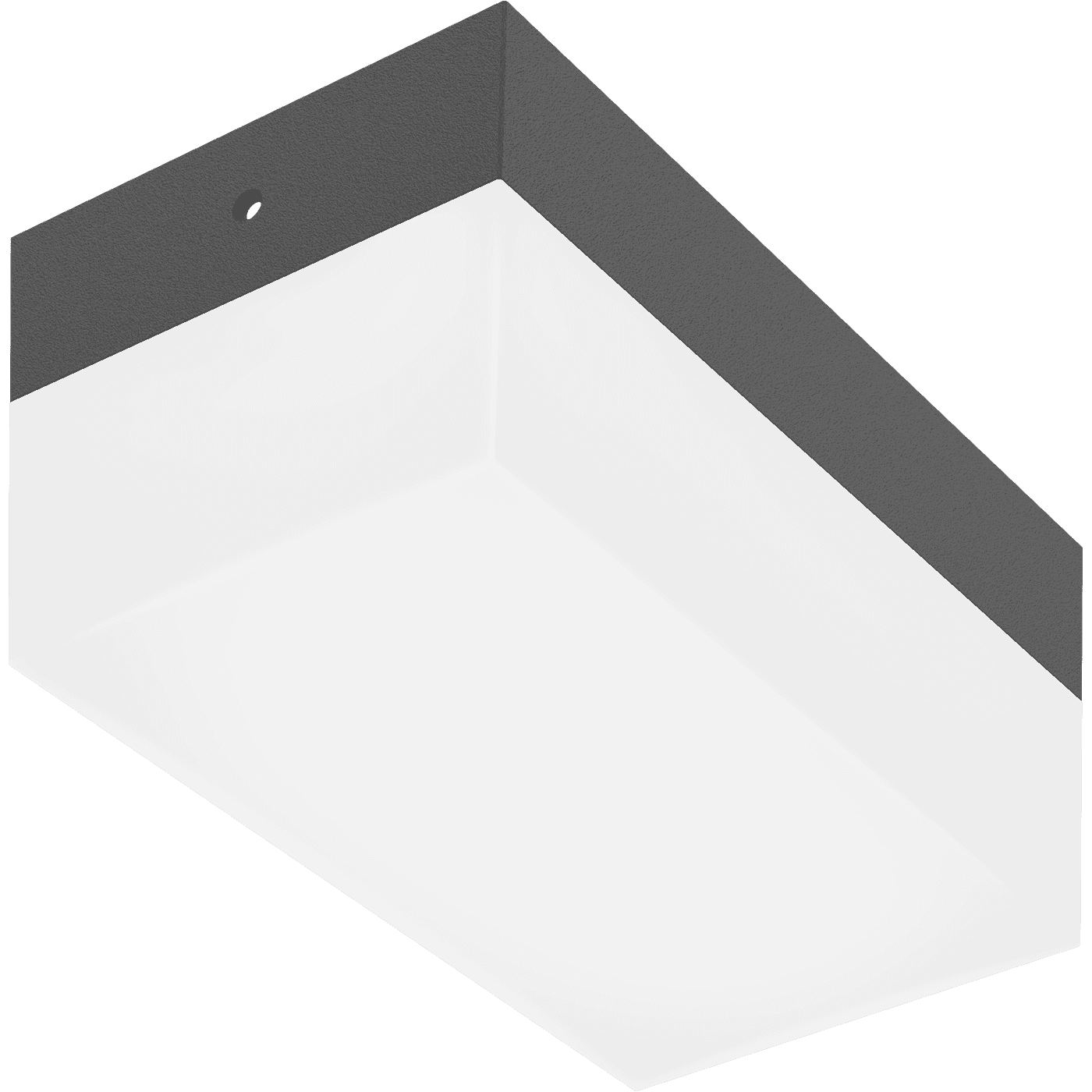

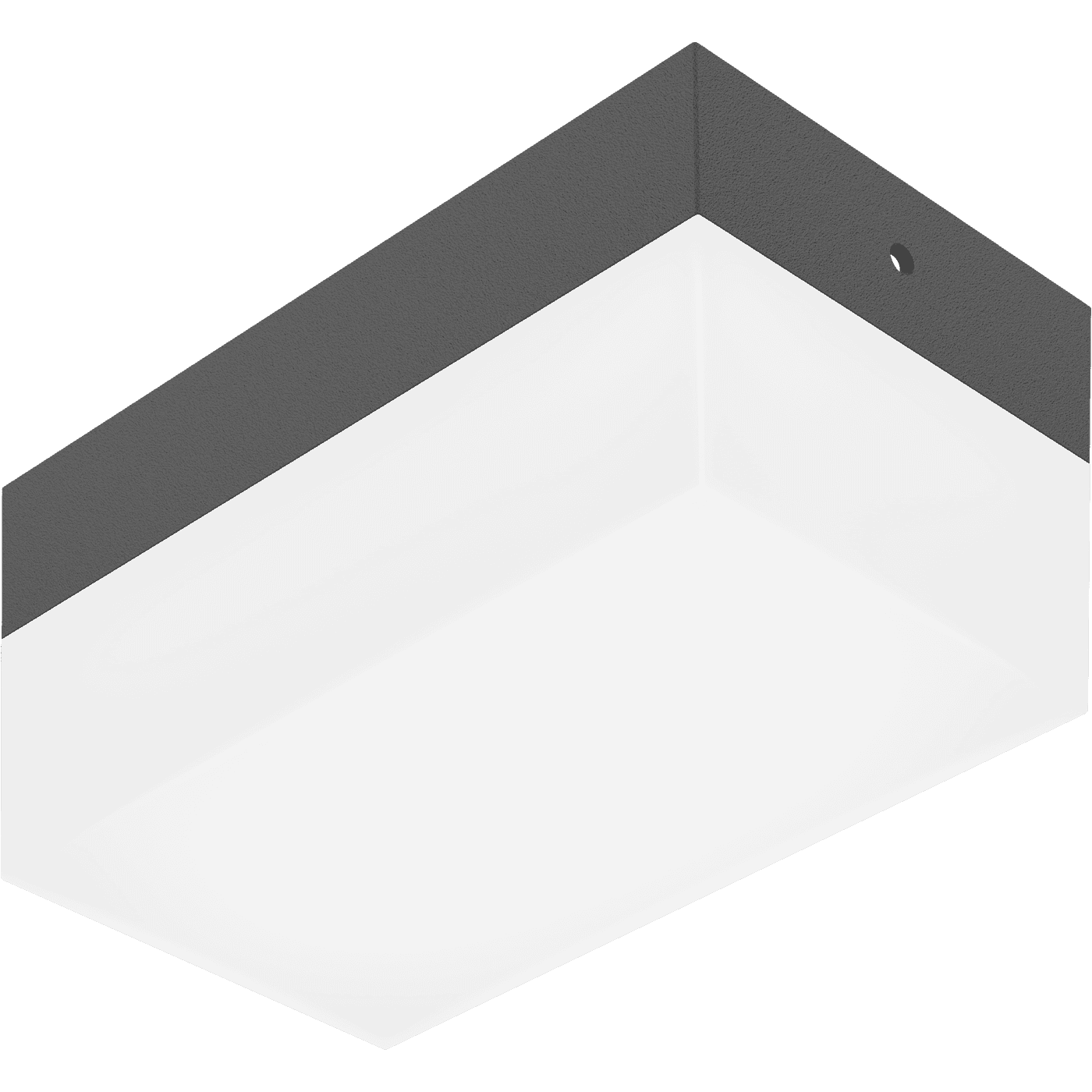

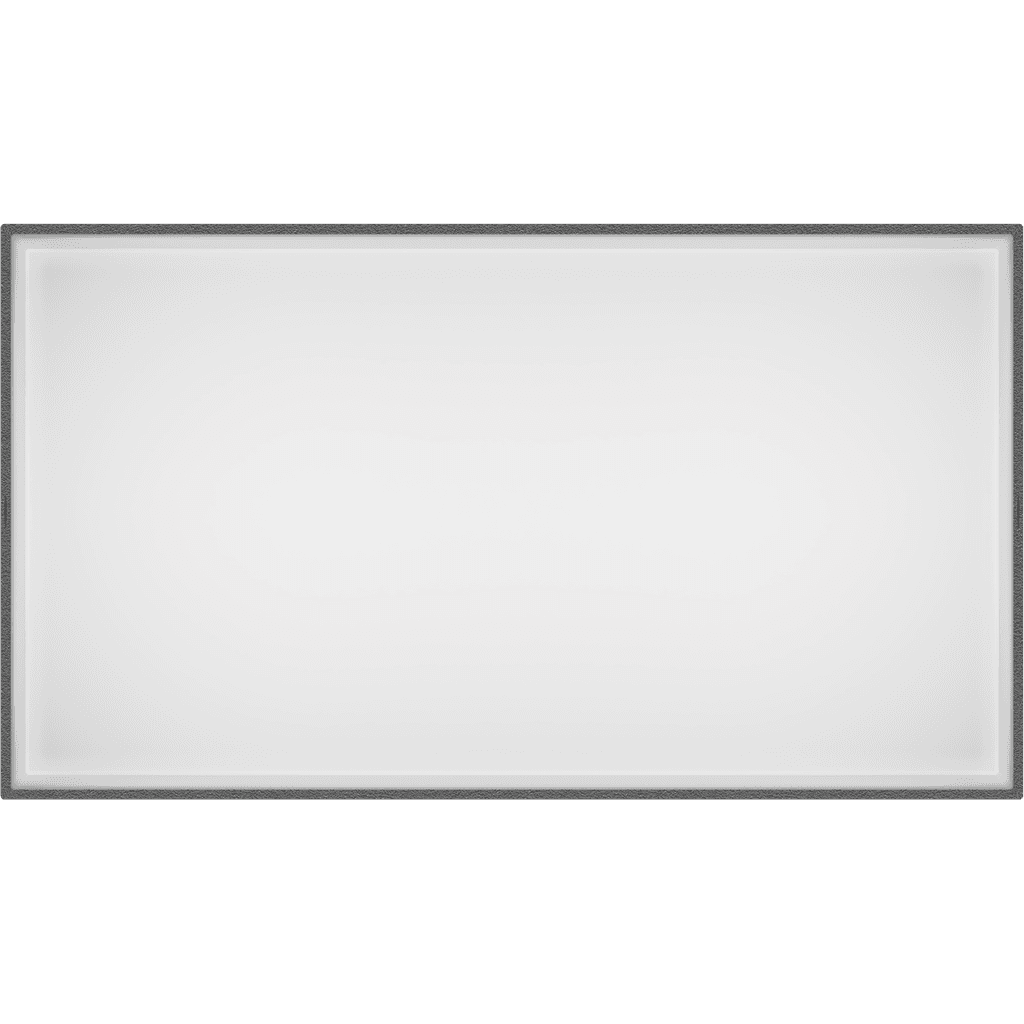

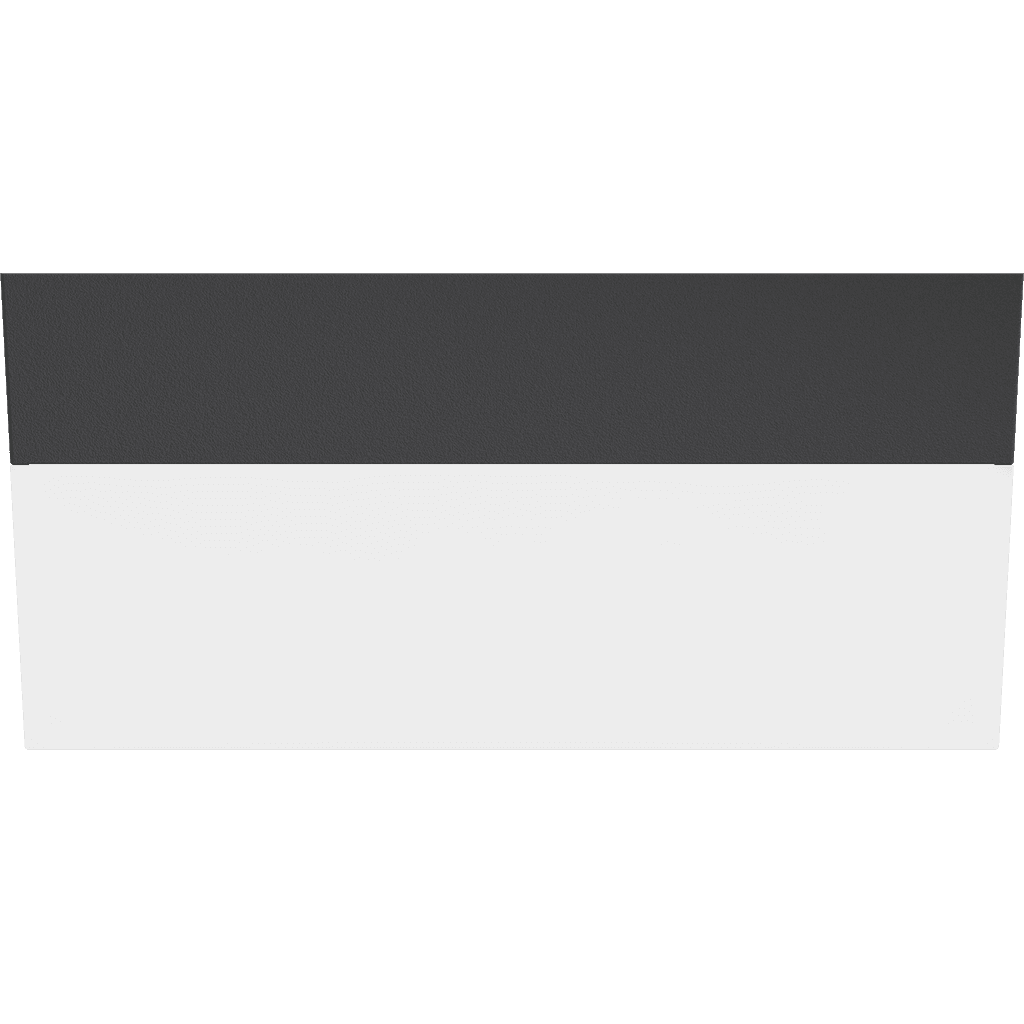

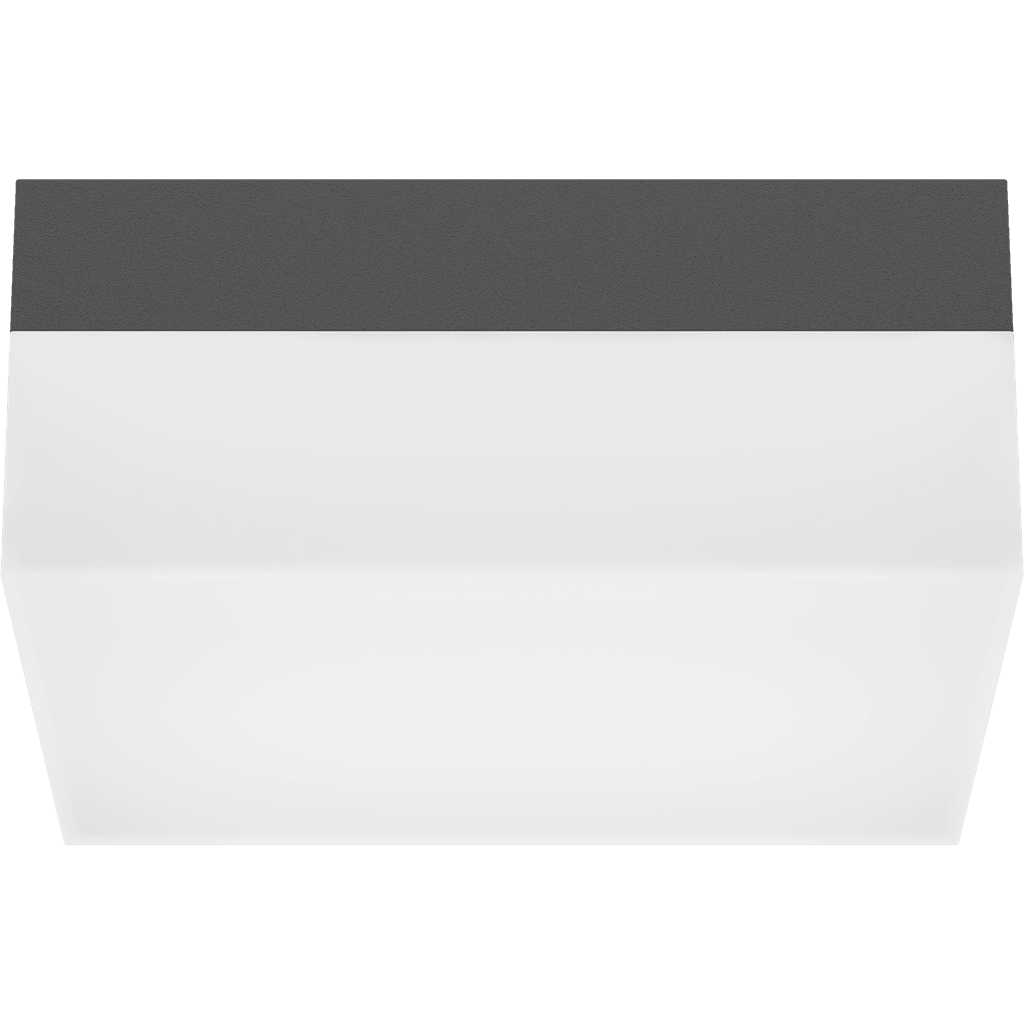

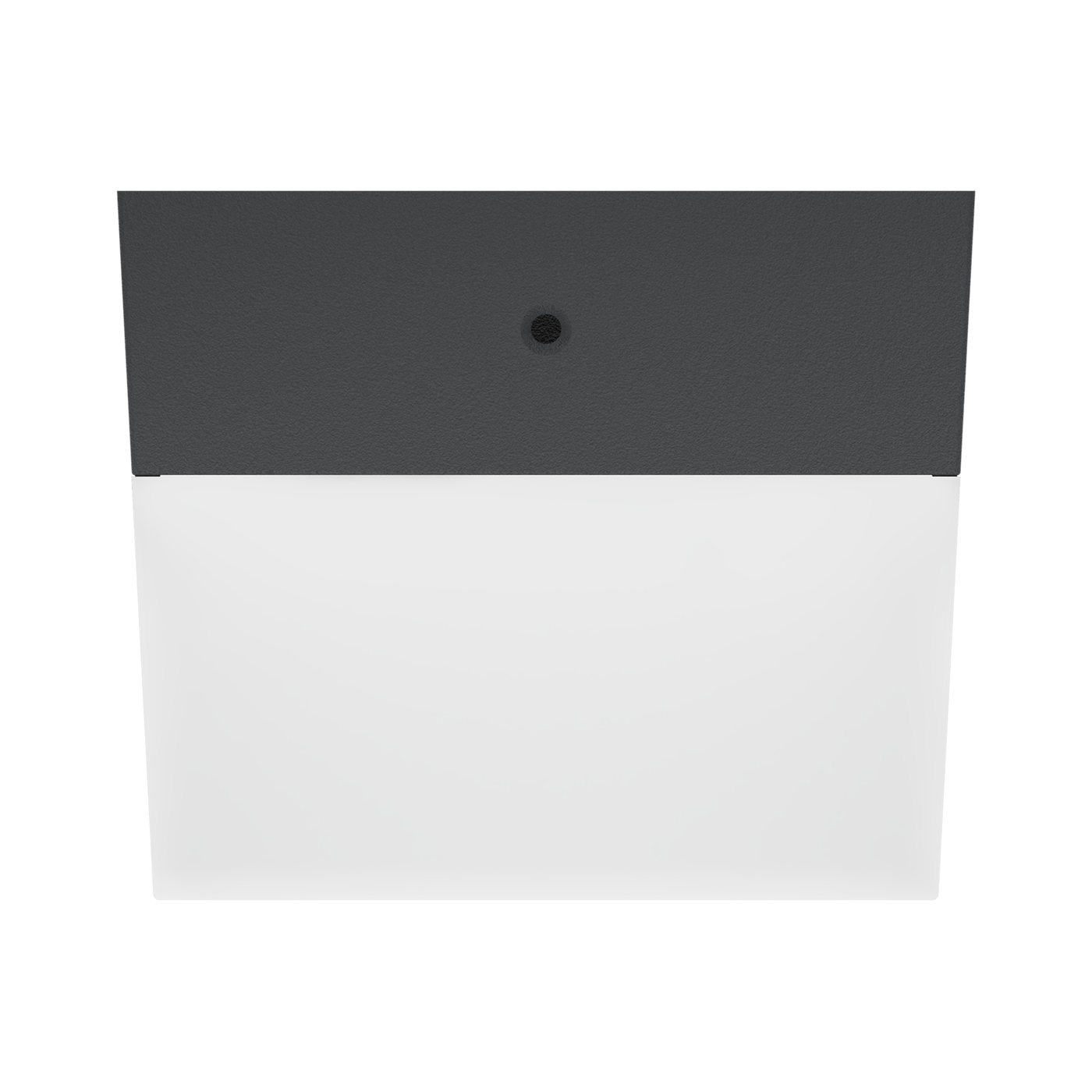

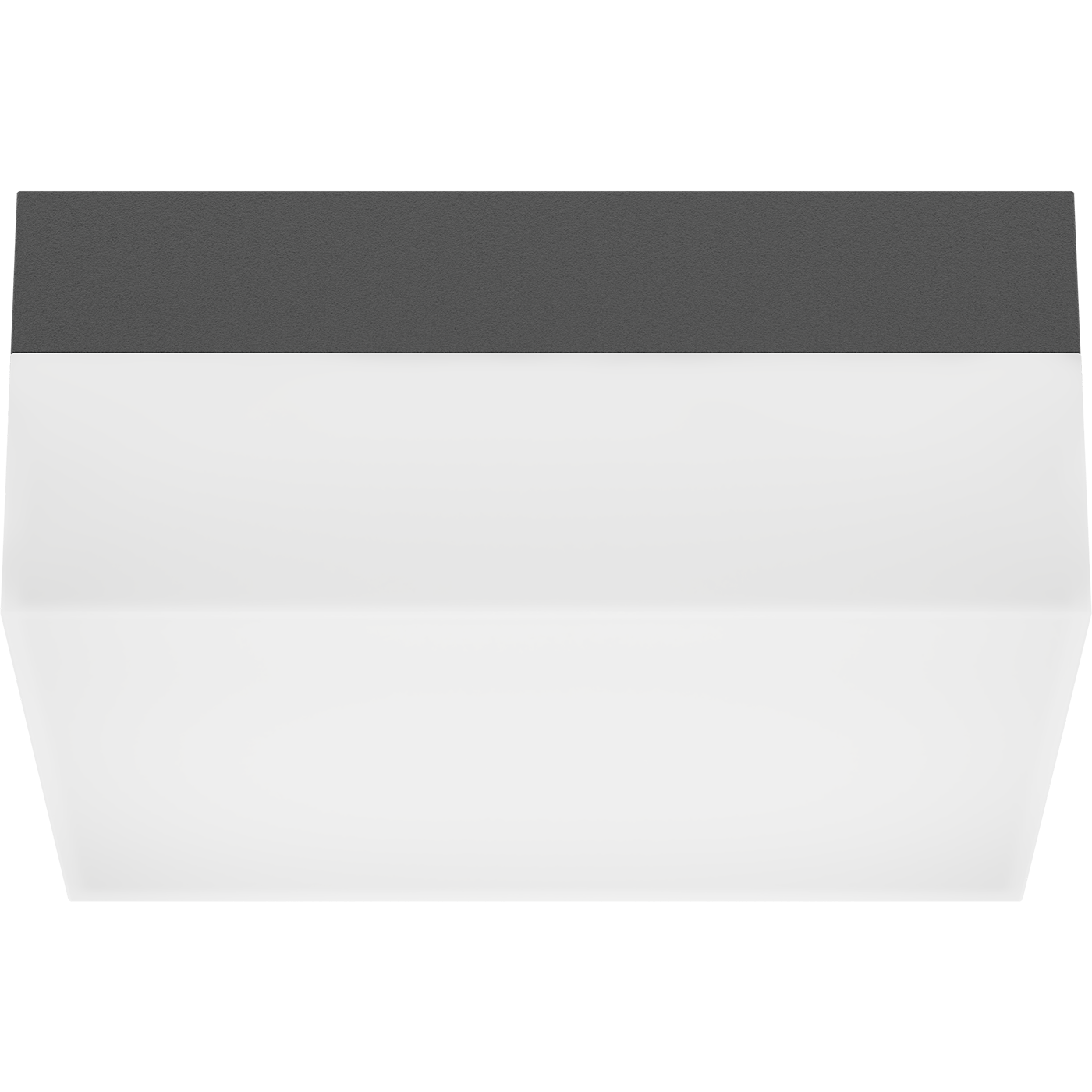

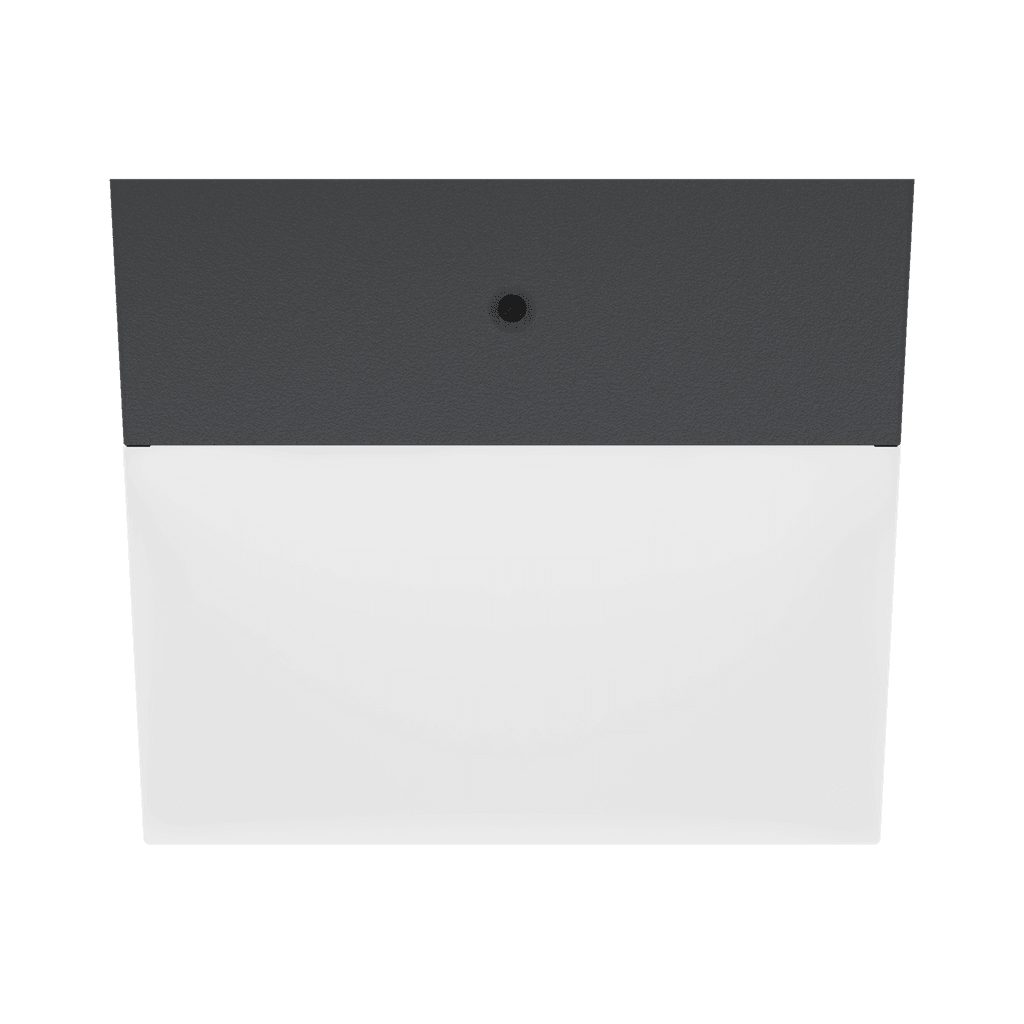

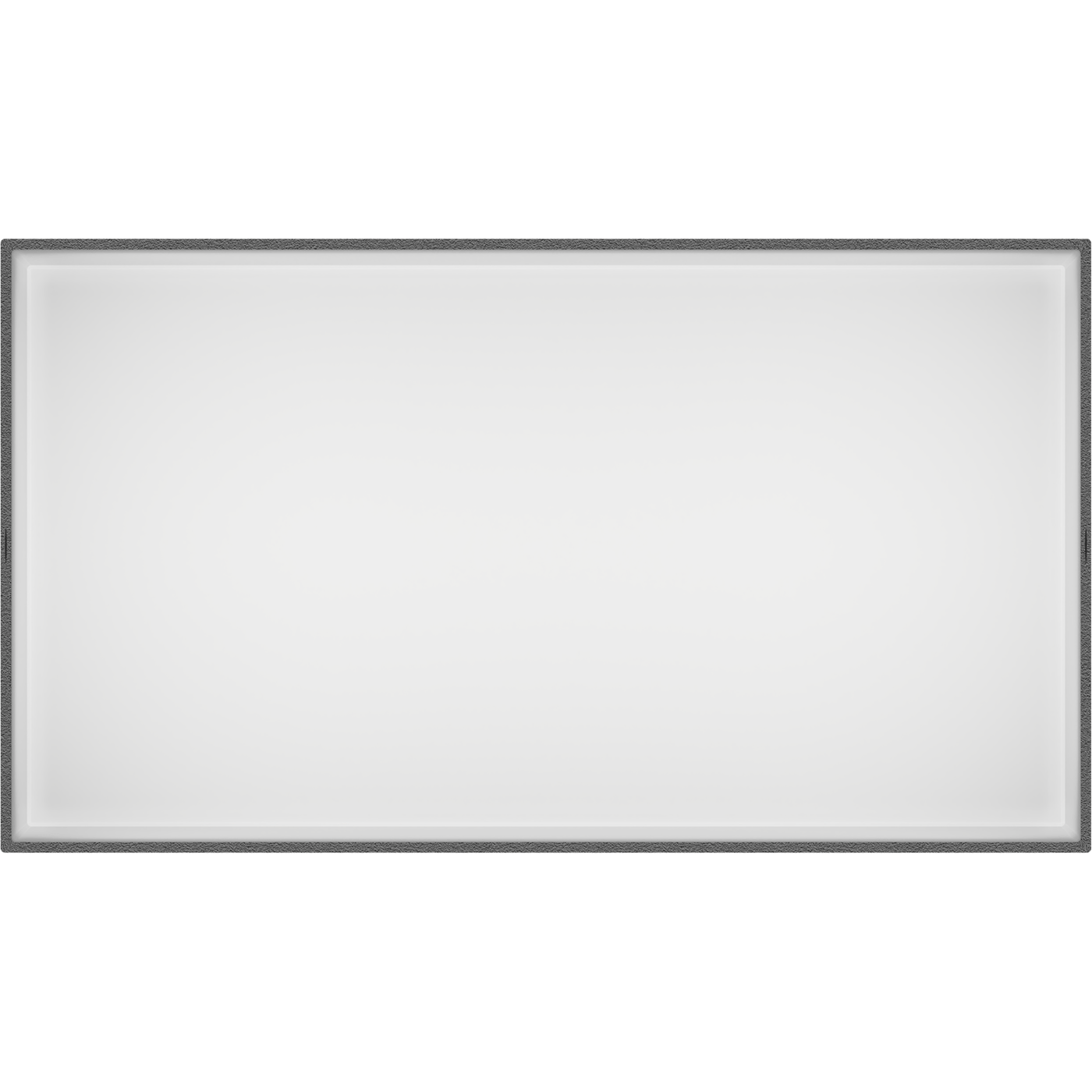

DOMO LED 23W 840 RAL9006 DALI
DOMO LED 23W 840 RAL9006 DALI
22 Wluminaire power
2800 lmlight flow
127 lm/Wenergy efficiency
code1727000260
beam angleD120
color temperature4000
weight2.5 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
10 Arated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
220-240 Vluminaire power
22 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
10 A
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
220-240 V
luminaire power
22 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
2.5 kg
length, mm
250 mm
width, mm
140 mm
height, mm
117 mm
housing color
Металлик
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK10/20 Дж
installation length, mm
216 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
code
1727000260
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -30 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
127 lm/W
color rendition index (CRI)
>80
light flow
2800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files

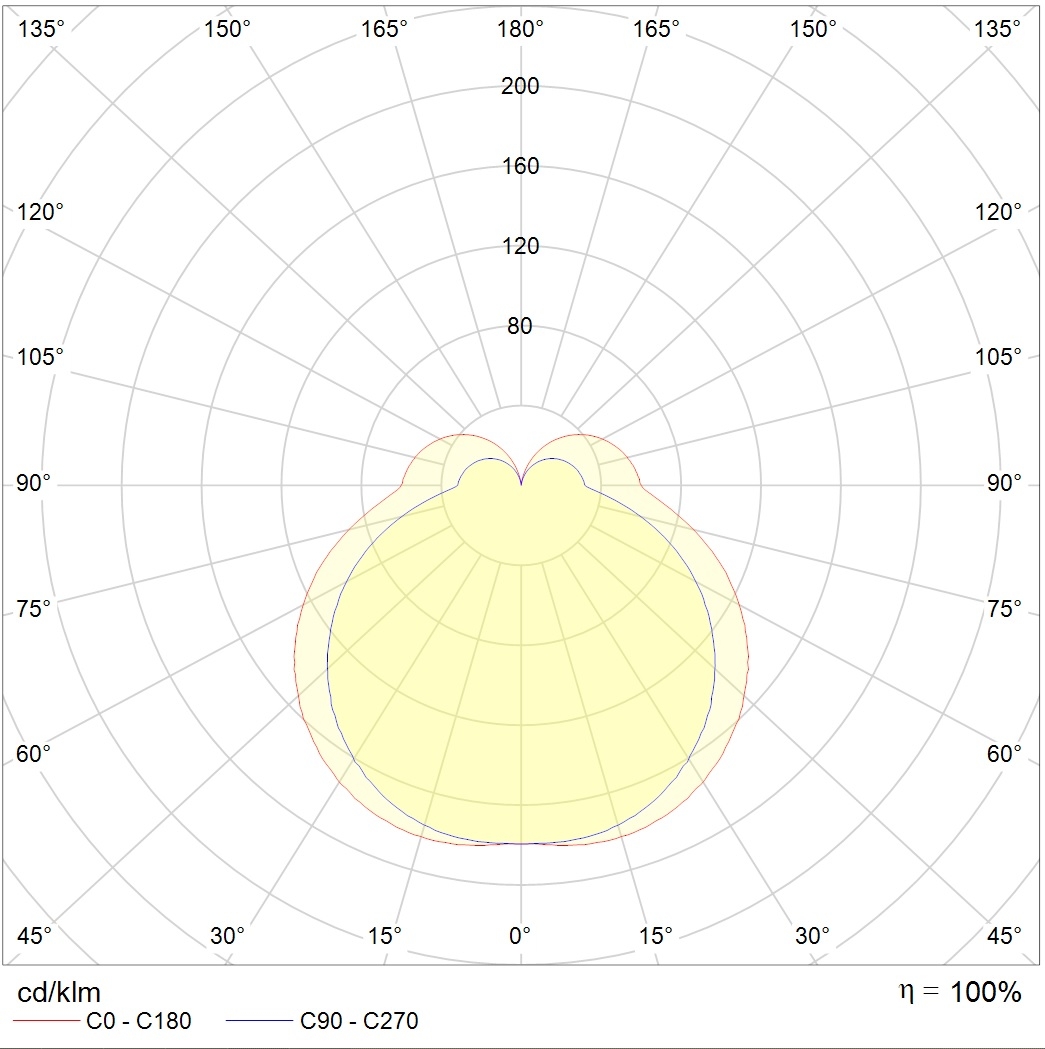

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg163.6 kB
ldt118.6 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
