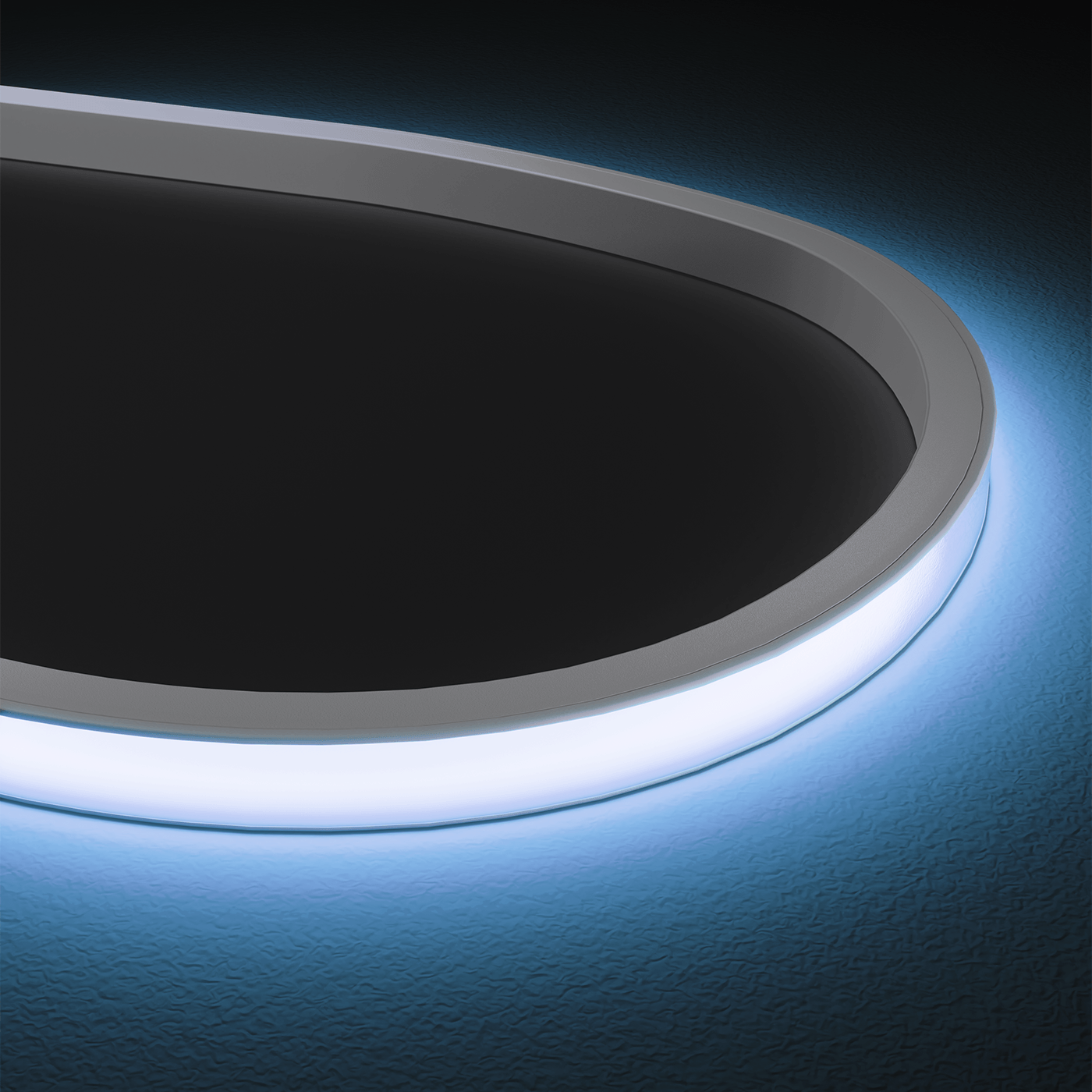

EVOLINE FLEX TOP (1000) 10W 840 WH with connector Direct
_10w_840_wh_with_connector_direct.jpg&w=1920&q=50)
_10w_840_wh_with_connector_direct.jpg&w=1024&q=50)
EVOLINE FLEX TOP (1000) 10W 840 WH with connector Direct
10 Wluminaire power
370 lmlight flow
37 lm/Wenergy efficiency
code1006001630
beam angleD120
color temperature4000
weight0.5 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, direct current
24 Vsupply voltage, direct current
24 Vluminaire power
10 Welectric shock protection
IIIsupply voltage
230 Velectrical
rated supply voltage, direct current
24 V
supply voltage, direct current
24 V
luminaire power
10 W
electric shock protection
III
supply voltage
230 V
constructional
ingress protection (IP)
IP68
material
ПВХ
weight
0.5 kg
length, mm
1000 mm
width, mm
17 mm
height, mm
17 mm
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK07/2 Дж
installation length, mm
1000 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1006001630
ETIM class
Световая полоса/ лента/ шнур
warranty
36 month
temperature range
от -25 до +40 C
energy efficiency class
B
service life, hour
50 000 h
illuminating
energy efficiency
37 lm/W
color rendition index (CRI)
>80
light flow
370 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты
photometric files
ies15.9 kB
jpg81.7 kB
ldt12.8 kB
documents
passport2.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011144.8 kB
Declaration of Conformity EAEU TR 037/2016602.6 kB
Fire Safety Certificate2.5 mB
accessories
Connector TOP-DМ0.02kgarticle: 4006000170
END CUP TOP-DM1.7kgarticle: 4006000480

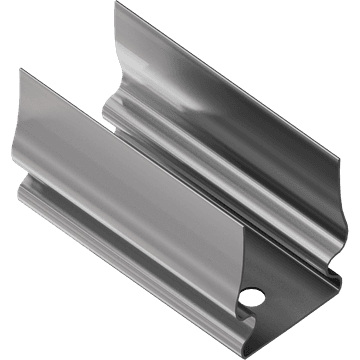

PROFILE TOP 10000.2kgarticle: 2006000260
