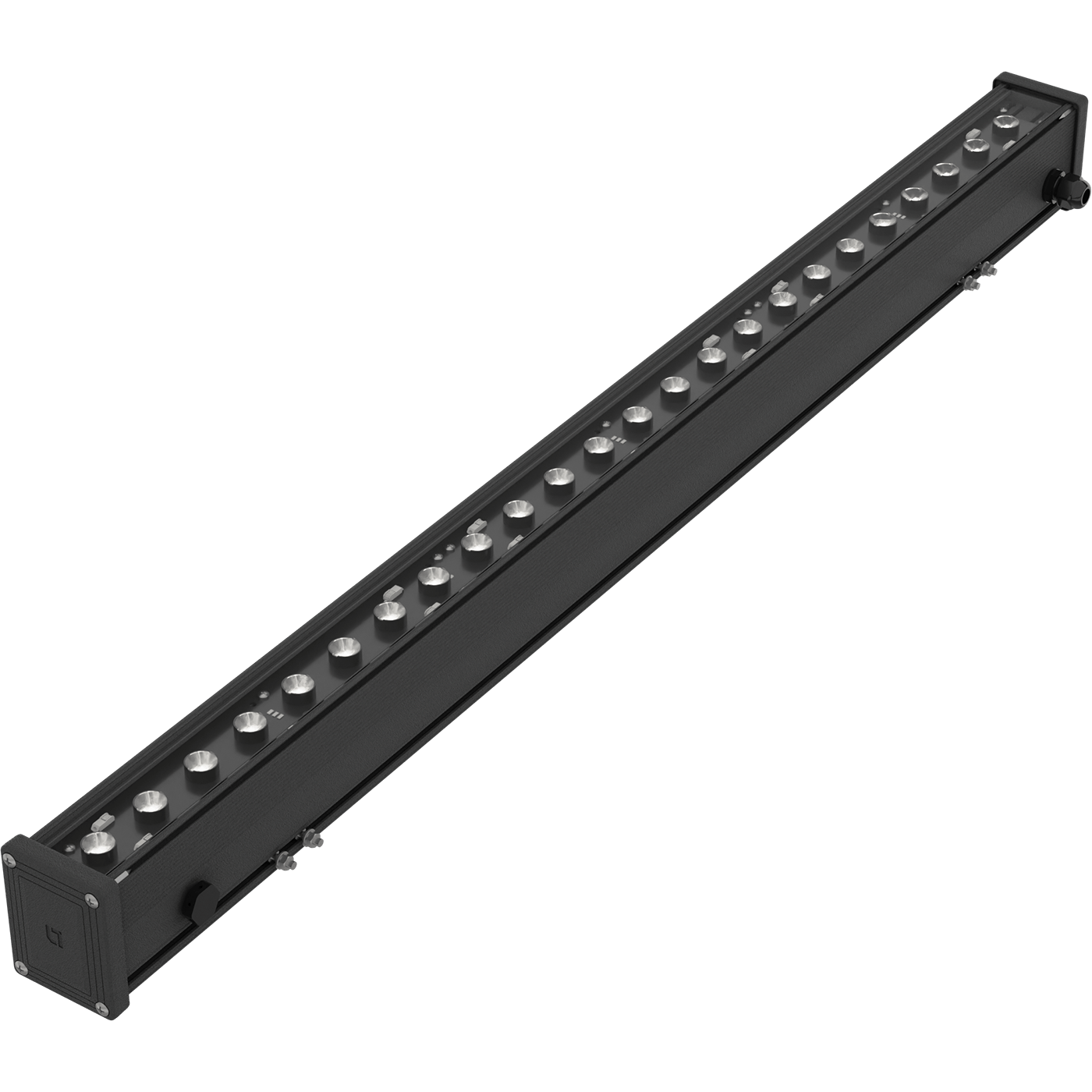

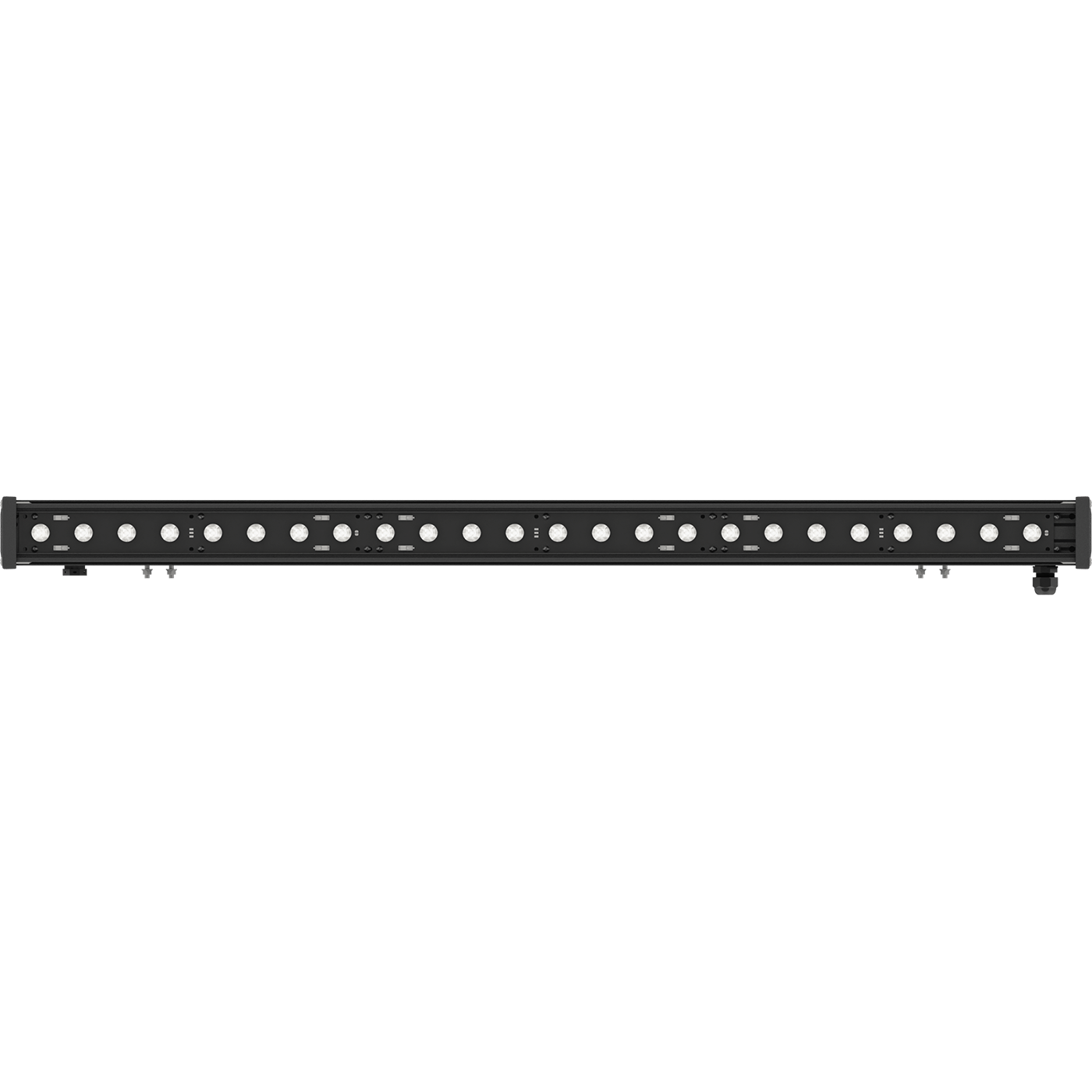

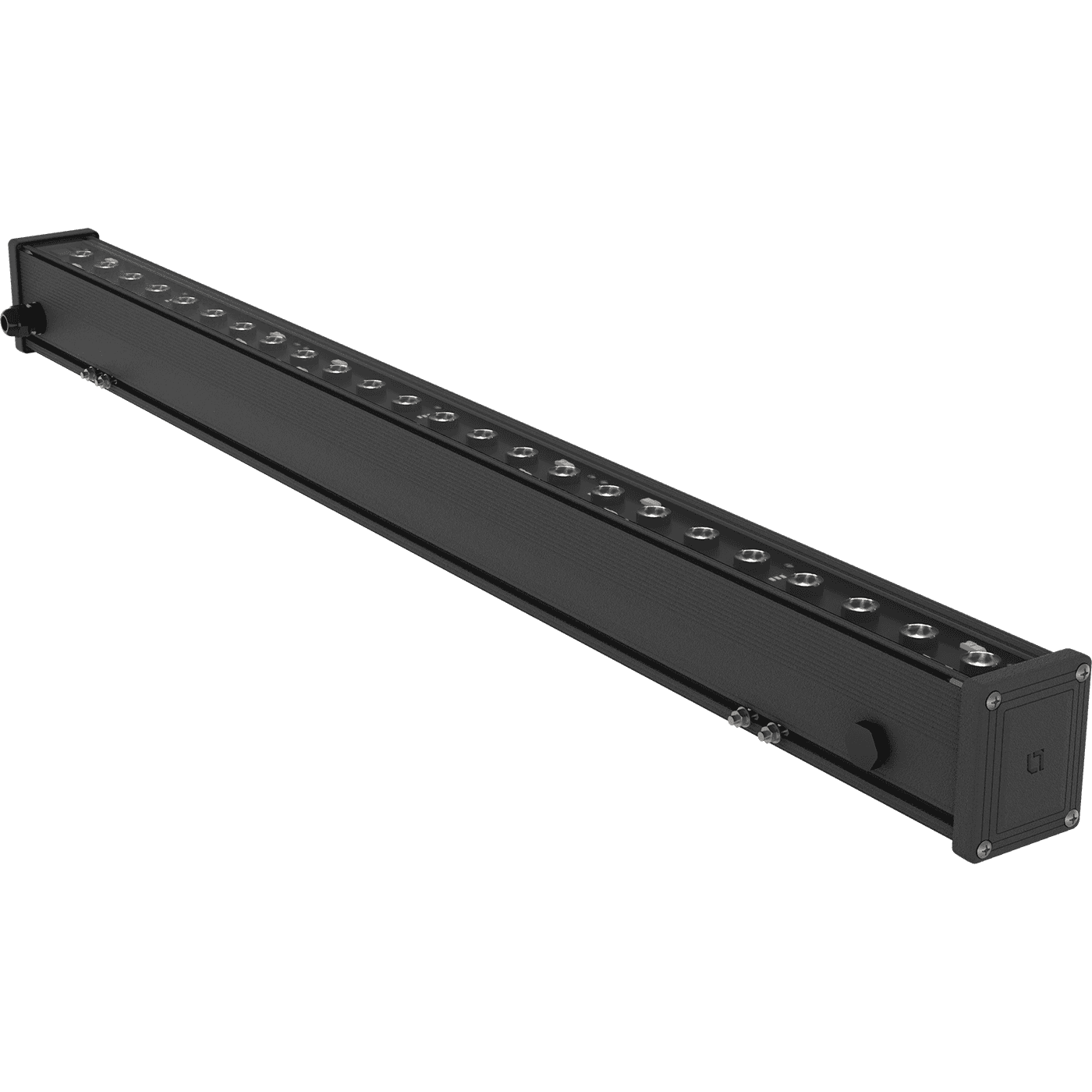

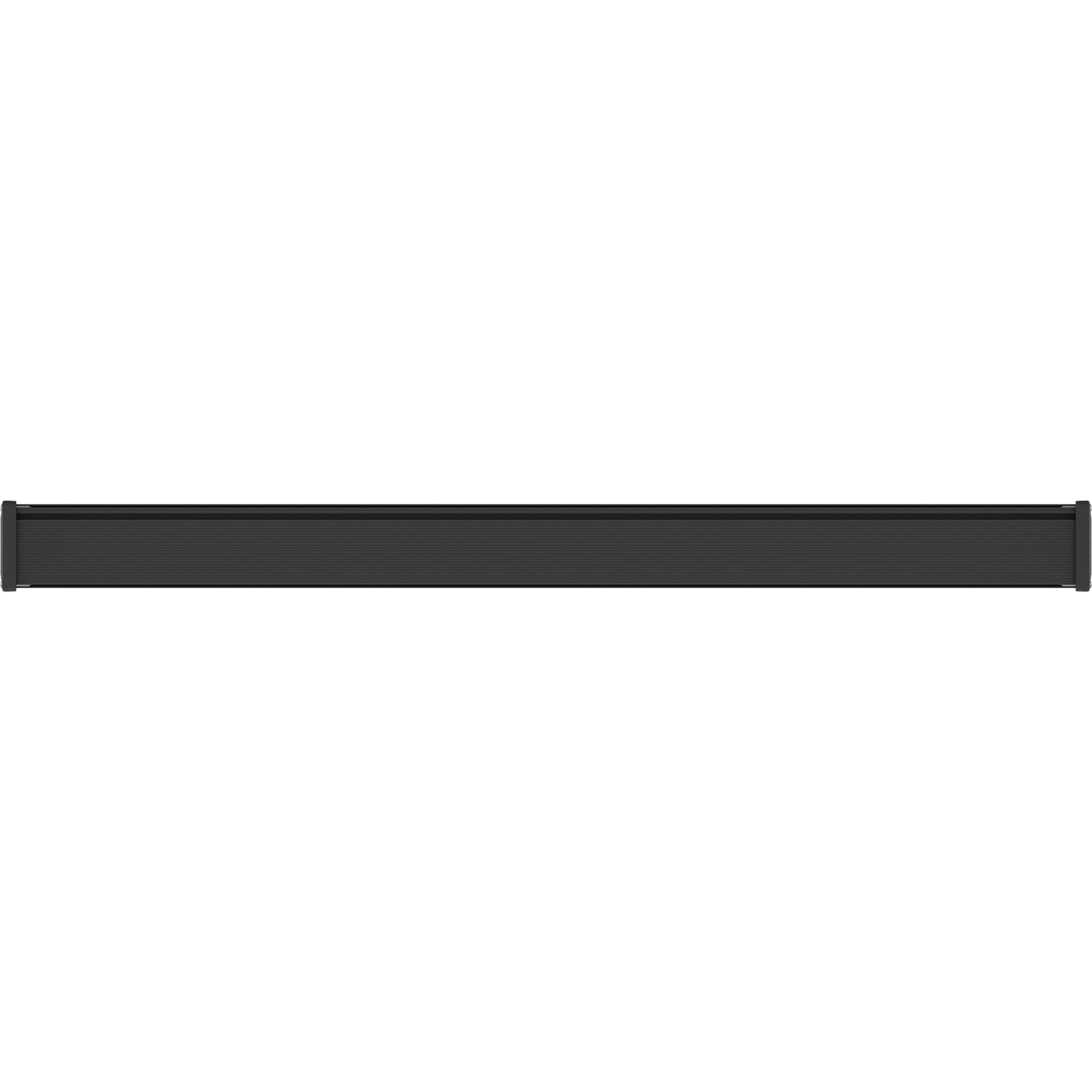

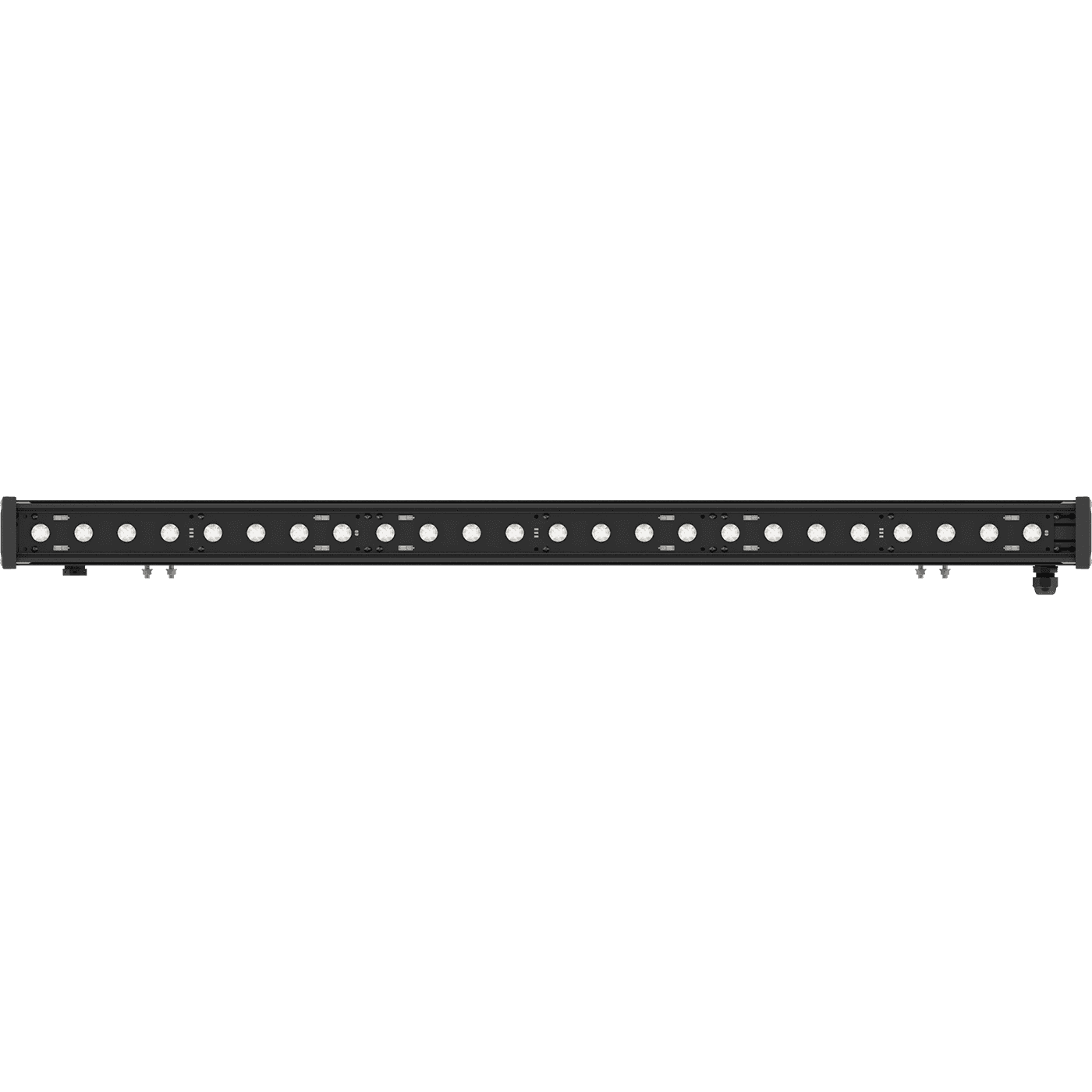

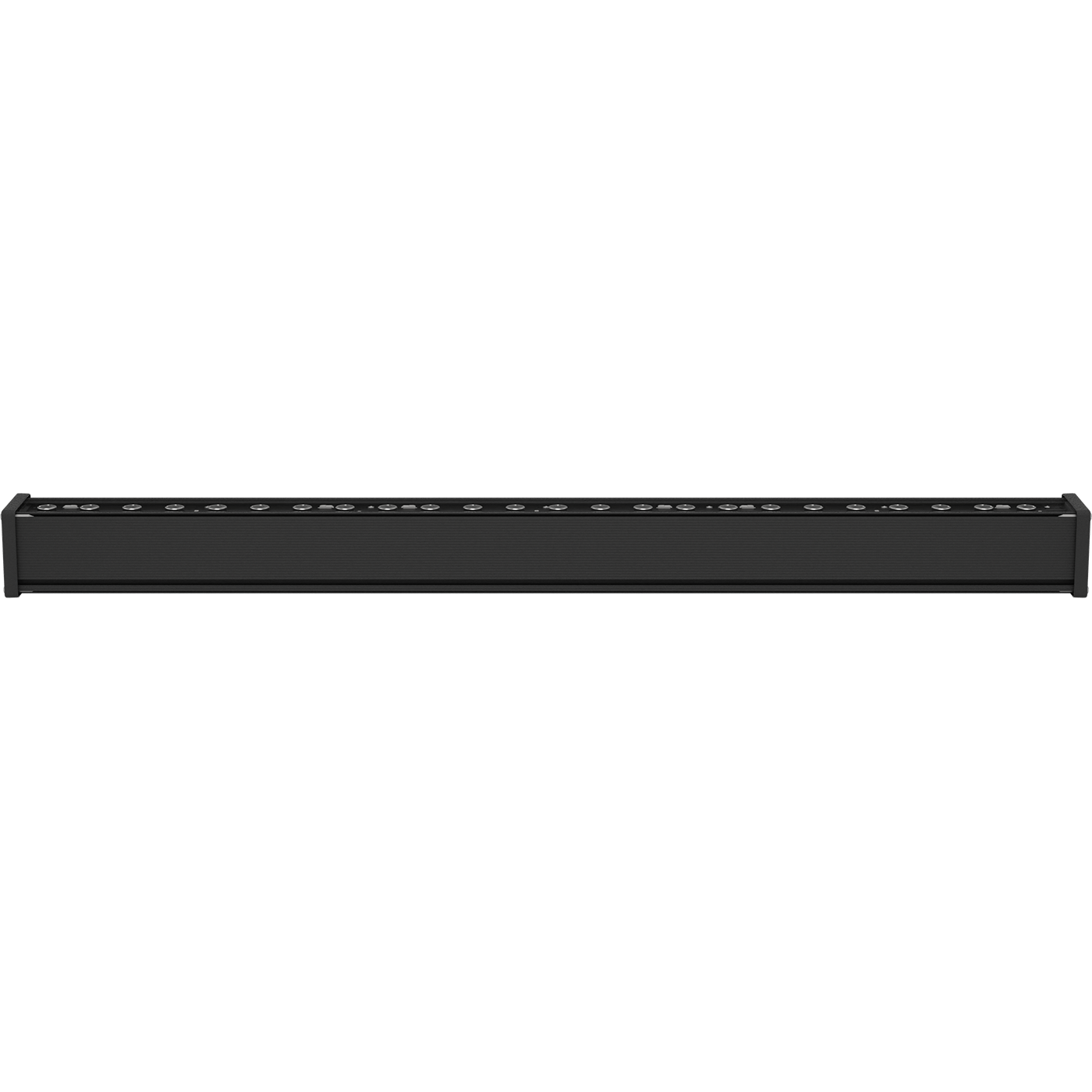

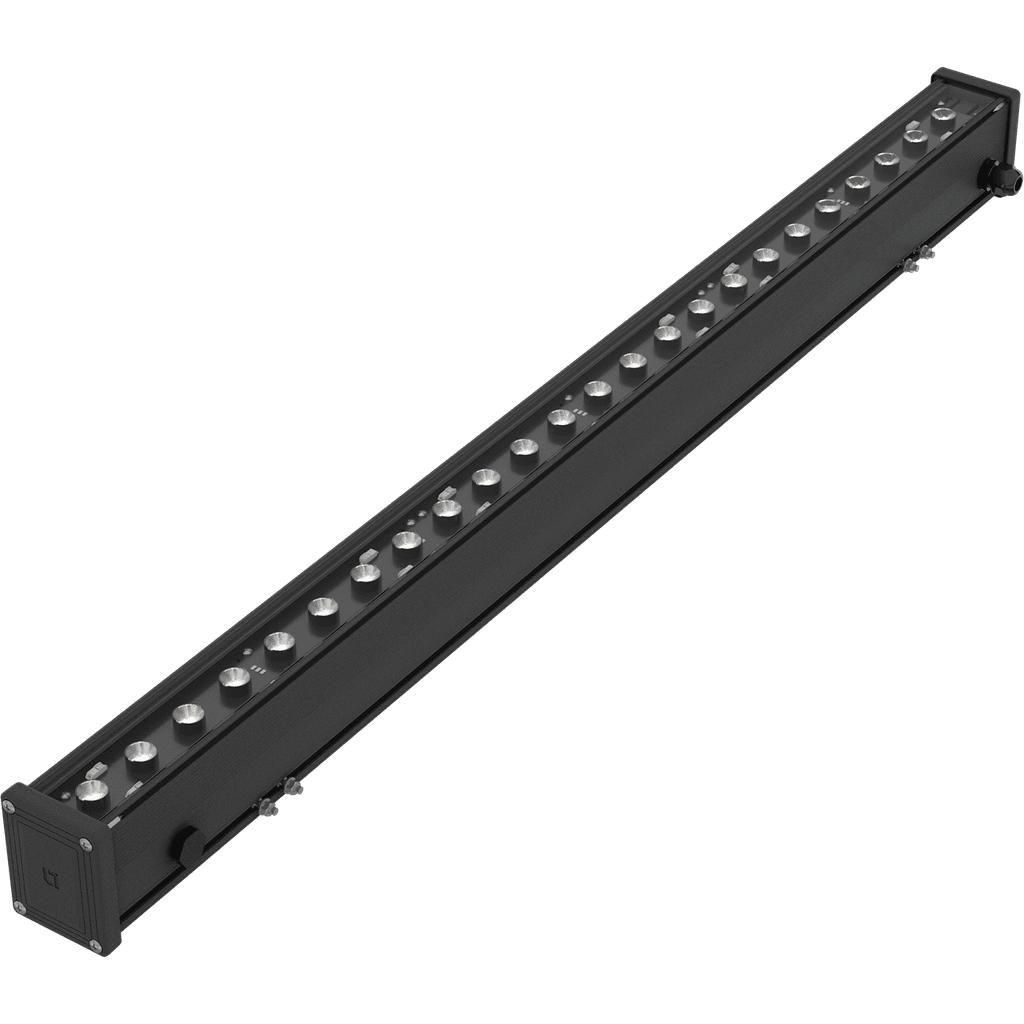

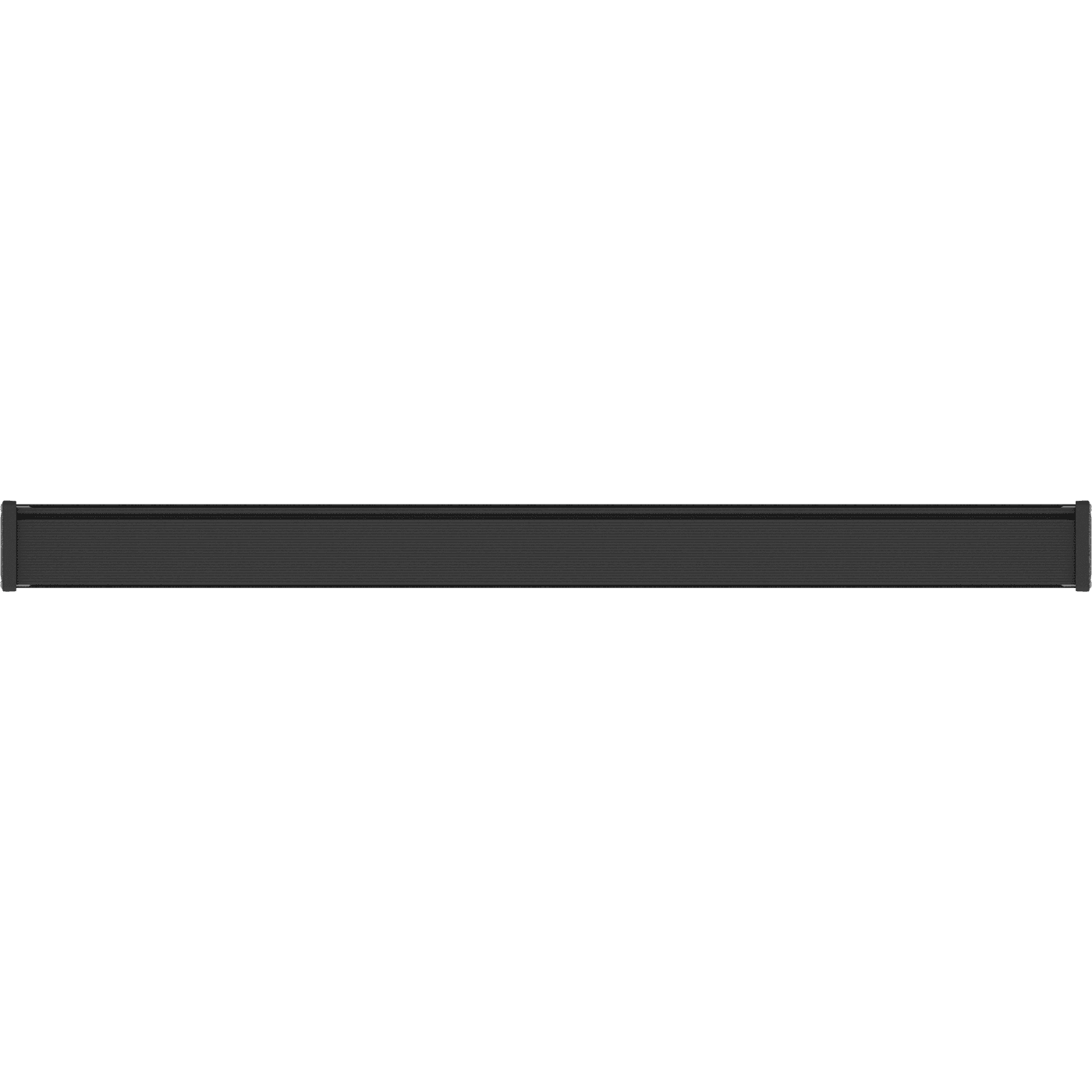

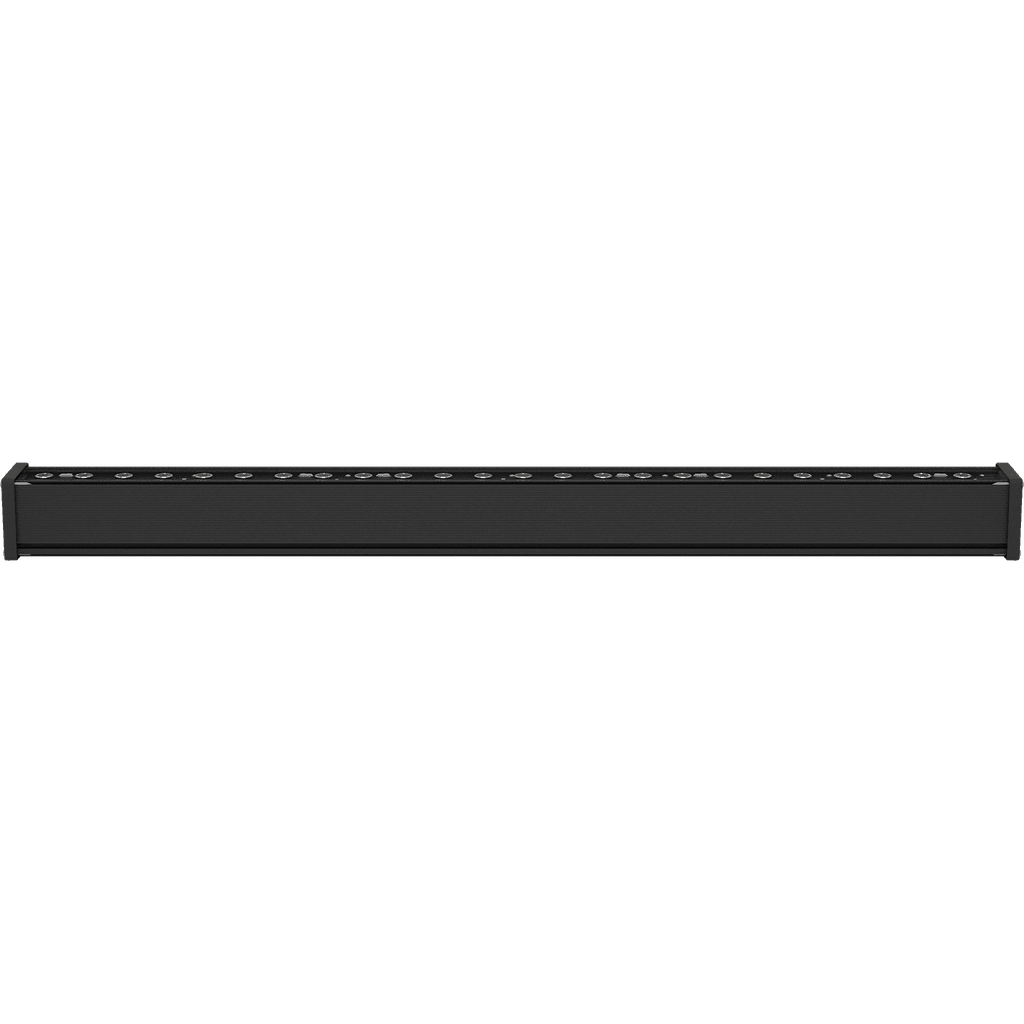

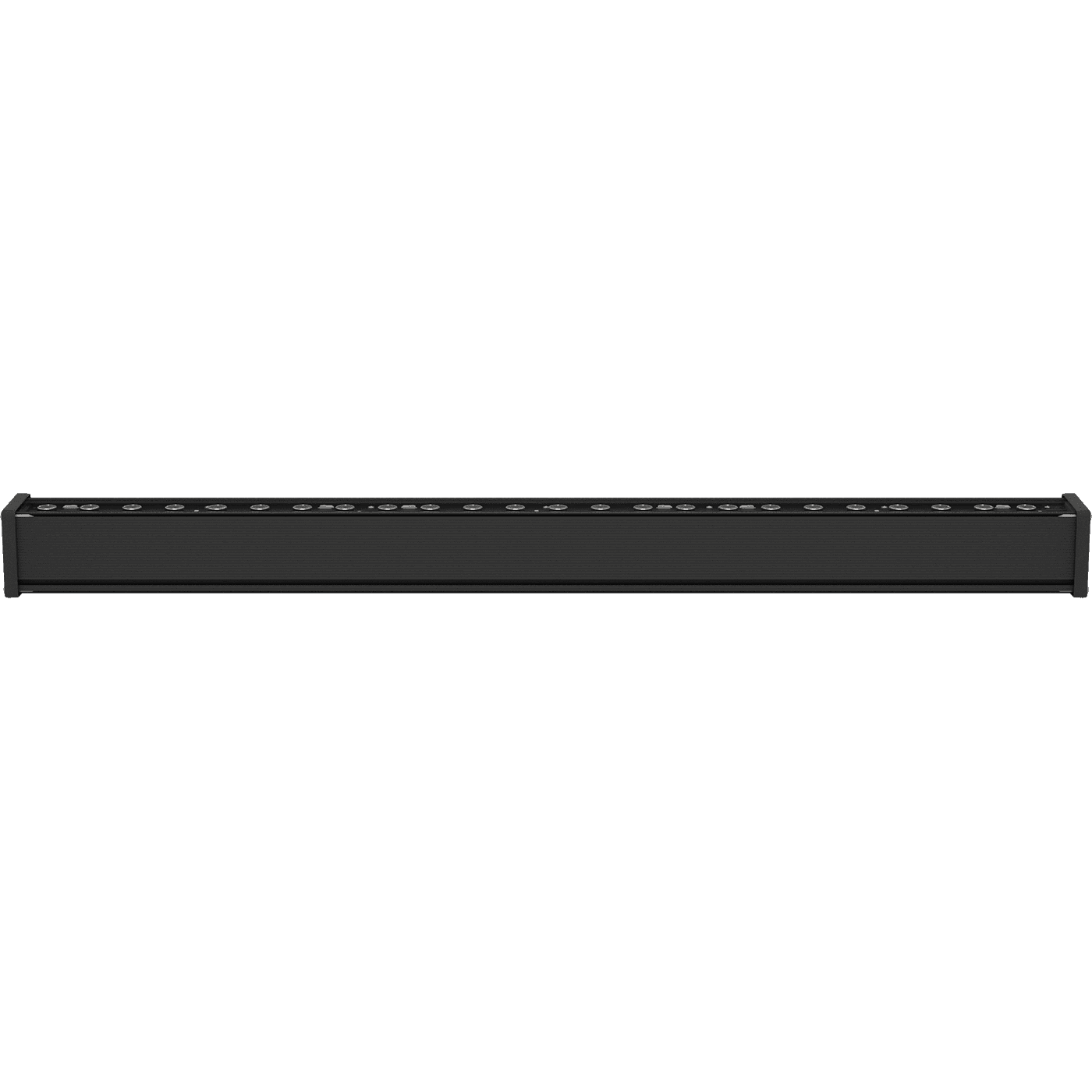

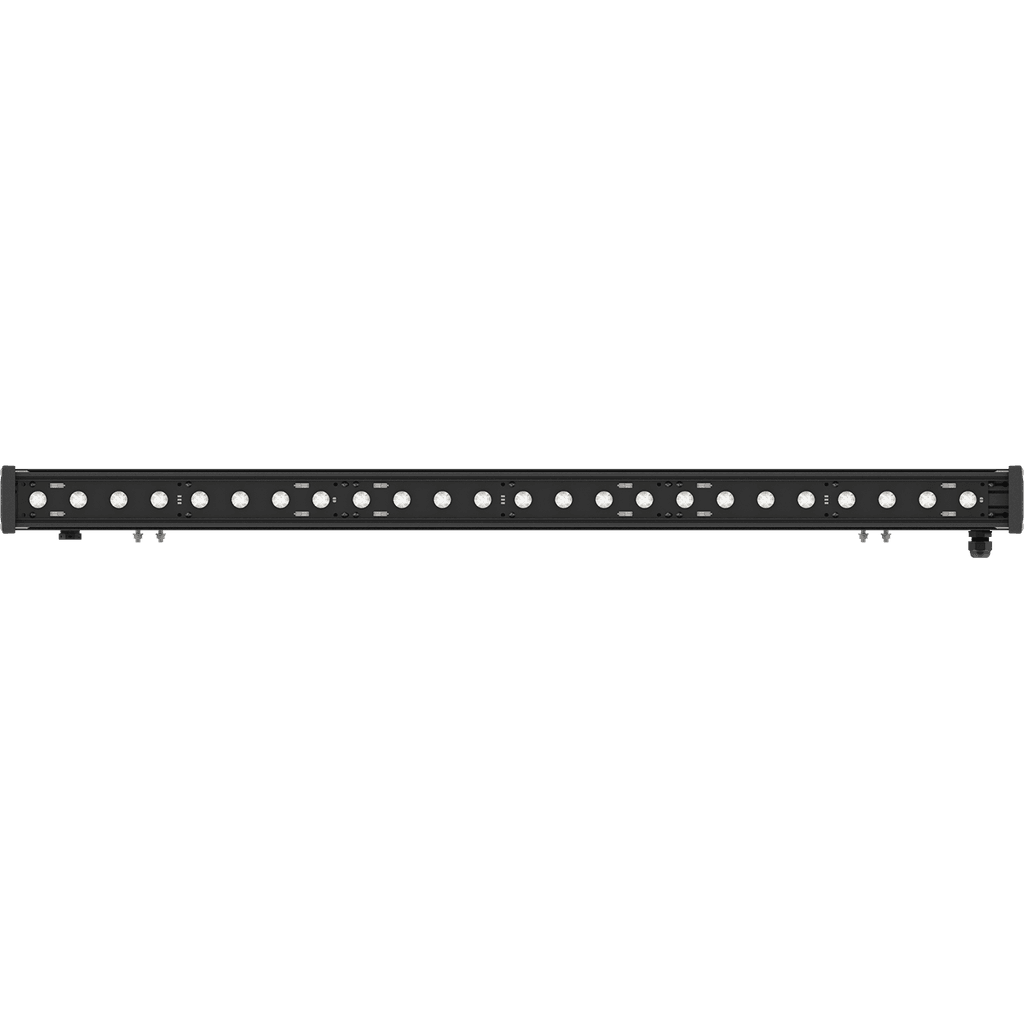

EVOLINE LED 36 D8 4000K 900
EVOLINE LED 36 D8 4000K 900
40 Wluminaire power
3300 lmlight flow
83 lm/Wenergy efficiency
code1006000450
beam angleD8
color temperature4000
weight3.3 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
83 lm/Wemission color
Белыйcolor rendition index (CRI)
>80light flow
3300 lmflickering factor
<5%beam angle
D8color temperature
4000light source type
LEDilluminating
energy efficiency
83 lm/W
emission color
Белый
color rendition index (CRI)
>80
light flow
3300 lm
flickering factor
<5%
beam angle
D8
color temperature
4000
light source type
LED
electrical
luminaire power
40 W
power factor
> 0,95
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage, direct current
127-420 V
supply voltage, alternating current
90-305 V
electric shock protection
I
constructional
ingress protection (IP)
IP65
climatic performance
УХЛ1*
length, mm
900 mm
width, mm
60 mm
height, mm
75 mm
installation length, mm
700 mm
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
fire safety class
П-ІІІ
material
Алюминий
shock resistance (IK)
IK07/2 Дж
weight
3.3 kg
common
code
1006000450
warranty
36 month
energy efficiency class
A
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files

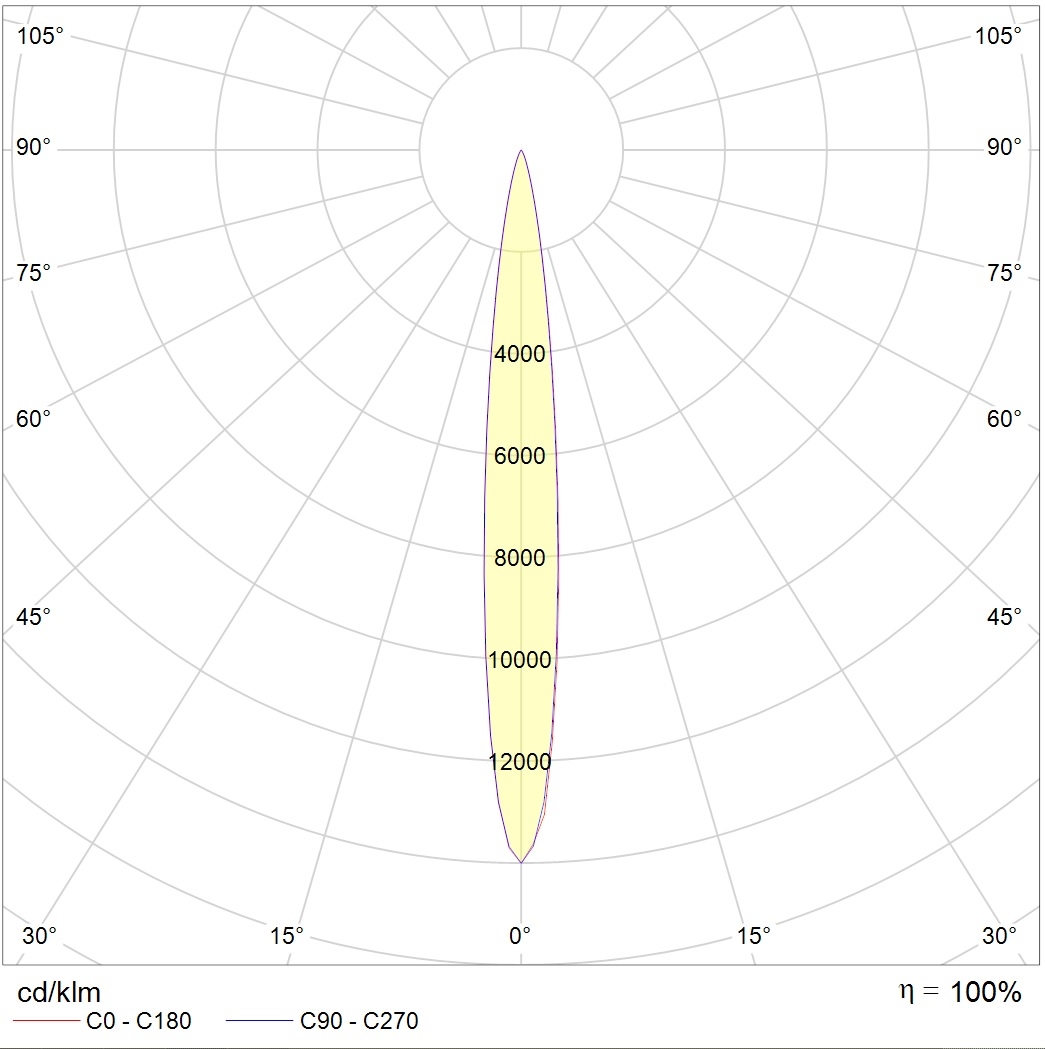

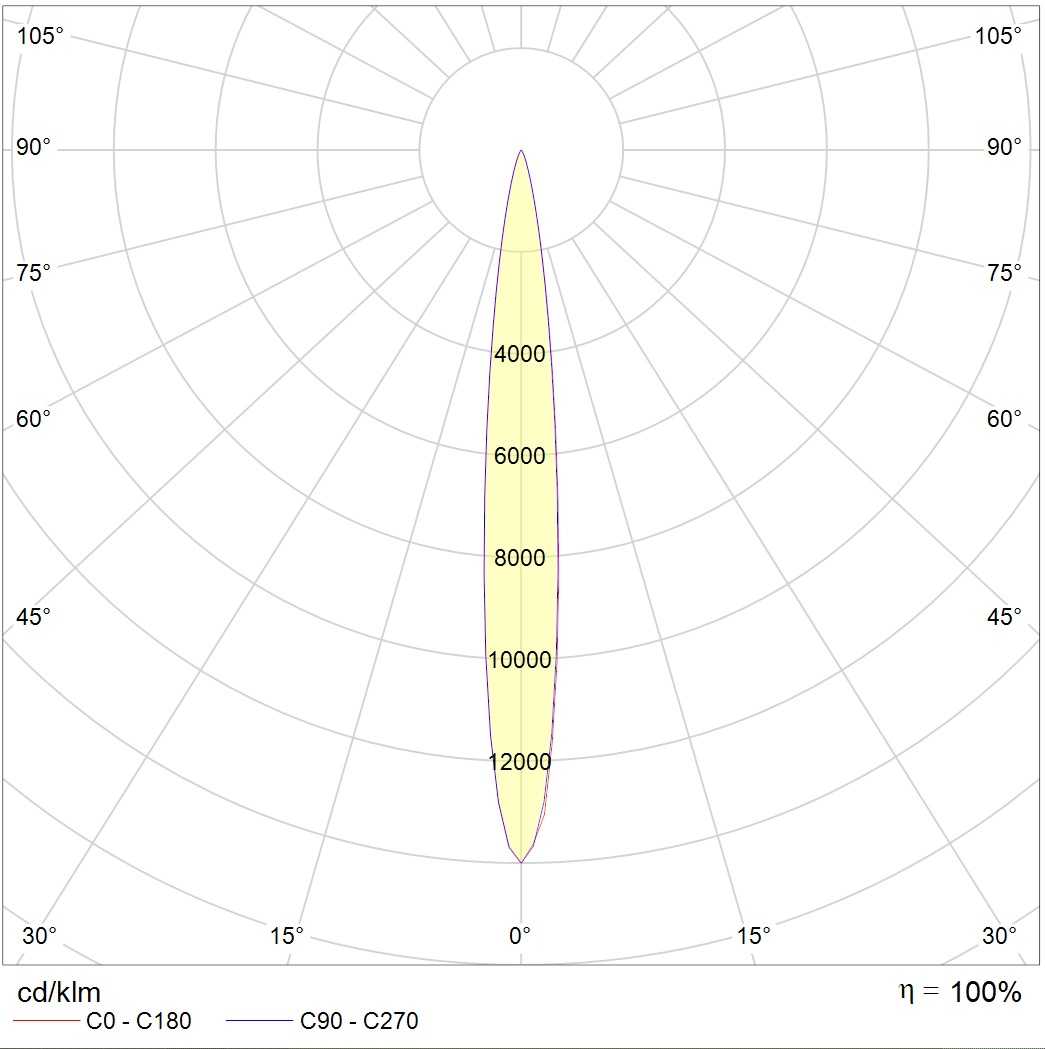

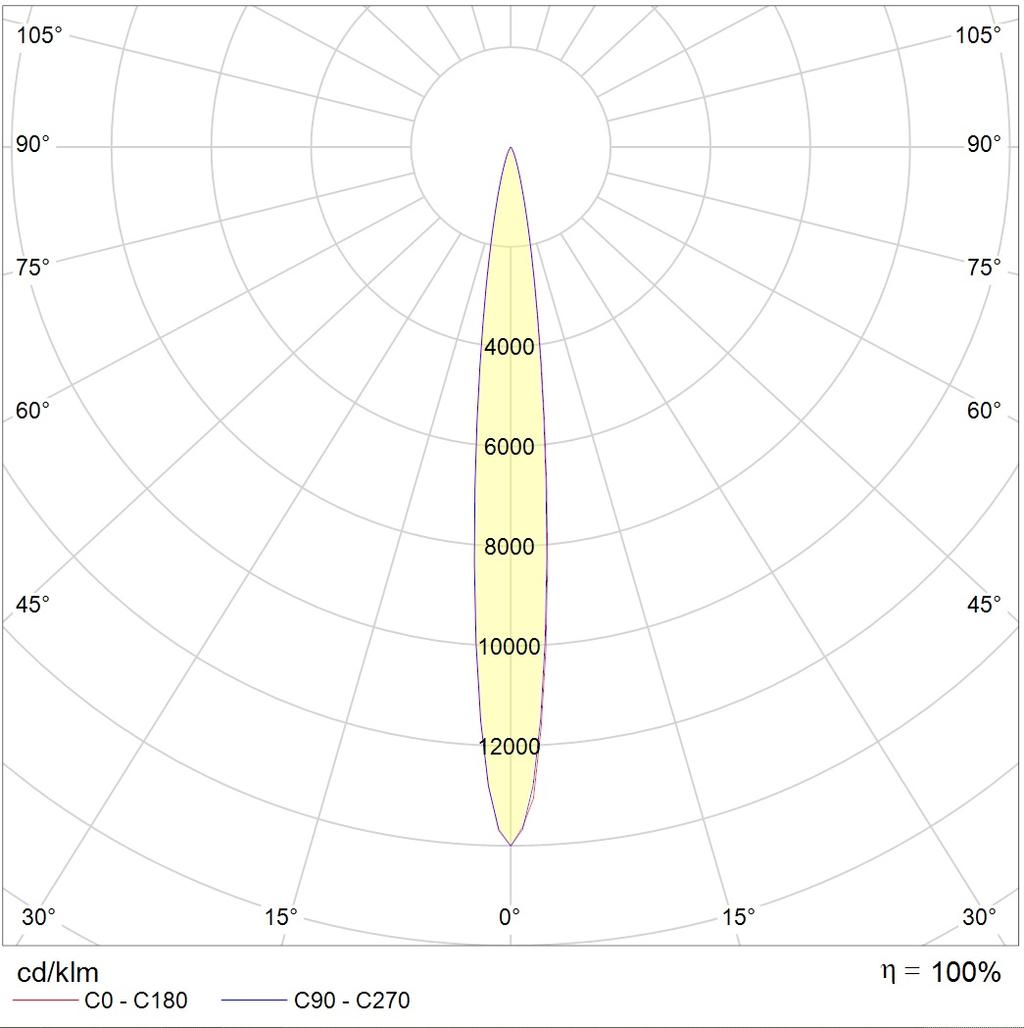

photometric files
documents
сертификаты
photometric files
ies654.3 kB
jpg133.7 kB
ldt378.9 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
