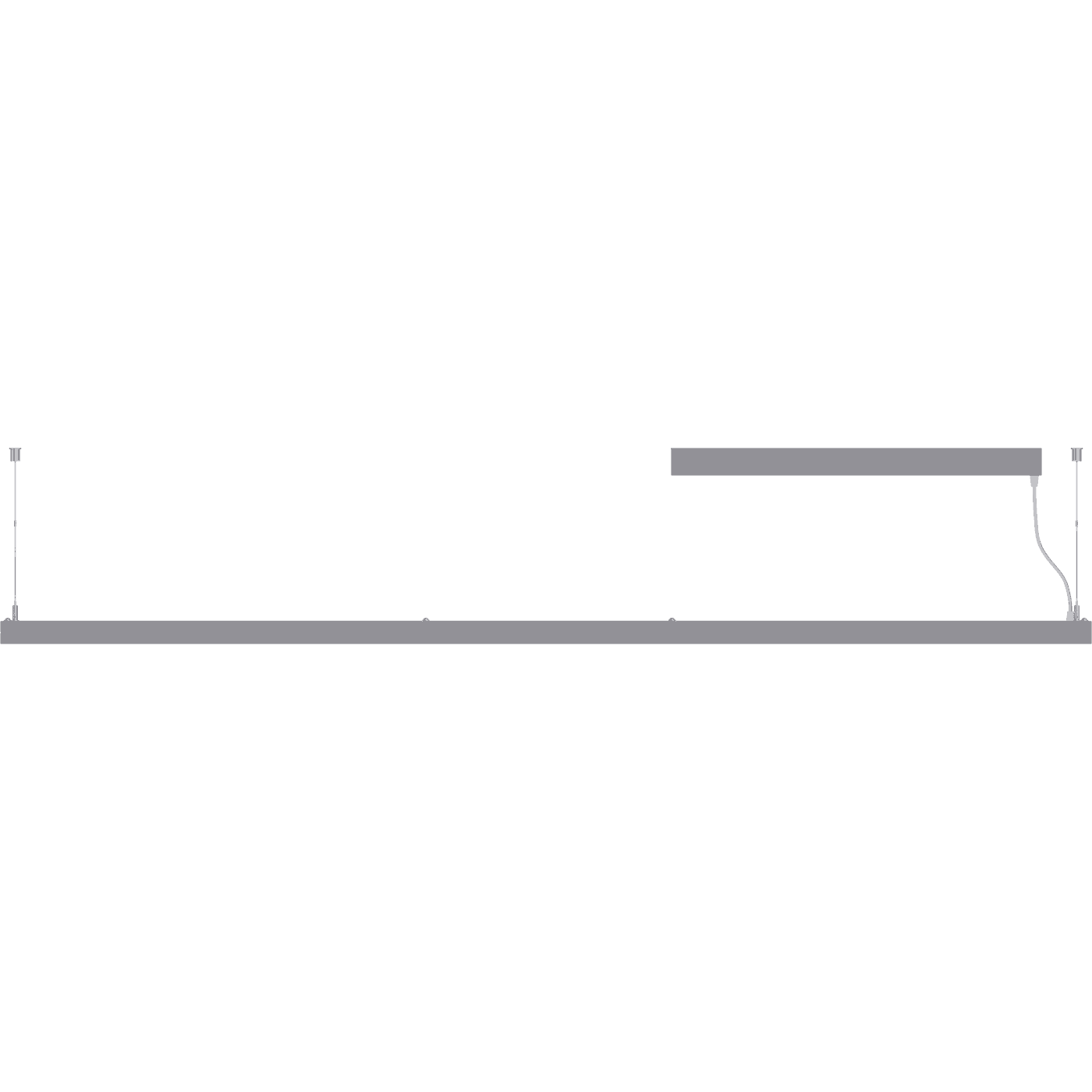

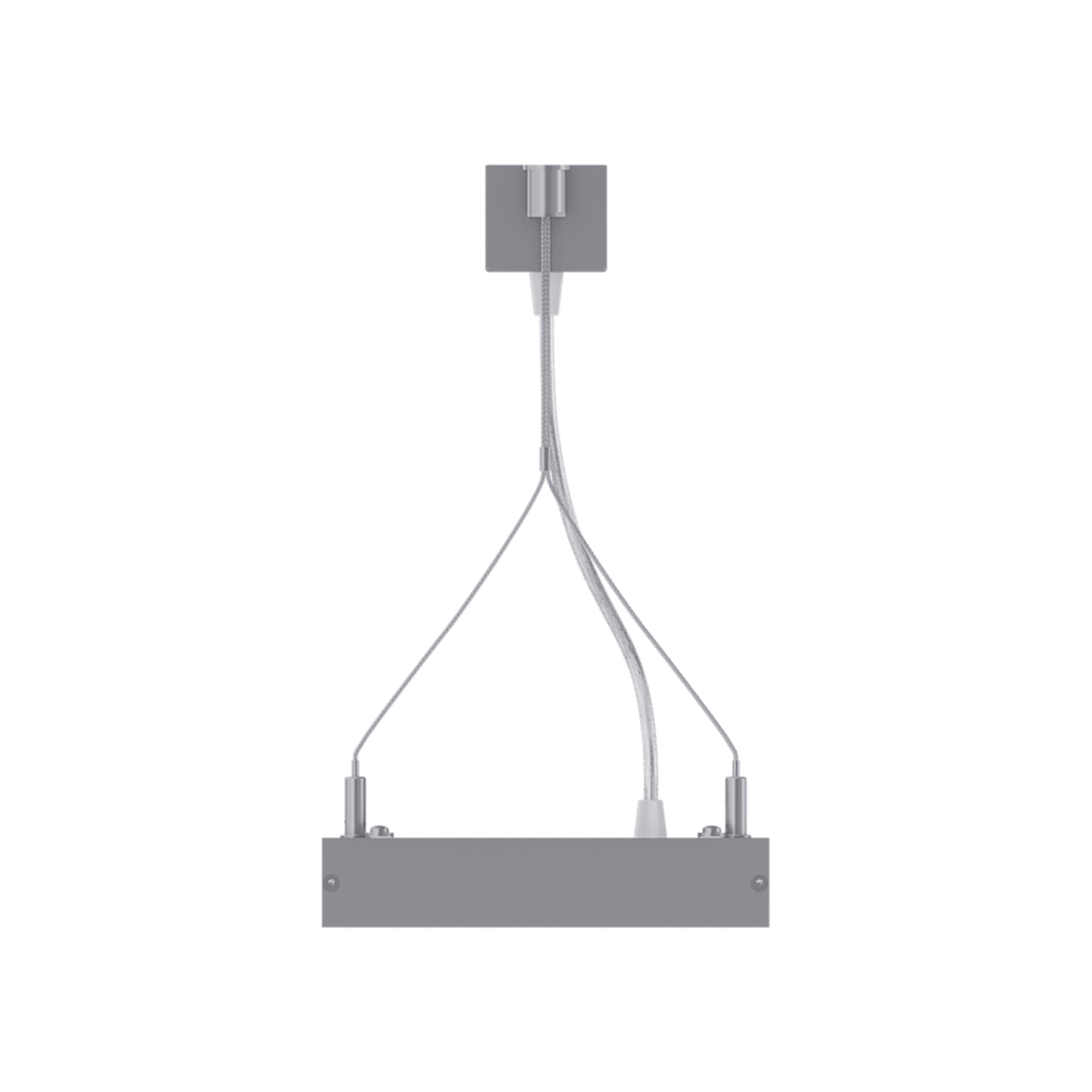

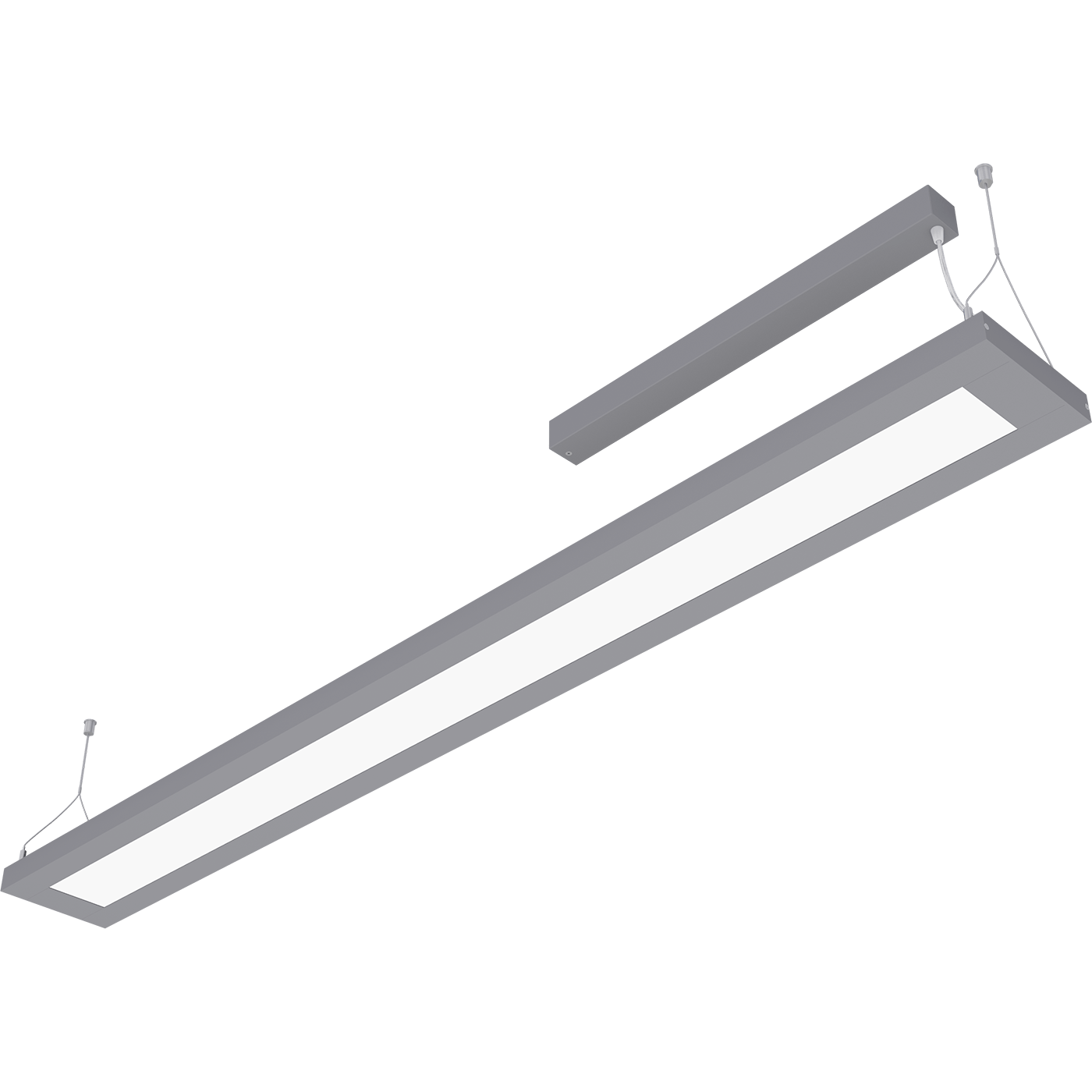

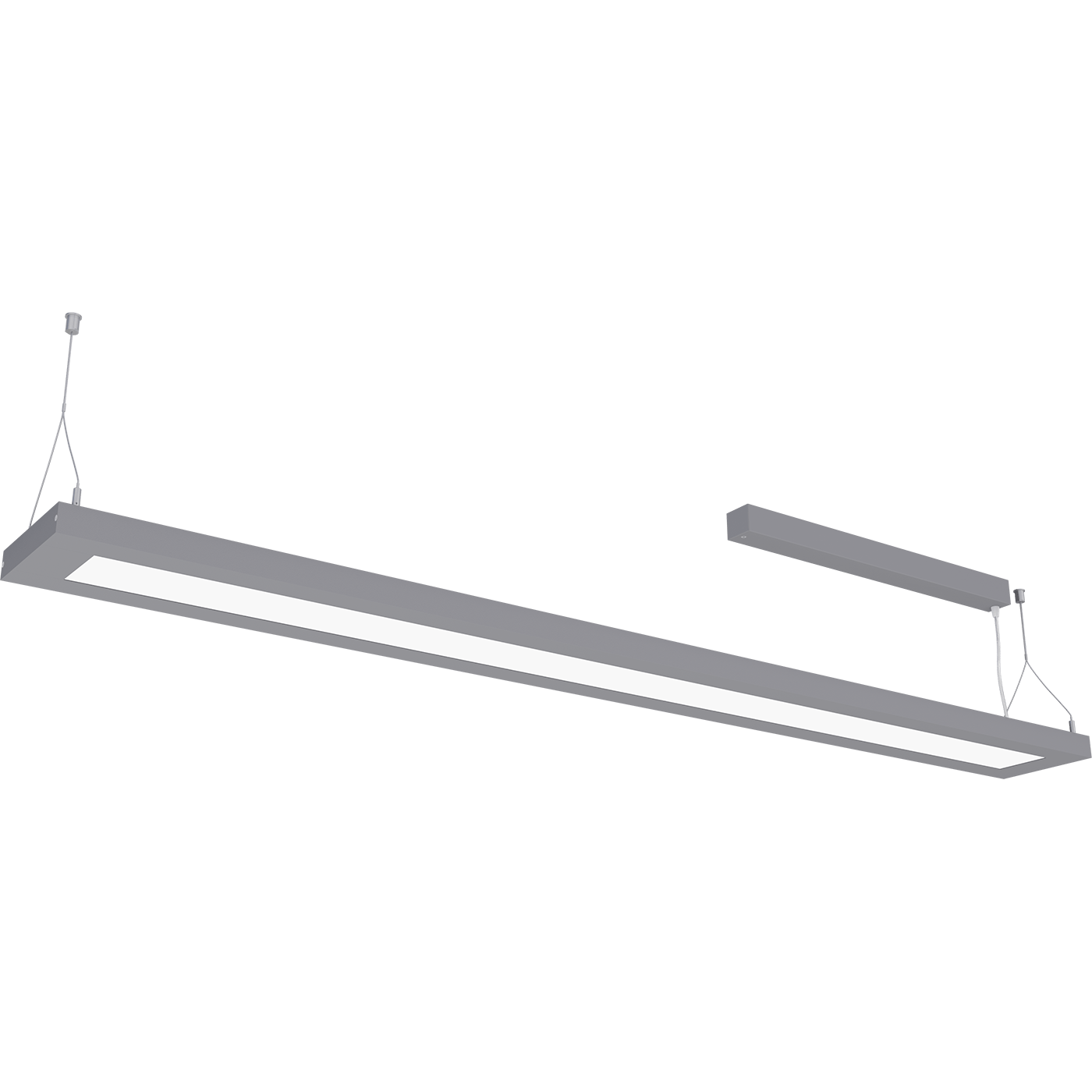

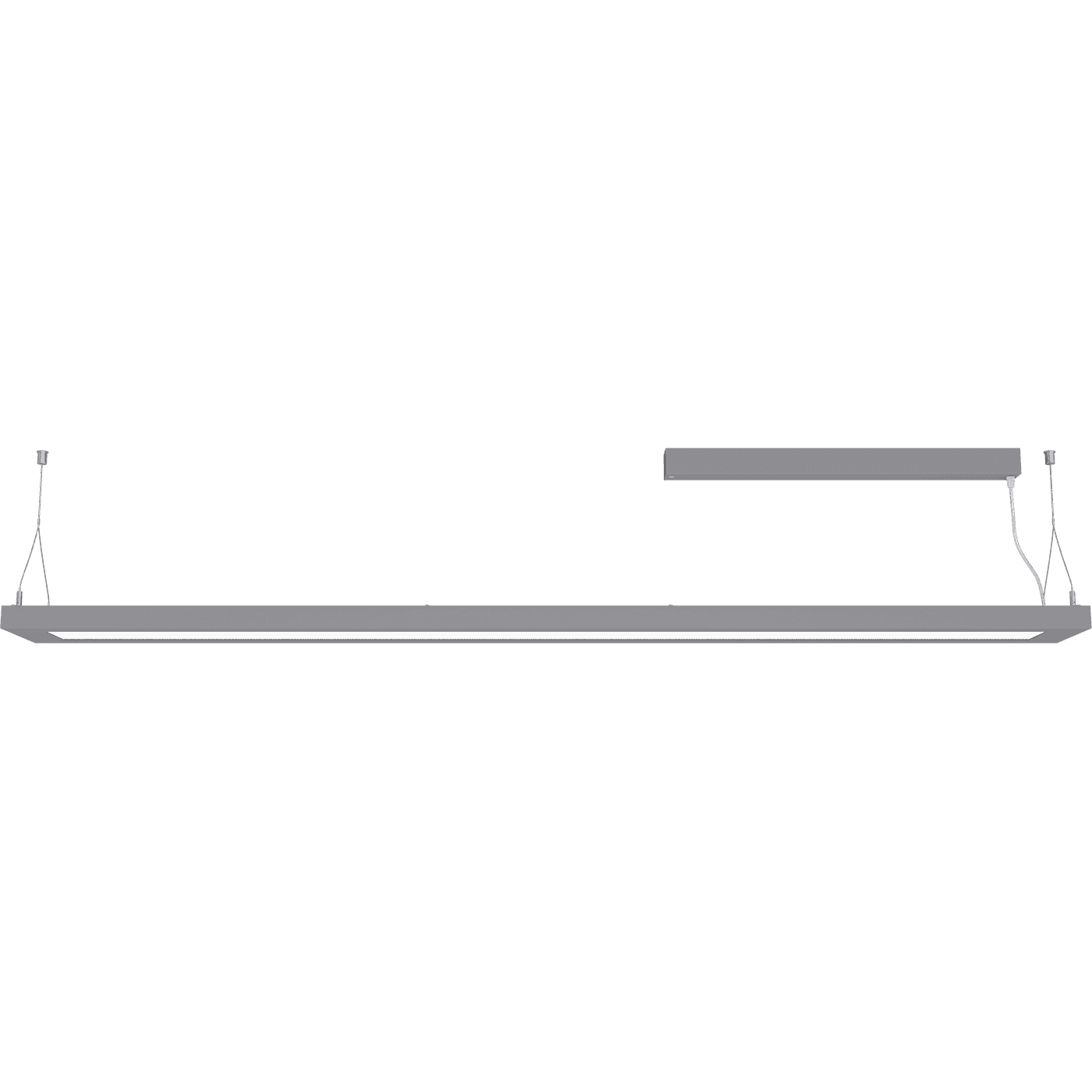

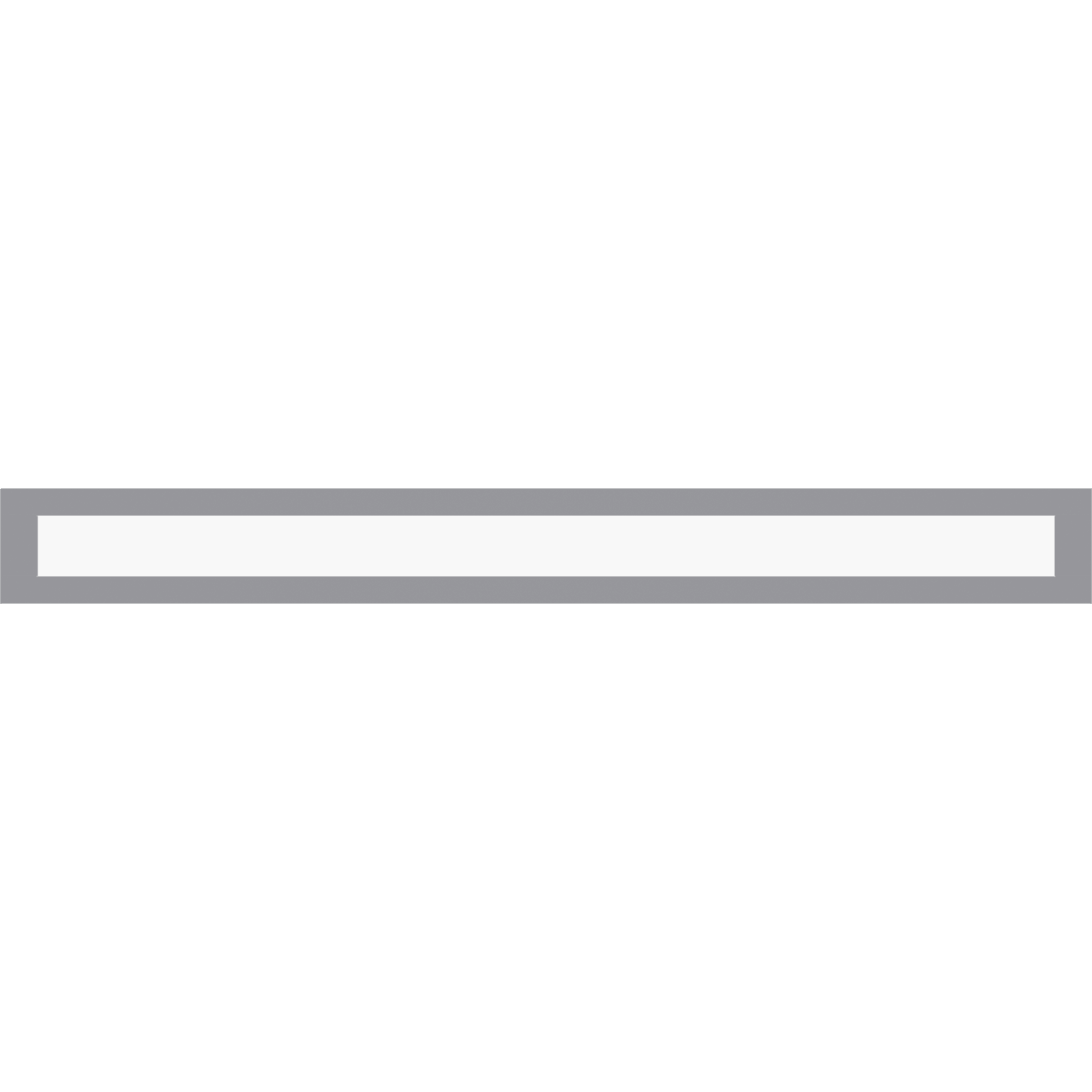

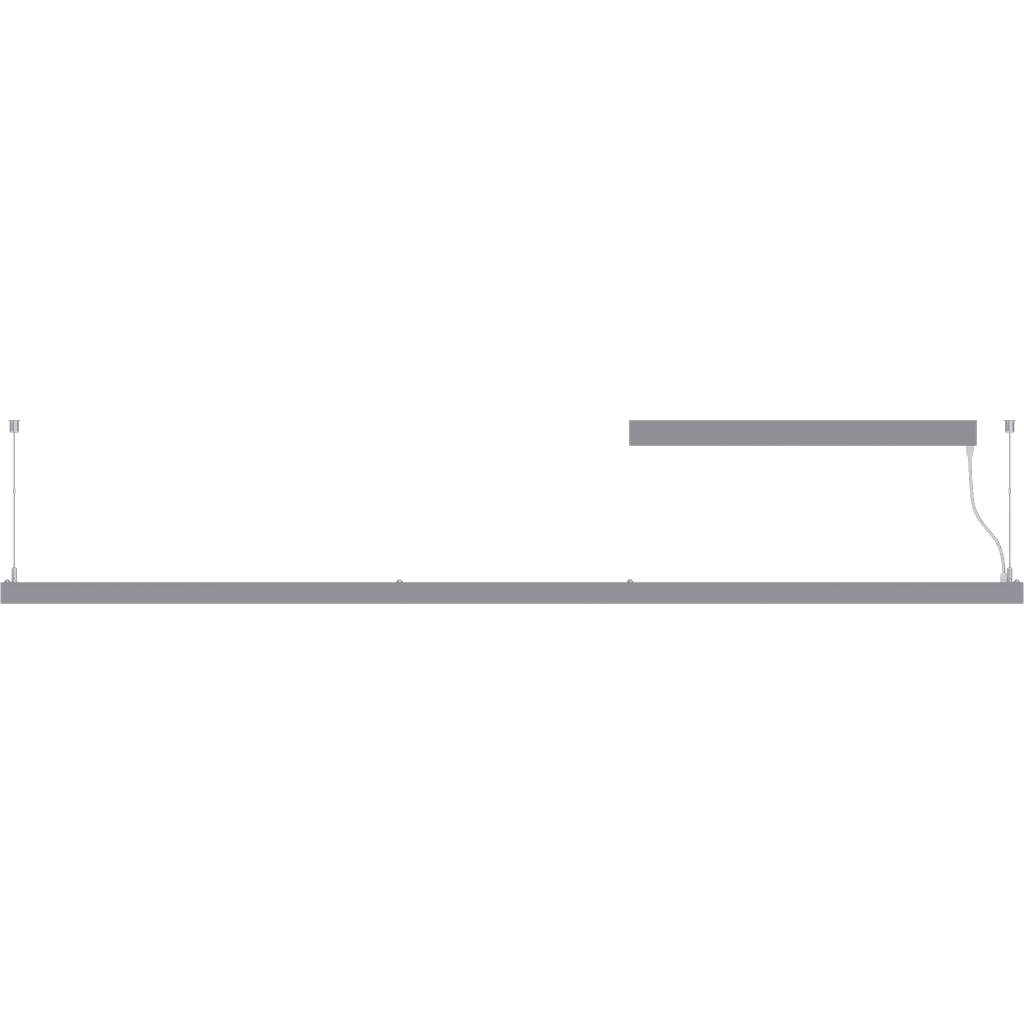

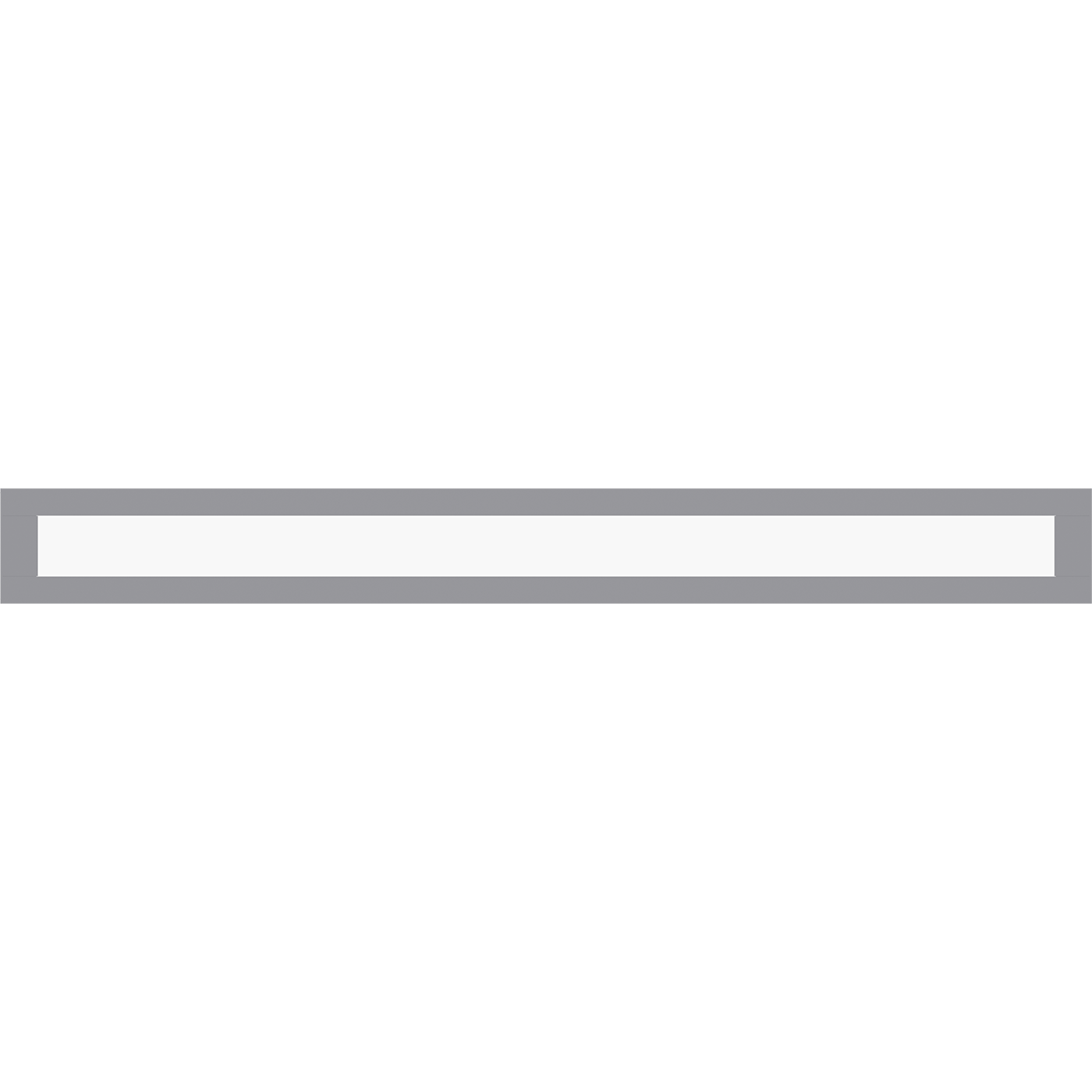

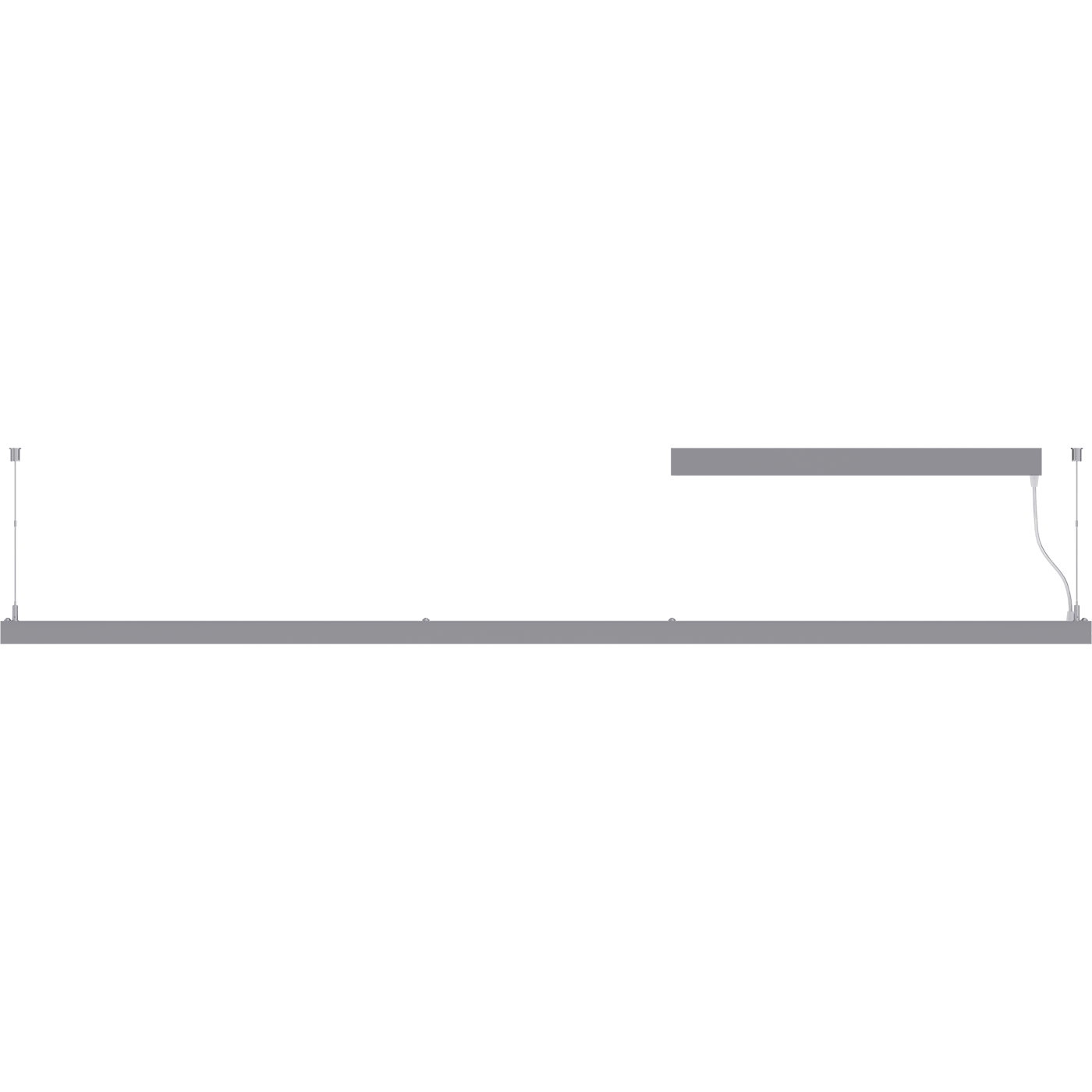

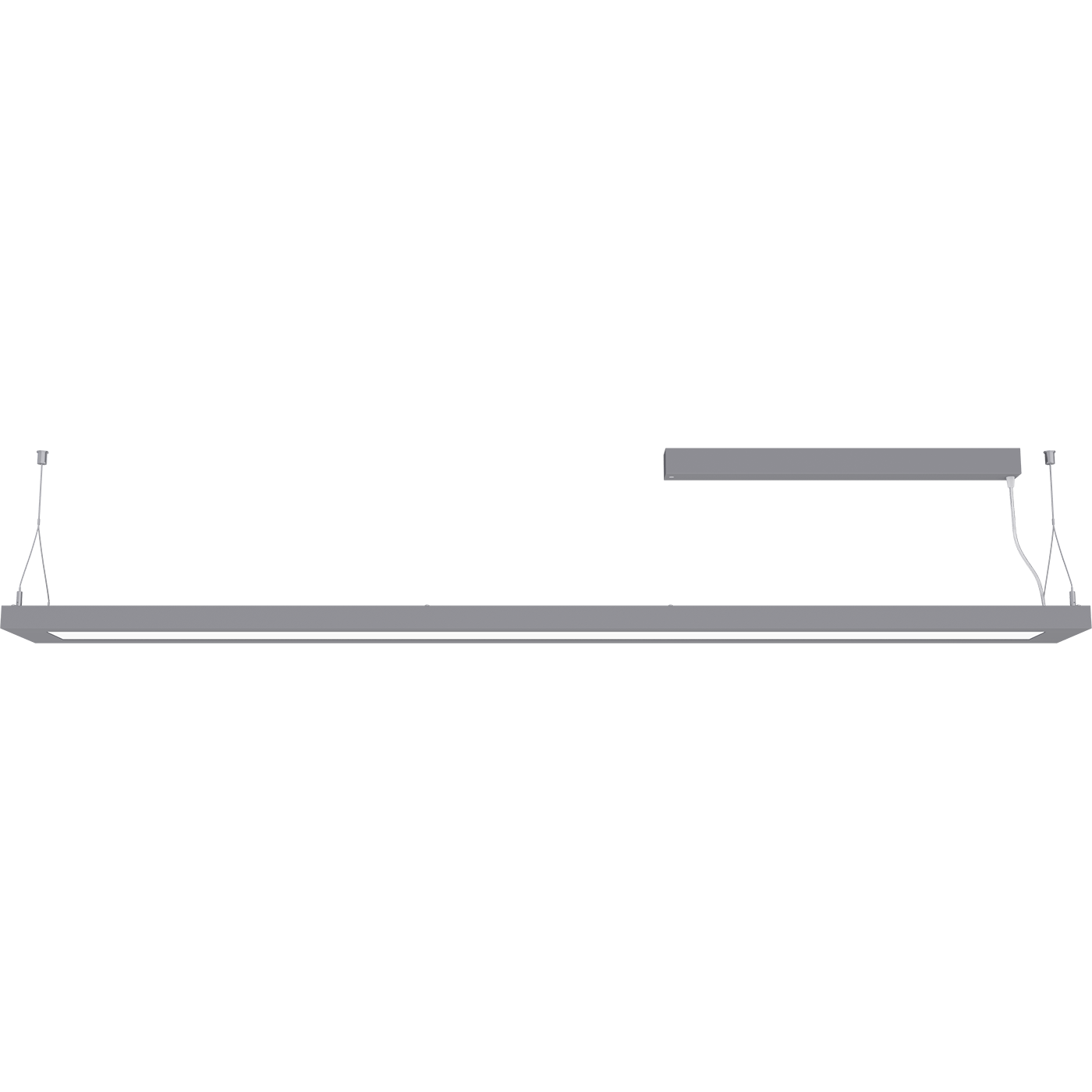

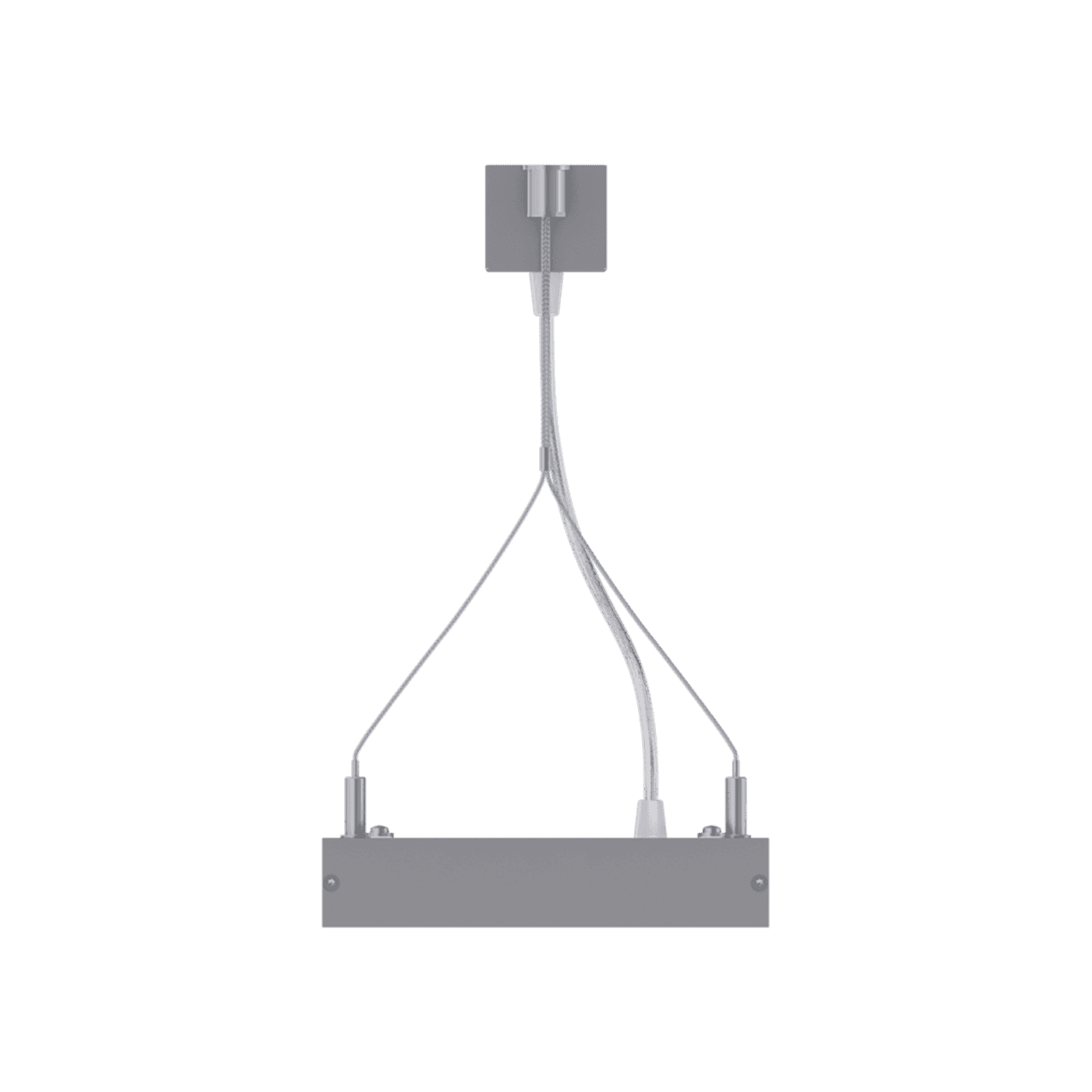

FLAME DR UNI LED 1800x190 4000K

FLAME DR UNI LED 1800x190 4000K
add to favorites
48 Wluminaire power
4800 lmlight flow
100 lm/Wenergy efficiency
code1632000160
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. FLAME UNI LED
  7. FLAME DR UNI LED 1800x190 4000K
options
свернуть все
electricalconstructionalcommonilluminating
starting current
45 A
starting current pulse time, µs
100 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
176-280 V
luminaire power
48 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
45 A
starting current pulse time, µs
100 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
176-280 V
luminaire power
48 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
material
Алюминий
weight
7.53 kg
length, mm
1792 mm
width, mm
190 mm
height, mm
38 mm
housing color
Металлик
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1632000160
illuminating
color rendition index (CRI)
>80
light flow
4800 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS1.5 kB
model 3dMax584 kB

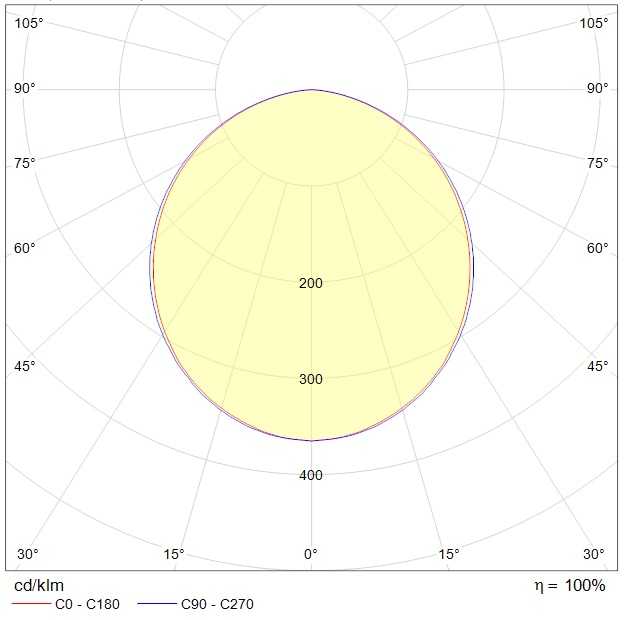

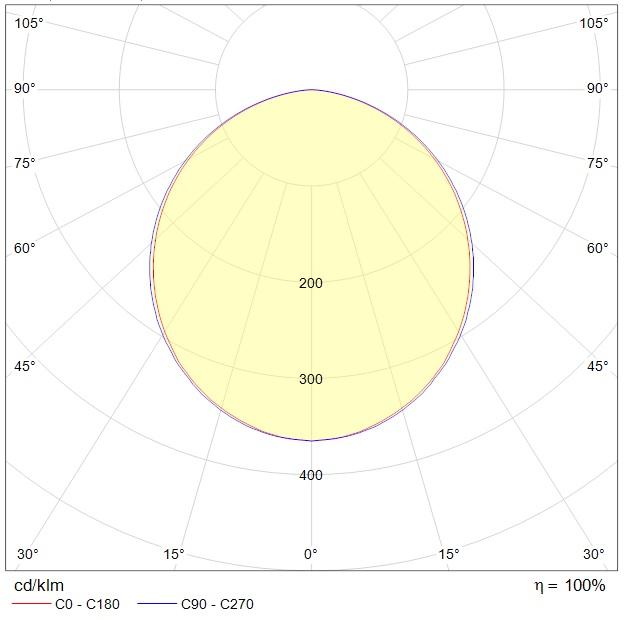

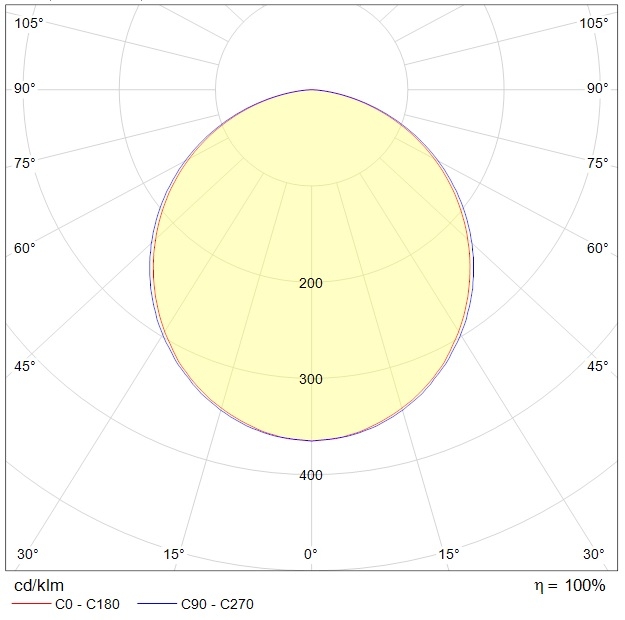

photometric files
ies134.1 kB
jpg57.6 kB
ldt84.4 kB
documents
passport1.2 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS1.5 kB
model 3dMax584 kB
photometric files
ies134.1 kB
jpg57.6 kB
ldt84.4 kB
documents
passport1.2 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
FL T-connector silver1.3kgarticle: 2617000020
FL connection kit0.365kgarticle: 2617000060
FL L-connector silver1.14kgarticle: 2617000010
