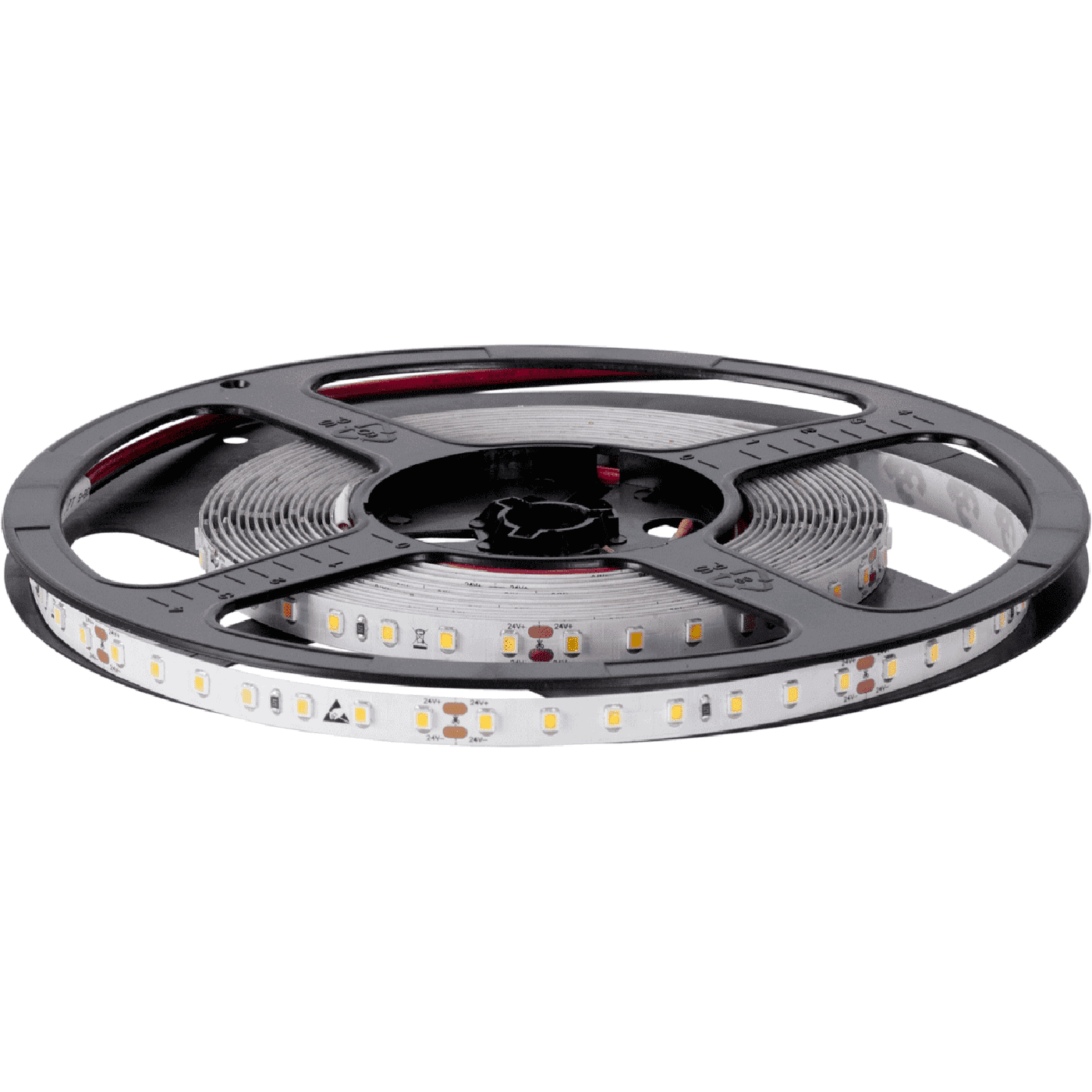

LED STRIP Flexline 168/17.0/1800 3000K
archive
archive
LED STRIP Flexline 168/17.0/1800 3000K
85 Wluminaire power
9000 lmlight flow
106 lm/Wenergy efficiency
code2010000190
color temperature3000
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
106 lm/Wcolor rendition index (CRI)
>80light flow
9000 lmcolor temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
106 lm/W
color rendition index (CRI)
>80
light flow
9000 lm
color temperature
3000
light source type
LED
emission color
Белый
electrical
electric shock protection
III
luminaire power
85 W
supply voltage
24 V
power factor
= 1,00
rated supply voltage, direct current
23-25 V
constructional
length, mm
5000 mm
width, mm
10 mm
height, mm
2 mm
weight
0.19 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Пластик
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
24 000 h
energy efficiency class
A+
ETIM class
Световая полоса/ лента/ шнур
code
2010000190
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax924 kB

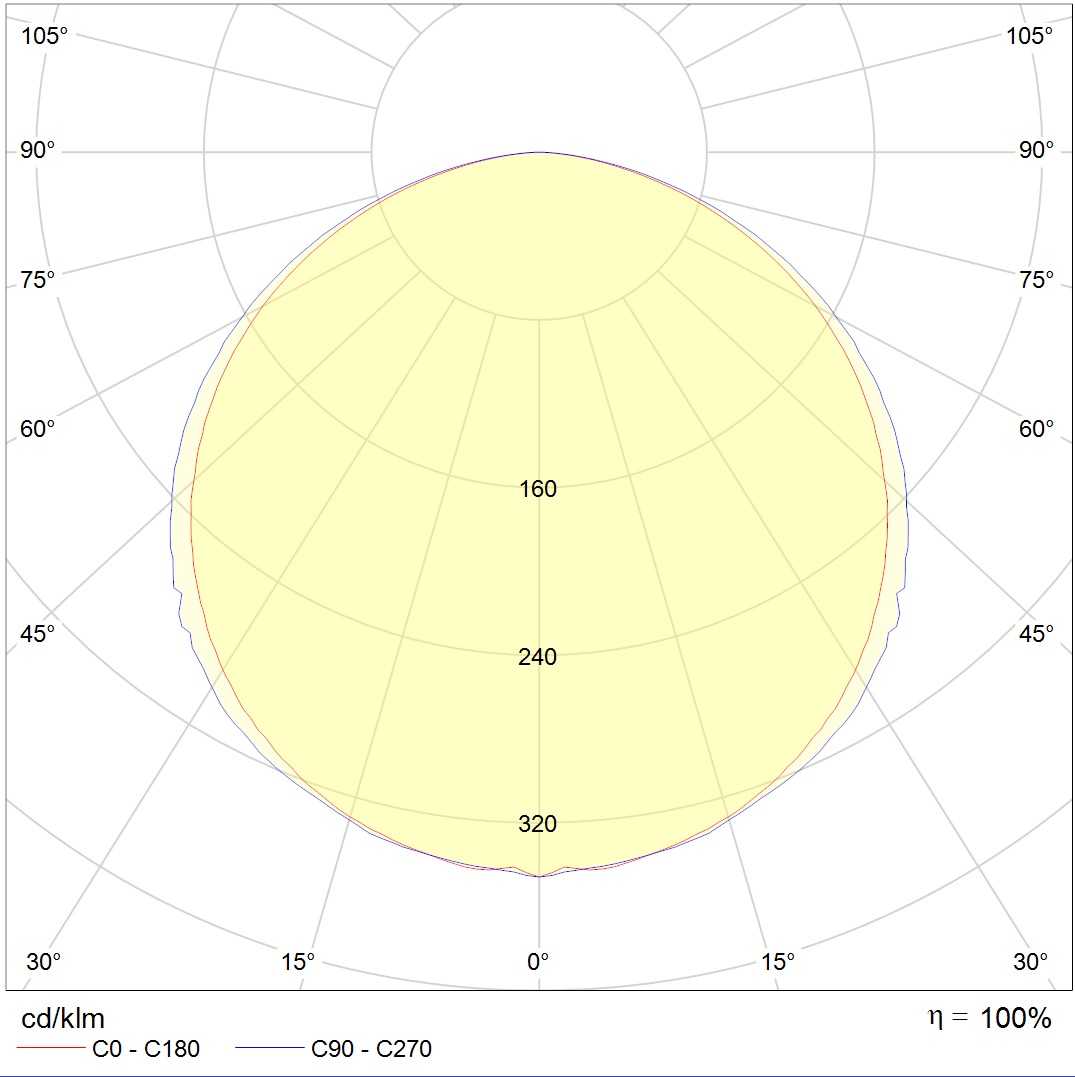

photometric files
ies134.1 kB
jpg129.7 kB
ldt84.5 kB
documents
passport587.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
accessories
Driver LED 75W/24V ( OL1x75-E-CV24 IP67 HELVAR)0.454kgarticle: 4002000110color: Белый
Dimmable driver DALI LED 12-24V (Helvar LL1-CV-DA)0.07kgarticle: 6002001670color: White
Driver LED CV 120W--24V/24V-IP20 (Helvar LL1x120-CV24)0.425kgarticle: 6002003690color: Белый
