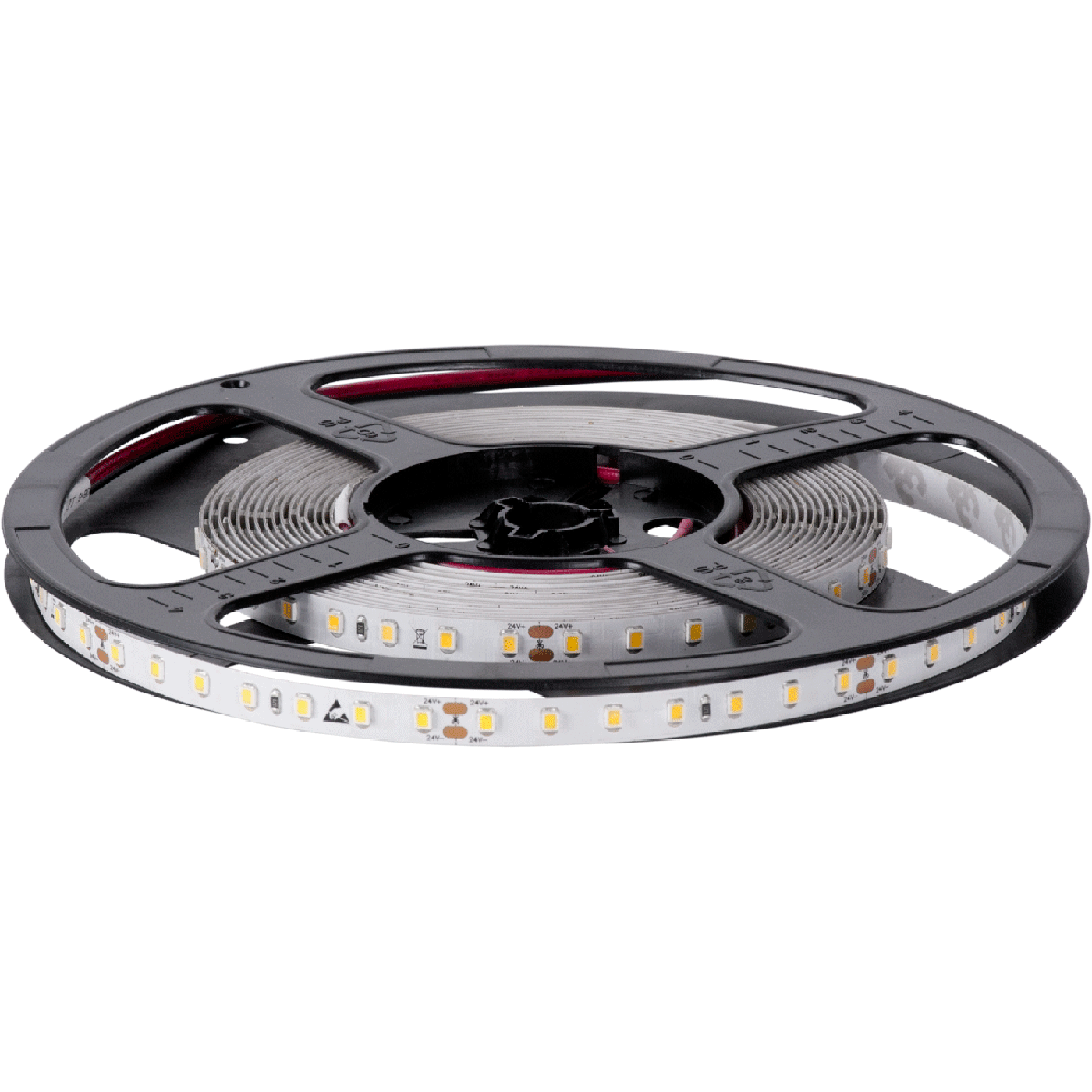

LED STRIP Flexline 80/5.4/850 4000K
LED STRIP Flexline 80/5.4/850 4000K
27 Wluminaire power
4250 lmlight flow
157 lm/Wenergy efficiency
code2010000340
color temperature4000
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
157 lm/Wcolor rendition index (CRI)
>80light flow
4250 lmflickering factor
<5%color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
157 lm/W
color rendition index (CRI)
>80
light flow
4250 lm
flickering factor
<5%
color temperature
4000
light source type
LED
emission color
Белый
electrical
electric shock protection
III
luminaire power
27 W
supply voltage
24 V
power factor
= 1,00
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, direct current
23-25 V
constructional
length, mm
5000 mm
width, mm
8 mm
height, mm
2 mm
weight
0.19 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Пластик
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
30 000 h
energy efficiency class
A++
ETIM class
Световая полоса/ лента/ шнур
code
2010000340
model files
model files
CAD/BIM files

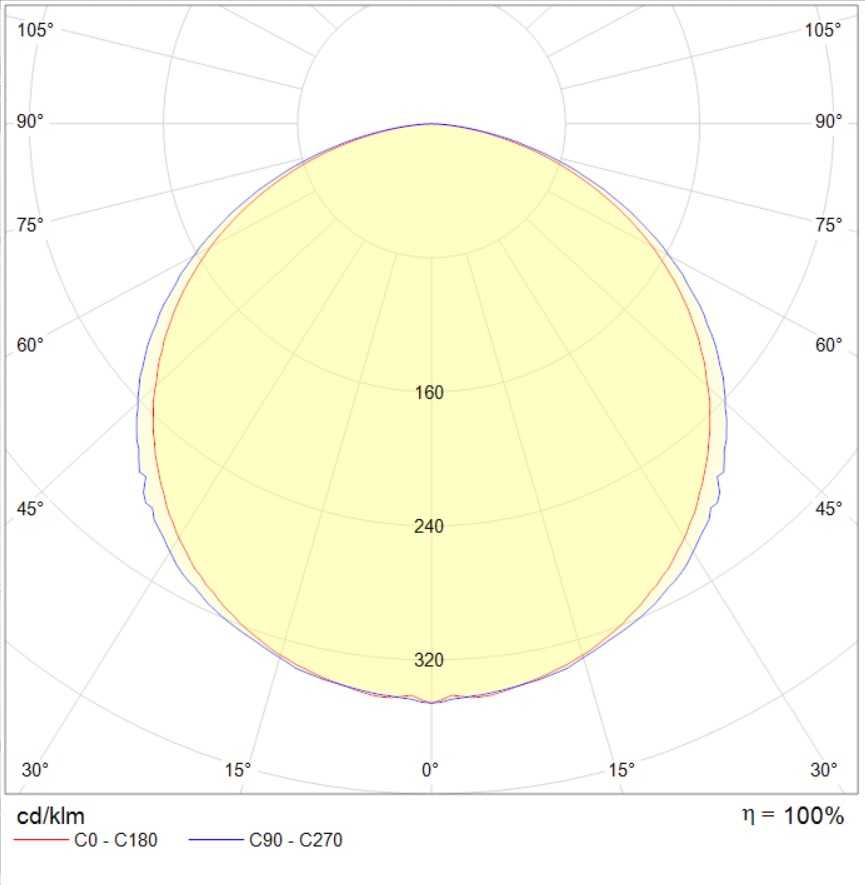

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax924 kB
photometric files
ies134.1 kB
jpg82 kB
ldt84.5 kB
documents
passport587.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
accessories
Driver LED 75W/24V ( OL1x75-E-CV24 IP67 HELVAR)0.454kgarticle: 4002000110color: Белый
Driver LED CV 75W-24V-IP20 (HELVAR LL1x75-E-CV24)0.123kgarticle: 4002000090color: White
Dimmable driver DALI LED 12-24V (Helvar LL1-CV-DA)0.07kgarticle: 6002001670color: White
