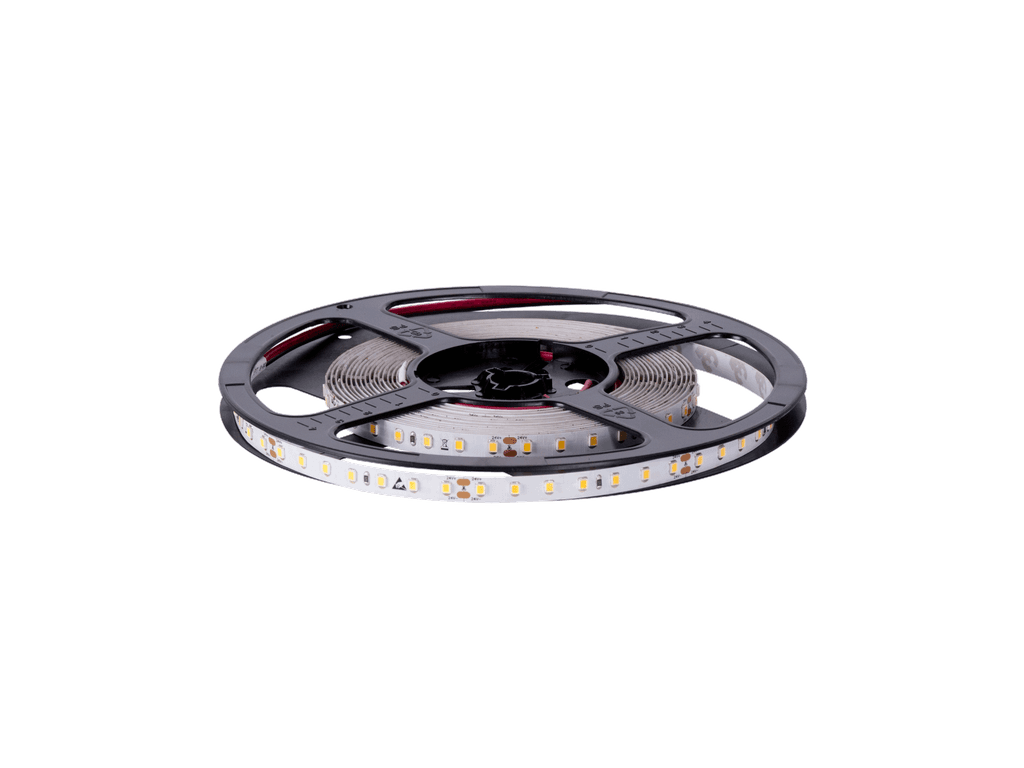

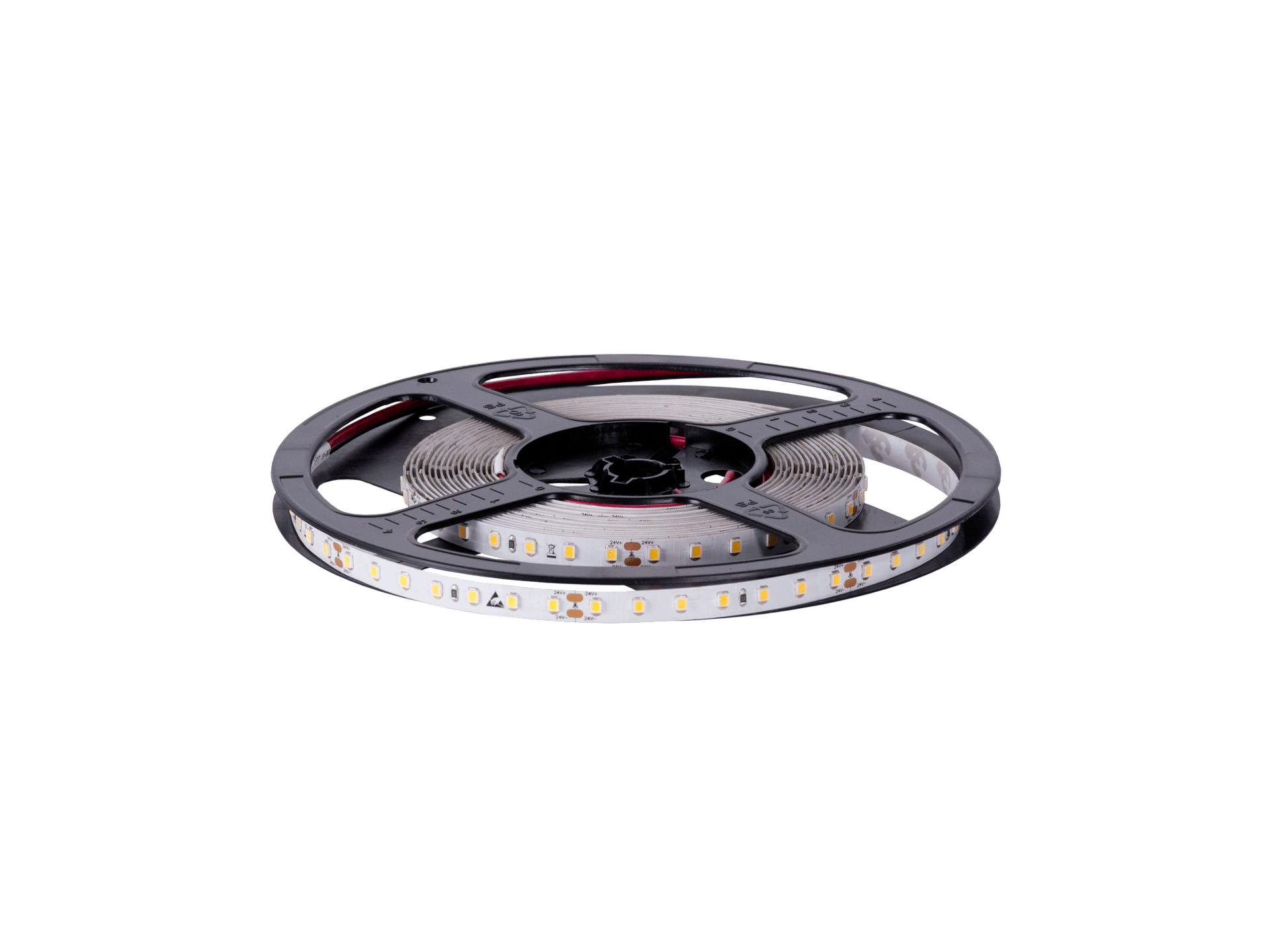

LED STRIP Flexline 160/13/1700 830 IP67 (5m)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
LED STRIP Flexline 160/13/1700 830 IP67 (5m)
66 Wluminaire power
8600 lmlight flow
130 lm/Wenergy efficiency
code2010000780
color temperature3000
old nameLED STRIP Flexline 60/10.8/1700 830 IP67 (5m)
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
130 lm/Wcolor rendition index (CRI)
>80light flow
8600 lmcolor temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
130 lm/W
color rendition index (CRI)
>80
light flow
8600 lm
color temperature
3000
light source type
LED
emission color
Белый
electrical
electric shock protection
III
luminaire power
66 W
supply voltage
24 V
power factor
= 1,00
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, direct current
23-25 V
constructional
length, mm
5000 mm
width, mm
8 mm
height, mm
2 mm
weight
0.19 kg
ingress protection (IP)
IP67
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
24 000 h
energy efficiency class
A+
ETIM class
Световая полоса/ лента/ шнур
code
2010000780
model files
model files

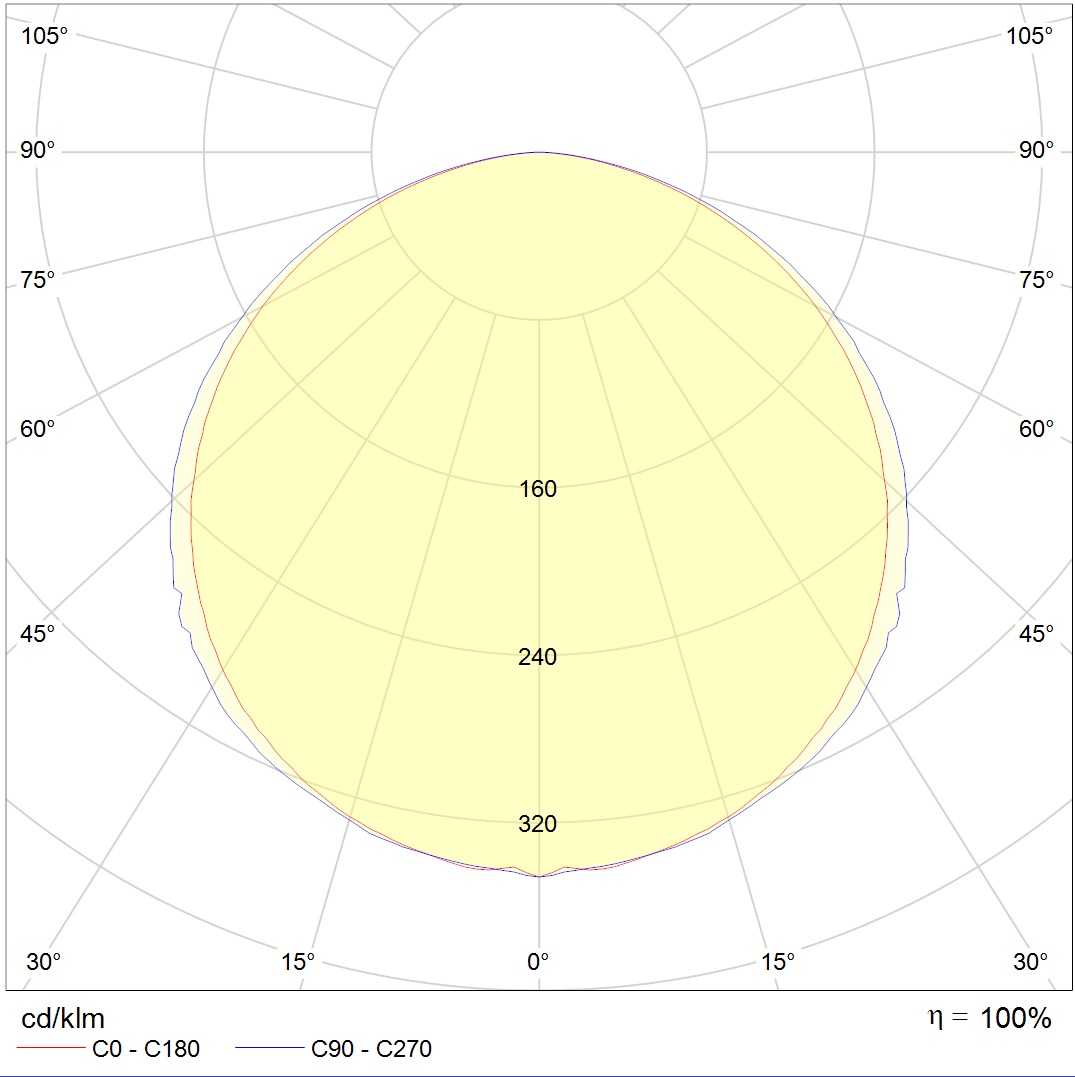

photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg129.7 kB
ldt84.5 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
