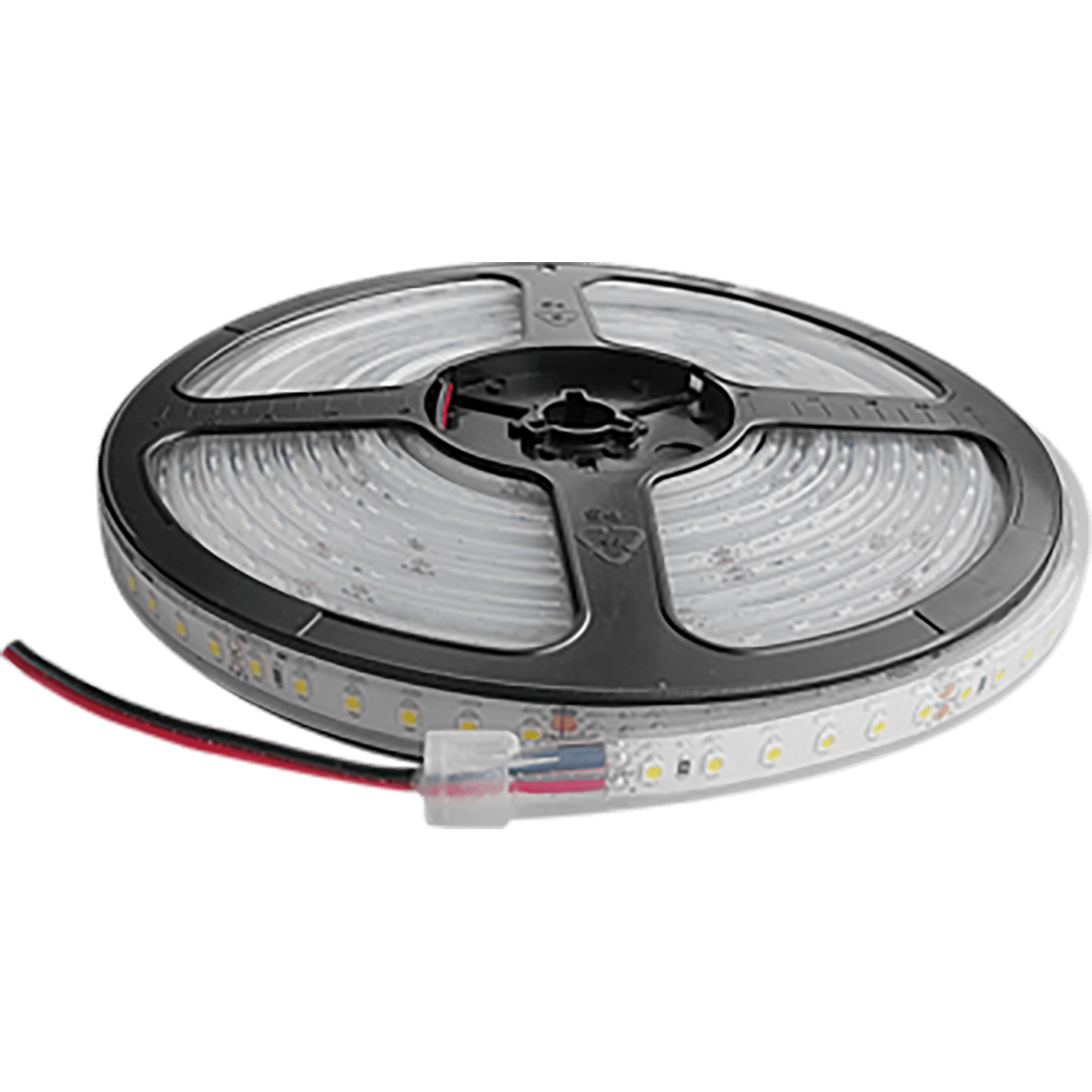

LED STRIP Flexline 60/4.8/320 4000K/IP67
model is discontinued
model is discontinued
LED STRIP Flexline 60/4.8/320 4000K/IP67
24 Wluminaire power
1600 lmlight flow
67 lm/Wenergy efficiency
code2010000360
color temperature4000
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
67 lm/Wcolor rendition index (CRI)
>80light flow
1600 lmcolor temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
67 lm/W
color rendition index (CRI)
>80
light flow
1600 lm
color temperature
4000
light source type
LED
emission color
Белый
electrical
electric shock protection
III
luminaire power
24 W
supply voltage
24 V
power factor
= 1,00
rated supply voltage, direct current
23-25 V
constructional
length, mm
5000 mm
width, mm
10 mm
height, mm
2 mm
weight
0.19 kg
ingress protection (IP)
IP67
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ3*
fire safety class
П-I,II,ІІІ
material
Силикон
housing color
Прозрачный
lamp socket
LED
number of lamps
1
ballast
Без драйвера
common
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
24 000 h
energy efficiency class
A
ETIM class
Световая полоса/ лента/ шнур
code
2010000360
model files
model files
CAD/BIM files

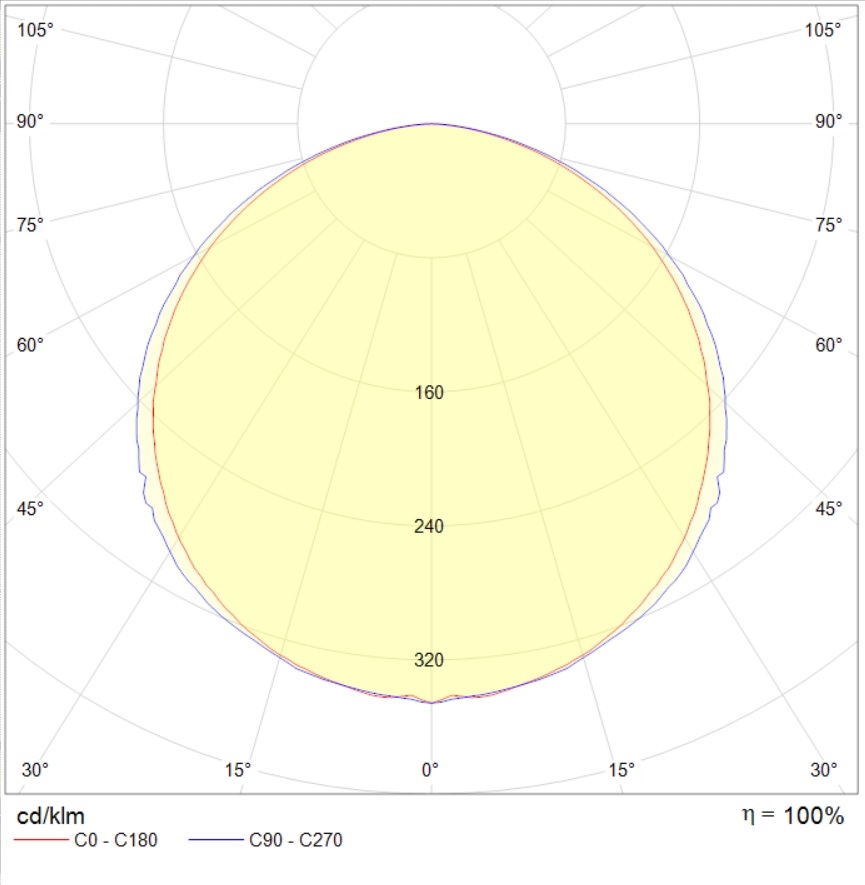

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax924 kB
photometric files
ies134.1 kB
jpg82 kB
ldt84.5 kB
documents
passport320 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011524.2 kB
Declaration of Conformity EAEU TR 037/2016313 kB
Fire Safety Certificate1.7 mB
accessories

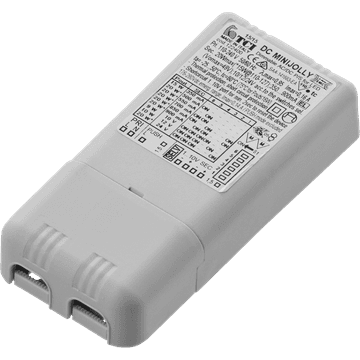

Driver LED 75W/24V ( OL1x75-E-CV24 IP67 HELVAR)0.454kgarticle: 4002000110color: Белый
Driver LED CV 30W--24V/24V-IP67 (Helvar OL1x30-E-CV24)0.105kgarticle: 4002000100color: White
Dimmable driver DALI LED 12-24V (Helvar LL1-CV-DA)0.07kgarticle: 6002001670color: White
