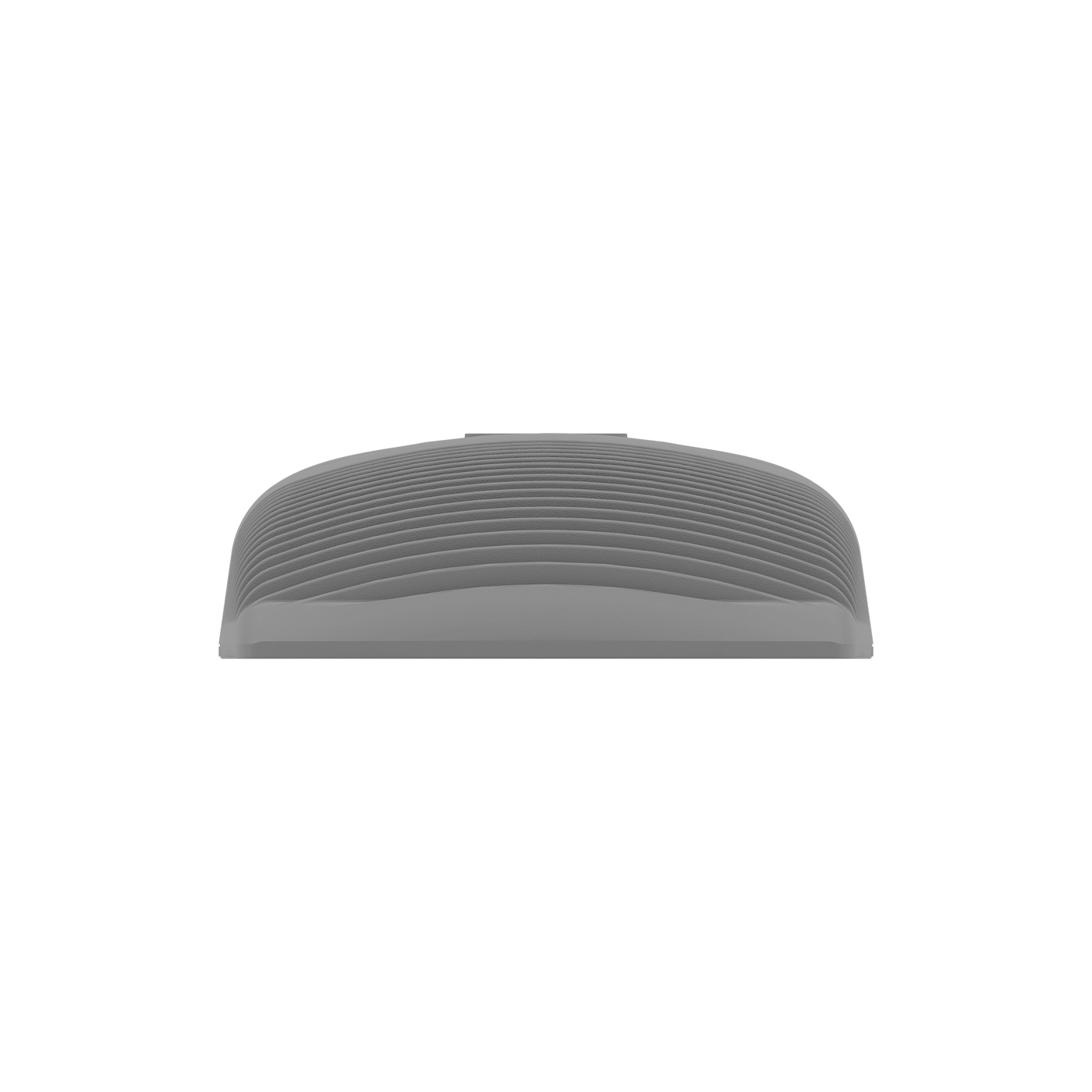

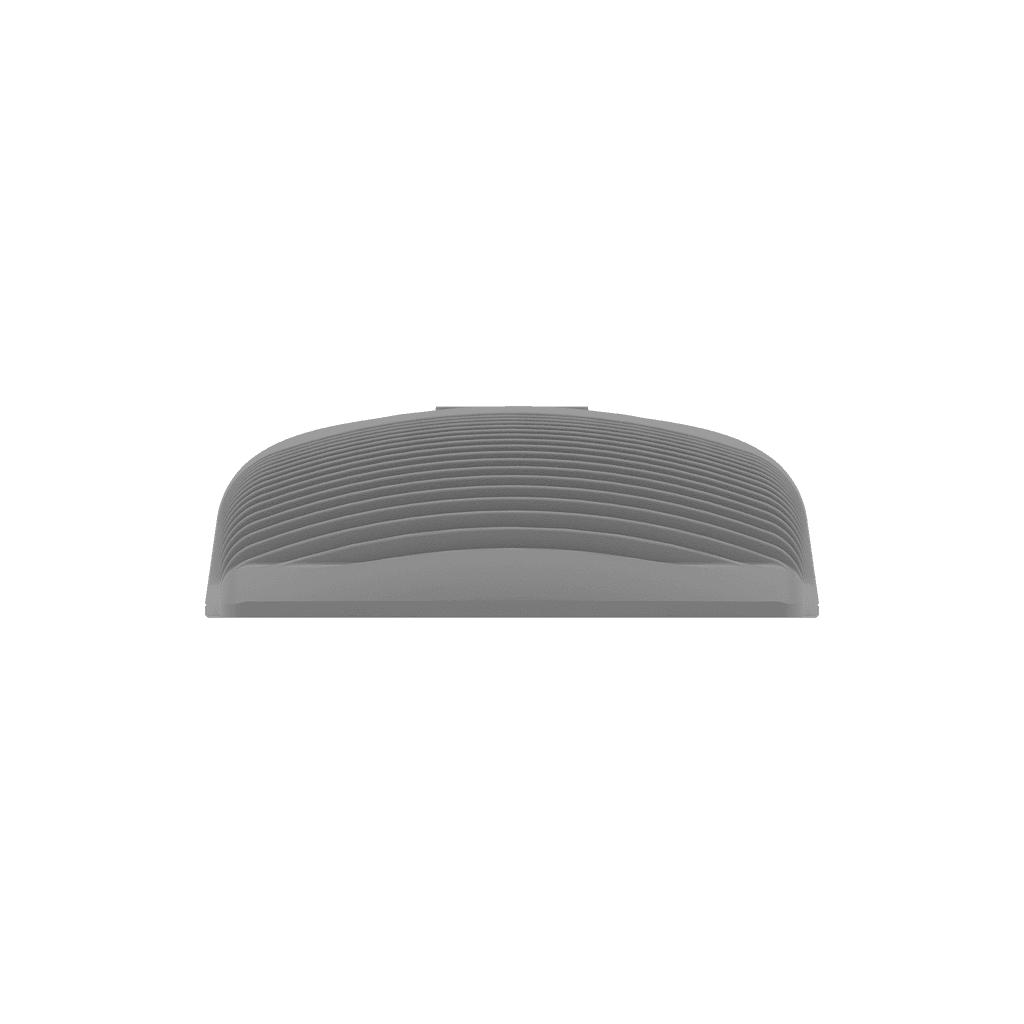

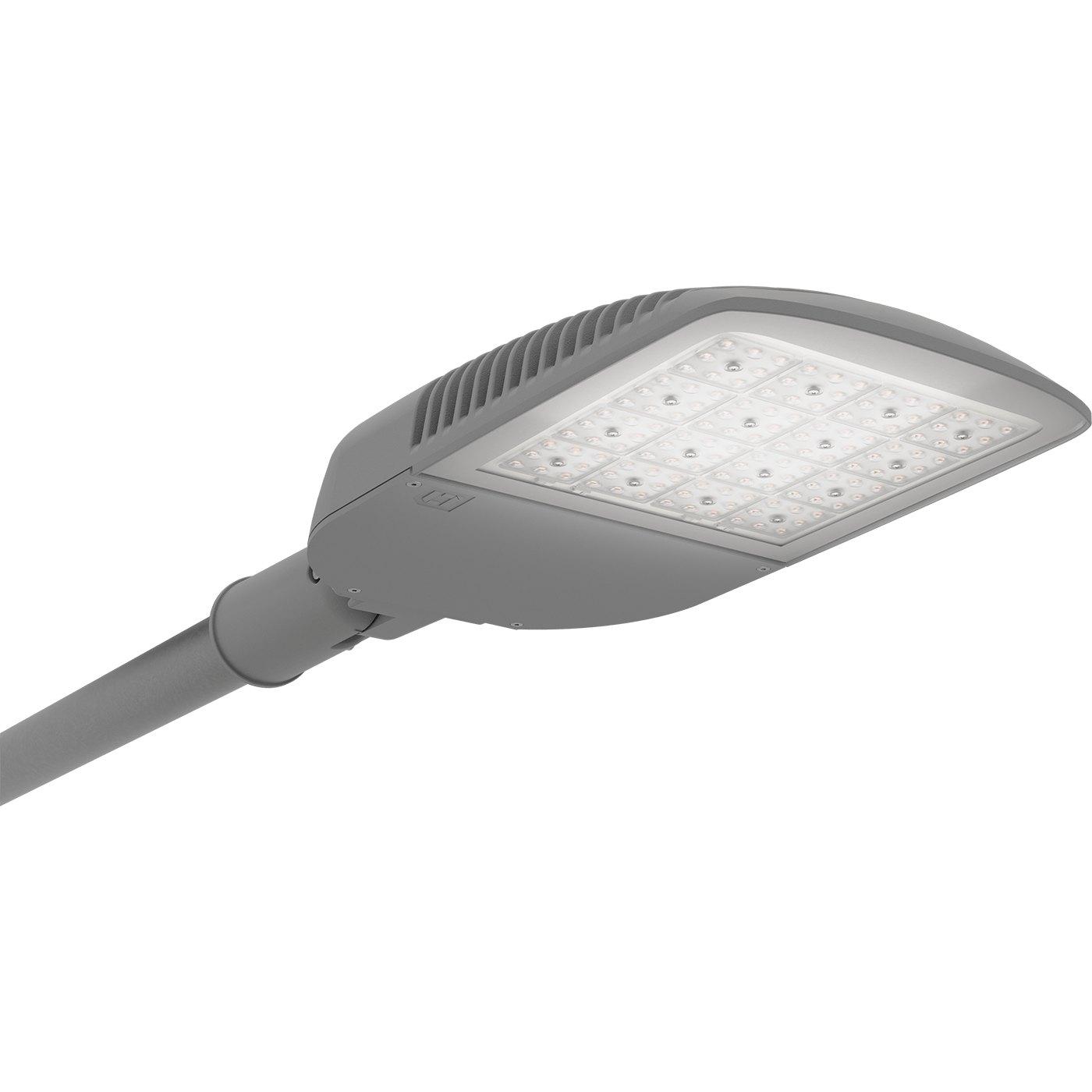

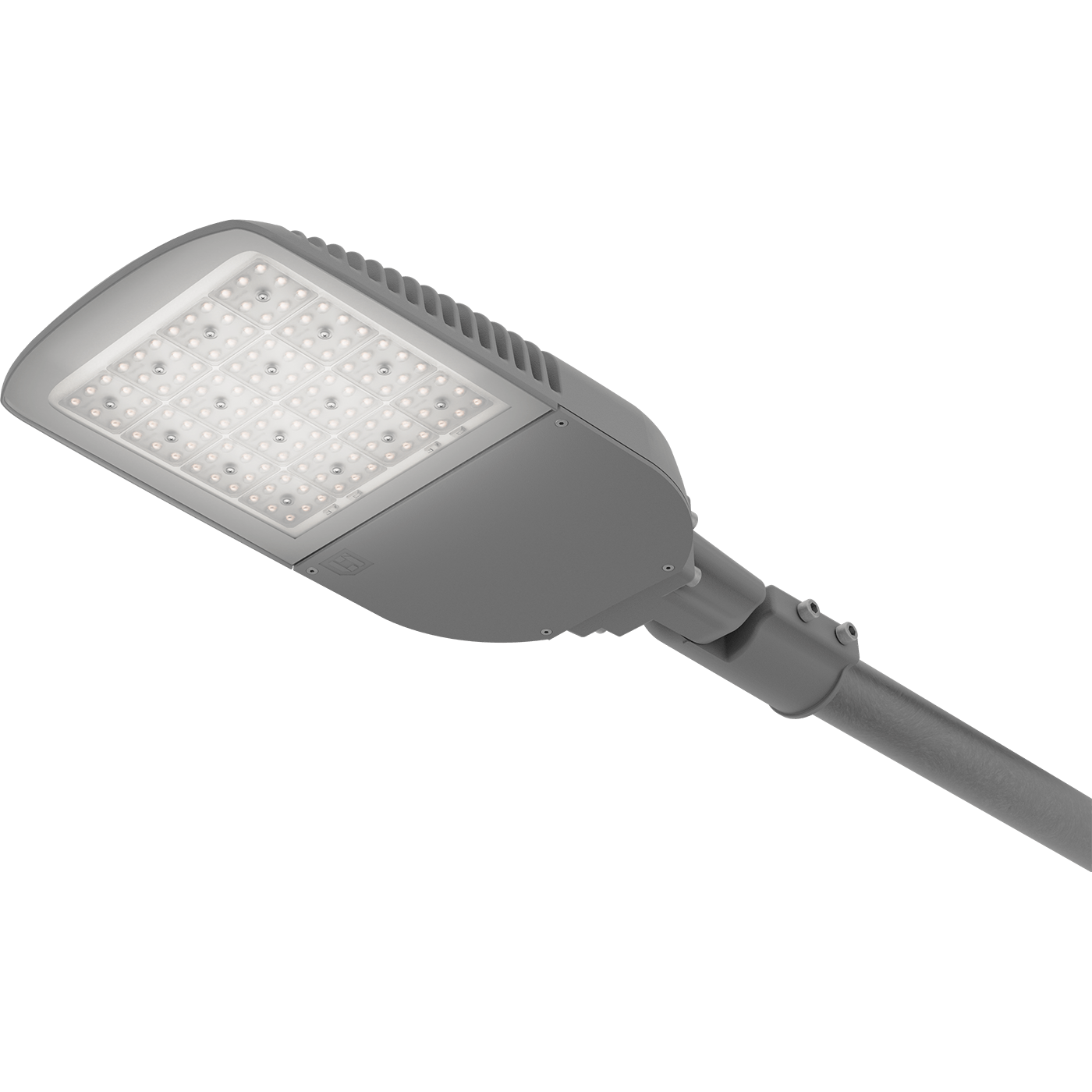

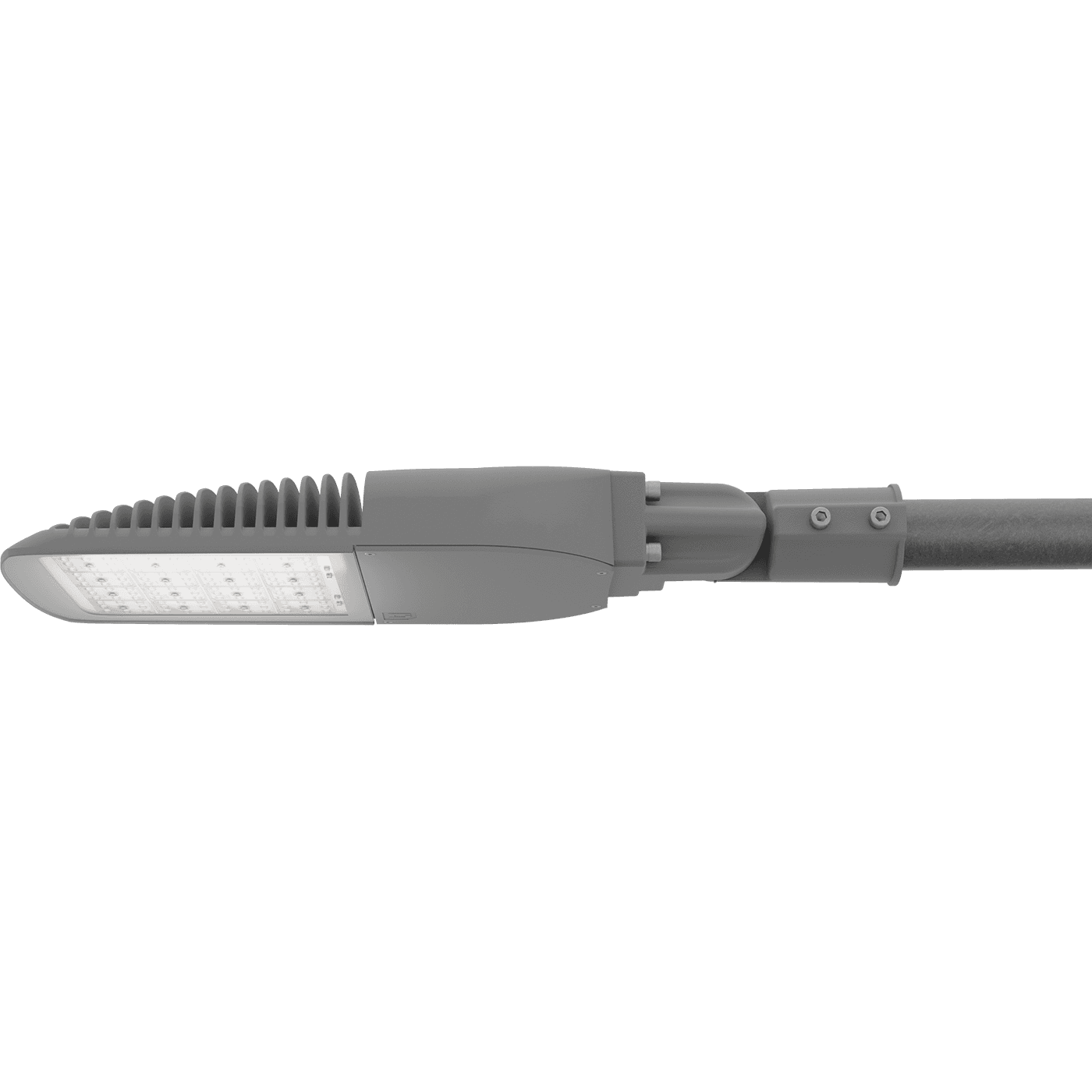

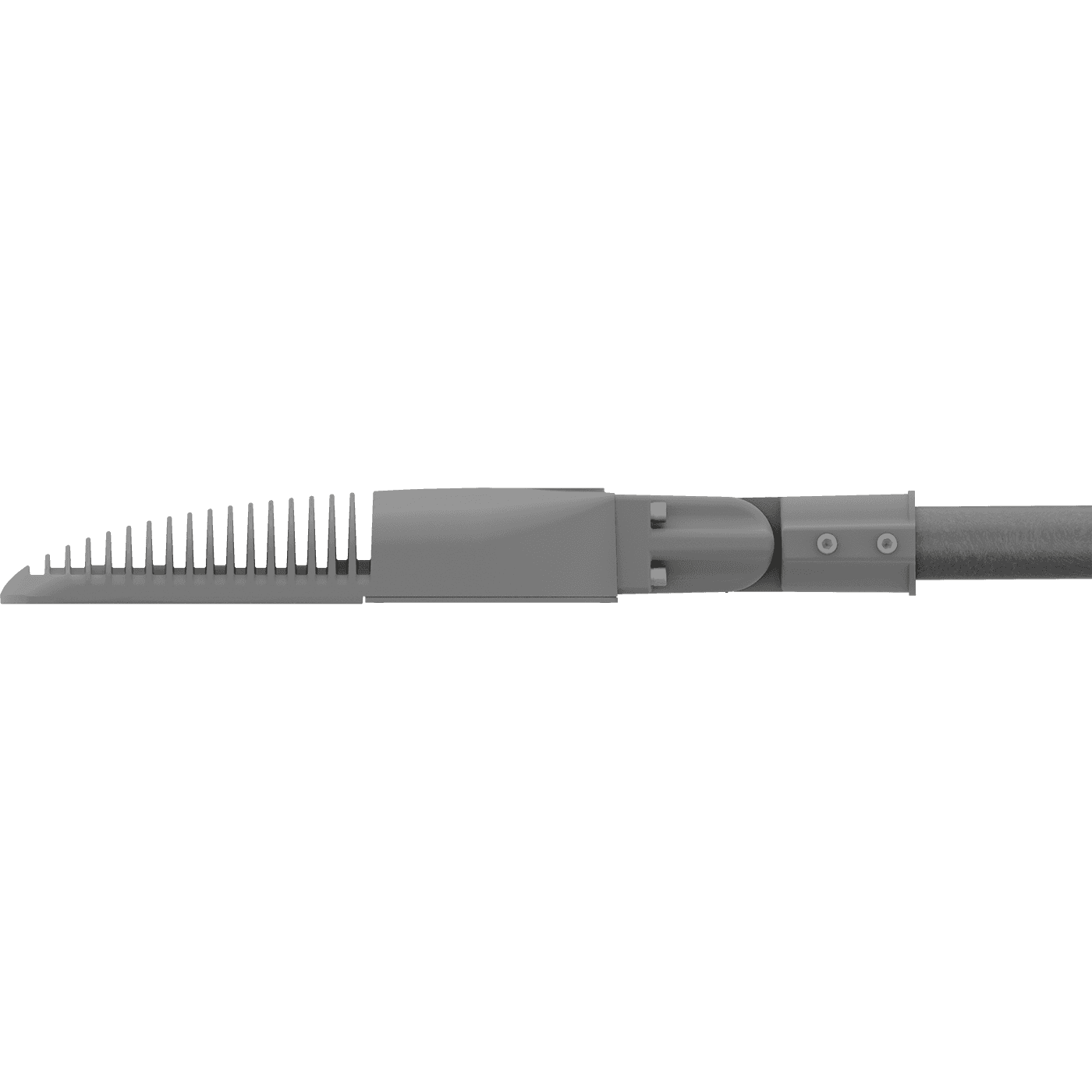

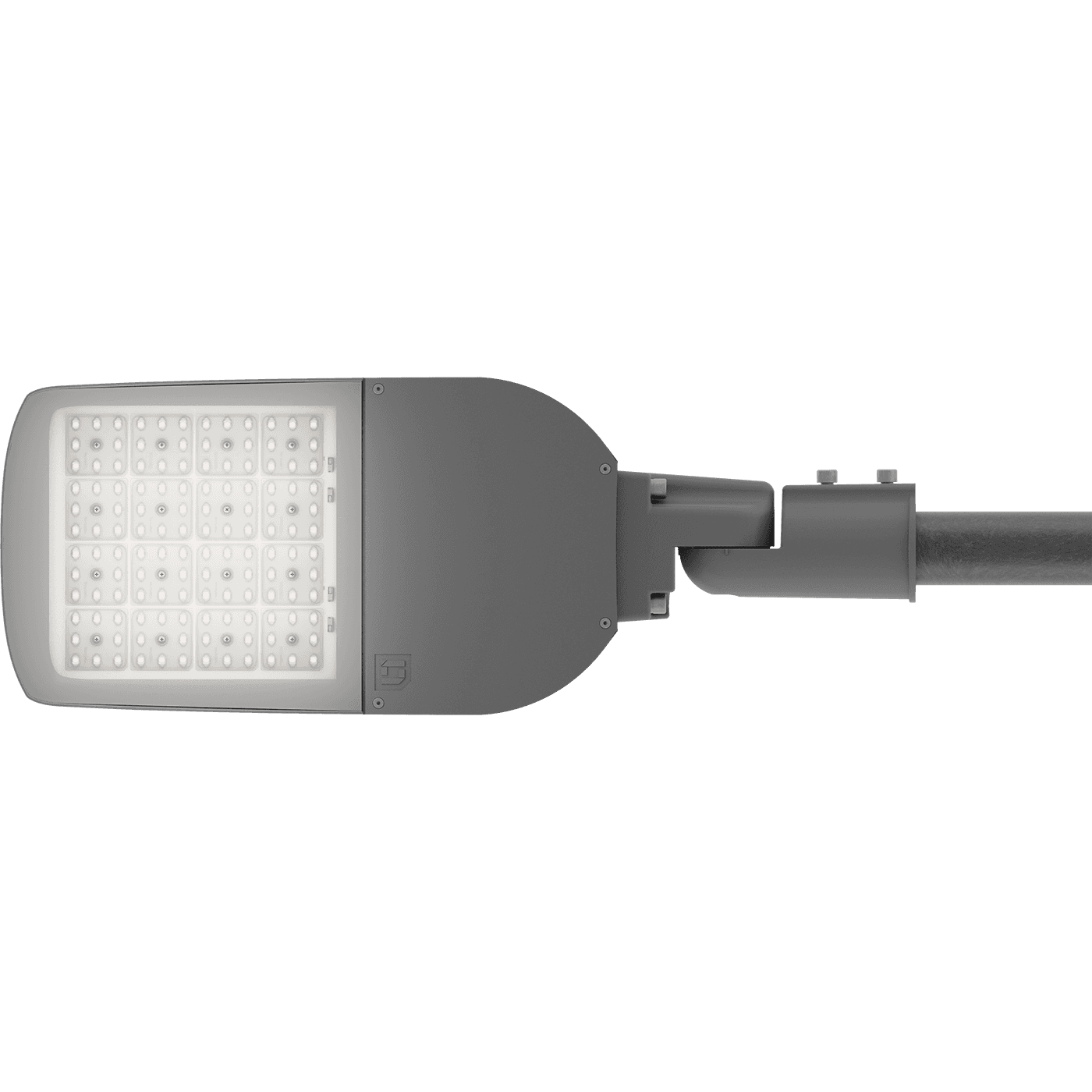

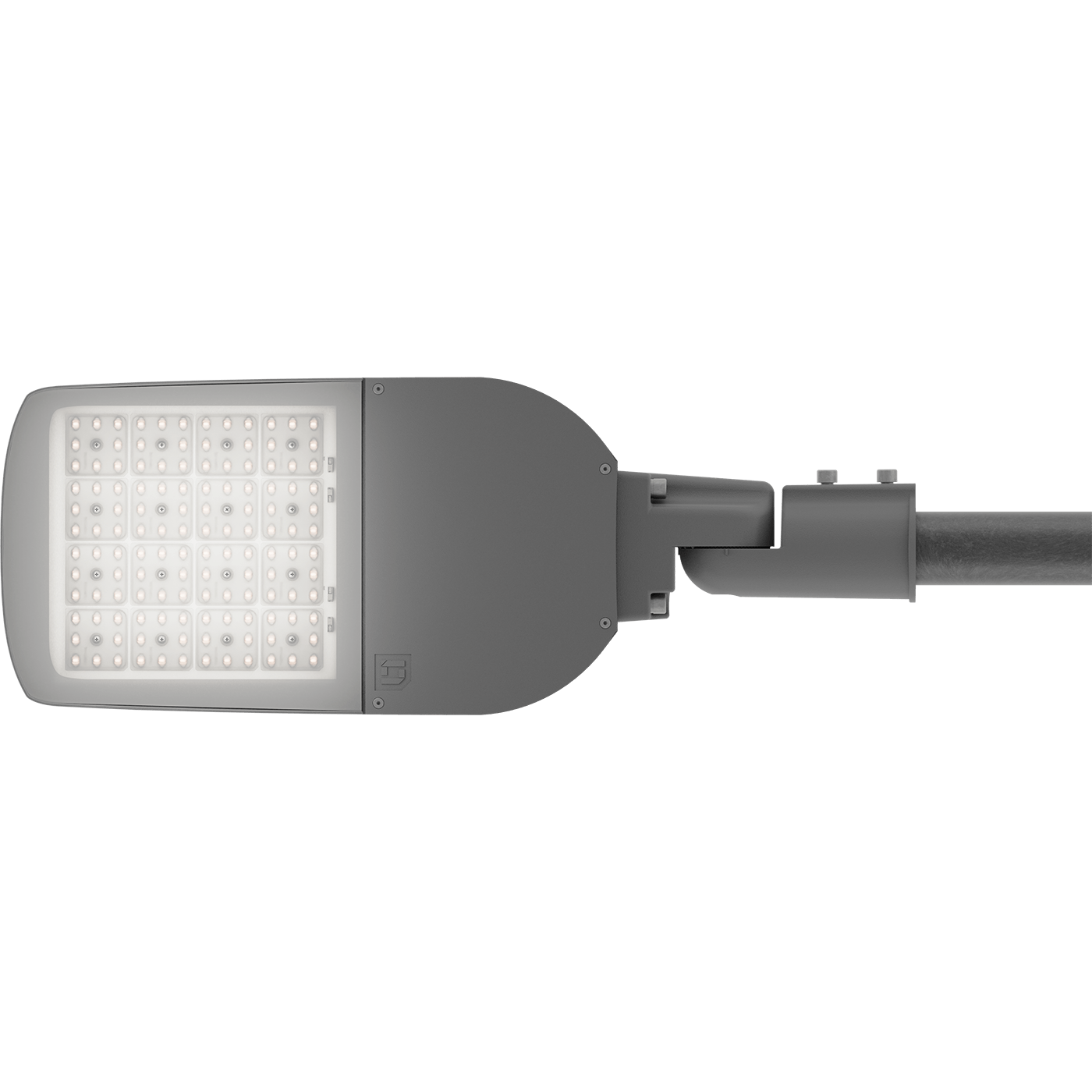

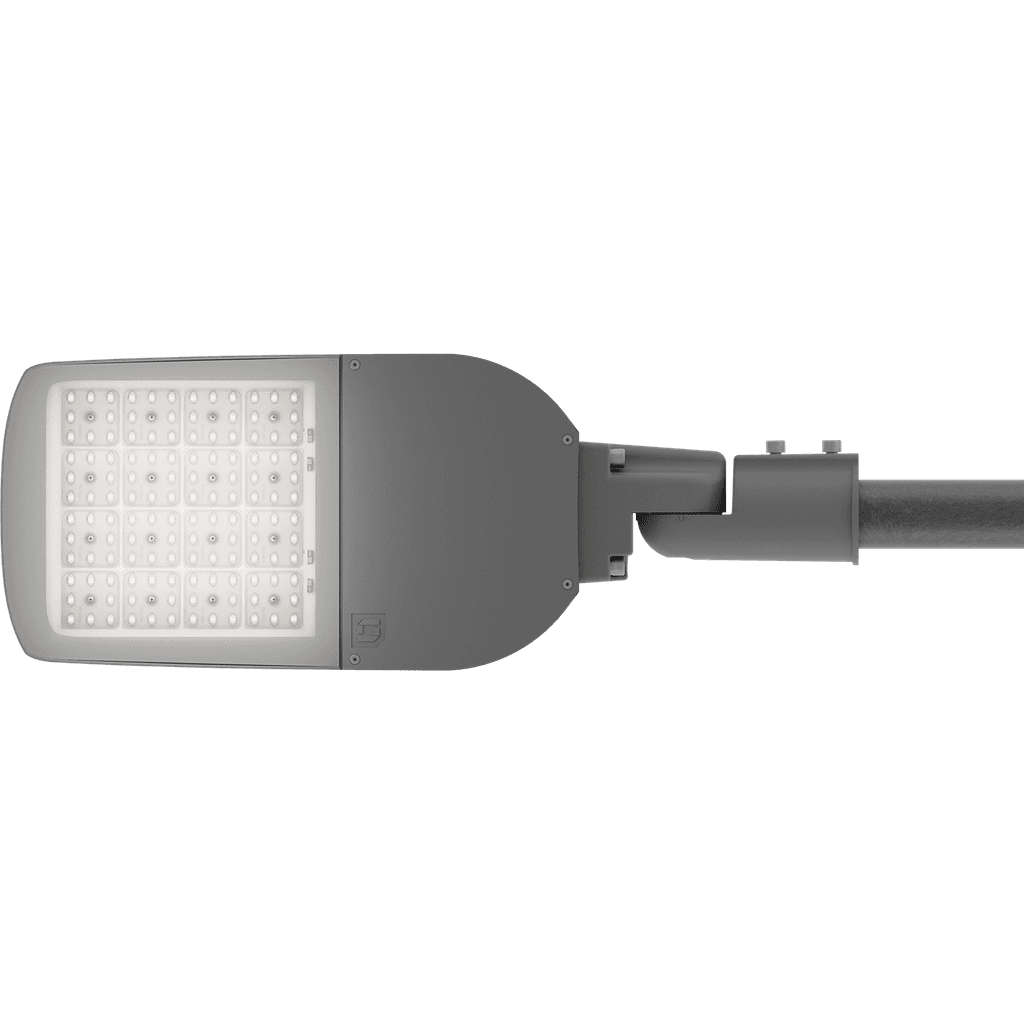

FREGAT LED 35 (W) CR 4000K RU

archive
archive
FREGAT LED 35 (W) CR 4000K RU
add to favorites
35 Wluminaire power
5100 lmlight flow
146 lm/Wenergy efficiency
code1426002490
beam angleD150/80
color temperature4000
weight10.7 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. console
  6. магистральные
  7. FREGAT LED
  8. FREGAT LED 35 (W) CR 4000K RU
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
supply voltage, alternating current
90-305 V
luminaire power
35 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
supply voltage, alternating current
90-305 V
luminaire power
35 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
10.7 kg
length, mm
722 mm
width, mm
265 mm
height, mm
91 mm
housing color
Серебристый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1.5
shock resistance (IK)
IK09/10 Дж
installation diameter, mm
60 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
common
code
1426002490
ETIM class
Светильник для освещения улиц и площадей
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
146 lm/W
color rendition index (CRI)
>70
light flow
5100 lm
flickering factor
<1%
beam angle
D150/80
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
0-10 V
