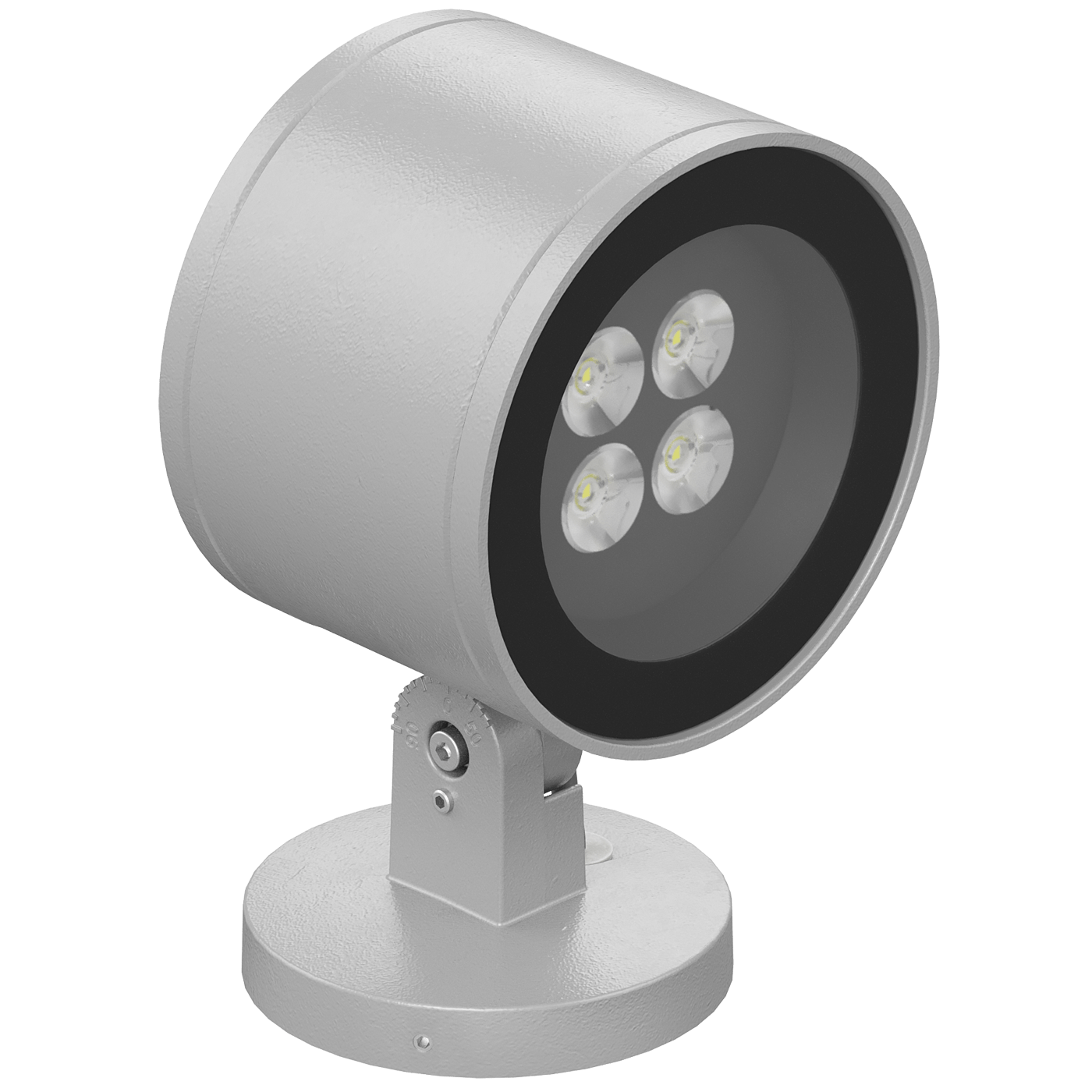

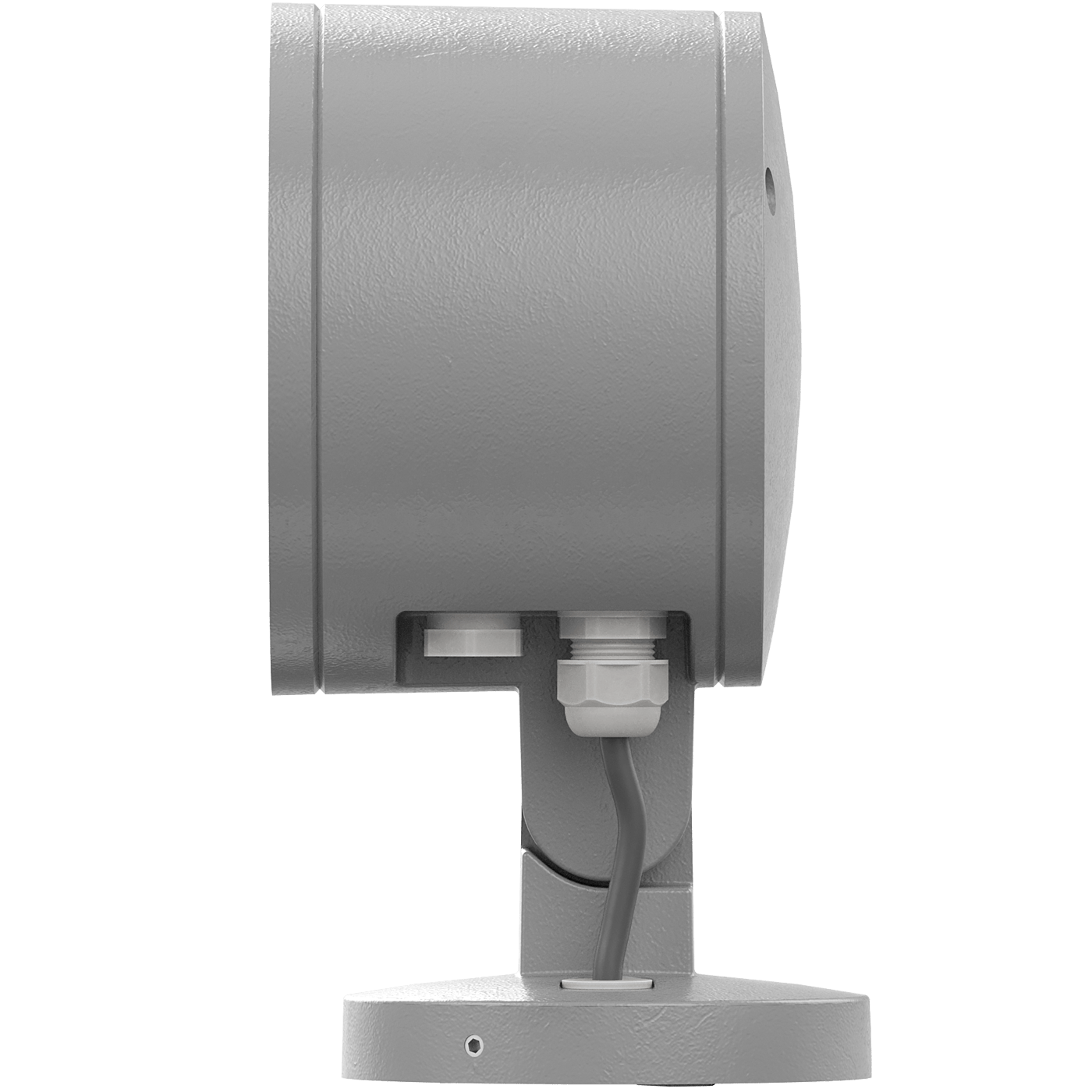

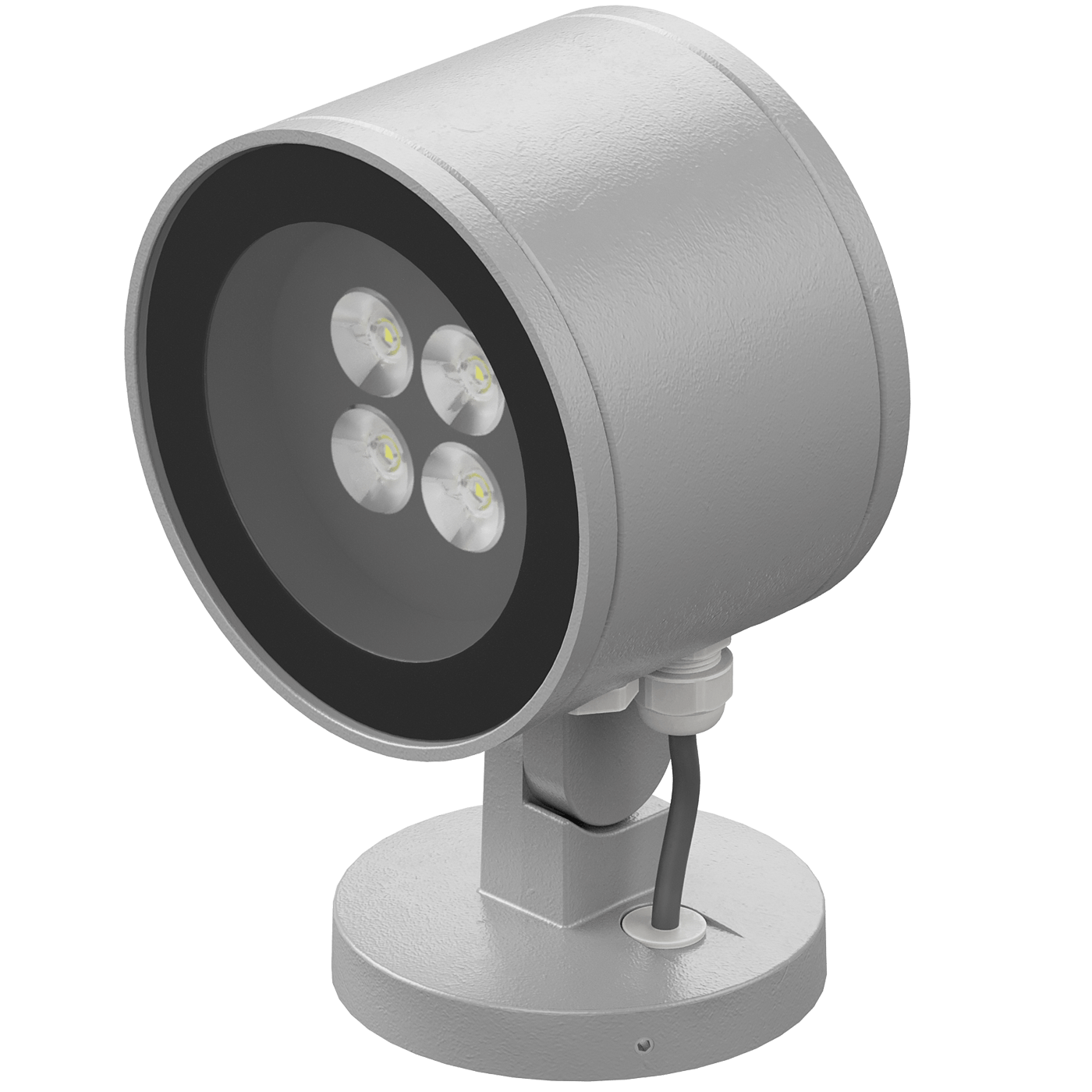

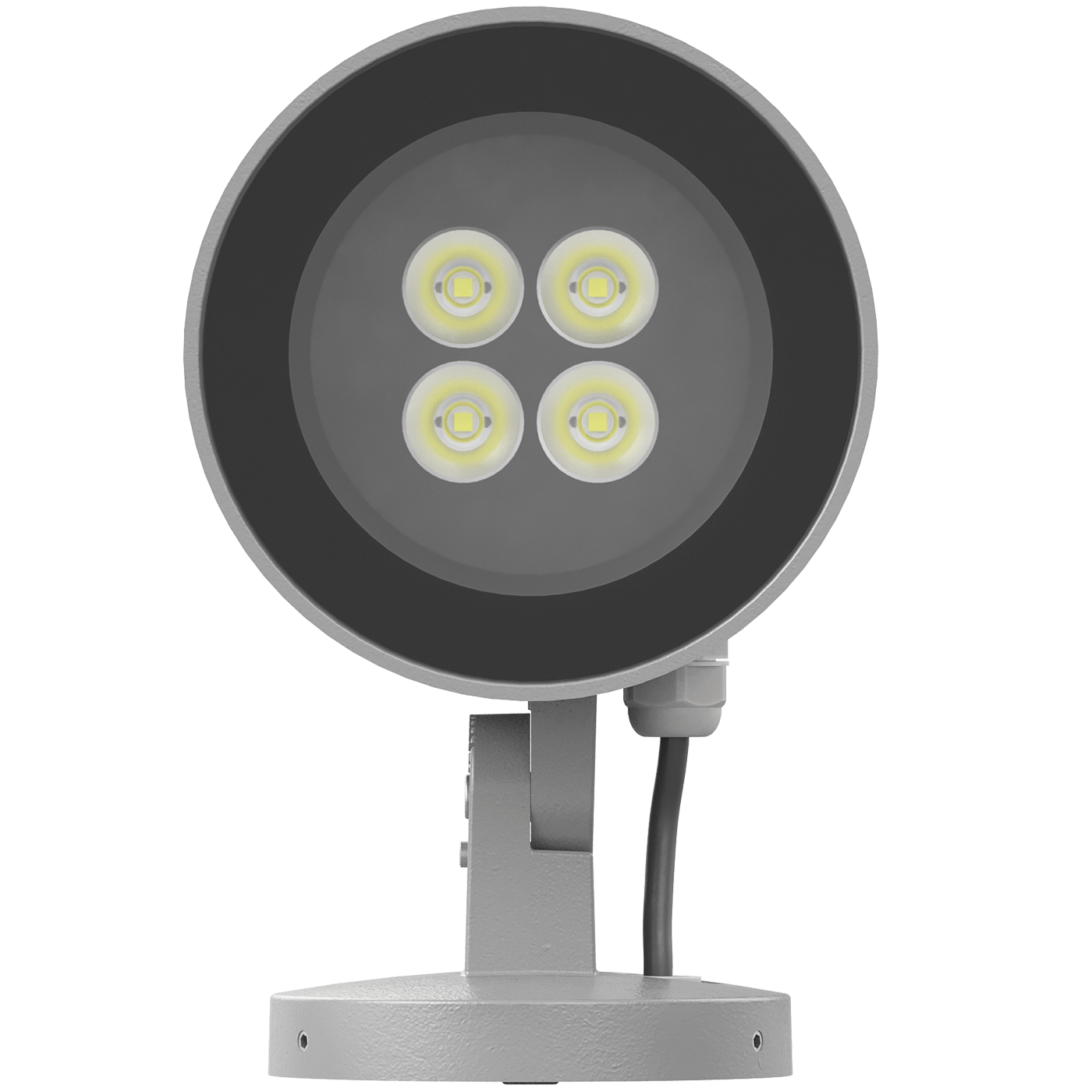

GLOSS LED 5W D30 840 SL
GLOSS LED 5W D30 840 SL
5 Wluminaire power
400 lmlight flow
80 lm/Wenergy efficiency
code1101800040
beam angleD30
color temperature4000
weight1.6 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
5 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
5 Welectric shock protection
Ipower factor
> 0,75supply voltage
230 Velectrical
starting current
5 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
5 W
electric shock protection
I
power factor
> 0,75
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
1.6 kg
length, mm
203 mm
width, mm
130 mm
height, mm
100 mm
housing color
Металлик
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK08/6,5 Дж
installation diameter, mm
50 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1101800040
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
400 lm
flickering factor
<95%
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

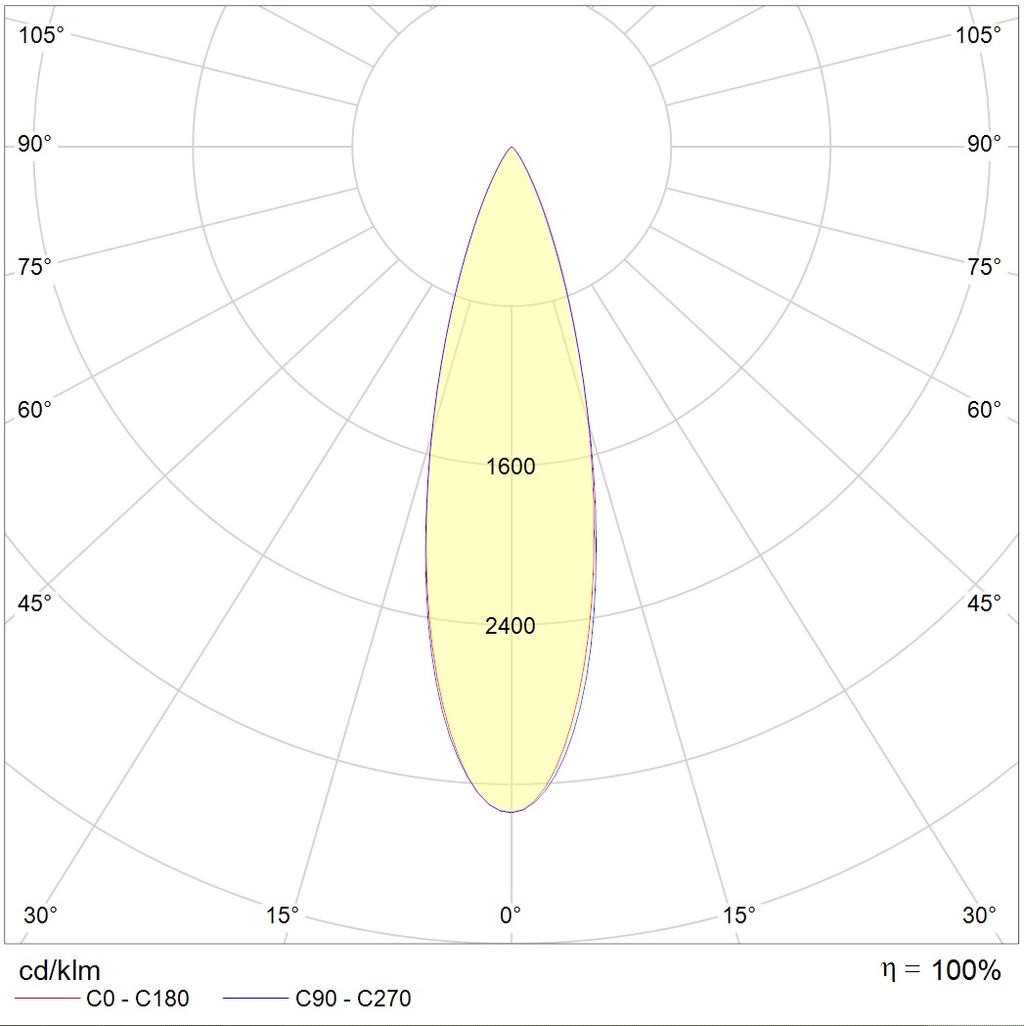

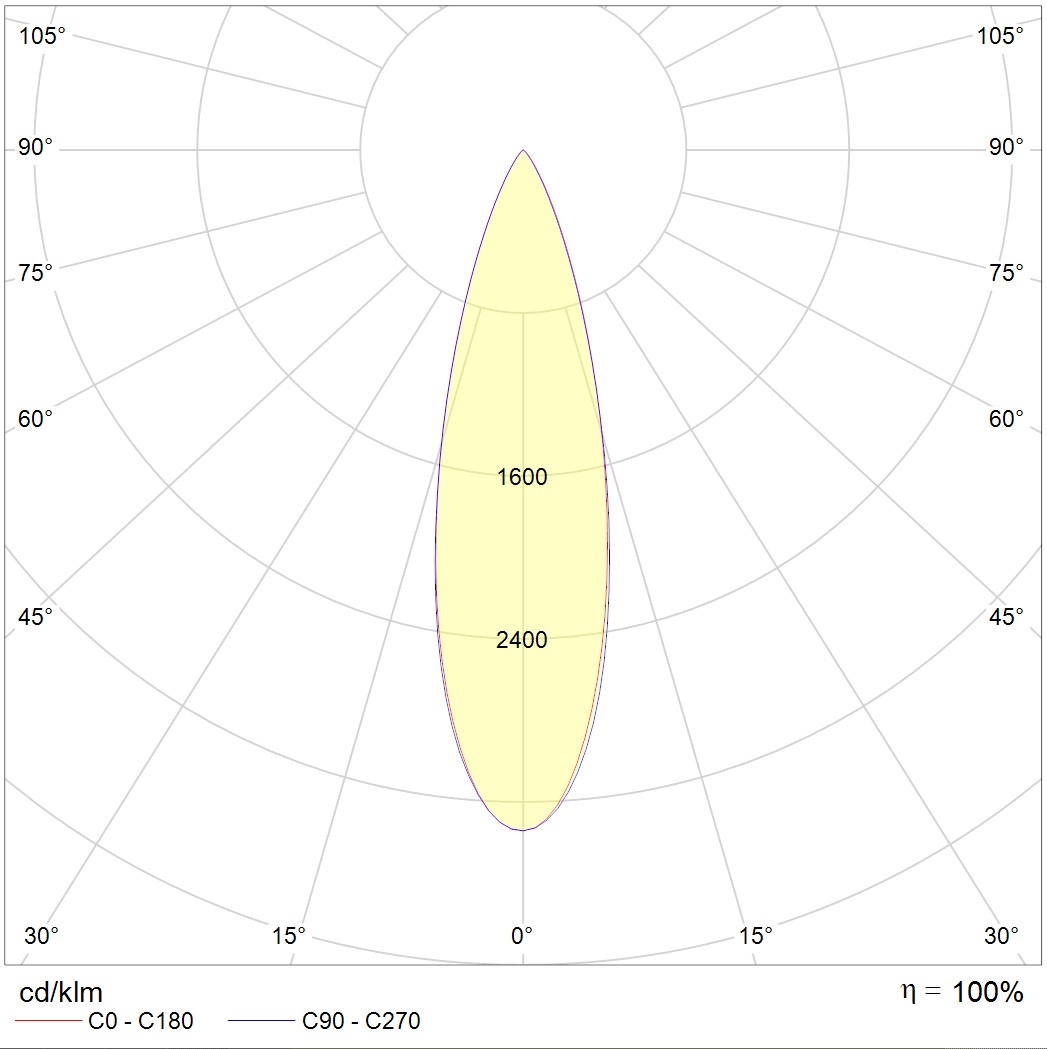

photometric files
ies263.2 kB
jpg113.3 kB
ldt156.5 kB
documents
passport2.9 mB
сертификаты
Russian origin278.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
Fire Safety Certificate2.5 mB
