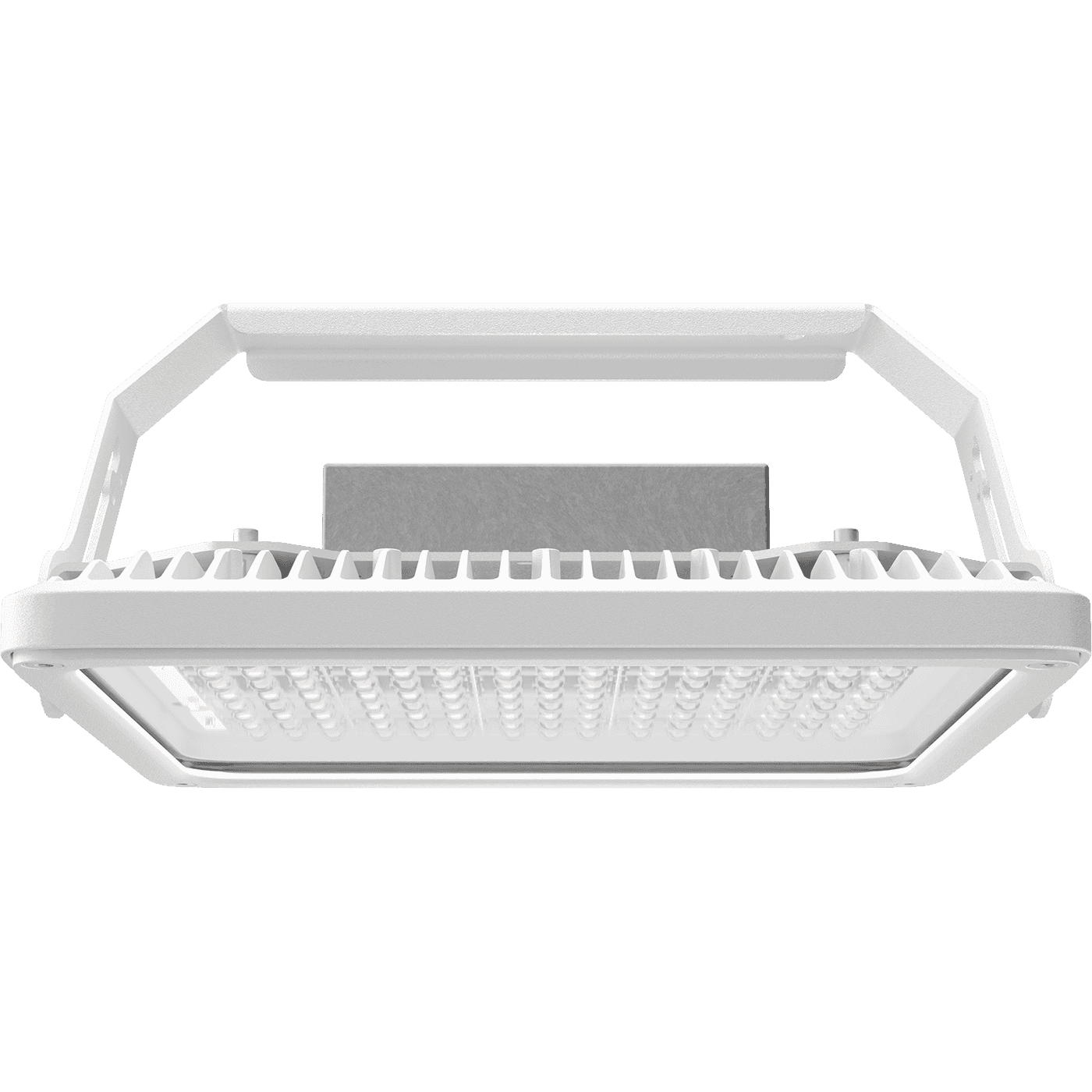

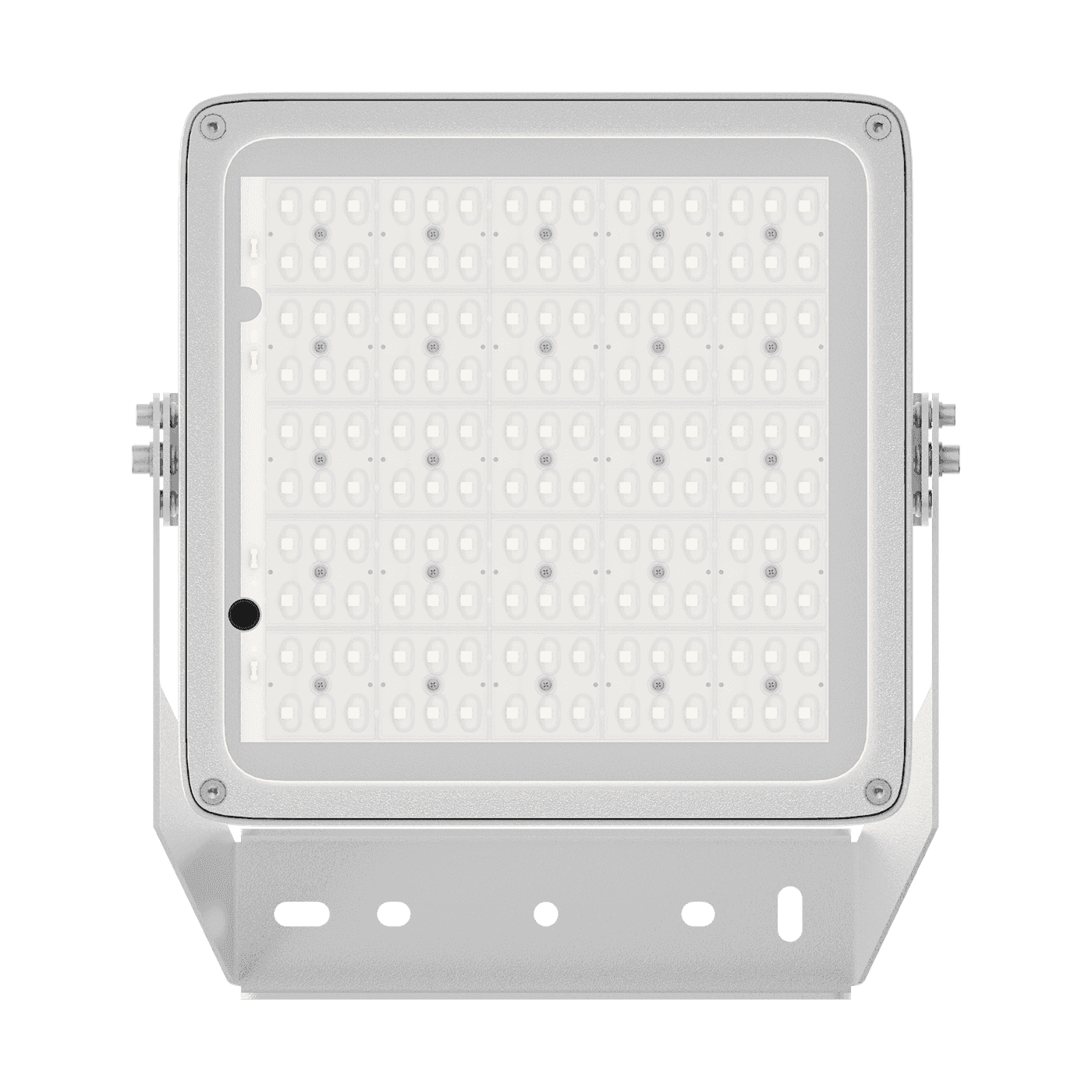

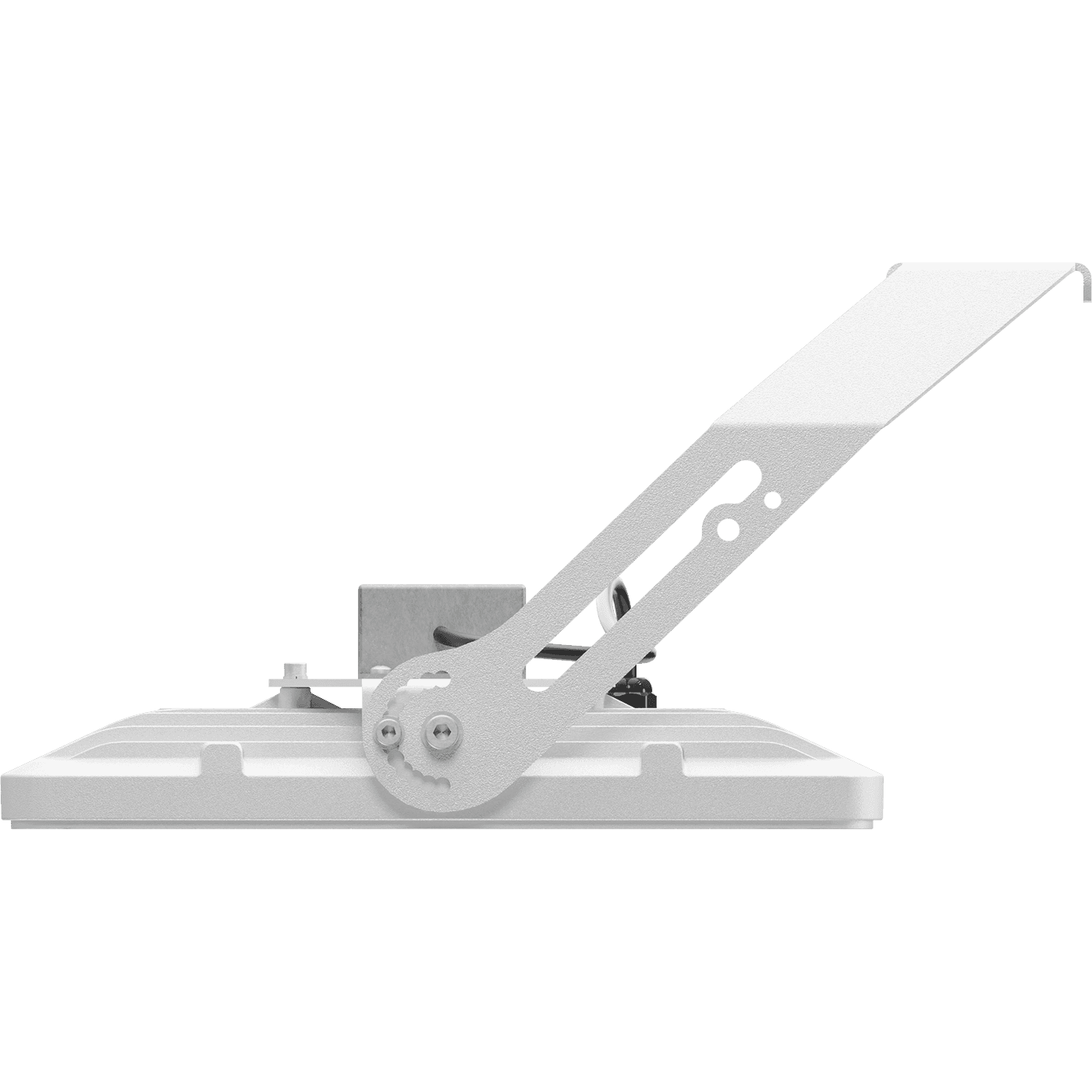

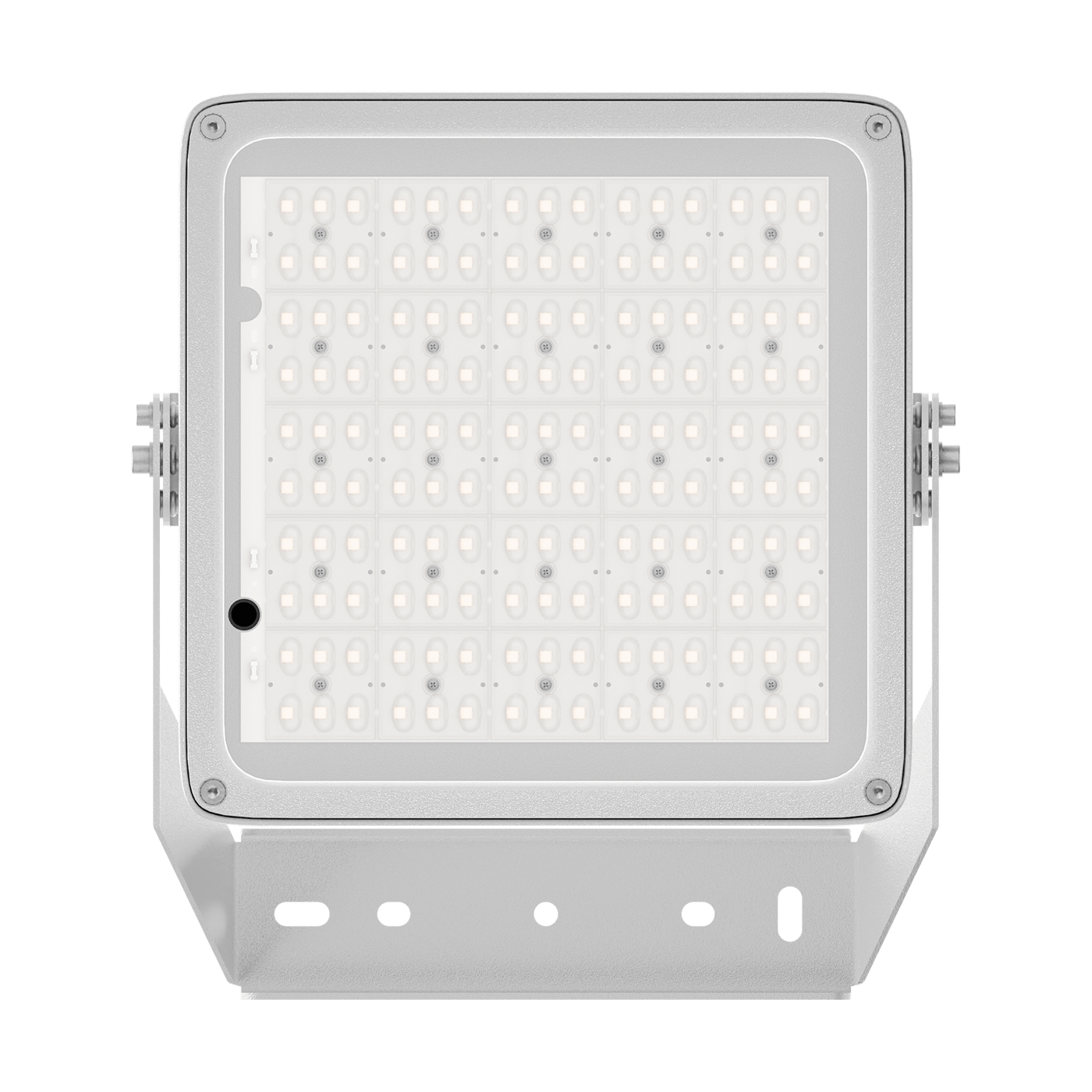

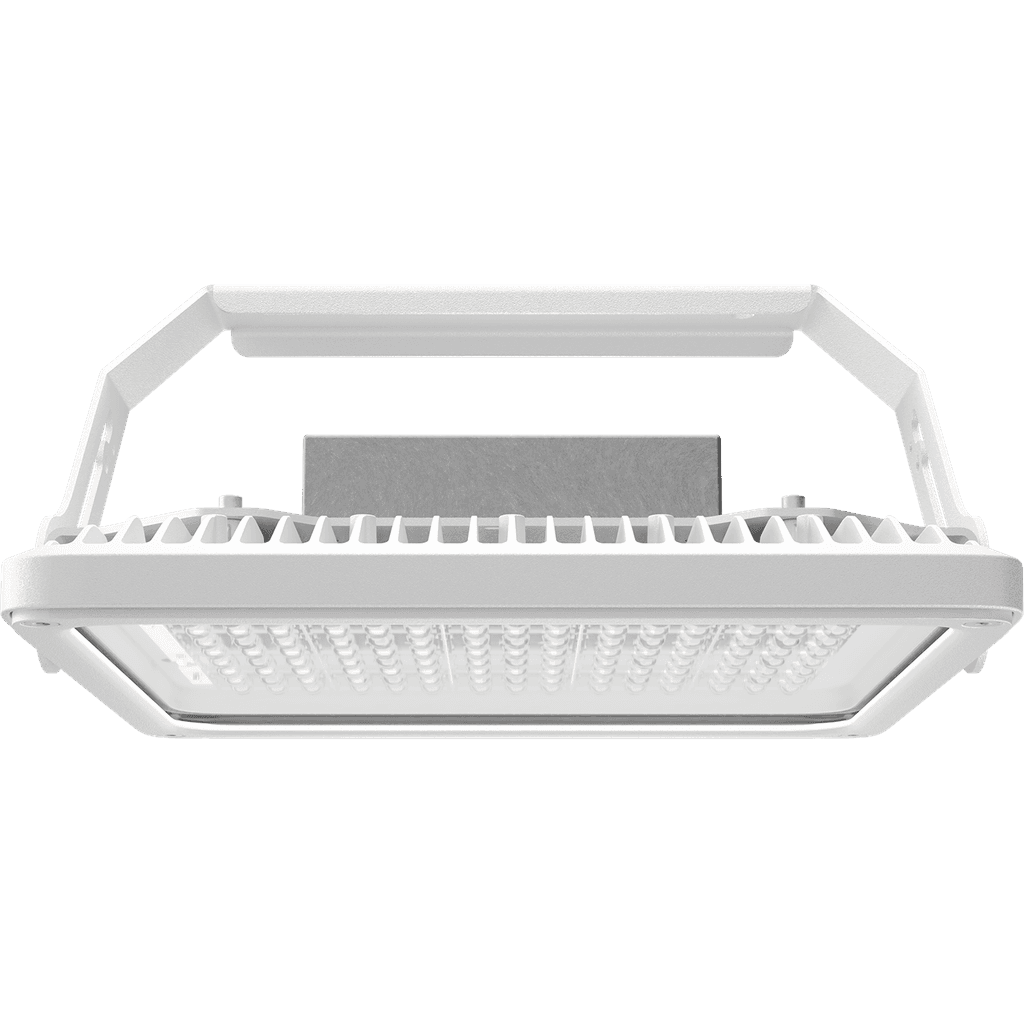

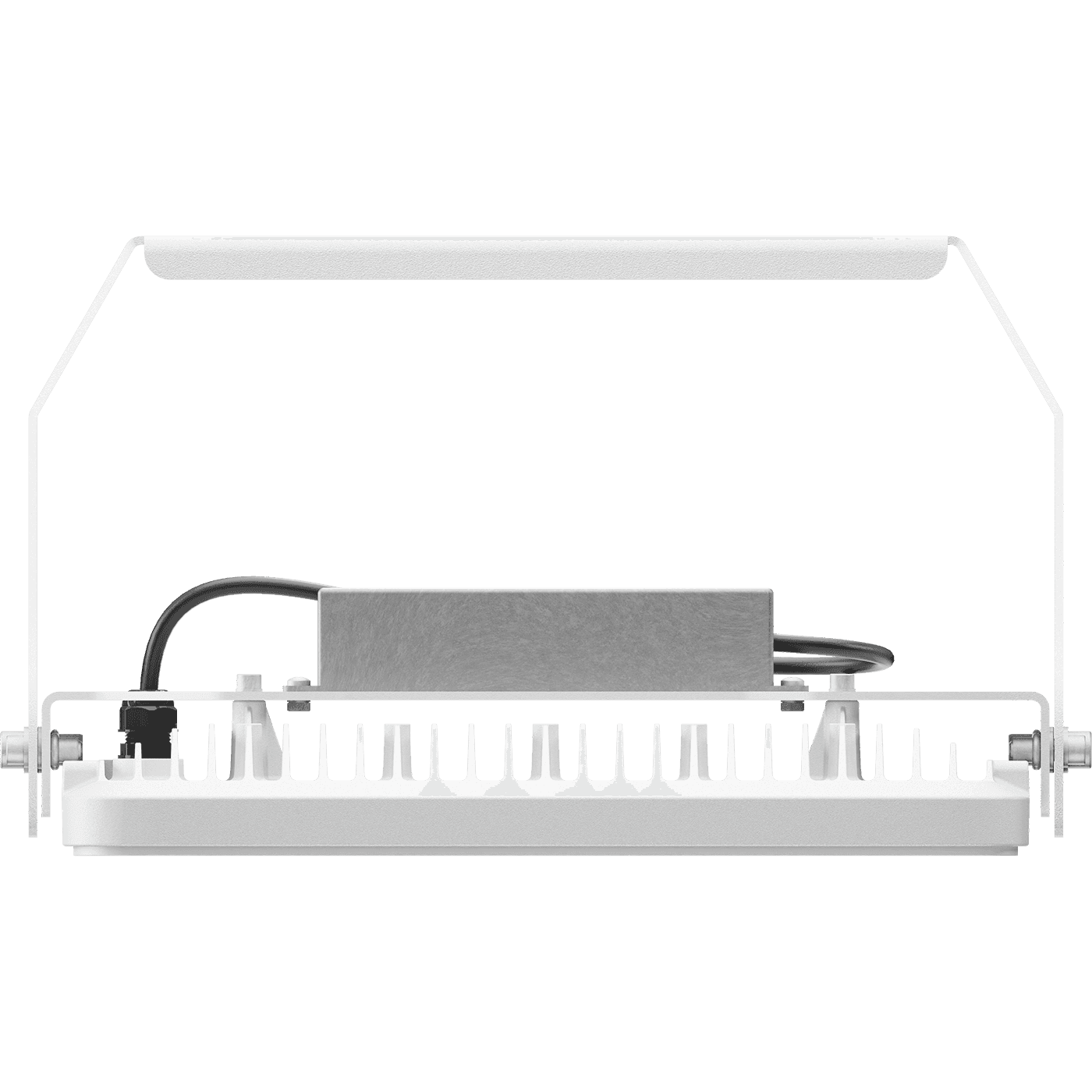

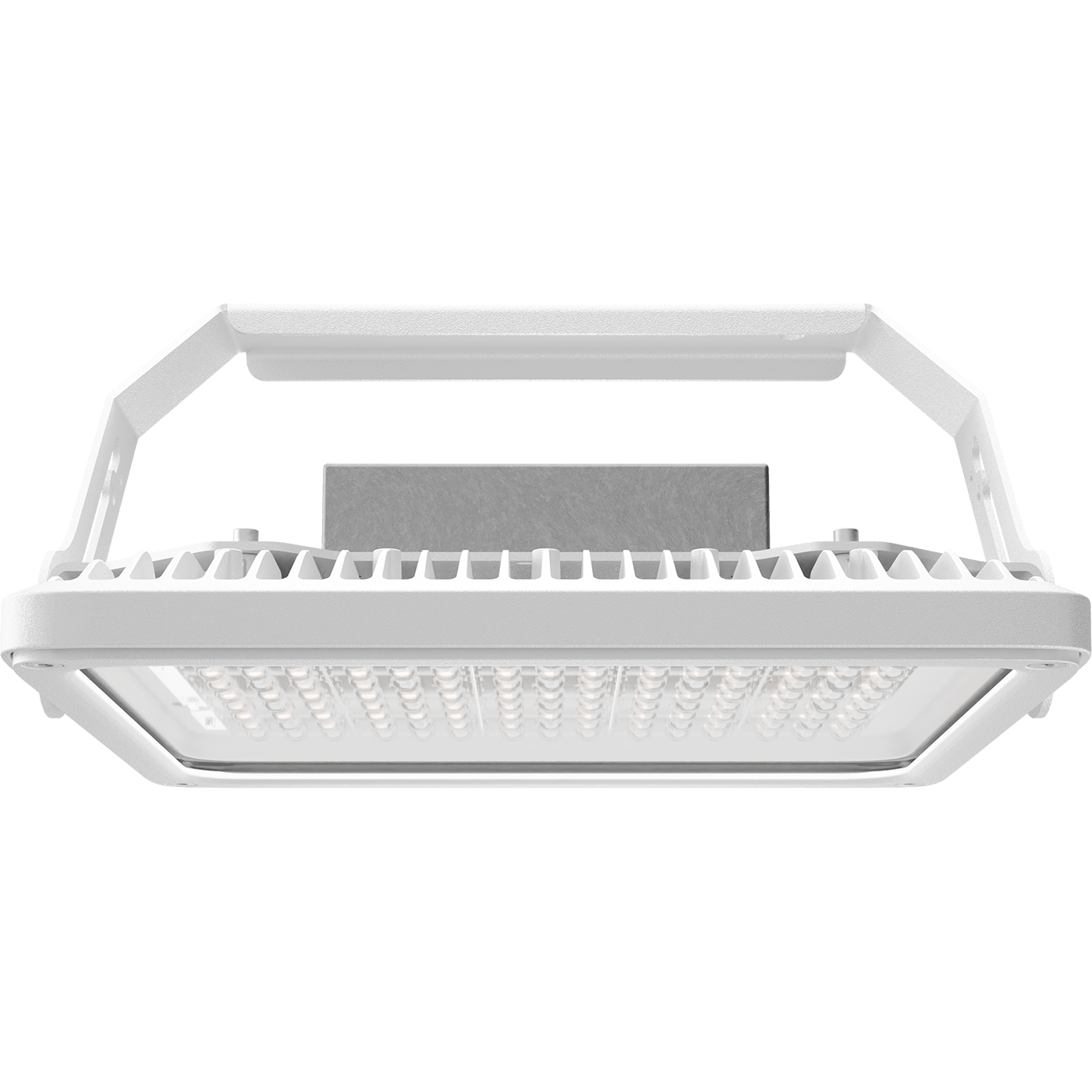

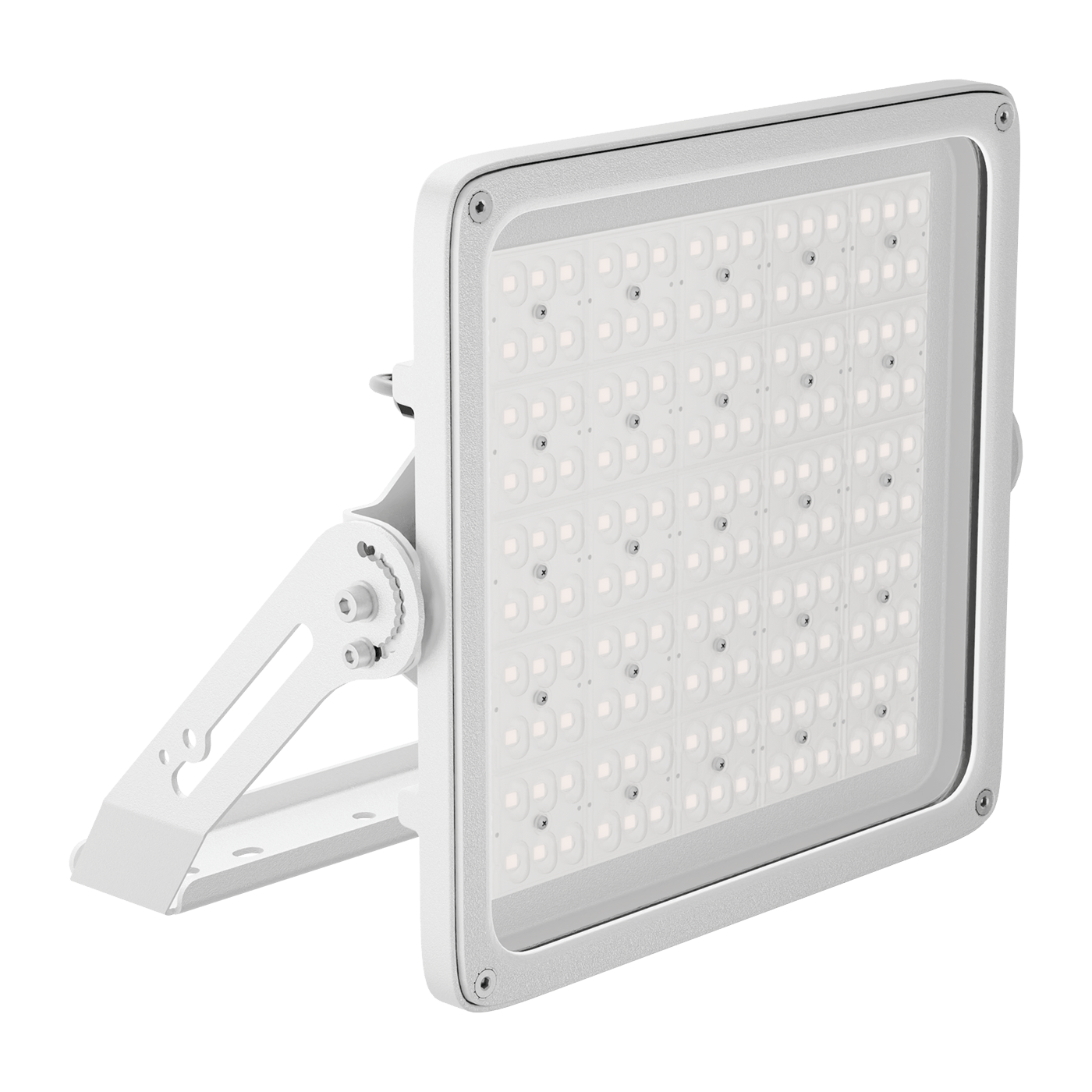

INSEL LB/S LED G3 100W D30 850 WH FB

INSEL LB/S LED G3 100W D30 850 WH FB
100 Wluminaire power
16000 lmlight flow
160 lm/Wenergy efficiency
code1334004570
color temperature5000
beam angleD30
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80
light flow
16000 lm
flickering factor
<1%
energy efficiency
160 lm/W
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
16000 lm
flickering factor
<1%
energy efficiency
160 lm/W
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
100 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
33 A
supply voltage
230 V
starting current pulse time, µs
380 mks
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP67
weight
8 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
installation length, mm
220 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +60 C
code
1334004570
model files
model files

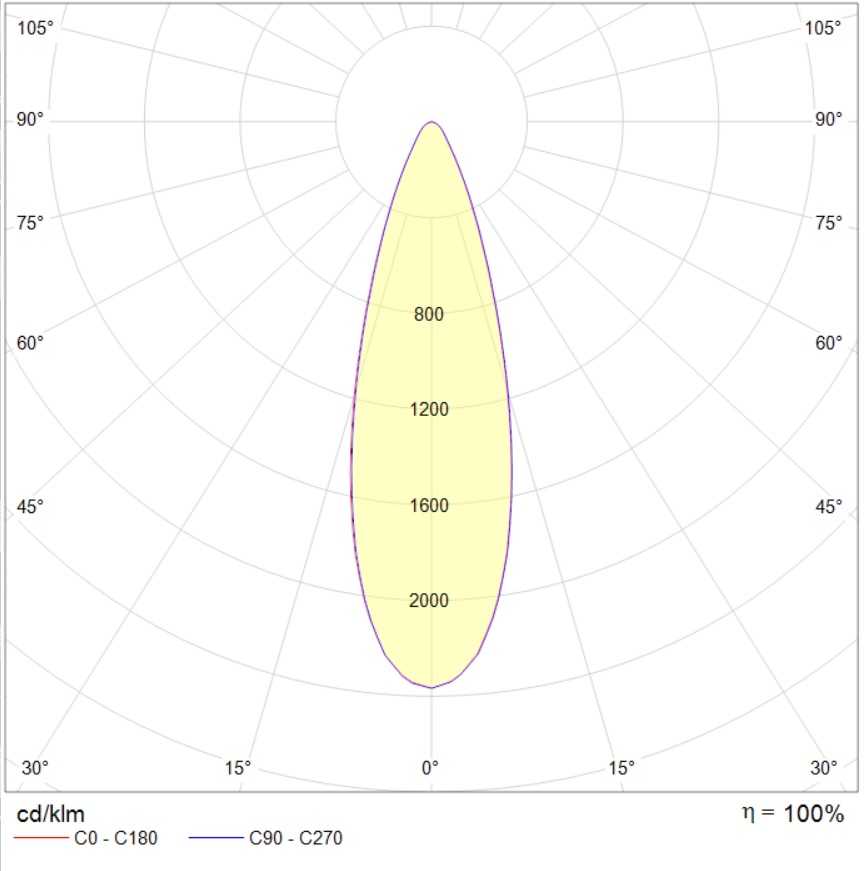

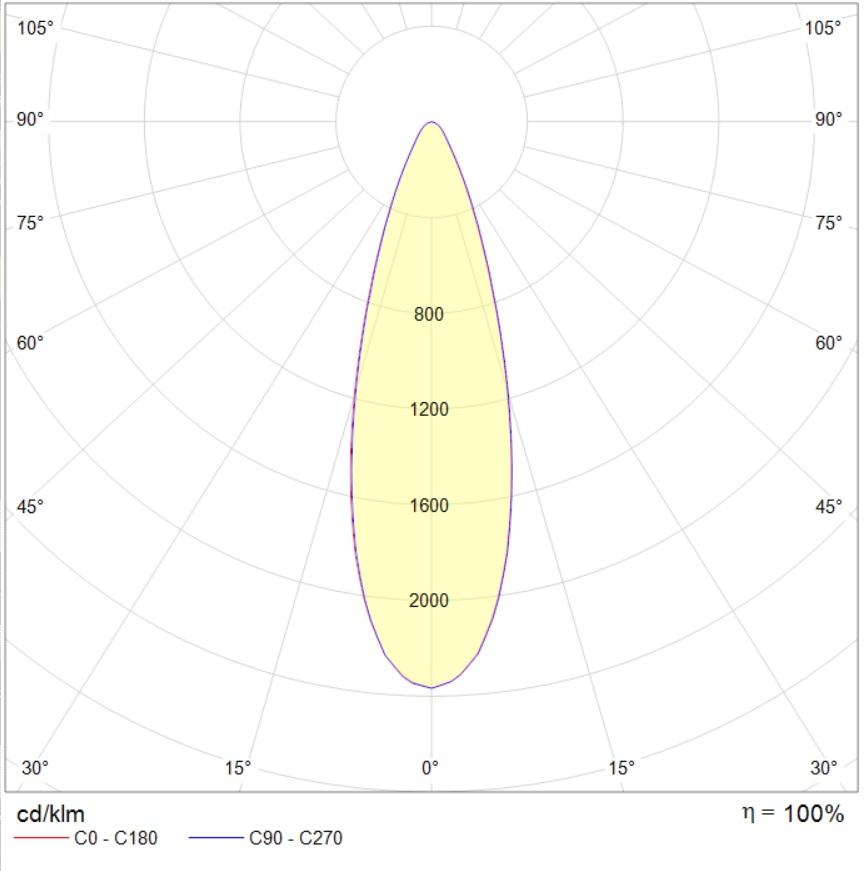

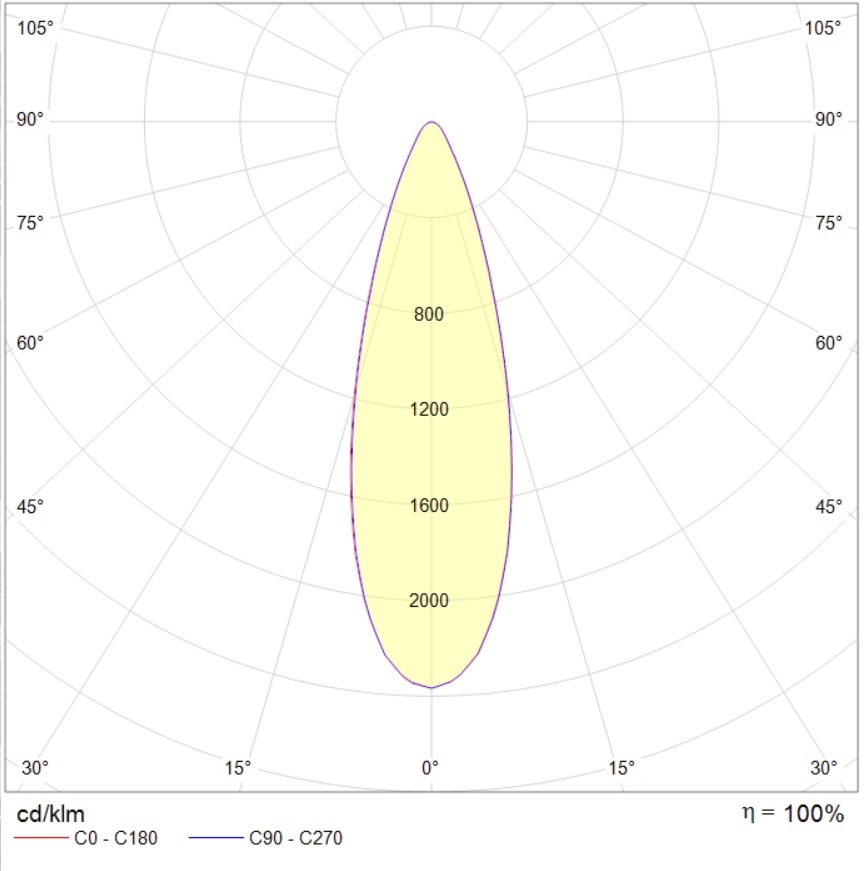

photometric files
ies107.1 kB
jpg83.5 kB
ldt71.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies107.1 kB
jpg83.5 kB
ldt71.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
