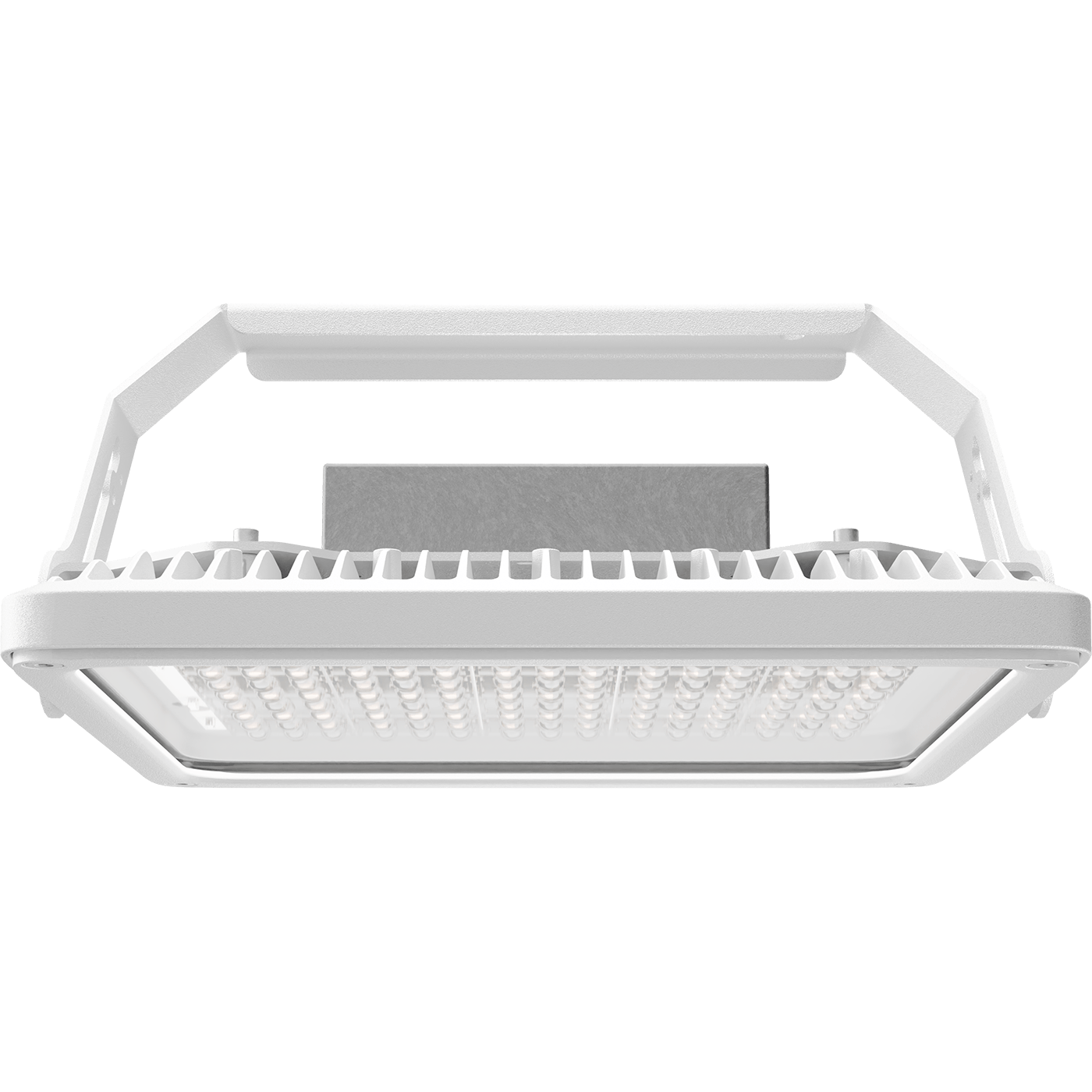

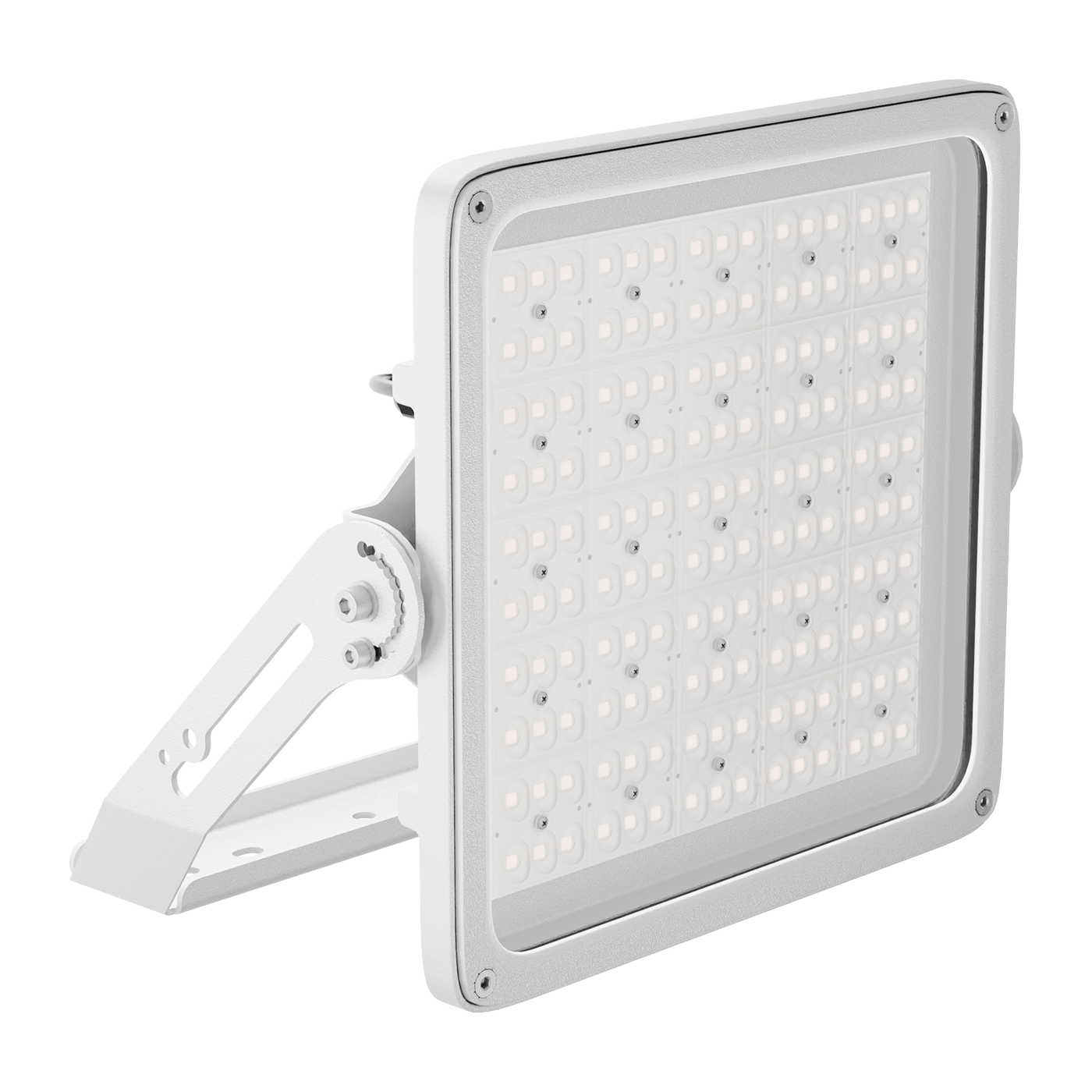

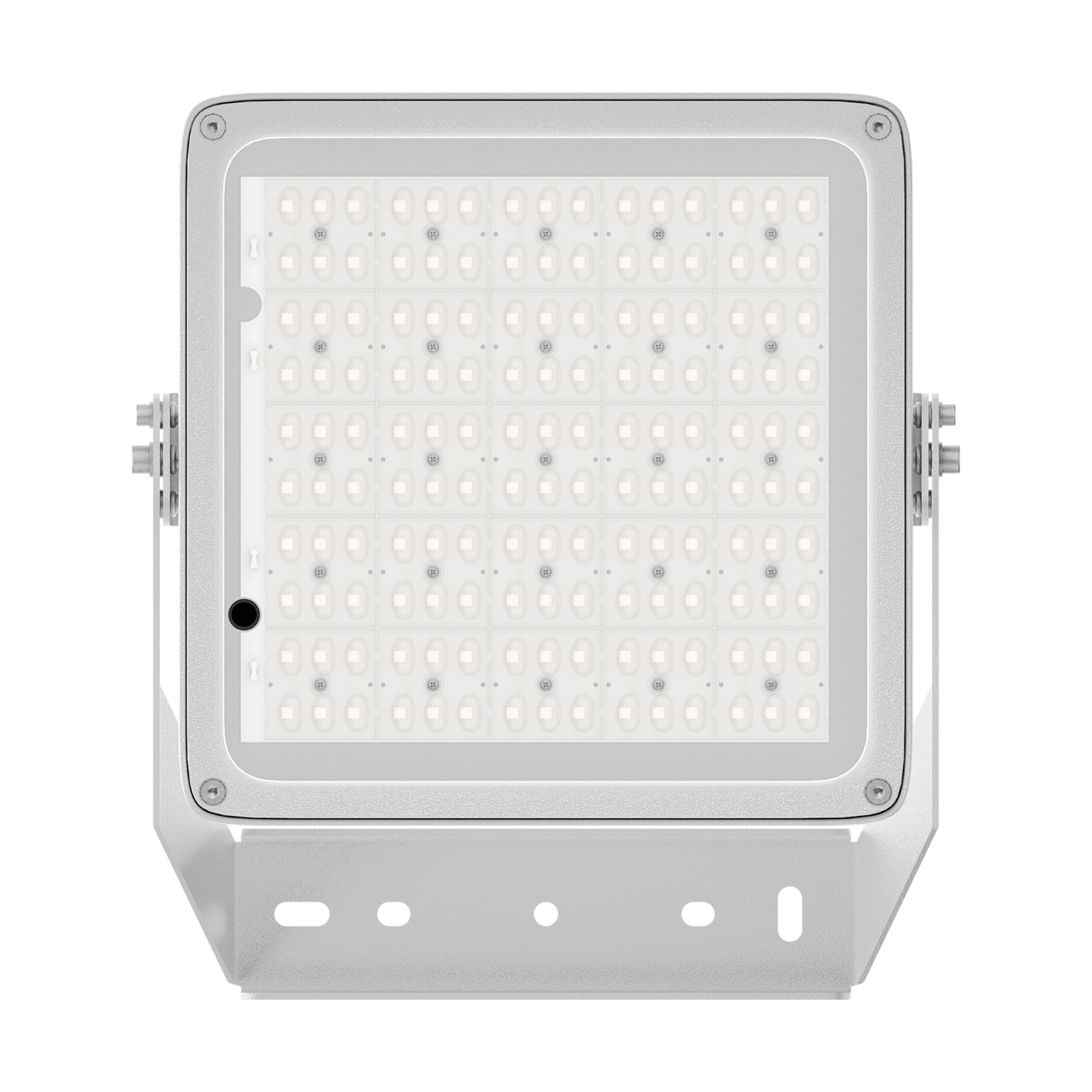

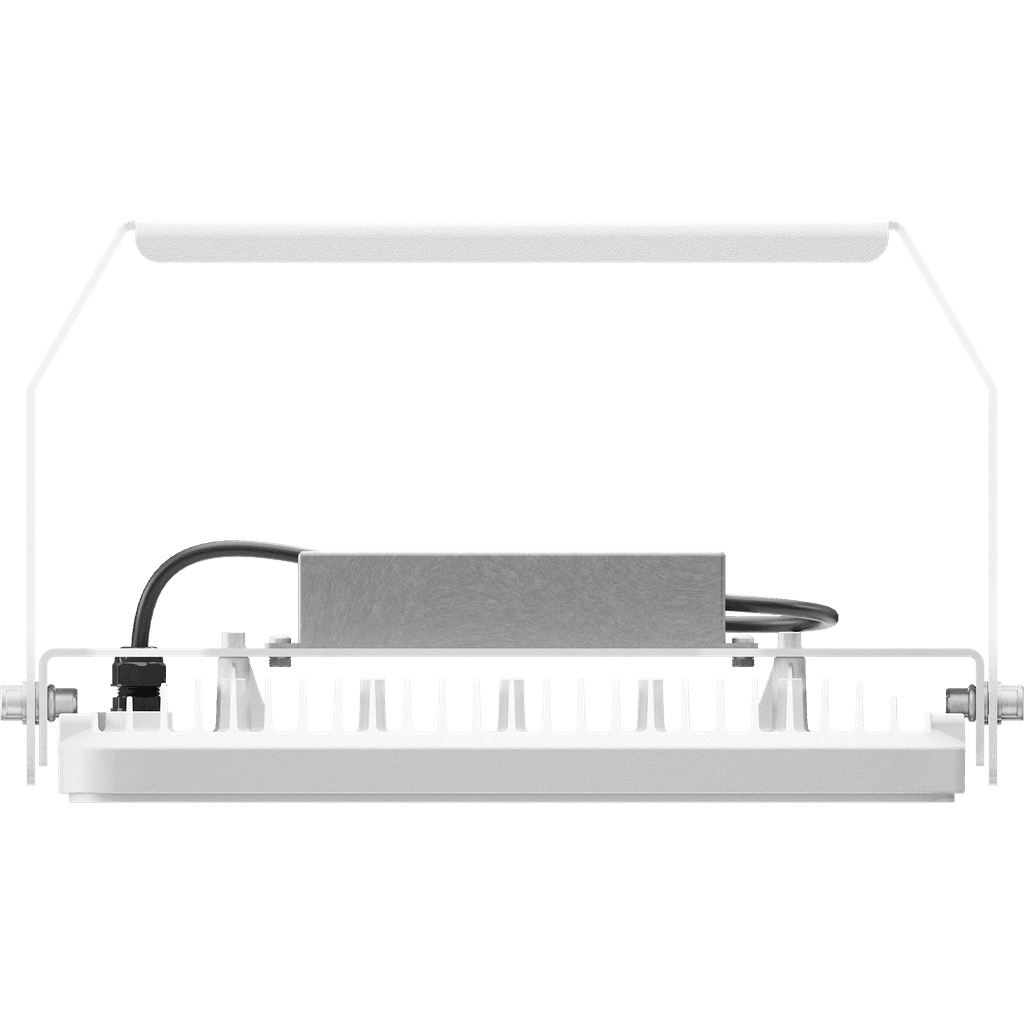

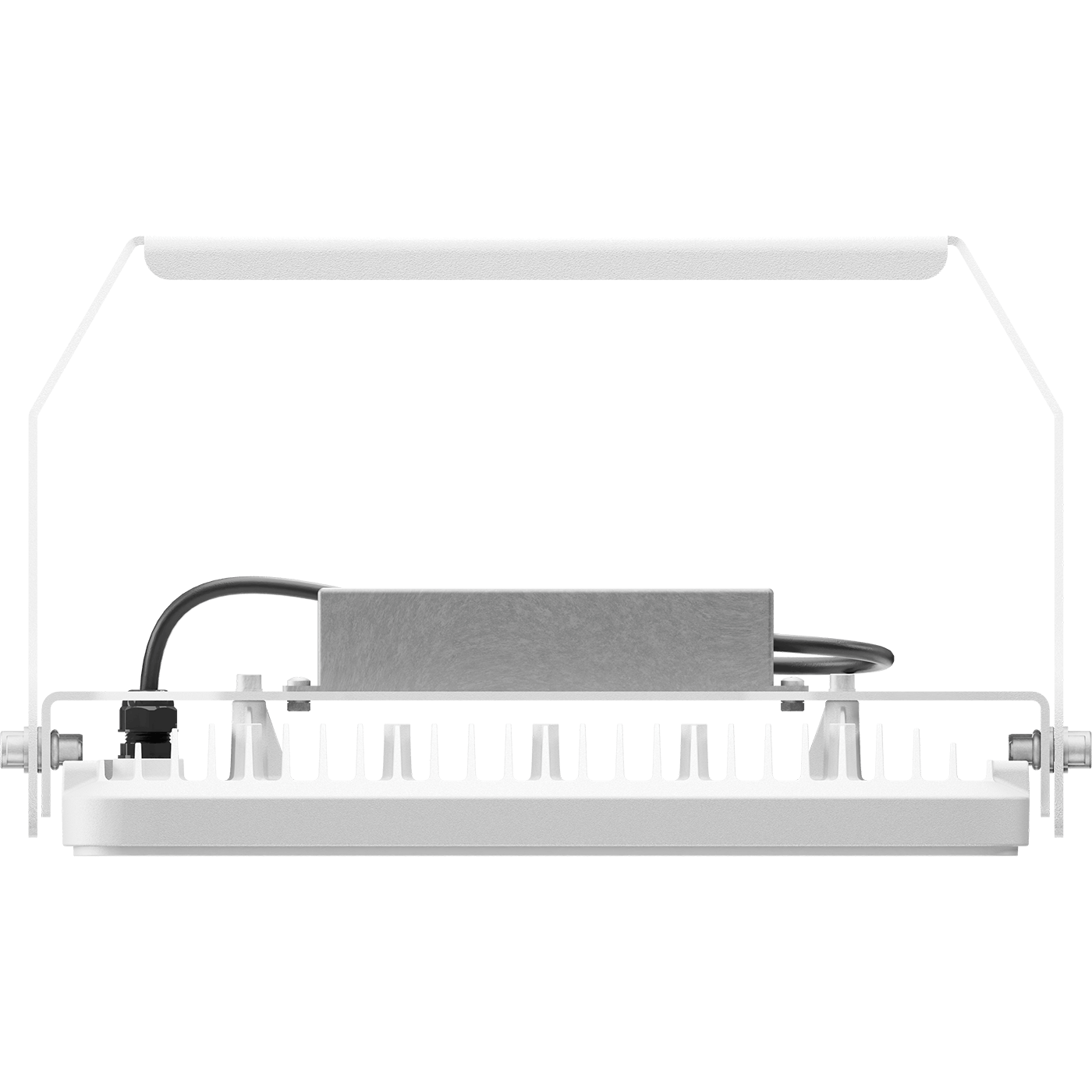

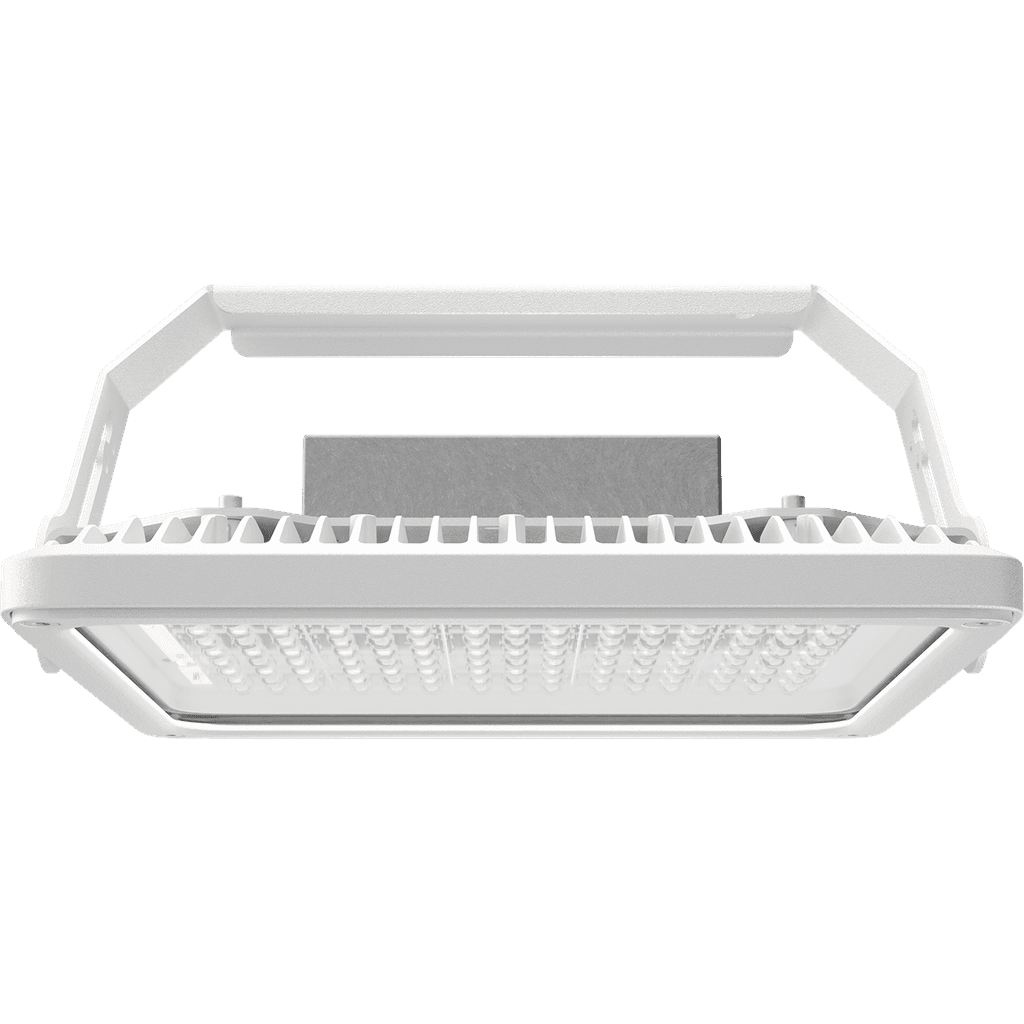

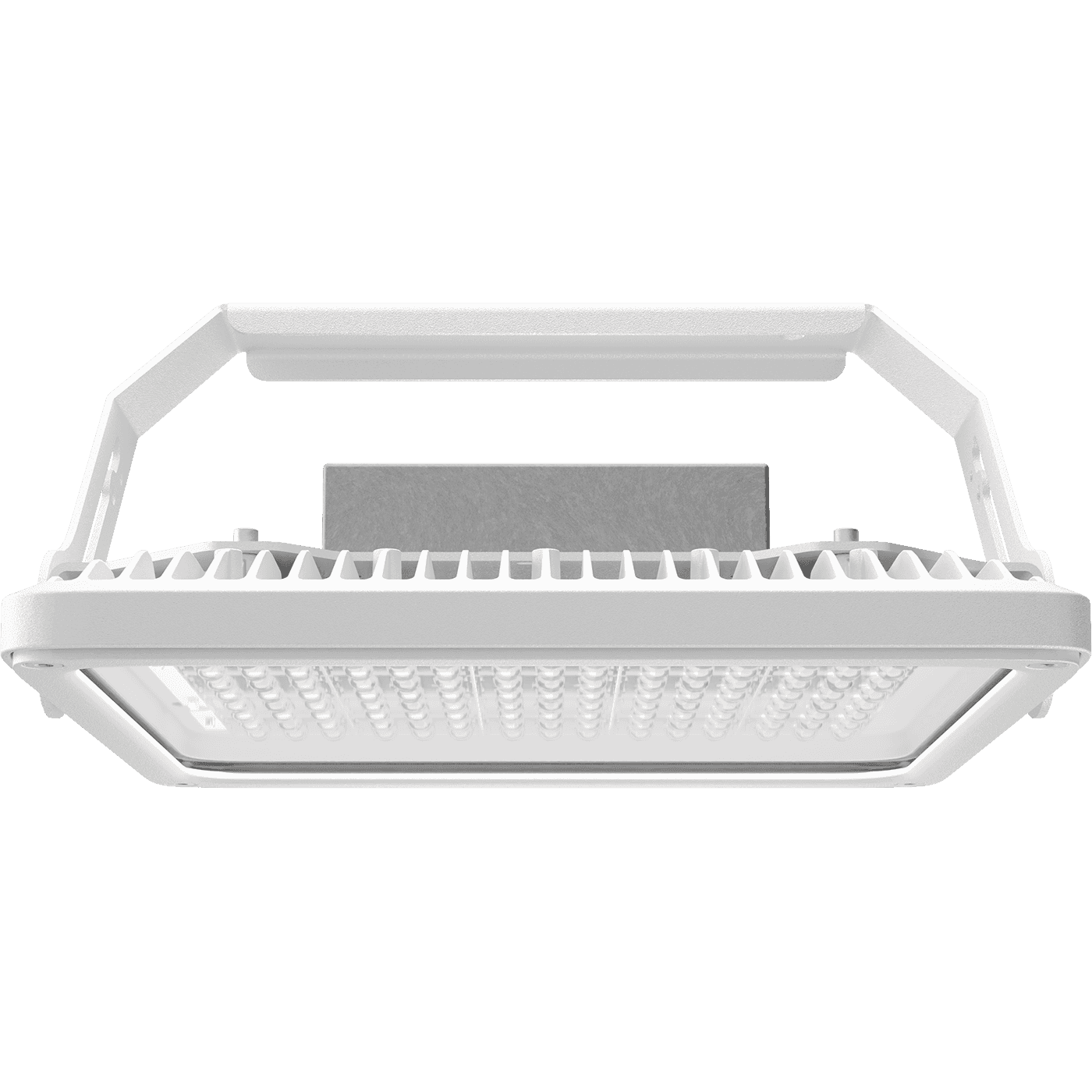

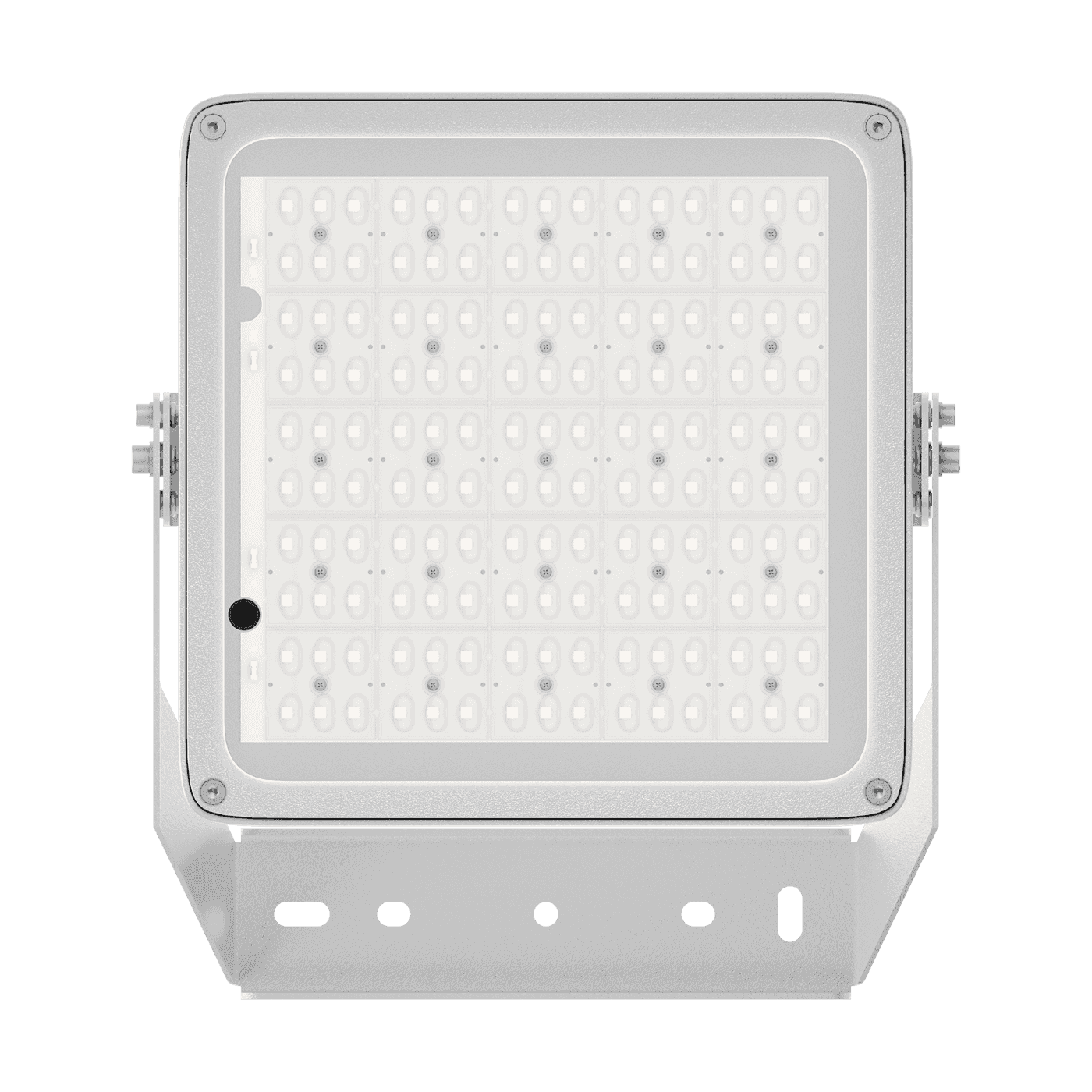

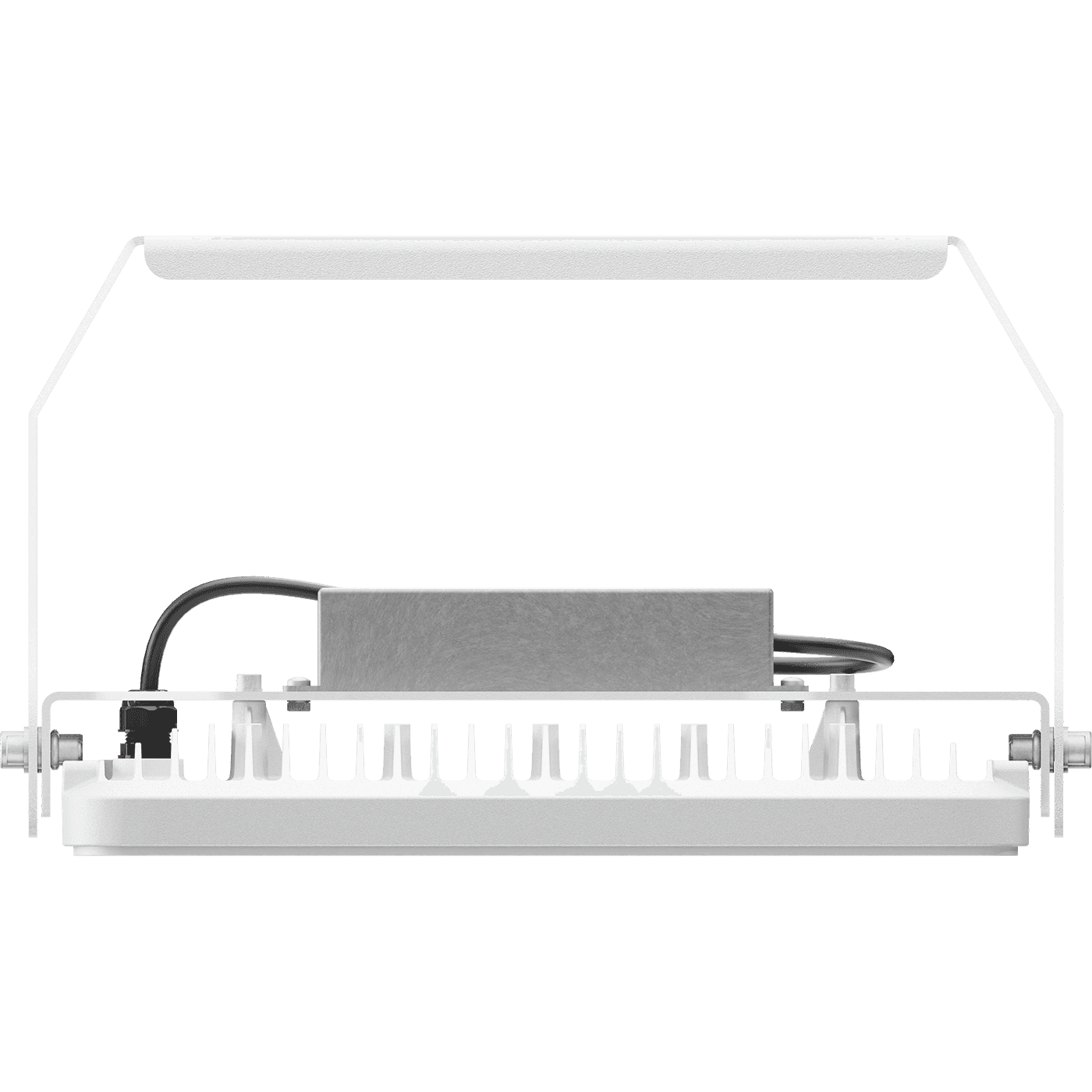

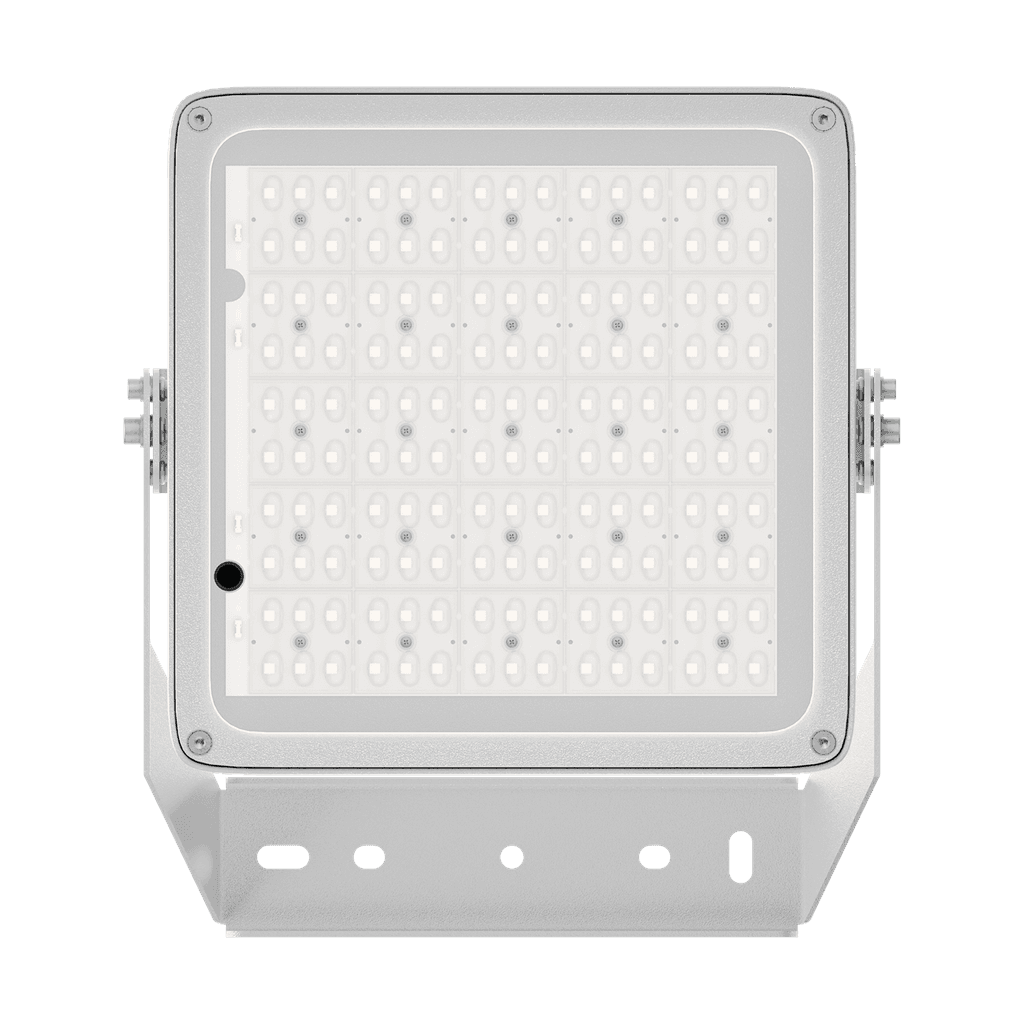

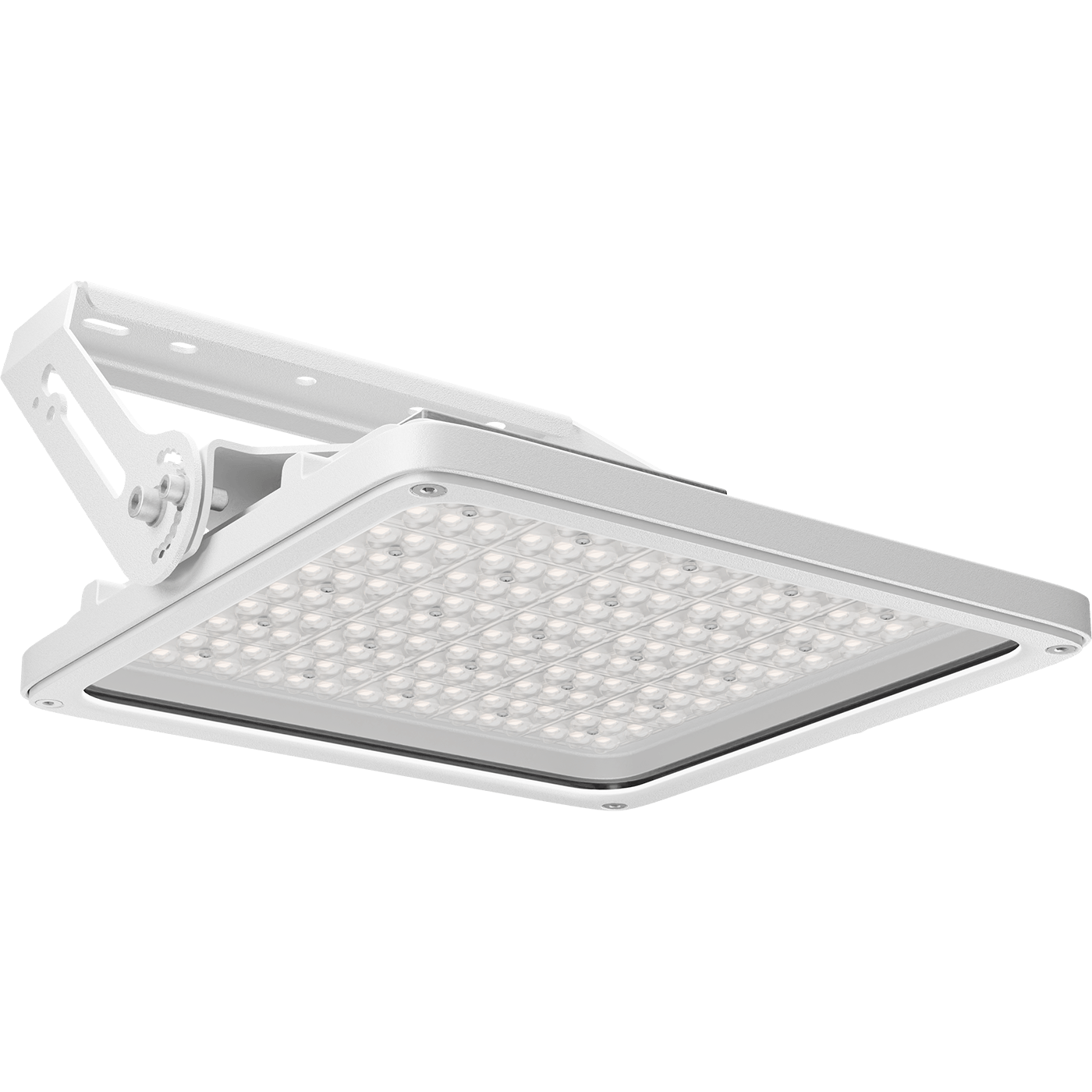

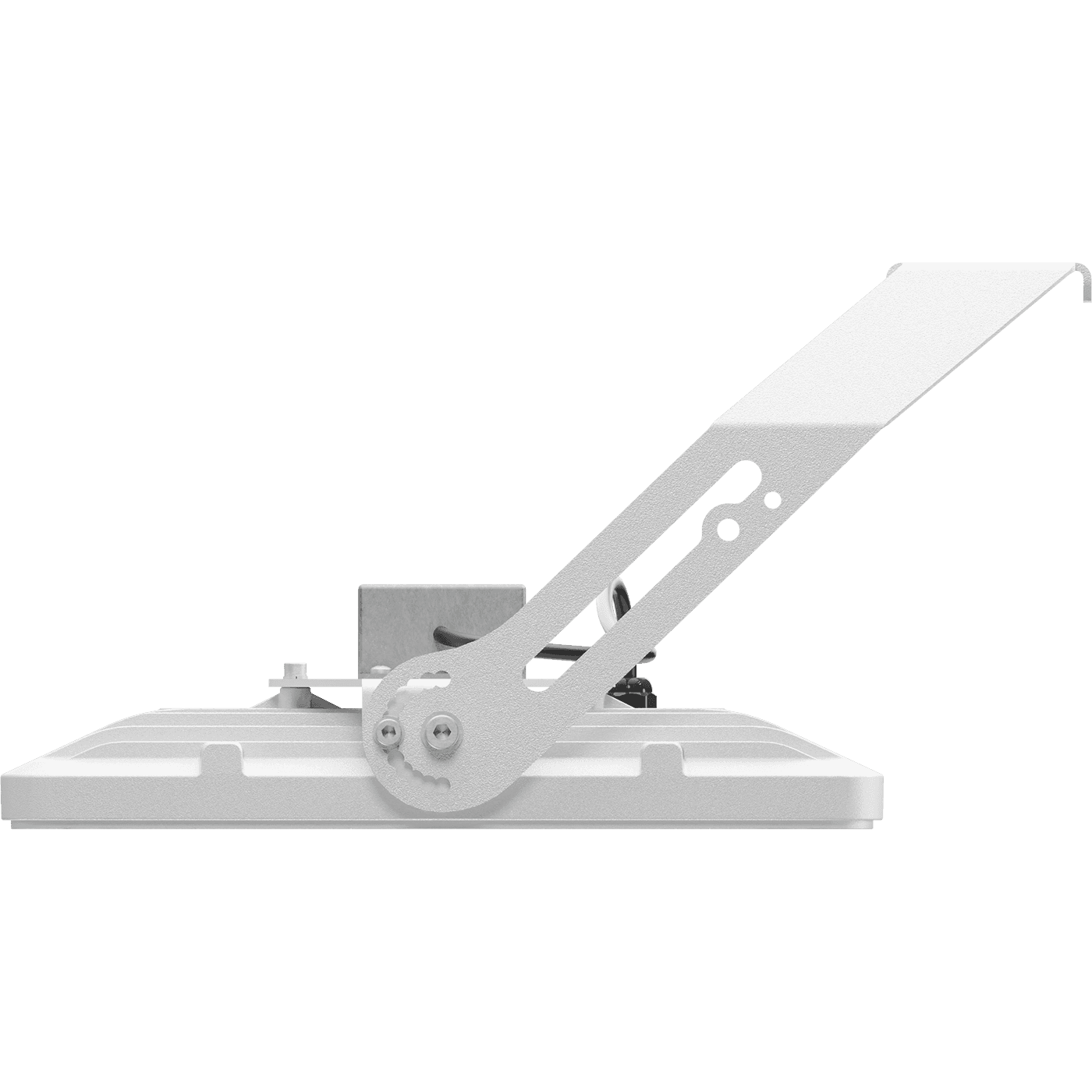

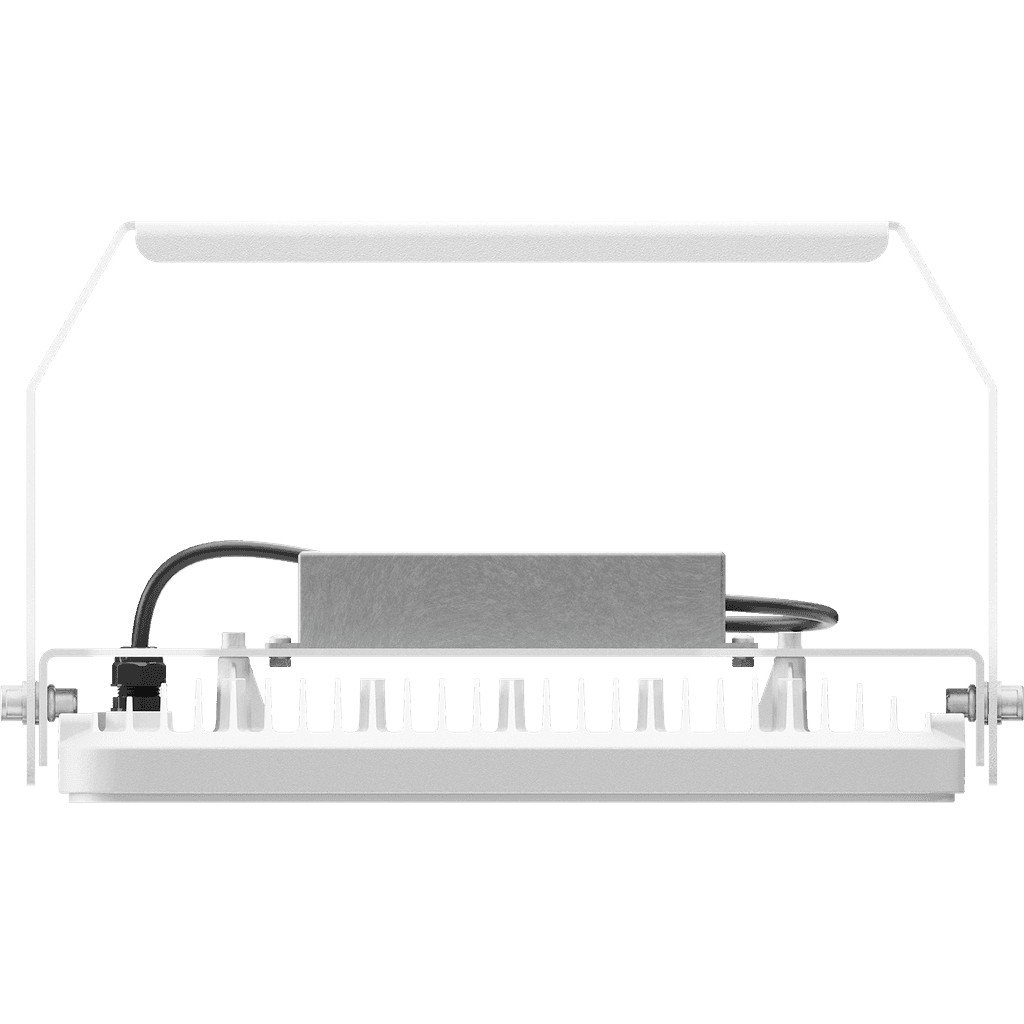

INSEL LB/S LED G3 230W D60 757 WH FB
INSEL LB/S LED G3 230W D60 757 WH FB
240 Wluminaire power
39000 lmlight flow
163 lm/Wenergy efficiency
code1334005130
color temperature5700
beam angleD60
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
39000 lmflickering factor
<5%energy efficiency
163 lm/Wbeam angle
D60color temperature
5700light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
39000 lm
flickering factor
<5%
energy efficiency
163 lm/W
beam angle
D60
color temperature
5700
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
240 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP67
weight
8 kg
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
installation length, mm
220 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1334005130
model files
model files

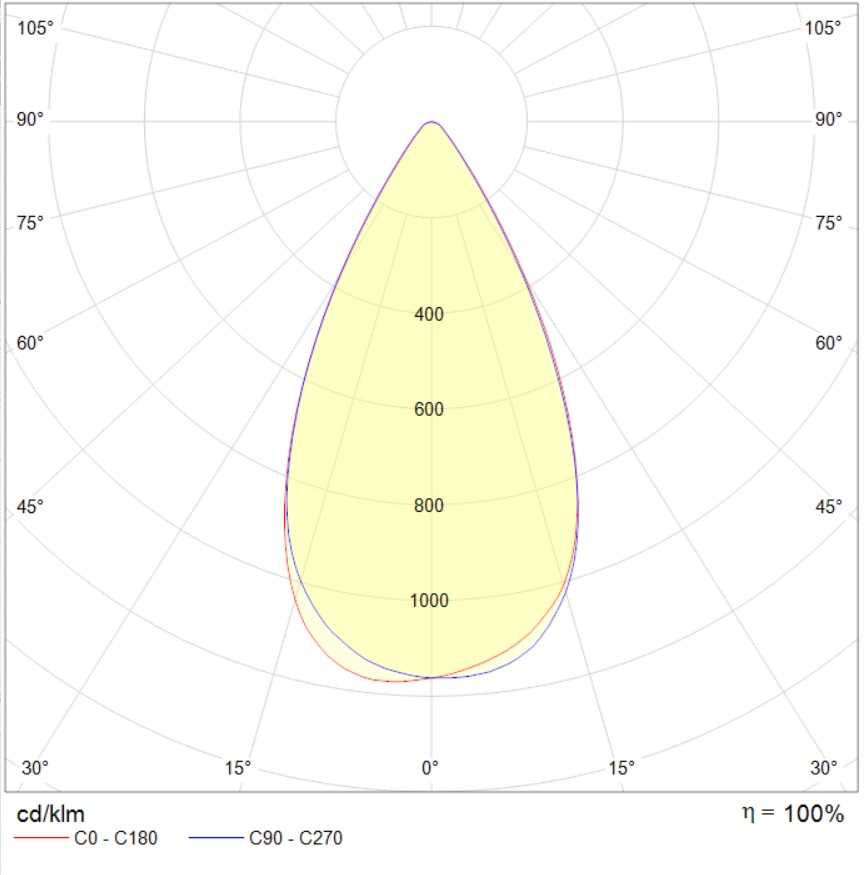

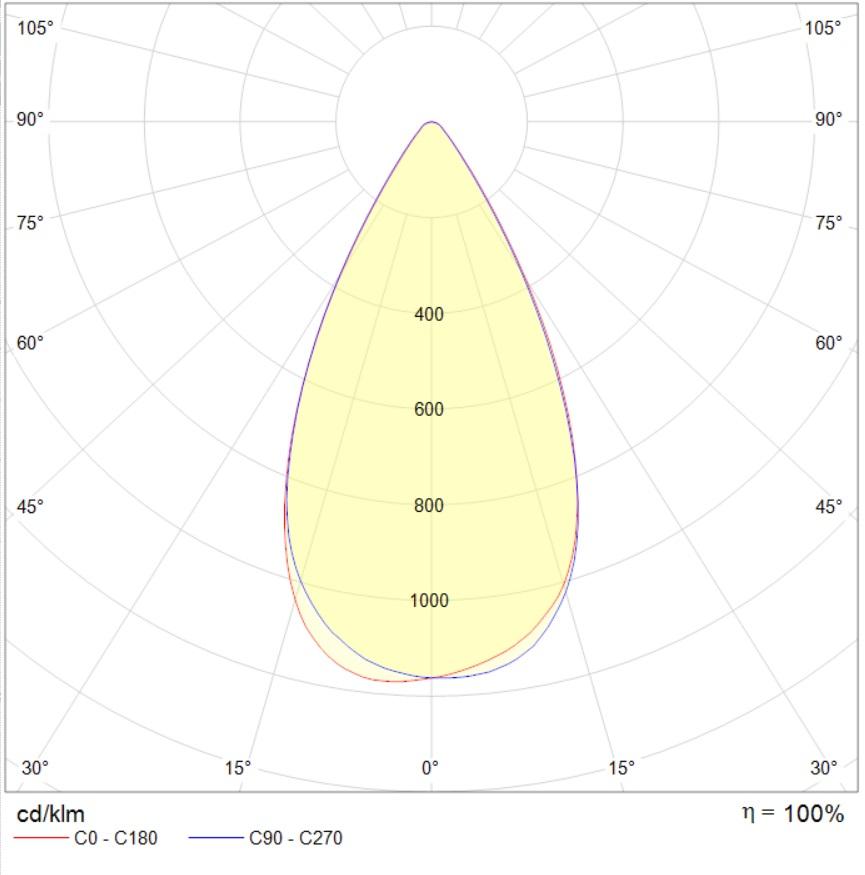

photometric files
сертификаты
photometric files
ies263.2 kB
jpg88.1 kB
ldt168.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
