K LED 300 4000K
K LED 300 4000K
18 Wluminaire power
1700 lmlight flow
94 lm/Wenergy efficiency
code1597000020
color temperature4000 K
beam angleD140
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
94 lm/Wcolor rendition index (CRI)
>80light flow
1700 lmflickering factor
<5%beam angle
D140color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
94 lm/W
color rendition index (CRI)
>80
light flow
1700 lm
flickering factor
<5%
beam angle
D140
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.28 µs
electric shock protection
II
luminaire power
18 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
43 A
constructional
length
300 mm
width
300 mm
height
87 mm
installation length
200 mm
installation width
200 mm
weight
1.2 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Полиамид
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -20 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1597000020
model files
model files
CAD/BIM files

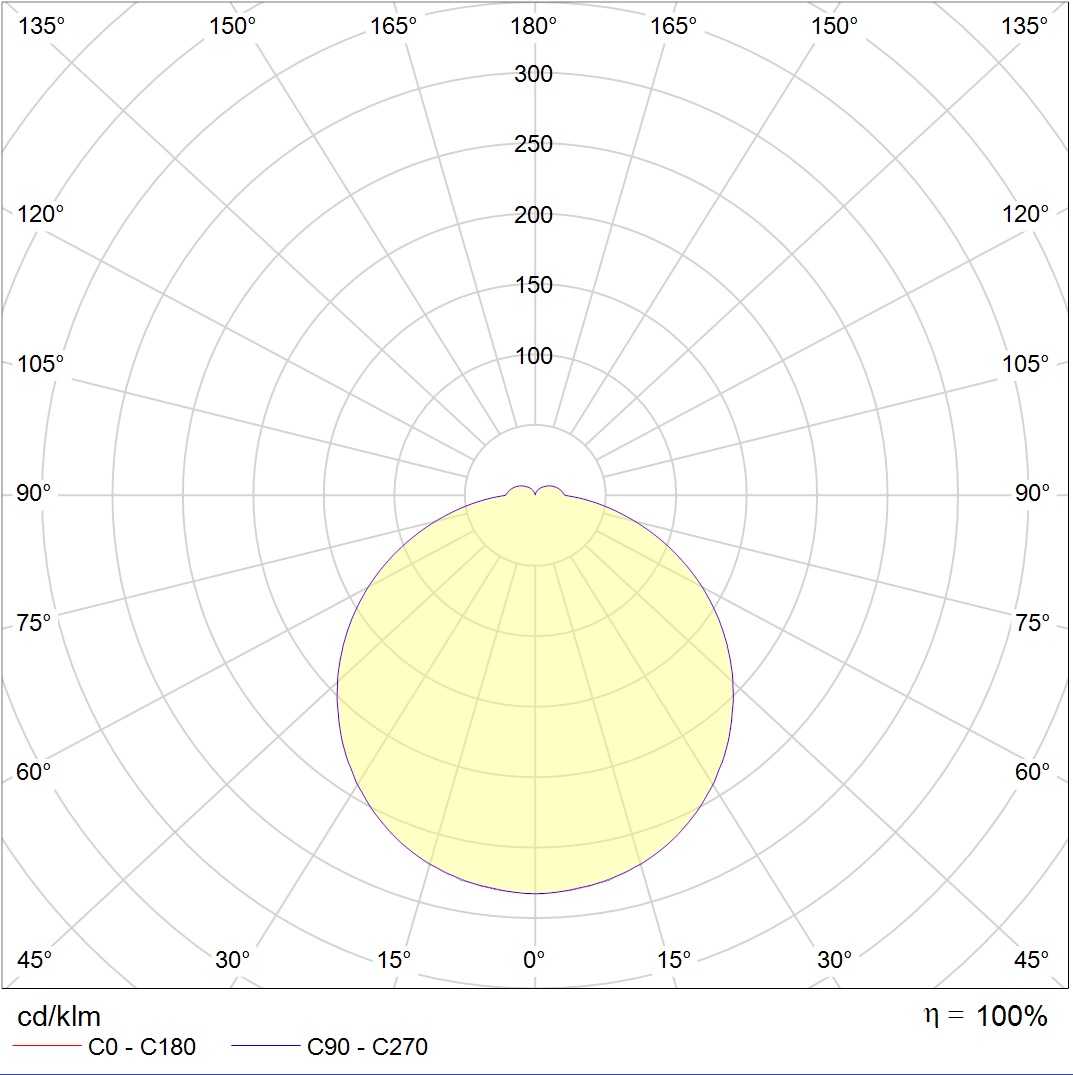

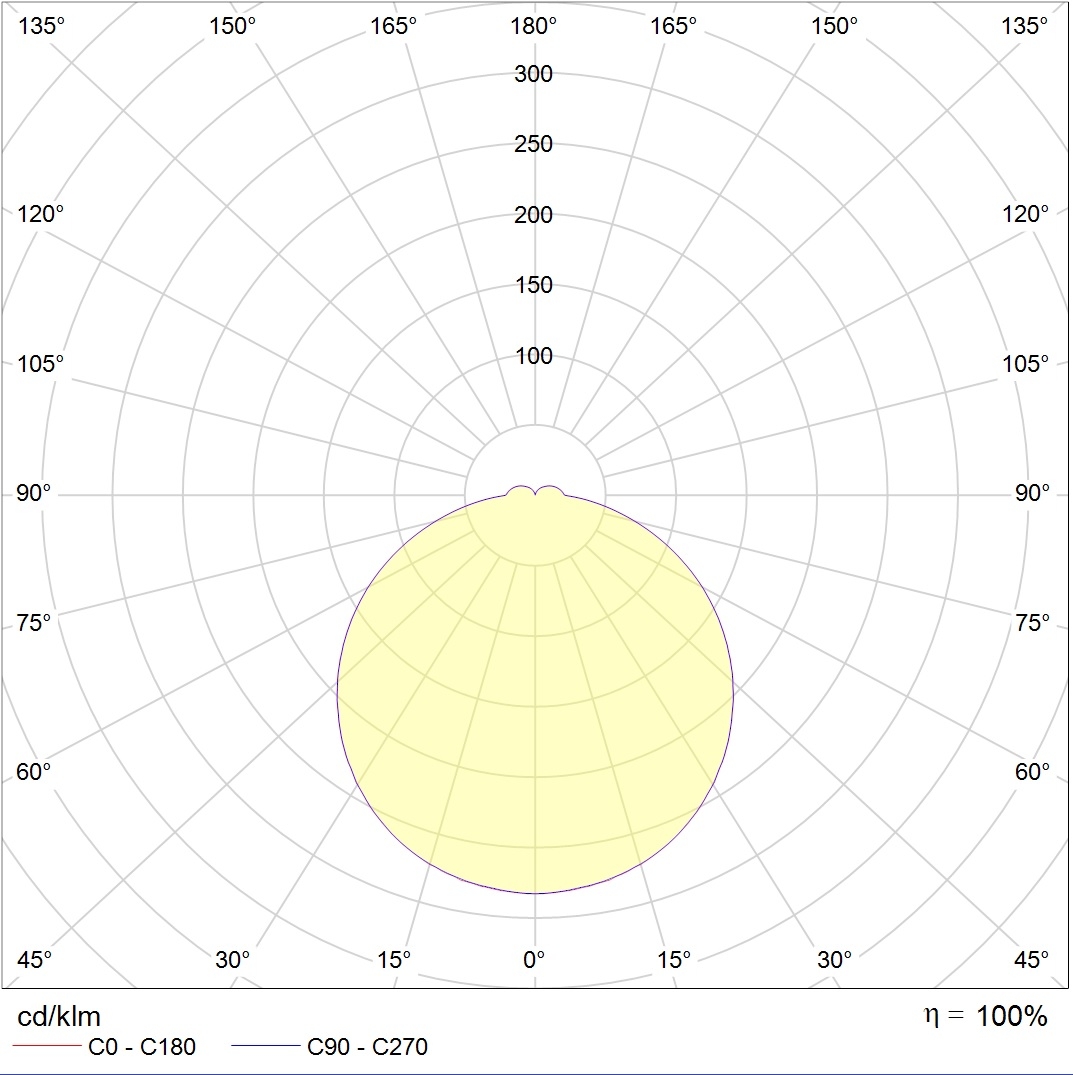

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax212 kB
photometric files
ies134.1 kB
jpg170 kB
ldt118.1 kB
csv403 B
documents
passport1.2 mB
сертификаты
Russian origin274.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories
Grid K 3001.1kgarticle: 2135000040
Mounting kit X40.013kgarticle: 2995000040
