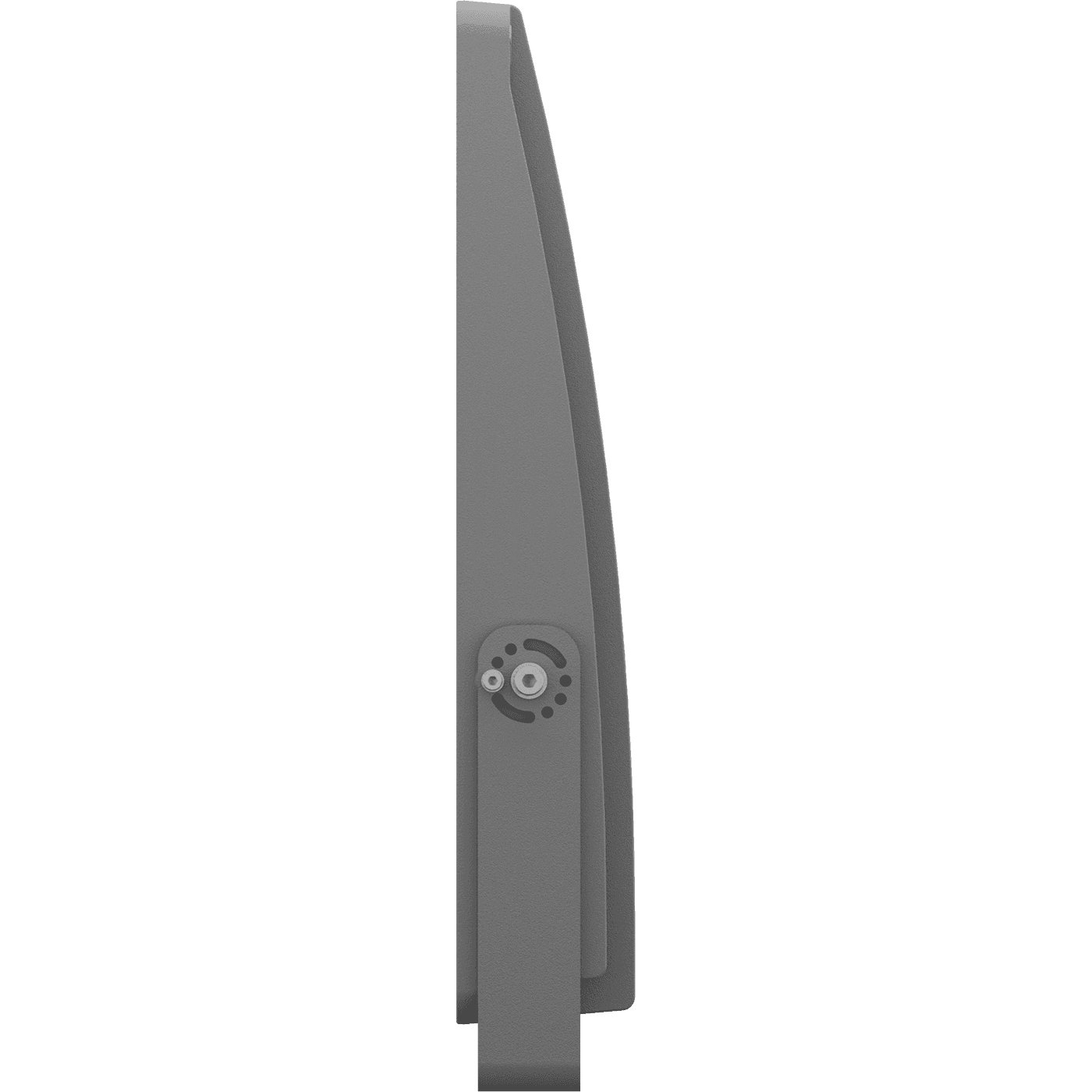

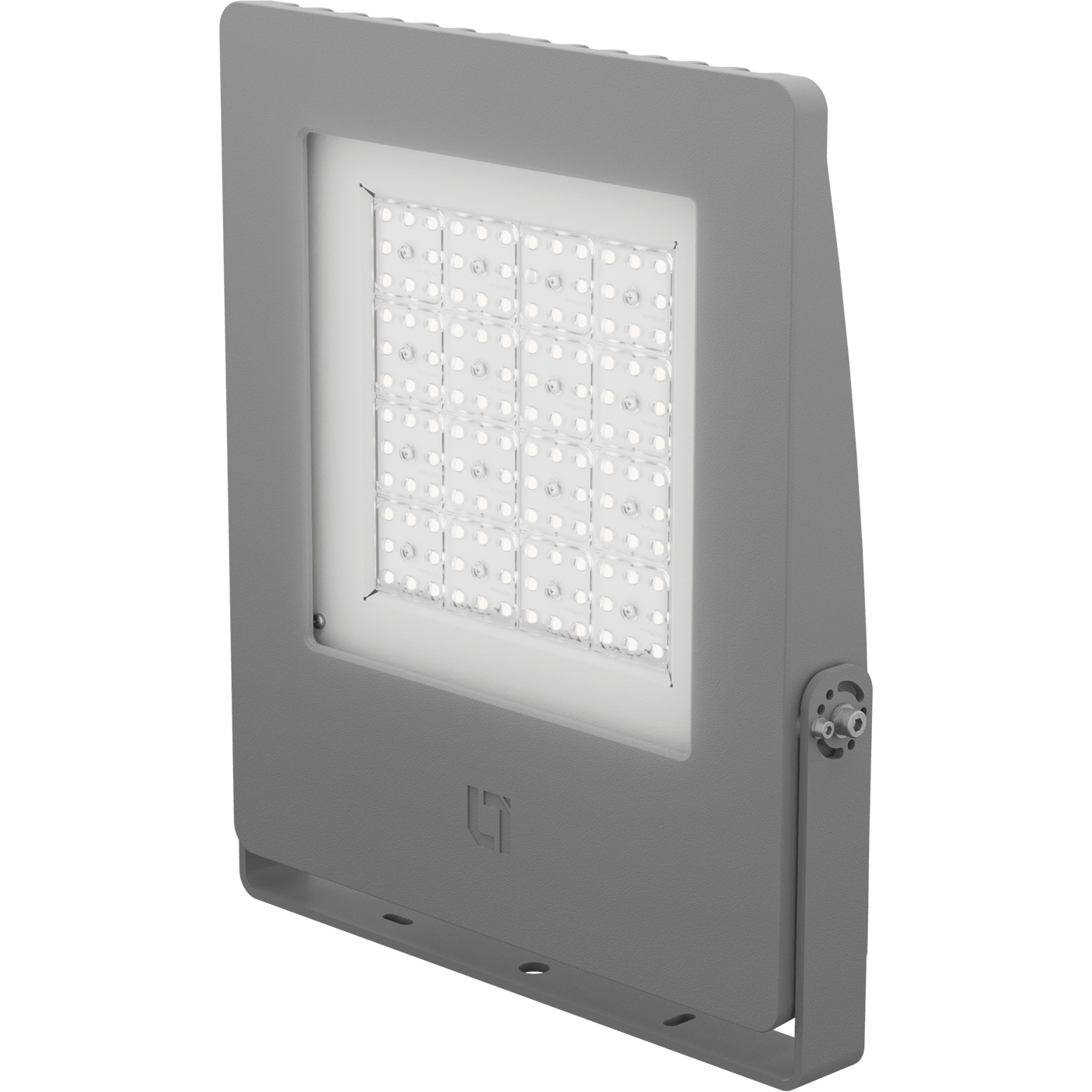

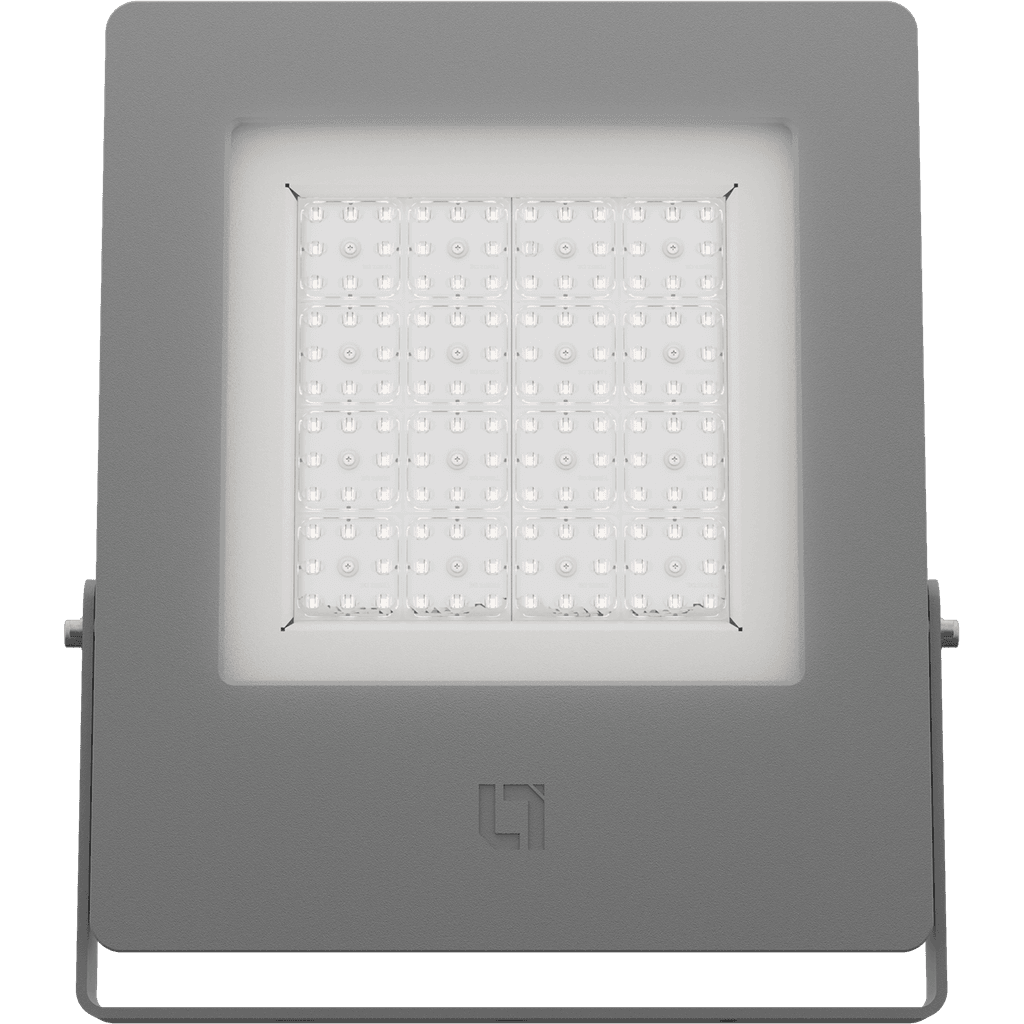

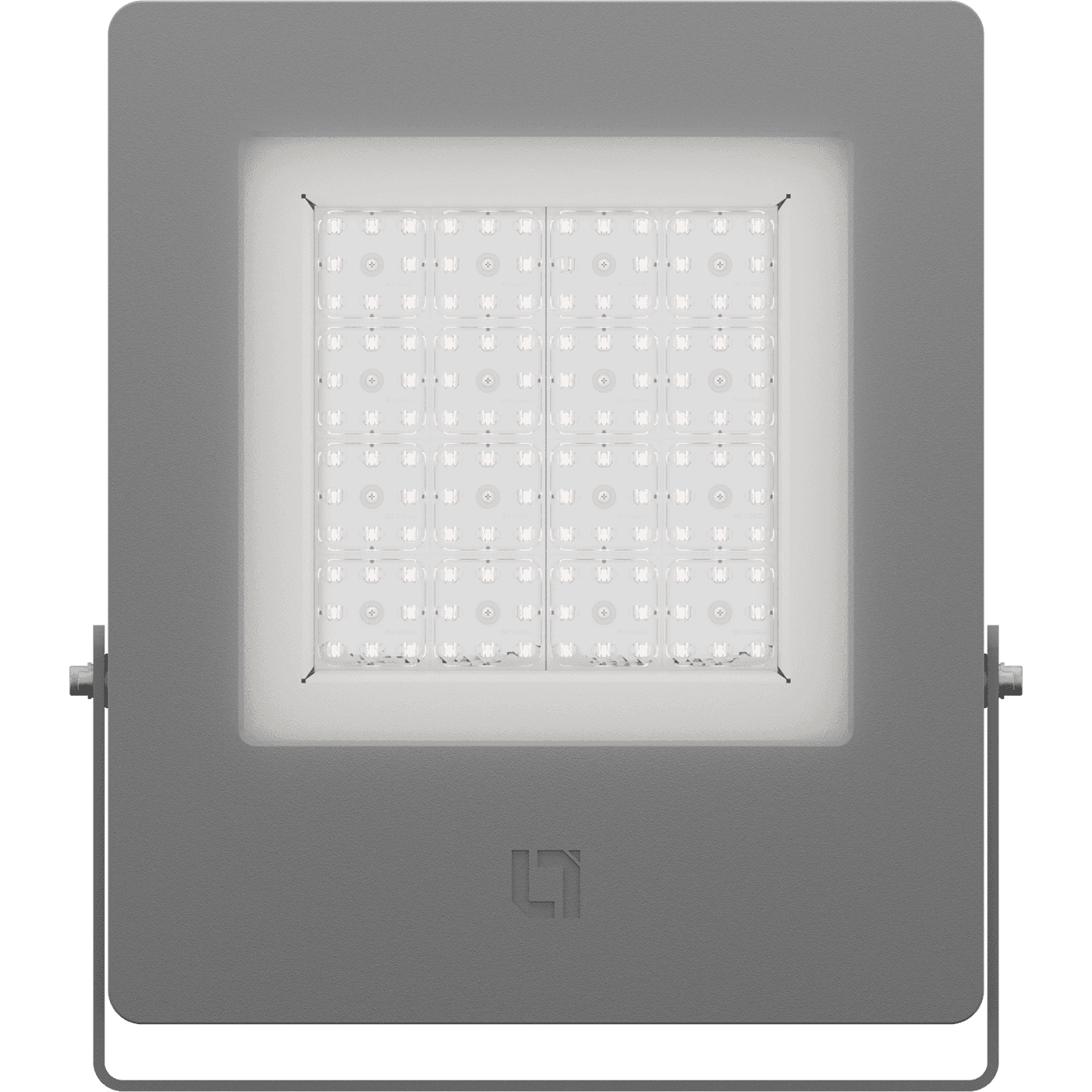

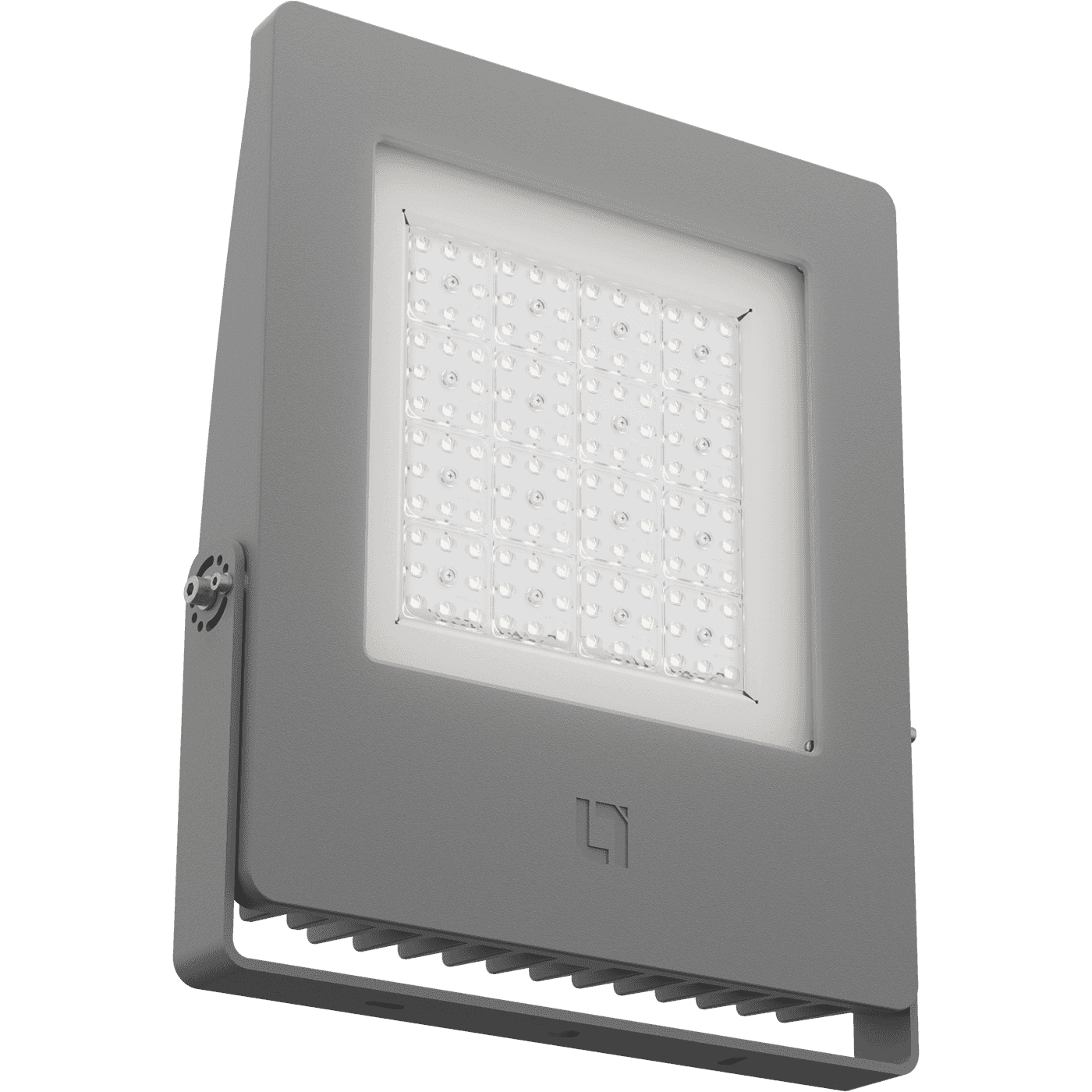

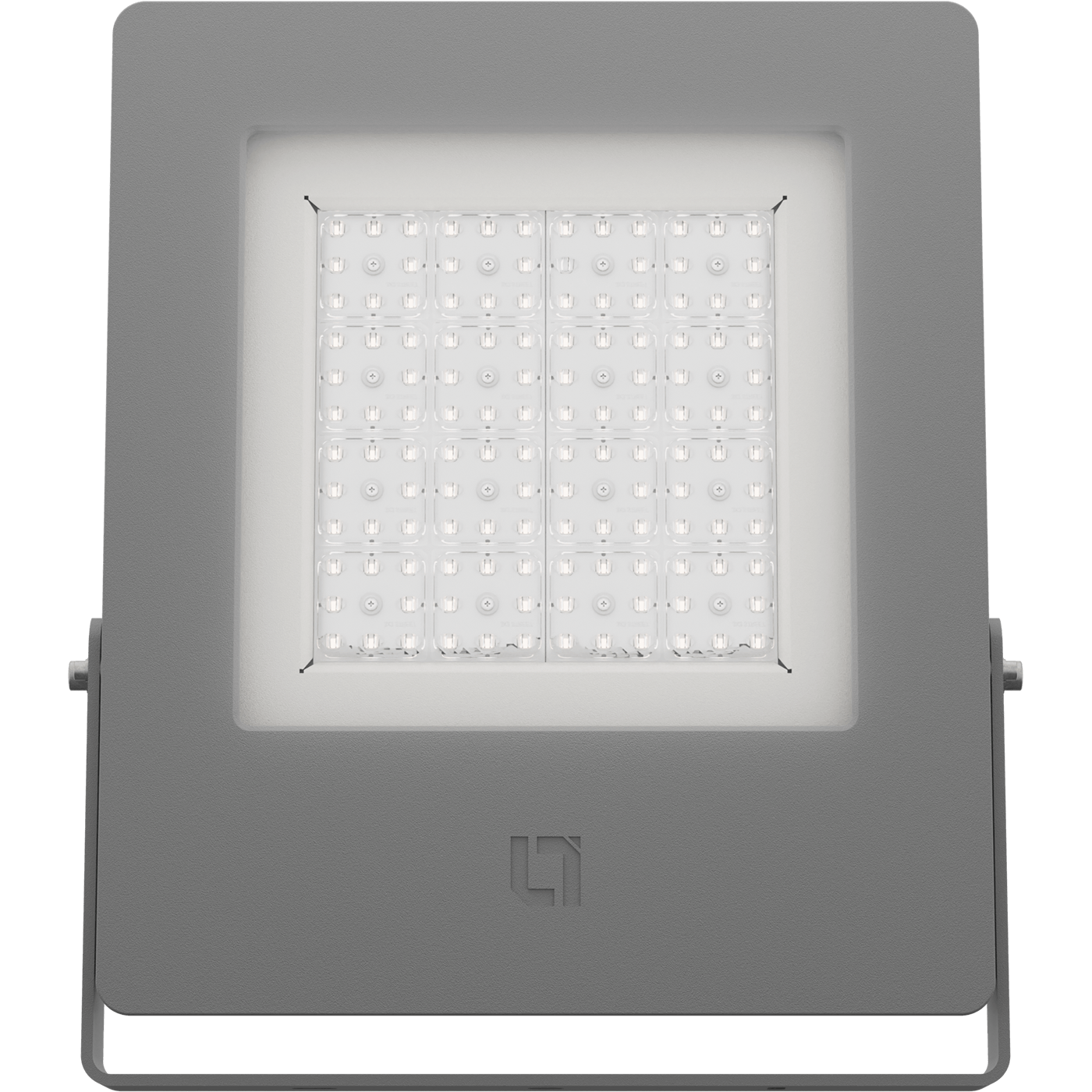

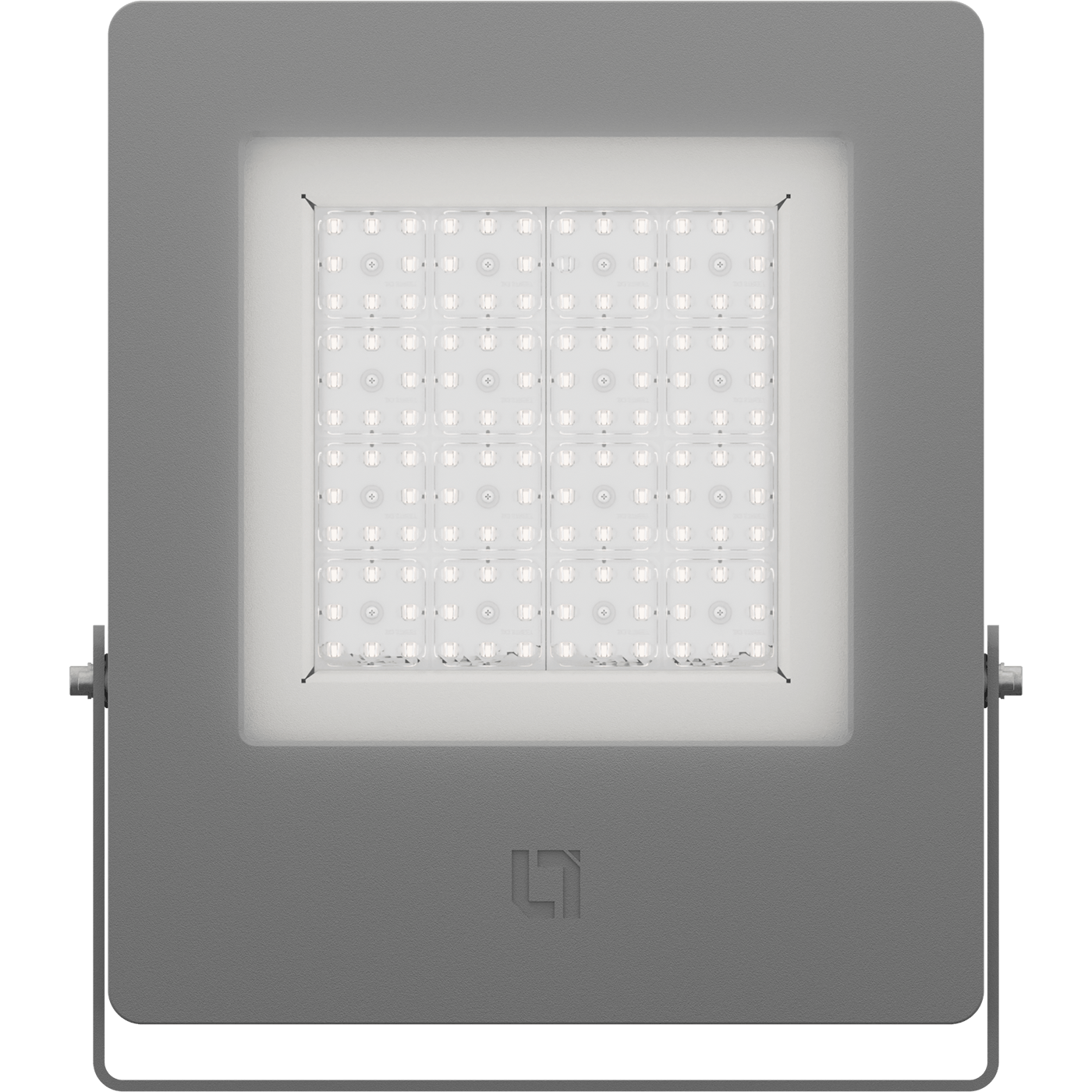

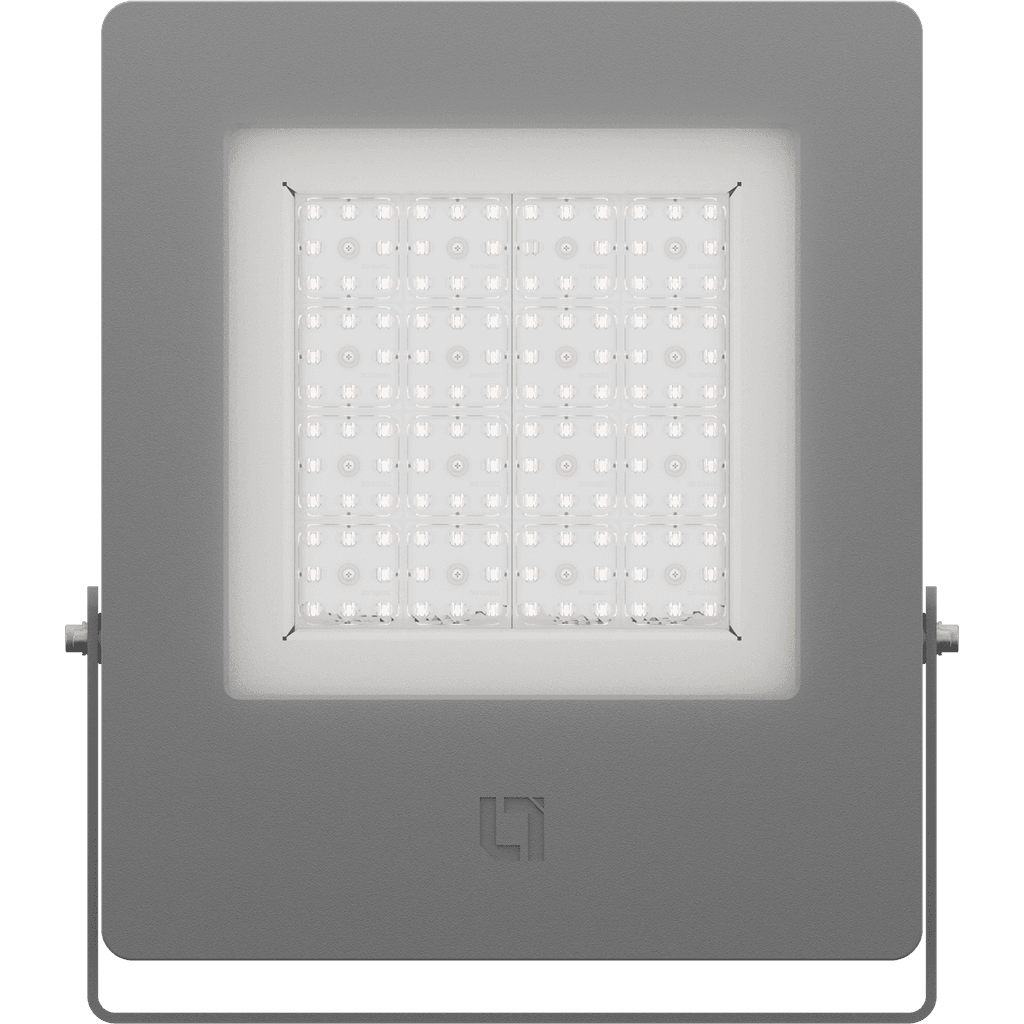

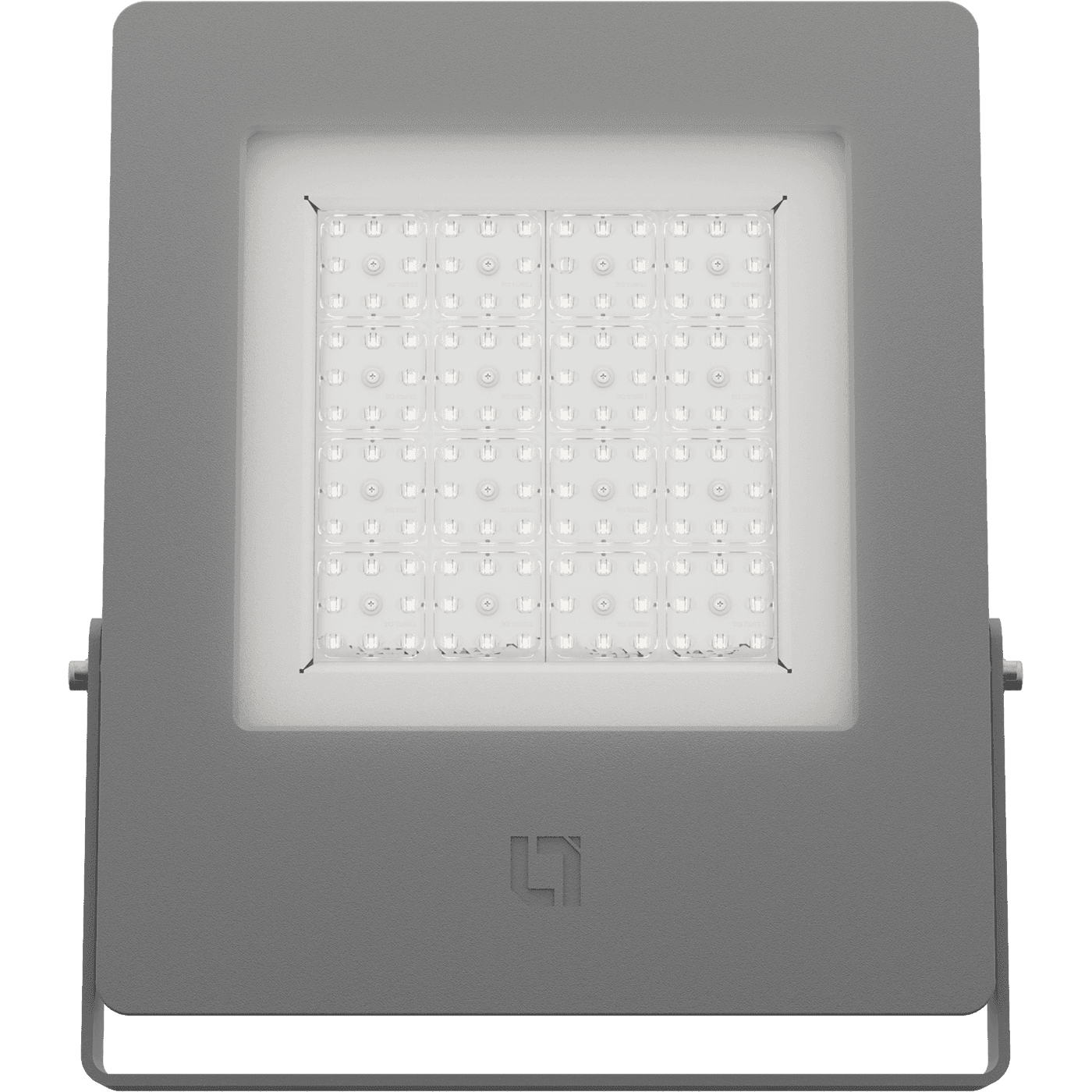

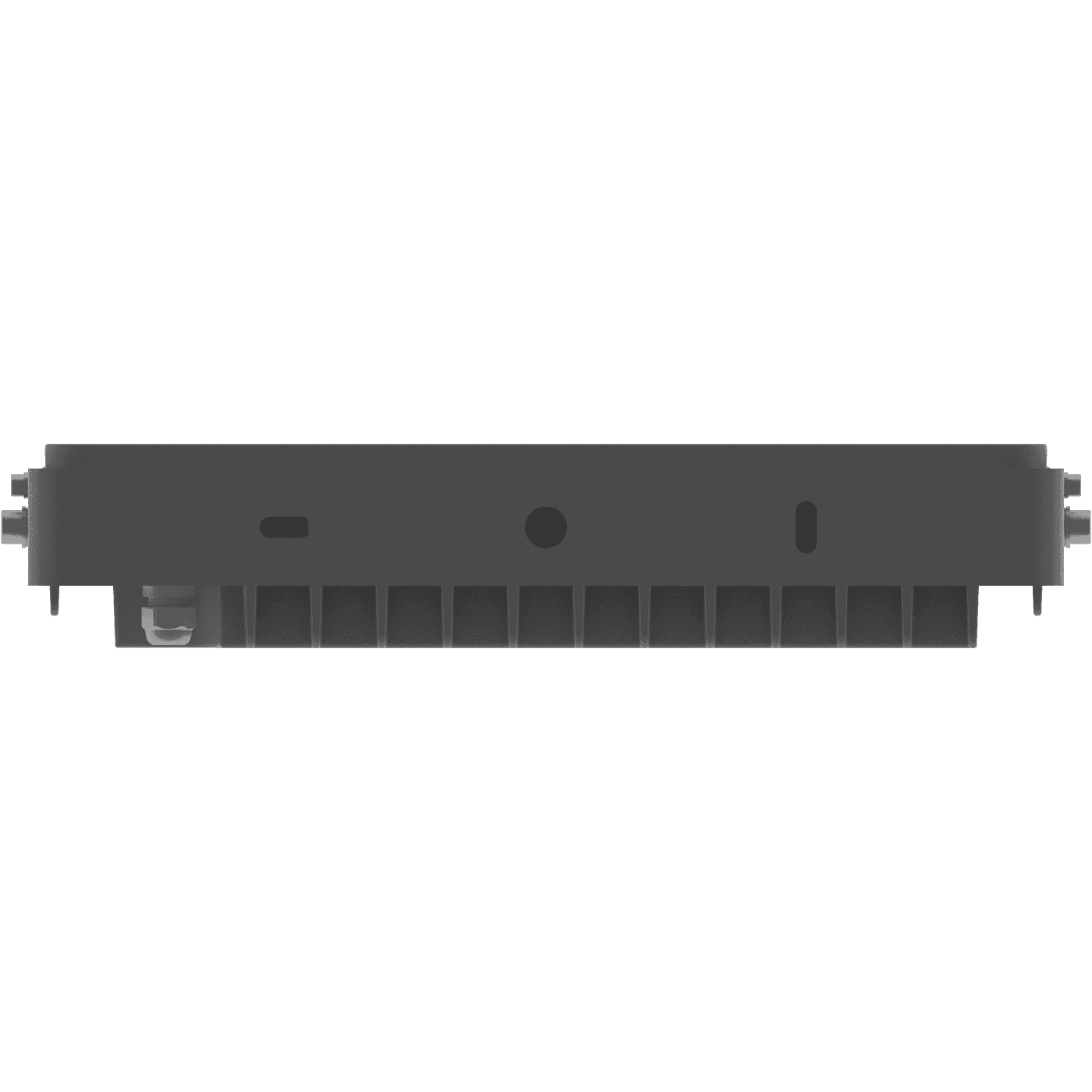

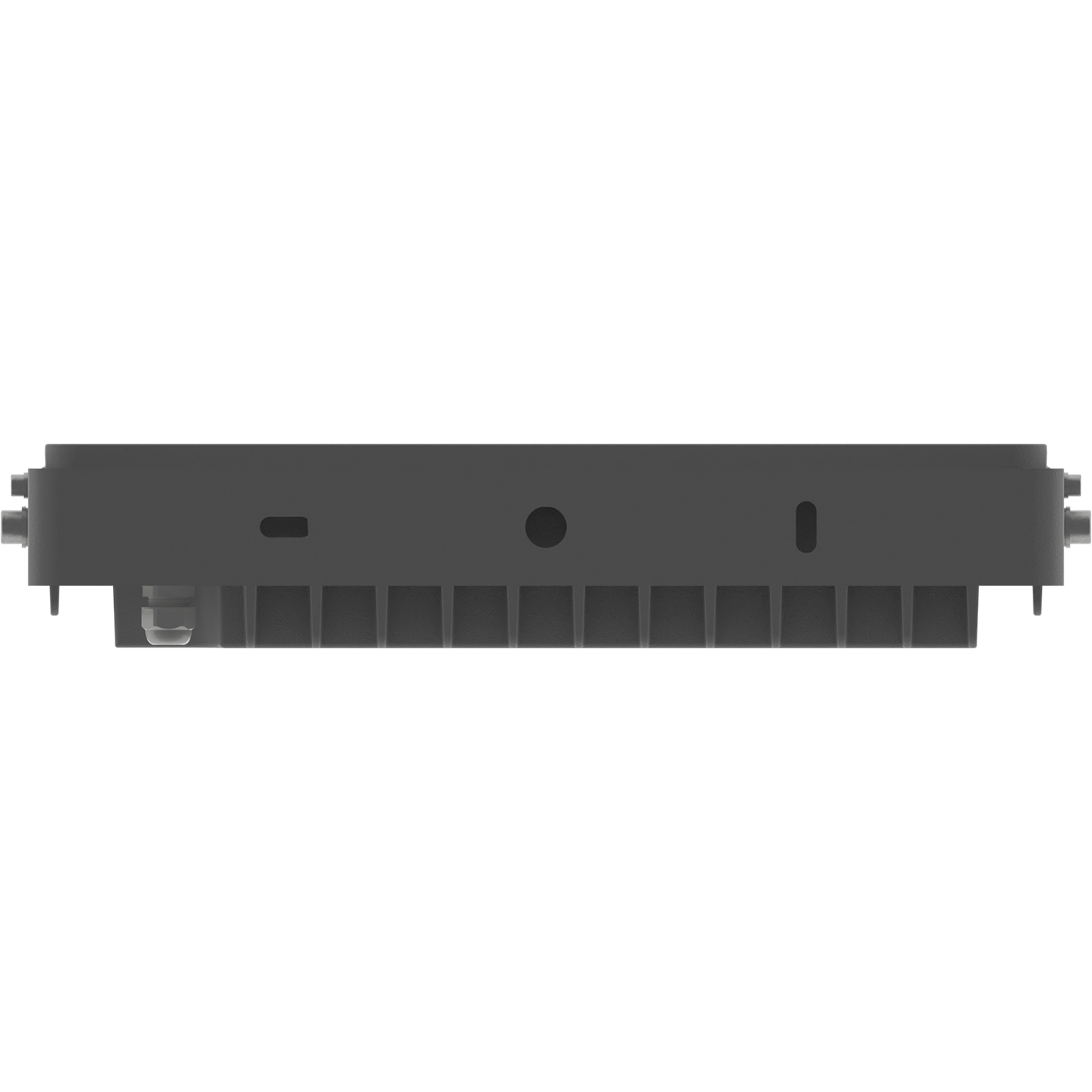

LEADER LED 100W D15 750 RAL9006
LEADER LED 100W D15 750 RAL9006
100 Wluminaire power
15000 lmlight flow
150 lm/Wenergy efficiency
code1350000090
beam angleD15
color temperature5000
weight11.1 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
100 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
100 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
11.1 kg
length, mm
420 mm
width, mm
480 mm
height, mm
80 mm
housing color
Металлик
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1350000090
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
150 lm/W
color rendition index (CRI)
>70
light flow
15000 lm
flickering factor
<5%

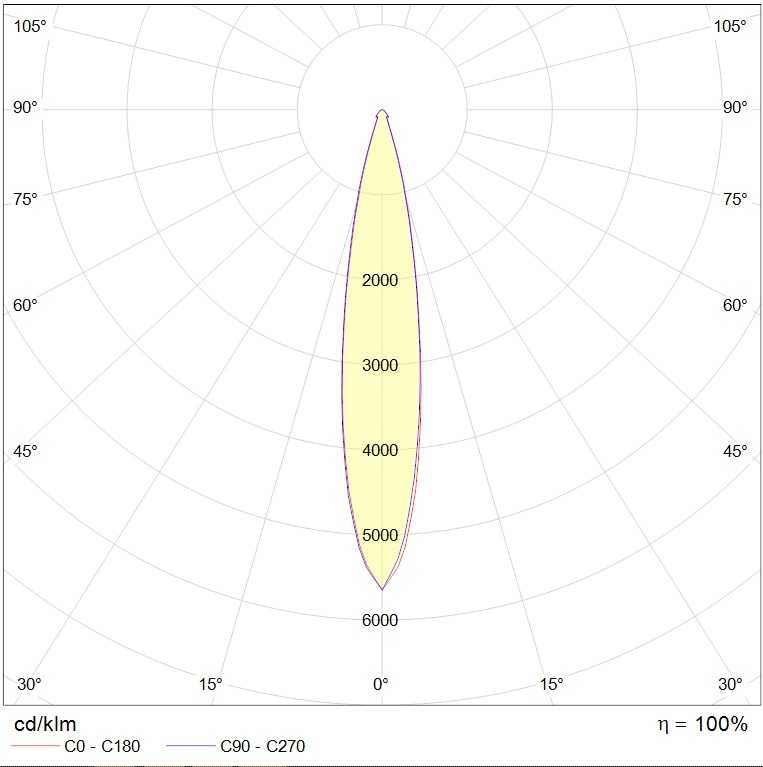

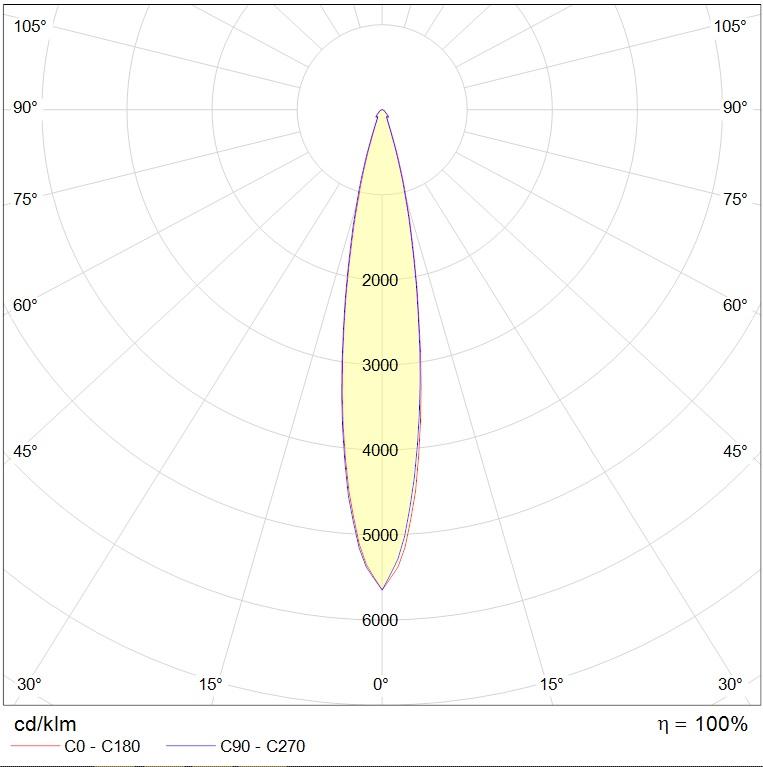

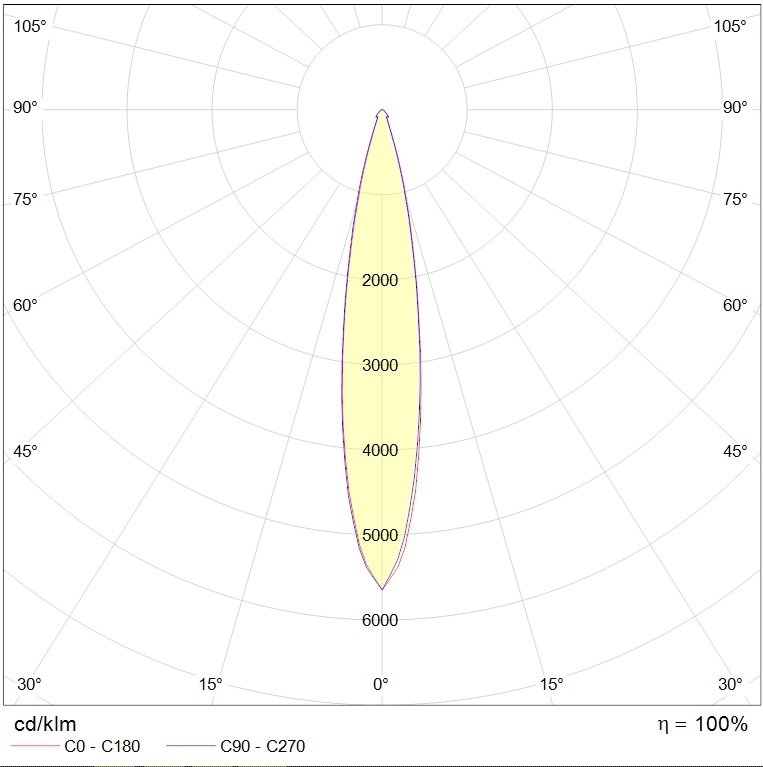

beam angle
D15
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS688.2 kB
model 3dMax3.8 mB
photometric files
ies107.1 kB
jpg83.6 kB
ldt64 kB
documents
passport4.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
