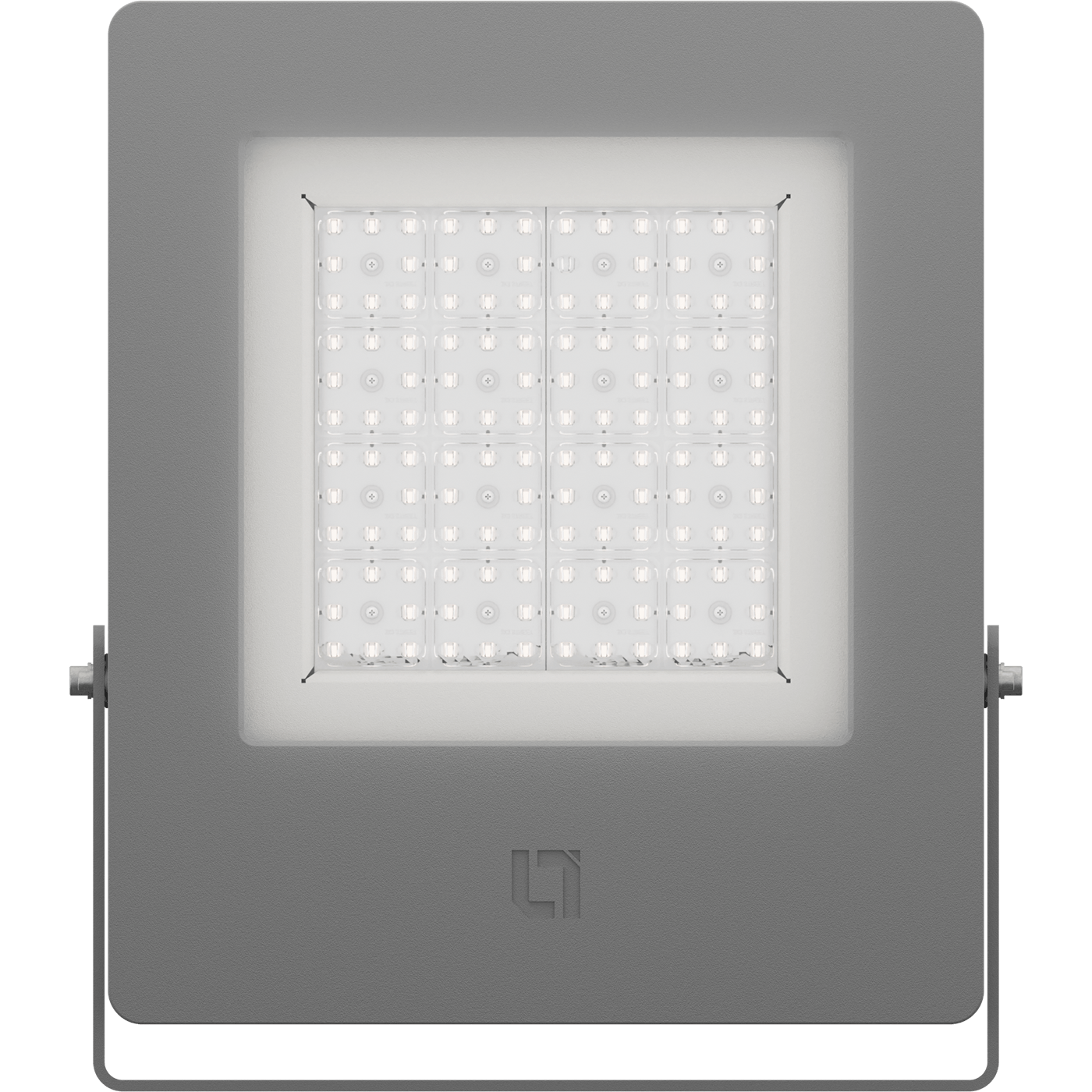

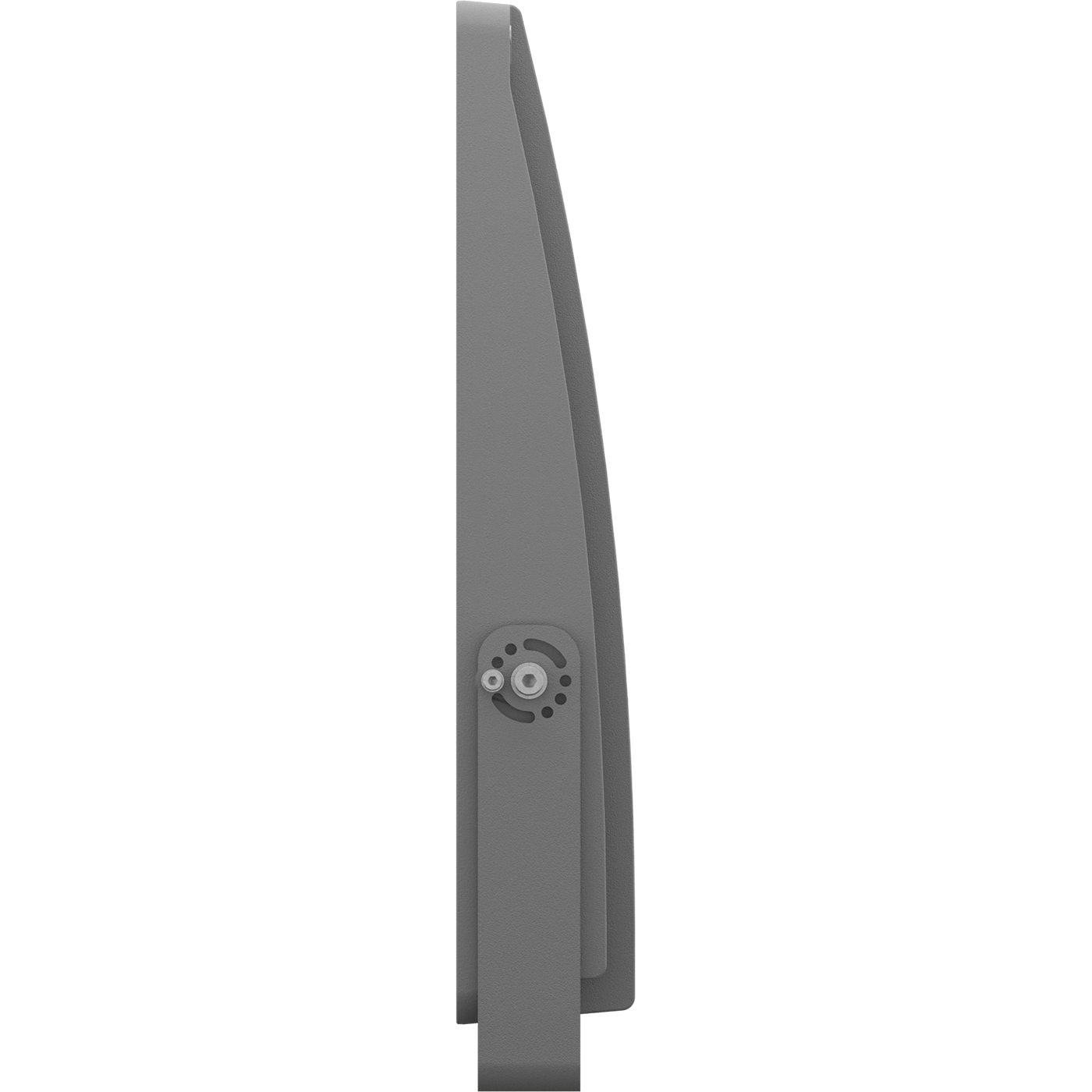

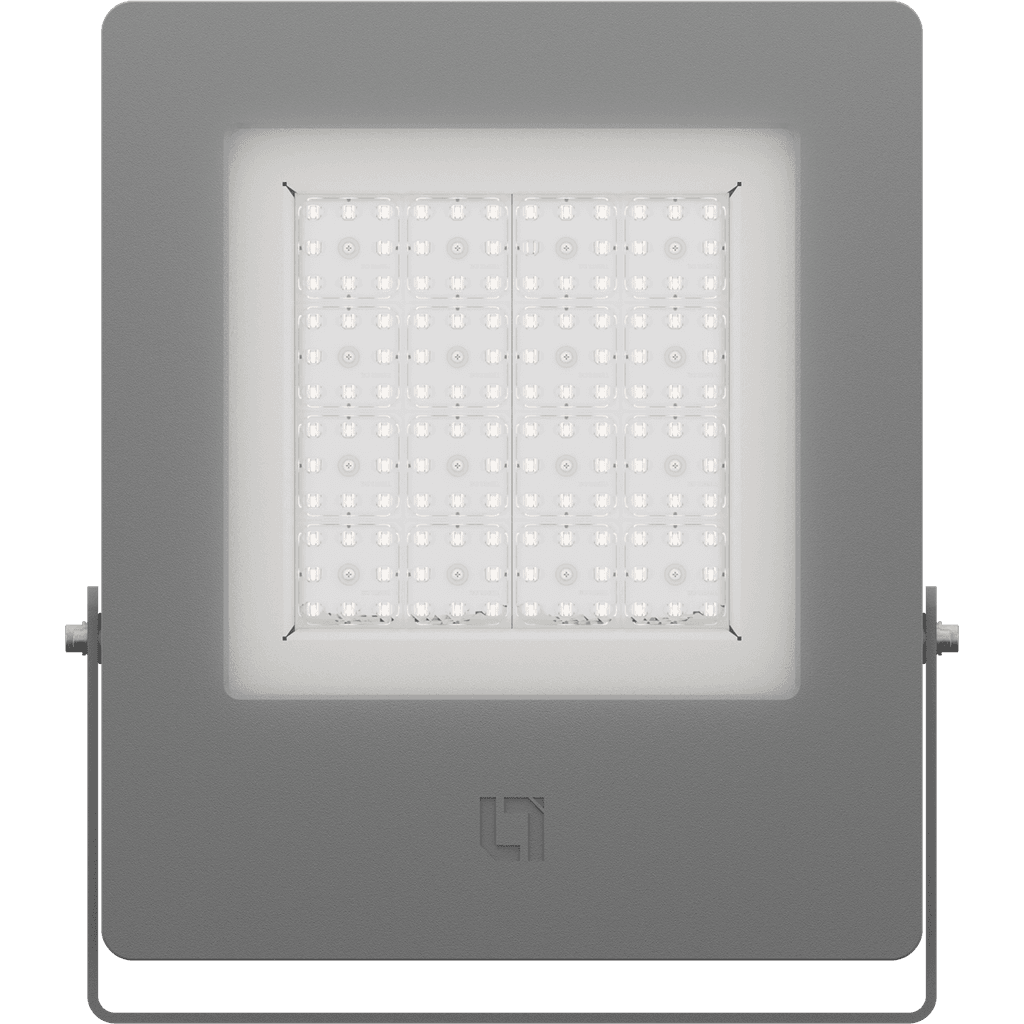

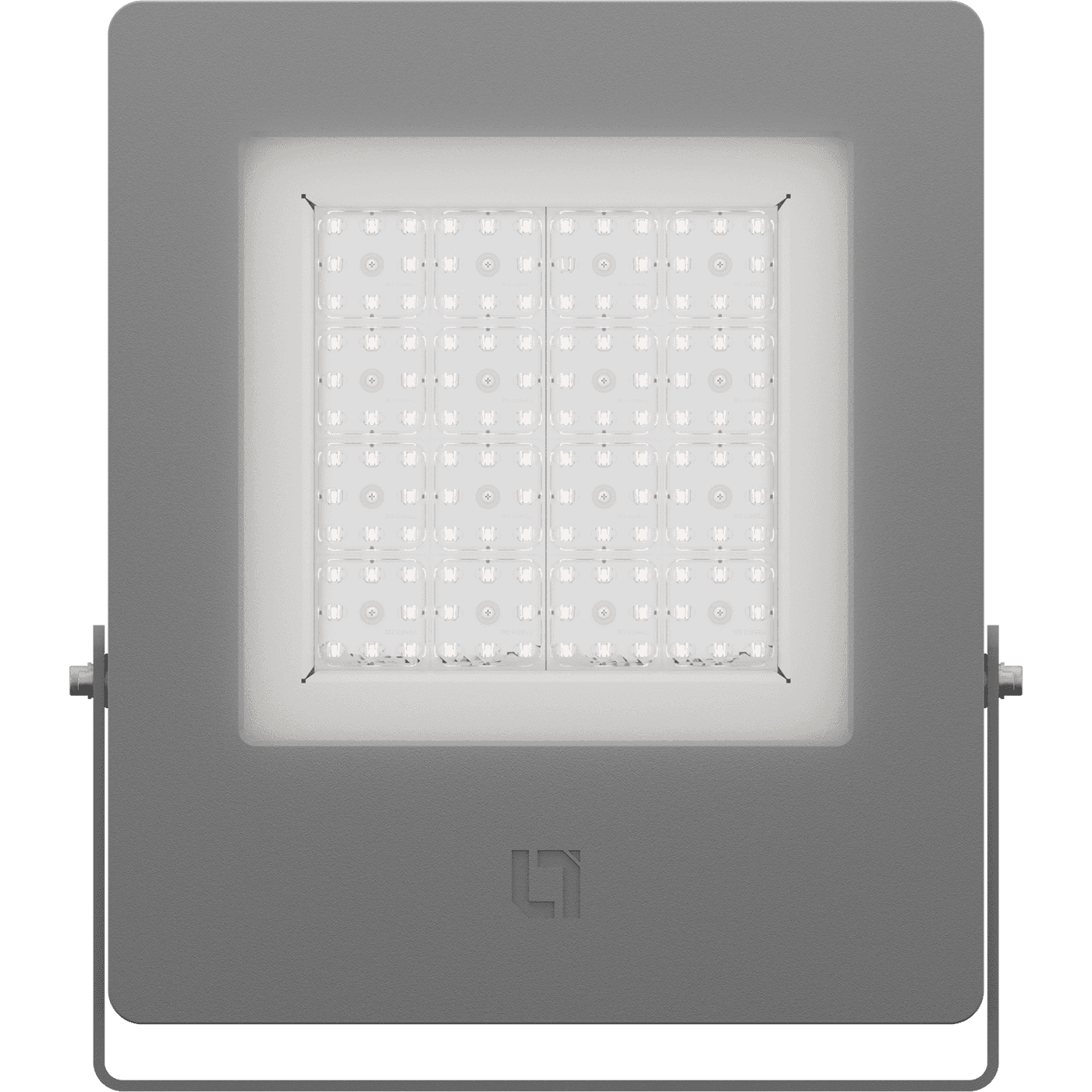

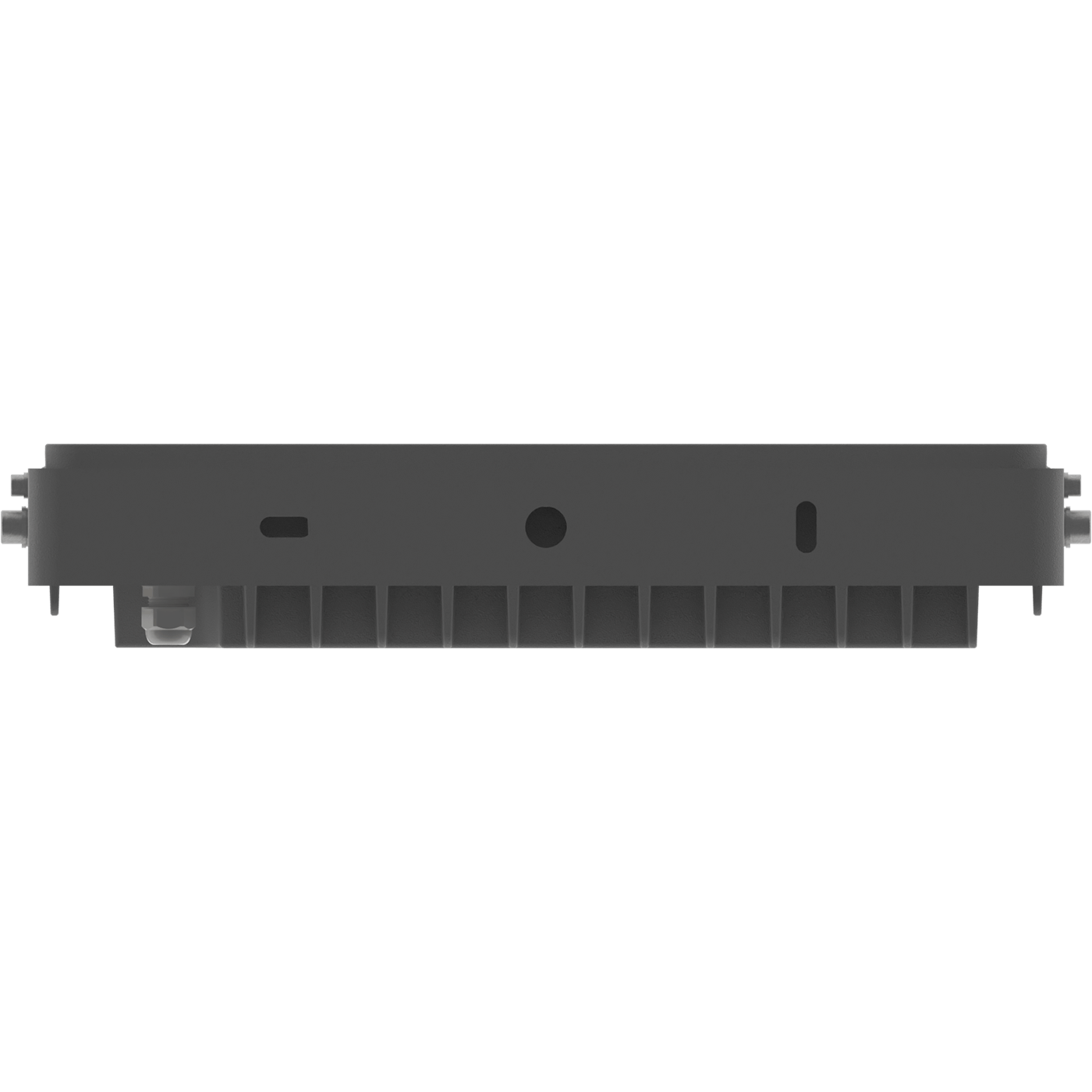

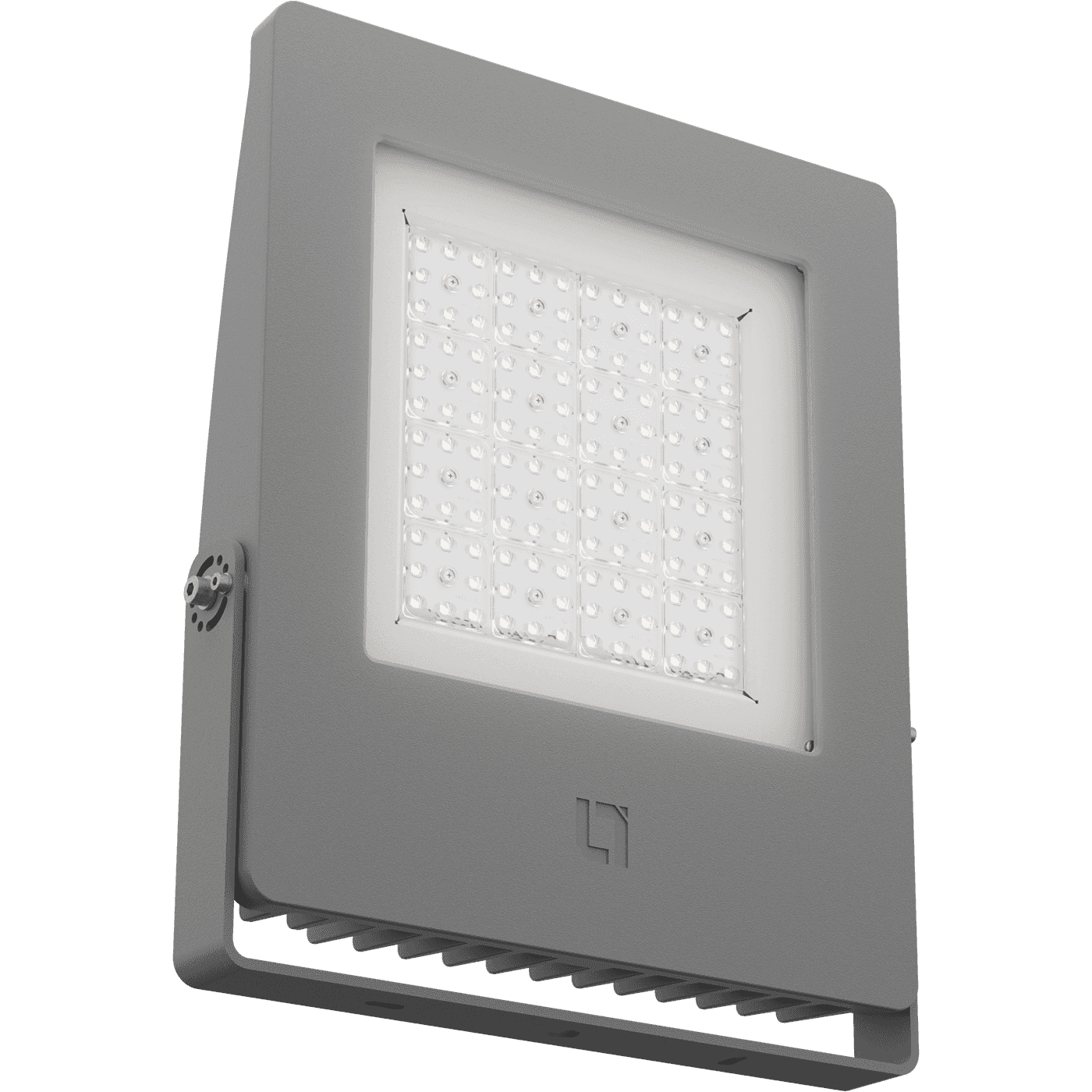

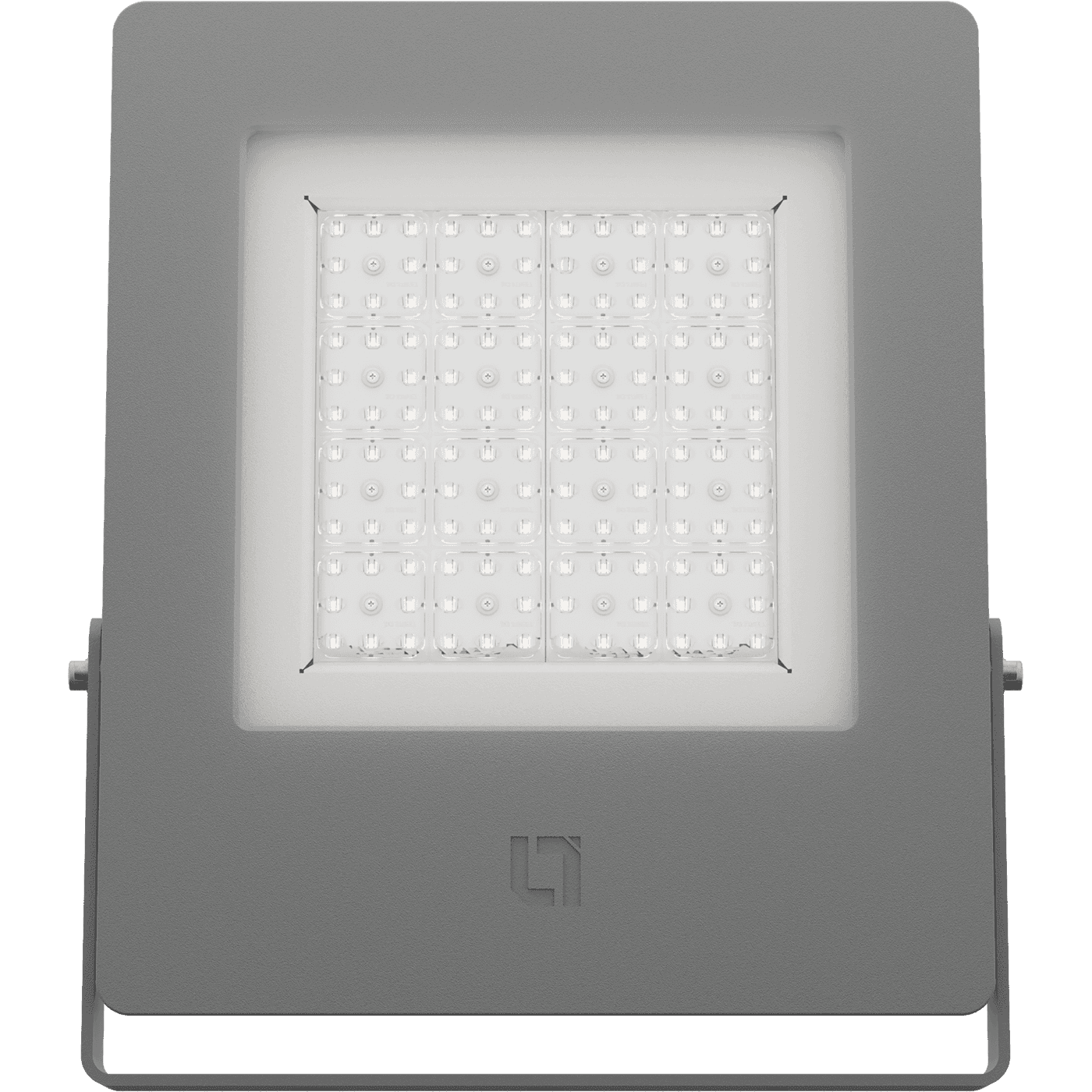

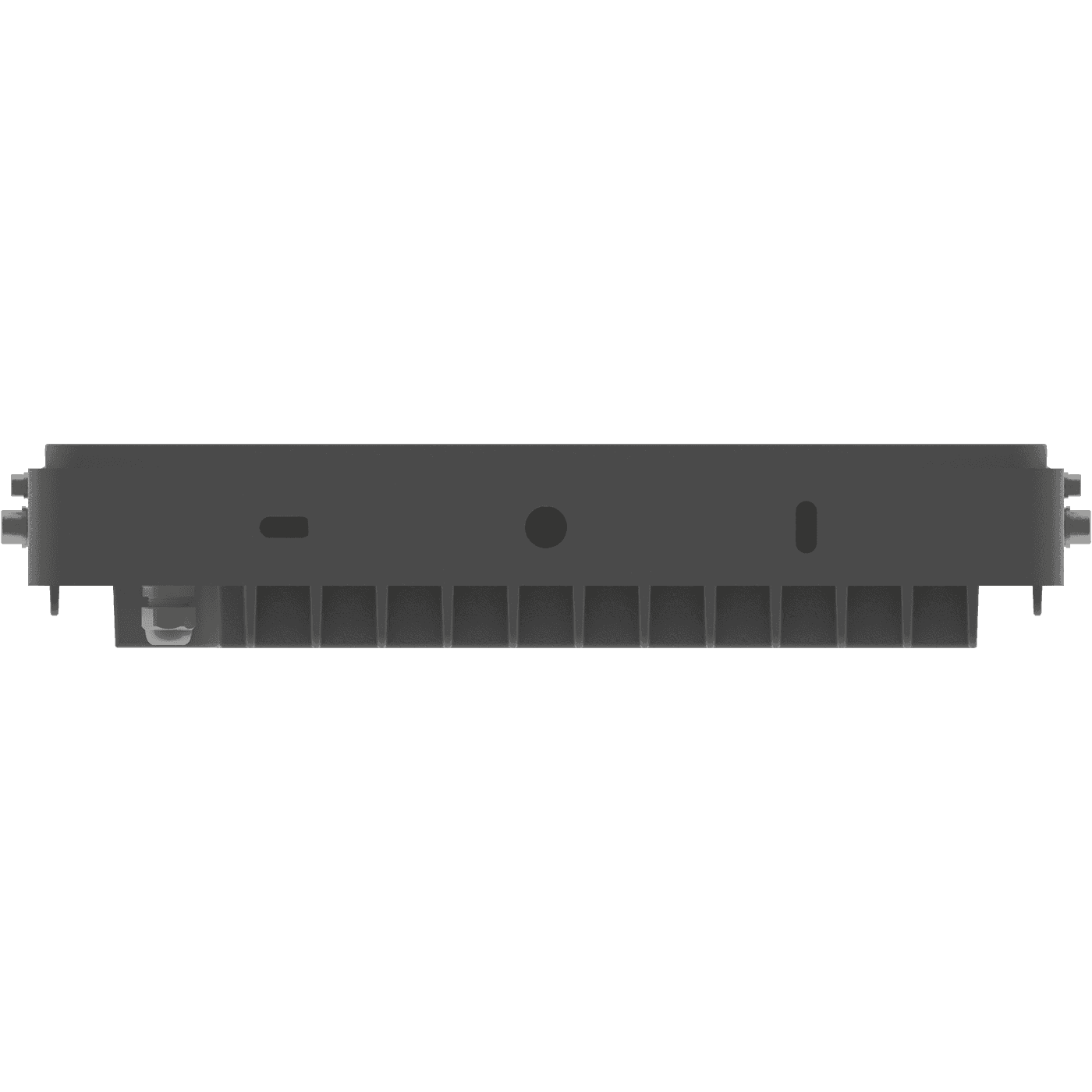

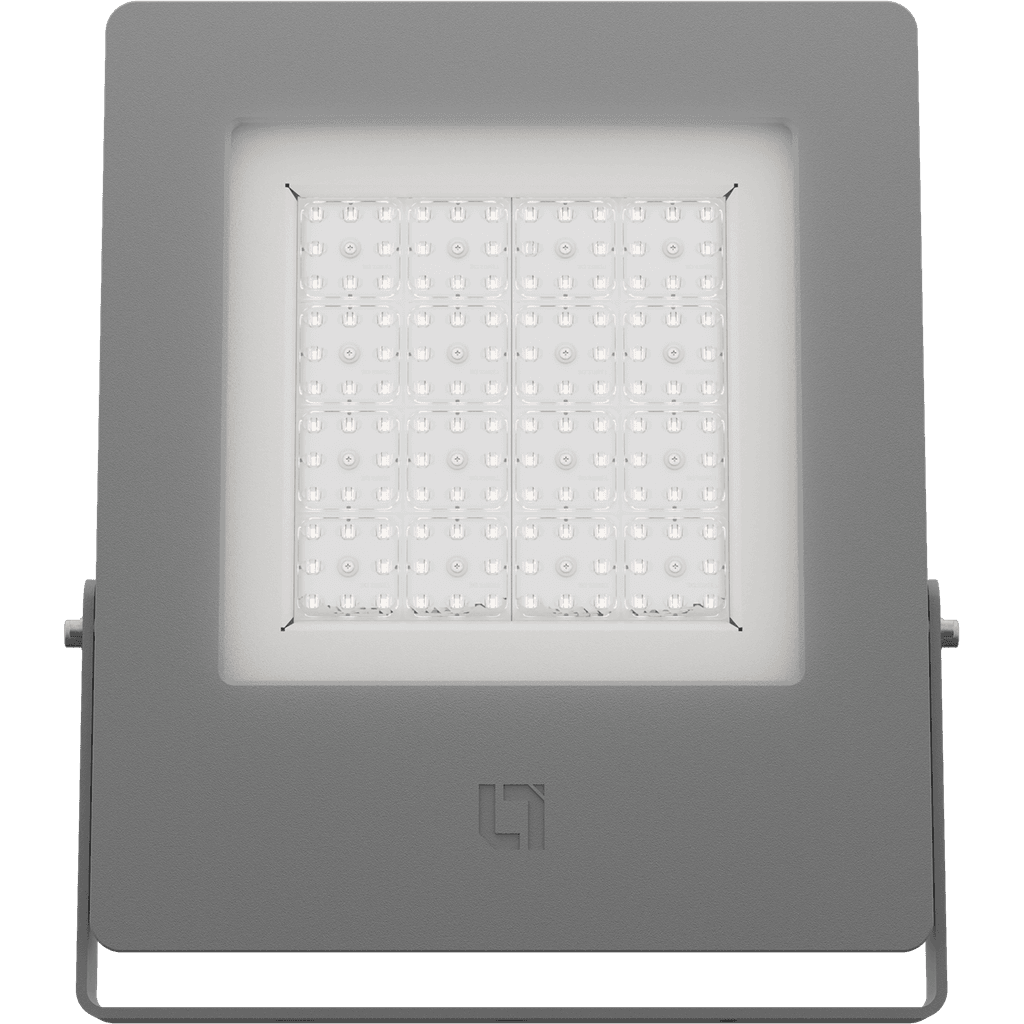

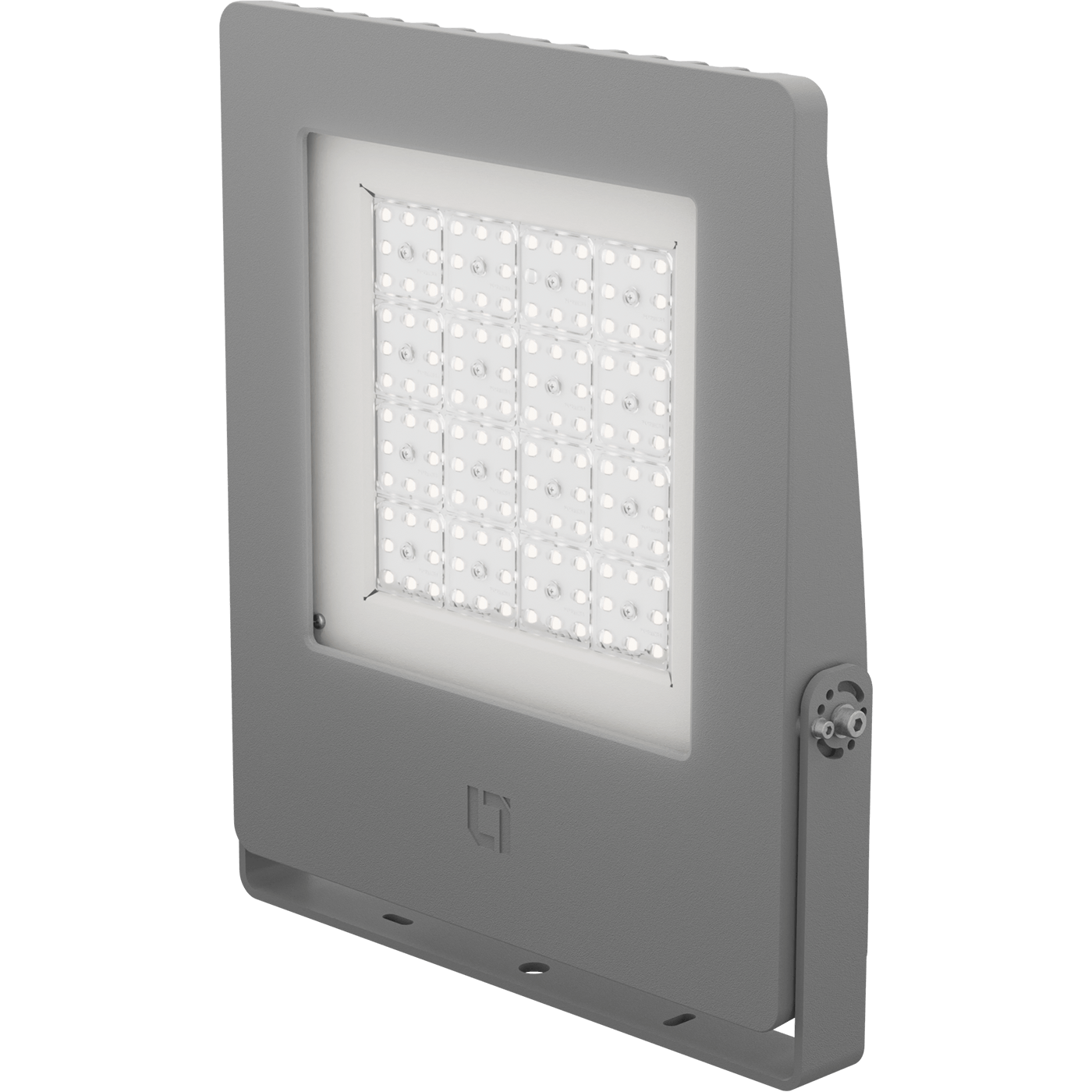

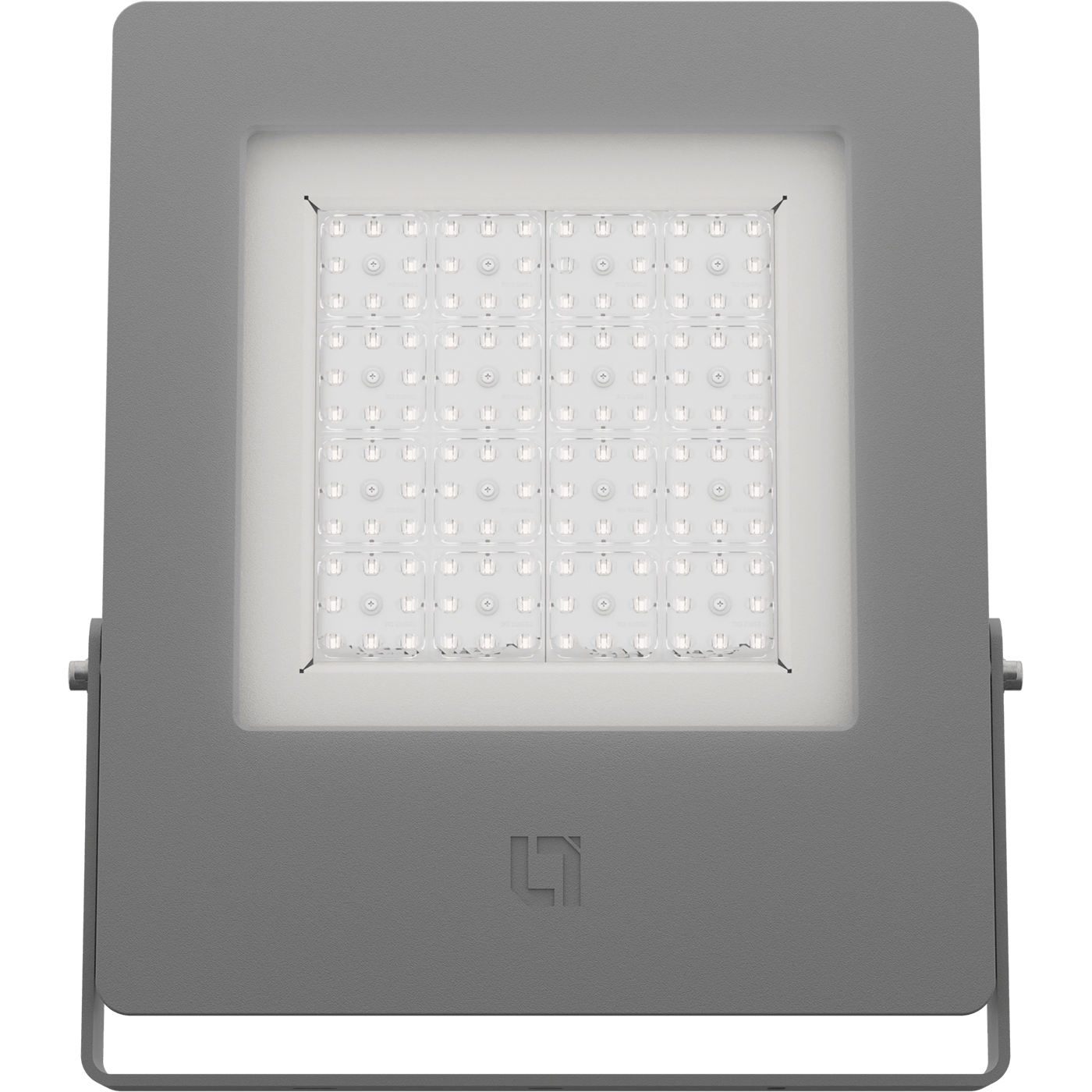

LEADER LED 100W D30 750 RAL9006 EXTREME

LEADER LED 100W D30 750 RAL9006 EXTREME
100 Wluminaire power
15600 lmlight flow
156 lm/Wenergy efficiency
code1350001520
beam angleD30
color temperature5000
weight4.85 kg
options
expand all
illuminatingelectricalconstructionalcommon
energy efficiency
156 lm/W
emission color
Белый
color rendition index (CRI)
>70
light flow
15600 lm
flickering factor
<5%
beam angle
D30
color temperature
5000
light source type
LED
illuminating
energy efficiency
156 lm/W
emission color
Белый
color rendition index (CRI)
>70
light flow
15600 lm
flickering factor
<5%
beam angle
D30
color temperature
5000
light source type
LED
electrical
luminaire power
100 W
power factor
> 0,95
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
electric shock protection
I
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1
length, mm
420 mm
width, mm
480 mm
height, mm
80 mm
installation length, mm
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
shock resistance (IK)
IK08/5 Дж
weight
4.85 kg
common
code
1350001520
warranty
60 month
energy efficiency class
A++
temperature range
от -60 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

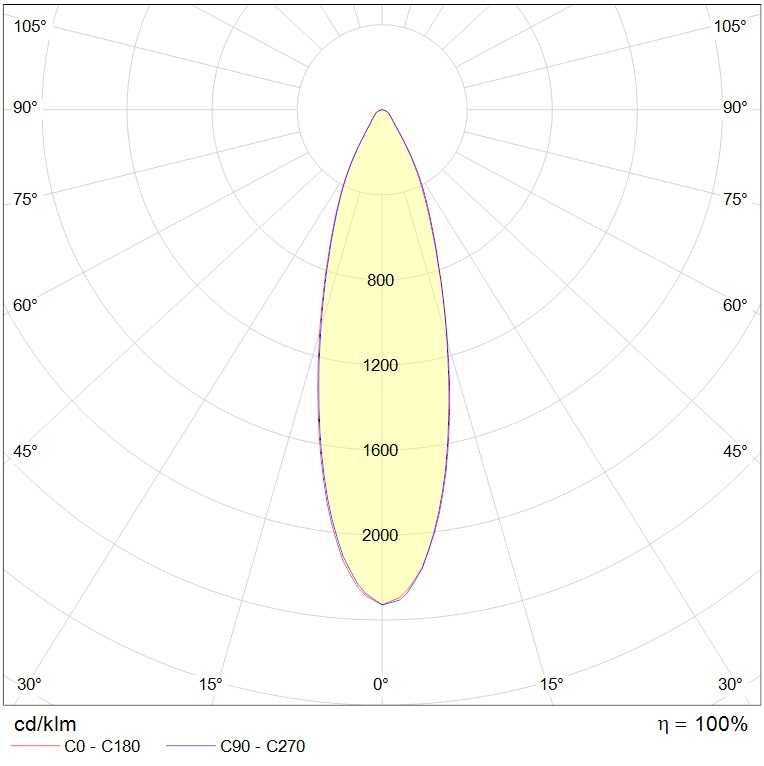

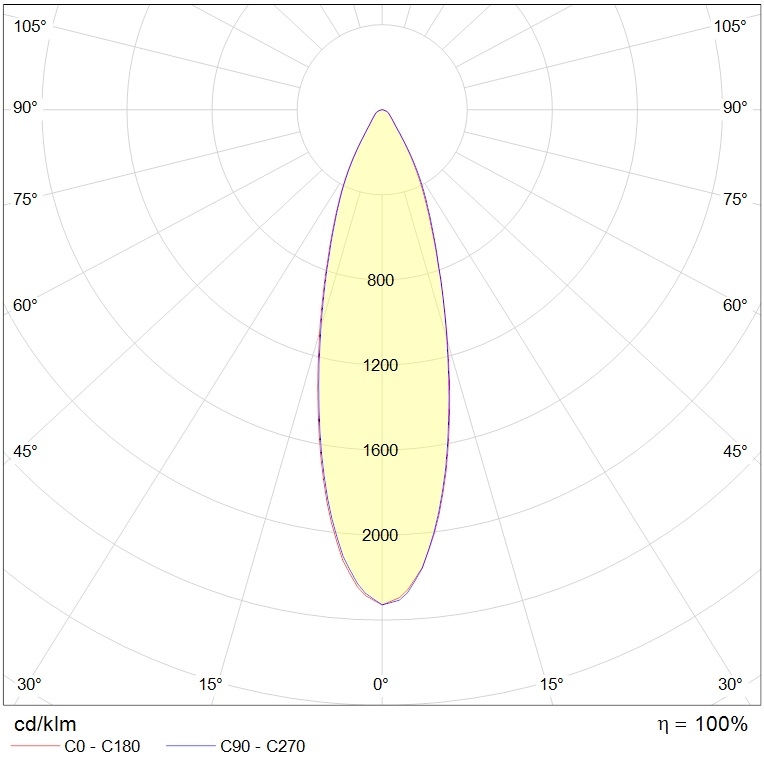

photometric files
ies107 kB
jpg80.5 kB
ldt64.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
photometric files
ies107 kB
jpg80.5 kB
ldt64.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
