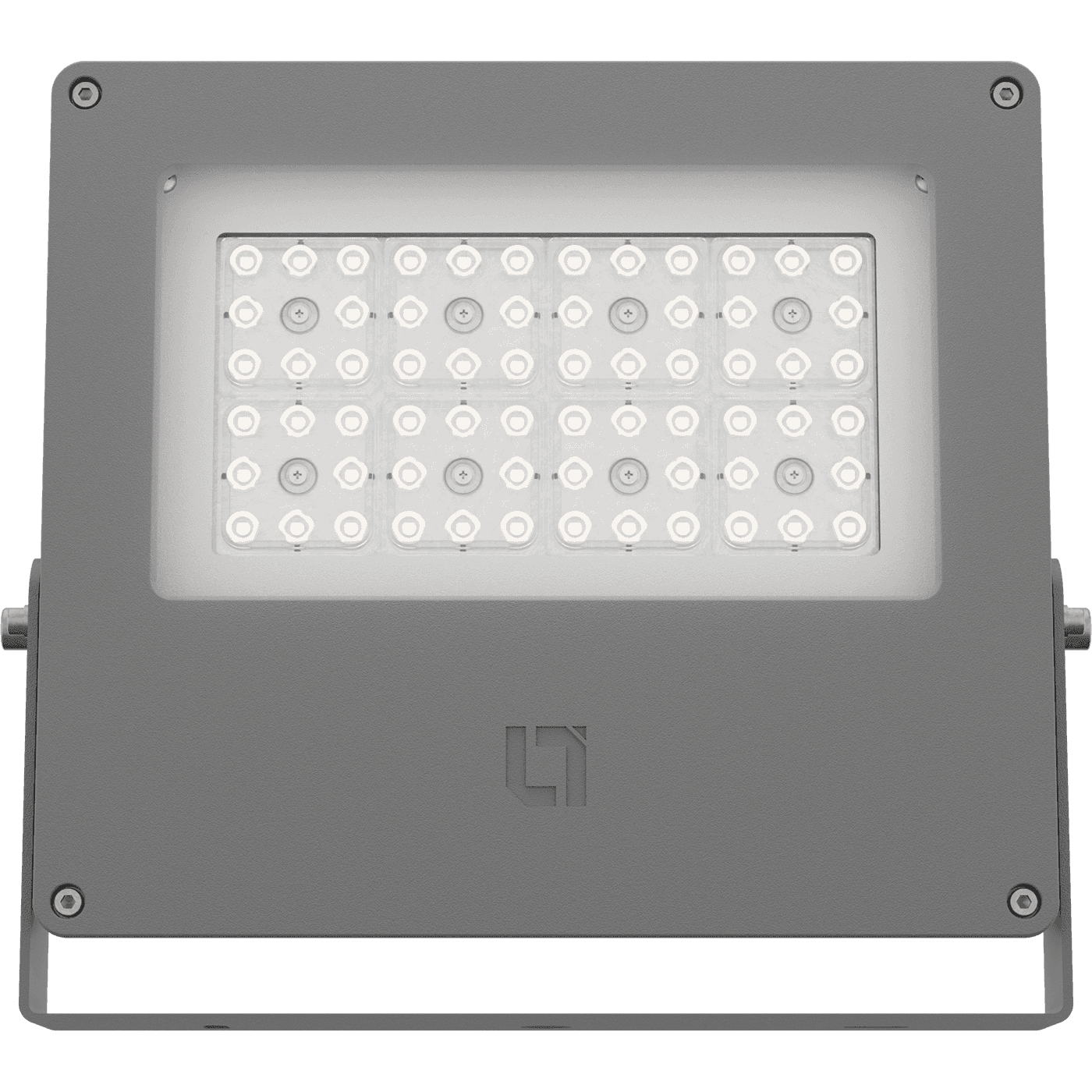

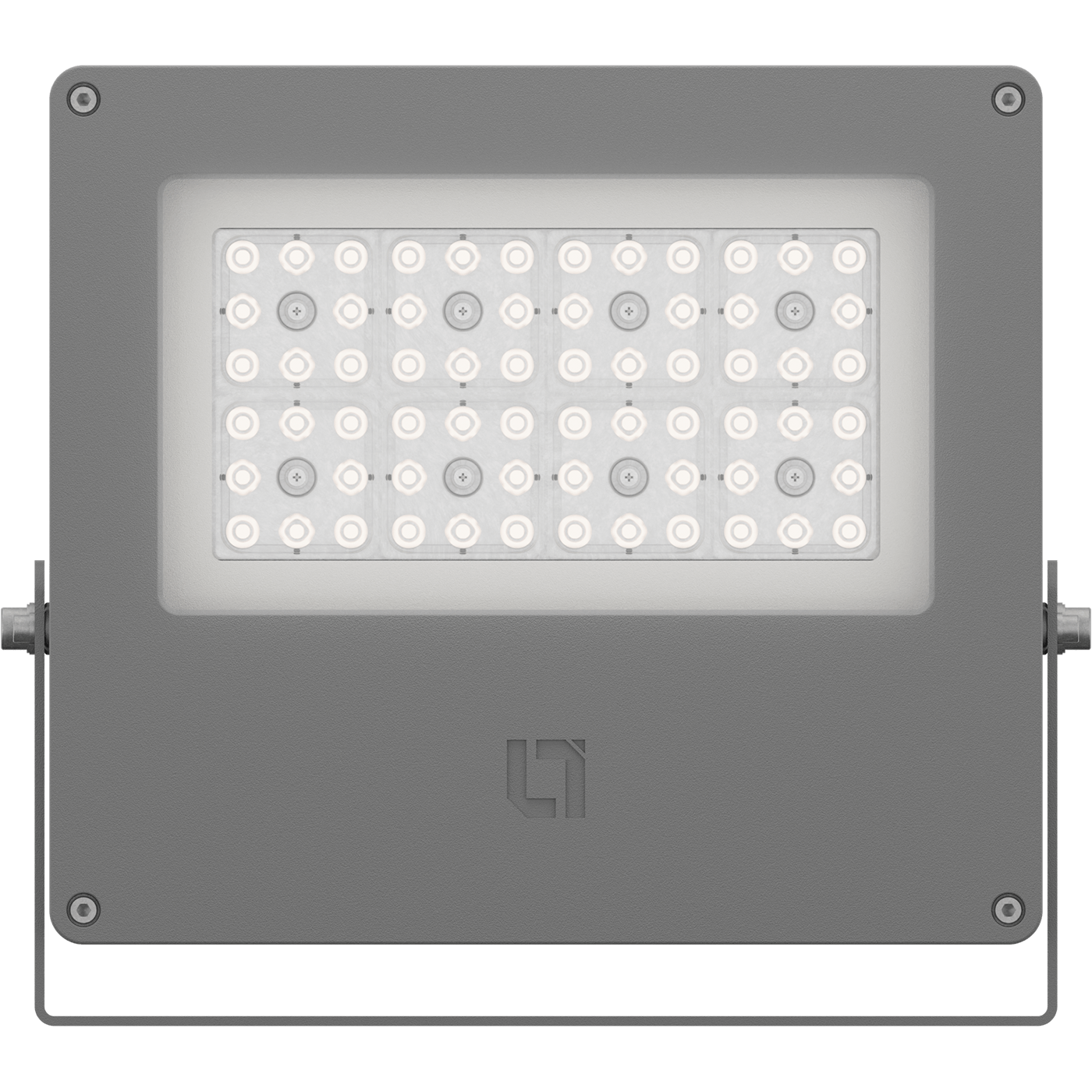

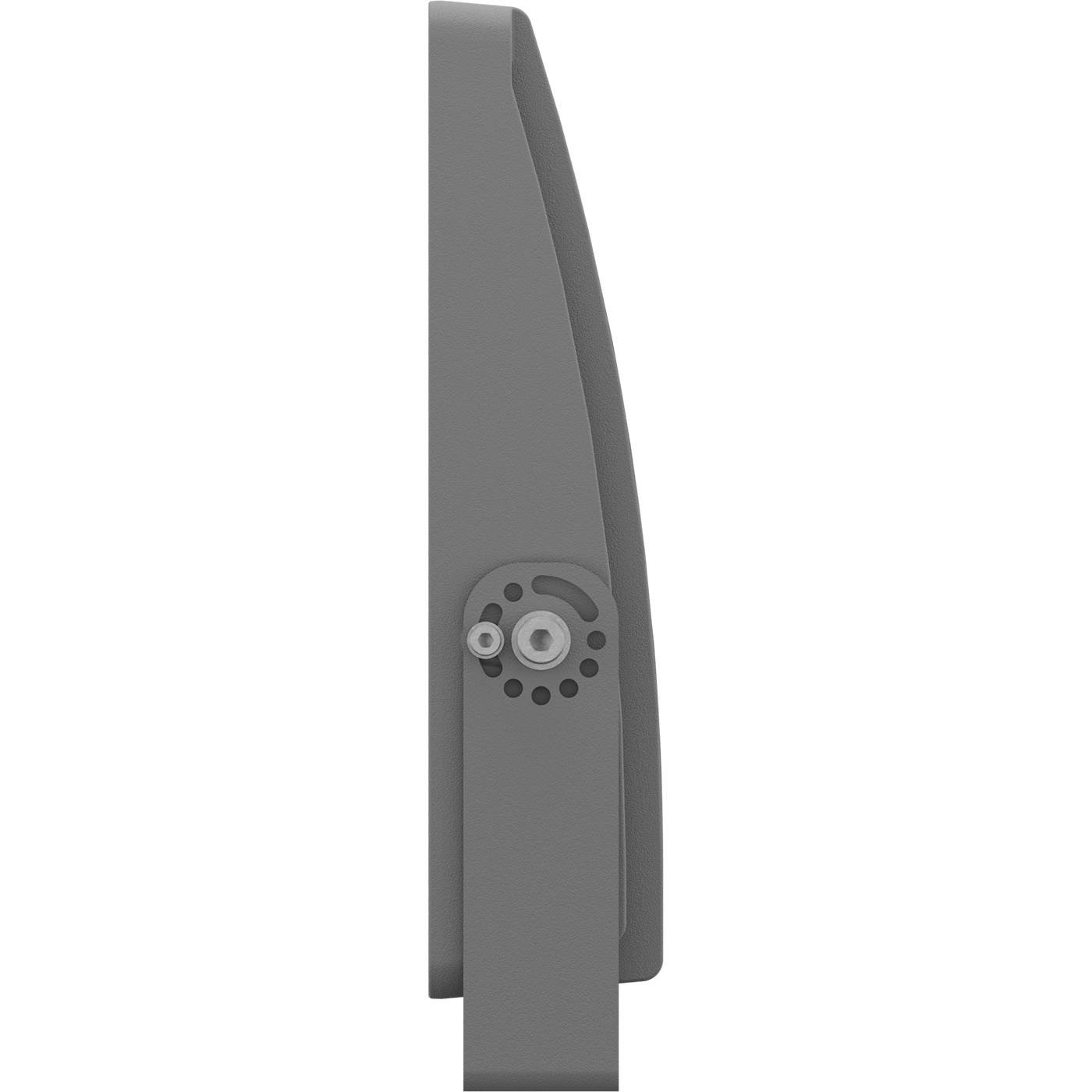

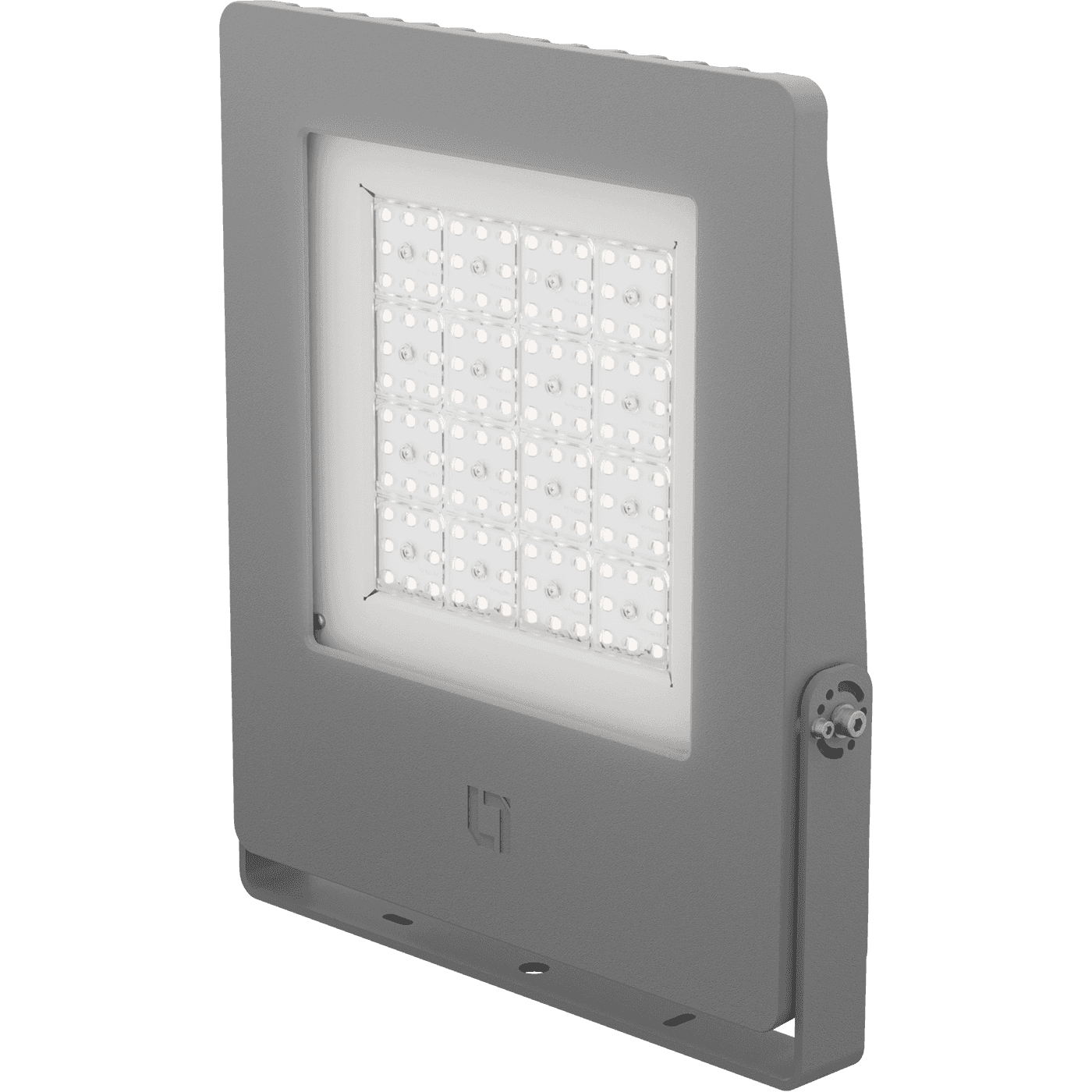

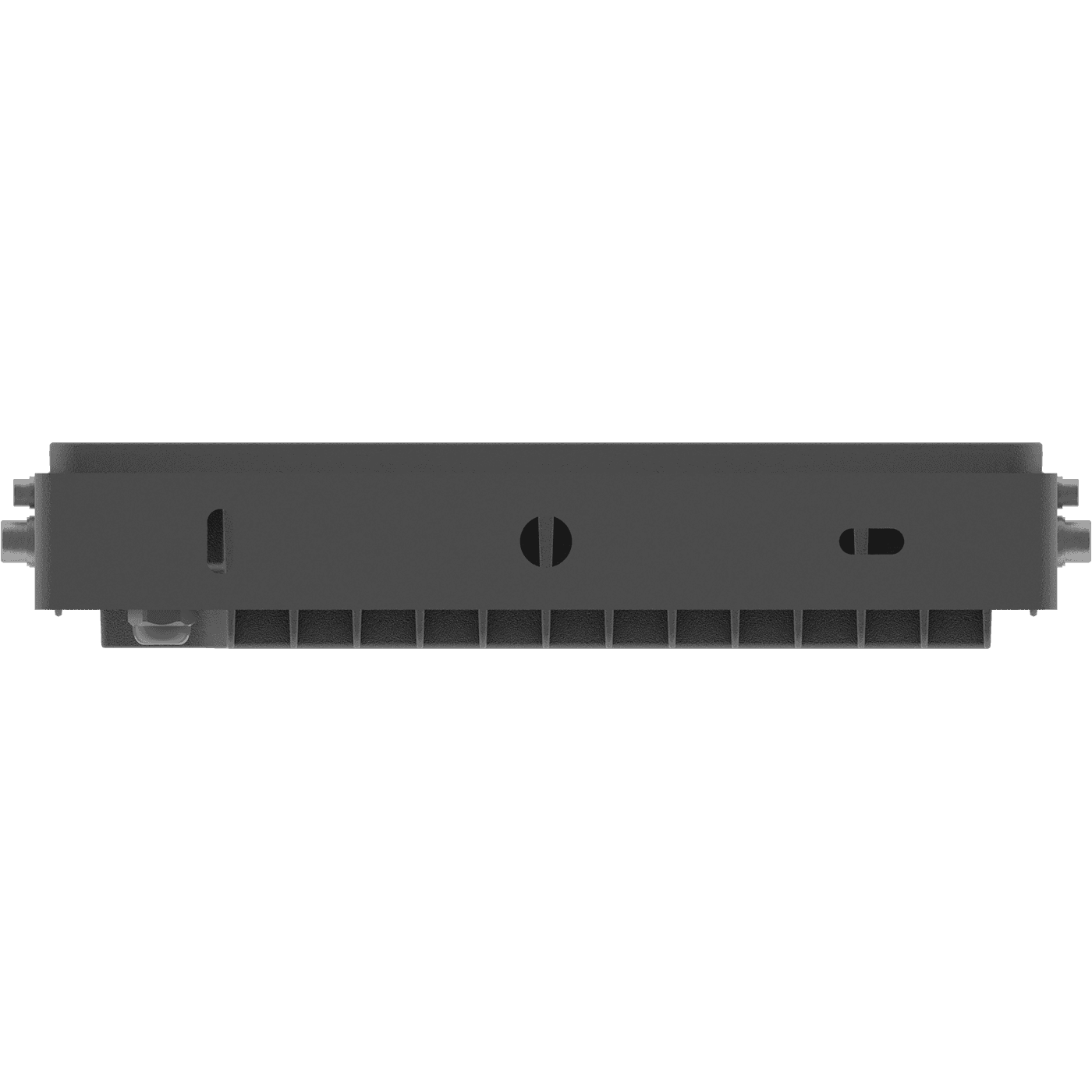

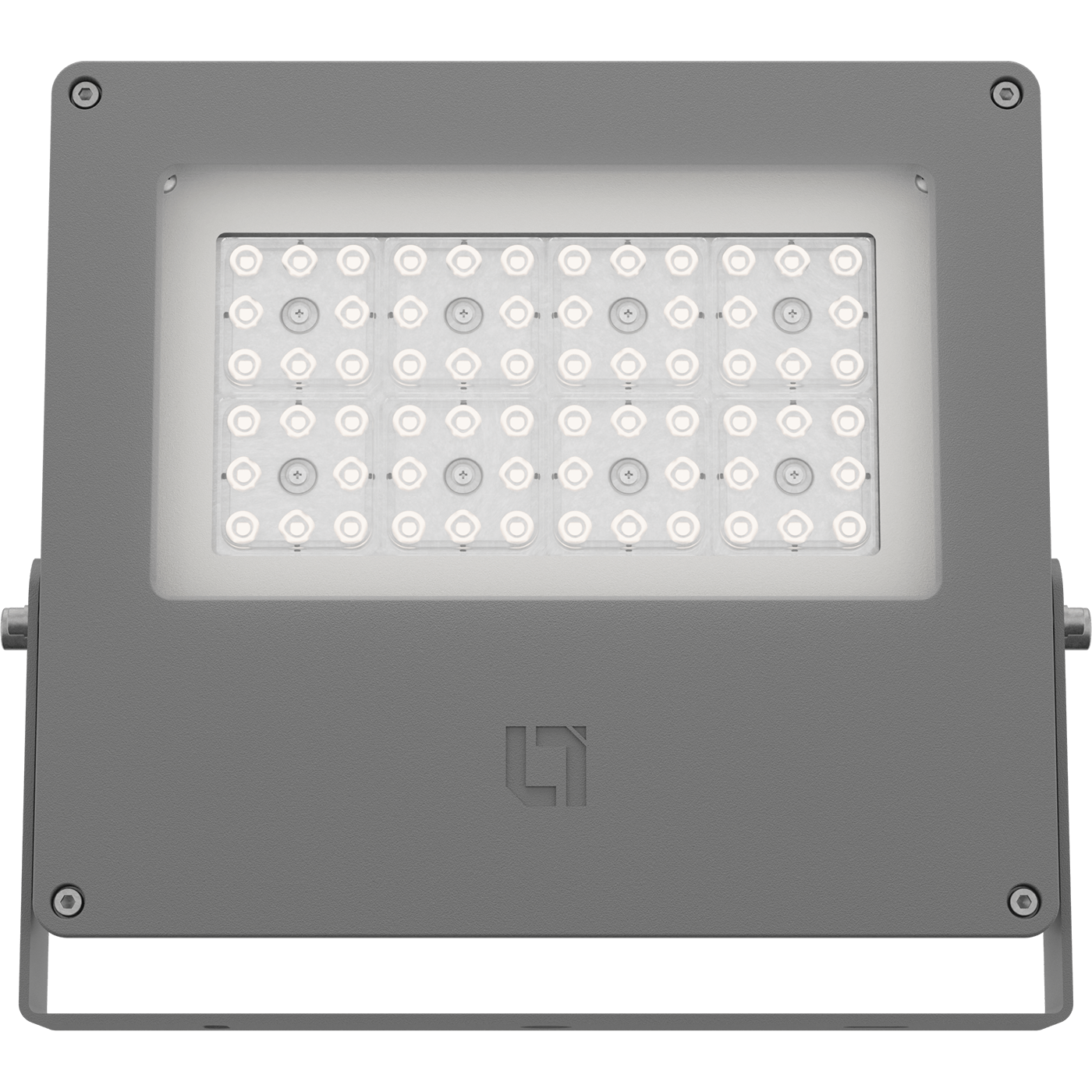

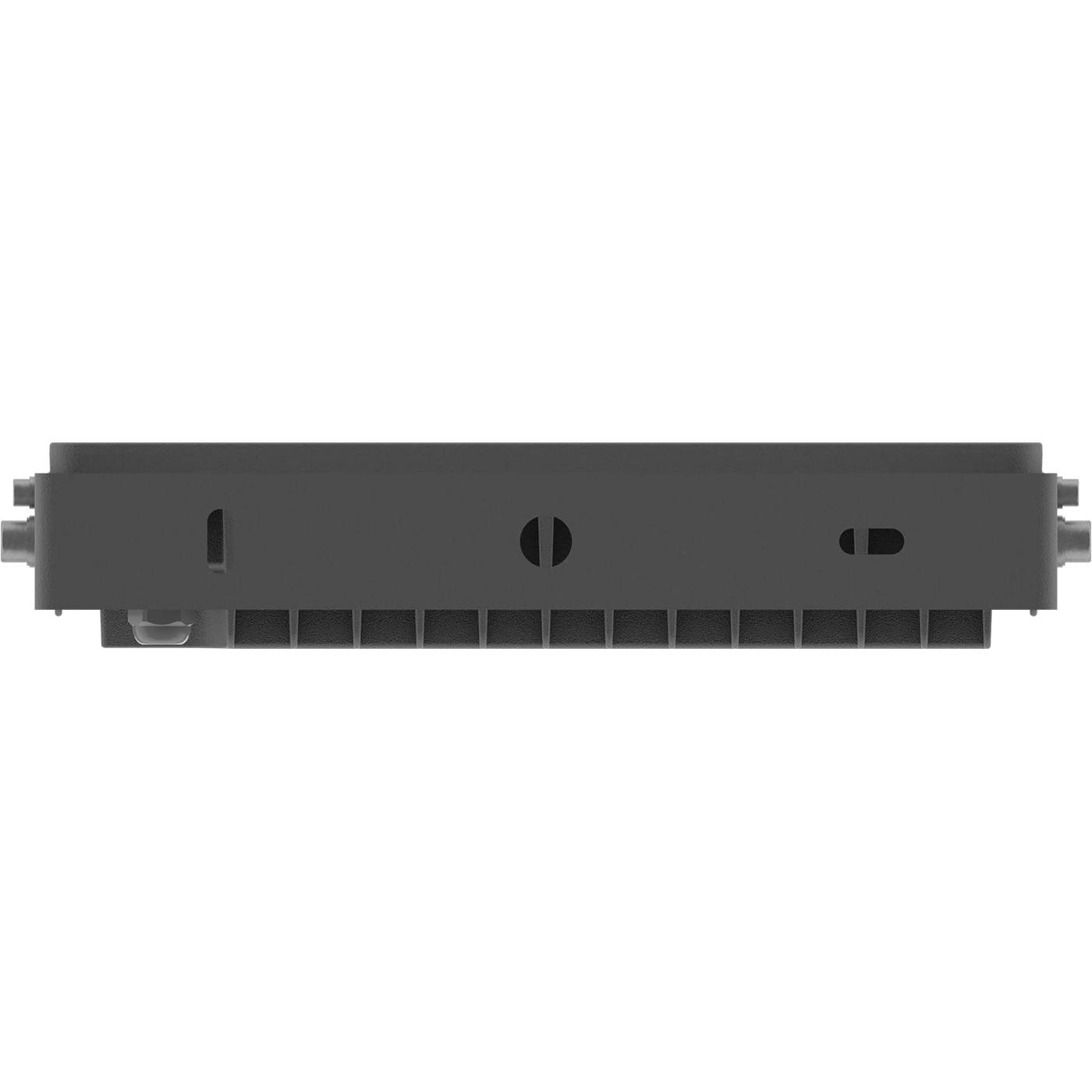

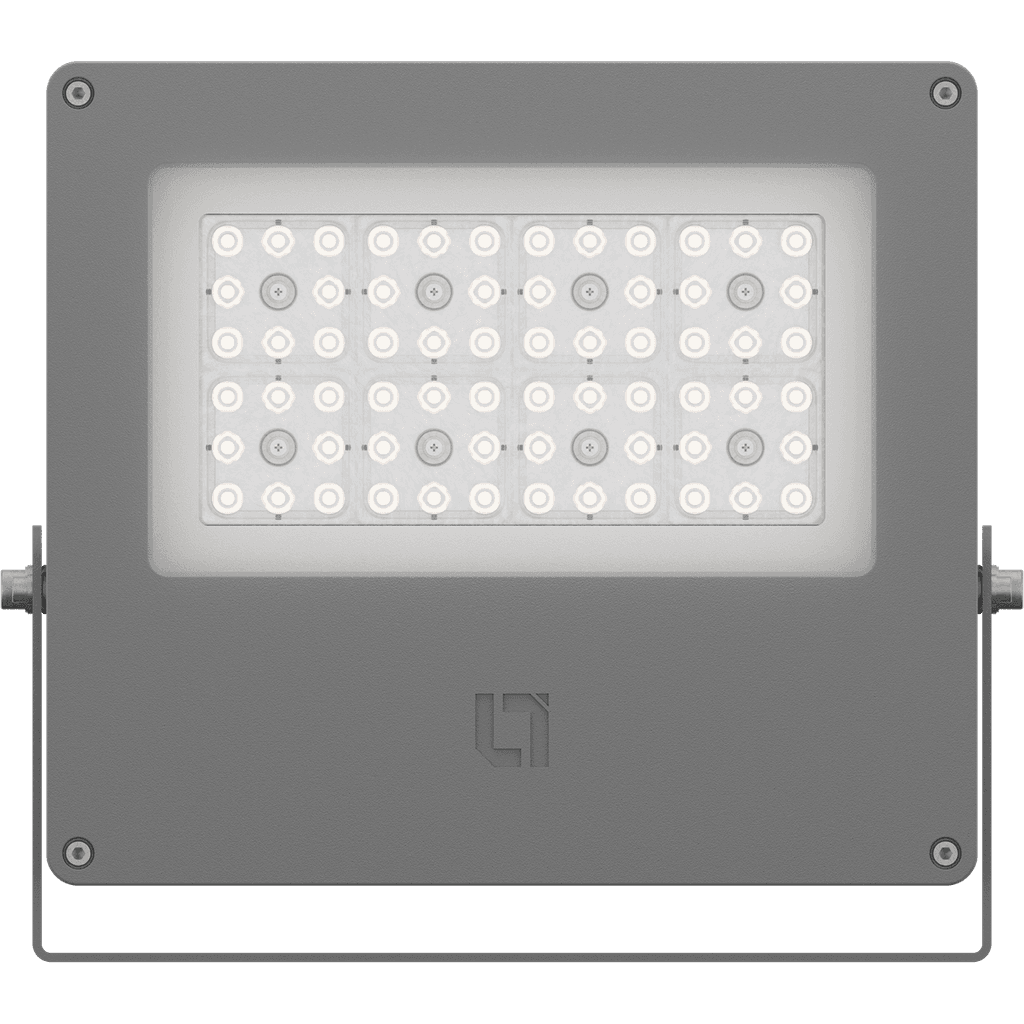

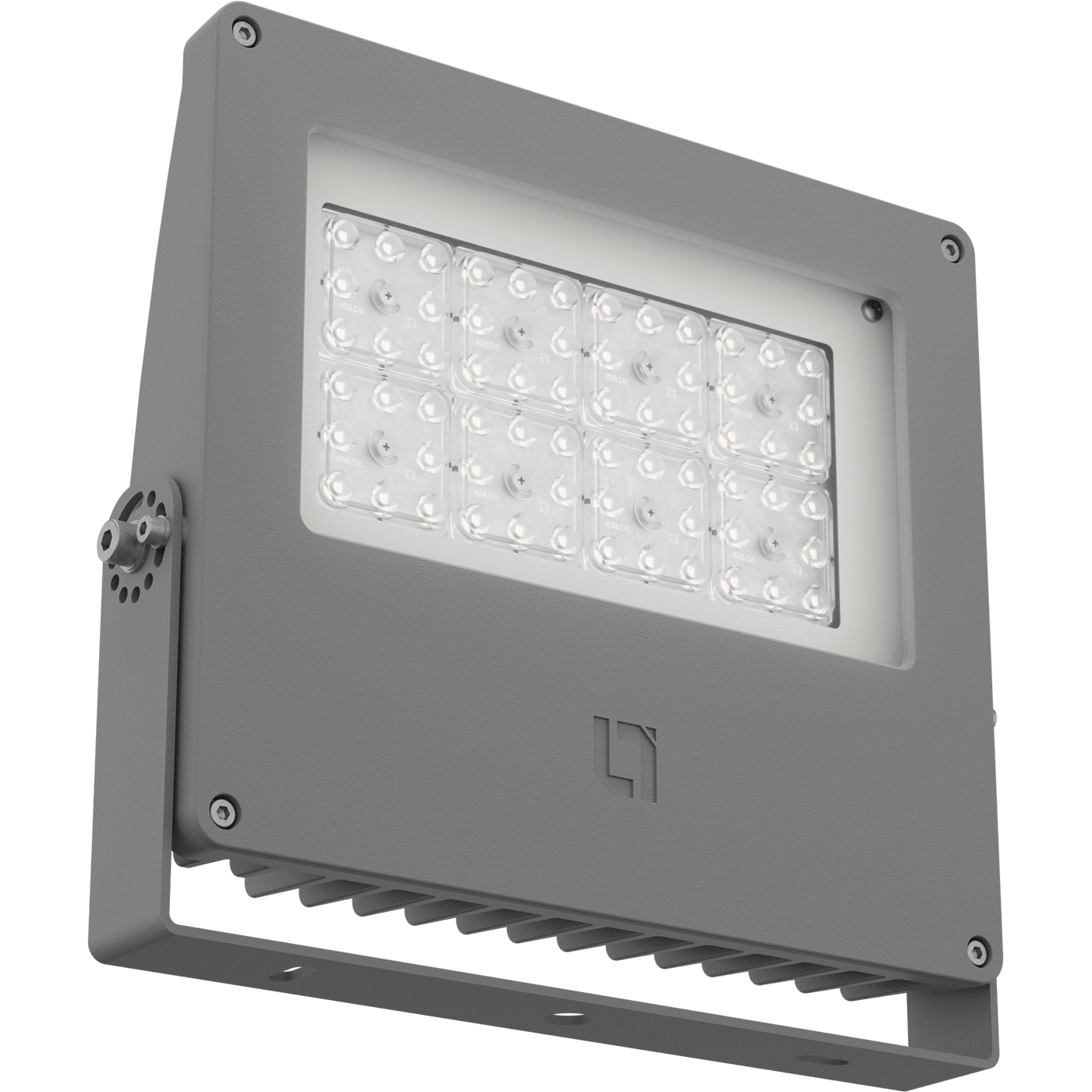

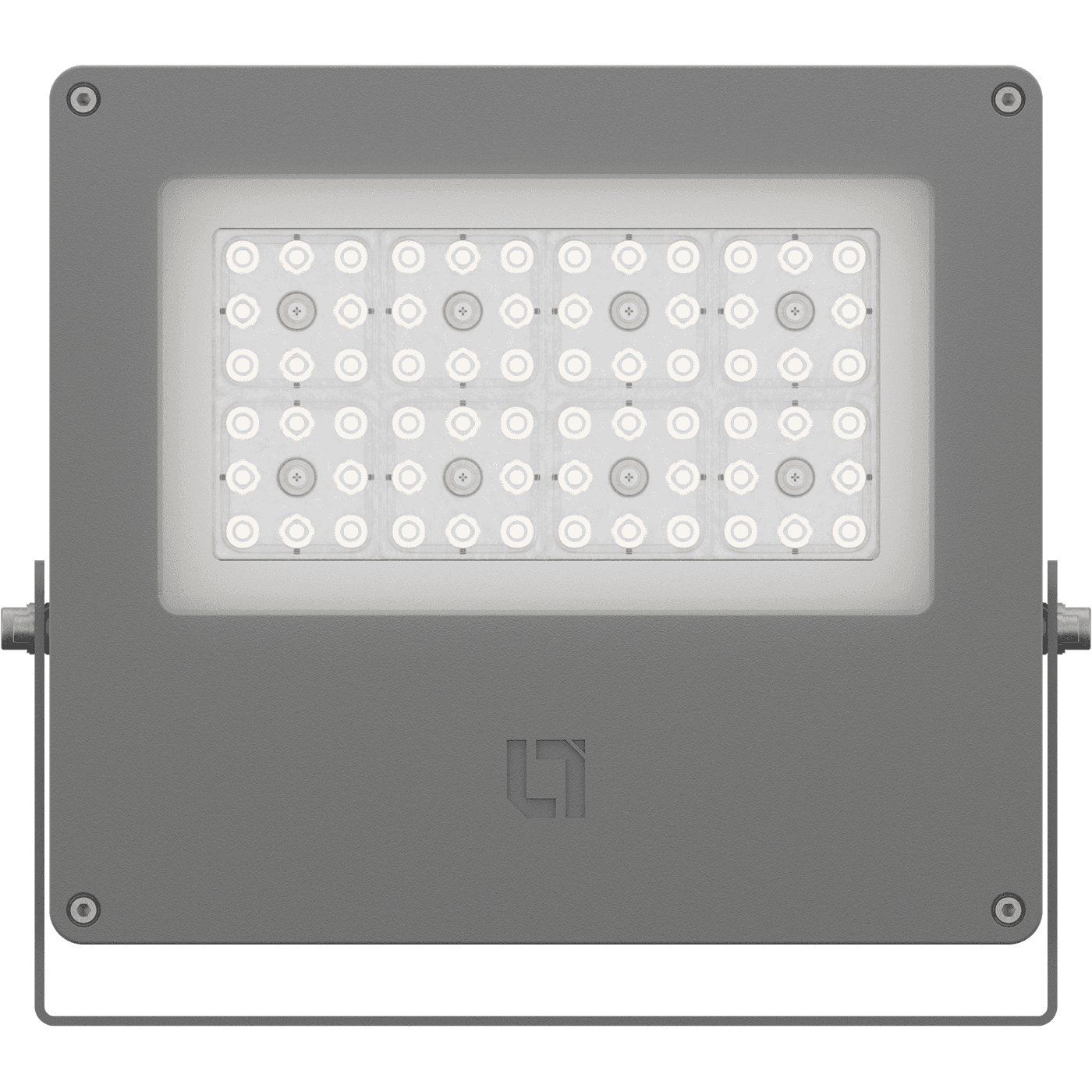

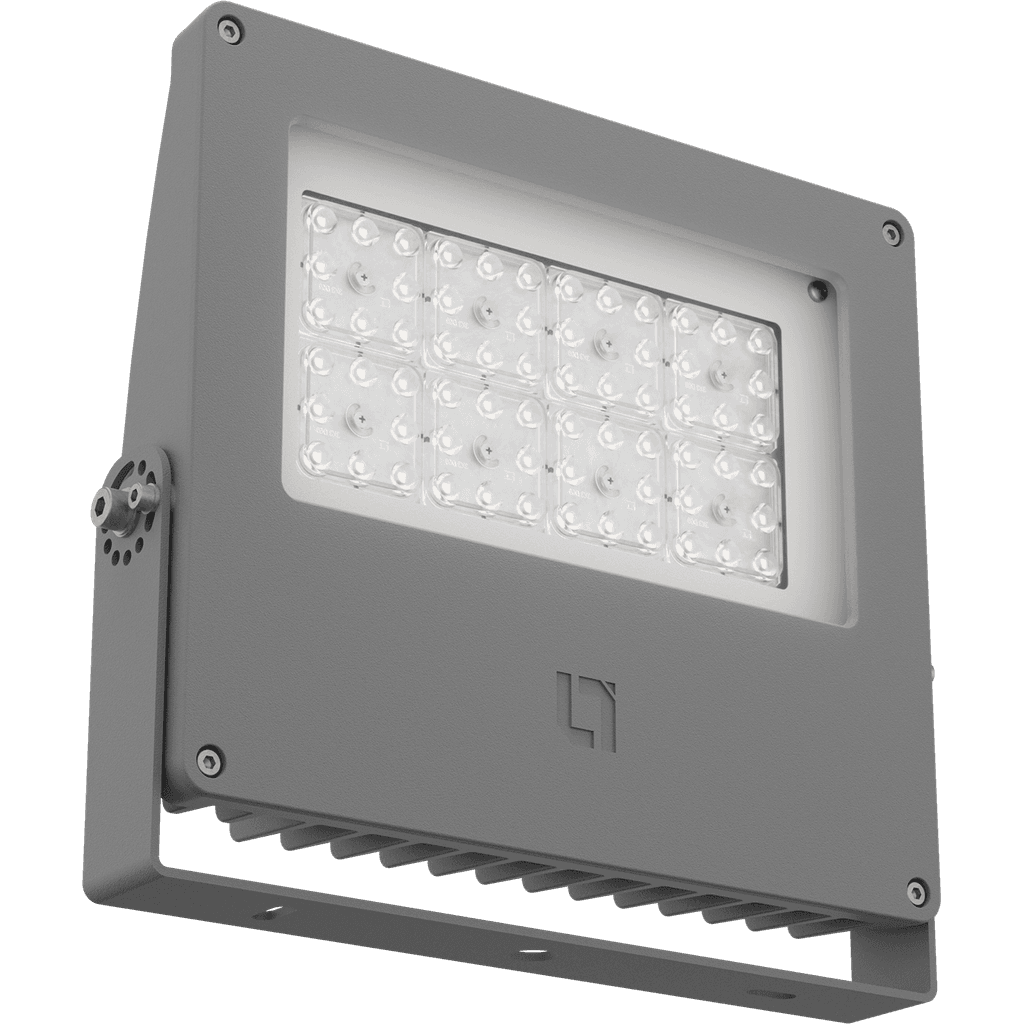

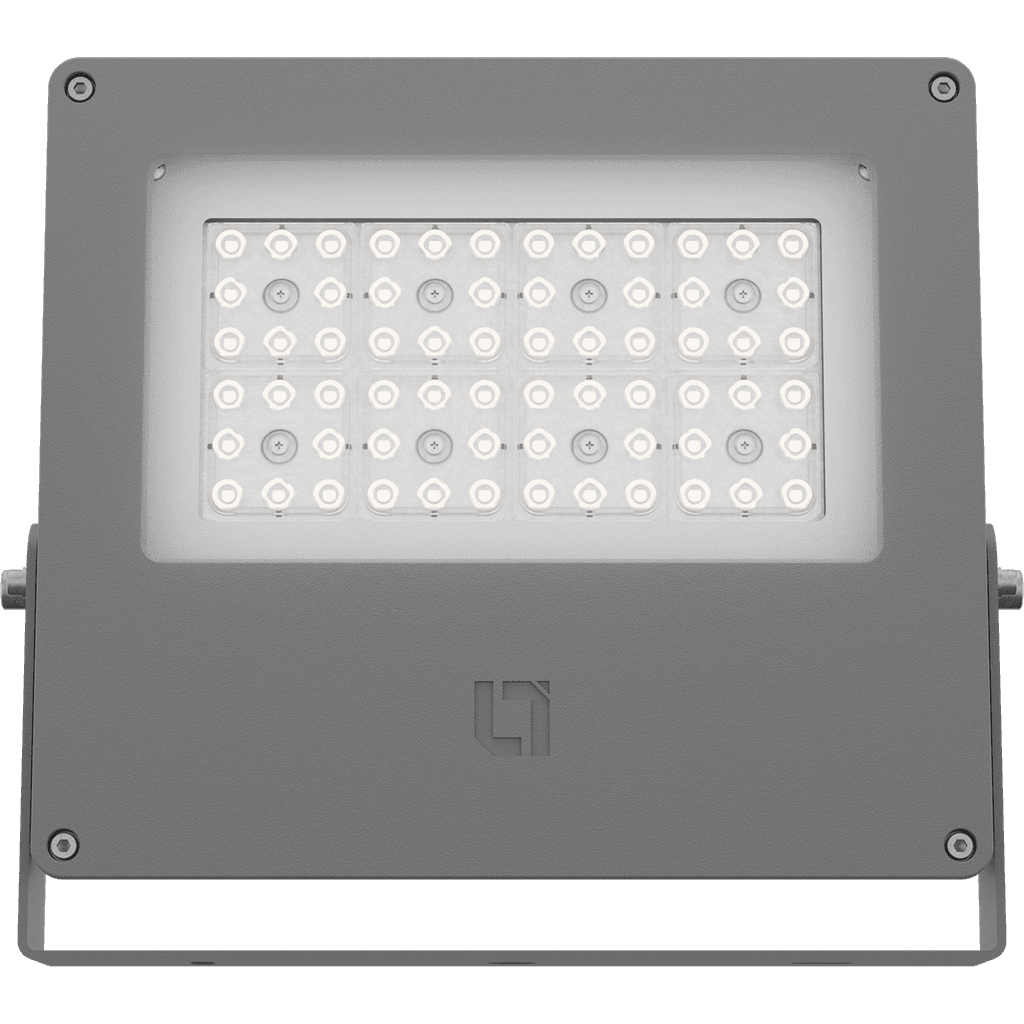

LEADER LED 30W D75 750 RAL9006 EXTREME
LEADER LED 30W D75 750 RAL9006 EXTREME
26 Wluminaire power
4000 lmlight flow
154 lm/Wenergy efficiency
code1350001500
beam angleD75
color temperature5000
weight4.85 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
55 Astarting current pulse time, µs
200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-420 Vluminaire power
26 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
55 A
starting current pulse time, µs
200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
26 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
4.85 kg
length, mm
335 mm
width, mm
295 mm
height, mm
64 mm
housing color
Металлик
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1350001500
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -60 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
154 lm/W
color rendition index (CRI)
>70
light flow
4000 lm
flickering factor
<5%
beam angle
D75
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

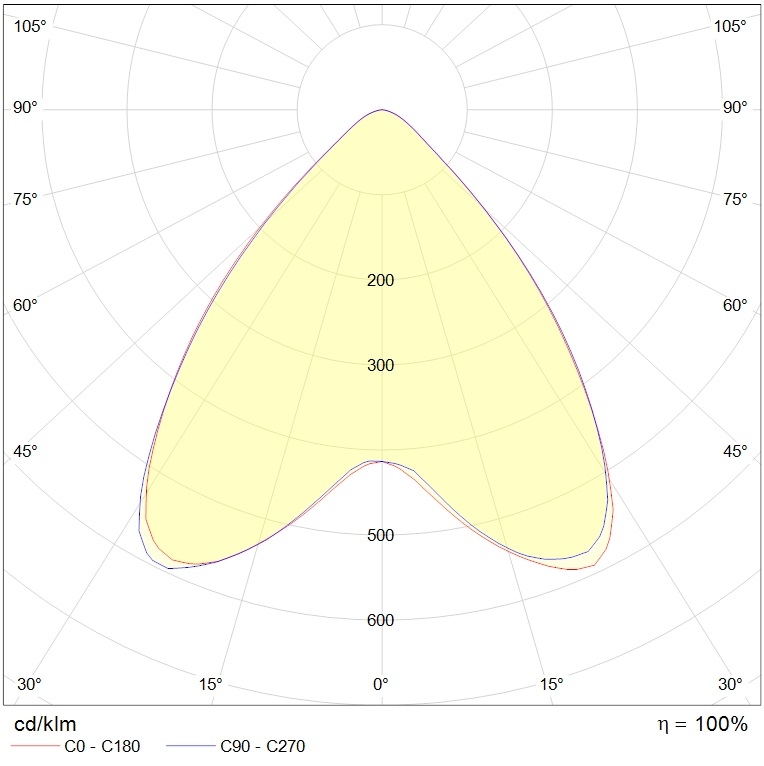

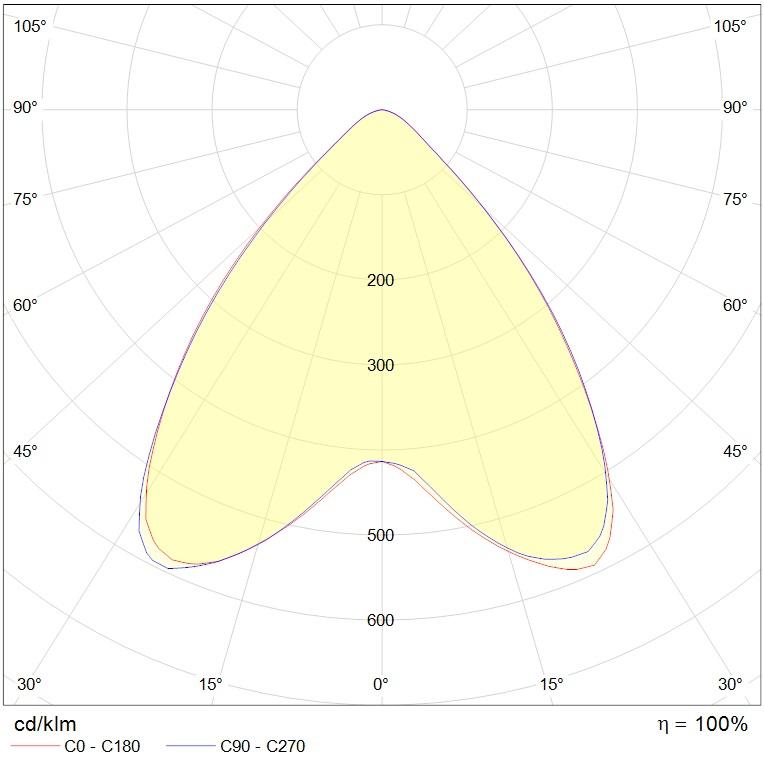

photometric files
ies107.1 kB
jpg85.2 kB
ldt62 kB
documents
passport4.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
