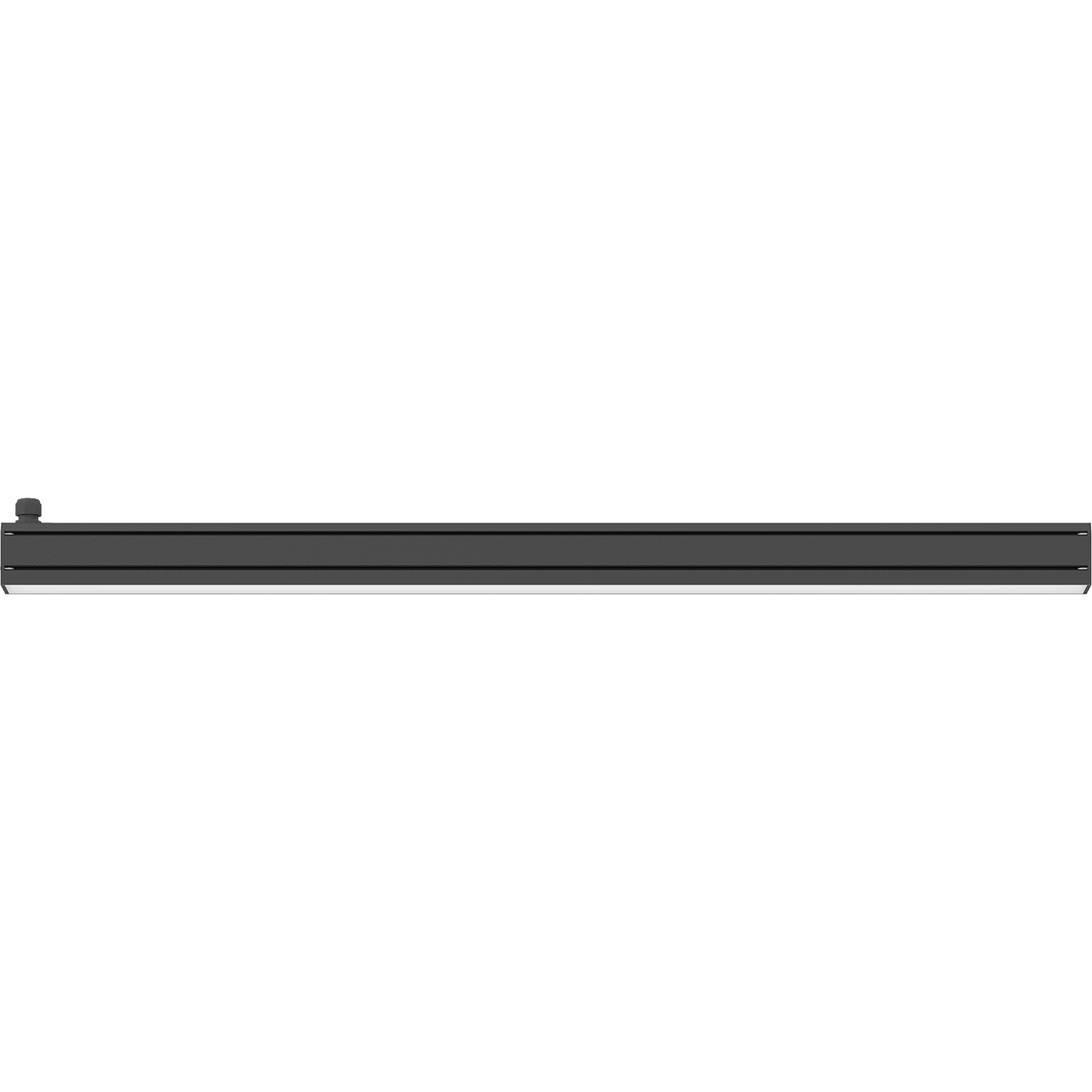

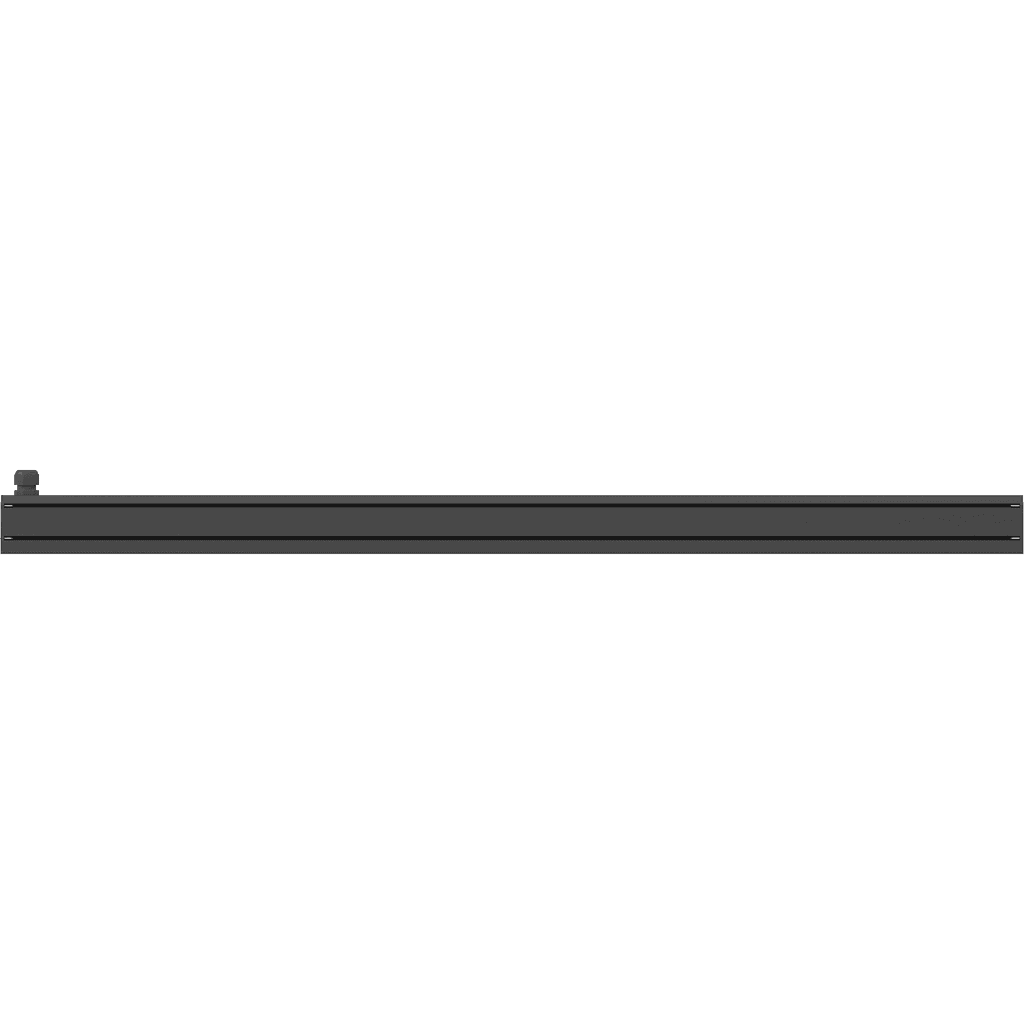

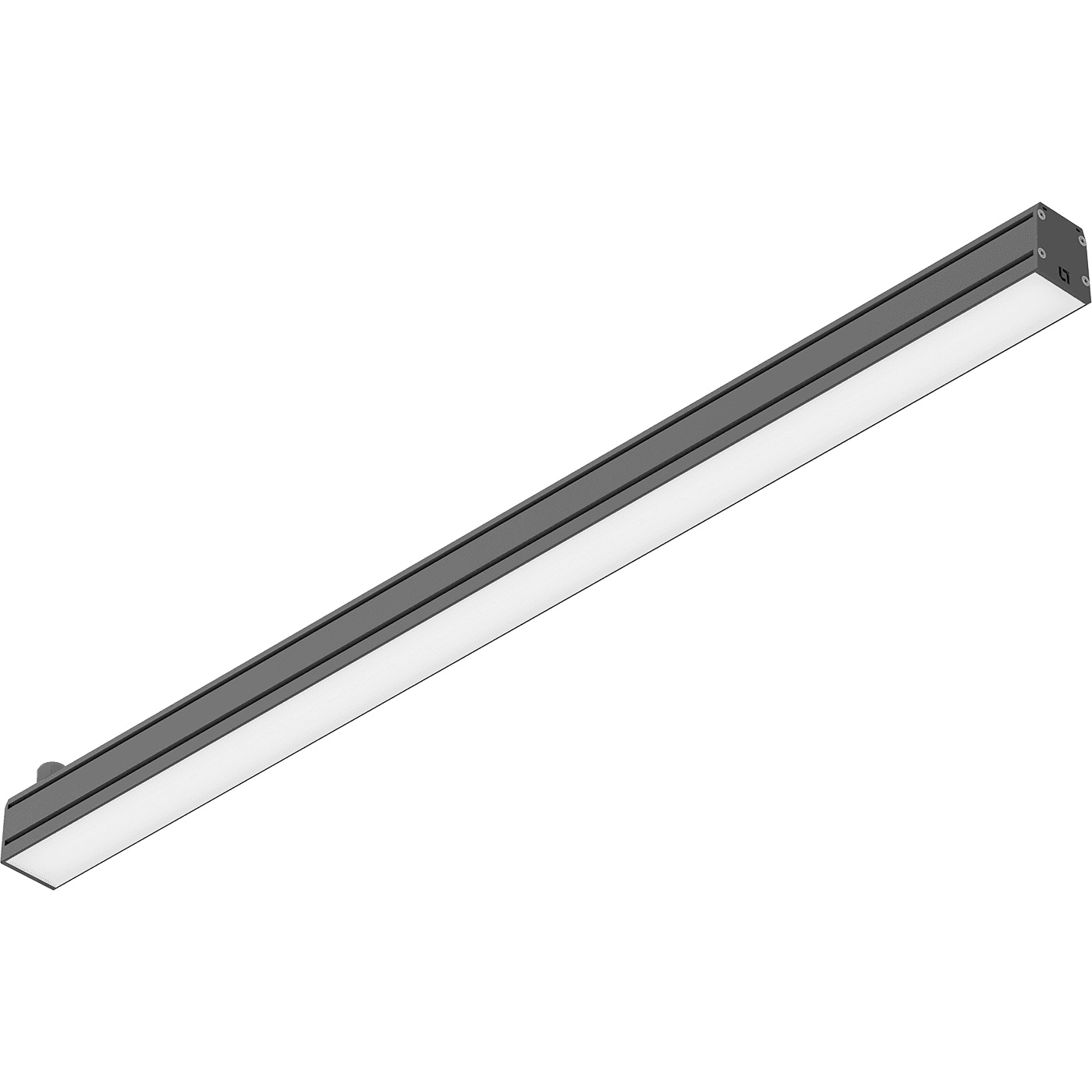

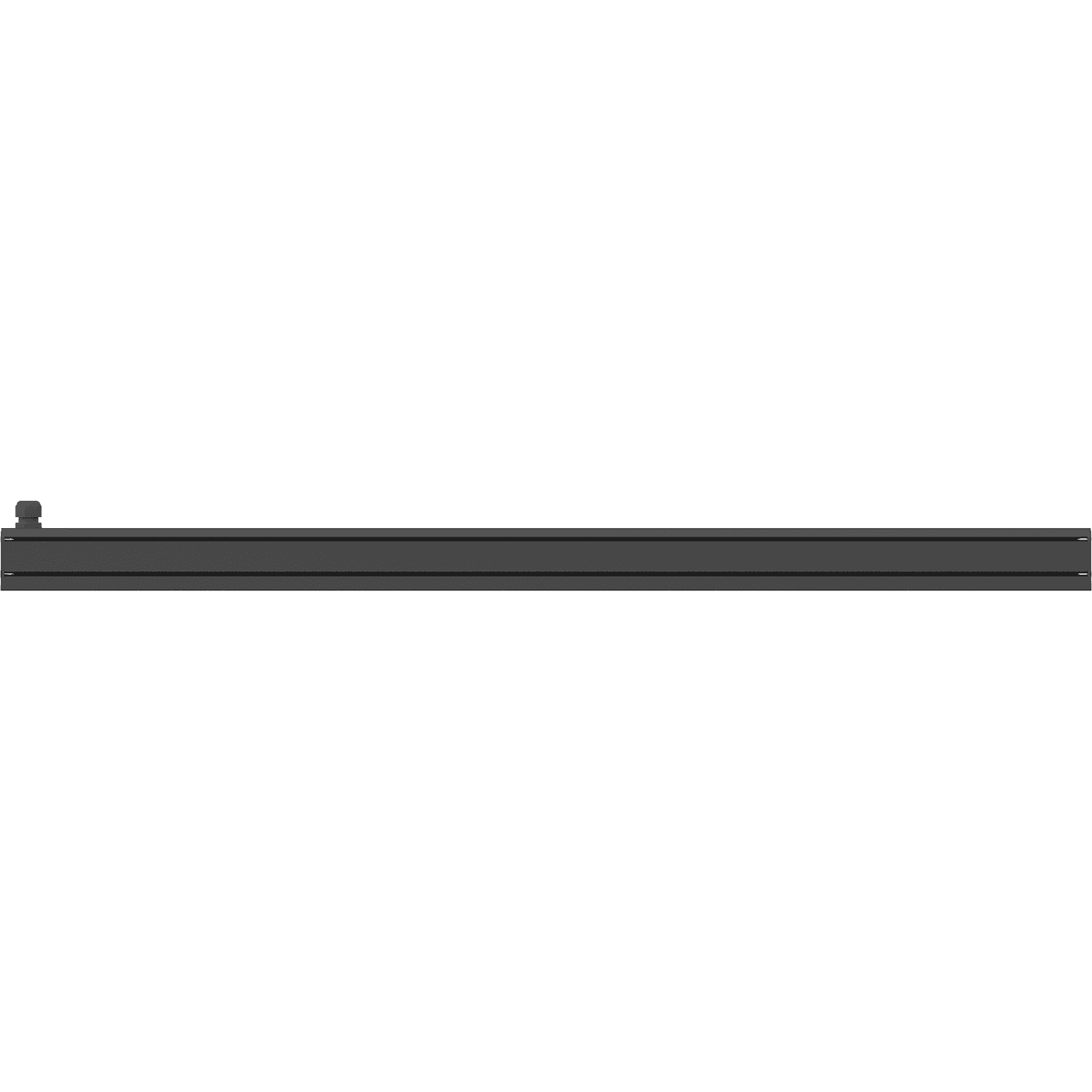

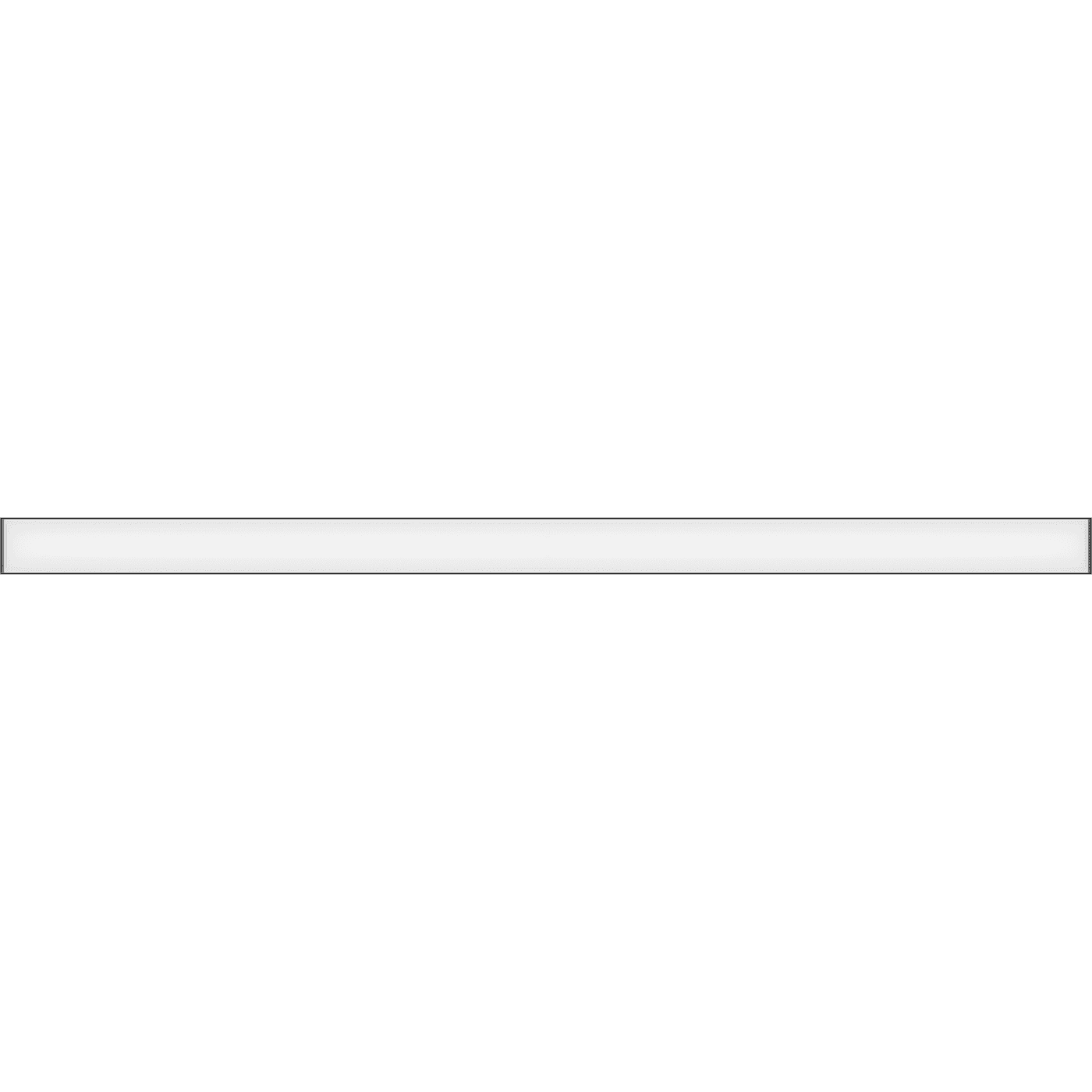

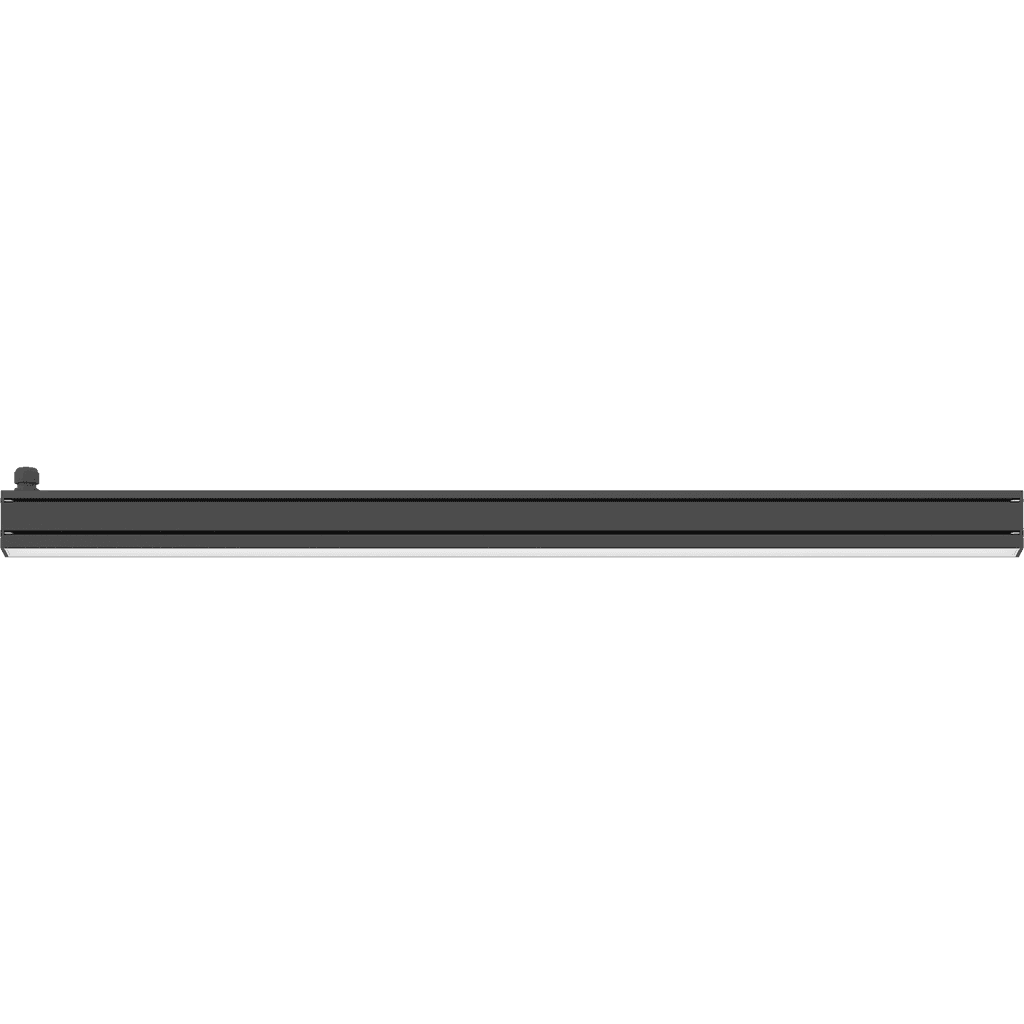

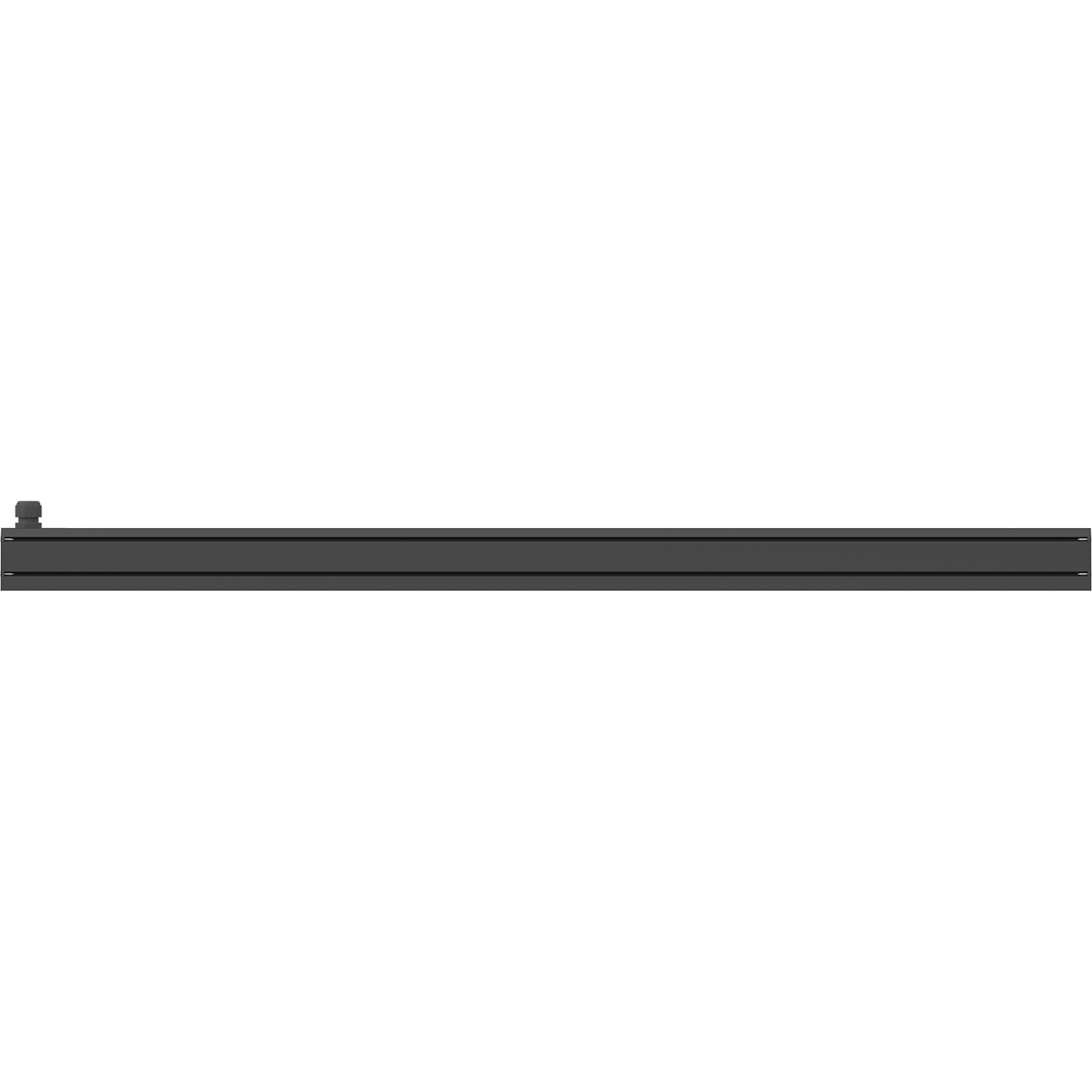

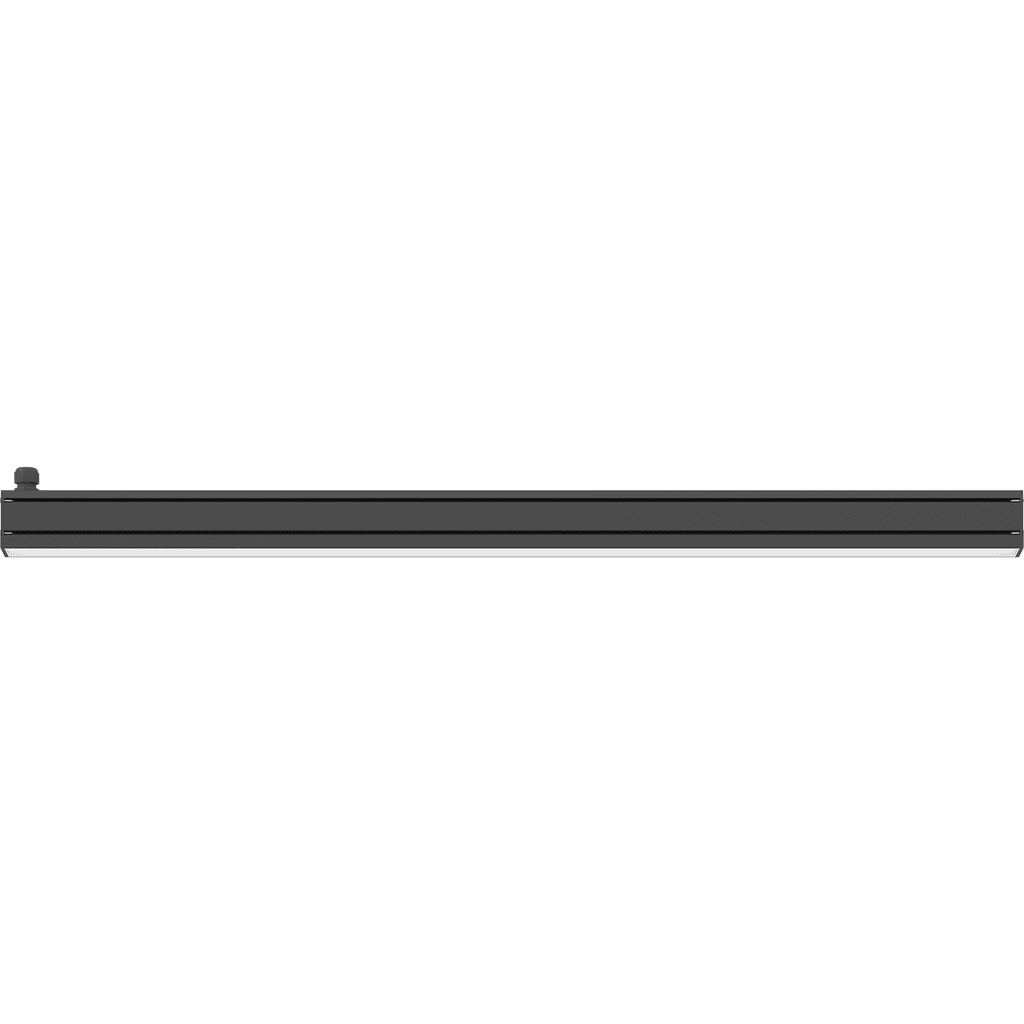

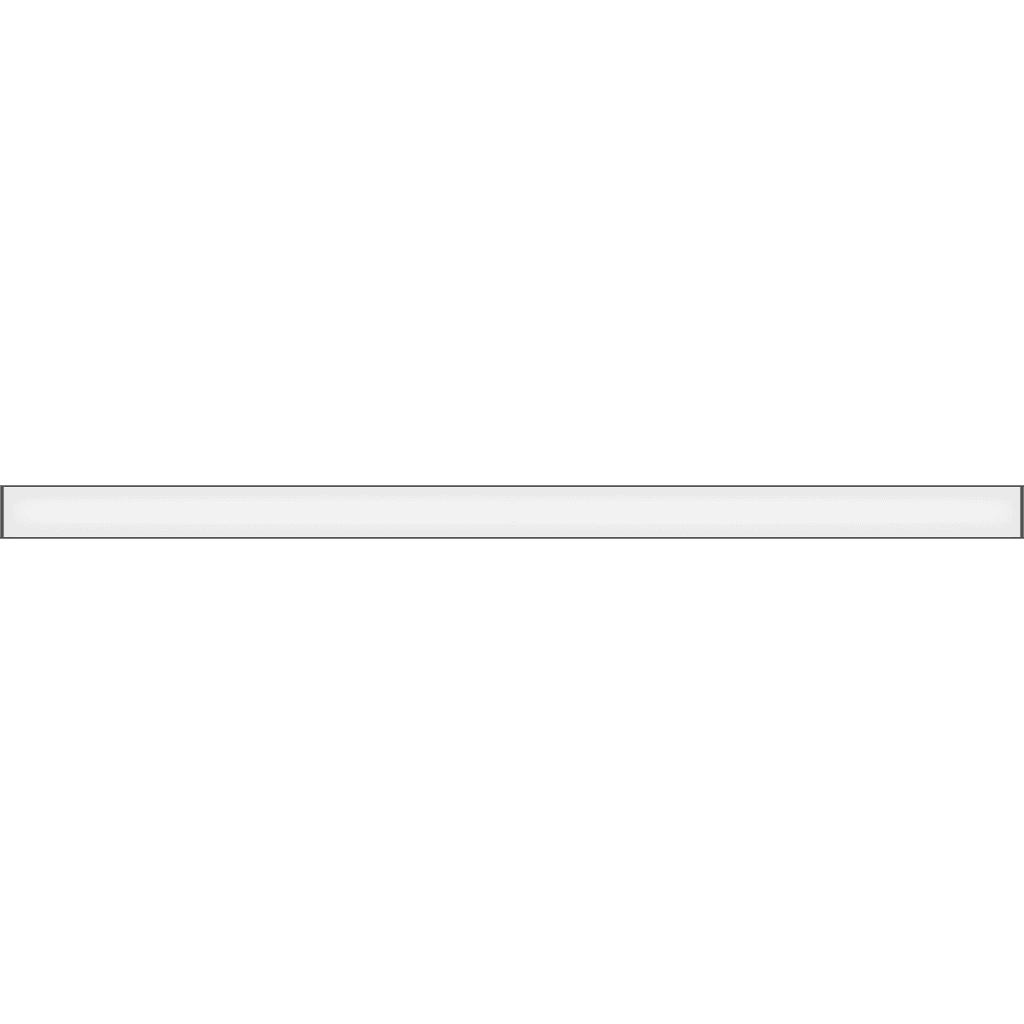

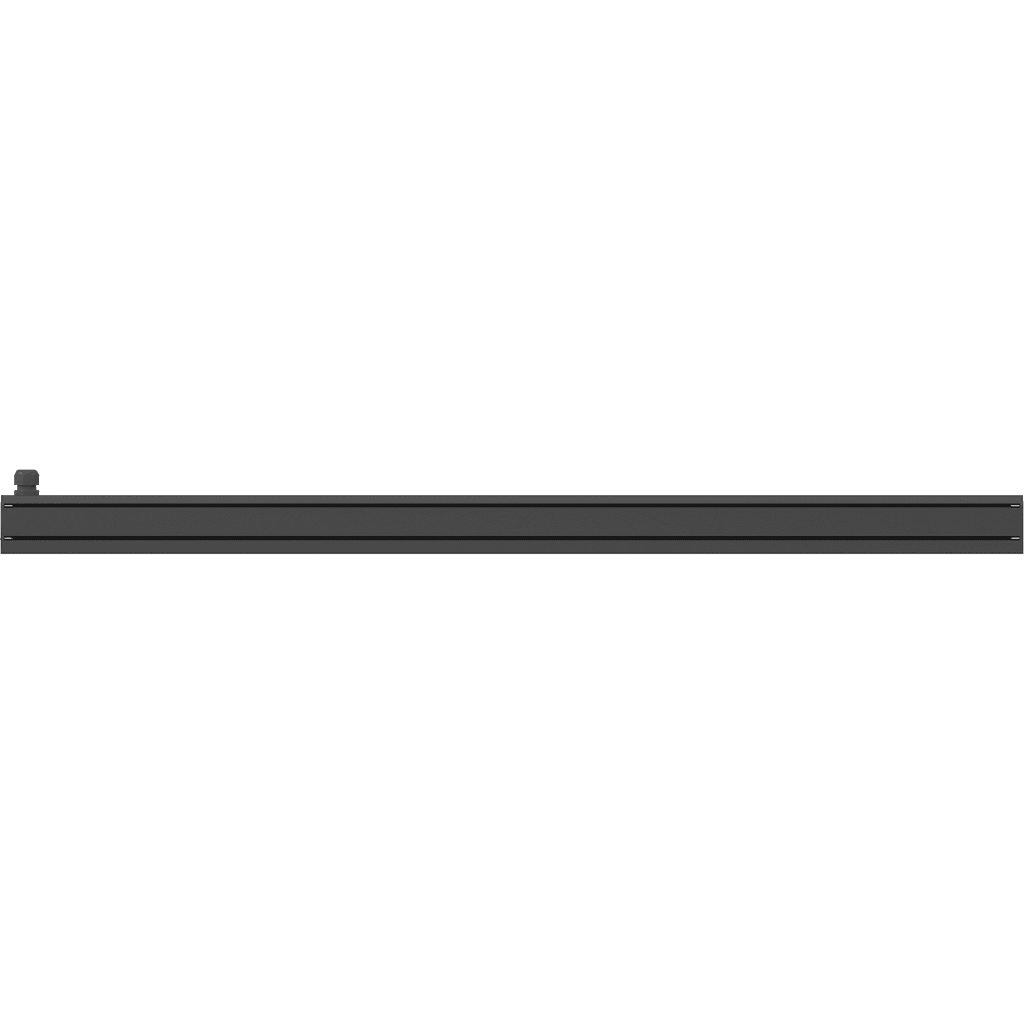

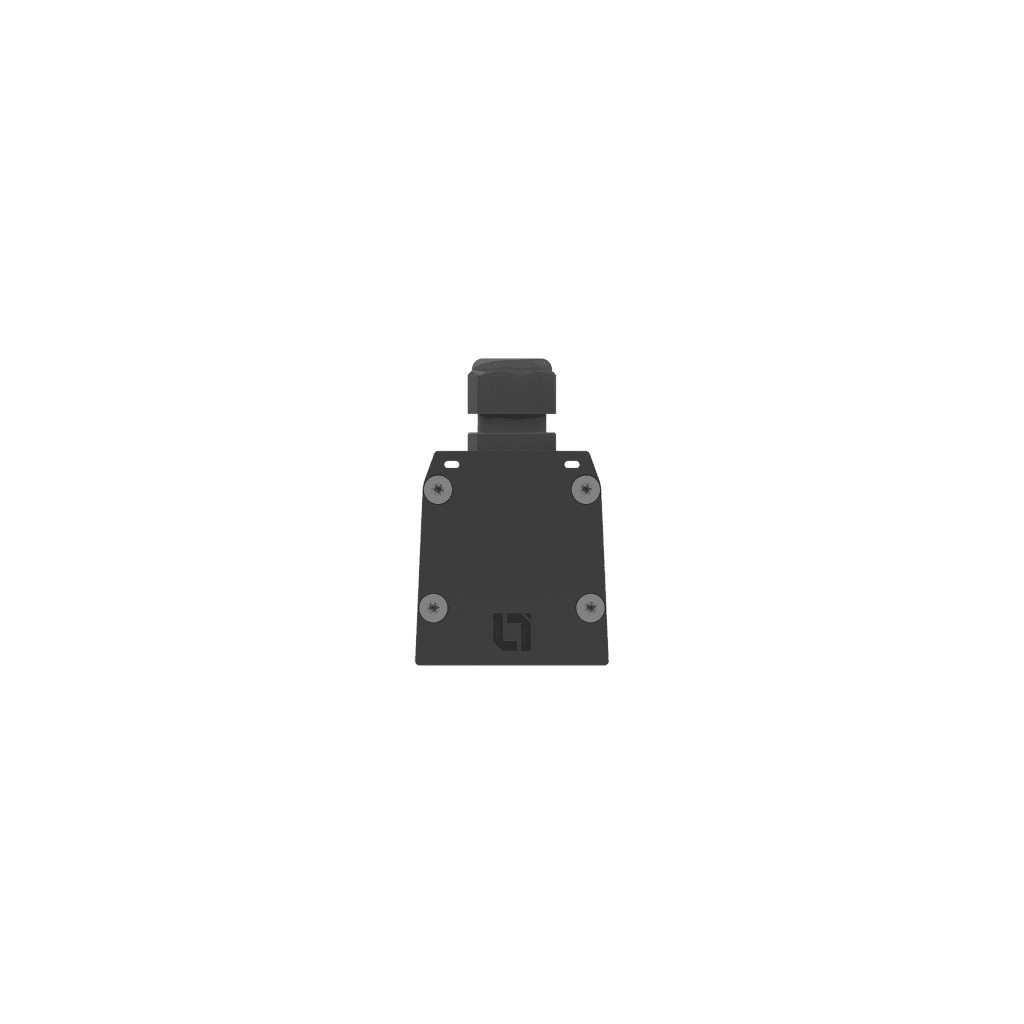

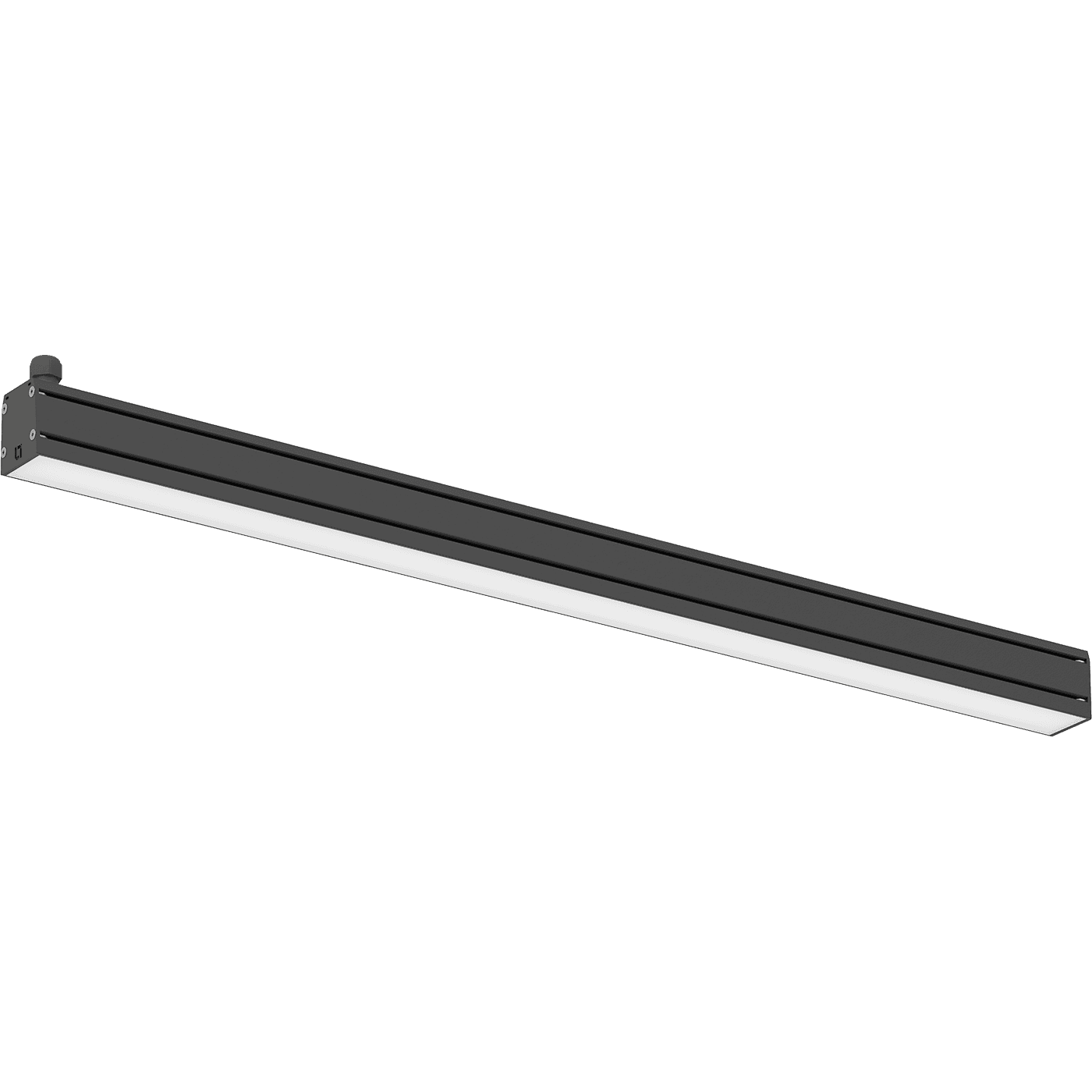

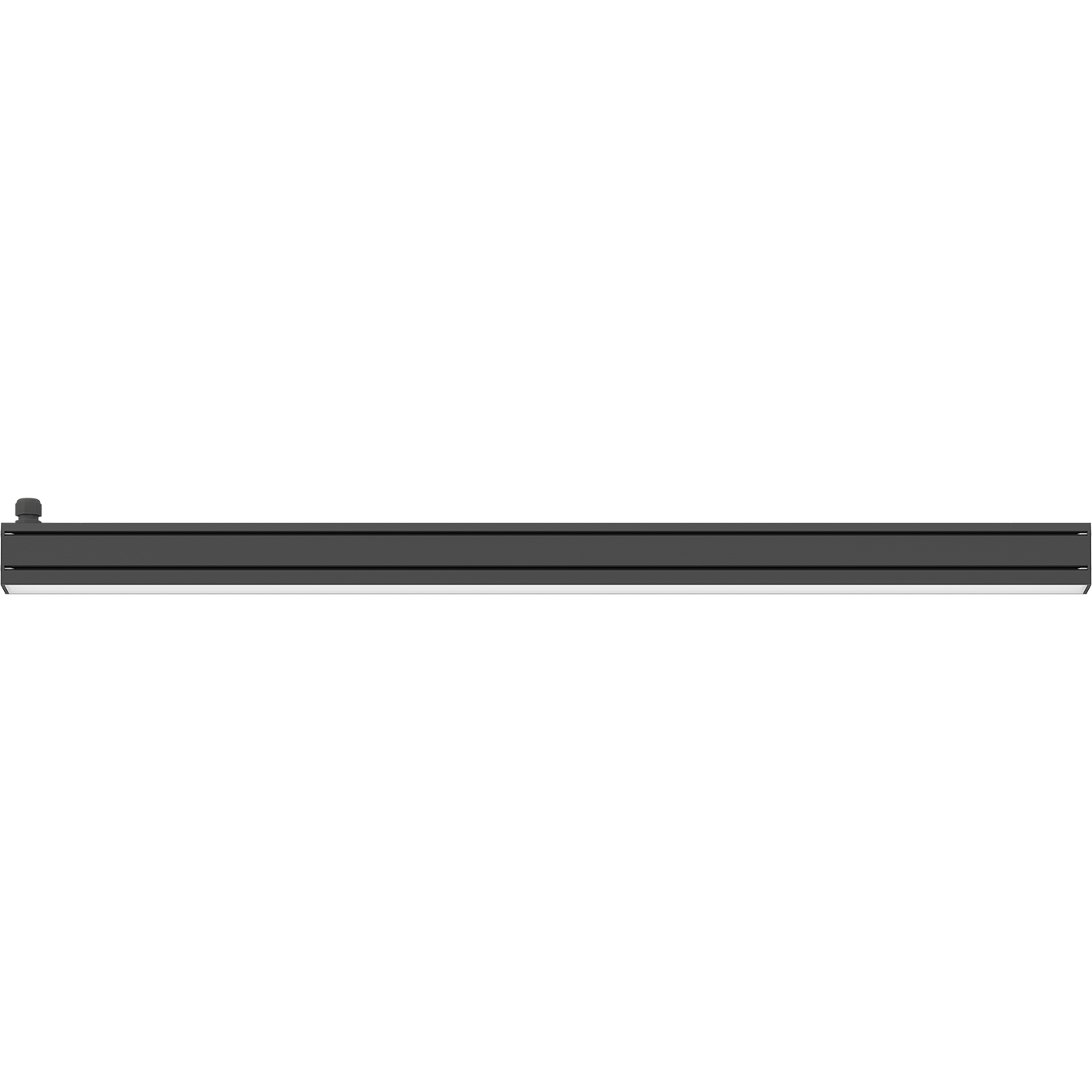

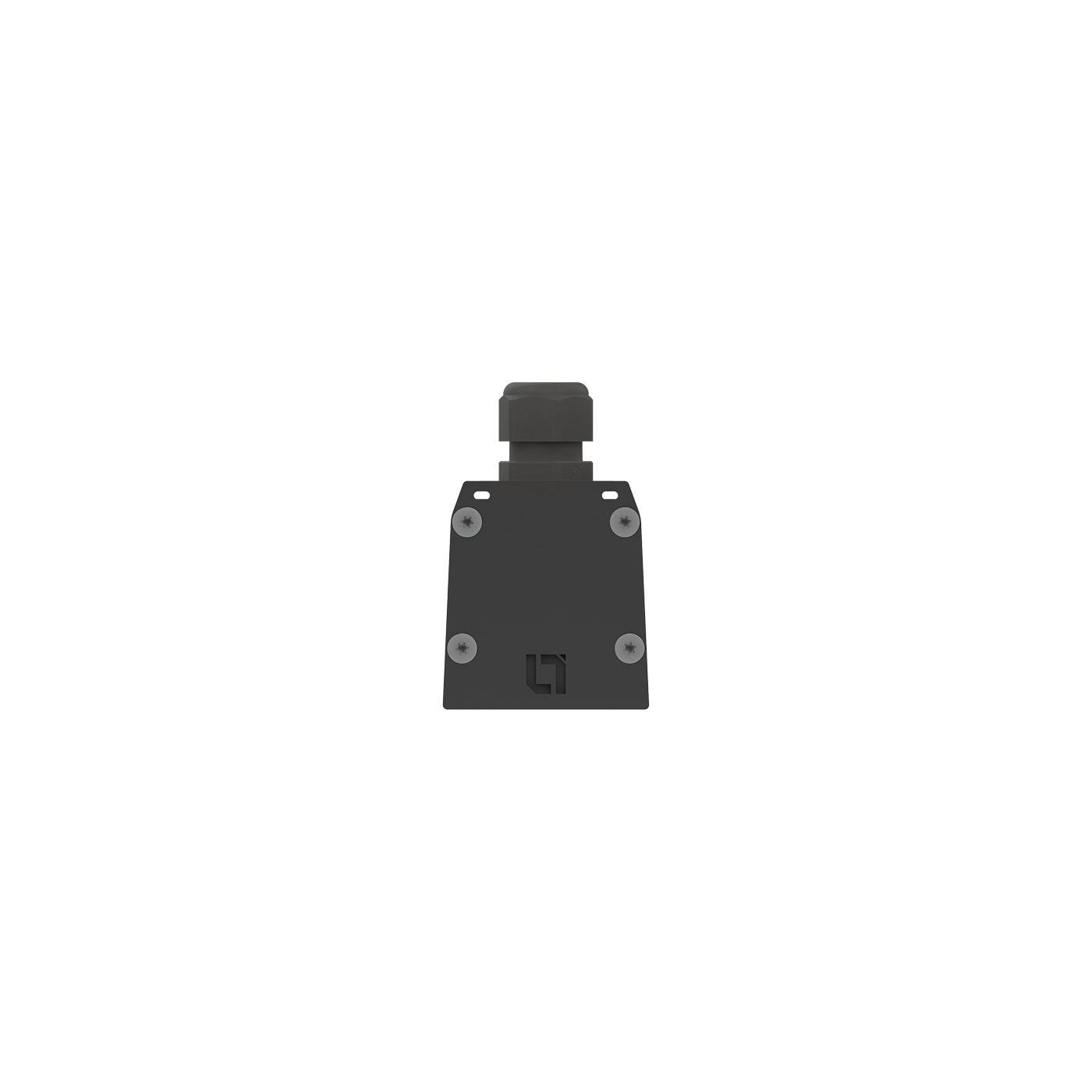

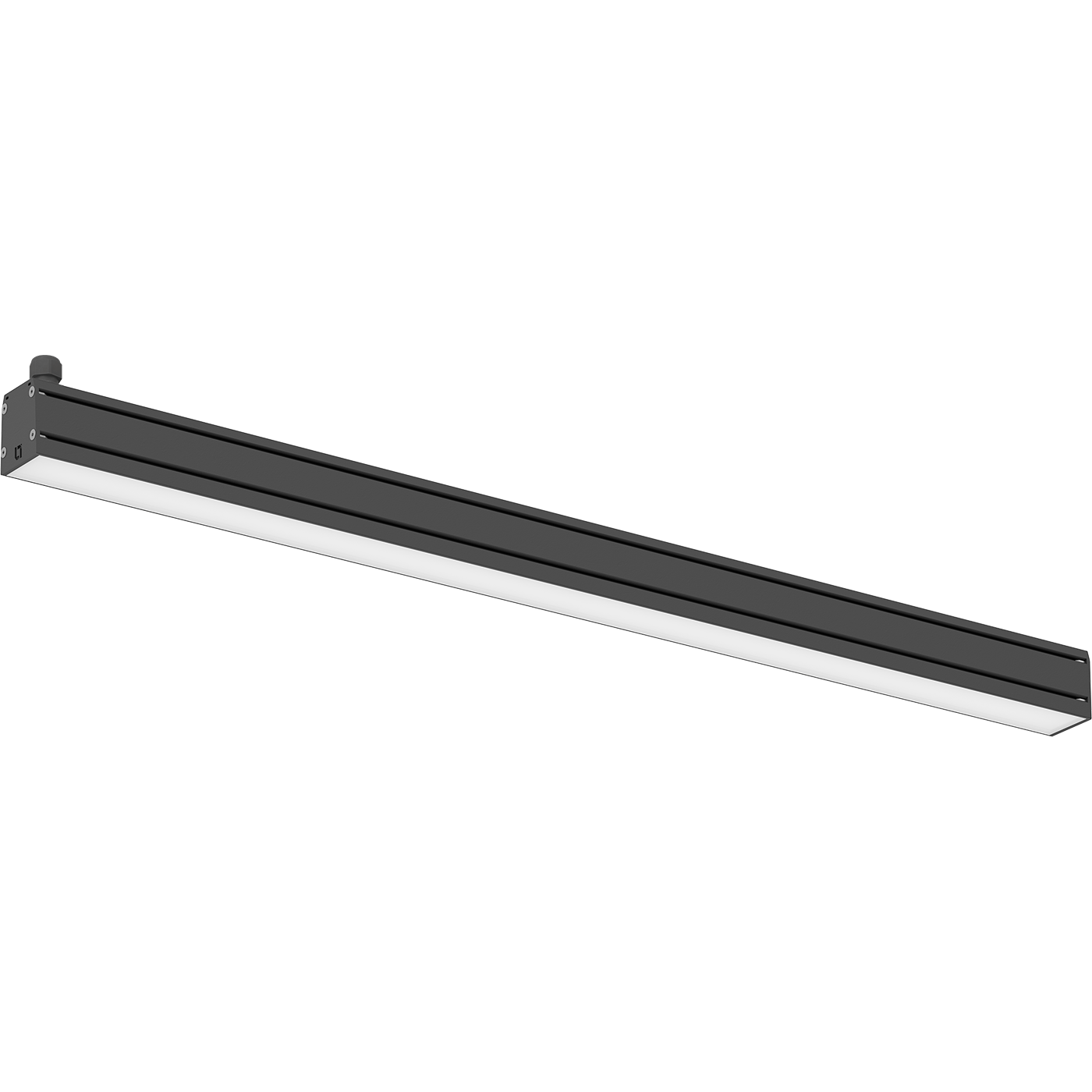

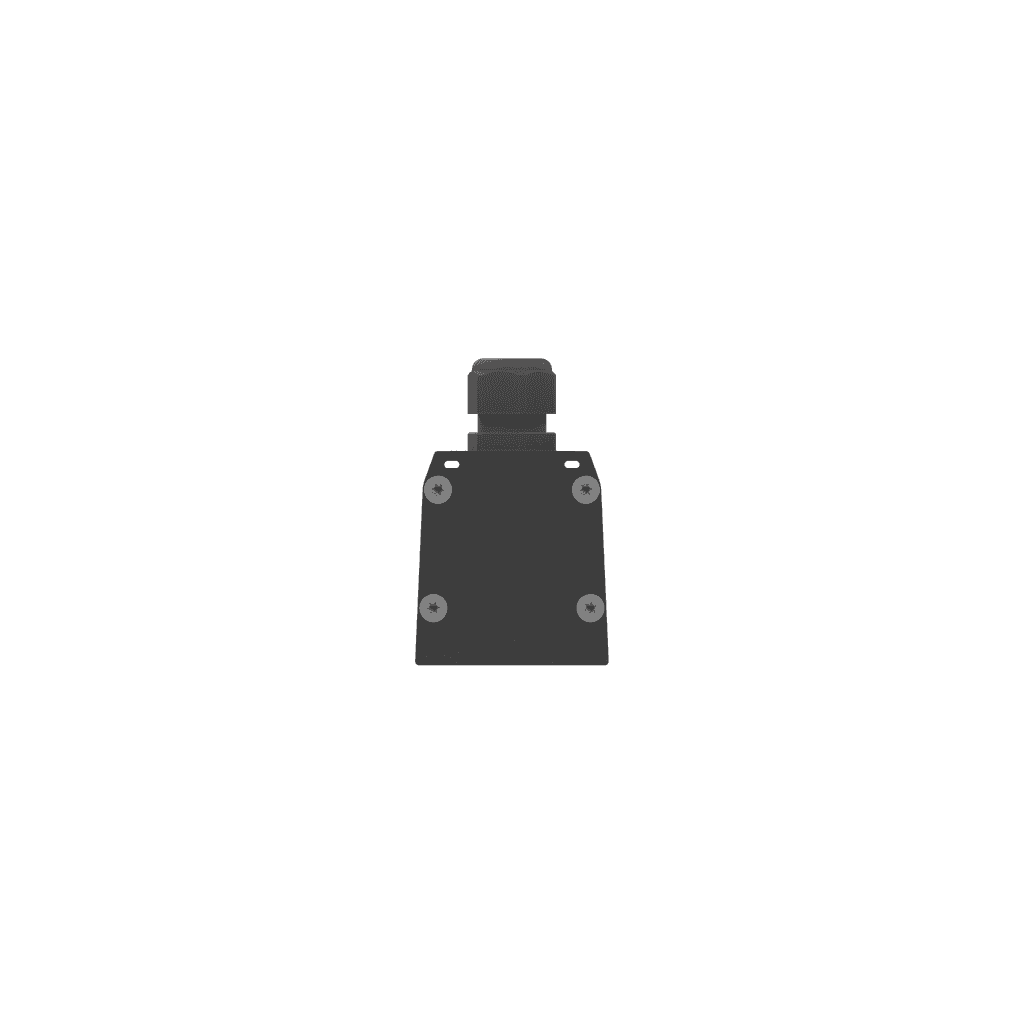

LED MALL ECO (1000) 50 D90 B IP65 4000K
_50_d90_b_ip65_4000k.jpg&w=1920&q=100)
_50_d90_b_ip65_4000k.jpg&w=1024&q=75)
LED MALL ECO (1000) 50 D90 B IP65 4000K
50 Wluminaire power
5600 lmlight flow
112 lm/Wenergy efficiency
code1598002340
color temperature4000
beam angleD100
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
112 lm/Wcolor rendition index (CRI)
>80light flow
5600 lmflickering factor
<5%beam angle
D100color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
112 lm/W
color rendition index (CRI)
>80
light flow
5600 lm
flickering factor
<5%
beam angle
D100
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
50 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
constructional
length, mm
1000 mm
width, mm
53 mm
height, mm
100 mm
installation length, mm
800 mm
weight
2.1 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
code
1598002340
model files
model files

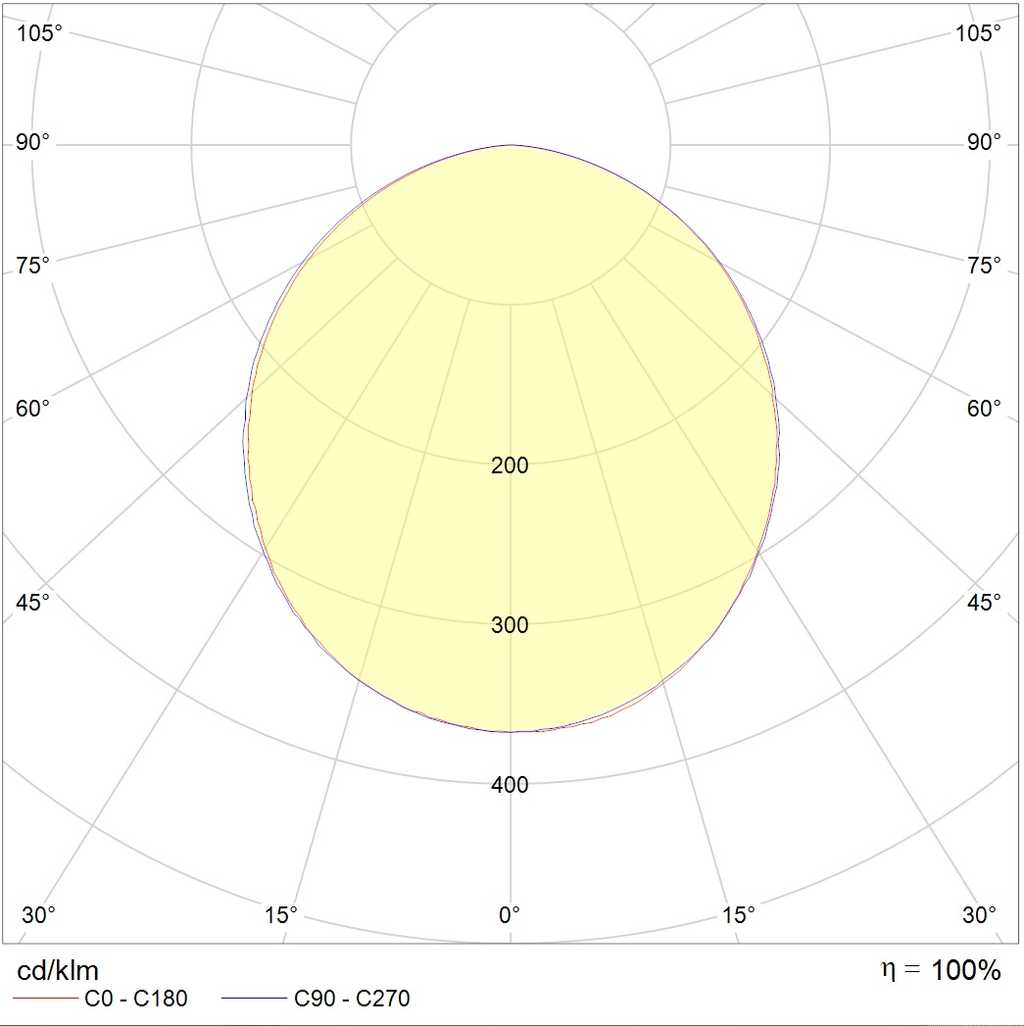

photometric files
documents
сертификаты
photometric files
ies871.6 kB
jpg119.4 kB
ldt545.4 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
