LED MALL ECO (1000) 50 D90 IP54 3000K
_50_d90_ip54_3000k.jpg&w=1920&q=50)
_50_d90_ip54_3000k.jpg&w=1024&q=50)
LED MALL ECO (1000) 50 D90 IP54 3000K
50 Wluminaire power
5600 lmlight flow
112 lm/Wenergy efficiency
code1598001100
color temperature3000
beam angleD100
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
112 lm/Wcolor rendition index (CRI)
>80light flow
5600 lmflickering factor
<5%beam angle
D100color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
112 lm/W
color rendition index (CRI)
>80
light flow
5600 lm
flickering factor
<5%
beam angle
D100
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
maximum number of luminaires in a line
1
luminaire power
50 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
constructional
length, mm
1000 mm
width, mm
53 mm
height, mm
100 mm
installation length, mm
800 mm
weight
2.1 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
code
1598001100
model files
model files
CAD/BIM files

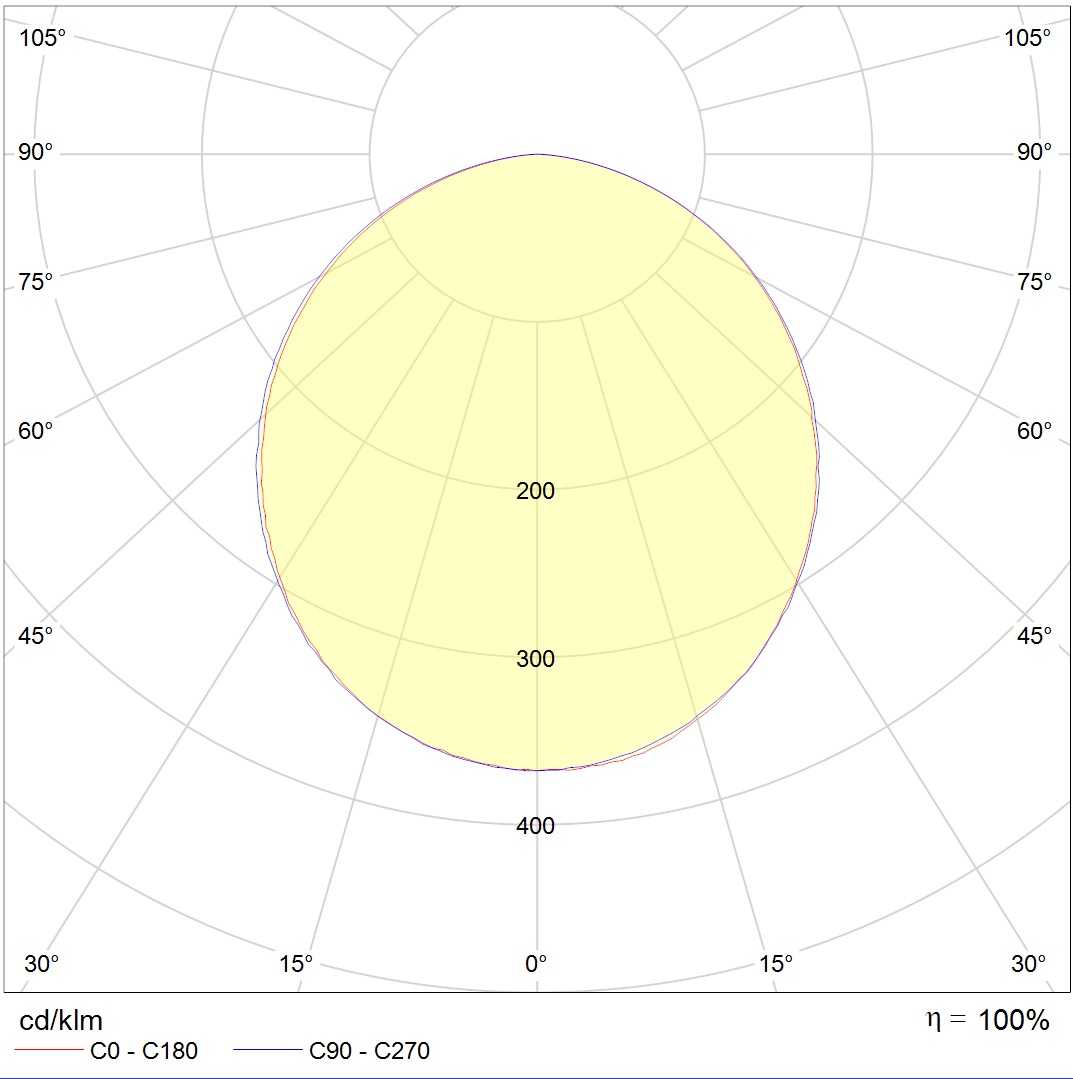

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2.8 mB
photometric files
ies871.5 kB
jpg123.1 kB
ldt545.4 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
