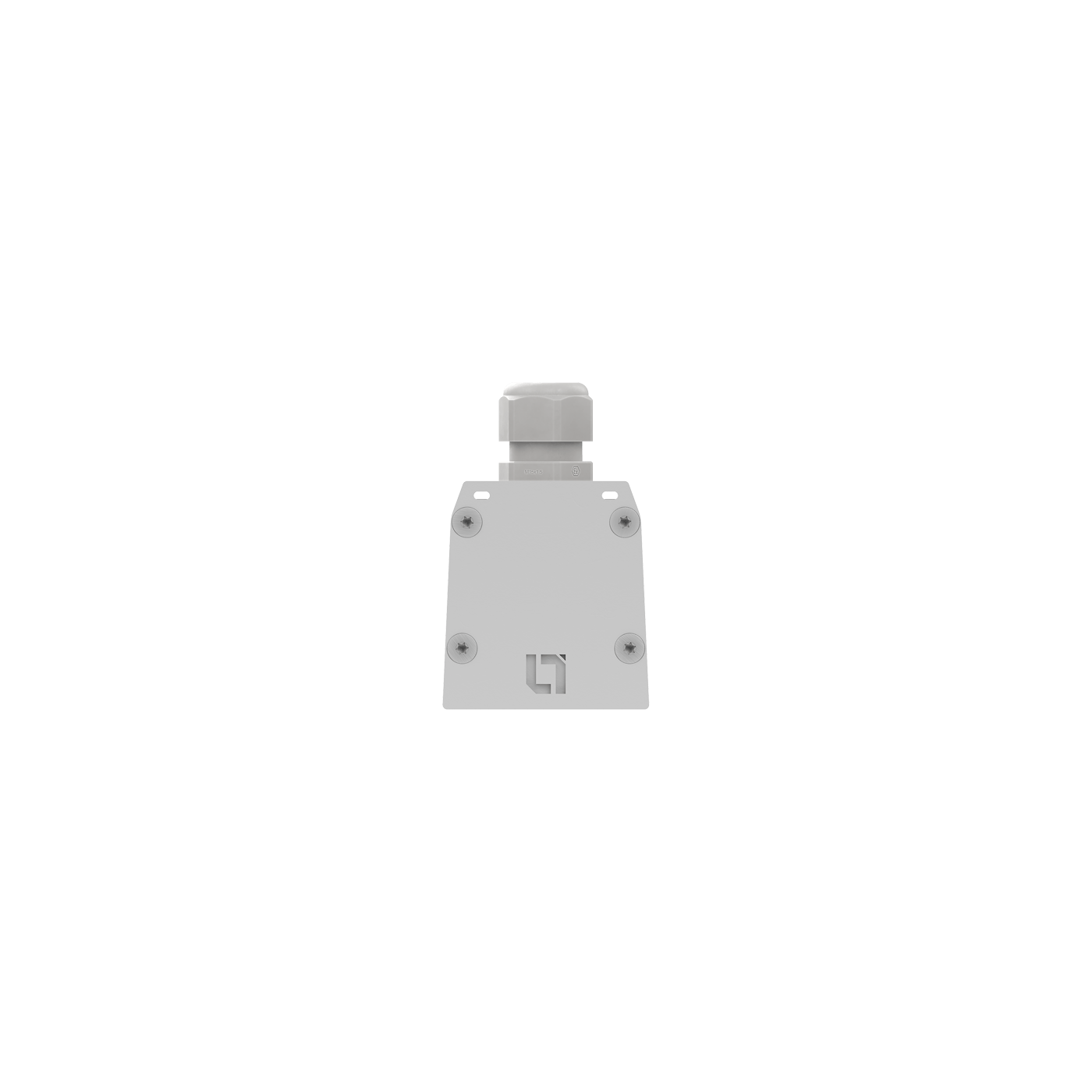

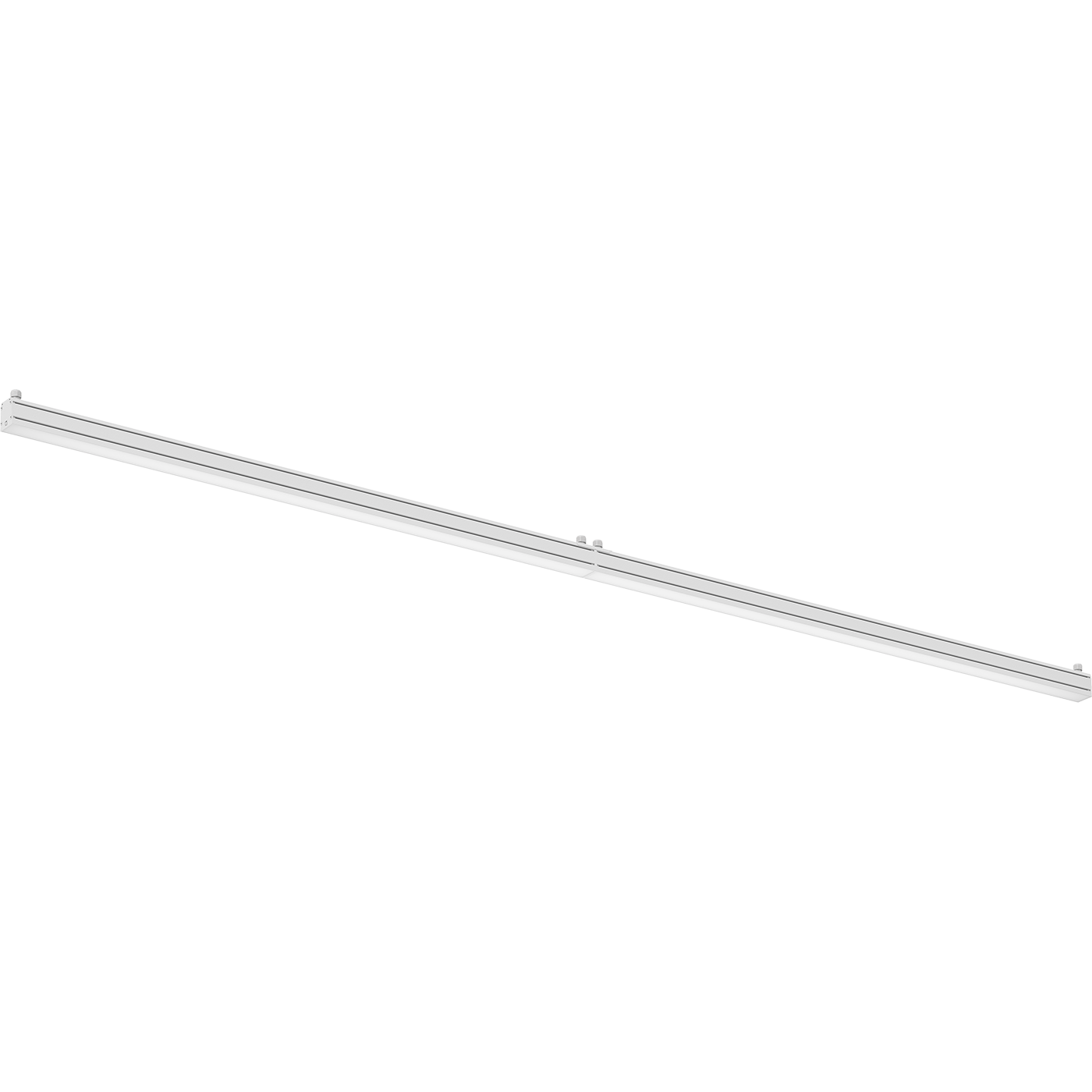

LED MALL ECO 2x70 DA IP65 4000K
archive
archive
LED MALL ECO 2x70 DA IP65 4000K
148 Wluminaire power
16000 lmlight flow
108 lm/Wenergy efficiency
code1598002100
color temperature4000
beam angleDA30
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
35 Astarting current pulse time, µs
3 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
148 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
35 A
starting current pulse time, µs
3 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
148 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP65
climatic performance
УХЛ4
material
Алюминий
weight
7.6 kg
length, mm
3000 mm
width, mm
53 mm
height, mm
100 mm
housing color
Белый
installation length, mm
2000 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1598002100

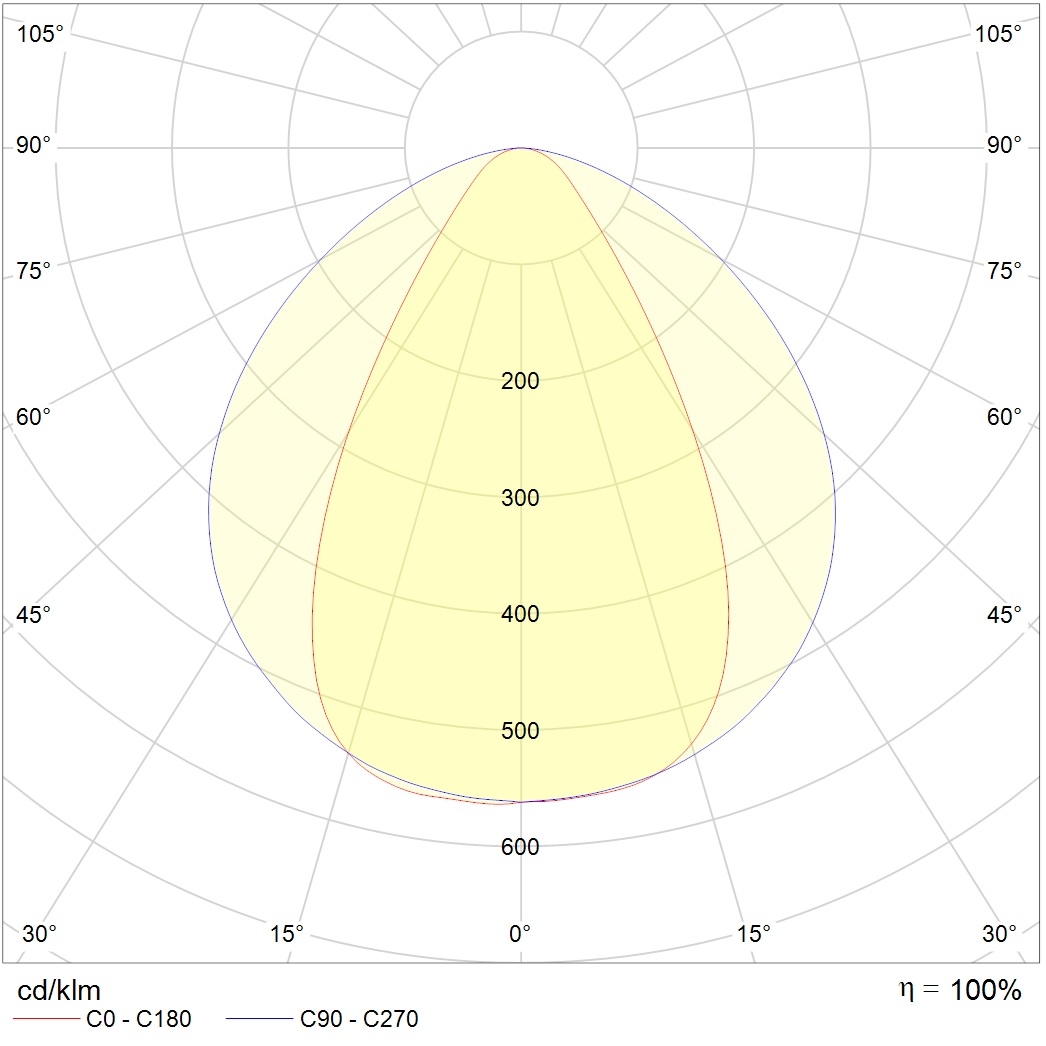

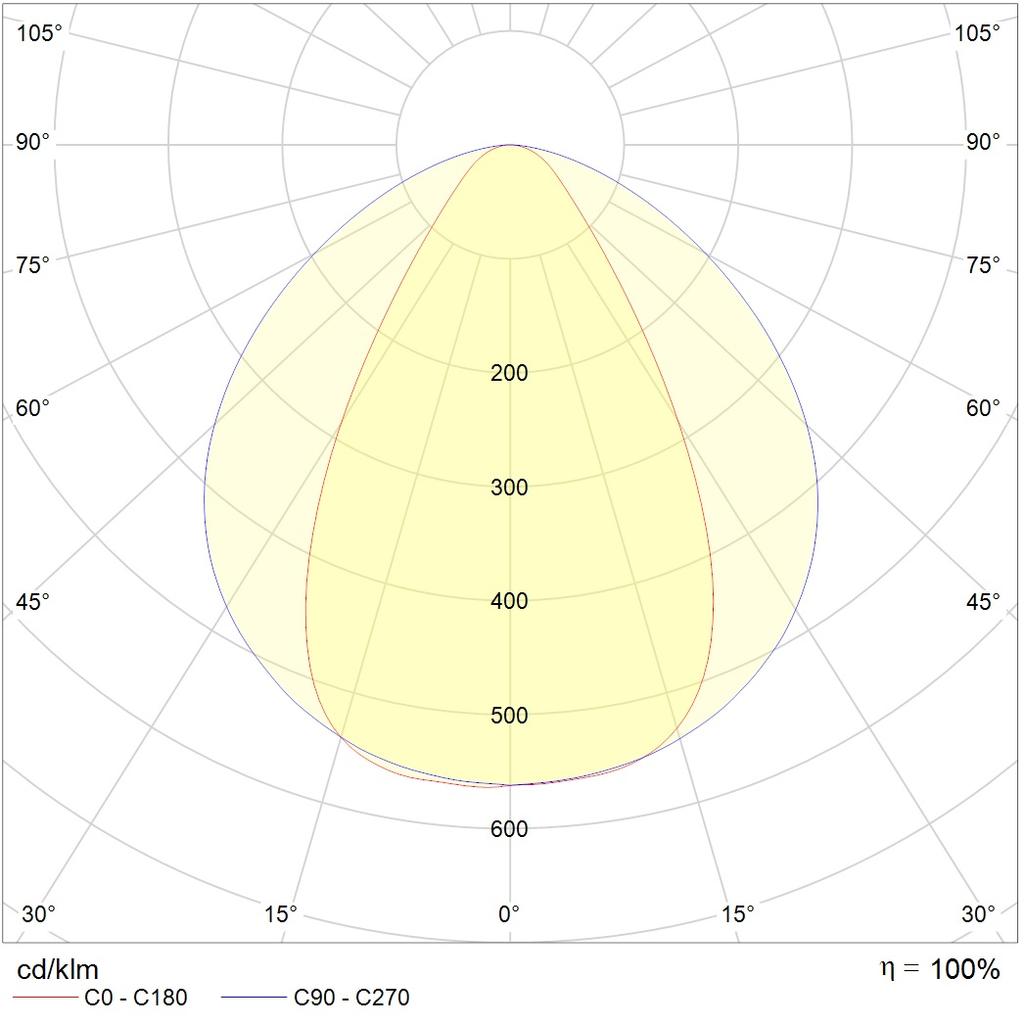

illuminating
color rendition index (CRI)
>80
light flow
16000 lm
flickering factor
<5%
energy efficiency
108 lm/W
beam angle
DA30
color temperature
4000
light source type
LED
emission color
Белый
