LED MALL ECO 2x70 IP54 /main line harness/ 4000K

LED MALL ECO 2x70 IP54 /main line harness/ 4000K
add to favorites
148 Wluminaire power
16000 lmlight flow
108 lm/Wenergy efficiency
code2598000180
color temperature4000
beam angleD100
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. LED MALL ECO
  7. LED MALL ECO 2x70 IP54 /main line harness/ 4000K
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
108 lm/W
color rendition index (CRI)
>80
light flow
16000 lm
flickering factor
<5%

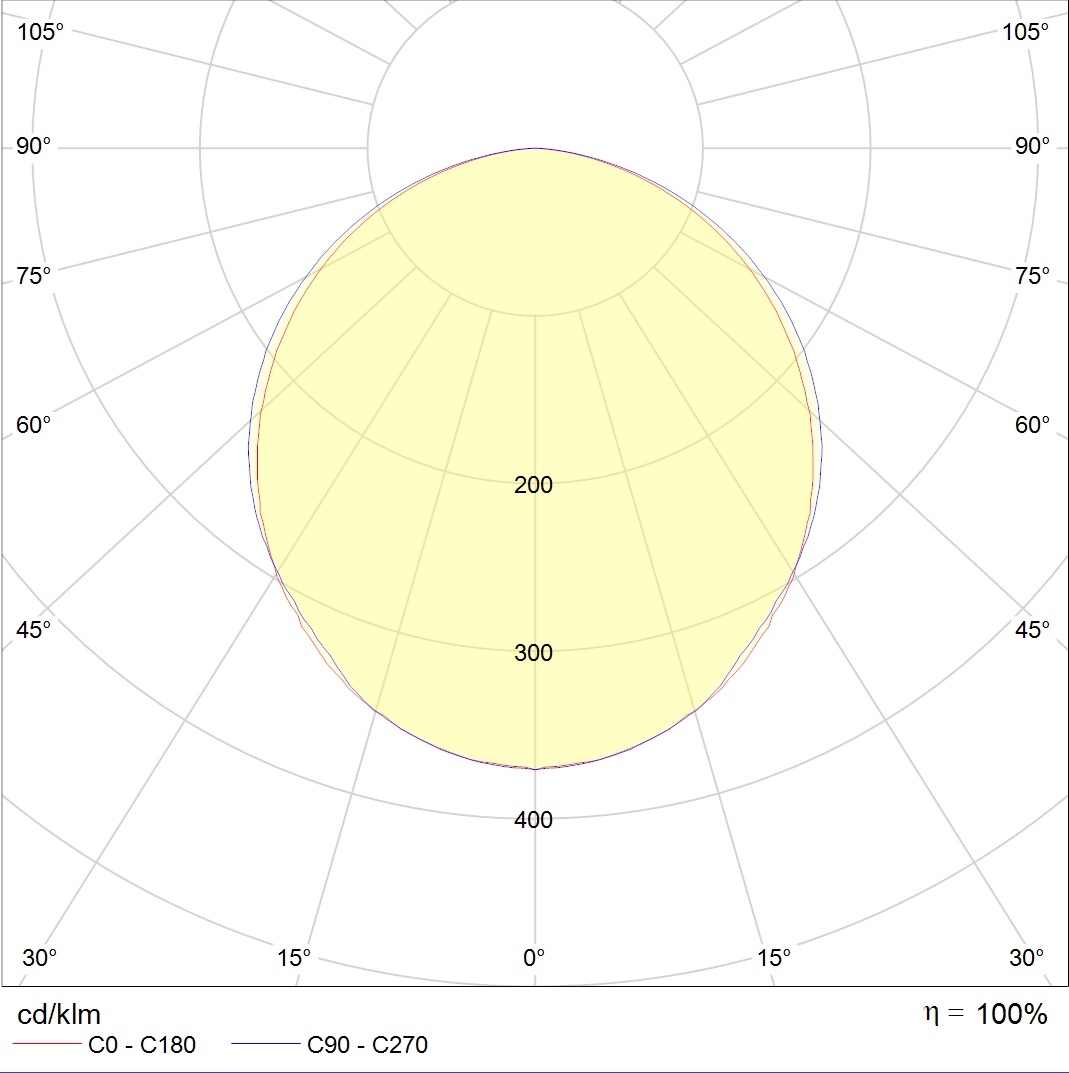

beam angle
D100
color temperature
4000
light source type
LED
emission color
Белый
illuminating
energy efficiency
108 lm/W
color rendition index (CRI)
>80
light flow
16000 lm
flickering factor
<5%
beam angle
D100
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
maximum number of luminaires in a line
18
luminaire power
148 W
supply voltage
230 V
power factor
> 0,98
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
30 A
constructional
length, mm
3000 mm
width, mm
53 mm
height, mm
100 mm
installation length, mm
2000 mm
weight
7.1 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
code
2598000180
model files
model files
CAD/BIM files
model 3dMax2.9 mB
photometric files
ies134.1 kB
jpg120 kB
ldt84.4 kB
csv150 B
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
model 3dMax2.9 mB
photometric files
ies134.1 kB
jpg120 kB
ldt84.4 kB
csv150 B
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
accessories
Suspension kit LED MALL ECO (2 kits)0.13kgarticle: 2598000130
Ceiling bracket LED MALL ECO (2 kits)0.038kgarticle: 2598000120
Bracket connecting LED MALL ECO0.06kgarticle: 2598000140
