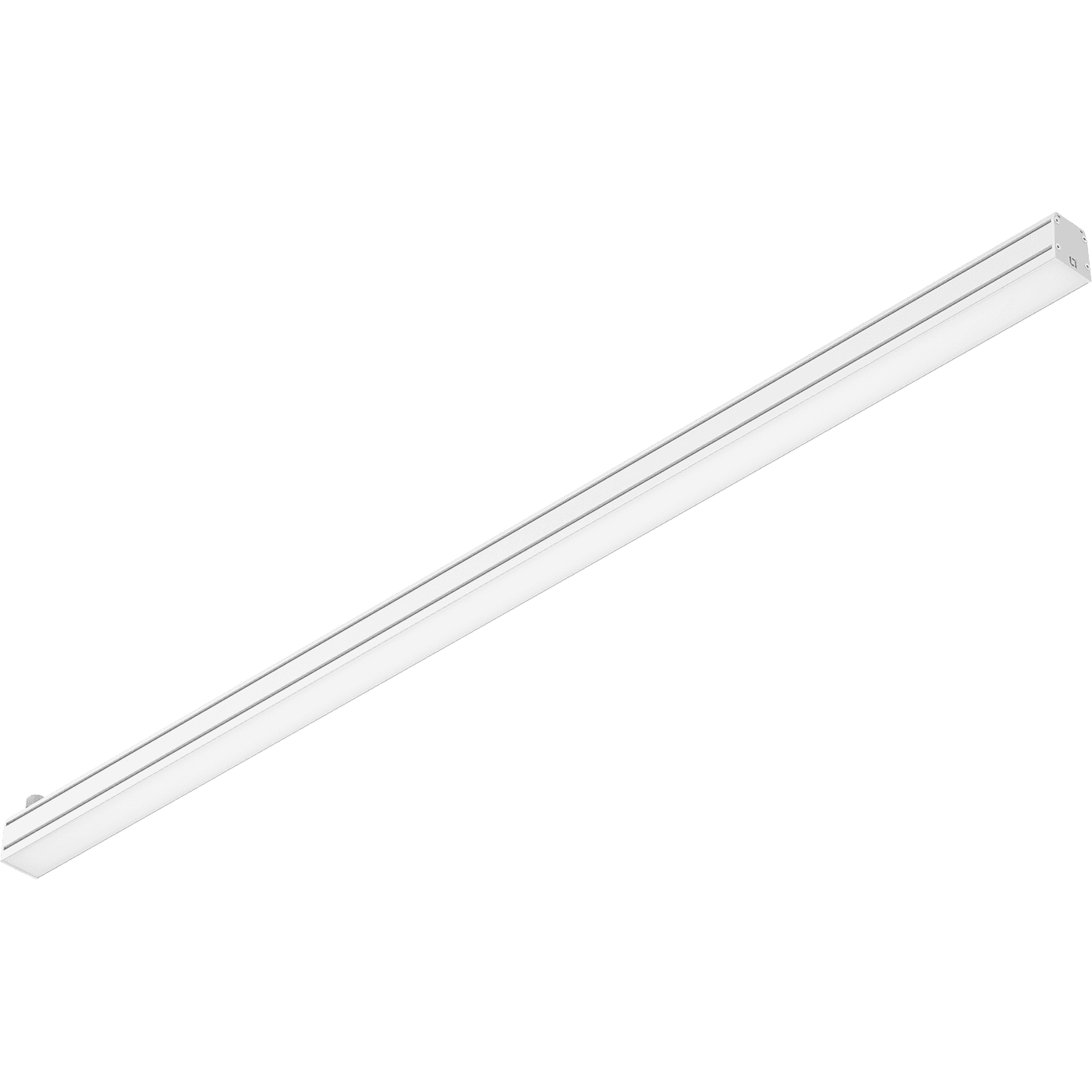

LED MALL ECO 35 ASYM IP54 3500K with one output

archive
archive

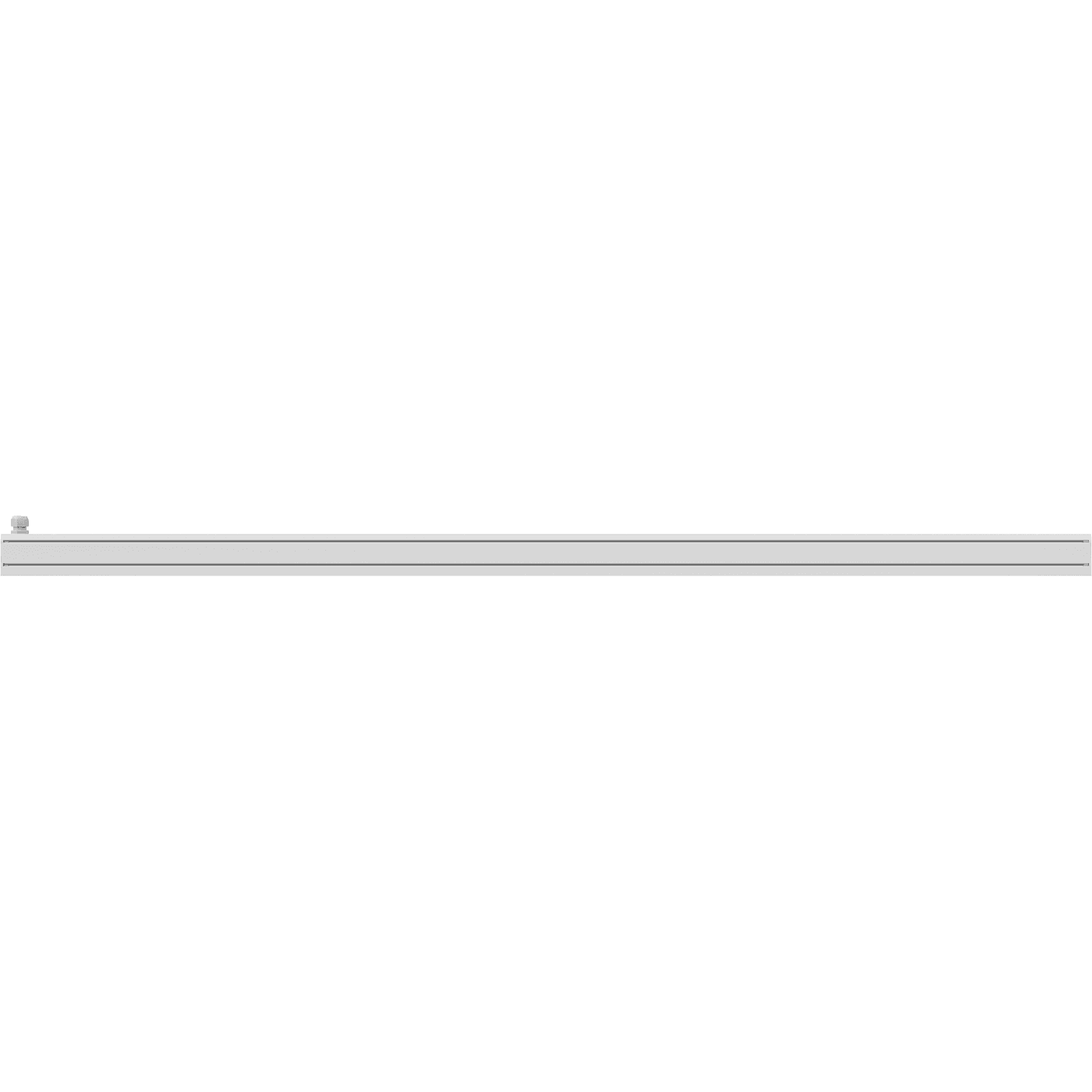

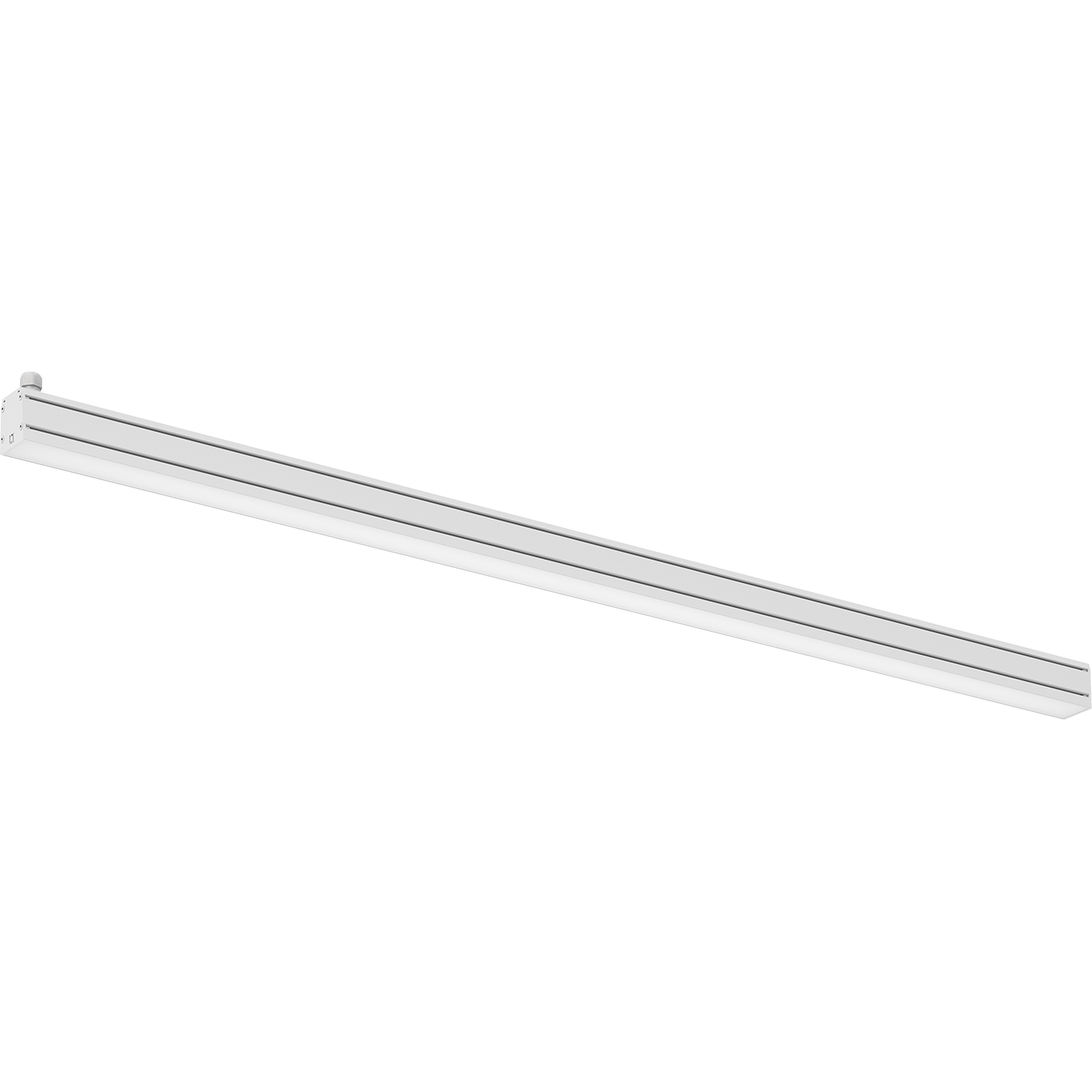

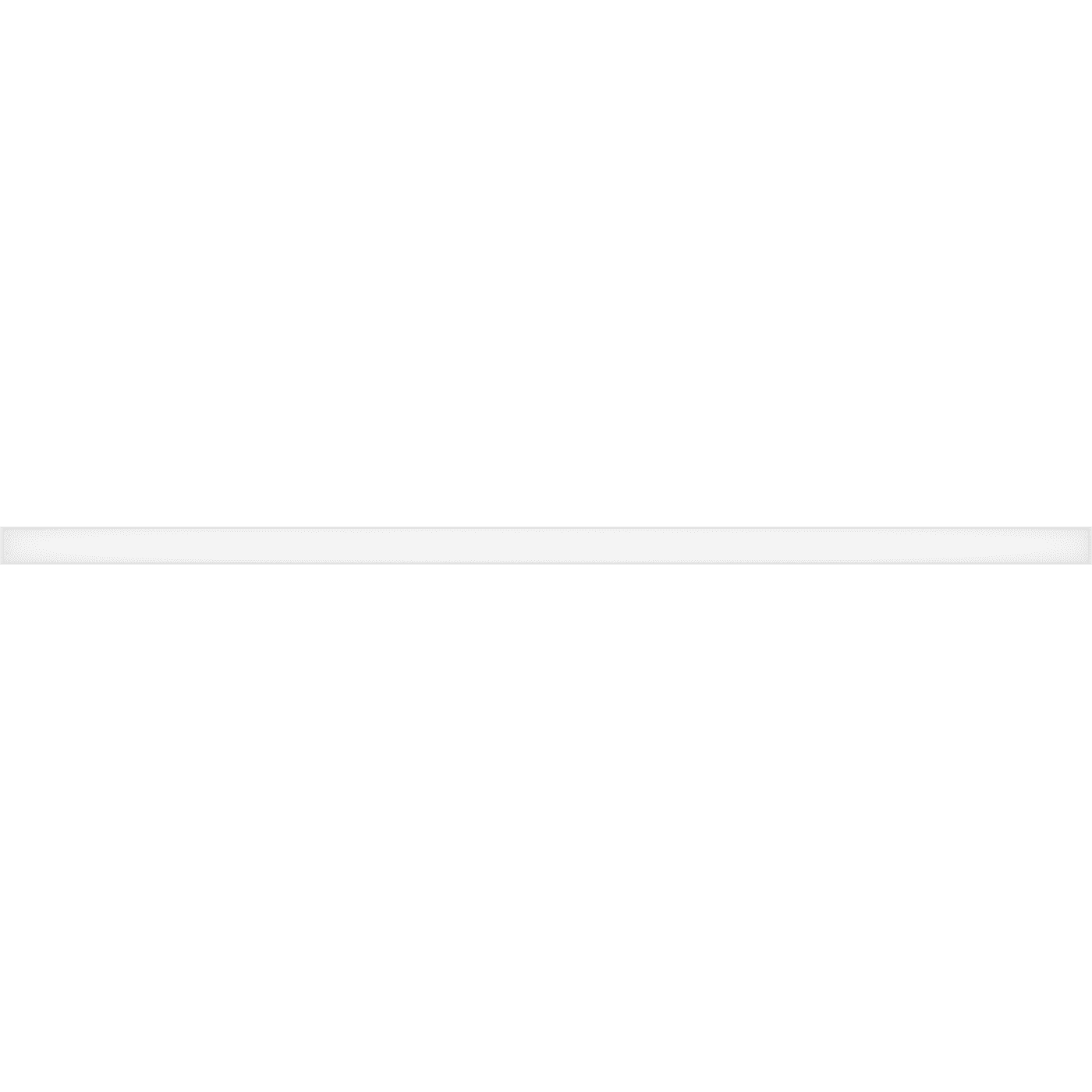

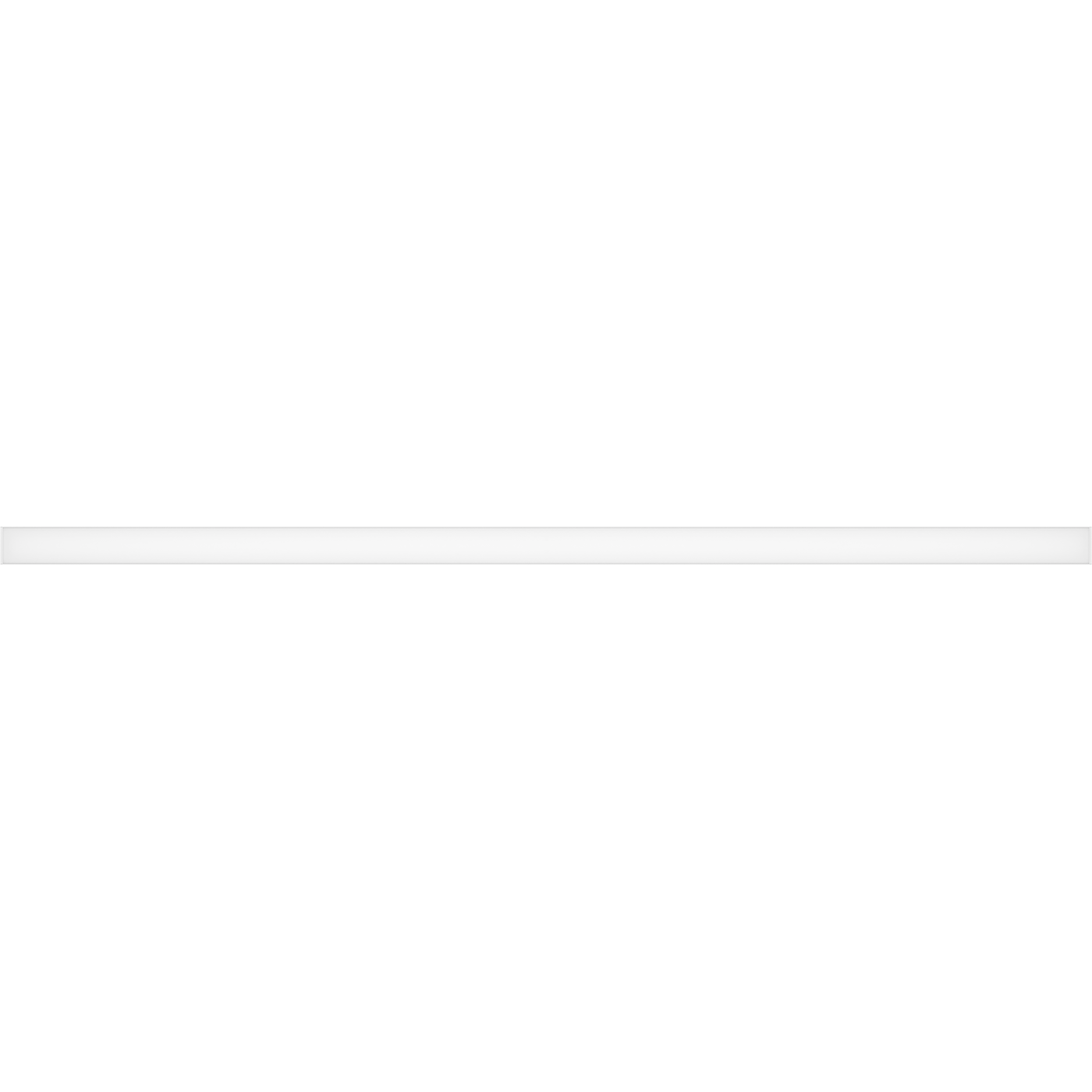

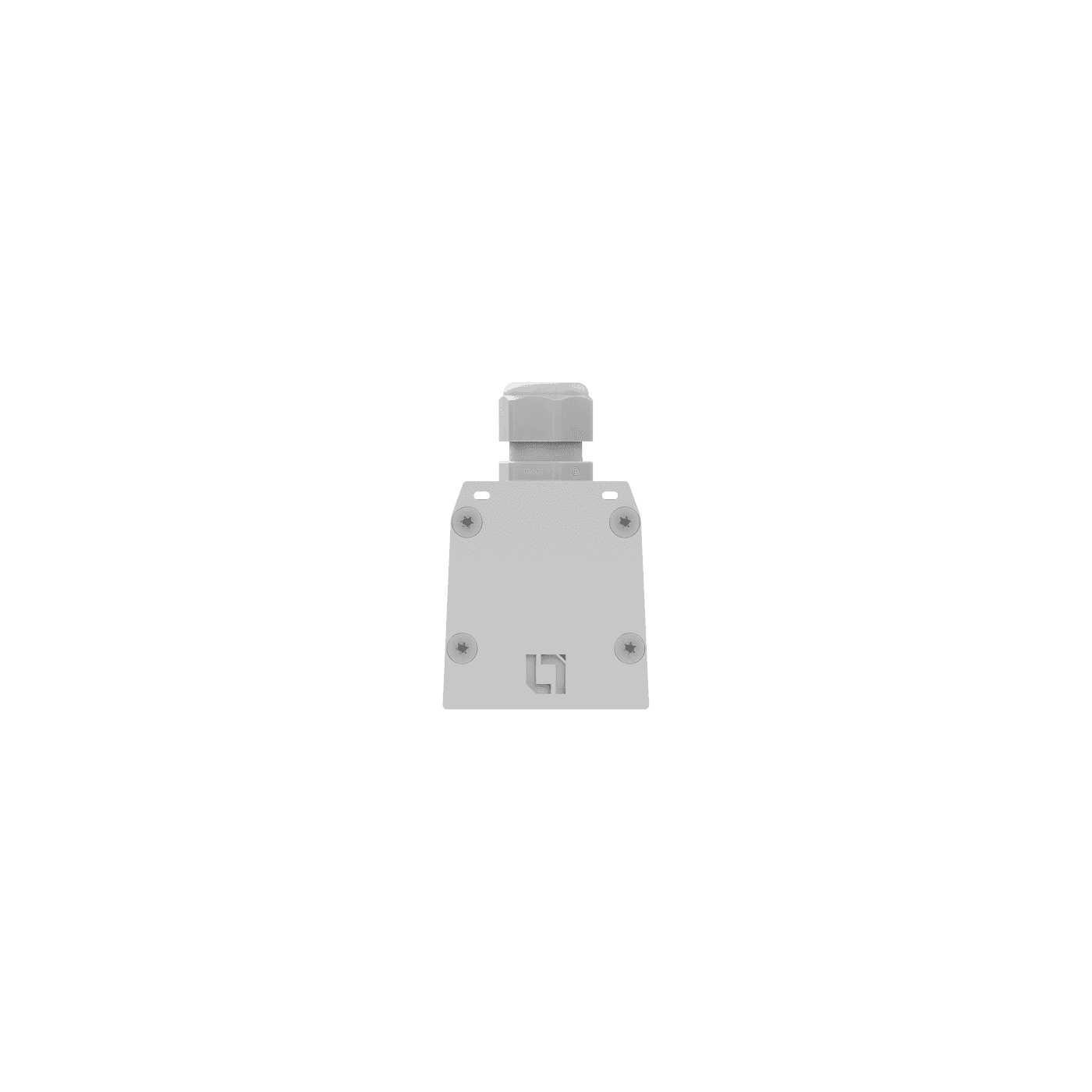

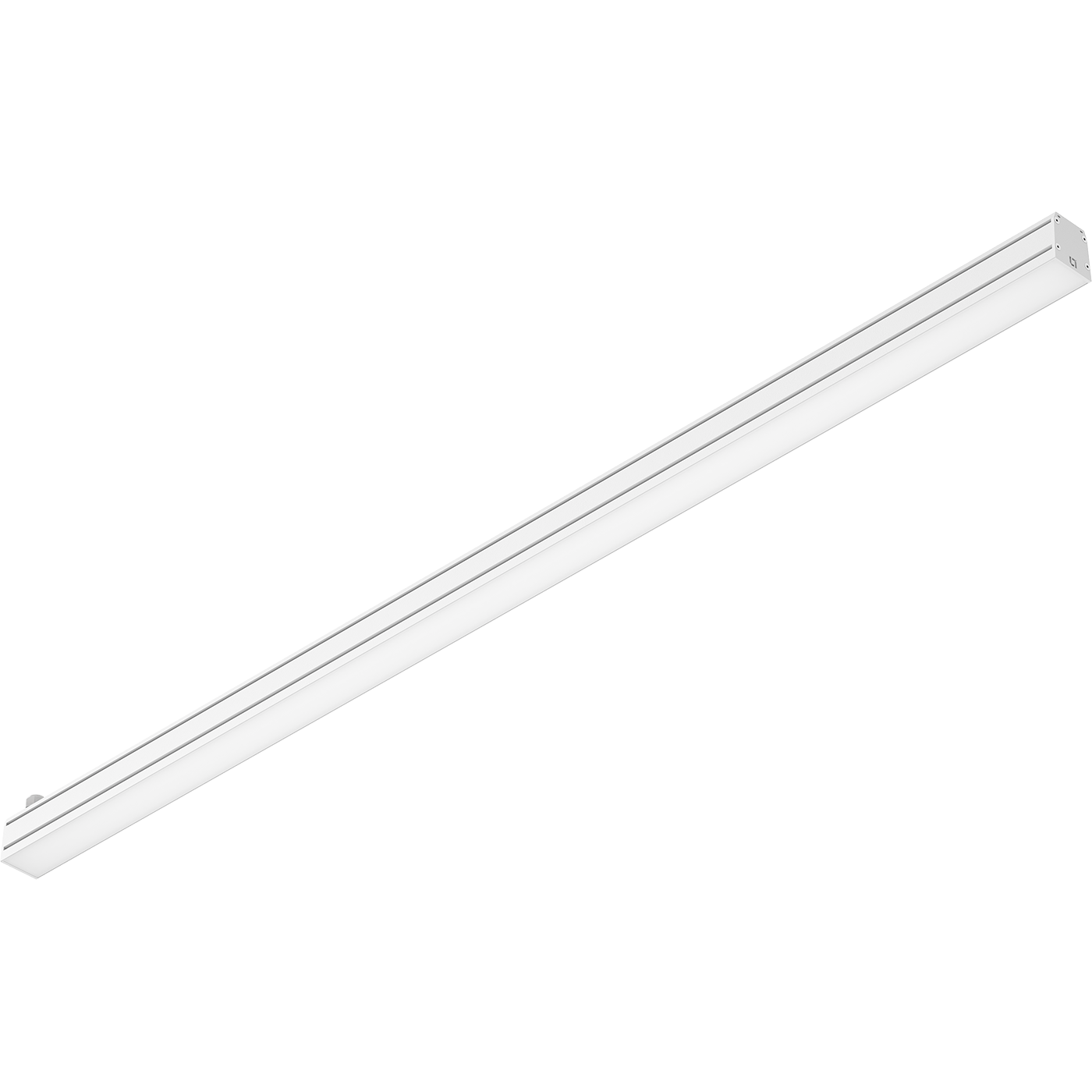

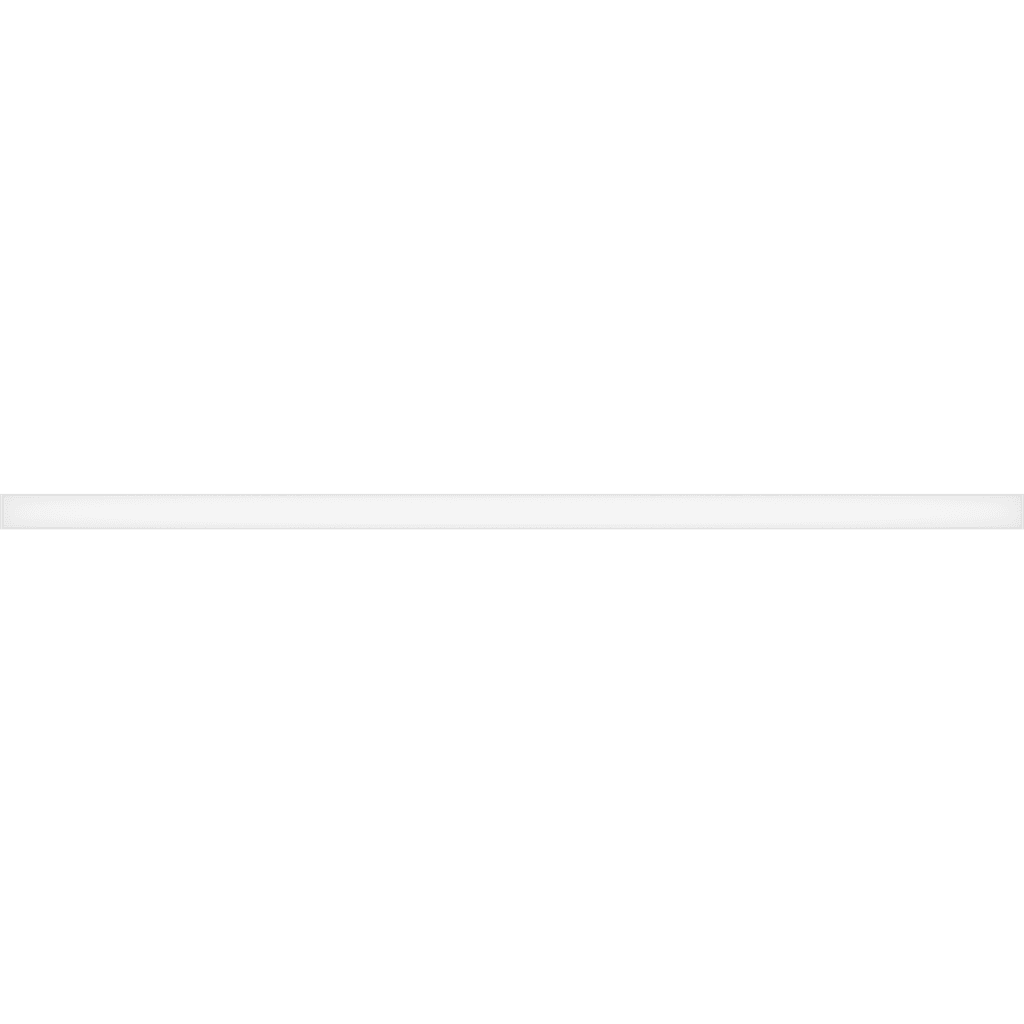

LED MALL ECO 35 ASYM IP54 3500K with one output
add to favorites
40 Wluminaire power
4100 lmlight flow
103 lm/Wenergy efficiency
code1598003130
color temperature3500
beam angleD60/15
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. LED MALL ECO
  7. LED MALL ECO 35 ASYM IP54 3500K with one output
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP54
climatic performance
УХЛ4*
material
Алюминий
weight
3 kg
length, mm
1500 mm
width, mm
53 mm
height, mm
100 mm
housing color
Белый
installation length, mm
1300 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1598003130
illuminating
color rendition index (CRI)
>80
light flow
4100 lm
flickering factor
<5%
energy efficiency
103 lm/W

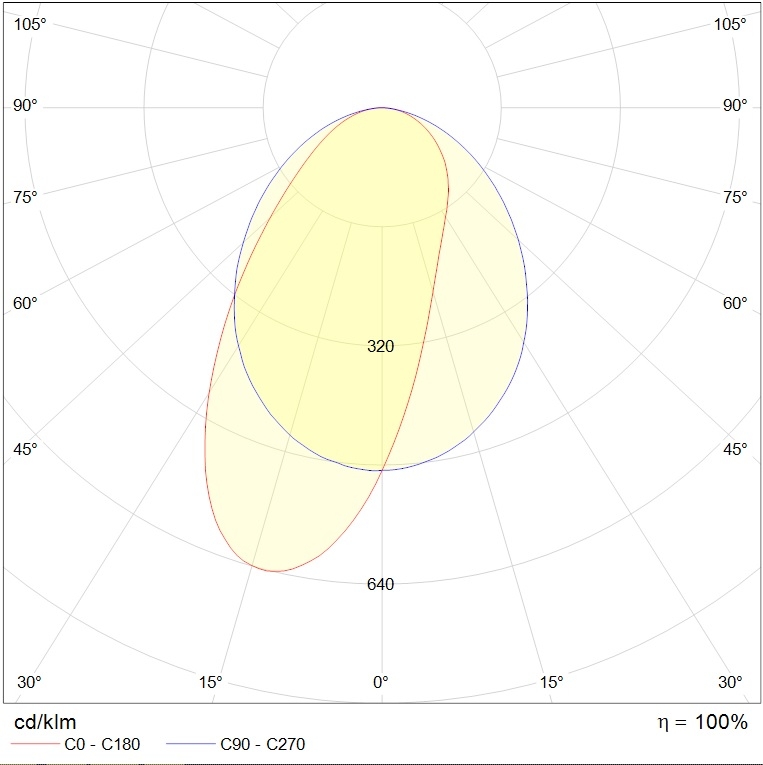

beam angle
D60/15
color temperature
3500
light source type
LED
emission color
Белый
