LED MALL ECO 35 D30 IP54 4000K
LED MALL ECO 35 D30 IP54 4000K
40 Wluminaire power
4100 lmlight flow
103 lm/Wenergy efficiency
code1598000550
color temperature4000
beam angleD30
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
103 lm/Wcolor rendition index (CRI)
>80light flow
4100 lmflickering factor
<5%beam angle
D30color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
103 lm/W
color rendition index (CRI)
>80
light flow
4100 lm
flickering factor
<5%
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
maximum number of luminaires in a line
31
luminaire power
40 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional
length, mm
1500 mm
width, mm
53 mm
height, mm
100 mm
installation length, mm
1300 mm
weight
3.4 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
code
1598000550
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2.9 mB

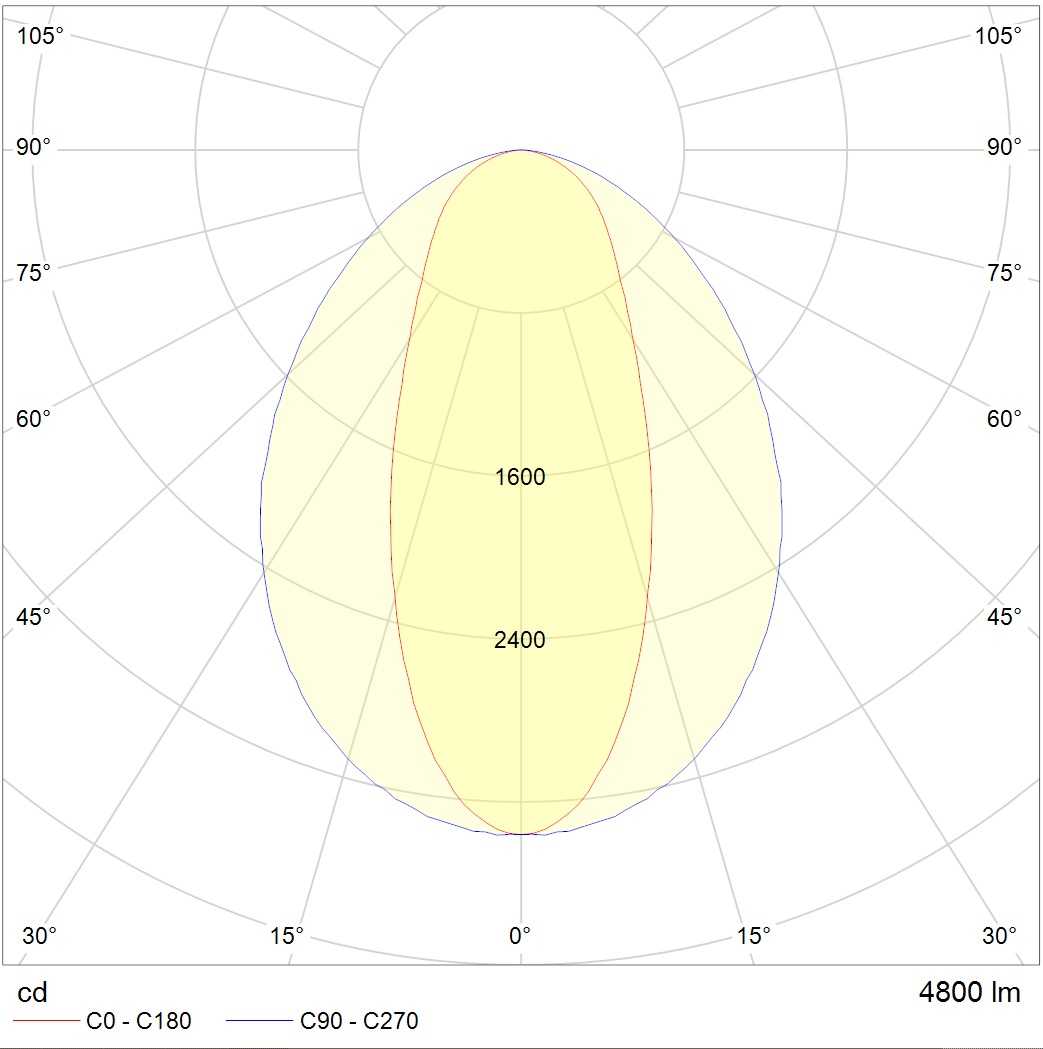

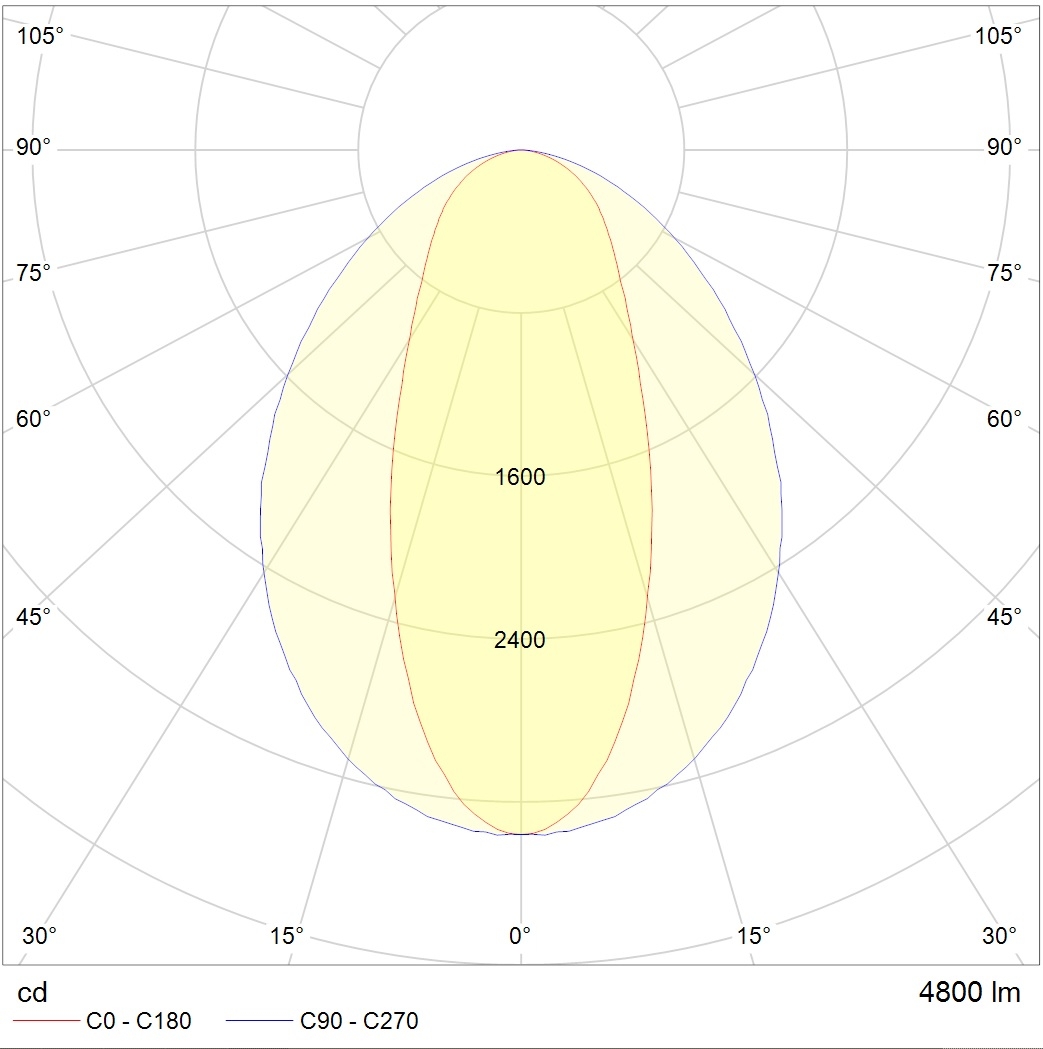

photometric files
jpg122.3 kB
ldt451.4 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
accessories
Suspension kit LED MALL ECO (2 kits)0.13kgarticle: 2598000130
Ceiling bracket LED MALL ECO (2 kits)0.038kgarticle: 2598000120
Bracket connecting LED MALL ECO0.06kgarticle: 2598000140
