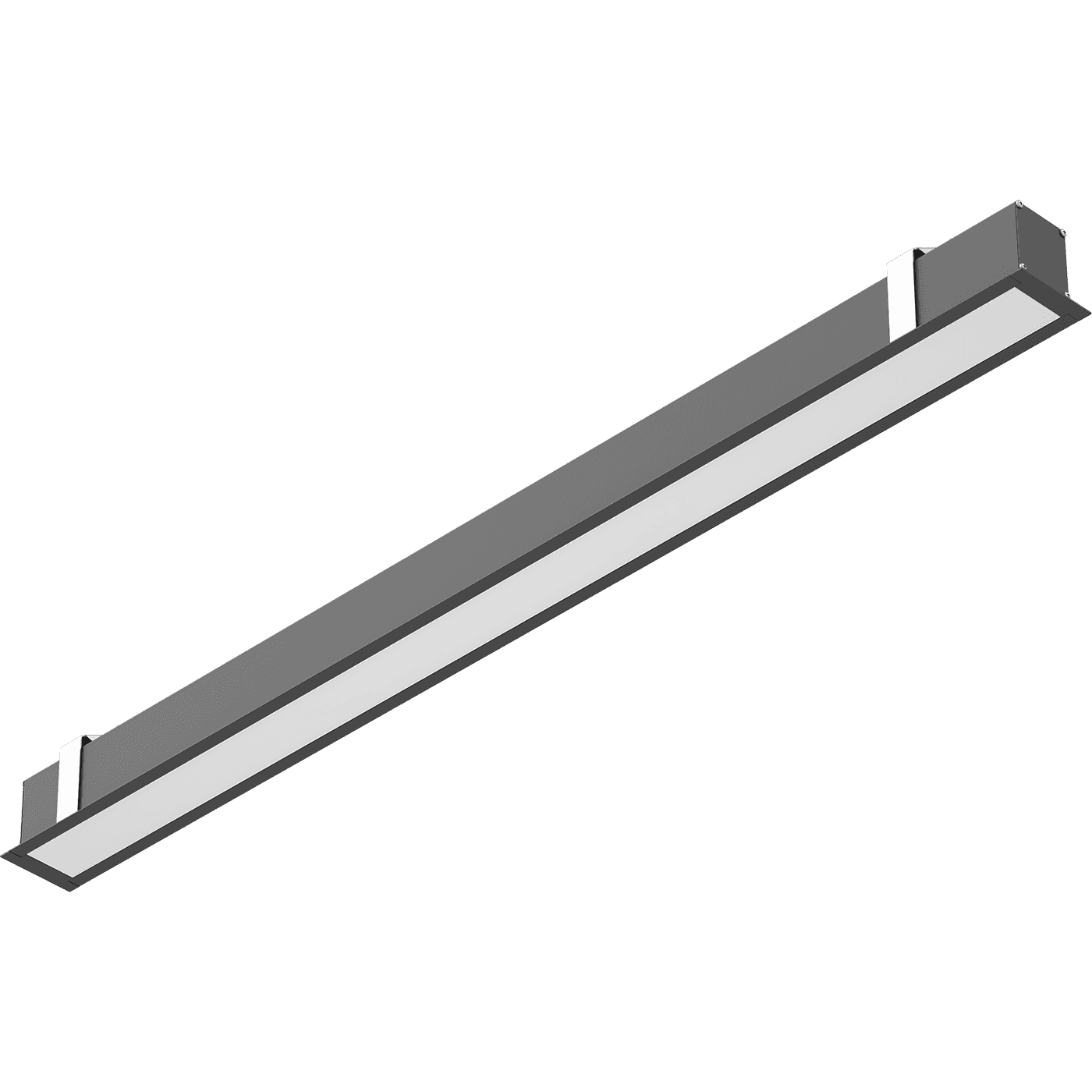

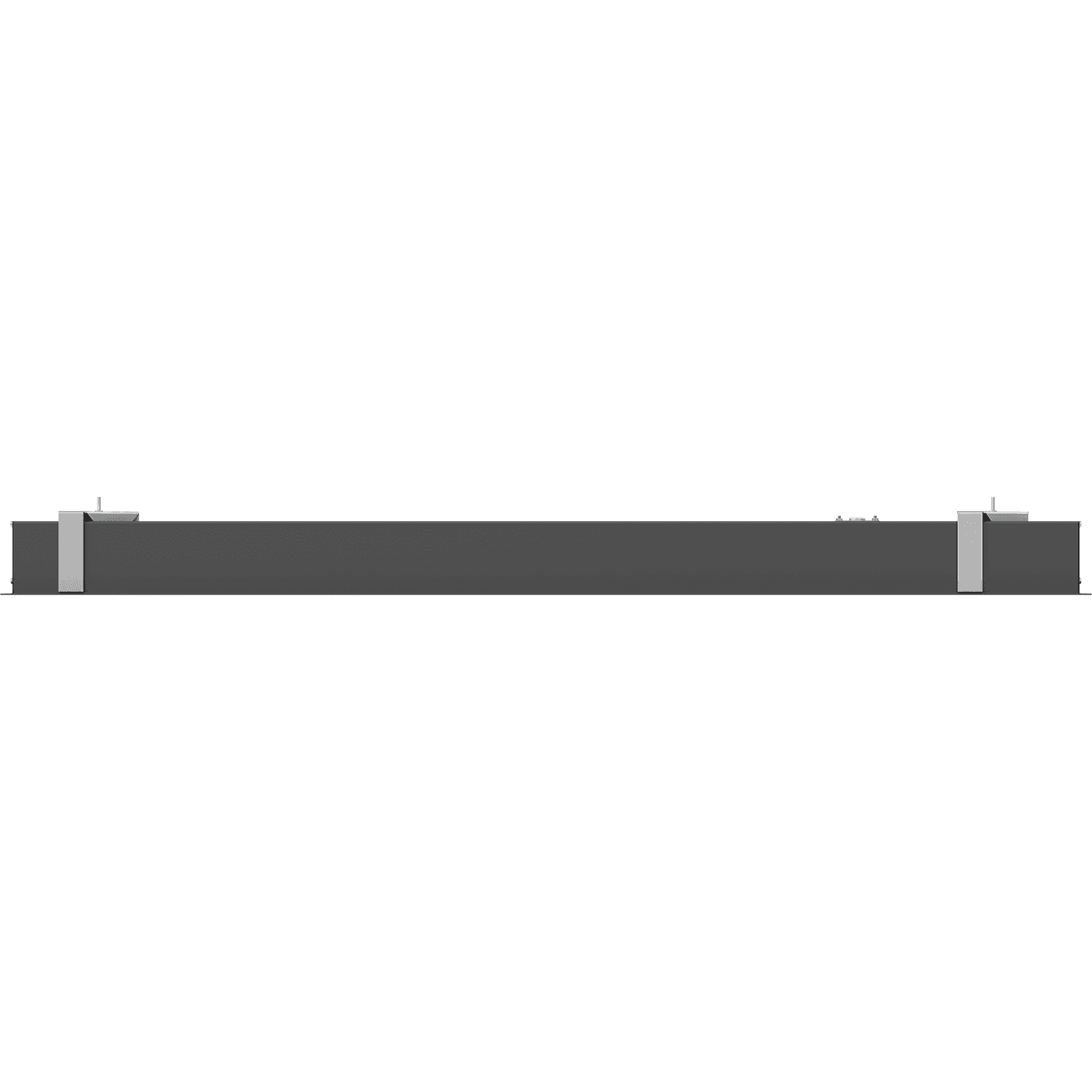

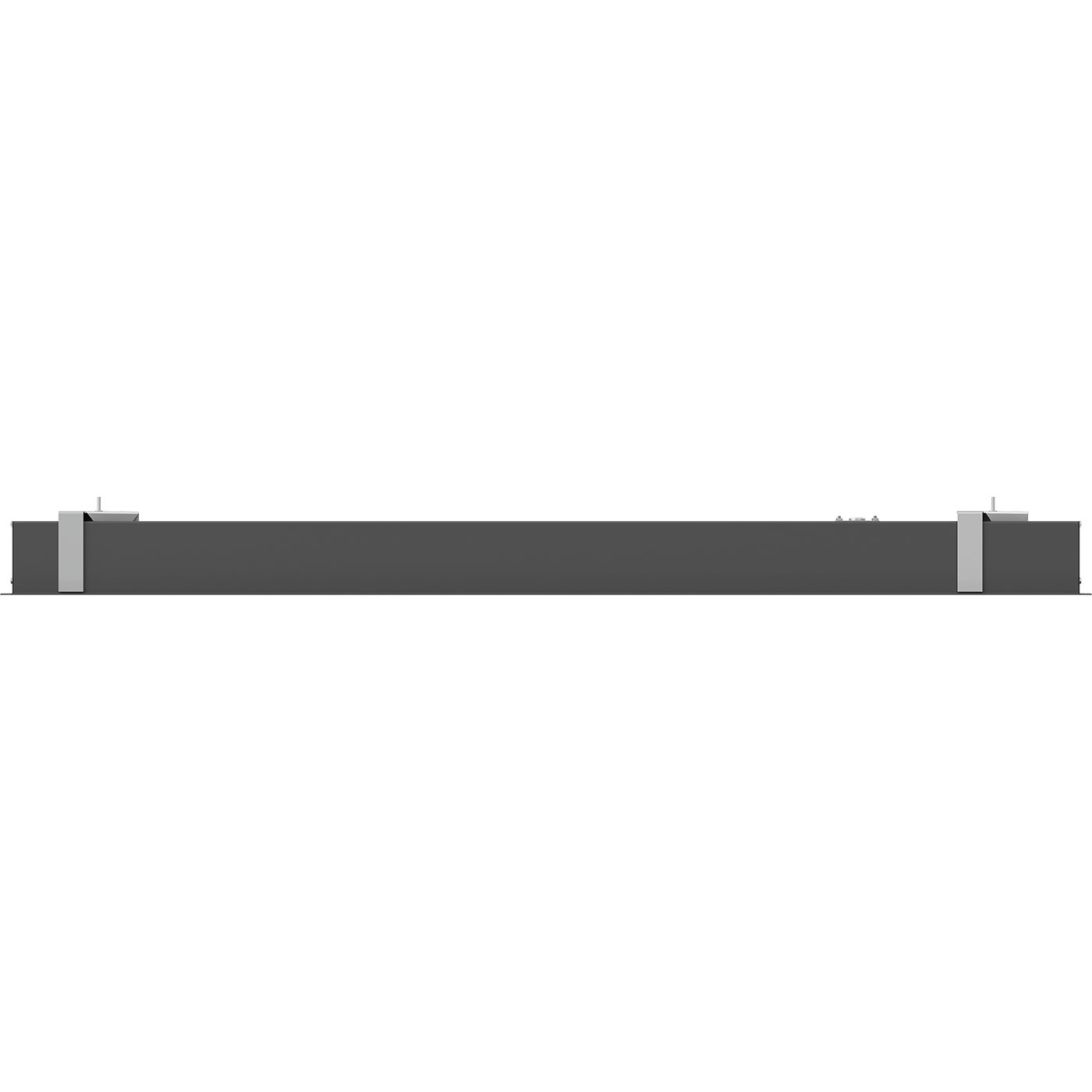

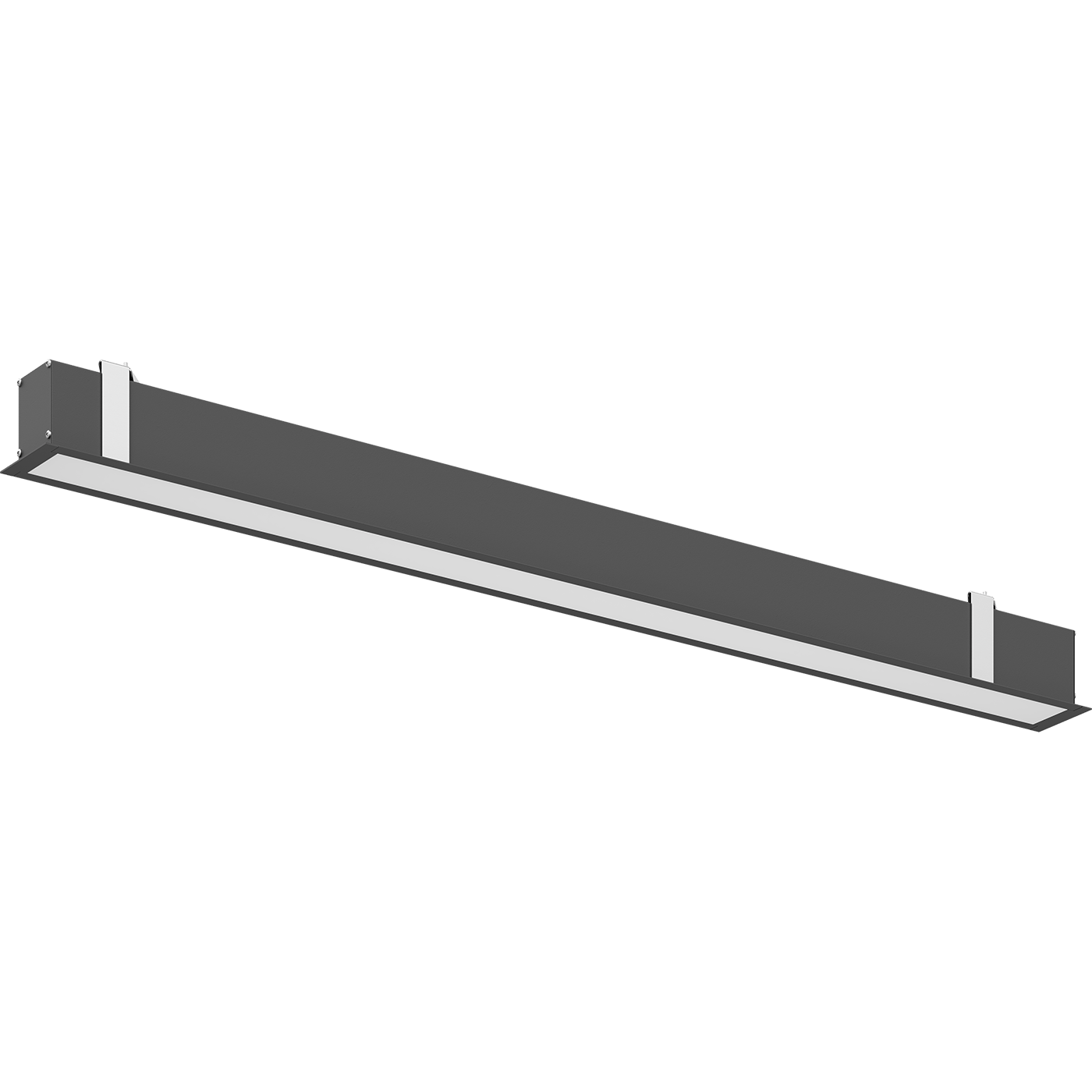

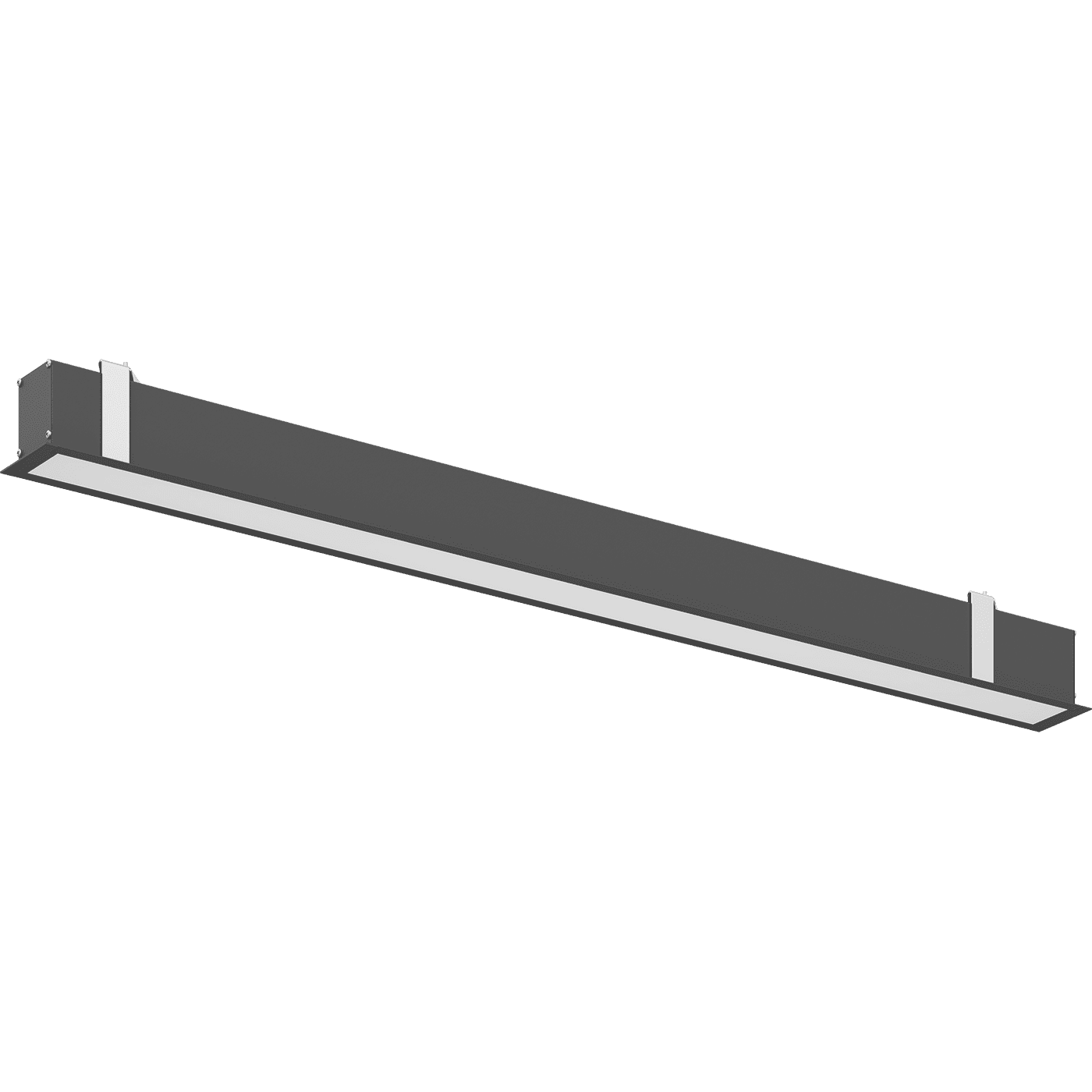

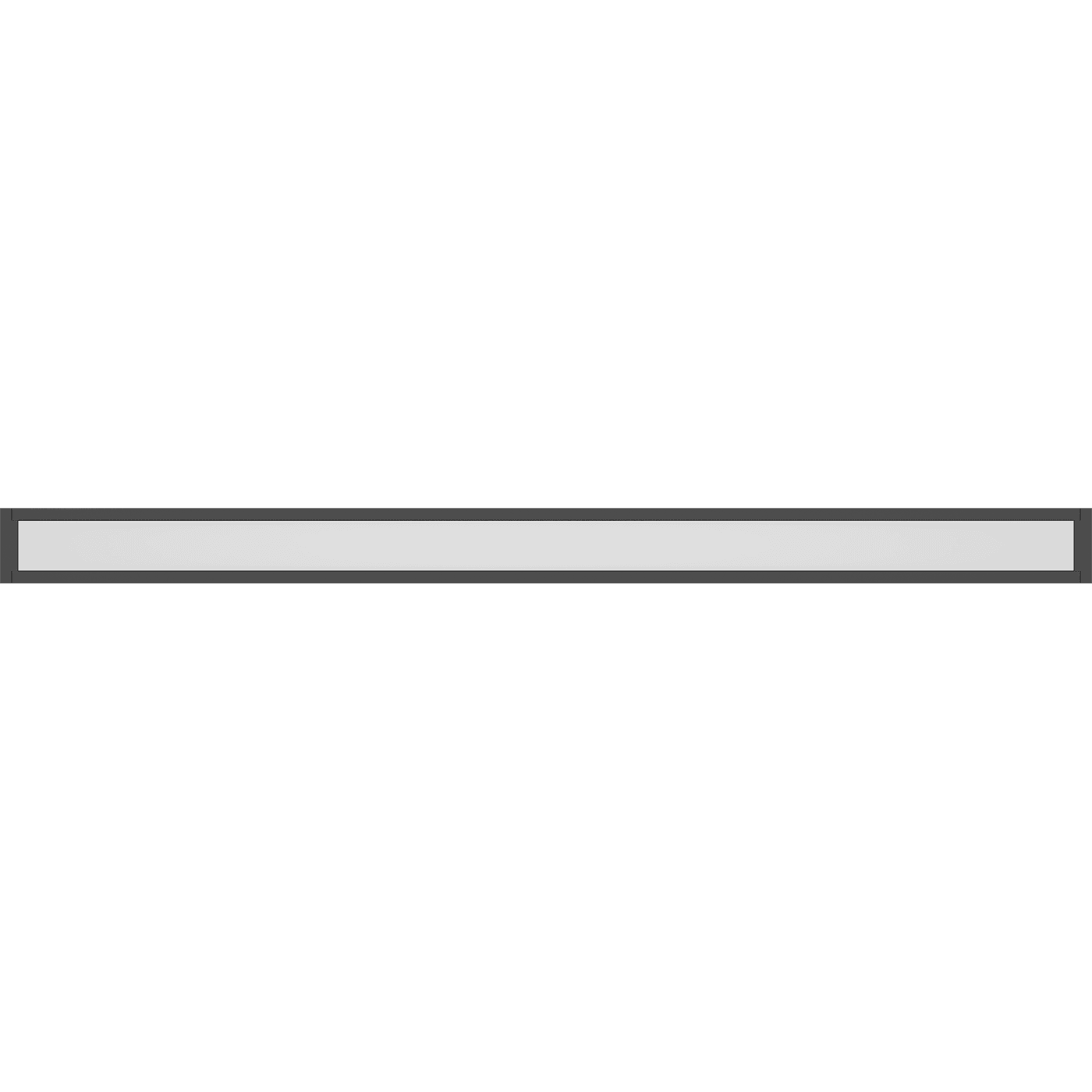

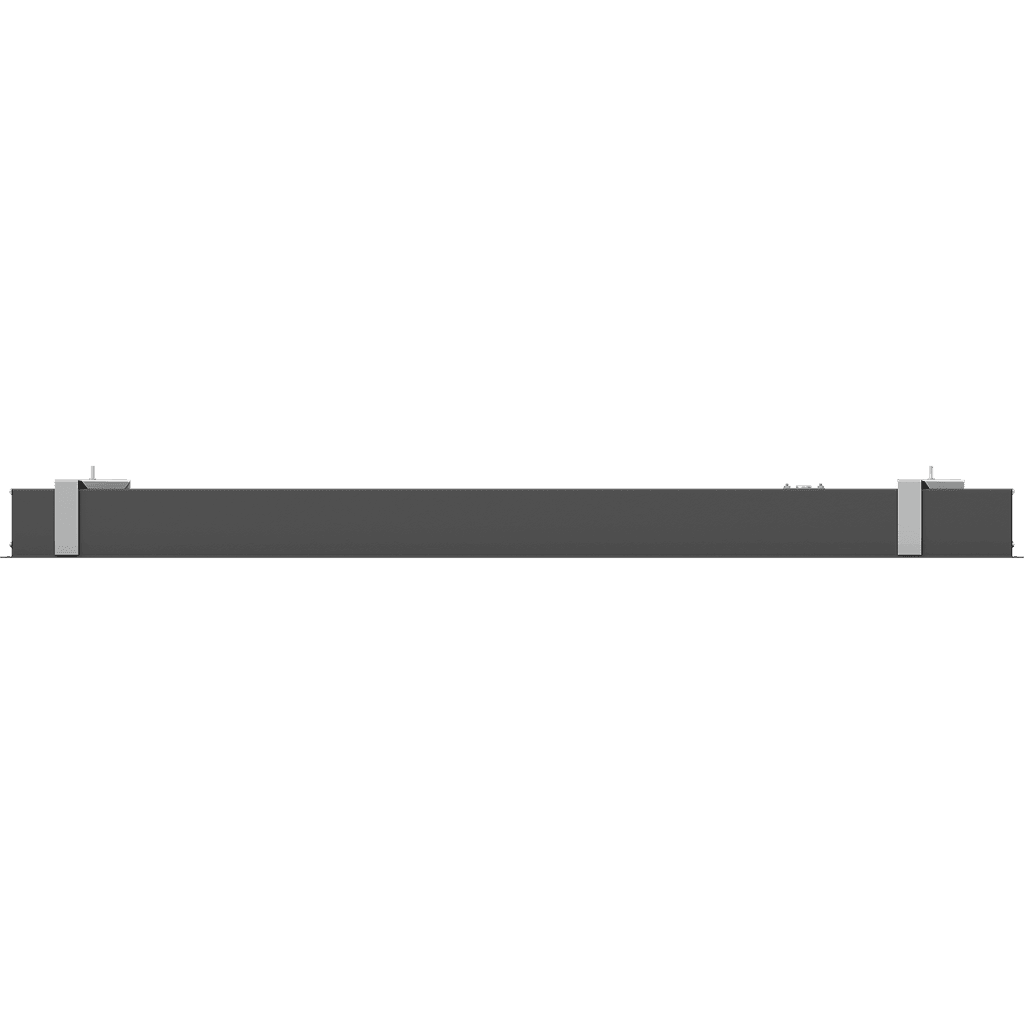

LINER 60/R (900) 840 BK

LINER 60/R (900) 840 BK
add to favorites
20 Wluminaire power
2000 lmlight flow
100 lm/Wenergy efficiency
code1474003670
color temperature4000
beam angleD120
old nameLINER 60/R (900) 840 BL
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. LINER 60/R
  7. LINER 60/R (900) 840 BK
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
2000 lm
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
illuminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
2000 lm
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
20 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
1.5
constructional
length, mm
938 mm
width, mm
85 mm
height, mm
84 mm
installation length, mm
920 mm
installation width, mm
65 mm
weight
2.9 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1474003670
model files
model files

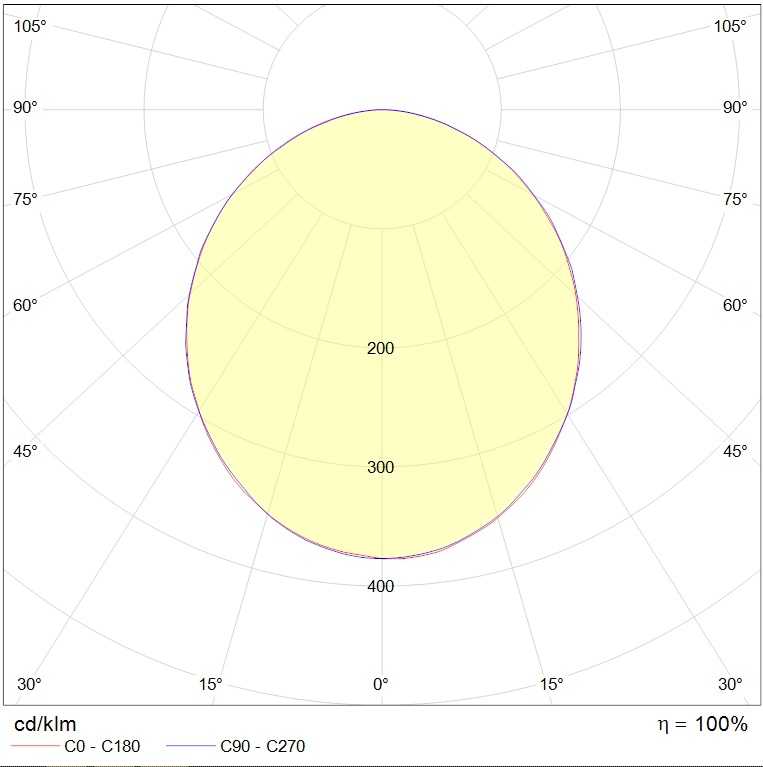

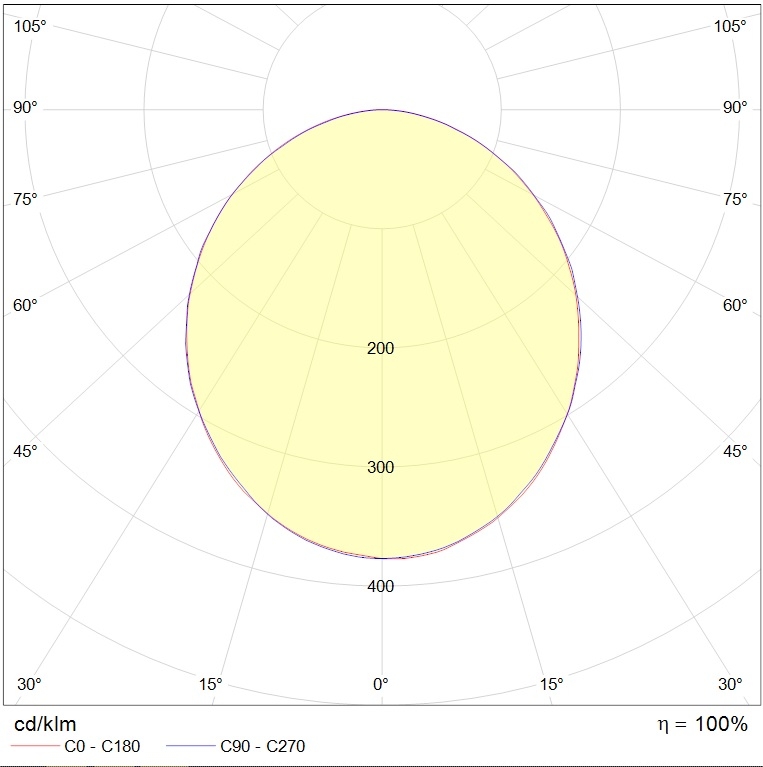

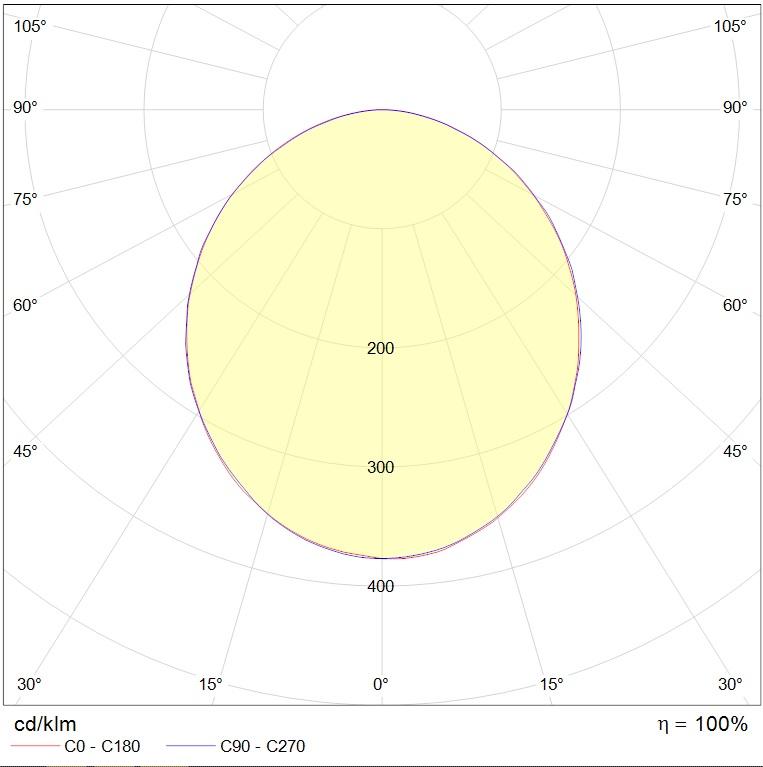

photometric files
ies107 kB
jpg76.3 kB
ldt68.7 kB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011511 kB
Declaration of Conformity EAEU TR 037/2016508.6 kB
Fire Safety Certificate1.7 mB
photometric files
ies107 kB
jpg76.3 kB
ldt68.7 kB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011511 kB
Declaration of Conformity EAEU TR 037/2016508.6 kB
Fire Safety Certificate1.7 mB
