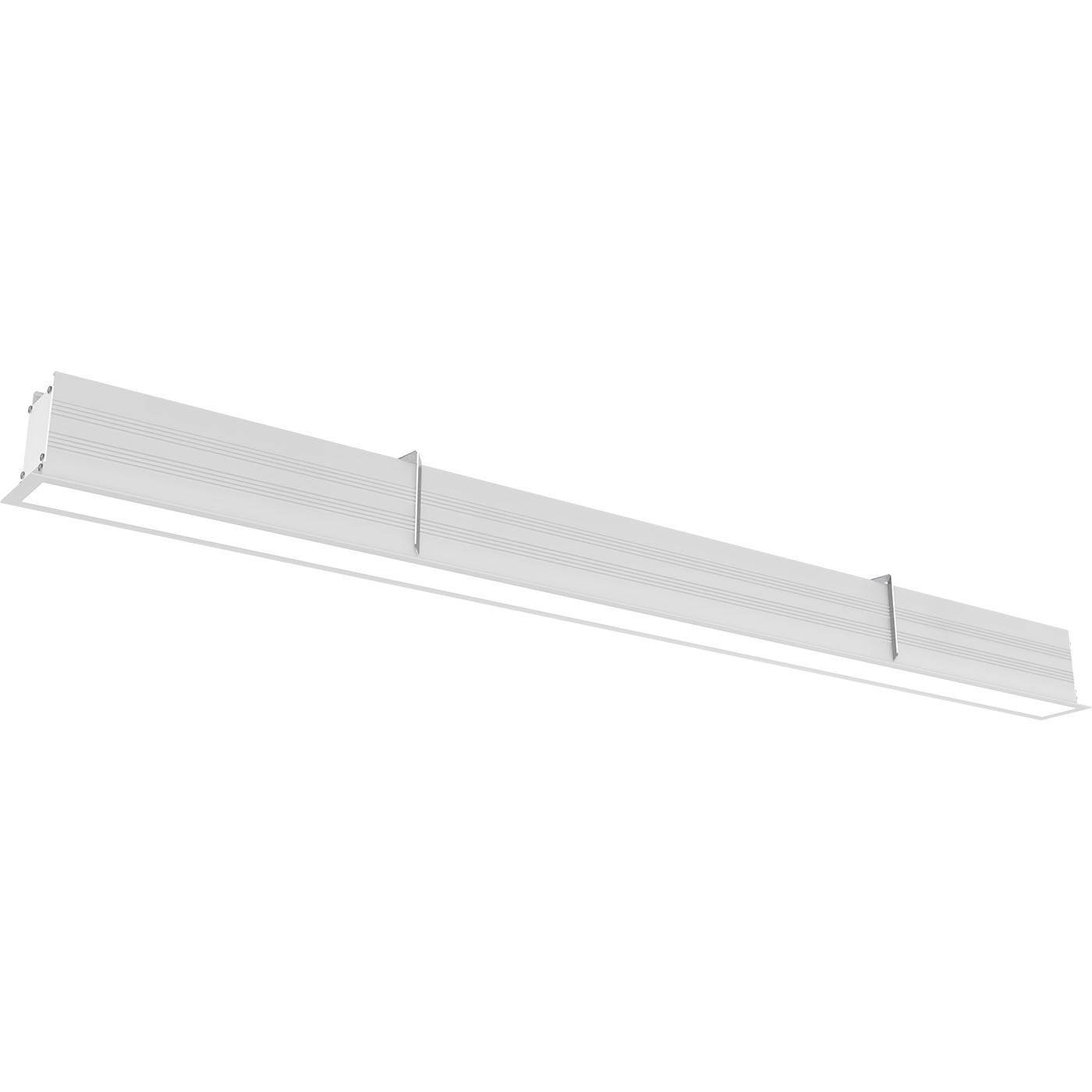

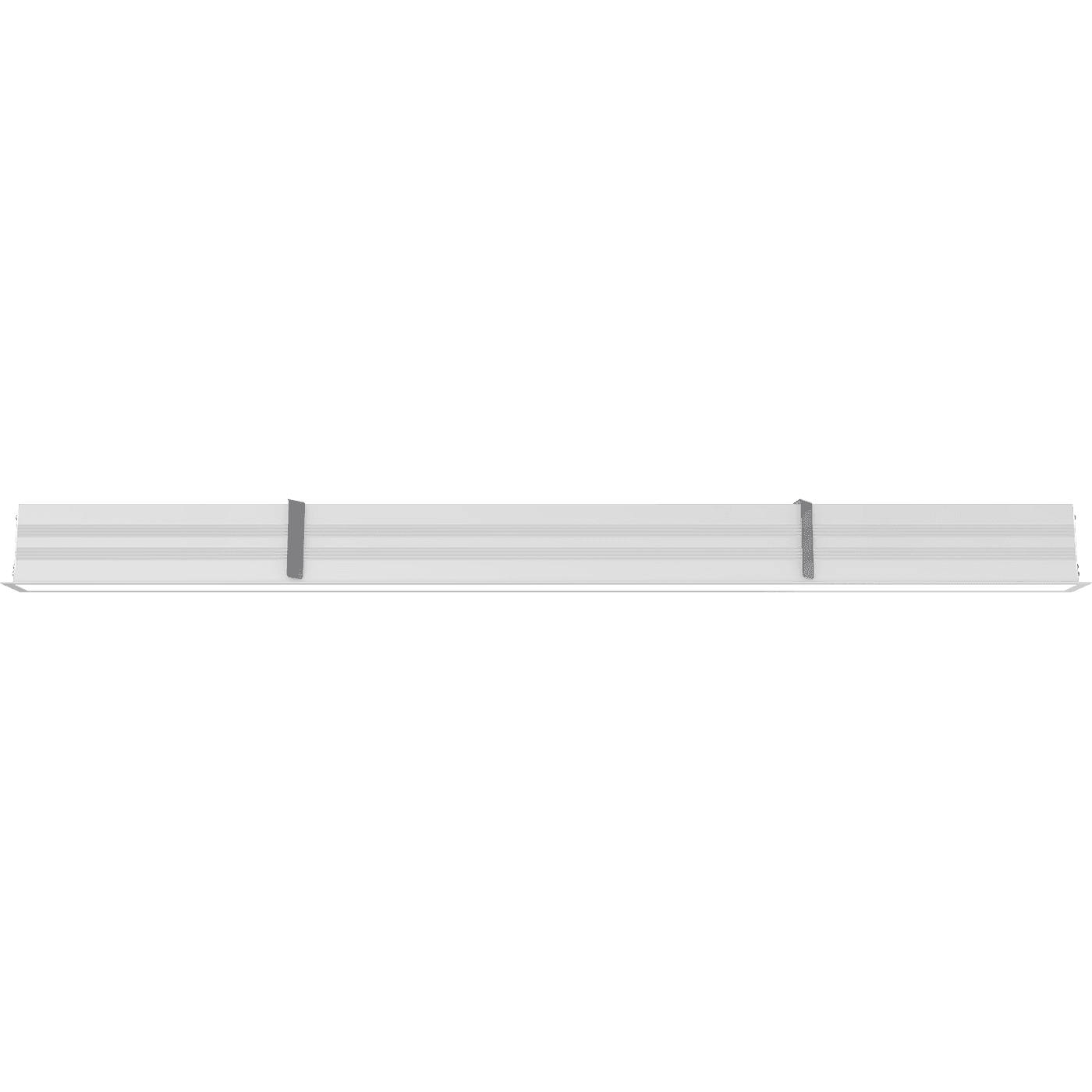

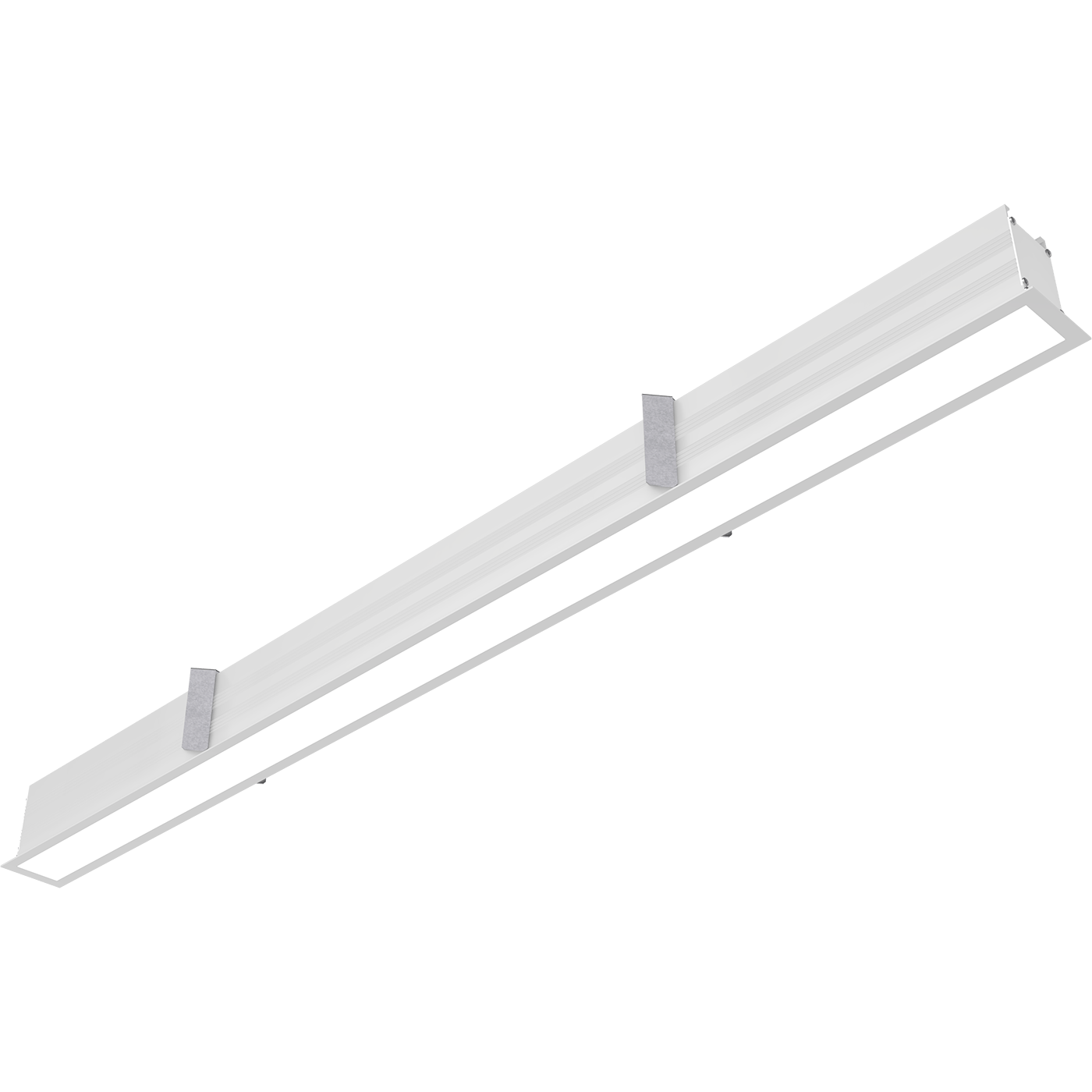

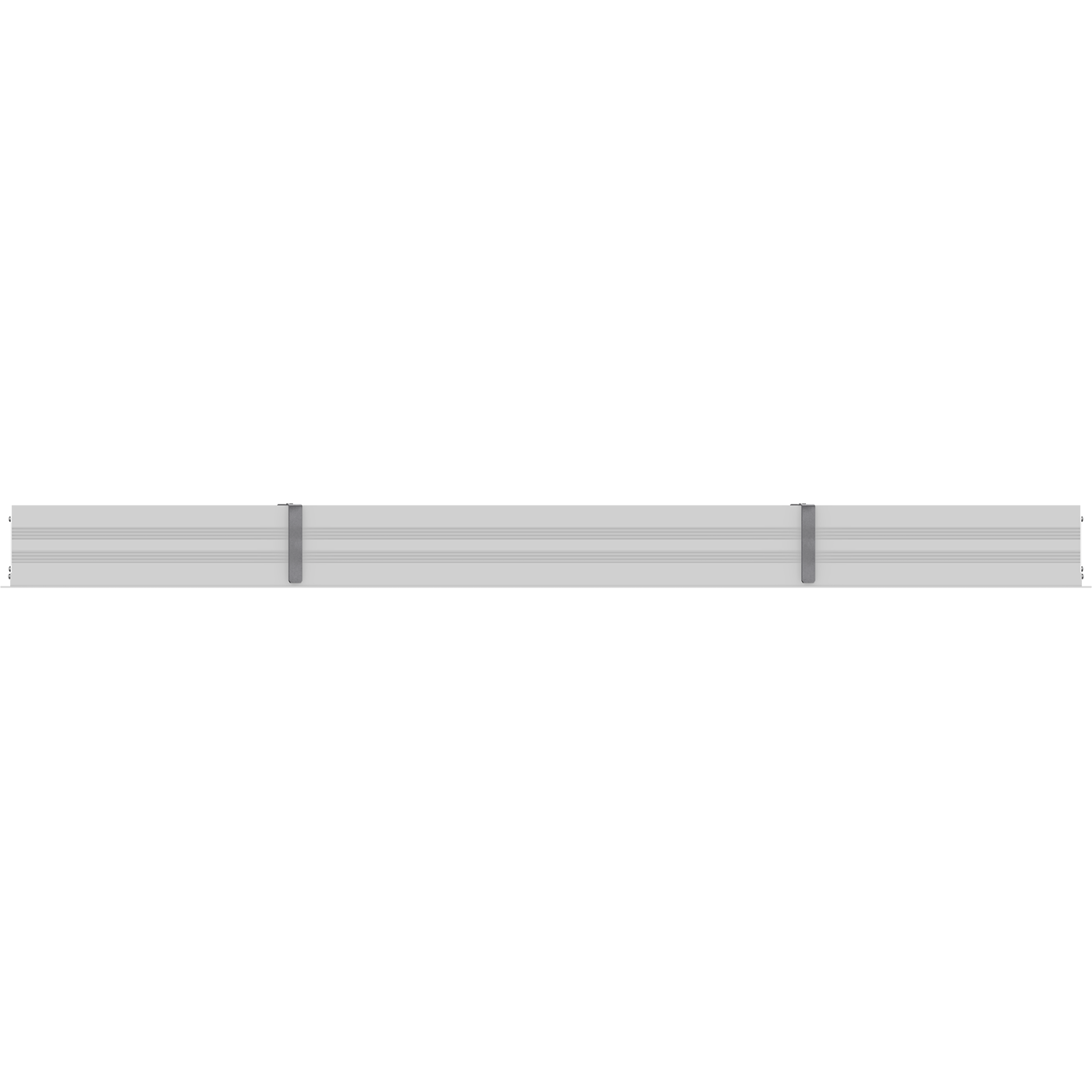

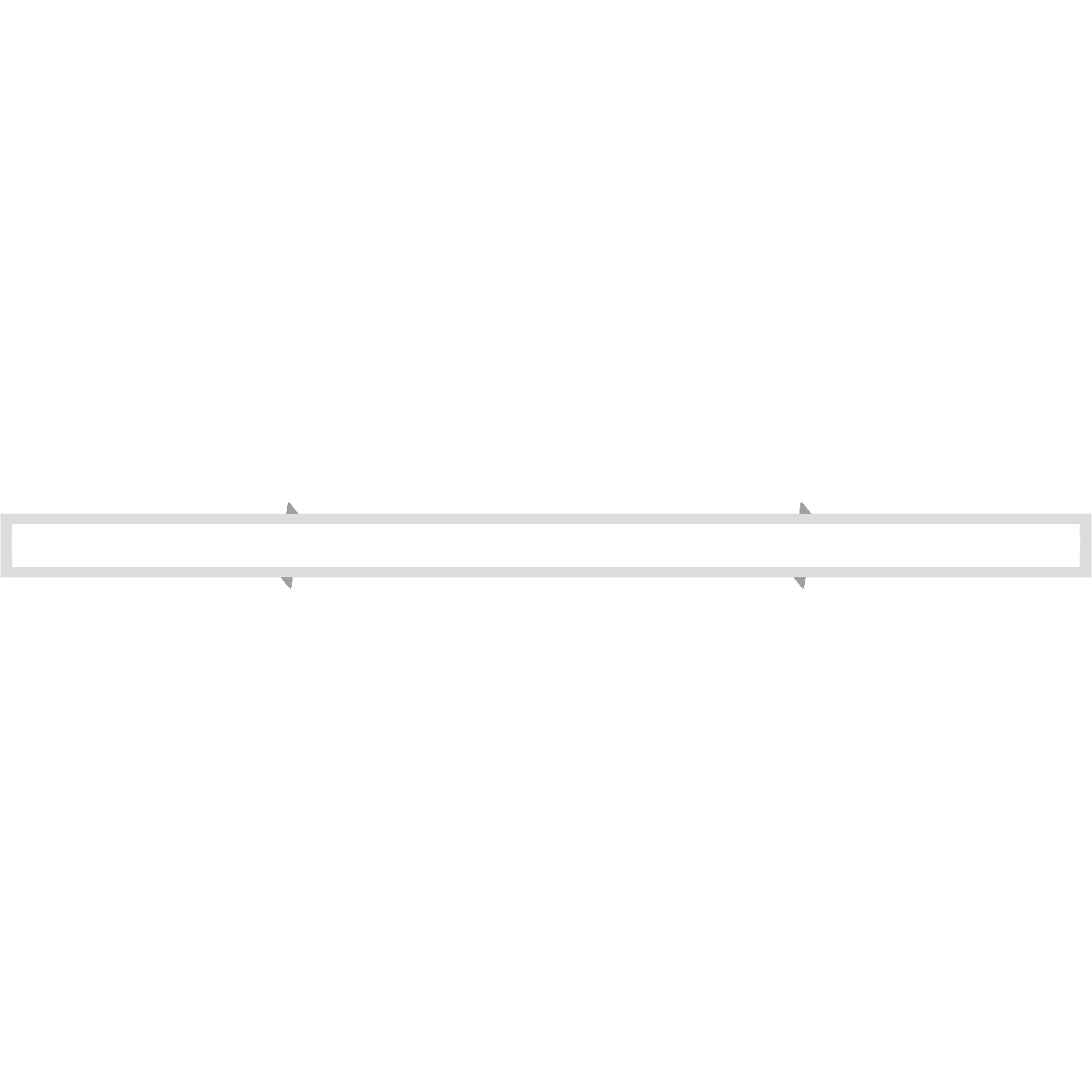

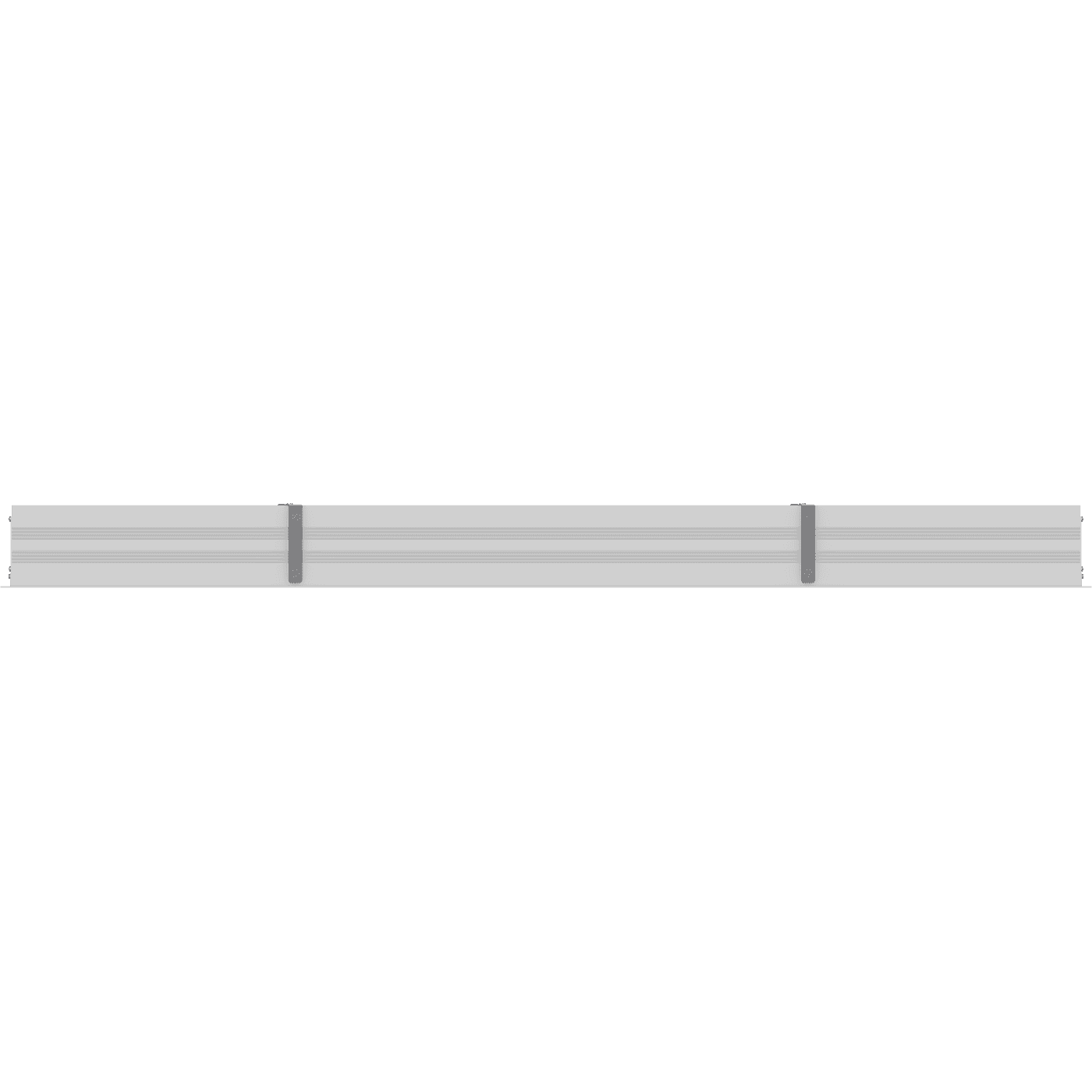

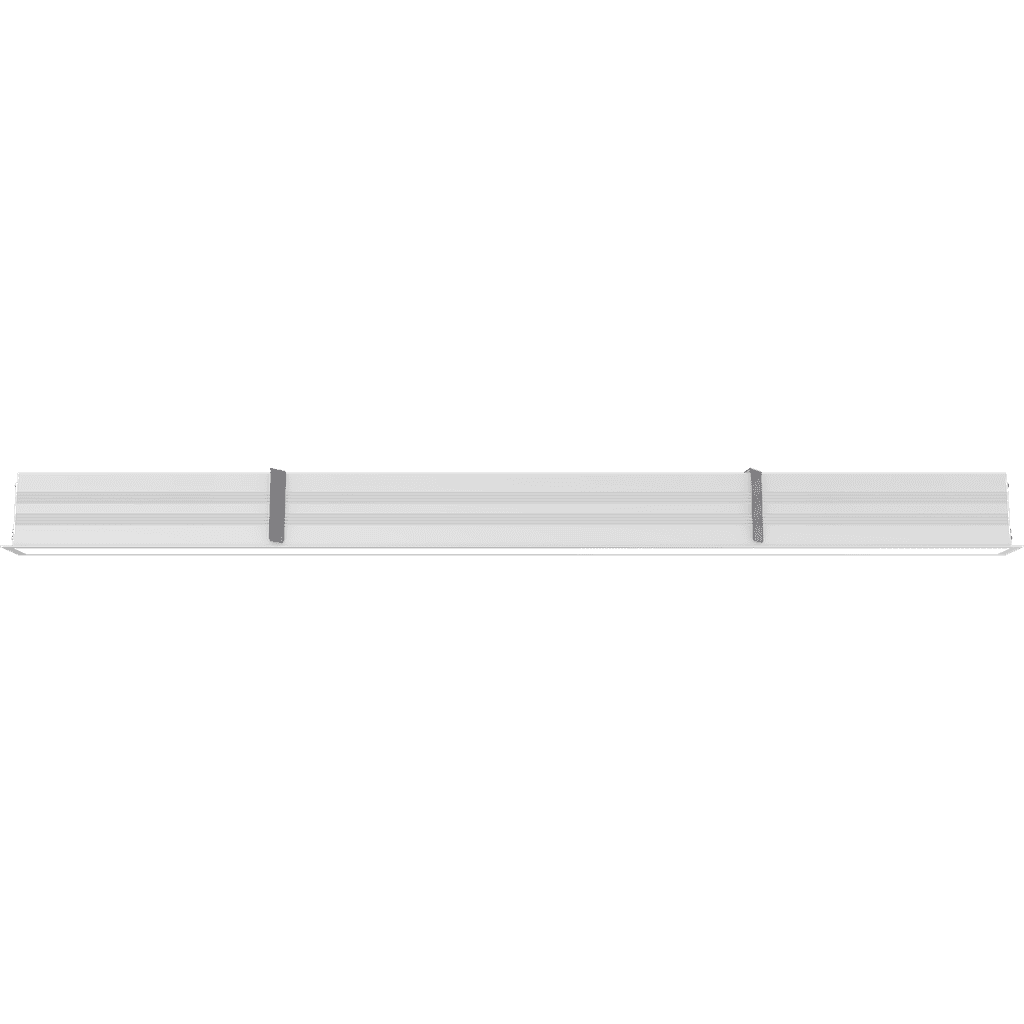

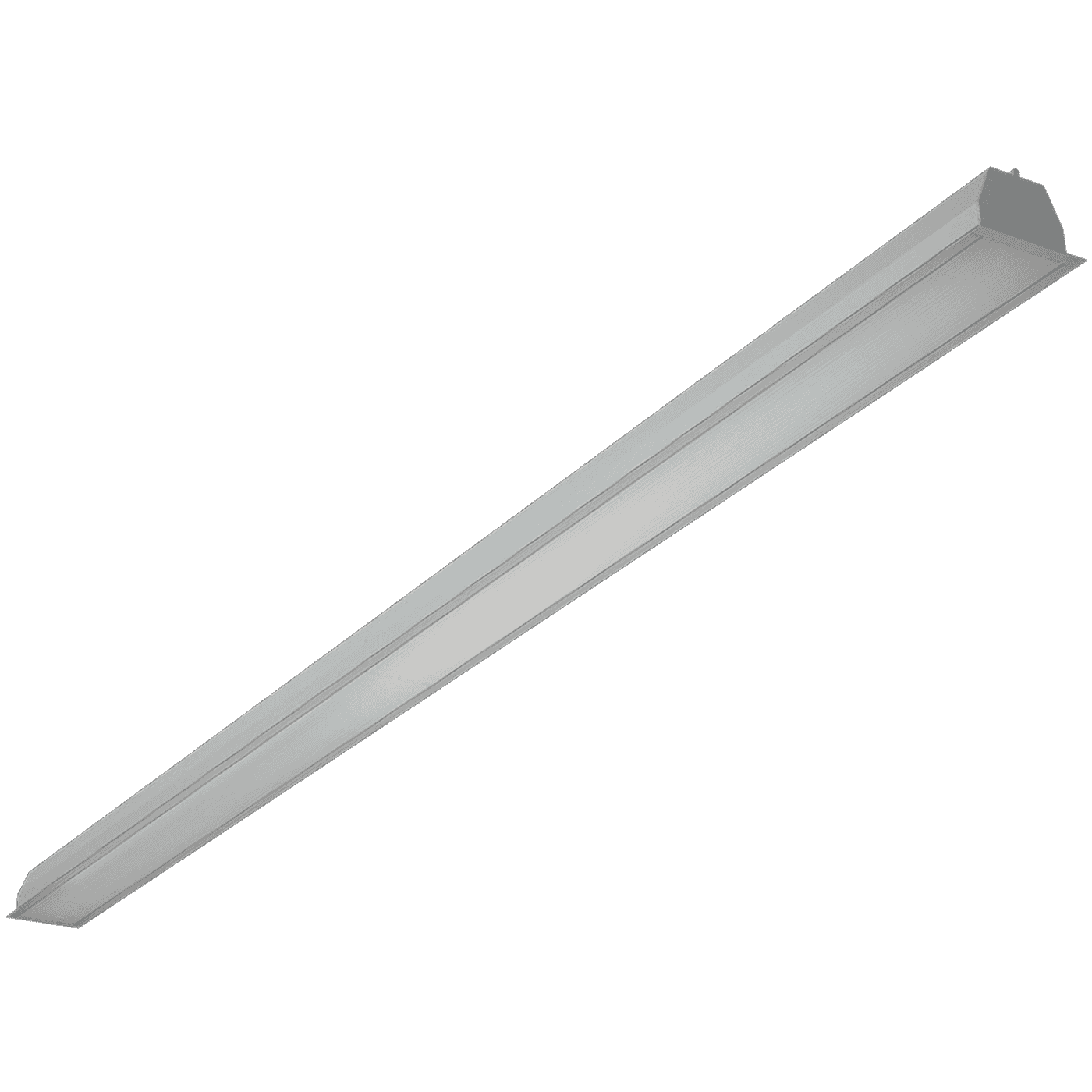

LINER/R DR LED 1500 TH W HFD 4000K
archive
archive
LINER/R DR LED 1500 TH W HFD 4000K
38 Wluminaire power
3800 lmlight flow
100 lm/Wenergy efficiency
code1474002430
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
3800 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
maximum number of luminaires in a line
23
luminaire power
38 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A

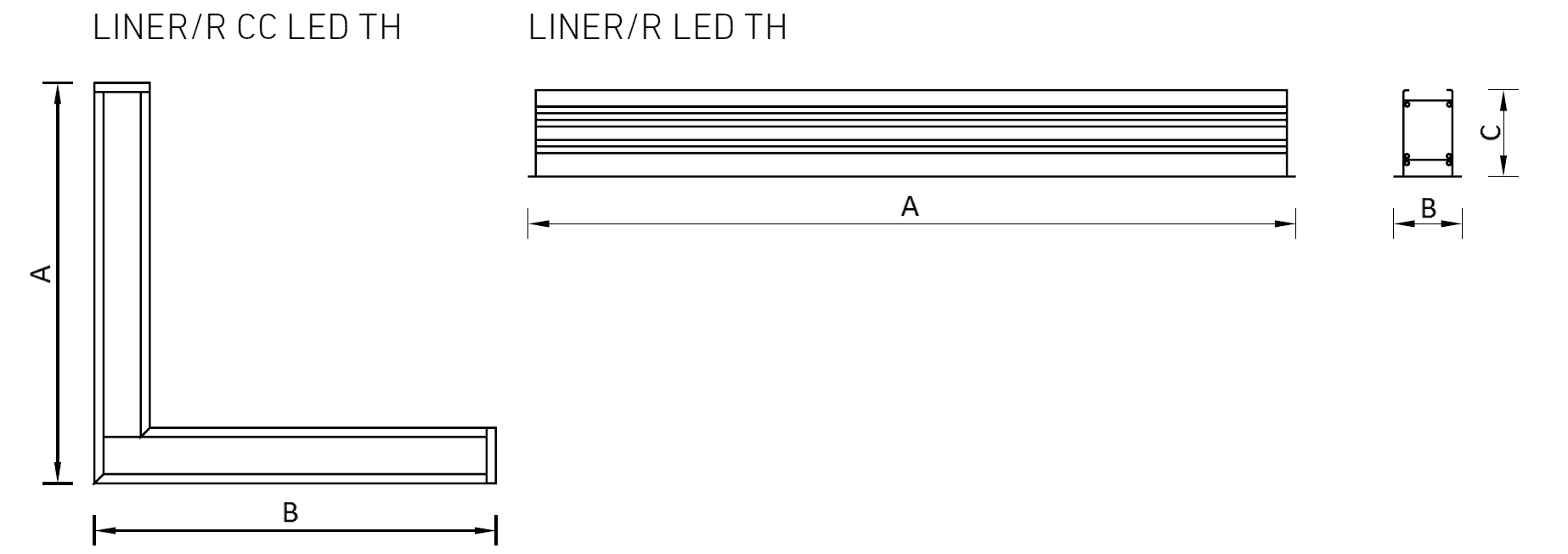

constructional
length, mm
1404 mm
width, mm
85 mm
height, mm
110 mm
installation length, mm
1406 mm
installation width, mm
62 mm
weight
5.3 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1474002430
model files
model files
photometric files
documents
сертификаты
photometric files
ies134.1 kB
jpg118.3 kB
ldt84.3 kB
csv428 B
documents
passport3.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
