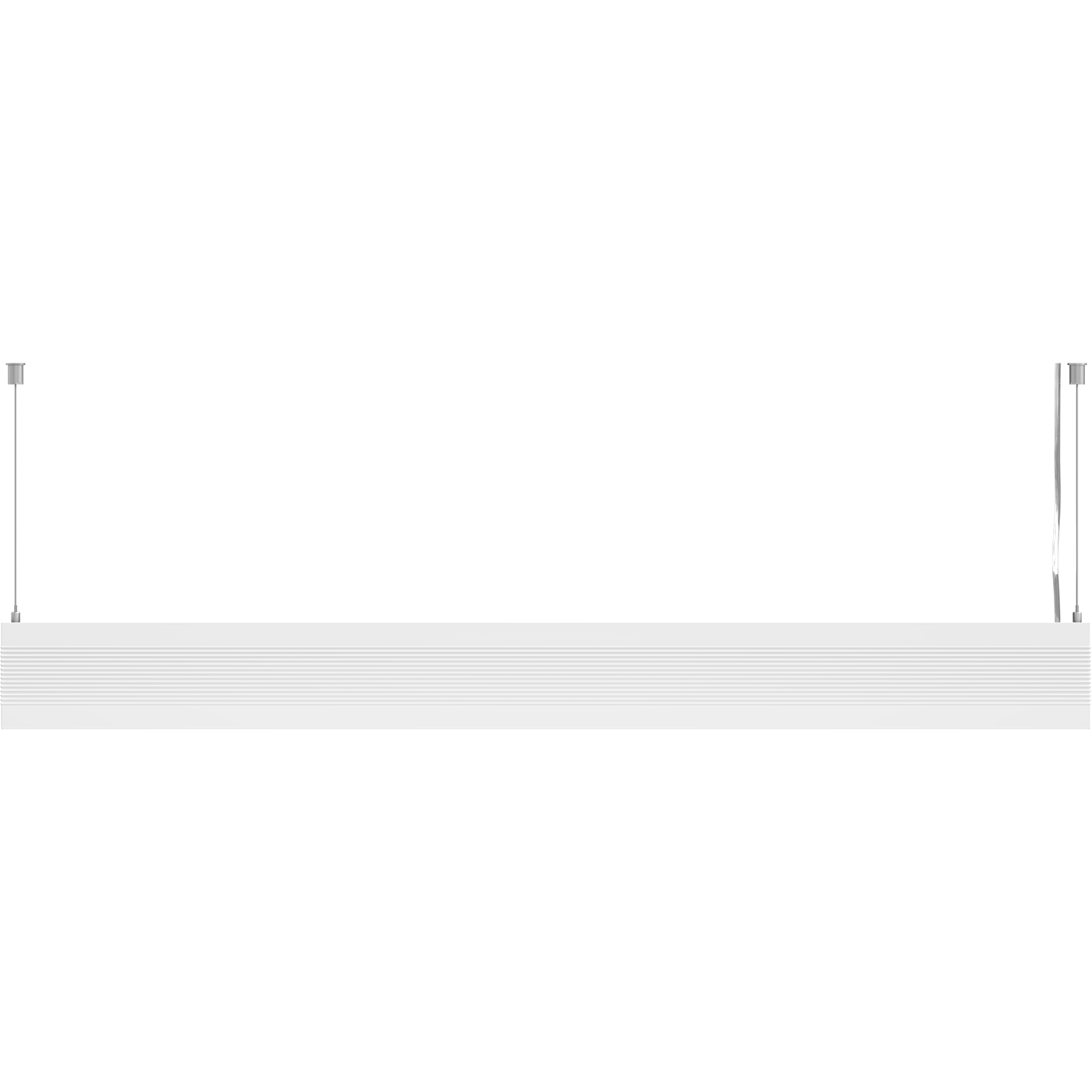

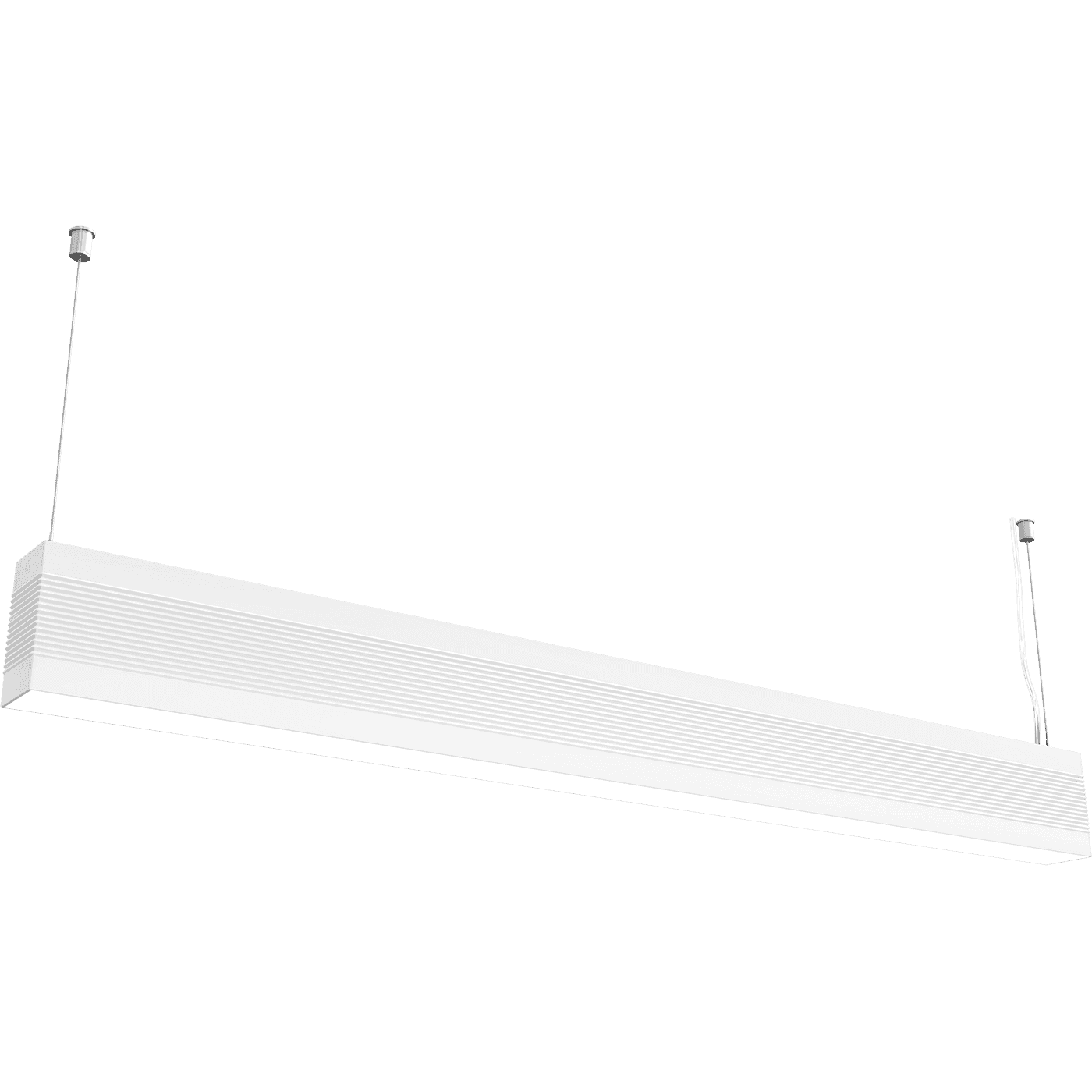

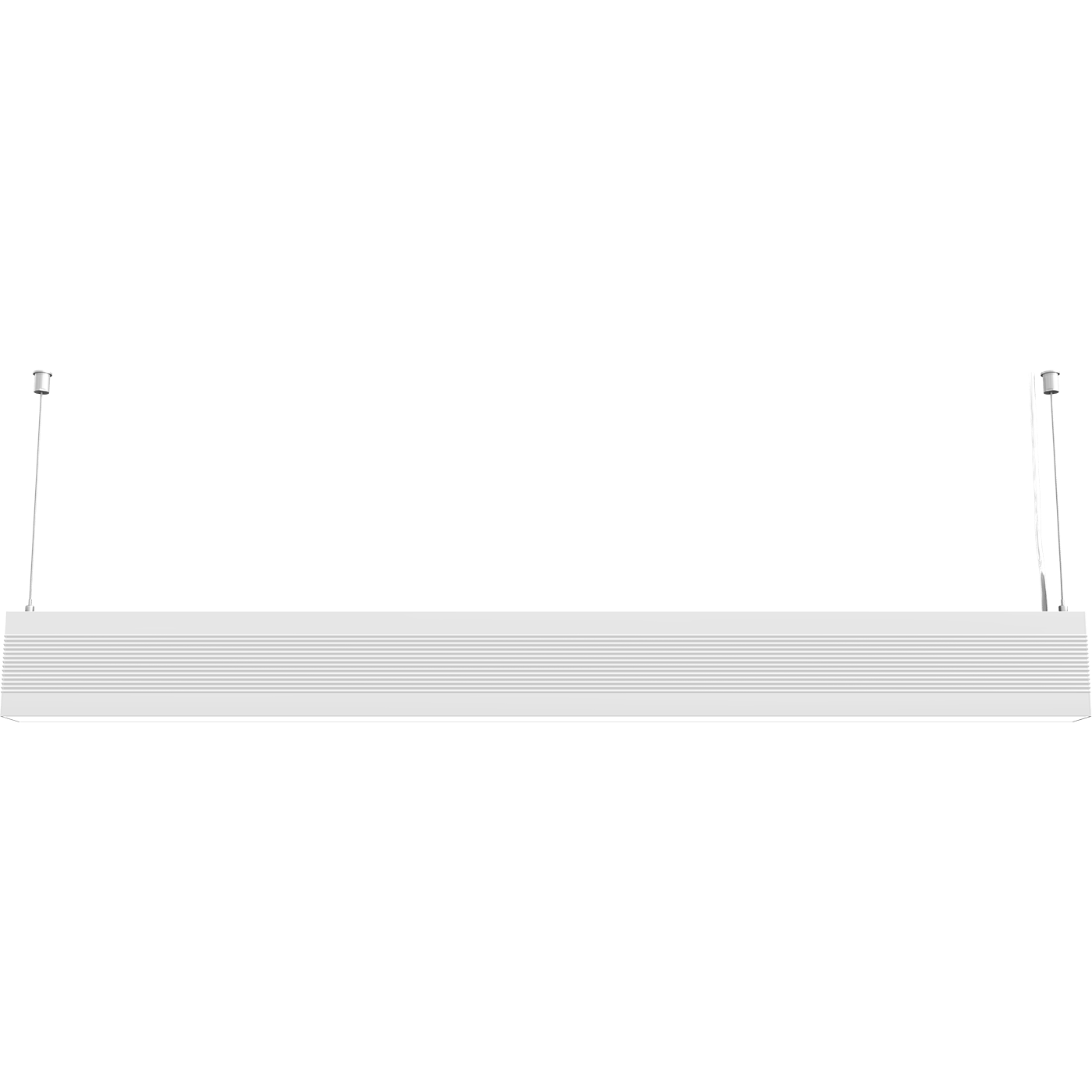

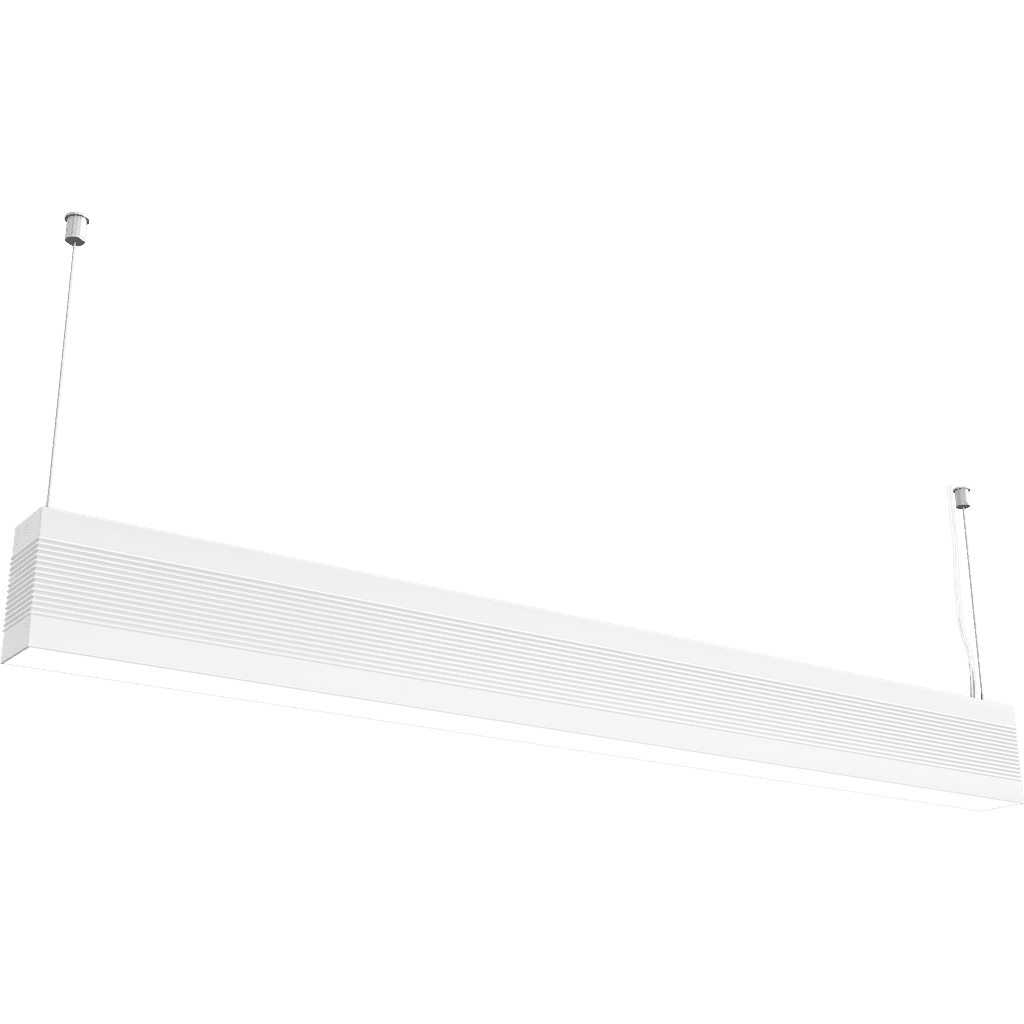

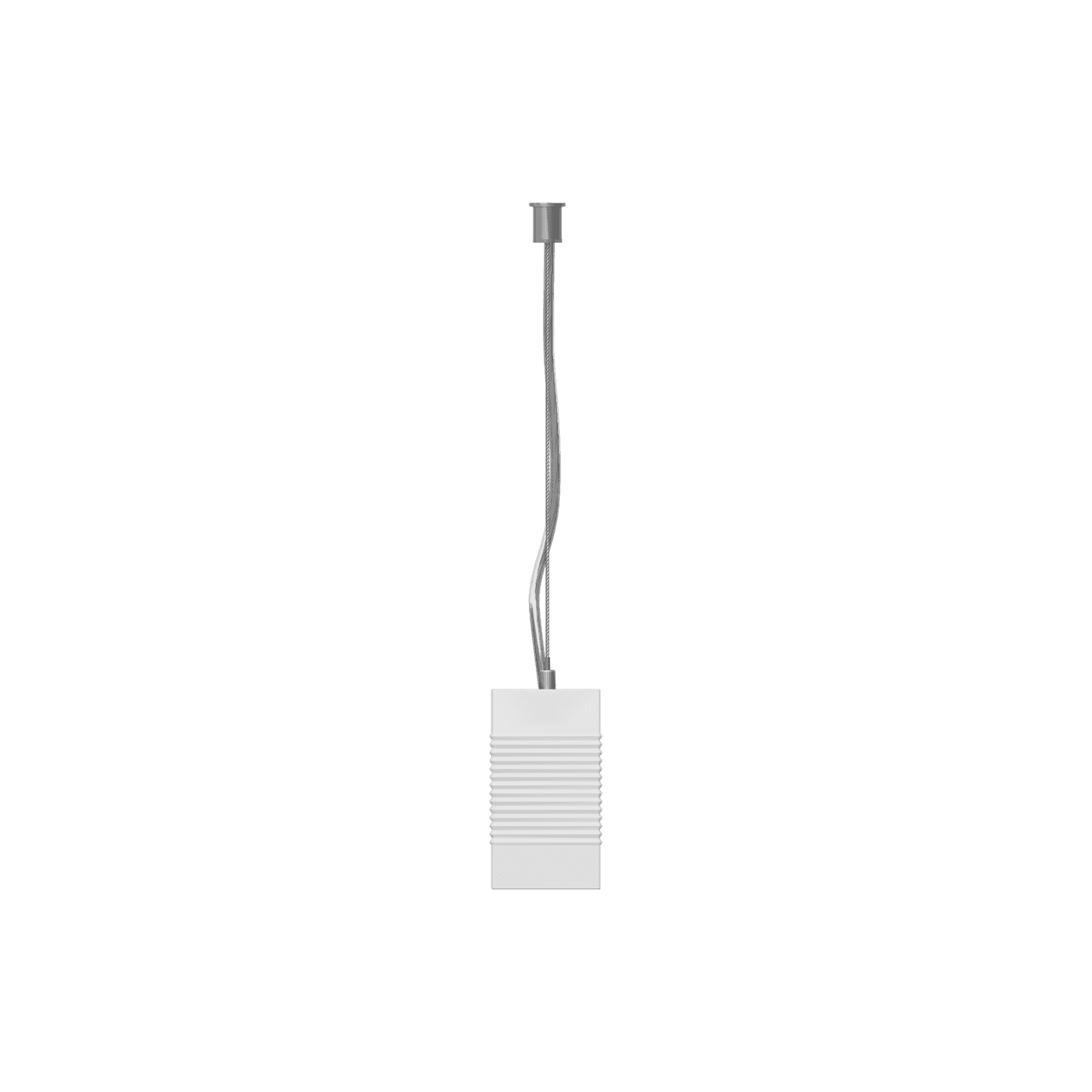

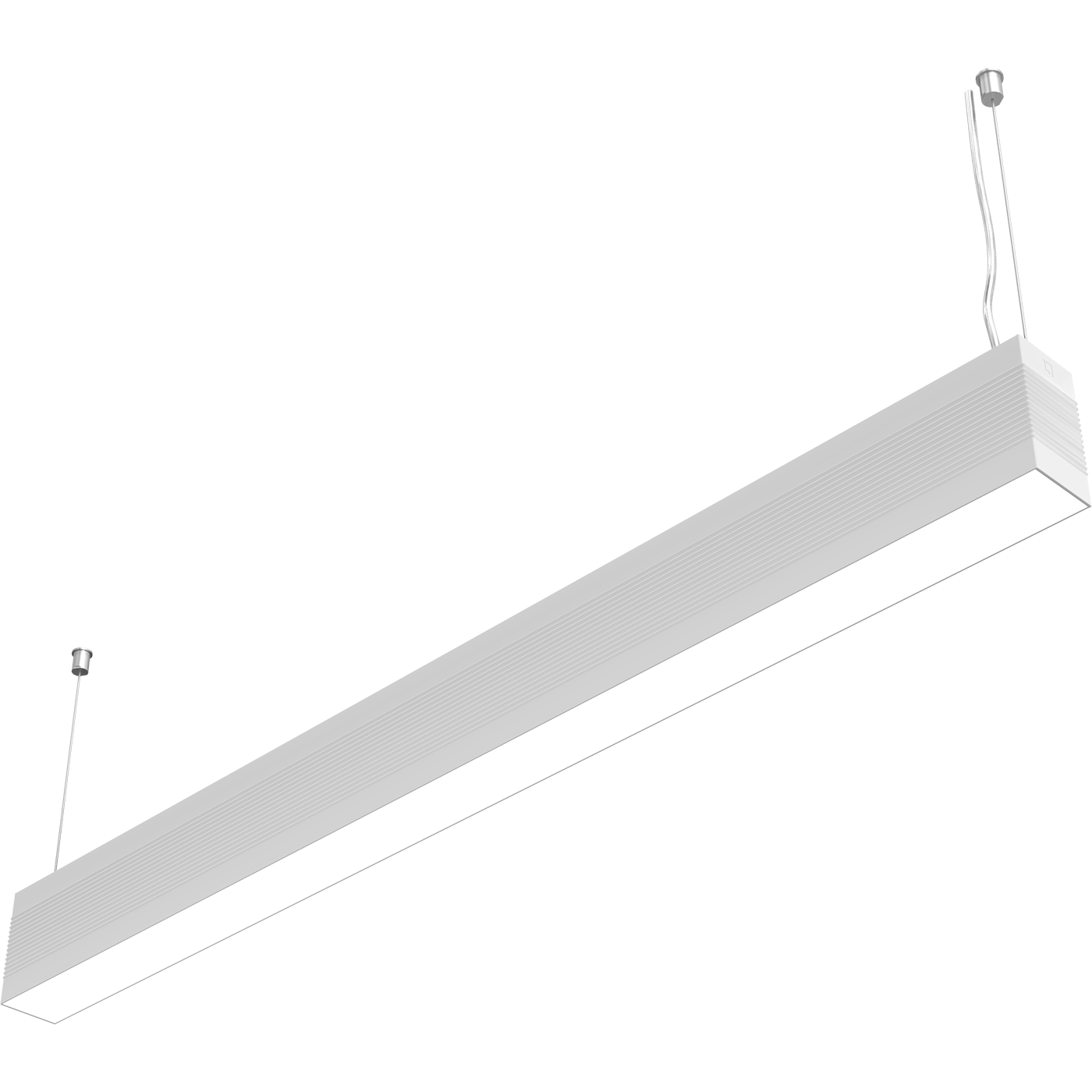

LINER/S DR LED 1200 TH W HFD 4000K

LINER/S DR LED 1200 TH W HFD 4000K
add to favorites
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1473000550
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. LINER/S LED TH
  7. LINER/S DR LED 1200 TH W HFD 4000K
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
3.3 kg
length, mm
1123 mm
width, mm
60 mm
height, mm
110 mm
housing color
Белый
installation length, mm
850 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1473000550
illuminating
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<1%
energy efficiency
100 lm/W

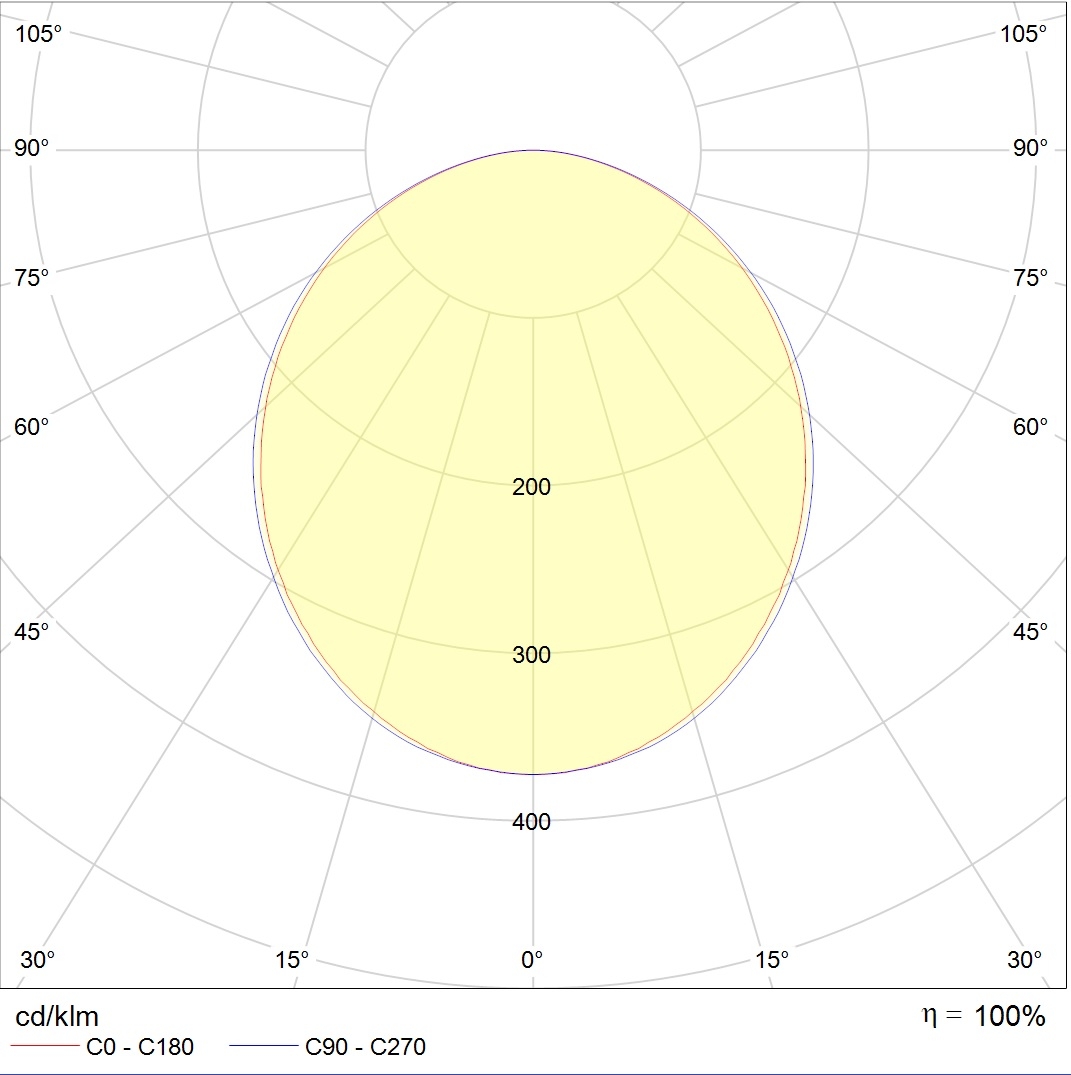

beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
CAD/BIM files
CAD model 3DS10.5 kB
model 3dMax624 kB

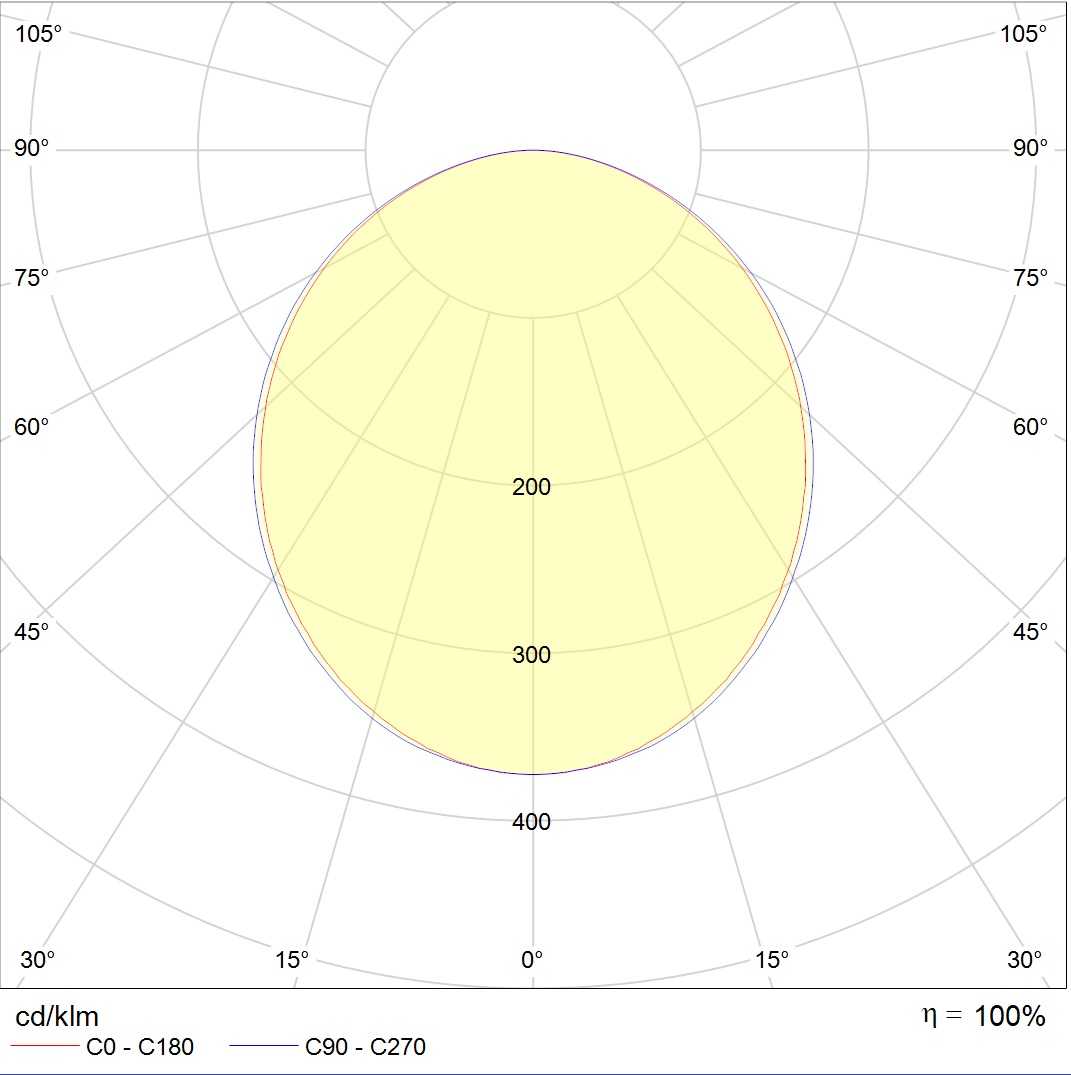

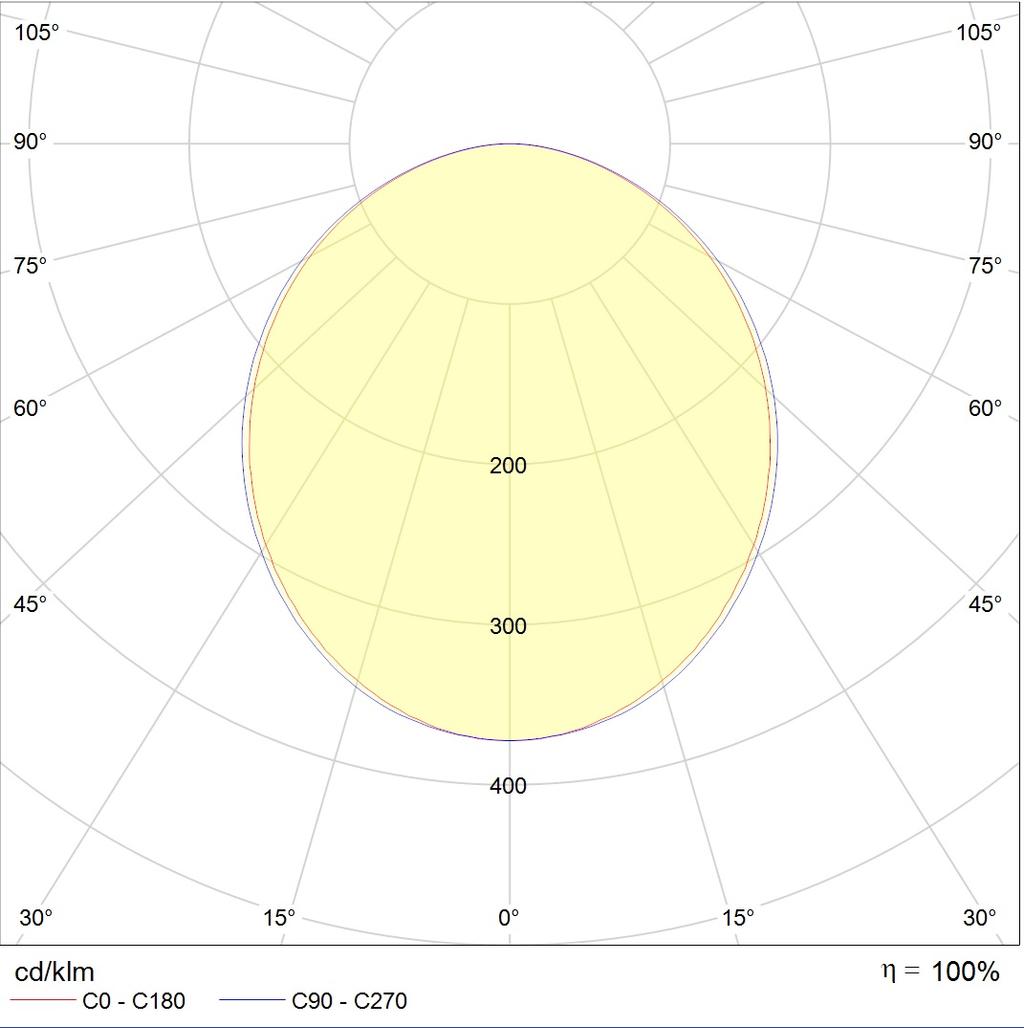

photometric files
