MARS 2211-3 LED
MARS 2211-3 LED
3 Wluminaire power
120 kd/m2average luminance
code4502003220
operating time in emergency mode1 h
battery / battery Ni-CdRB 3,6 V 1,5 A*h Ni-Cd
type of operation / type of operation of the emergency luminaireнепостоянного действия
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
100 lmaverage luminance
120 kd/m2flickering factor
<5%light source type
LEDenergy efficiency
33 lm/Wemission color
Белыйilluminating
light flow
100 lm
average luminance
120 kd/m2
flickering factor
<5%
light source type
LED
energy efficiency
33 lm/W
emission color
Белый
electrical
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
supply voltage, alternating current
230-240 V
constructional
material
Поликарбонат
ballast
Без драйвера
weight
0.7 kg
length
255 mm
width
137 mm
height
60 mm
shock resistance (IK)
IK02/0,2 Дж
ingress protection (IP)
IP22
climatic performance
УХЛ4
emergency
battery / battery Ni-Cd
RB 3,6 V 1,5 A*h Ni-Cd
type of operation / type of operation of the emergency luminaire
непостоянного действия
operating time in emergency mode
1 h
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
B
code
4502003220
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS54.7 kB
model 3dMax344 kB

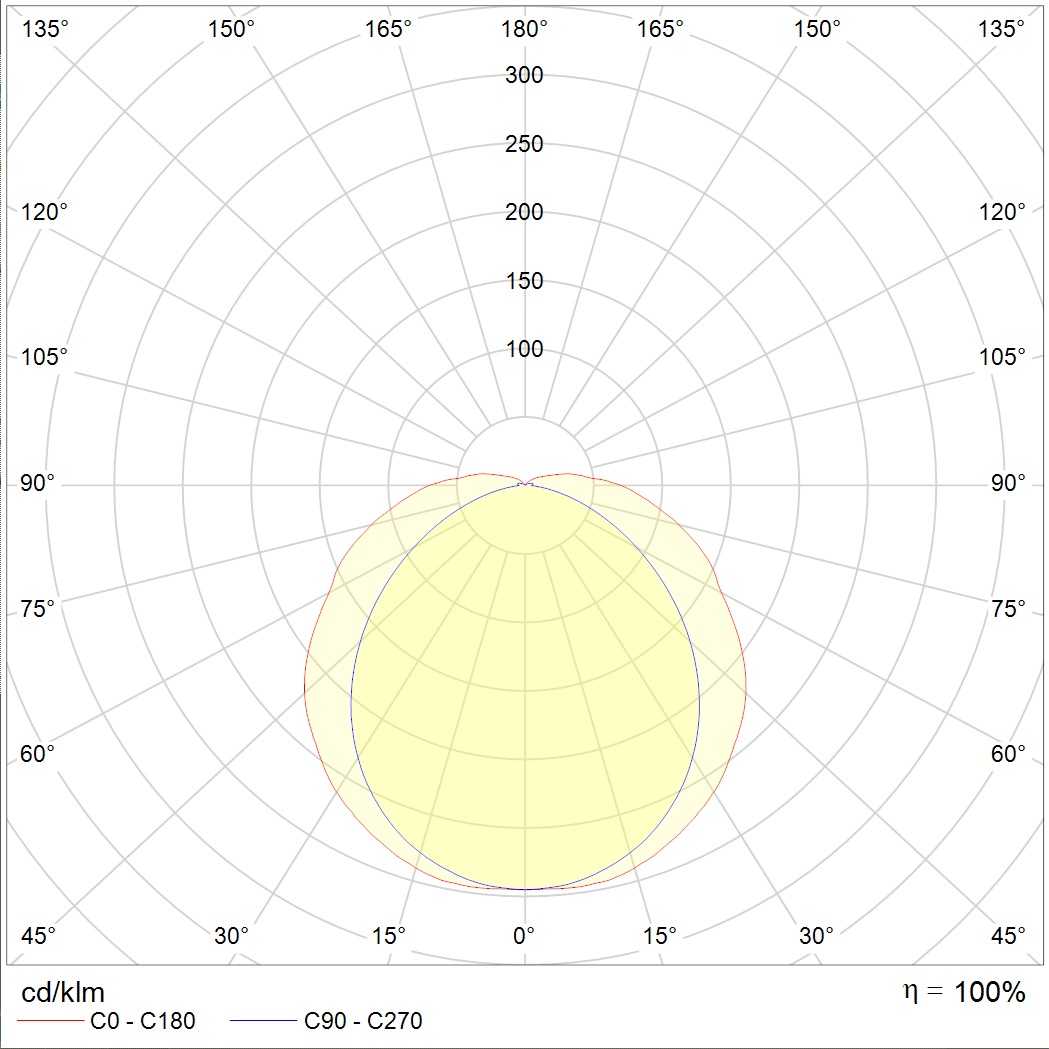

photometric files
ies134.1 kB
jpg175.6 kB
ldt108.2 kB
documents
passport484.1 kB
сертификаты
Voluntary certificate316.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011292.7 kB
Declaration of Conformity EAEU TR 037/2016291.1 kB
