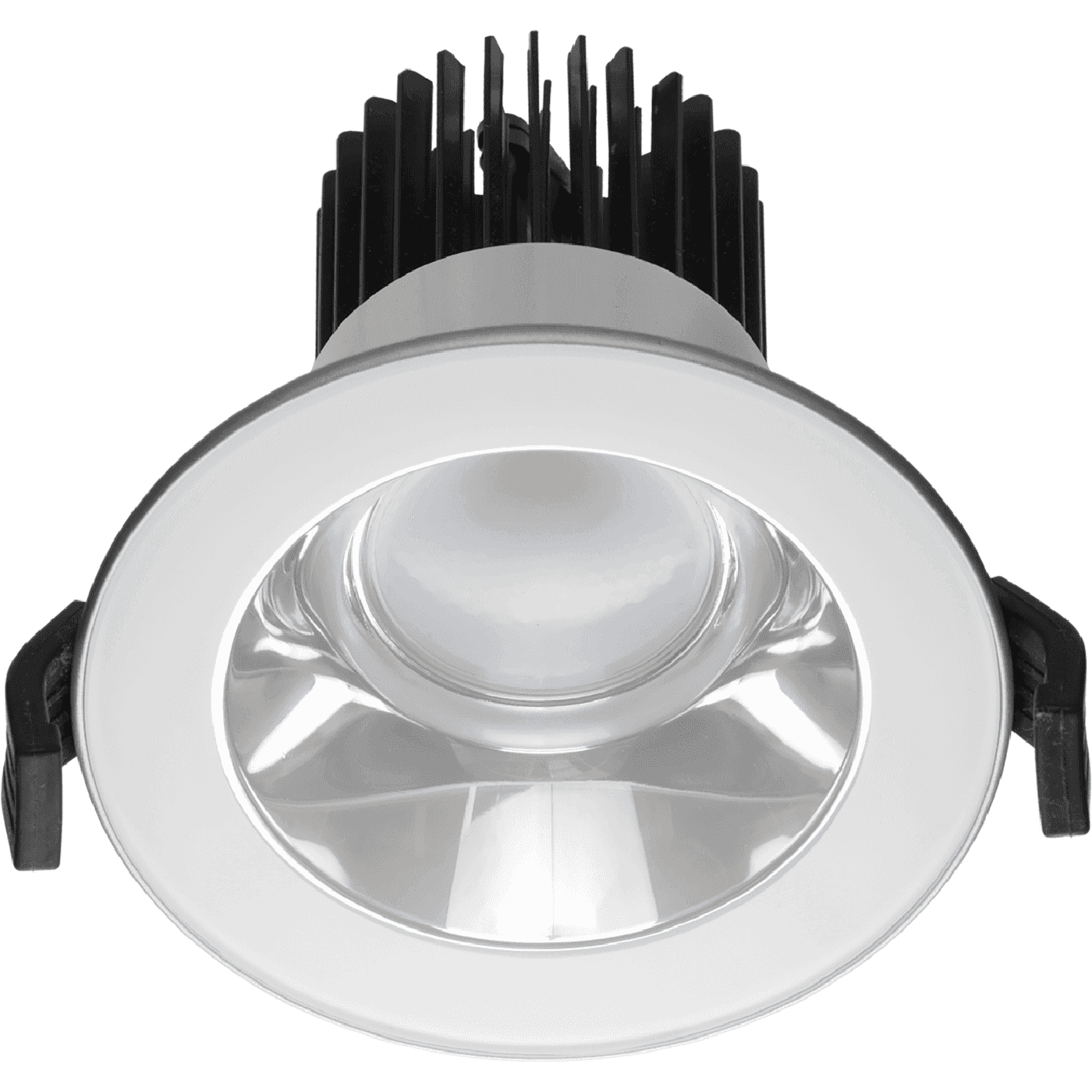

OKKO IP54/IP20 26 WH 3000K DALI
OKKO IP54/IP20 26 WH 3000K DALI
30 Wluminaire power
2700 lmlight flow
90 lm/Wenergy efficiency
code1235001320
color temperature3000
beam angleD70
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
90 lm/Wcolor rendition index (CRI)
>80light flow
2700 lmflickering factor
<5%beam angle
D70color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
90 lm/W
color rendition index (CRI)
>80
light flow
2700 lm
flickering factor
<5%
beam angle
D70
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
50 mks
electric shock protection
II
luminaire power
30 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
5 A
constructional
diameter
175 mm
height, mm
147 mm
installation diameter
143 mm
weight
1.2 kg
ingress protection (IP)
IP54/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1235001320
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax764 kB

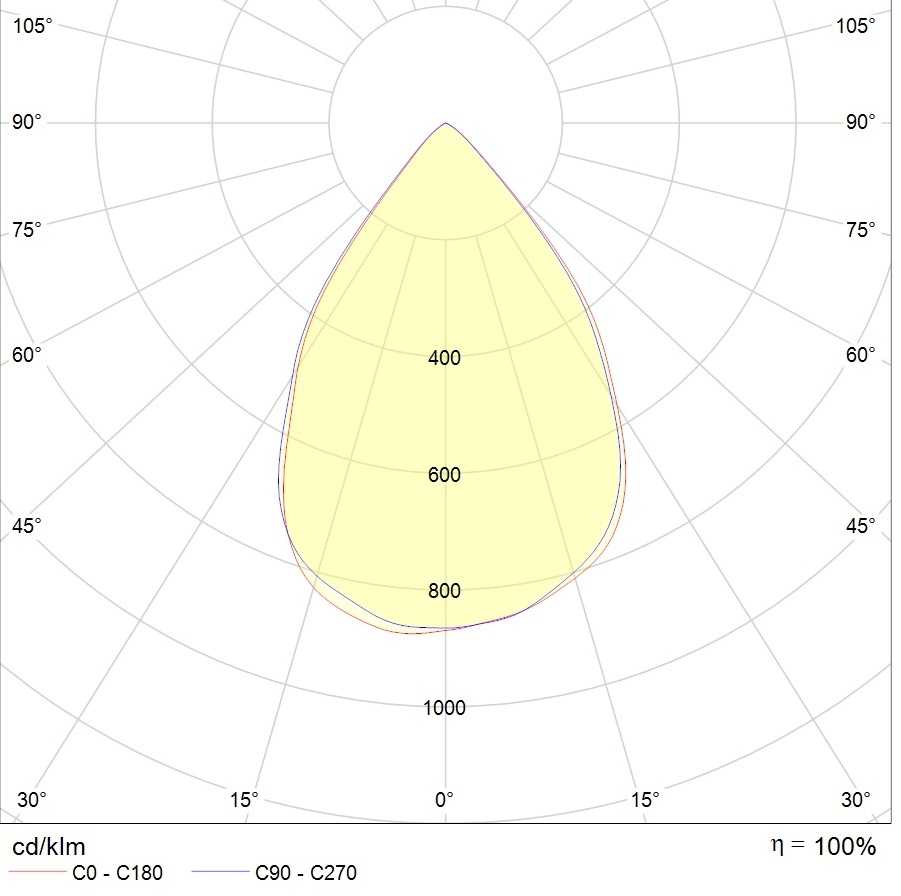

photometric files
ies11.8 kB
jpg97.9 kB
ldt10.4 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
