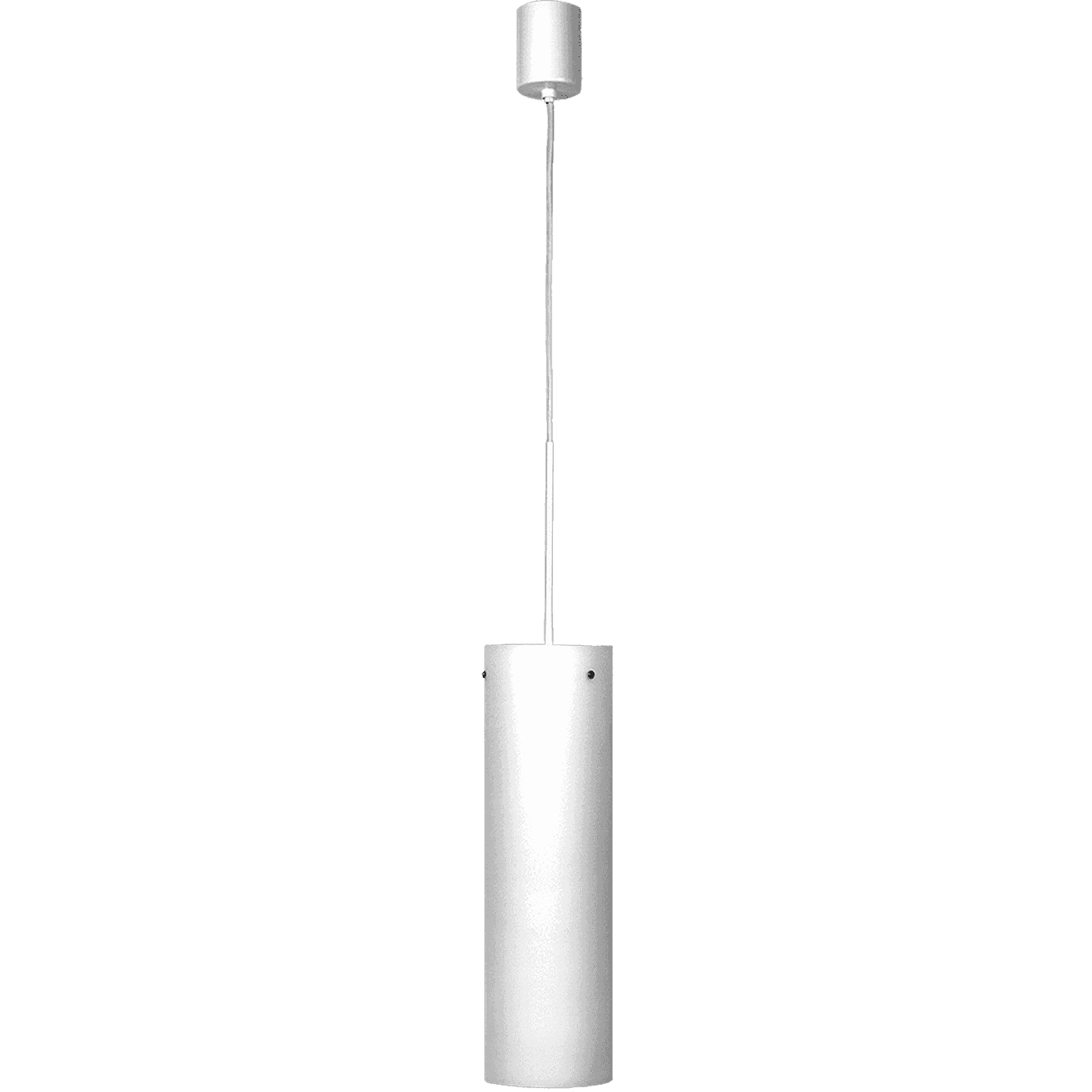

OKKO P 38 WH 3000K
OKKO P 38 WH 3000K
40 Wluminaire power
3800 lmlight flow
95 lm/Wenergy efficiency
code1235000250
color temperature3000
beam angleD70
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
60 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
40 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
60 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
weight
2.1 kg
diameter, mm
230 mm
height, mm
281 mm
housing color
Белый
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1235000250
illuminating
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<1%
energy efficiency
95 lm/W
beam angle
D70
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS47.2 kB
model 3dMax480 kB
photometric files
ies68.6 kB
jpg132.2 kB
ldt40.8 kB
documents
passport1.2 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
