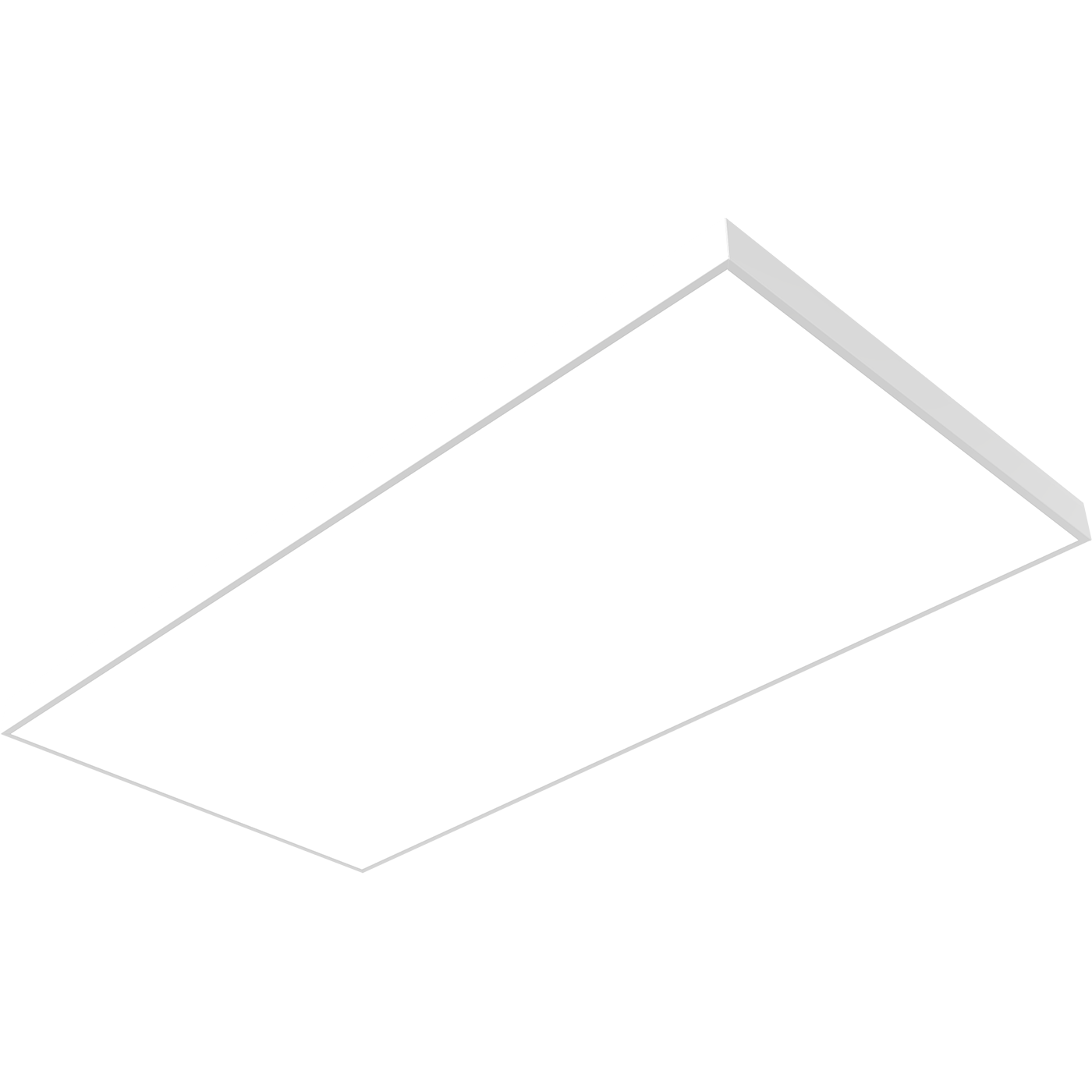

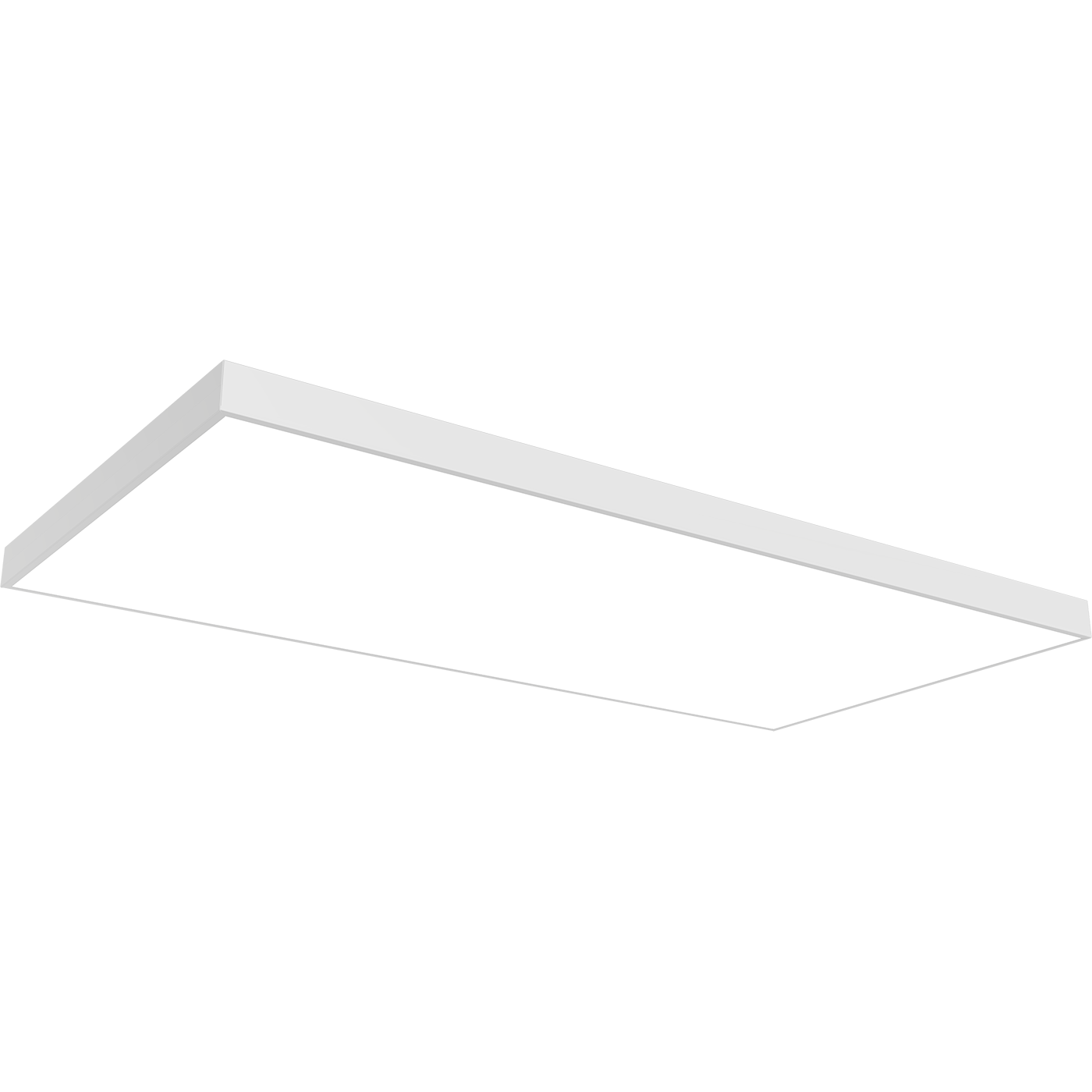

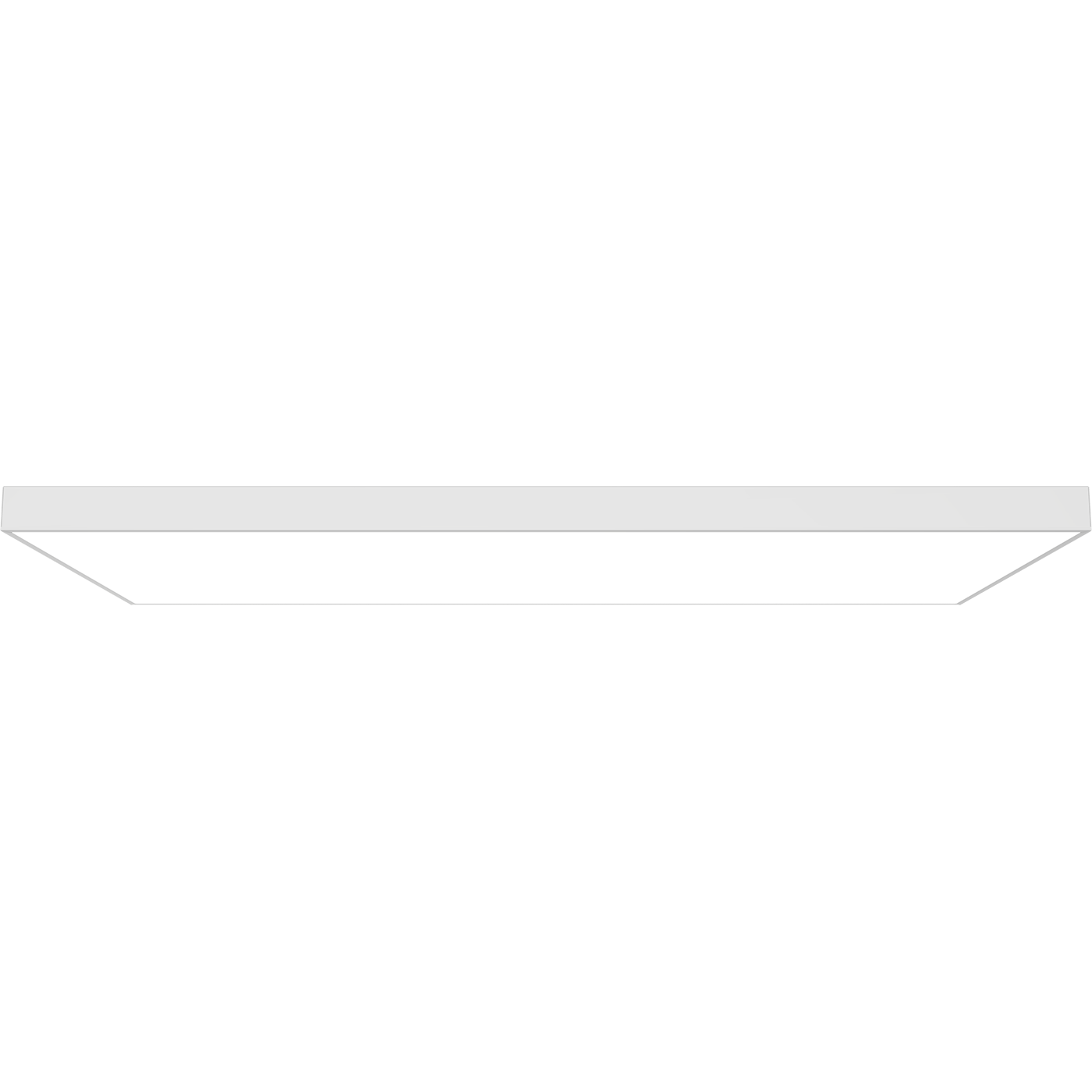

OPTIMA.OPL ECO LED 1200x600 4000K GRILIATO

OPTIMA.OPL ECO LED 1200x600 4000K GRILIATO
add to favorites
64 Wluminaire power
7600 lmlight flow
119 lm/Wenergy efficiency
code1166000160
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. OPTIMA ECO LED
  7. OPTIMA.OPL ECO LED 1200x600 4000K GRILIATO
options
свернуть все
electricalconstructionalcommonilluminating
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
64 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
64 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
6.2 kg
length, mm
1190 mm
width, mm
590 mm
height, mm
50 mm
housing color
Белый
installation length, mm
1190 mm
installation width, mm
590 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1166000160
illuminating
color rendition index (CRI)
>80
light flow
7600 lm
flickering factor
<1%
energy efficiency
119 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS1.4 kB
model 3dMax212 kB

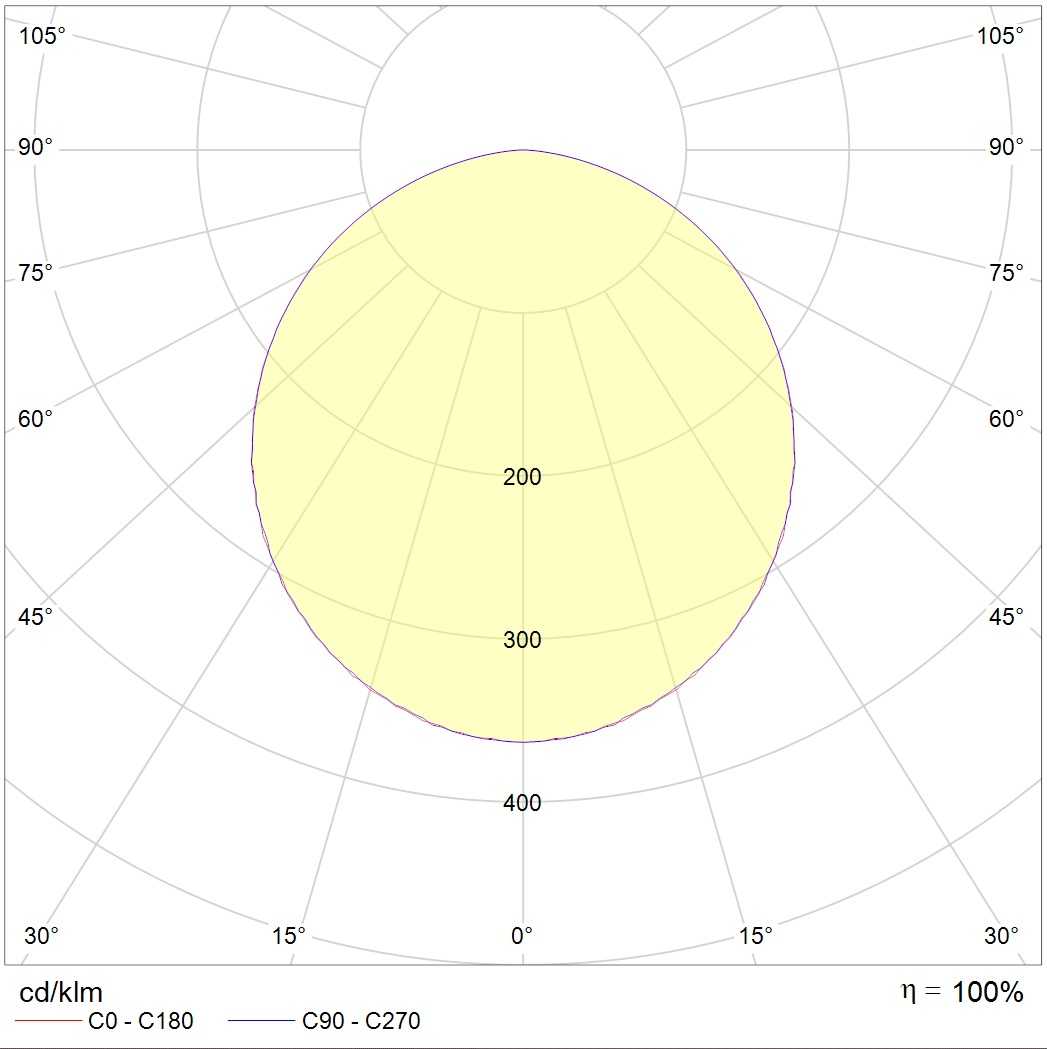

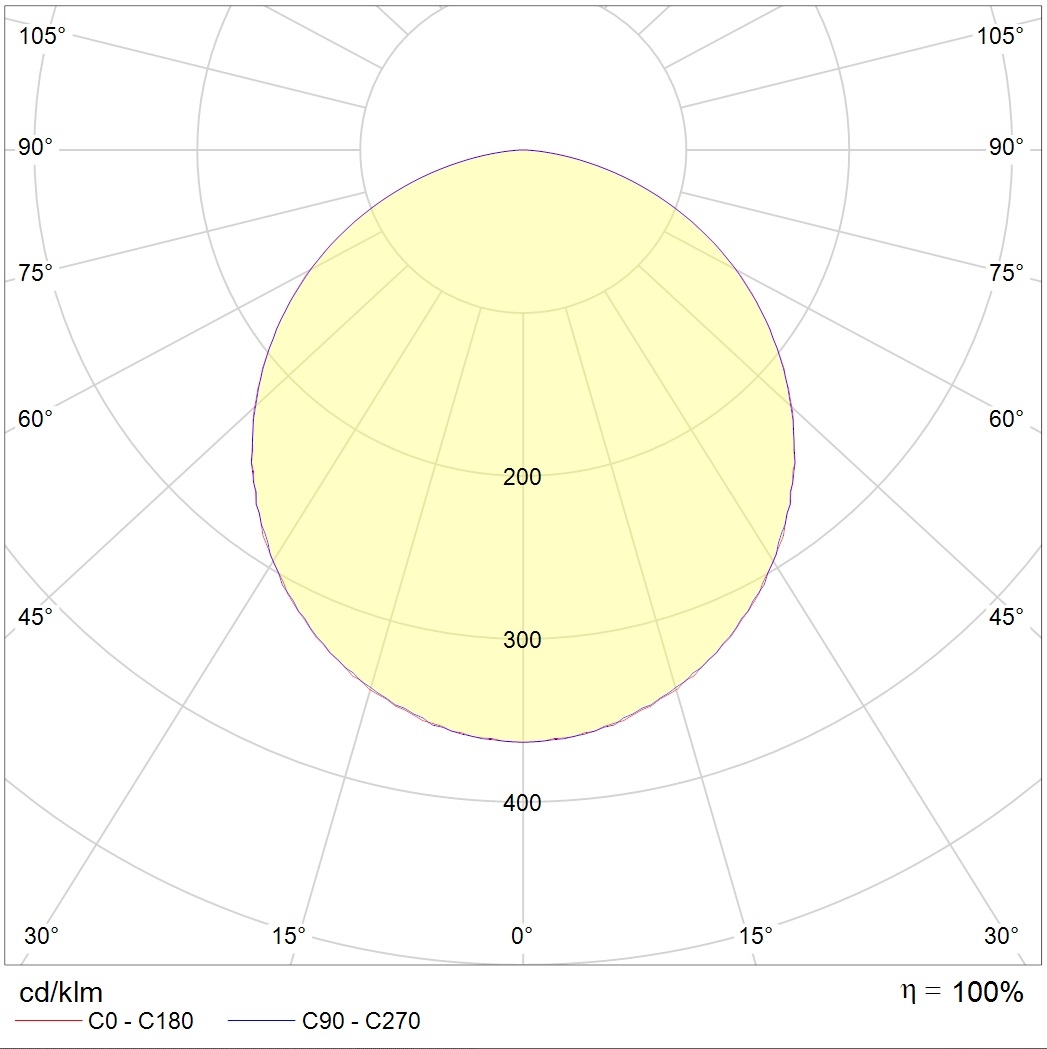

photometric files
ies134.1 kB
jpg116.8 kB
ldt83.7 kB
csv435 B
