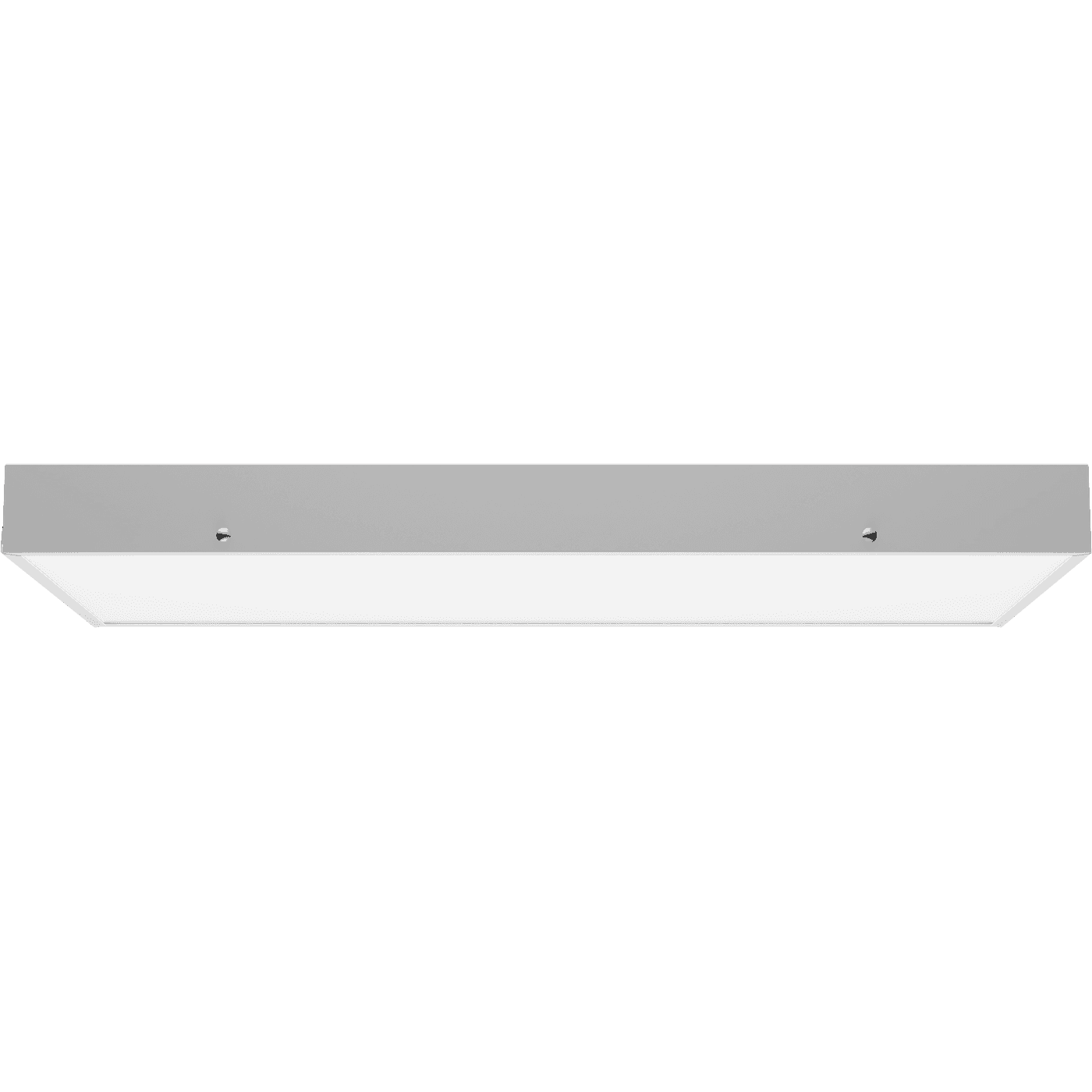

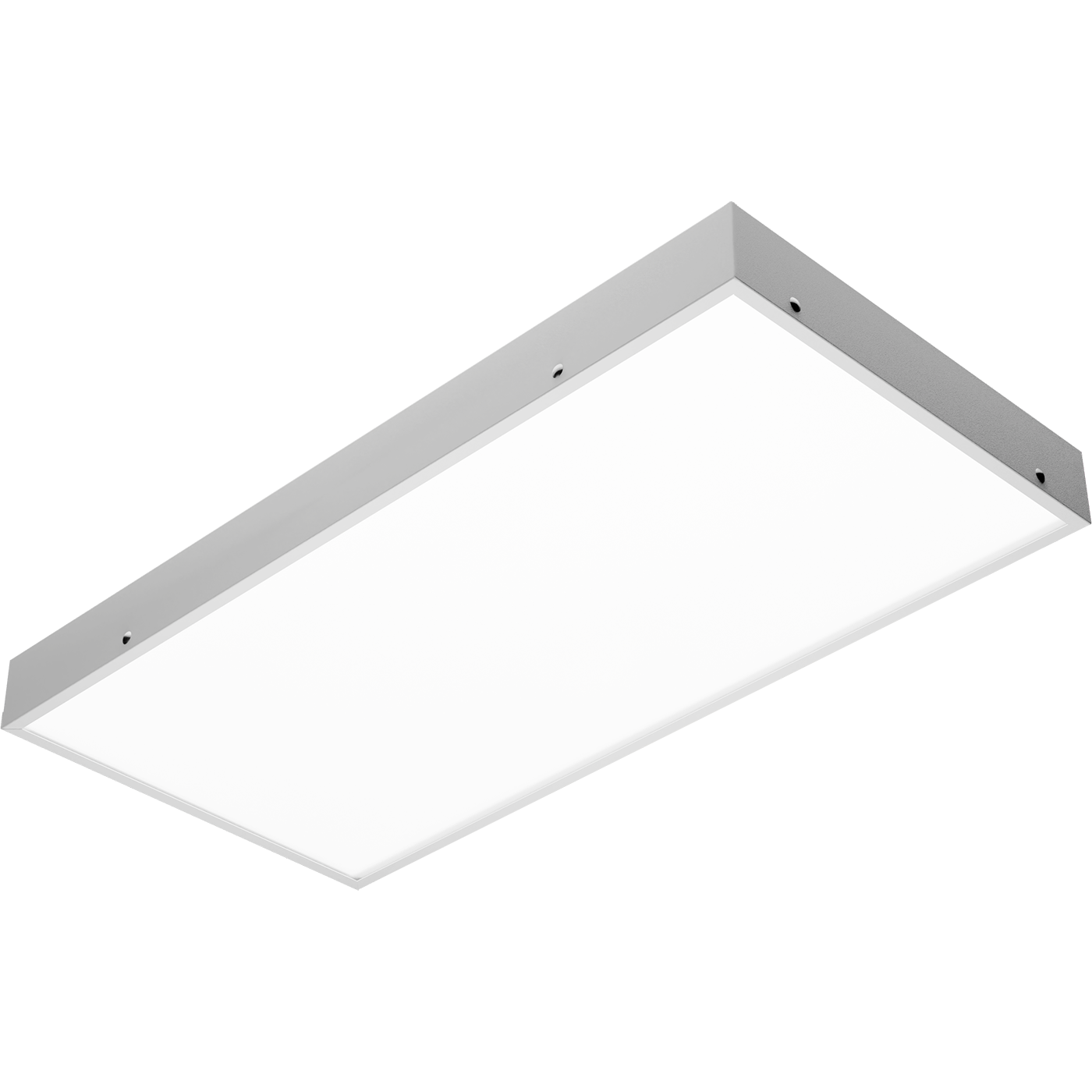

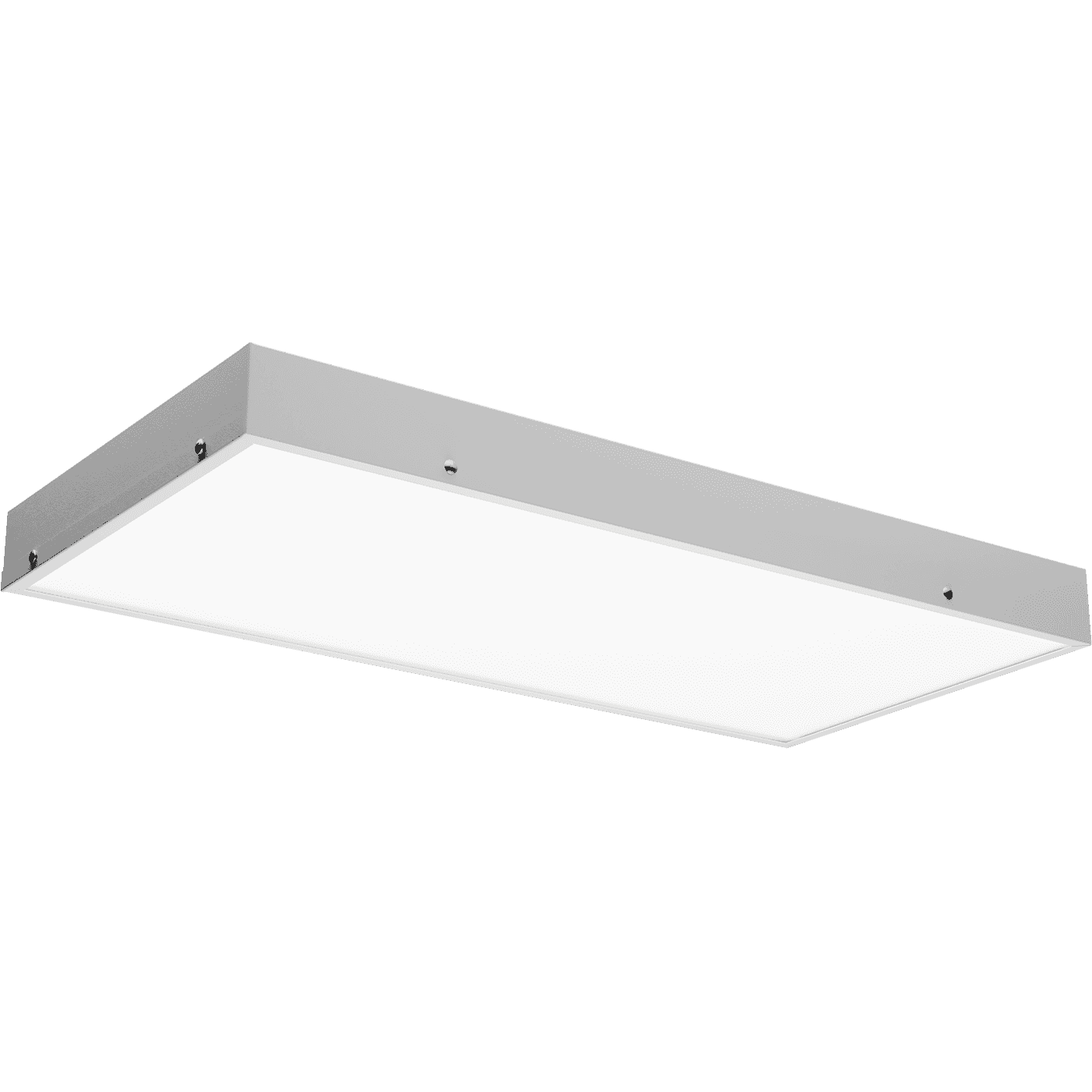

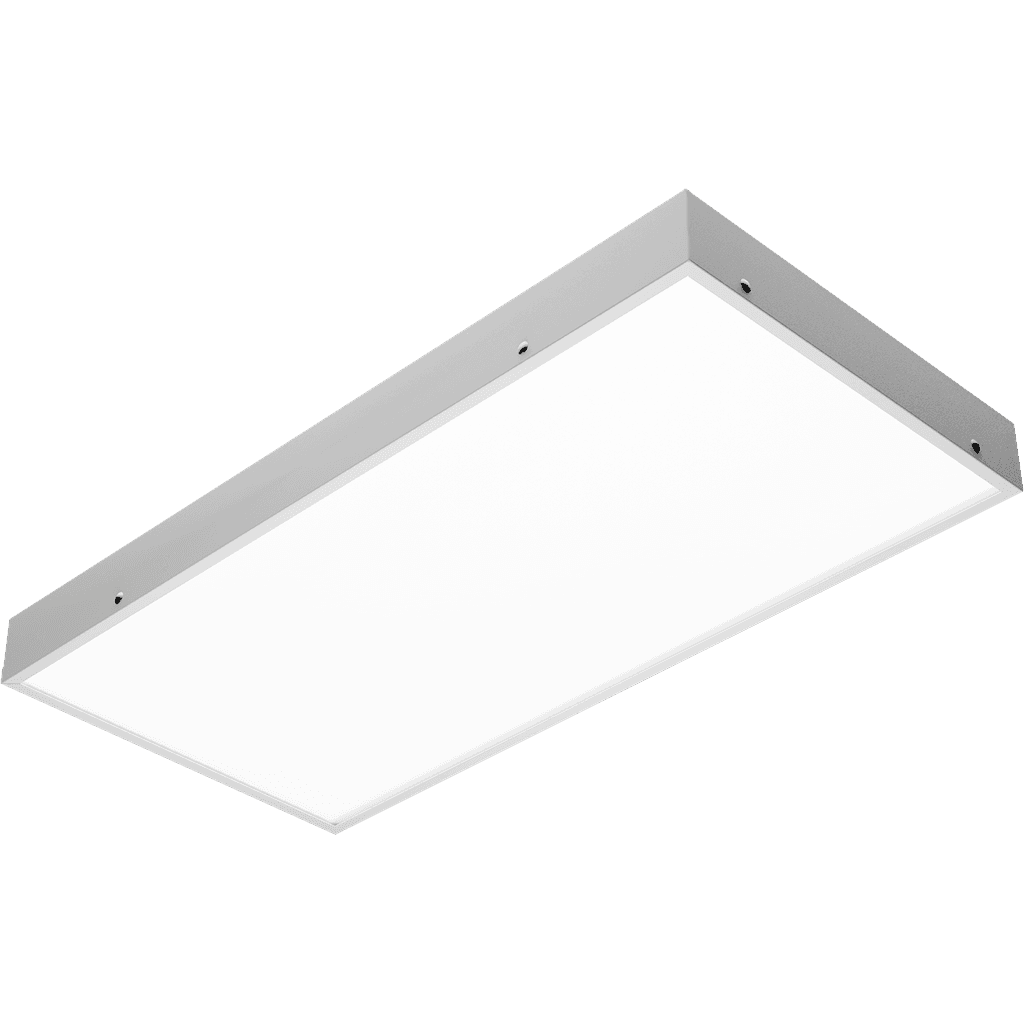

OPTIMA.OPL ECO LED 300 4000K
OPTIMA.OPL ECO LED 300 4000K
18 Wluminaire power
2000 lmlight flow
111 lm/Wenergy efficiency
code1166000060
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
111 lm/Wcolor rendition index (CRI)
>80light flow
2000 lmflickering factor
<1%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
111 lm/W
color rendition index (CRI)
>80
light flow
2000 lm
flickering factor
<1%

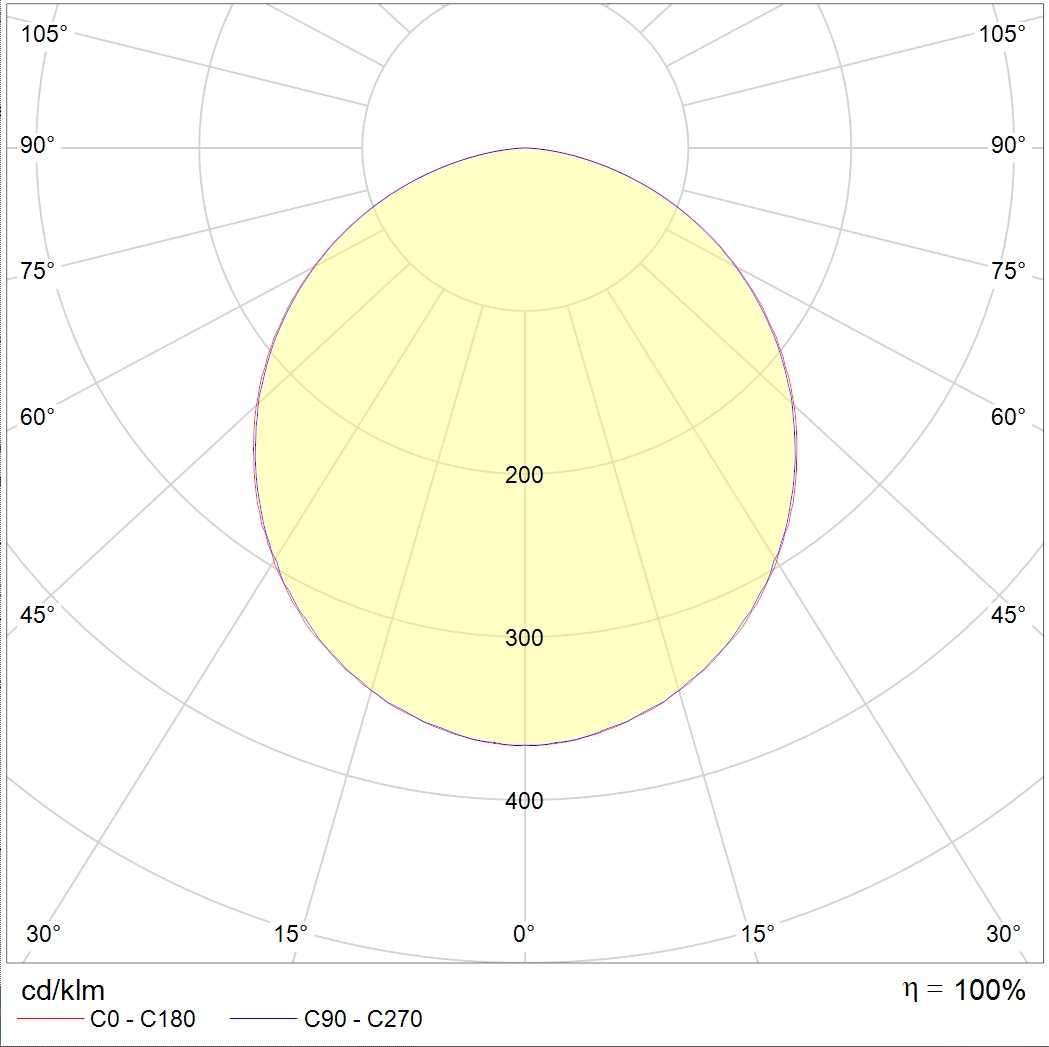

beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
18 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A

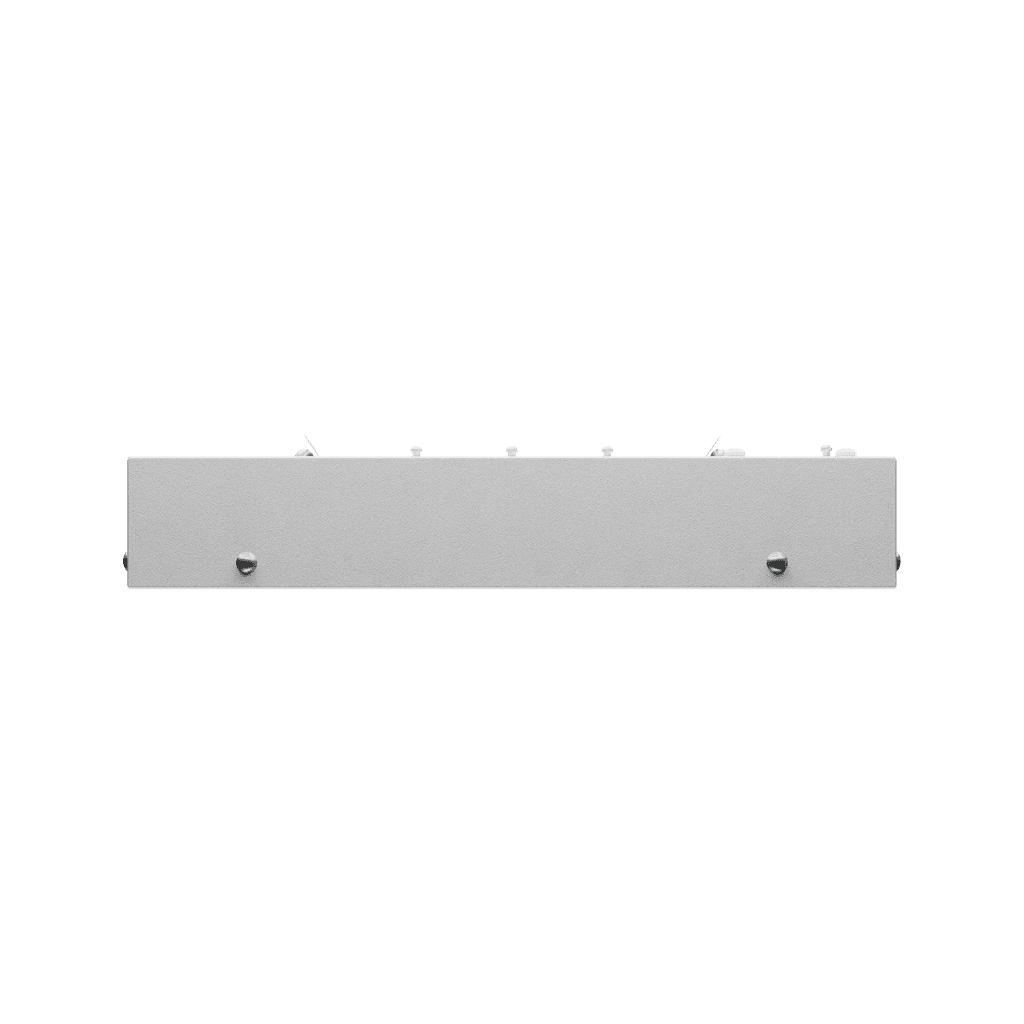

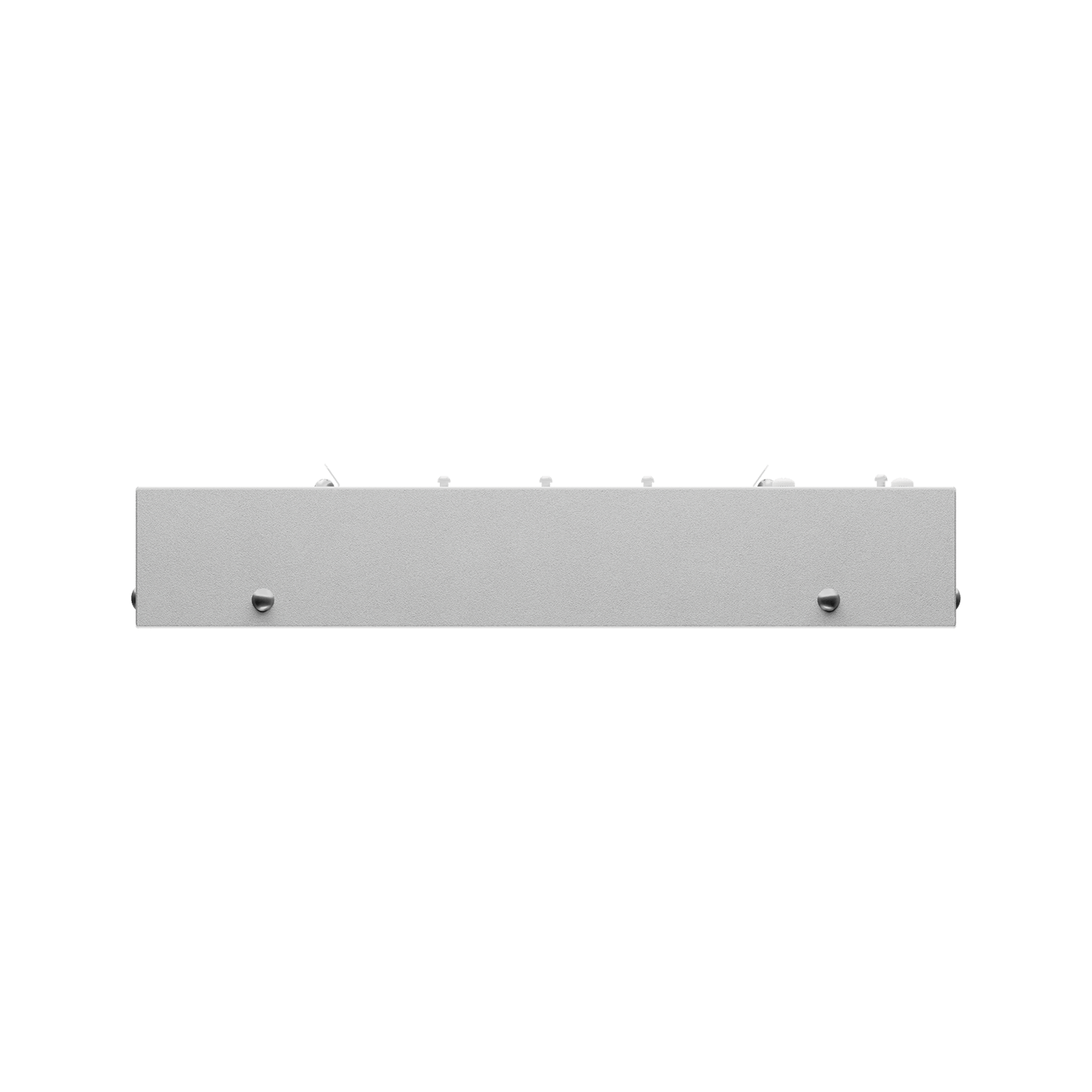

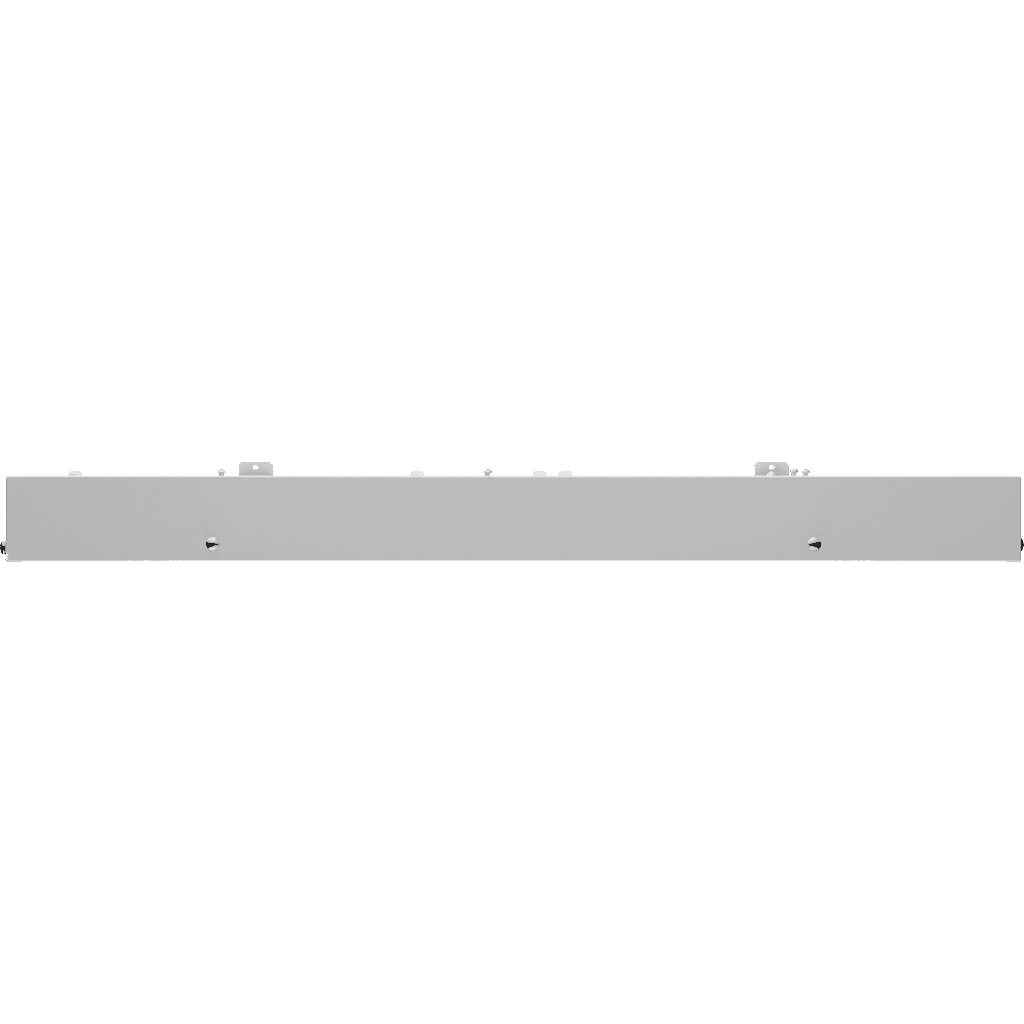

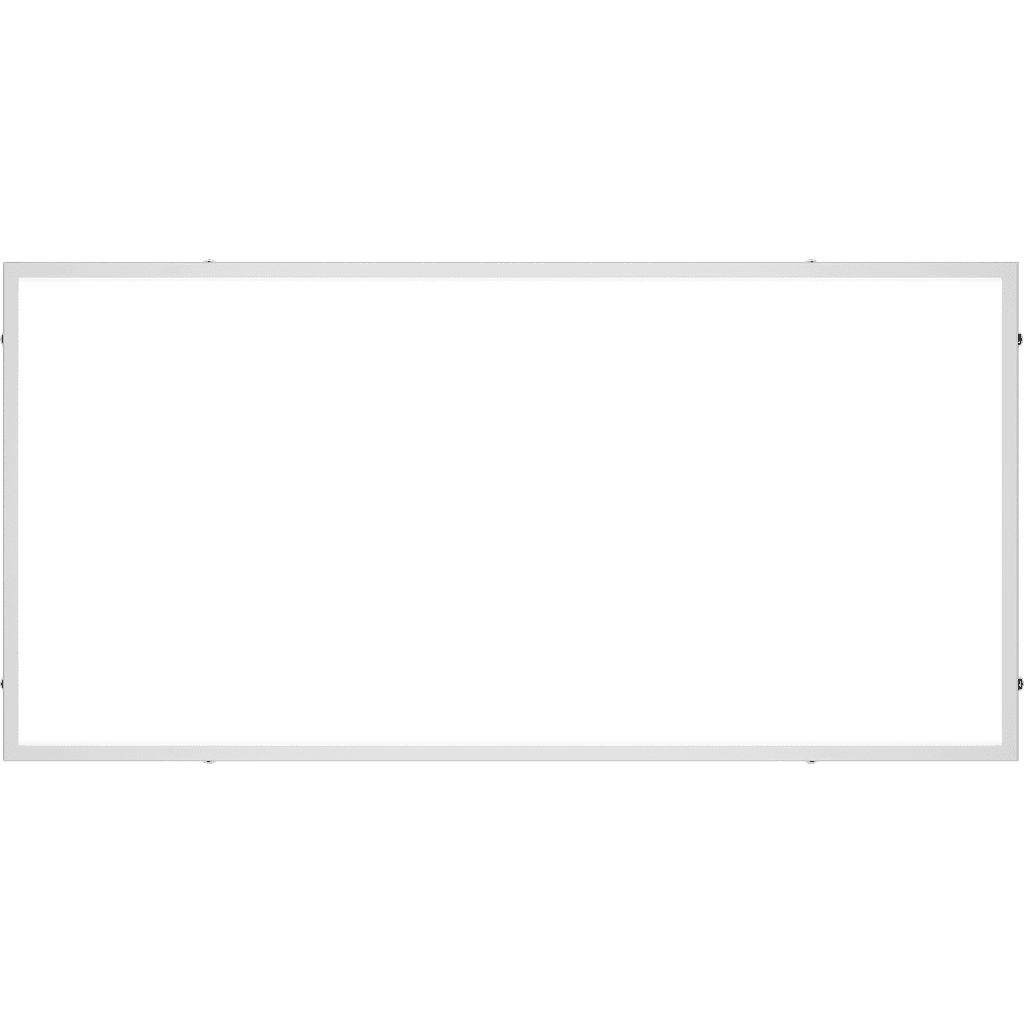

constructional
length, mm
596 mm
width, mm
296 mm
height, mm
50 mm
installation length, mm
456 mm
installation width, mm
50 mm
weight
2.3 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1166000060
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax212 kB
photometric files
ies134.1 kB
jpg122.1 kB
ldt83.5 kB
csv422 B
documents
passport1.5 mB
сертификаты
Russian origin626.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate2.5 mB
