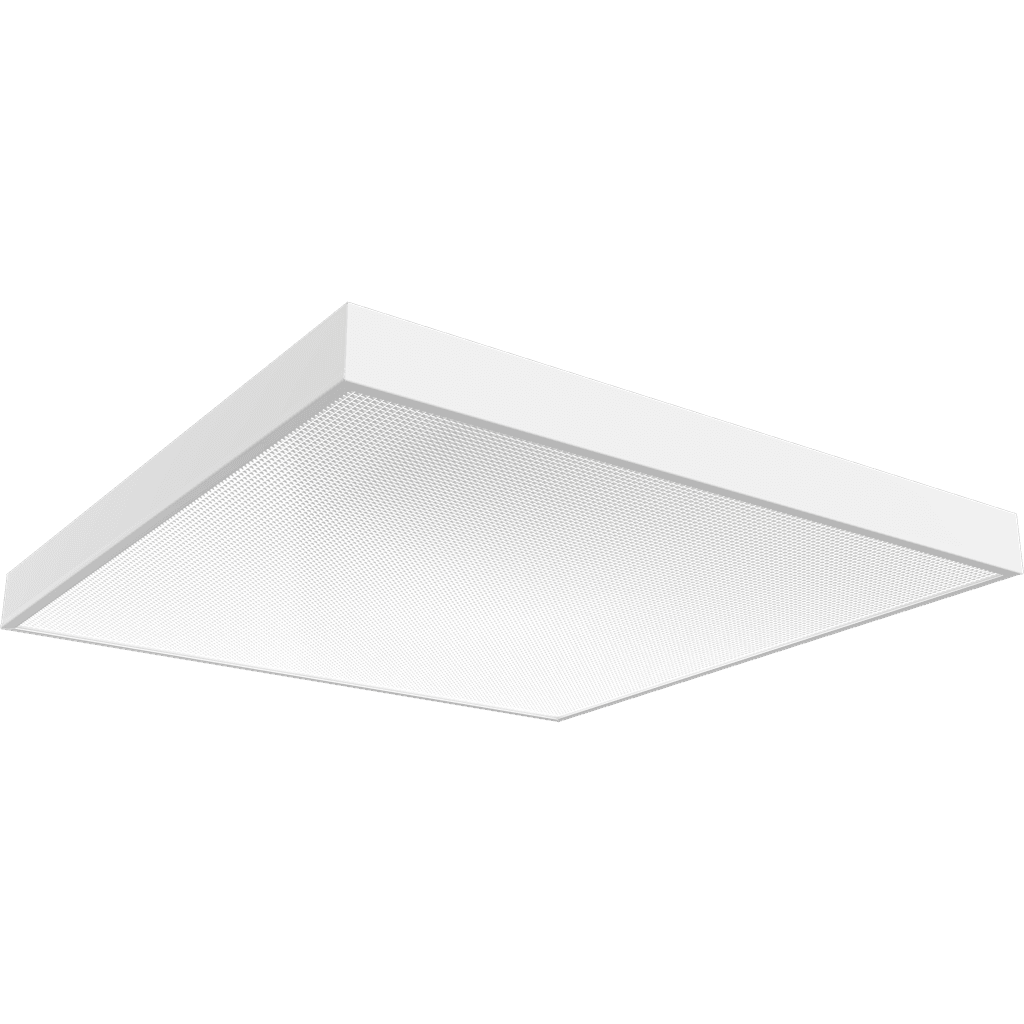

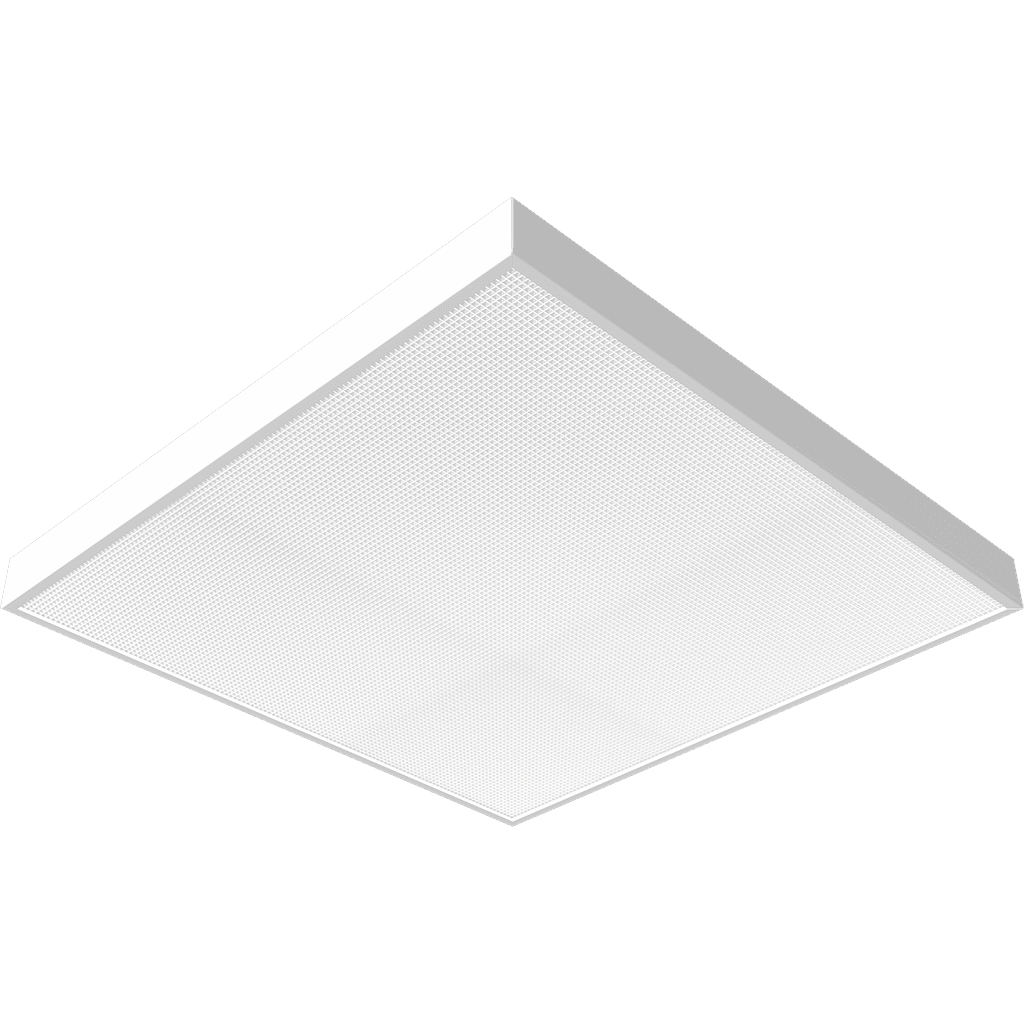

OPTIMA.PRS ECO LED 595 4000K
OPTIMA.PRS ECO LED 595 4000K
26 Wluminaire power
3600 lmlight flow
138 lm/Wenergy efficiency
code1138000010
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
138 lm/Wcolor rendition index (CRI)
>80light flow
3600 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
138 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<1%

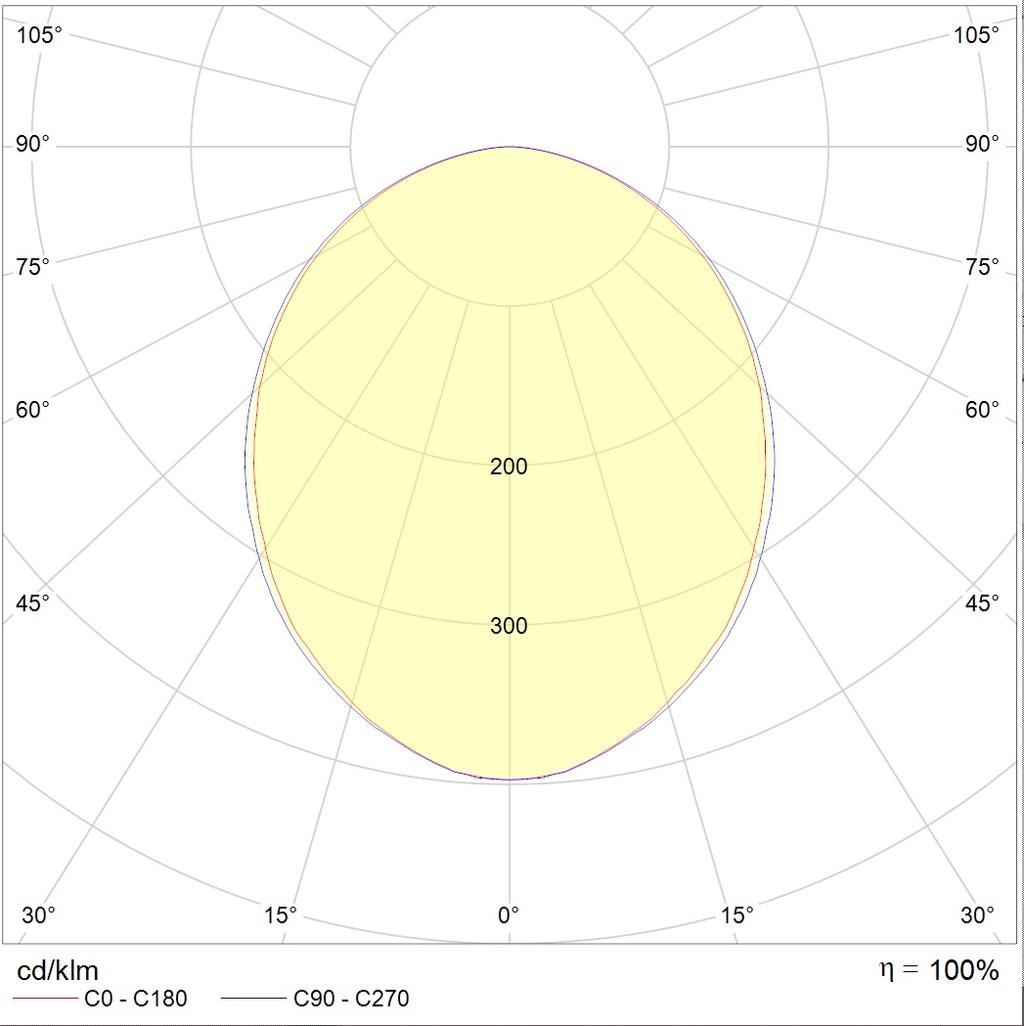

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
150 µs
electric shock protection
I
luminaire power
26 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
40 A
constructional
length
596 mm
width
596 mm
height
50 mm
installation length
290 mm
installation width
456 mm
weight
4.2 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Настенно-потолочный светильник
code
1138000010
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax212 kB

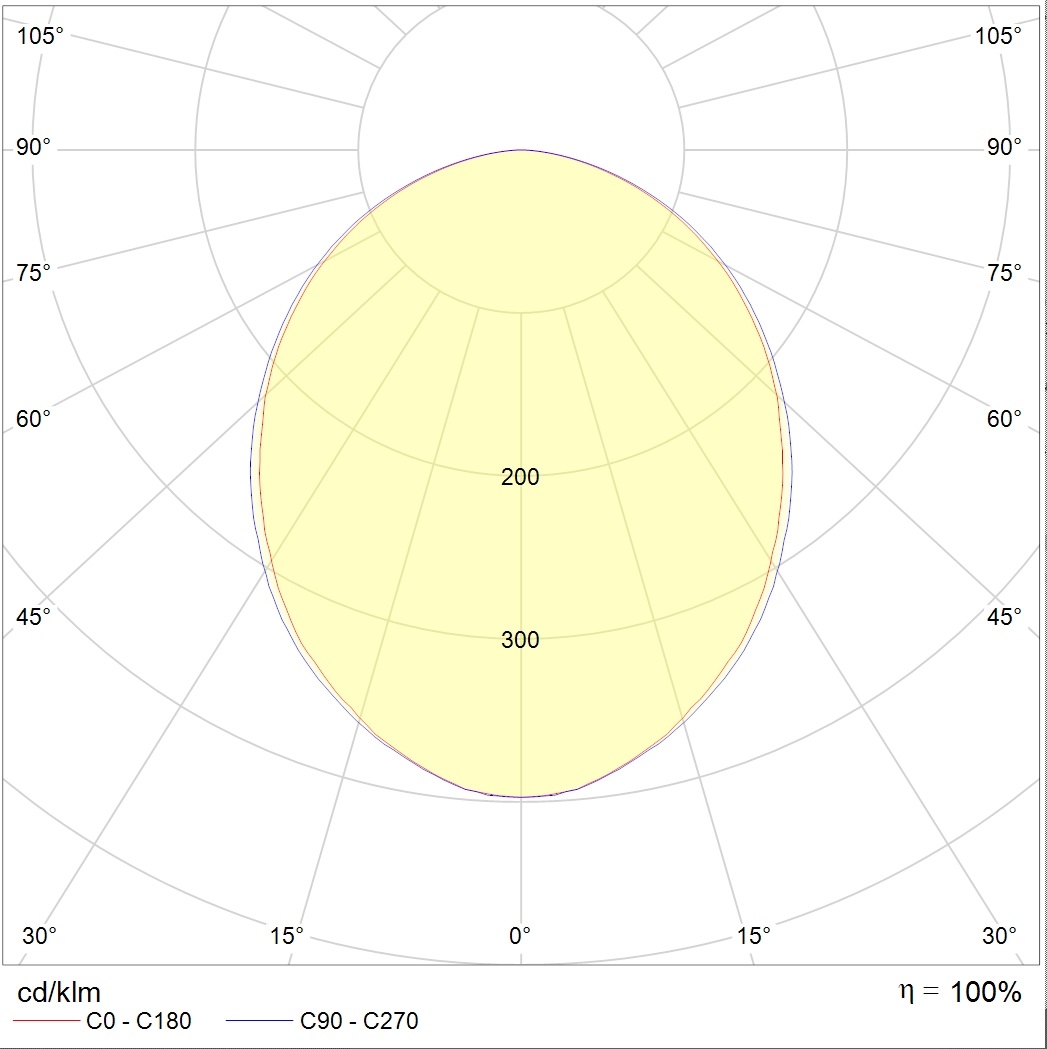

photometric files
ies134.1 kB
jpg126.7 kB
ldt83.6 kB
csv422 B
documents
passport1.5 mB
сертификаты
Russian origin626.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate2.5 mB
