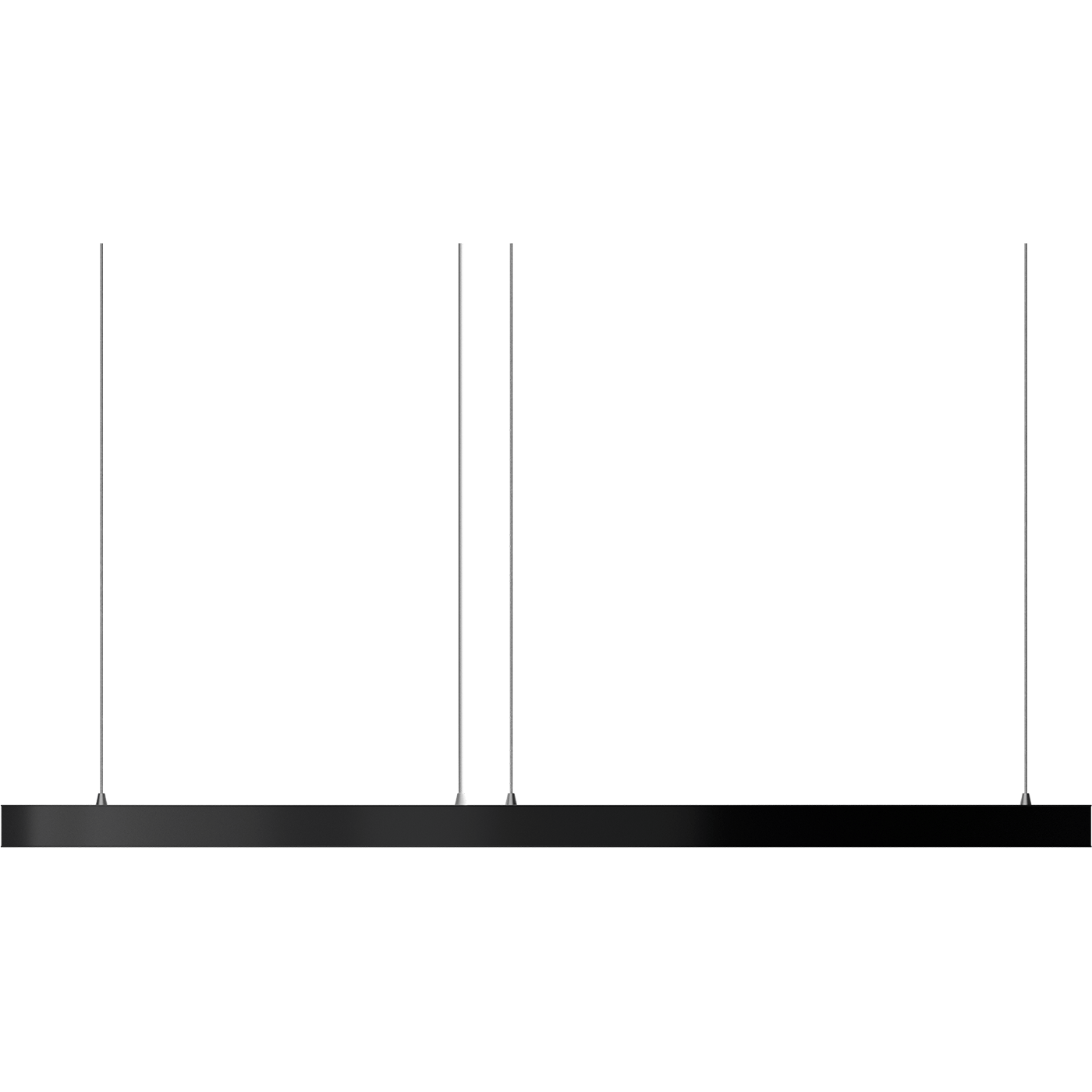

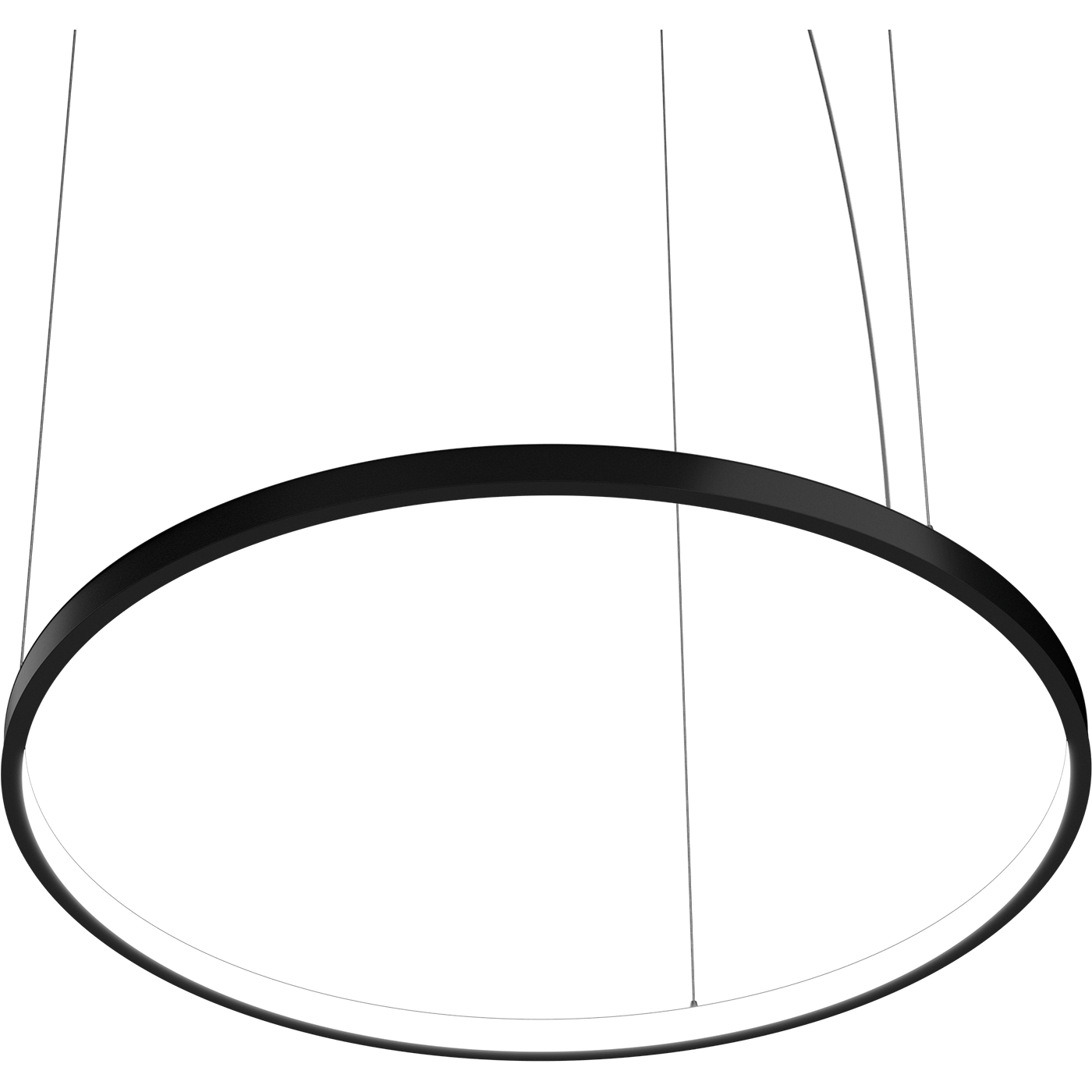

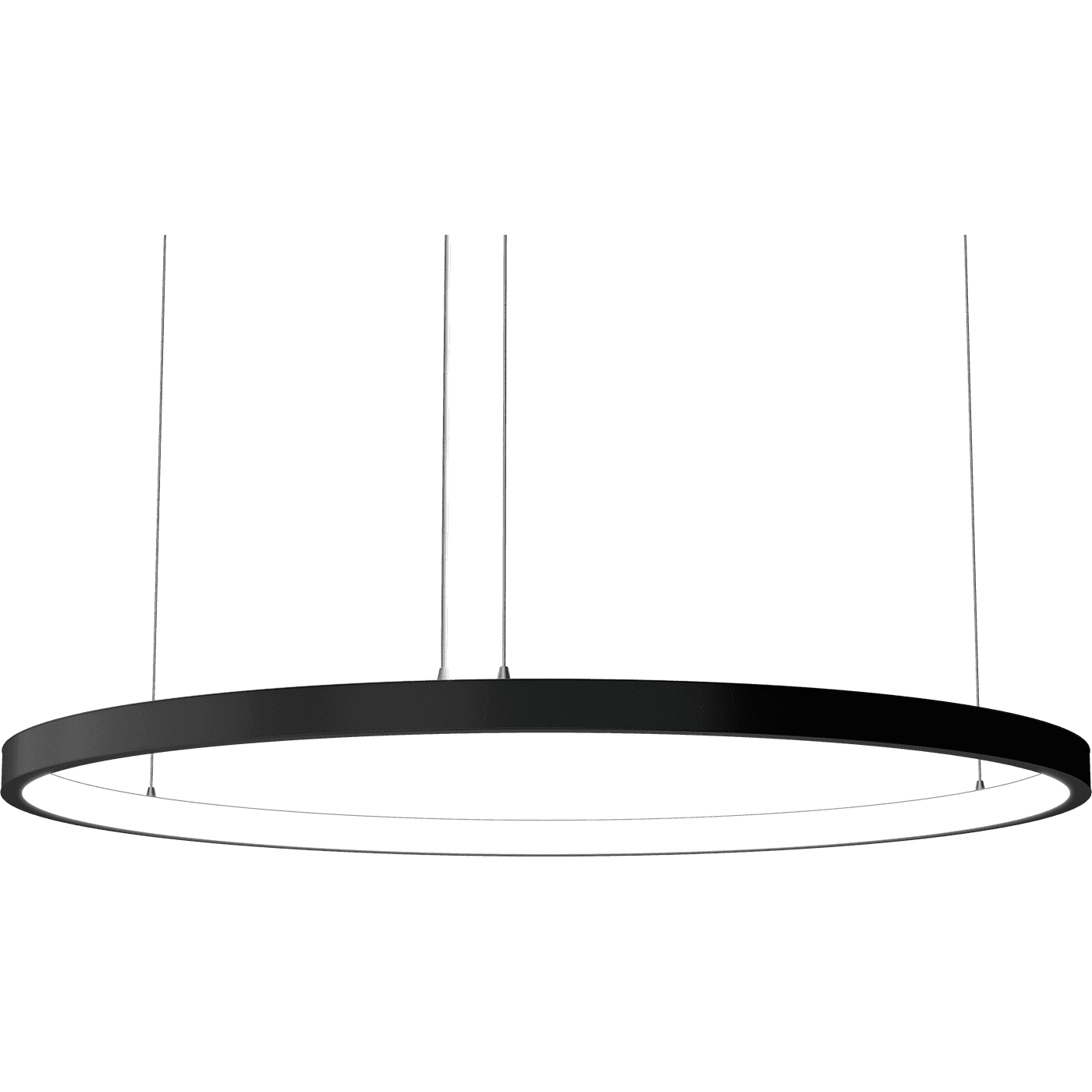

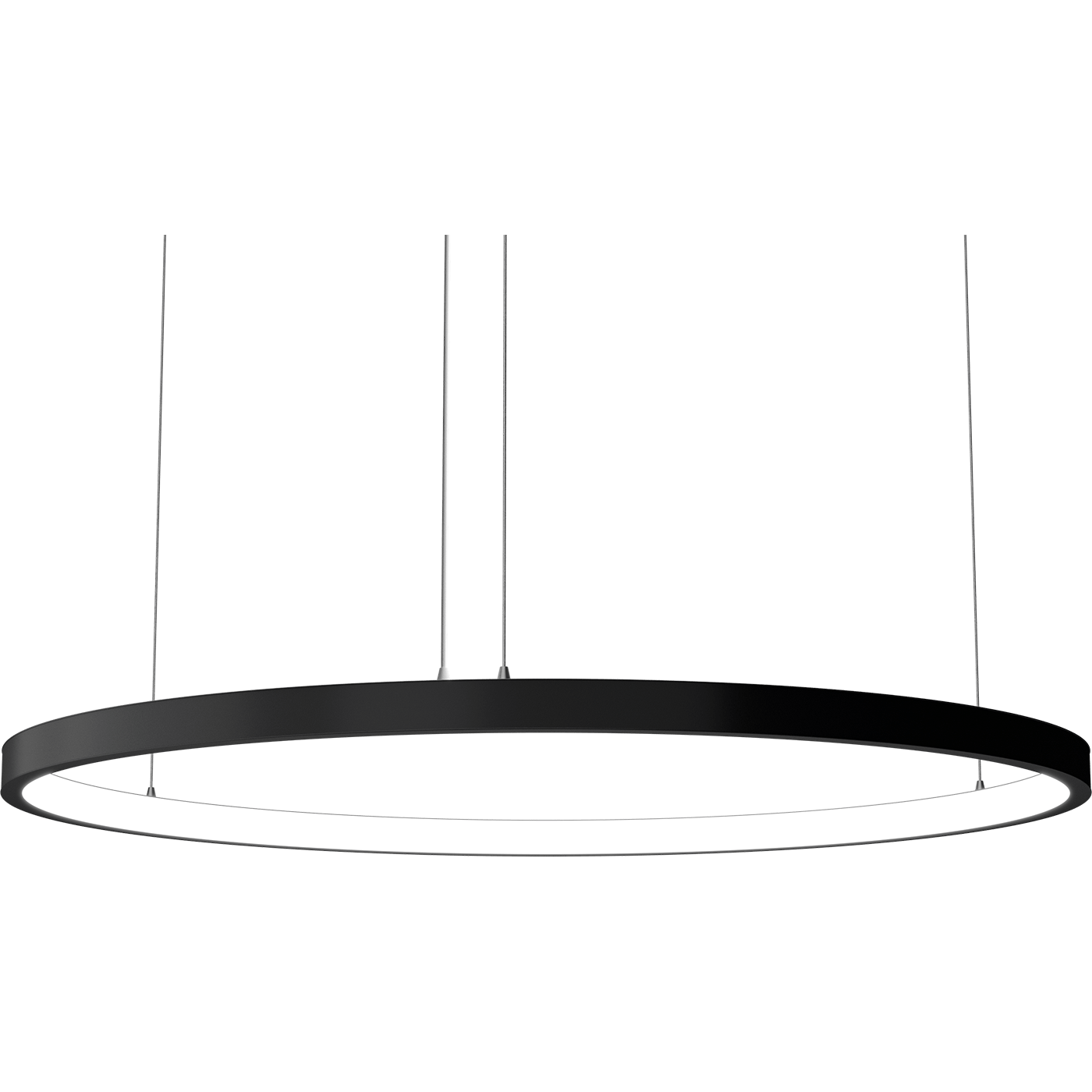

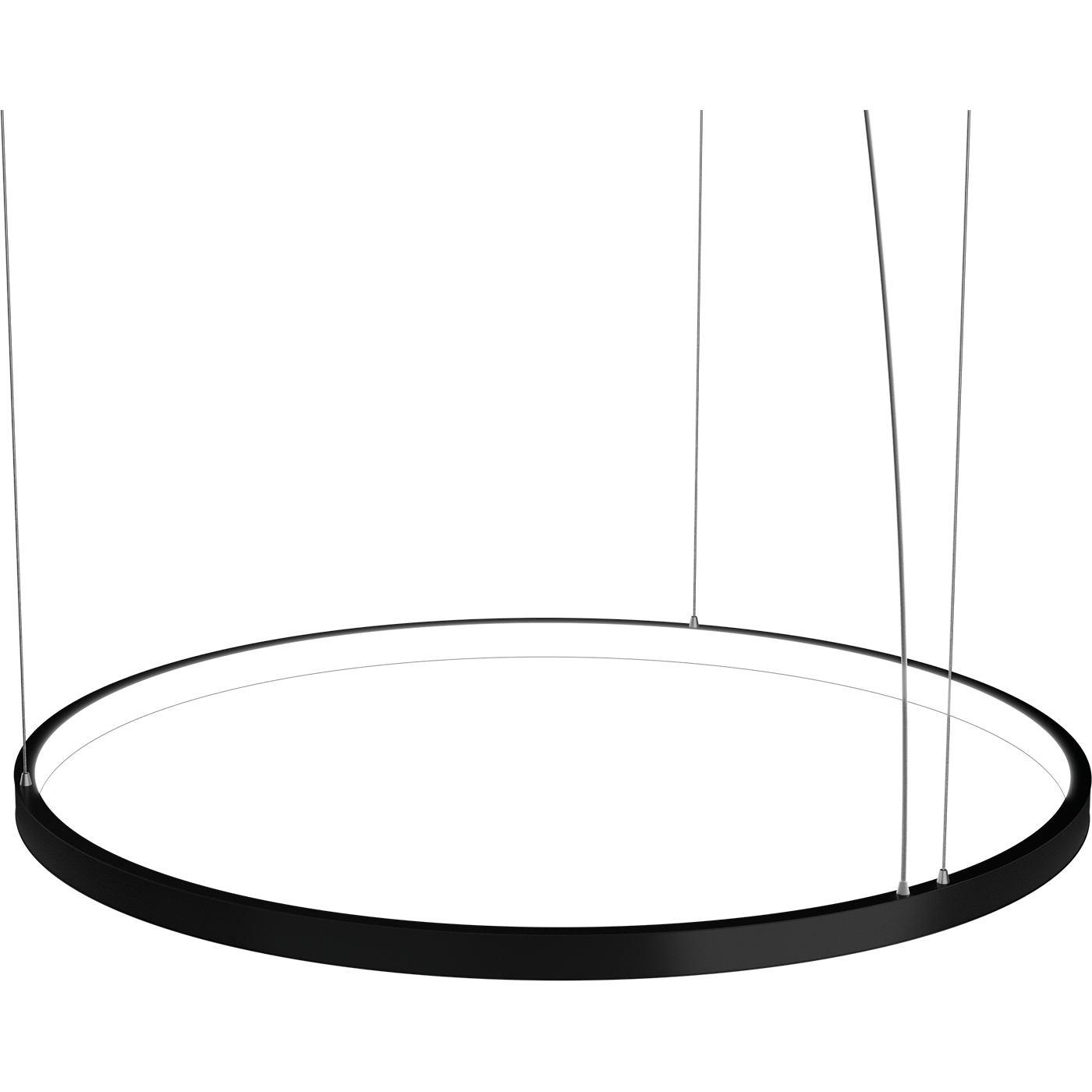

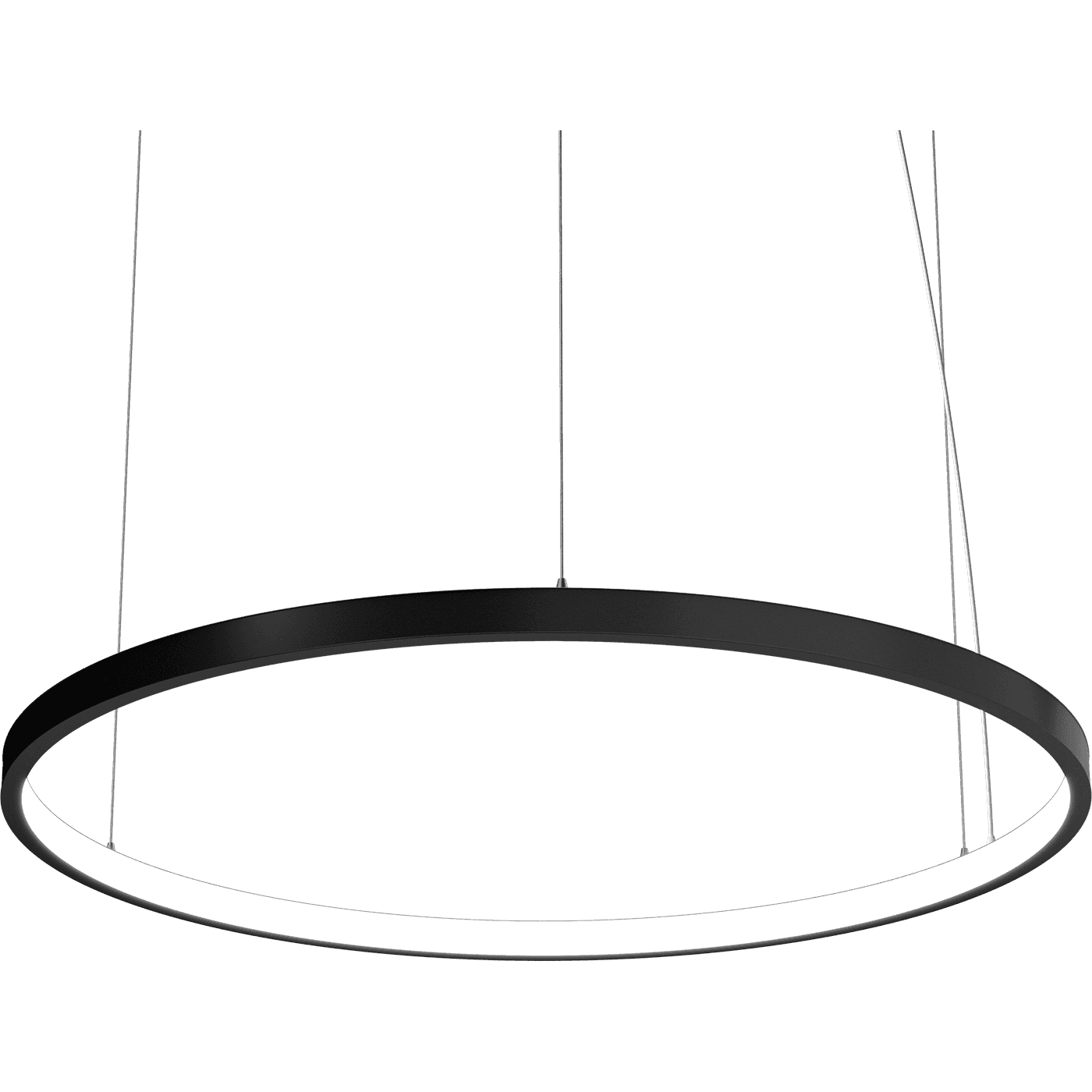

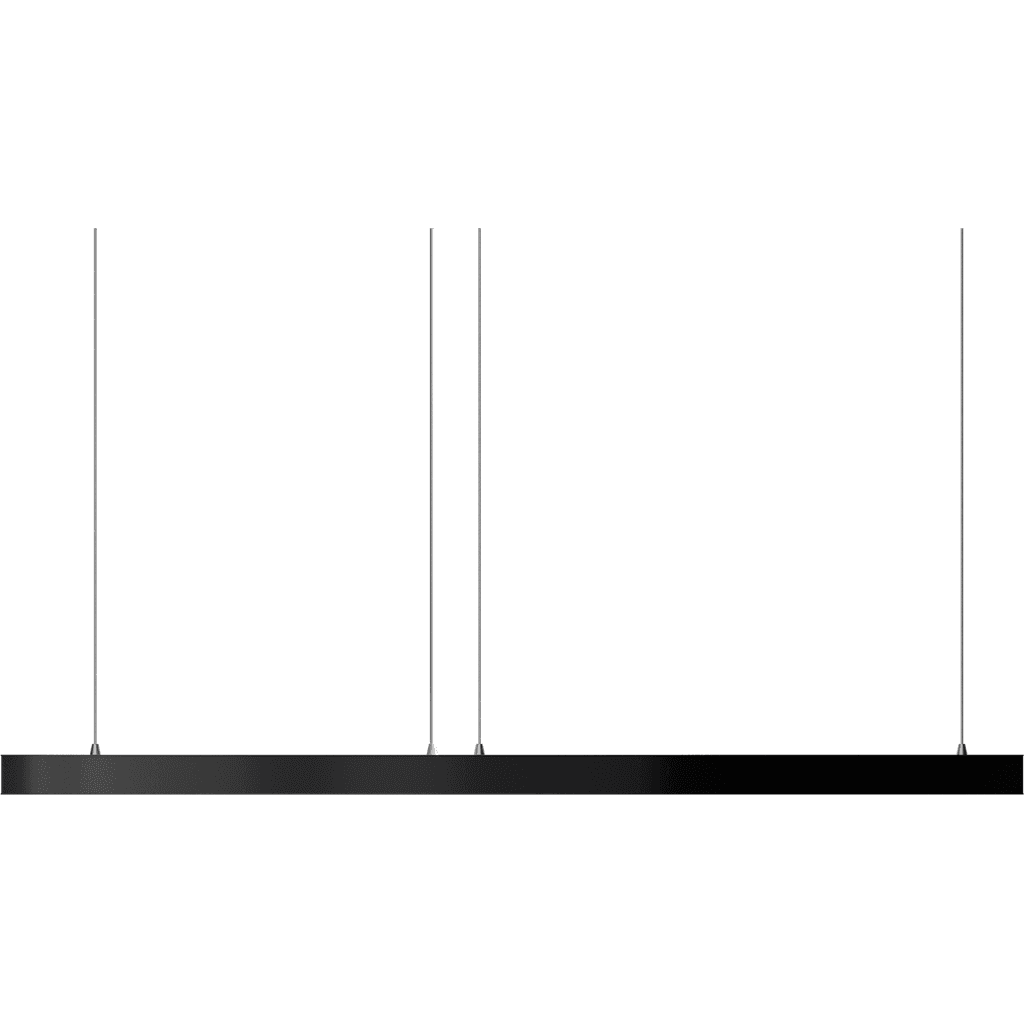

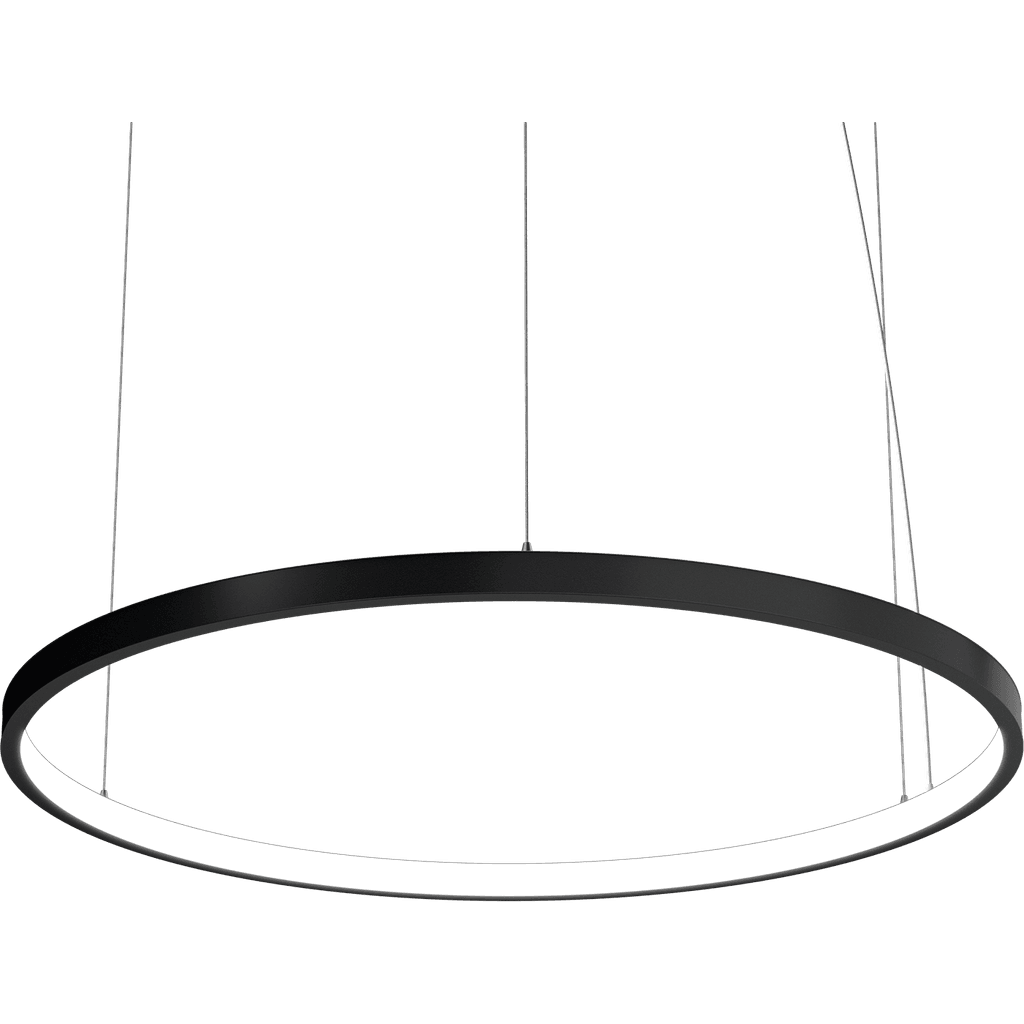

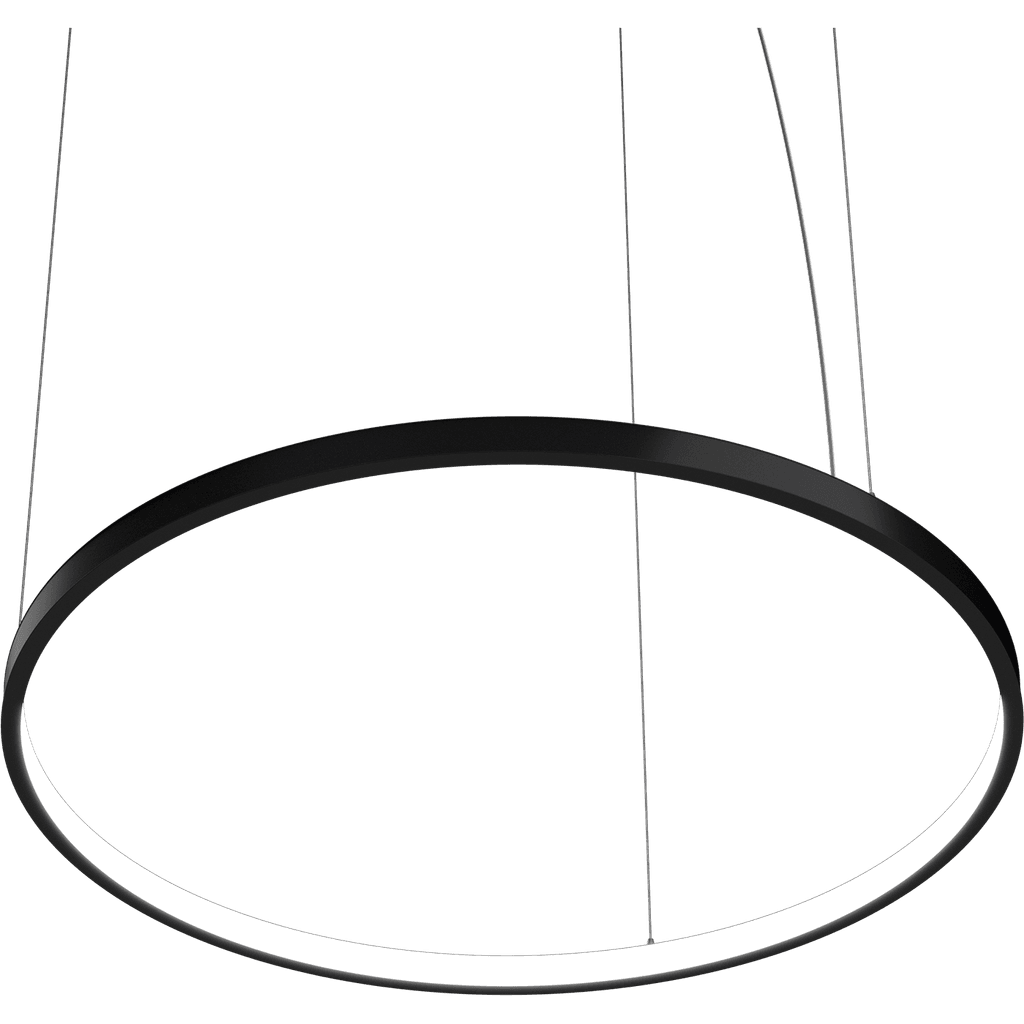

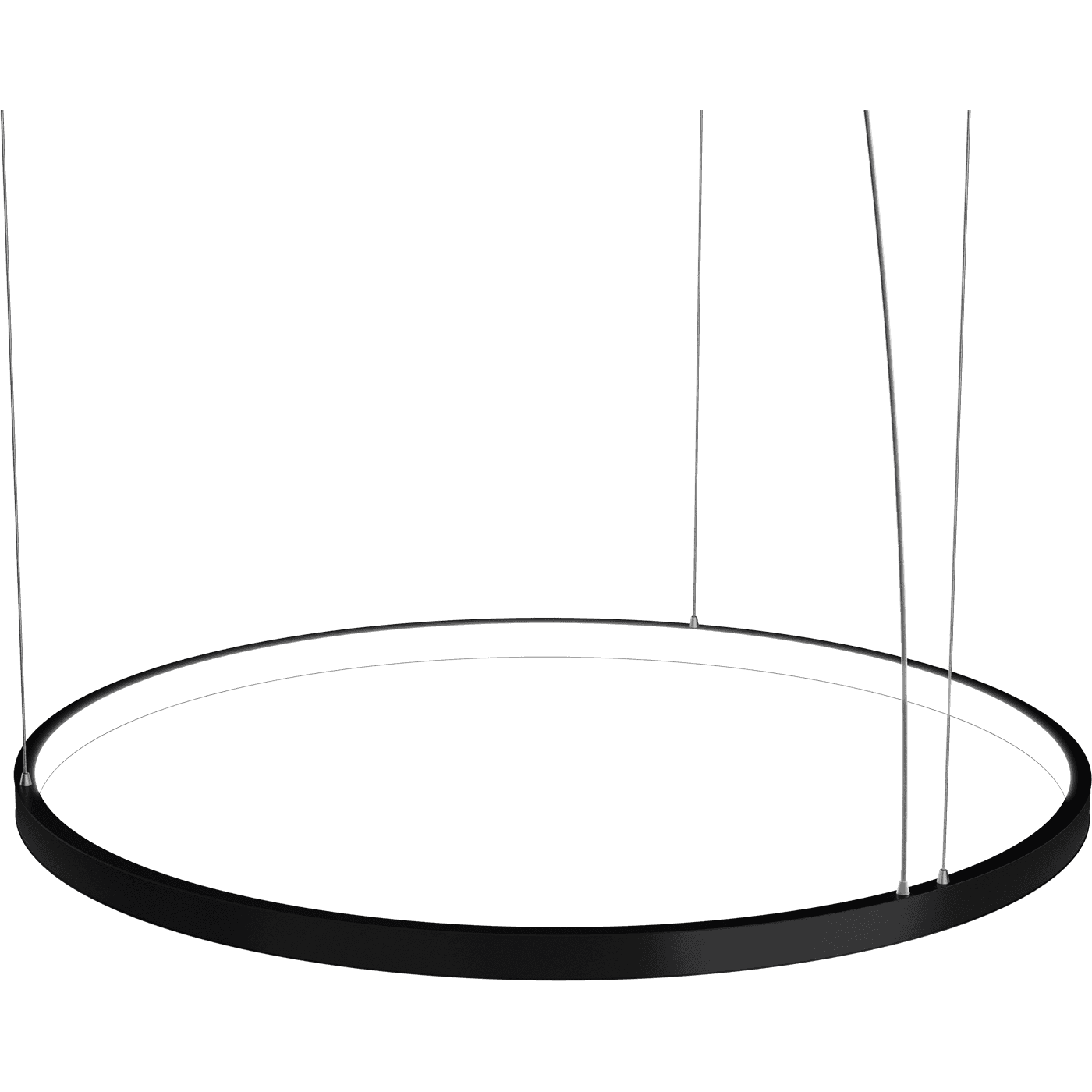

OREOL IN ADT/P (1500x50) 150W 940 WH
model is discontinued
model is discontinued
OREOL IN ADT/P (1500x50) 150W 940 WH
150 Wluminaire power
8200 lmlight flow
55 lm/Wenergy efficiency
code1813002470
color temperature4000 K
beam angleD120
old nameOREOL IN ADT/P (1500x40x50) 940 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
55 lm/Wcolor rendition index (CRI)
>80light flow
8200 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
55 lm/W
color rendition index (CRI)
>80
light flow
8200 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
300 µs
electric shock protection
I
luminaire power
150 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
constructional

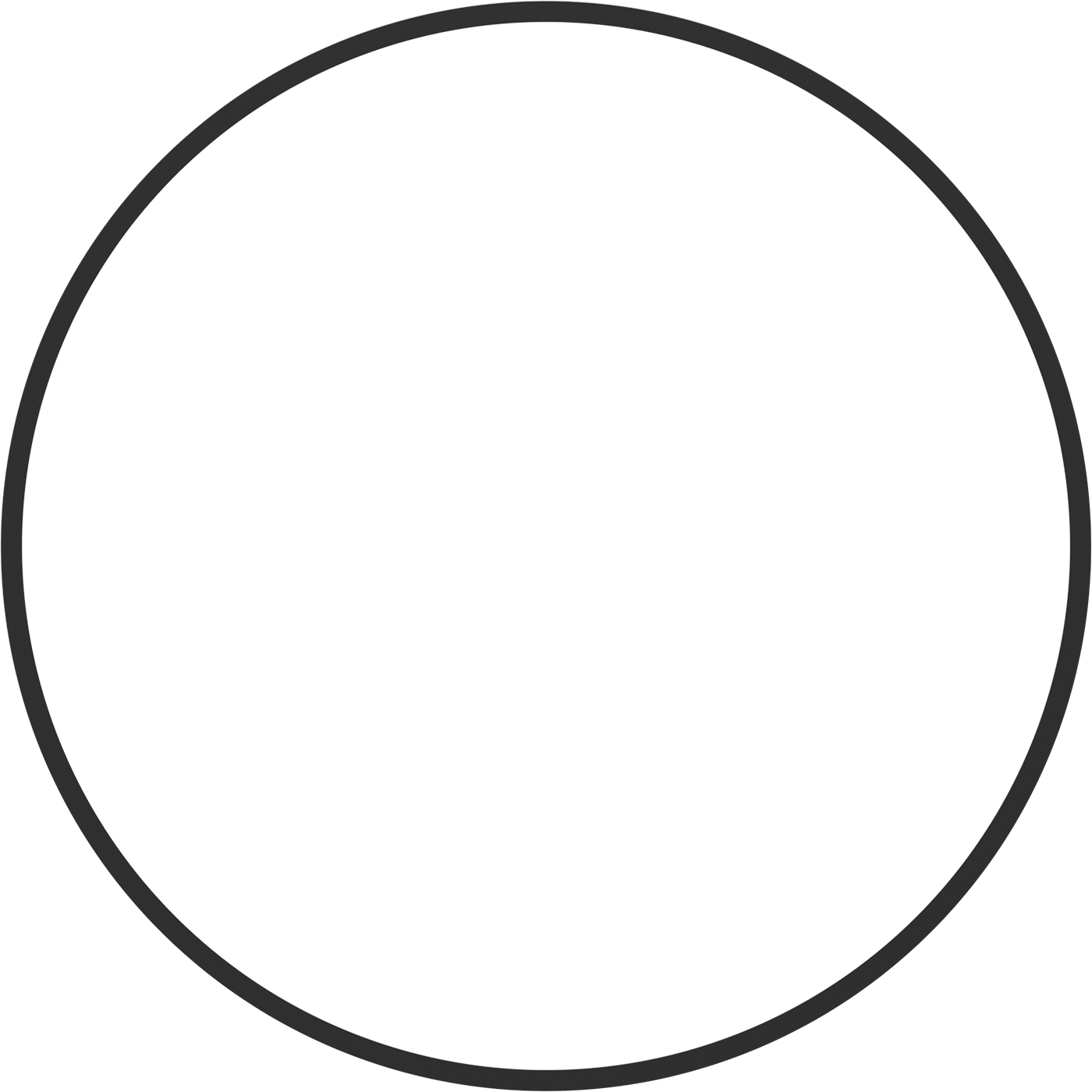

diameter
1500 mm
height
50 mm
installation length
1160 mm
installation width
1220 mm
weight
12.5 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
B
ETIM class
Светильник подвесной
code
1813002470
model files
model files

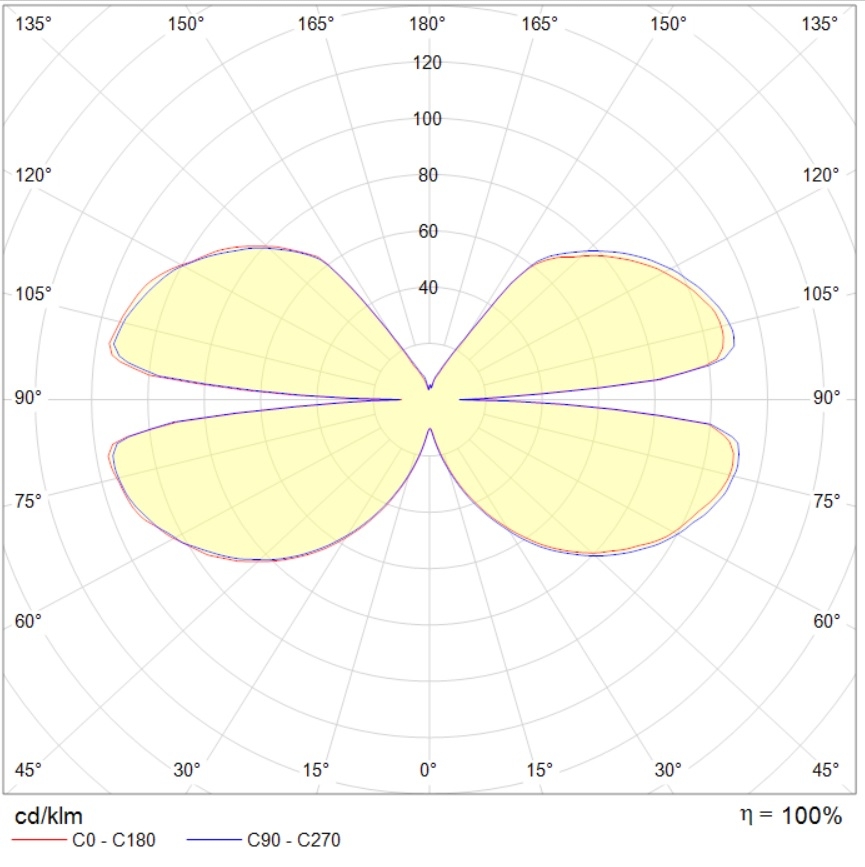

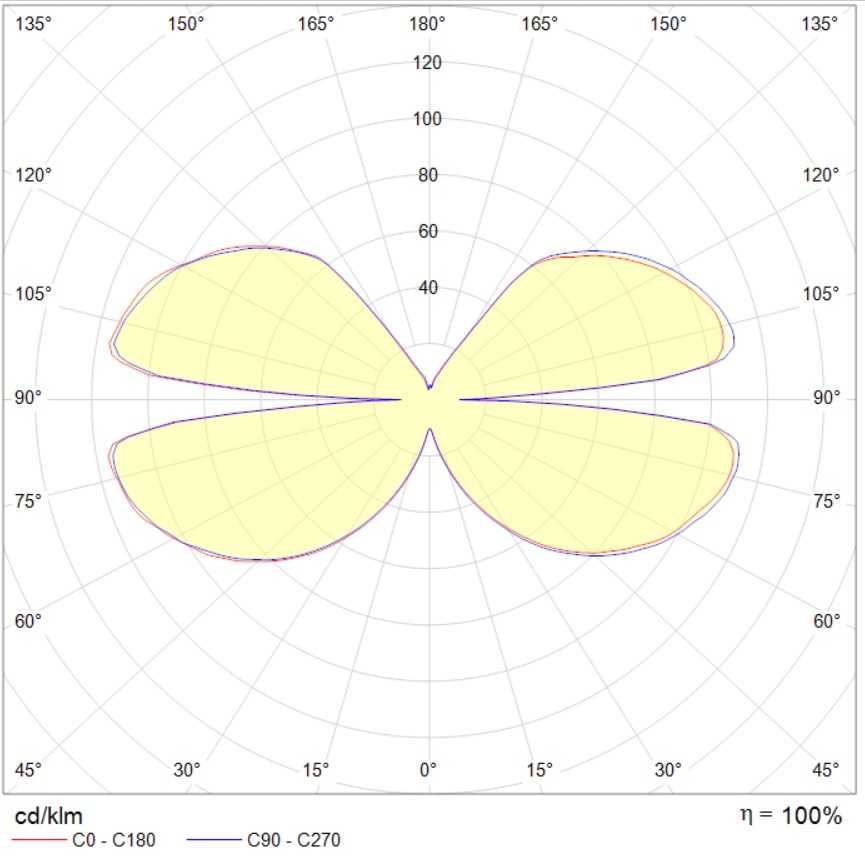

photometric files
сертификаты
photometric files
ies107 kB
jpg114.2 kB
ldt75.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016506.3 kB
