OWP/R OPTIMA LED 300 IP54/IP40 4000K
model is discontinued
model is discontinued
OWP/R OPTIMA LED 300 IP54/IP40 4000K
16 Wluminaire power
1400 lmlight flow
88 lm/Wenergy efficiency
code1376000130
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
88 lm/Wcolor rendition index (CRI)
>80light flow
1400 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
88 lm/W
color rendition index (CRI)
>80
light flow
1400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
16 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
constructional

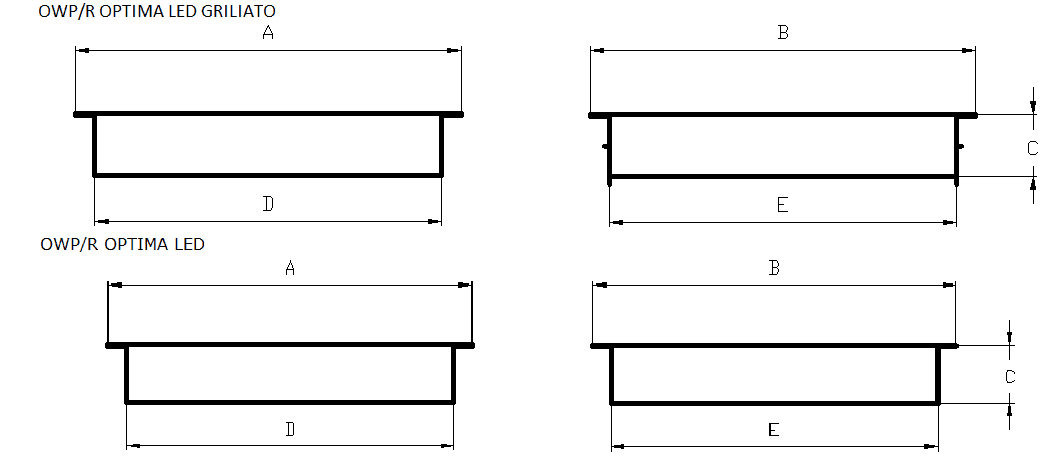

length, mm
595 mm
width, mm
295 mm
height, mm
95 mm
installation length, mm
572 mm
installation width, mm
272 mm
weight
3.2 kg
ingress protection (IP)
IP54/IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +40 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Настенно-потолочный светильник
code
1376000130
model files
model files
CAD/BIM files

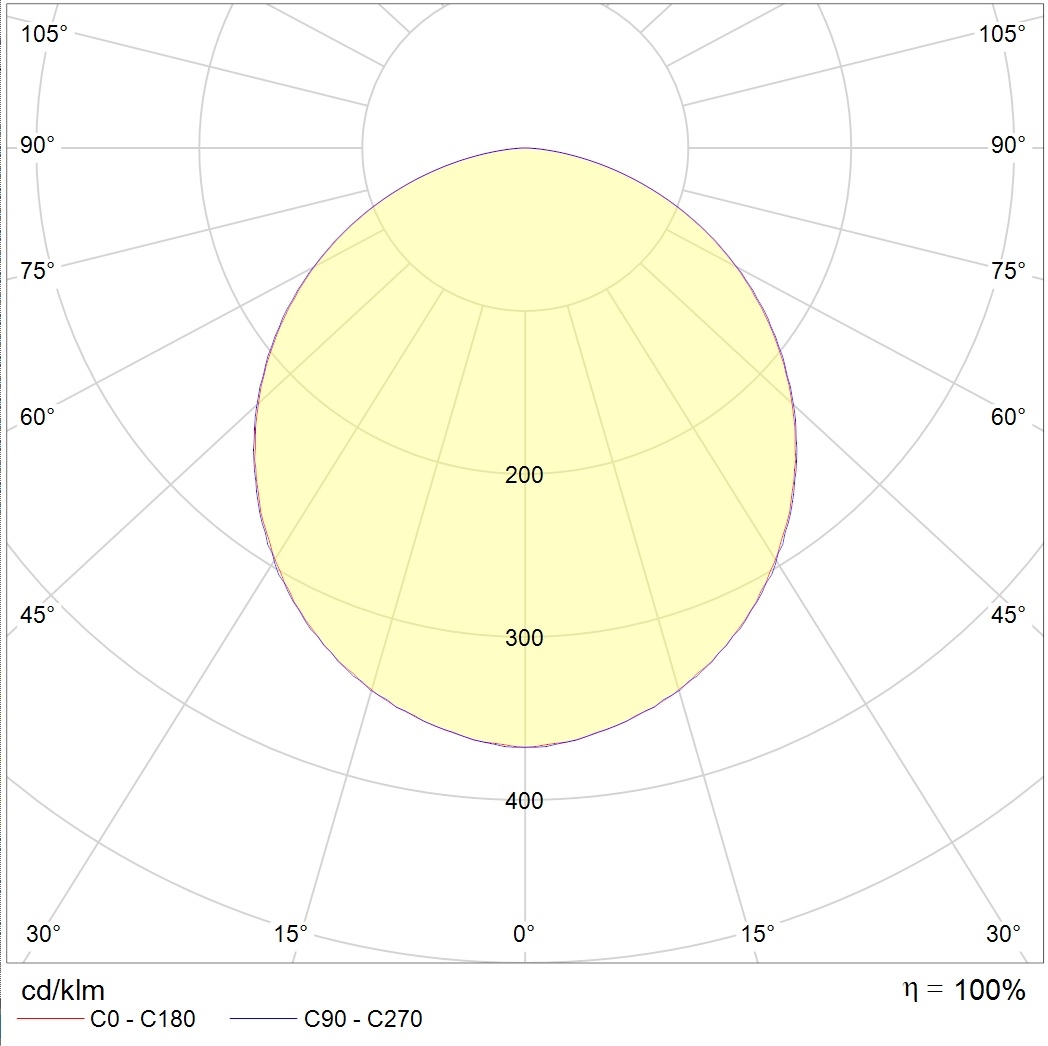

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax672 kB
photometric files
ies134.1 kB
jpg116.3 kB
ldt84.5 kB
documents
passport1.3 mB
сертификаты
Russian origin626.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
