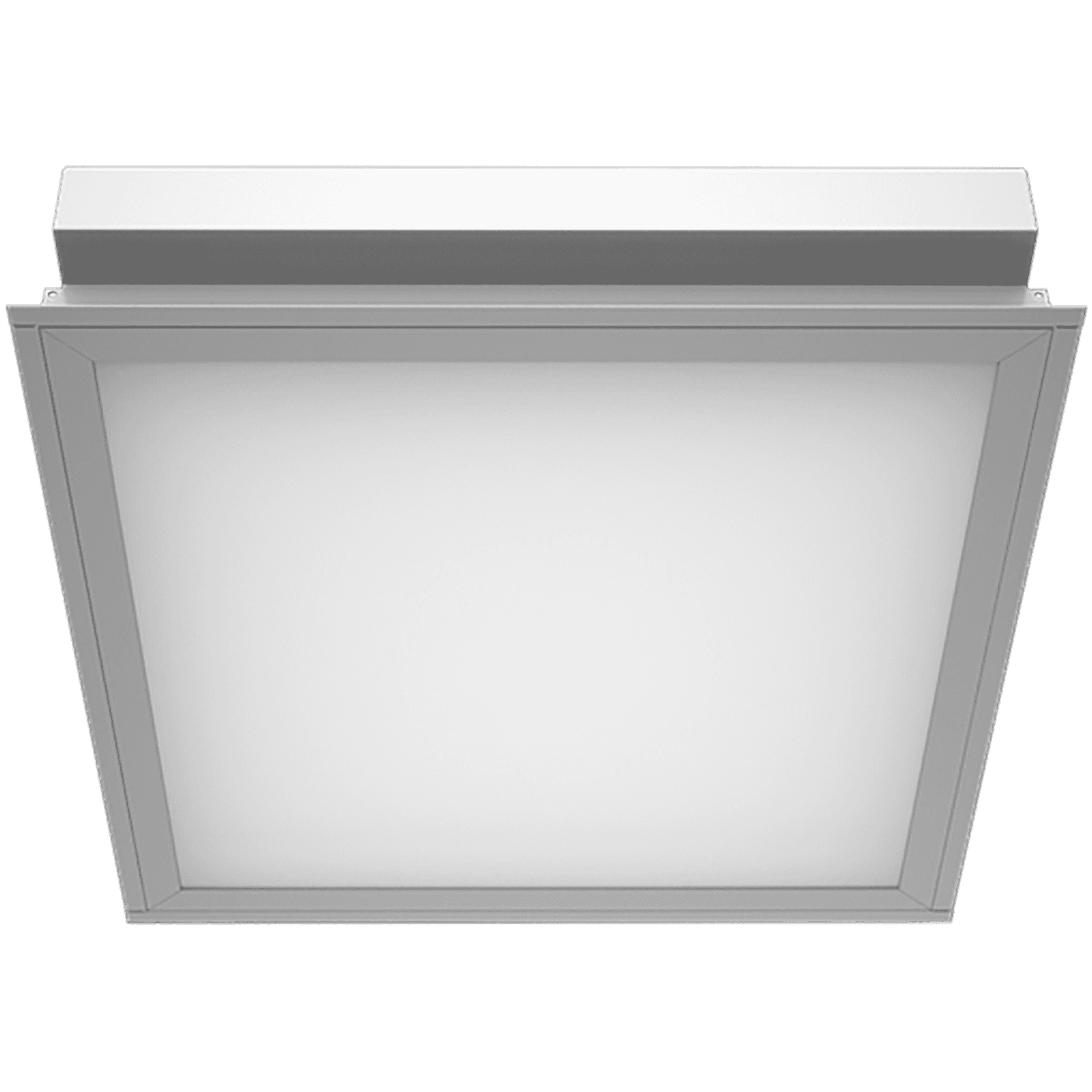

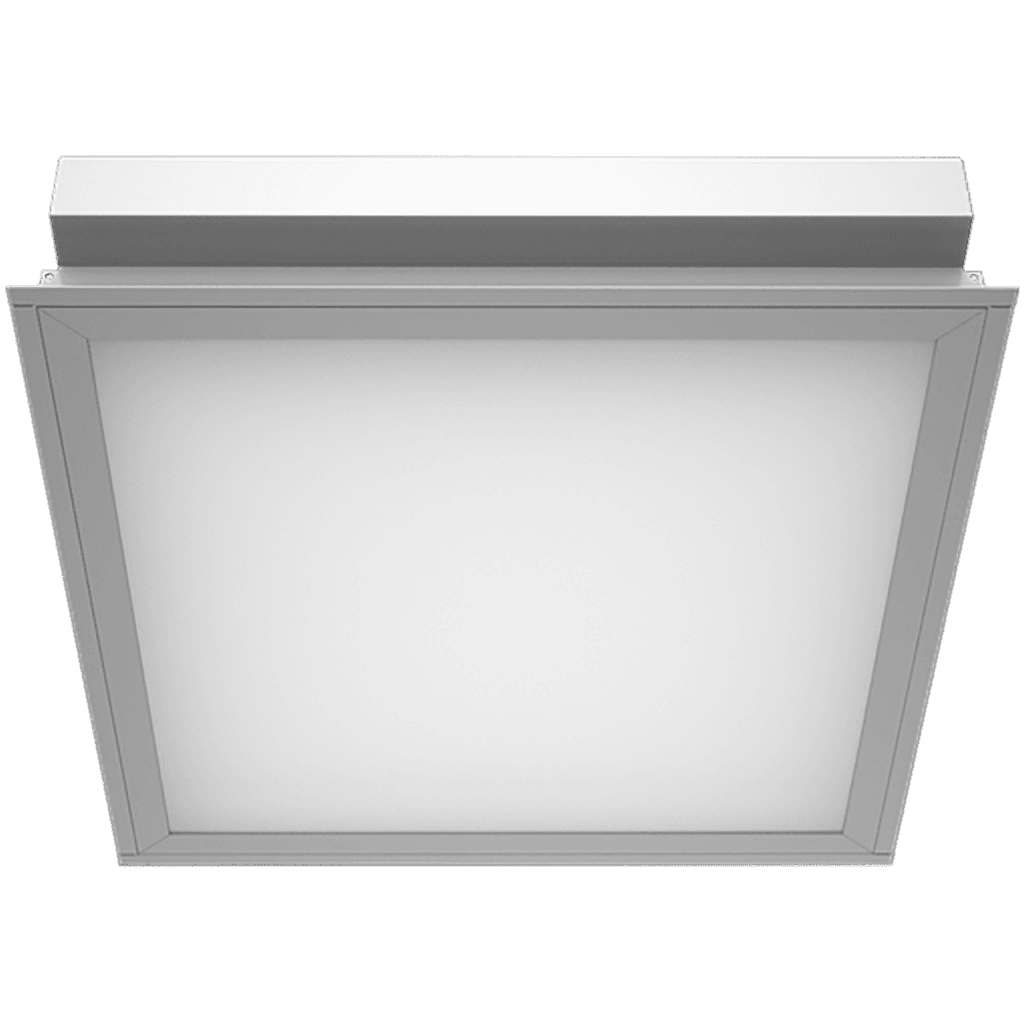

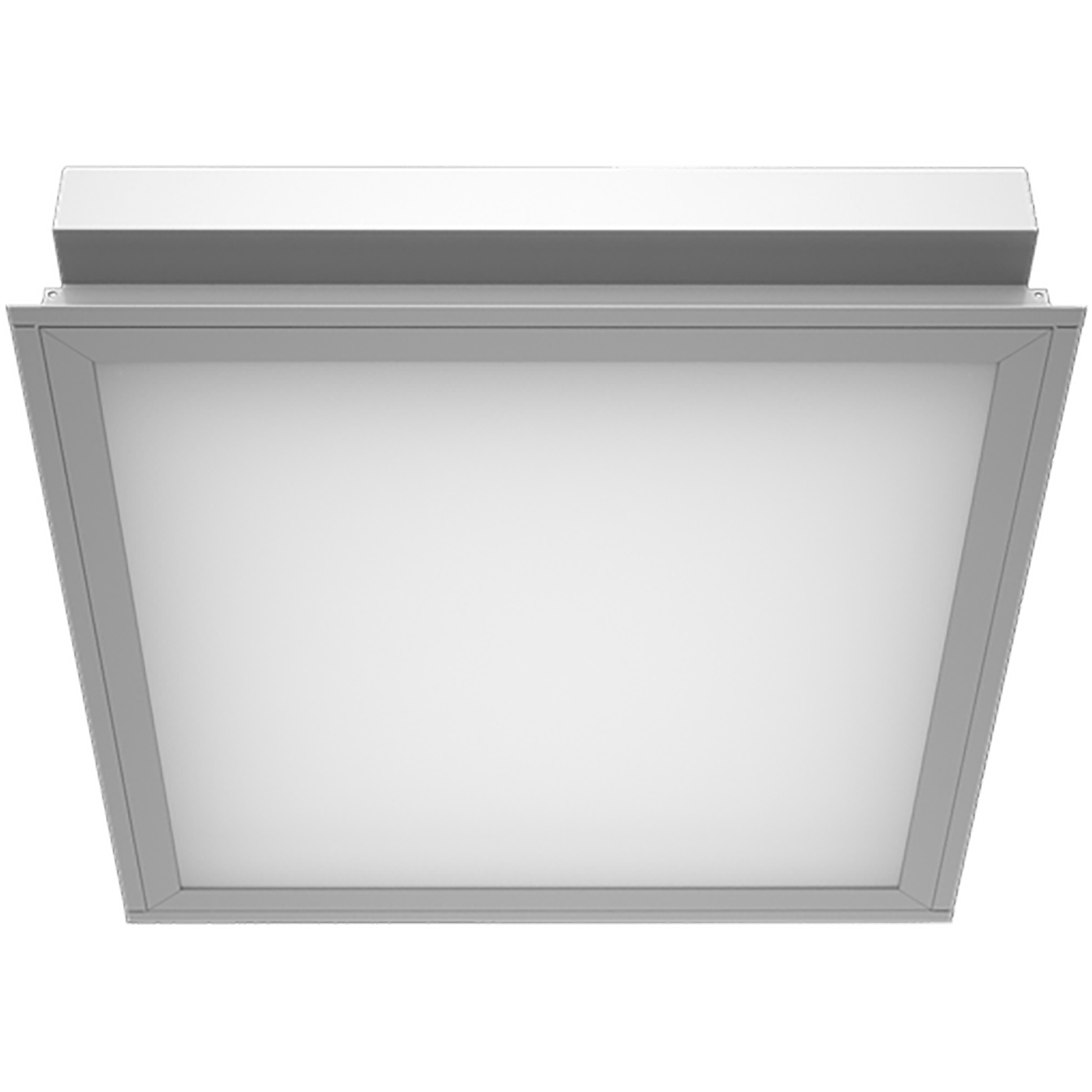

OWP/R OPTIMA LED 595 IP54 4000K mat Clip-In
model is discontinued
model is discontinued
OWP/R OPTIMA LED 595 IP54 4000K mat Clip-In
32 Wluminaire power
3600 lmlight flow
113 lm/Wenergy efficiency
code1376000250
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
113 lm/Wcolor rendition index (CRI)
>80light flow
3600 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
3 mks
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
35 A
constructional
length, mm
595 mm
width, mm
595 mm
height, mm
100 mm
installation length, mm
595 mm
installation width, mm
595 mm
weight
6.4 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
fire safety class
П-II,IIа
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от -20 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1376000250
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
