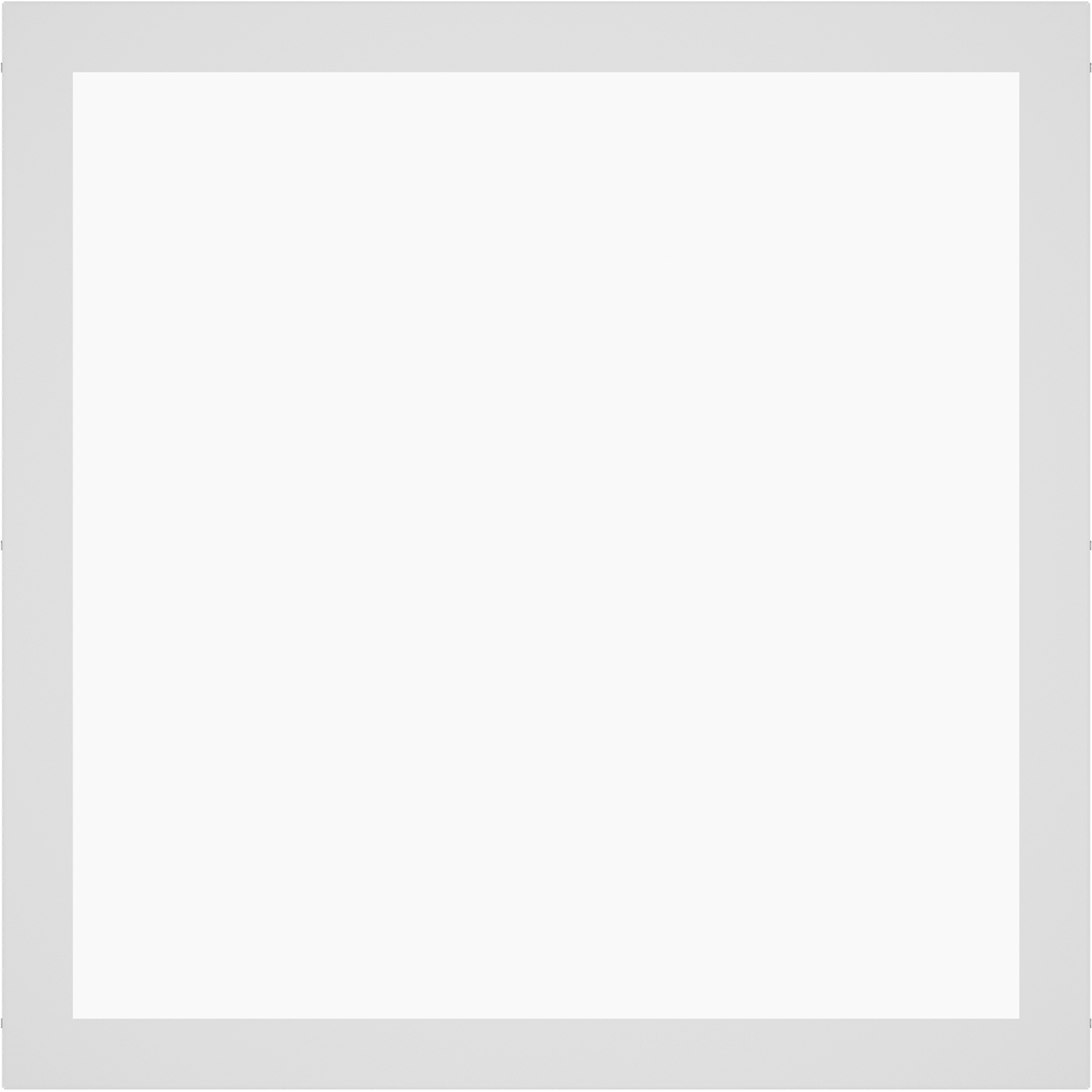

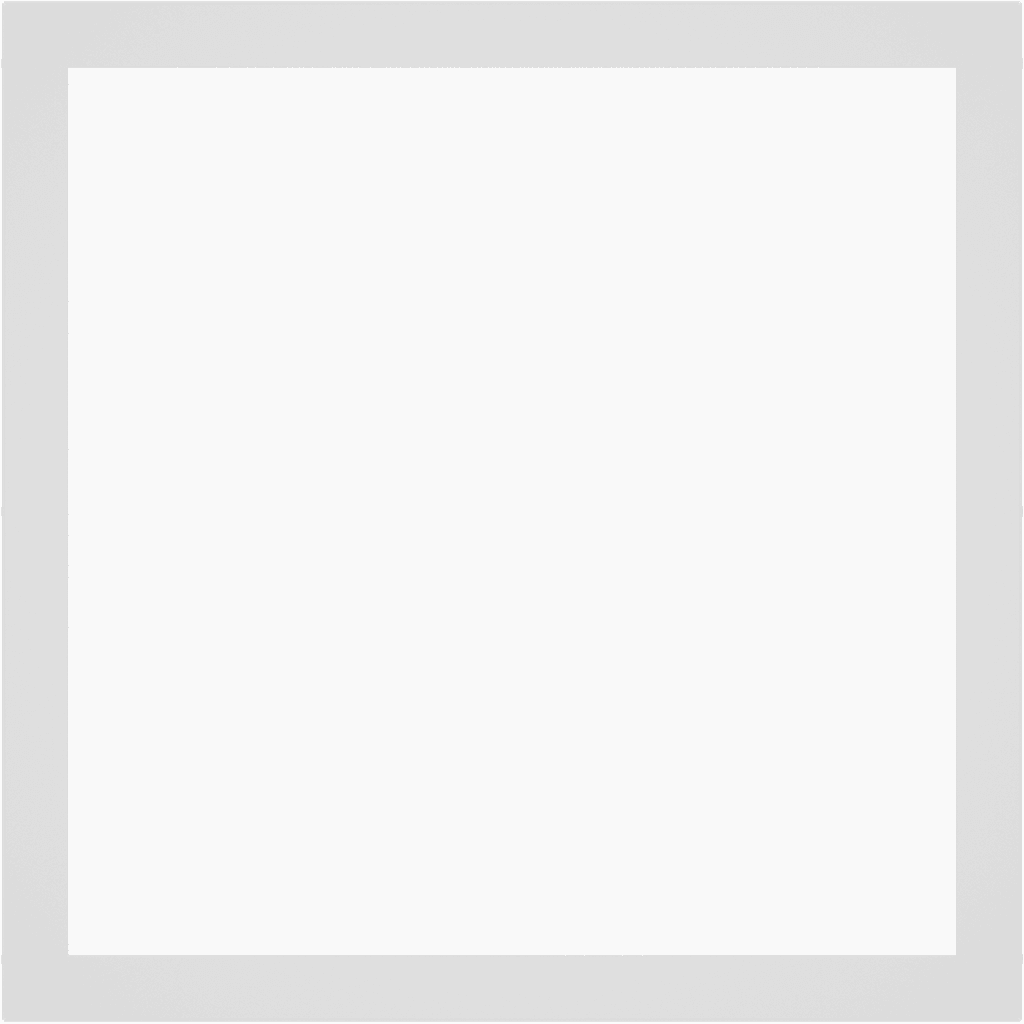

OWP/R 414 /600/ IP54/IP54 Clip-In V

model is discontinued
model is discontinued

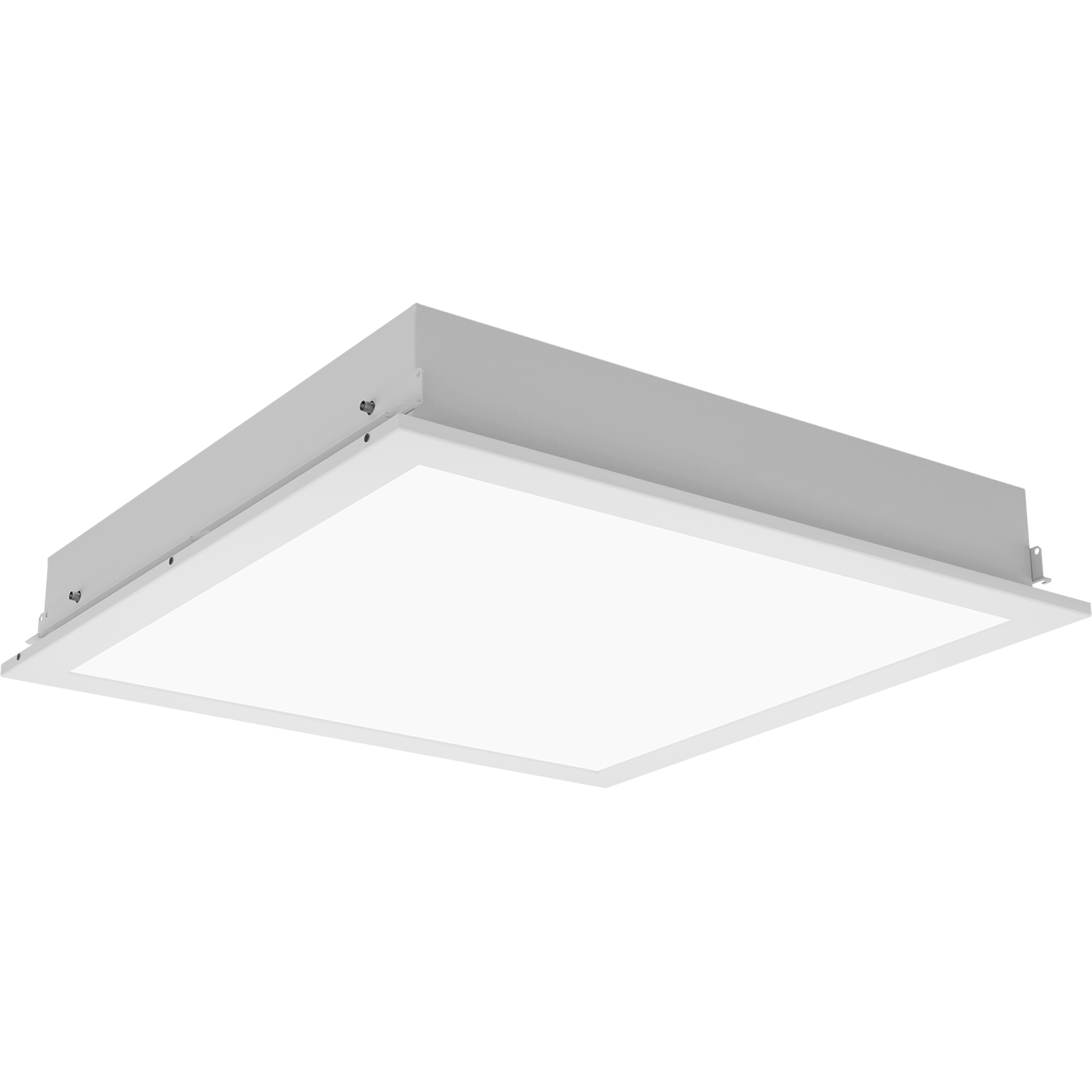

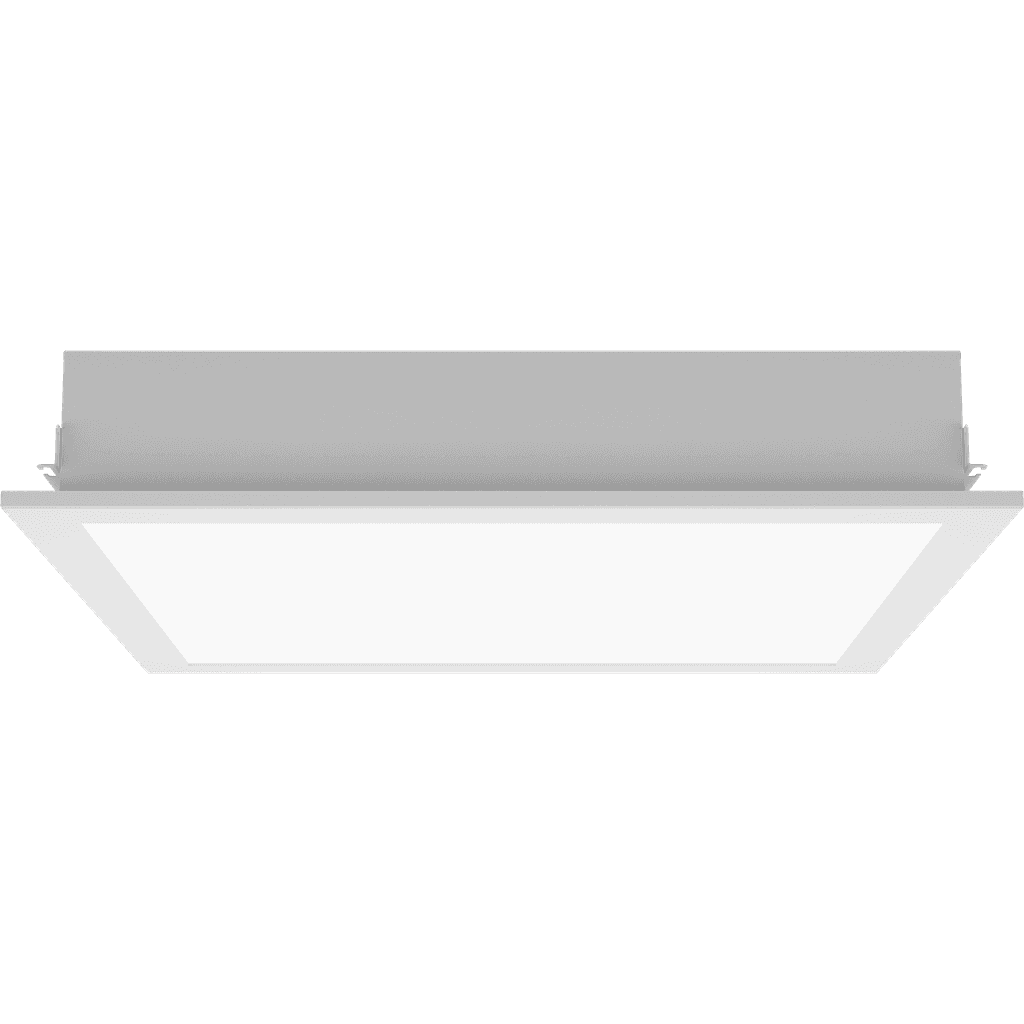

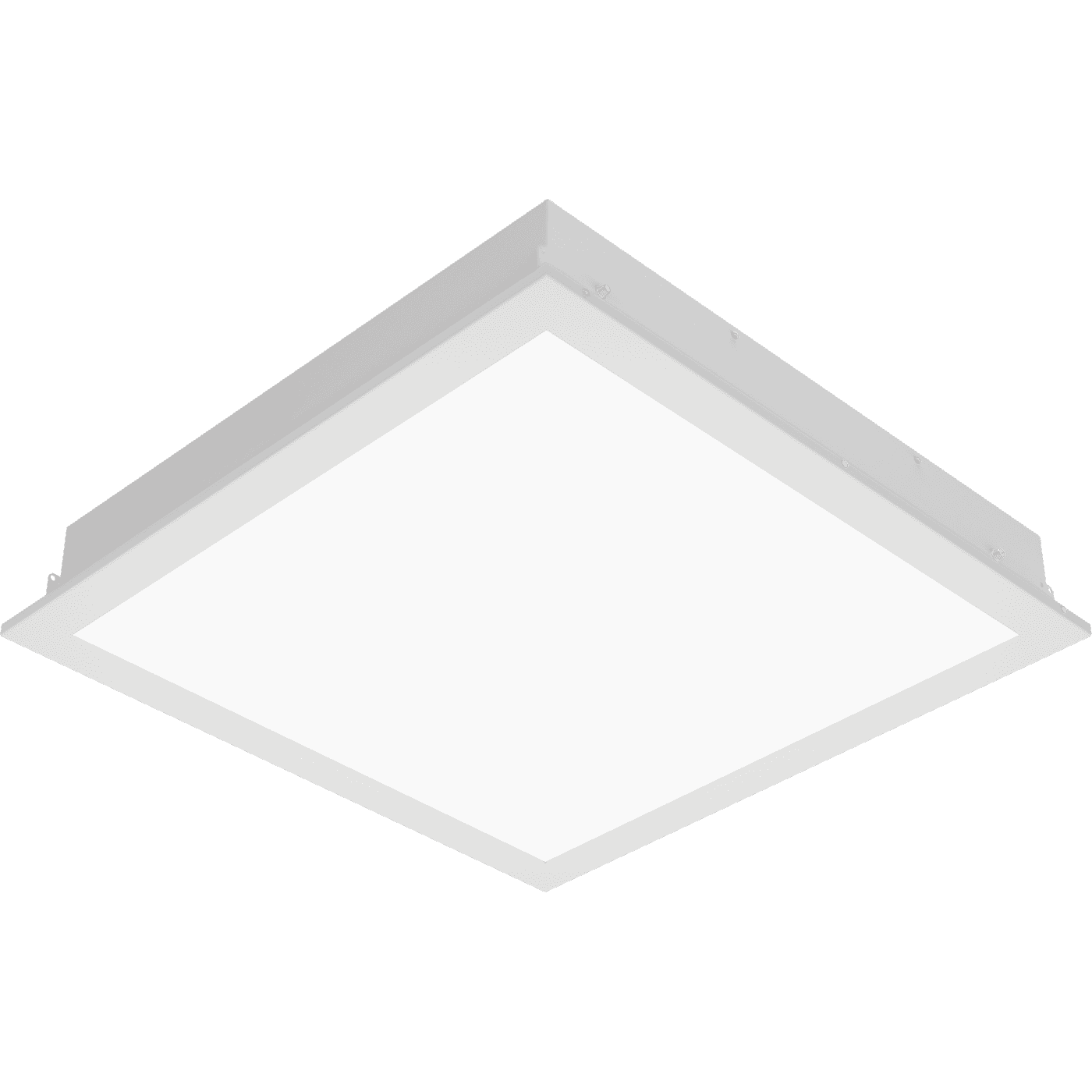

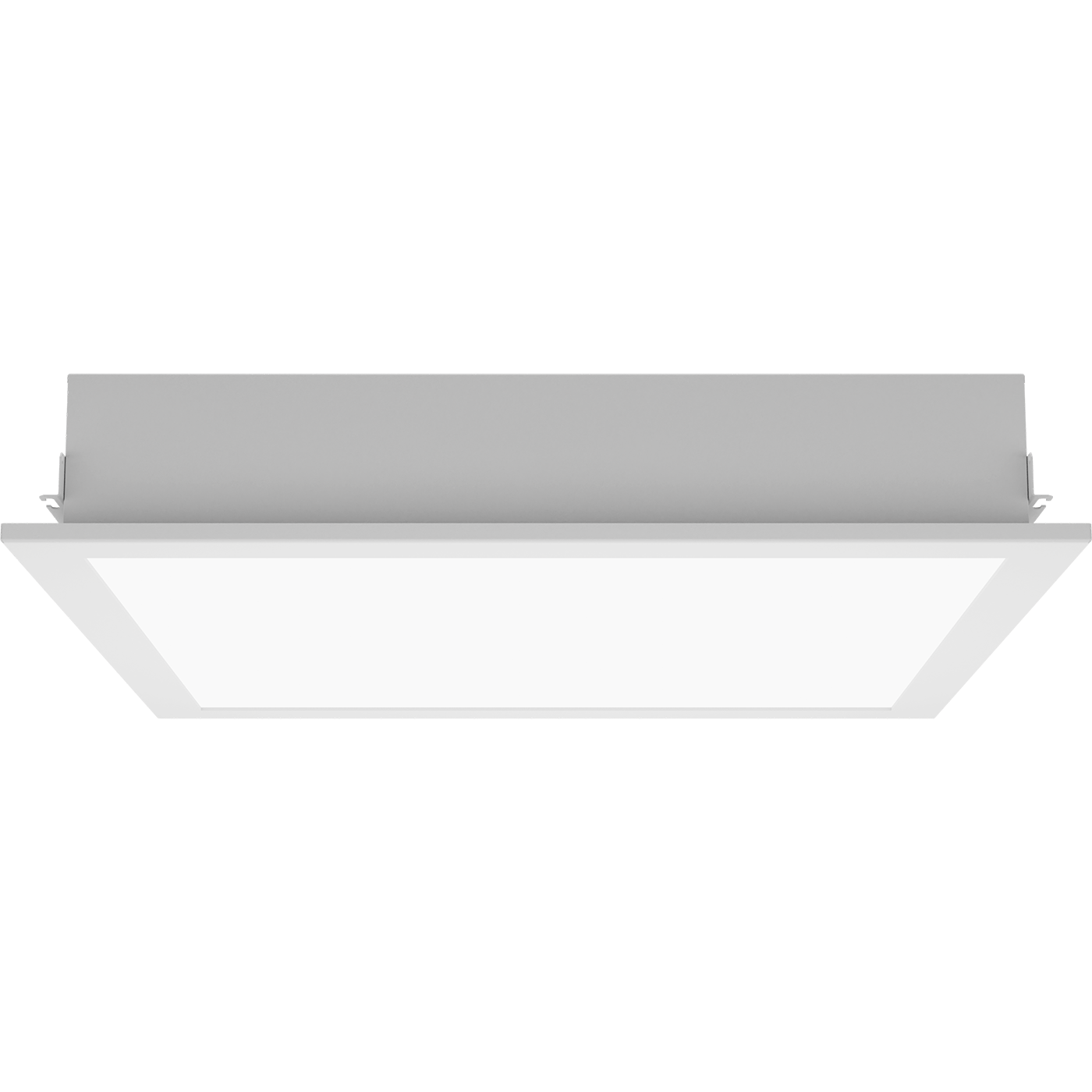

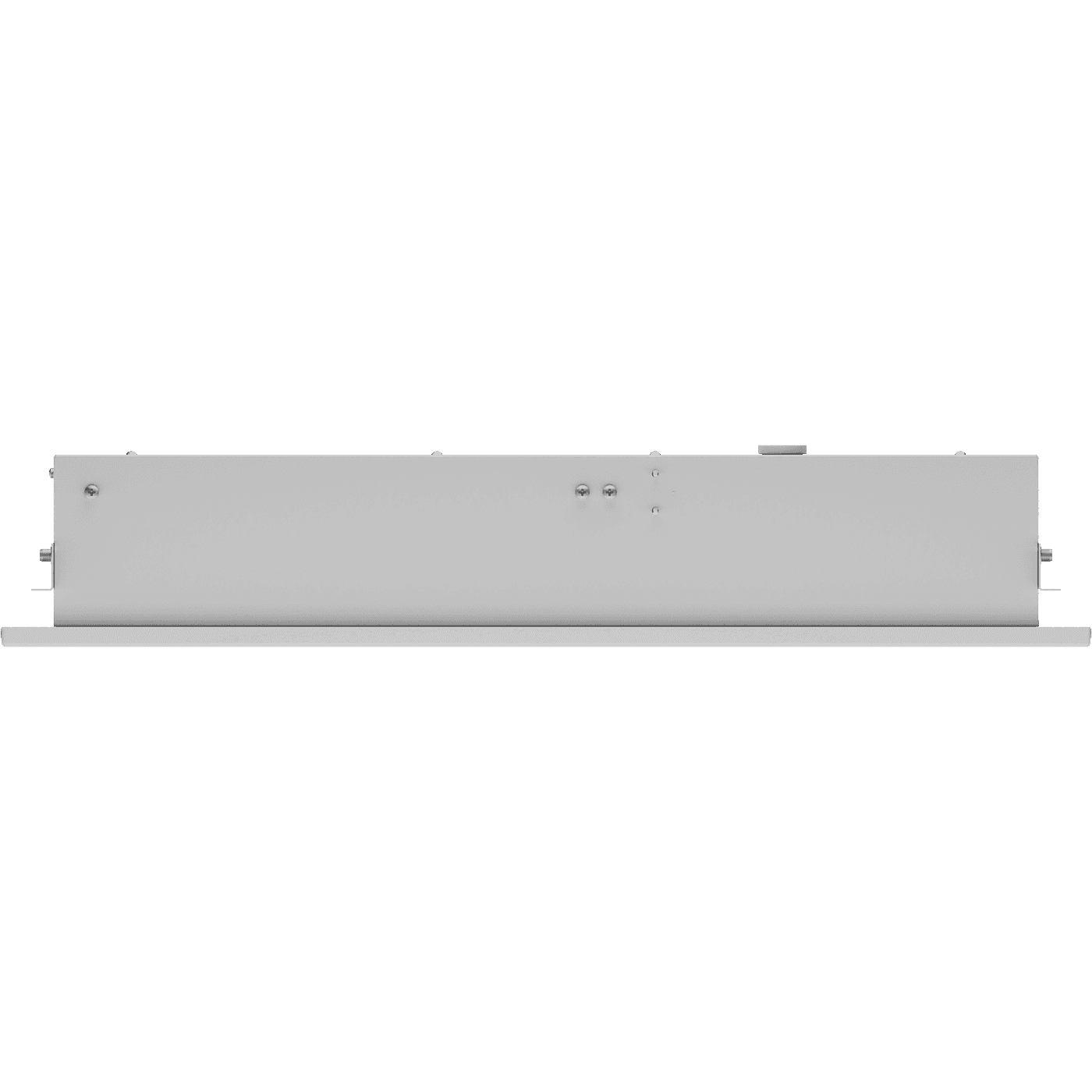

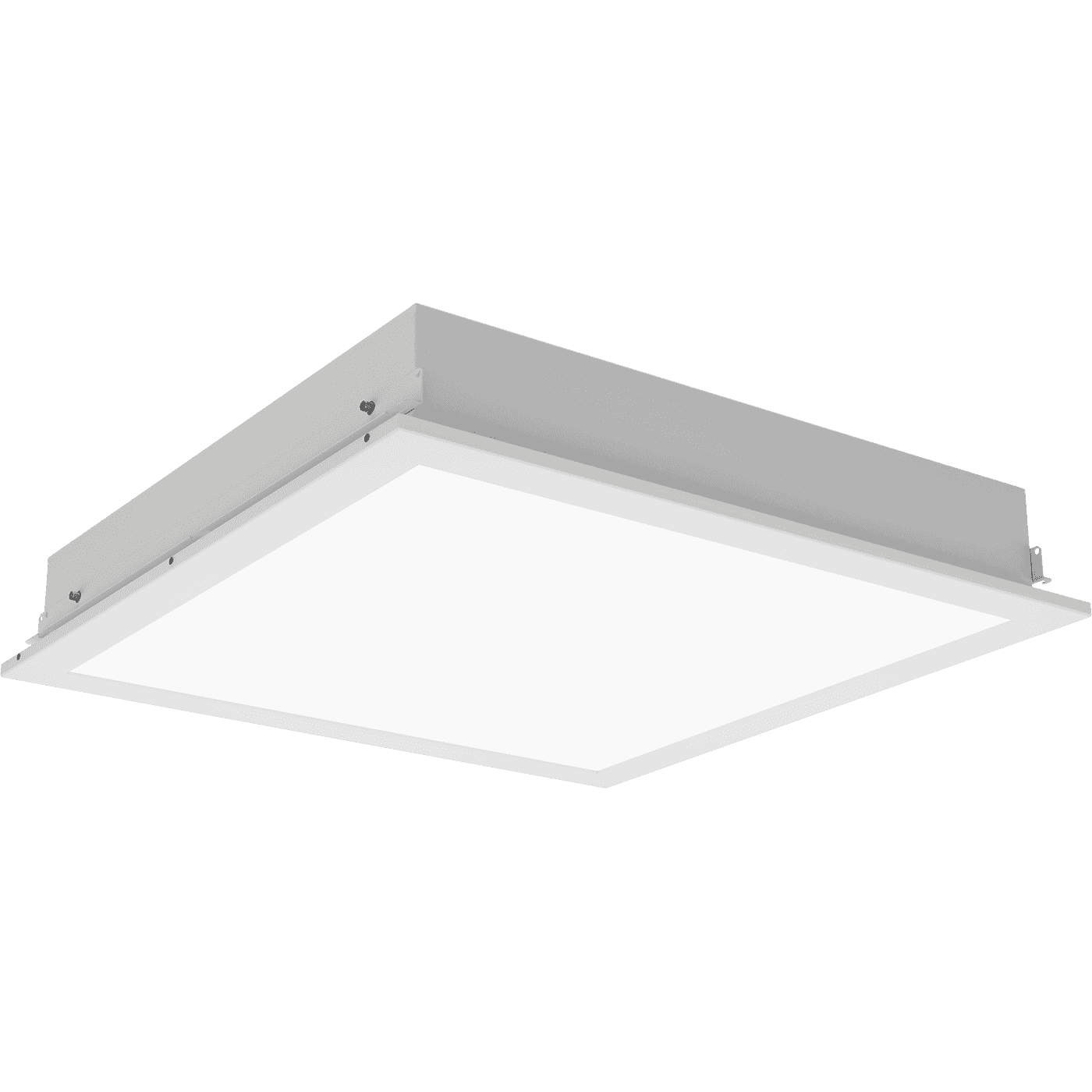

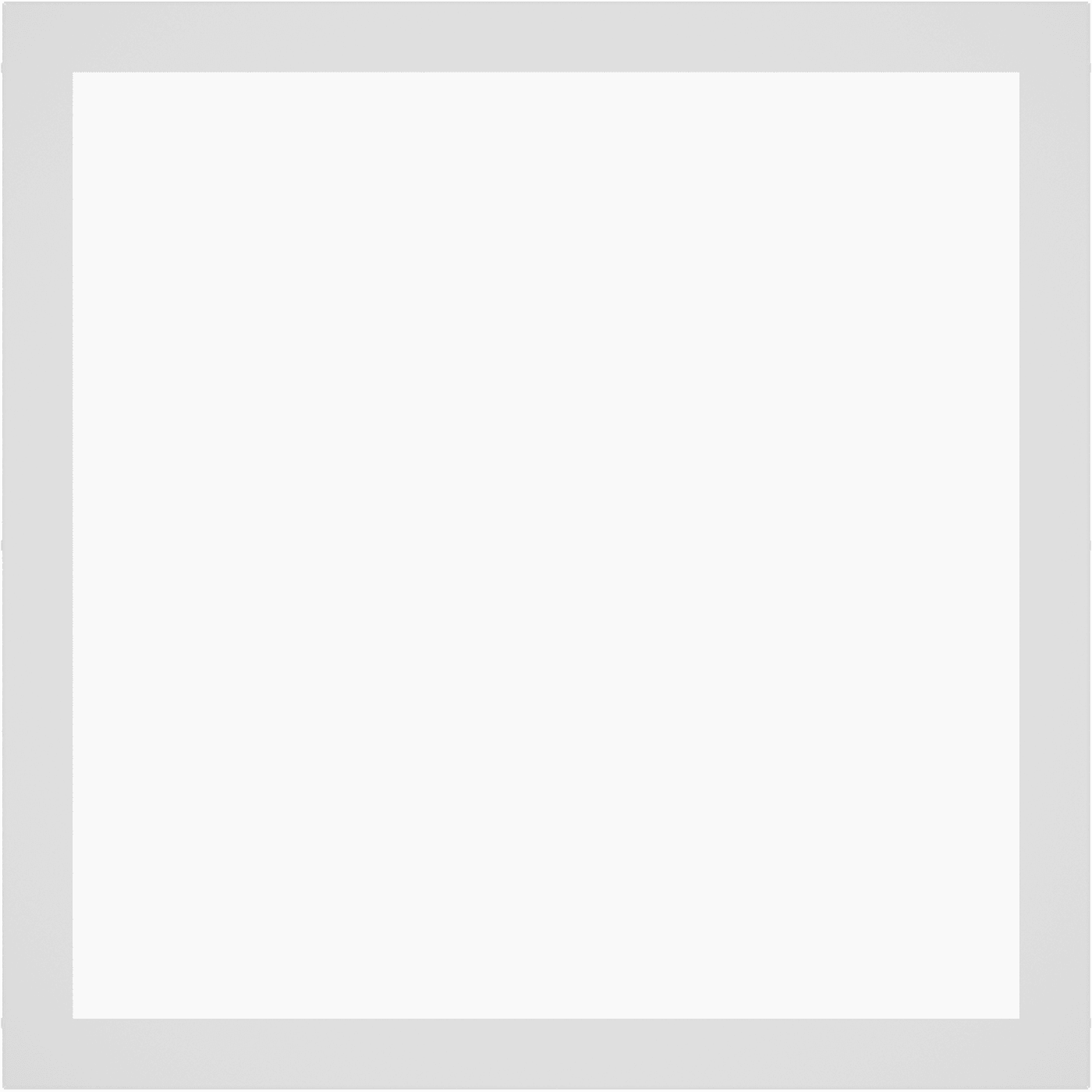

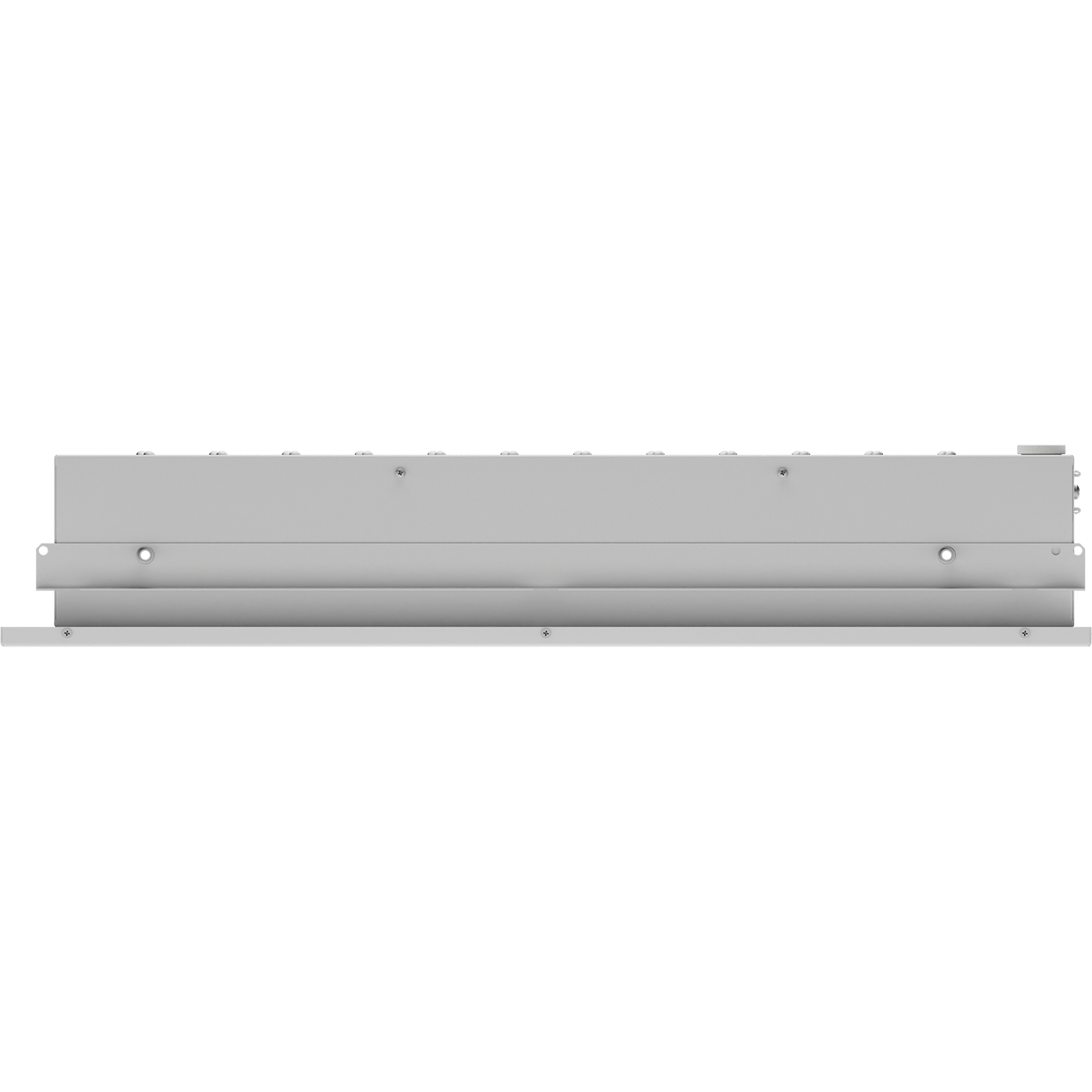

OWP/R 414 /600/ IP54/IP54 Clip-In V
add to favorites
56 Wluminaire power
code1373001830
beam angleD120
performance factor55
weight5.5 kg
number of lamps4
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. OWP/R
  7. OWP/R 414 /600/ IP54/IP54 Clip-In V
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<5%
beam angle
D120
light source type
ЛЛ
emission color
Белый
illuminating
flickering factor
<5%
beam angle
D120
light source type
ЛЛ
emission color
Белый
electrical
supply voltage
230 V
starting current
15 A
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,96
electric shock protection
I
luminaire power
56 W
constructional
height
110 mm
installation width
600 mm
installation length
600 mm
width
600 mm
length
600 mm
common
energy efficiency class
A…A+
service life
30 000 h
warranty
36 month
code
1373001830
temperature range
от +5 до +40 C
ETIM class
Настенно-потолочный светильник
model files
model files
documents
passport501.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
documents
passport501.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
